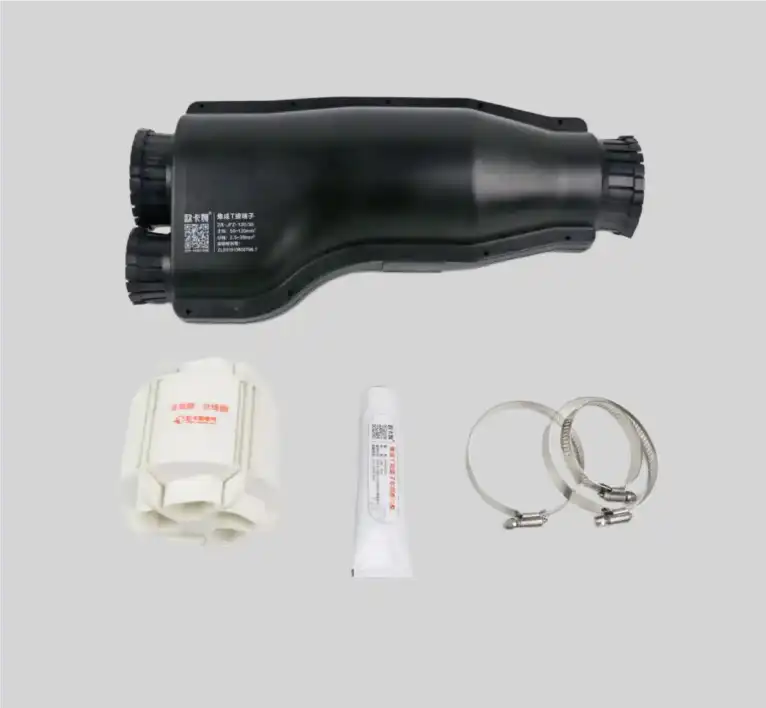

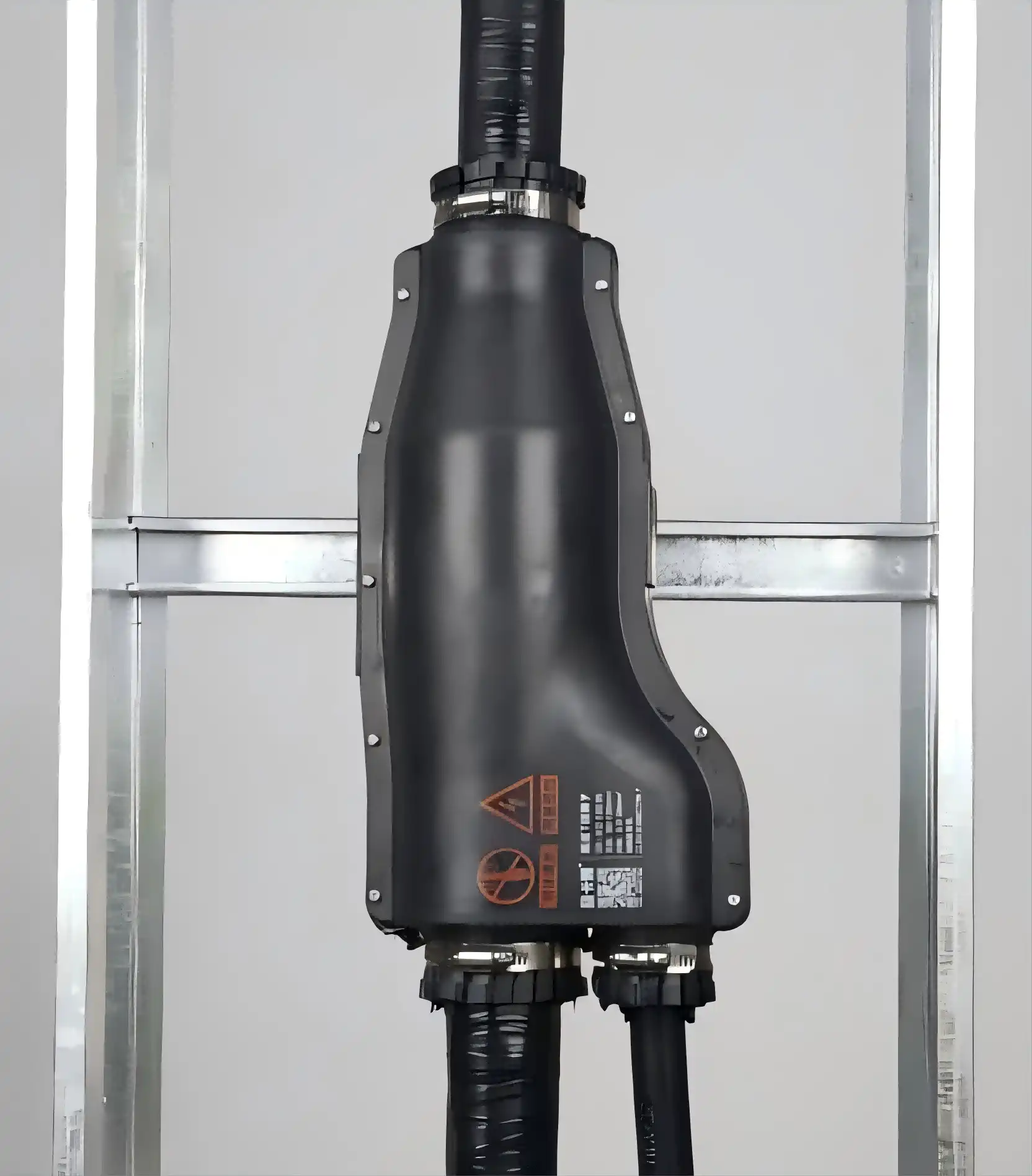

Power Cable Joint Connector
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 35~95mm, branch cable 16~70mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Power Cable Joint Connector Manufacturer & Suppliers
Xi'an OUKAMU is a professional Power Cable Joint Connector manufacturers and suppliers in China, specialized in providing cheap Power Cable Joint Connector with competitive price. For quotation, contact us now.
Introduction
The Power Cable Joint Connector, otherwise called the coordinated T-connector, is an earth-shattering innovation by Xi'an OUKAMU. Since its presentation in 2015, this connector has set another norm in cable association innovation. It improves on the method involved with multi-center main cables and branch cables, giving a consistent, secure, and tastefully satisfying answer for your electrical necessities.

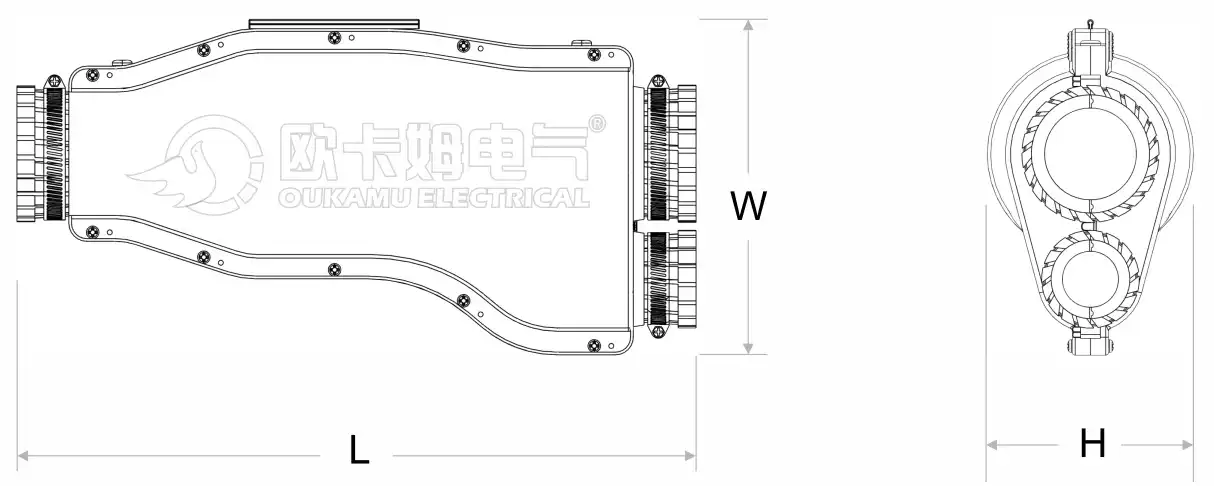

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

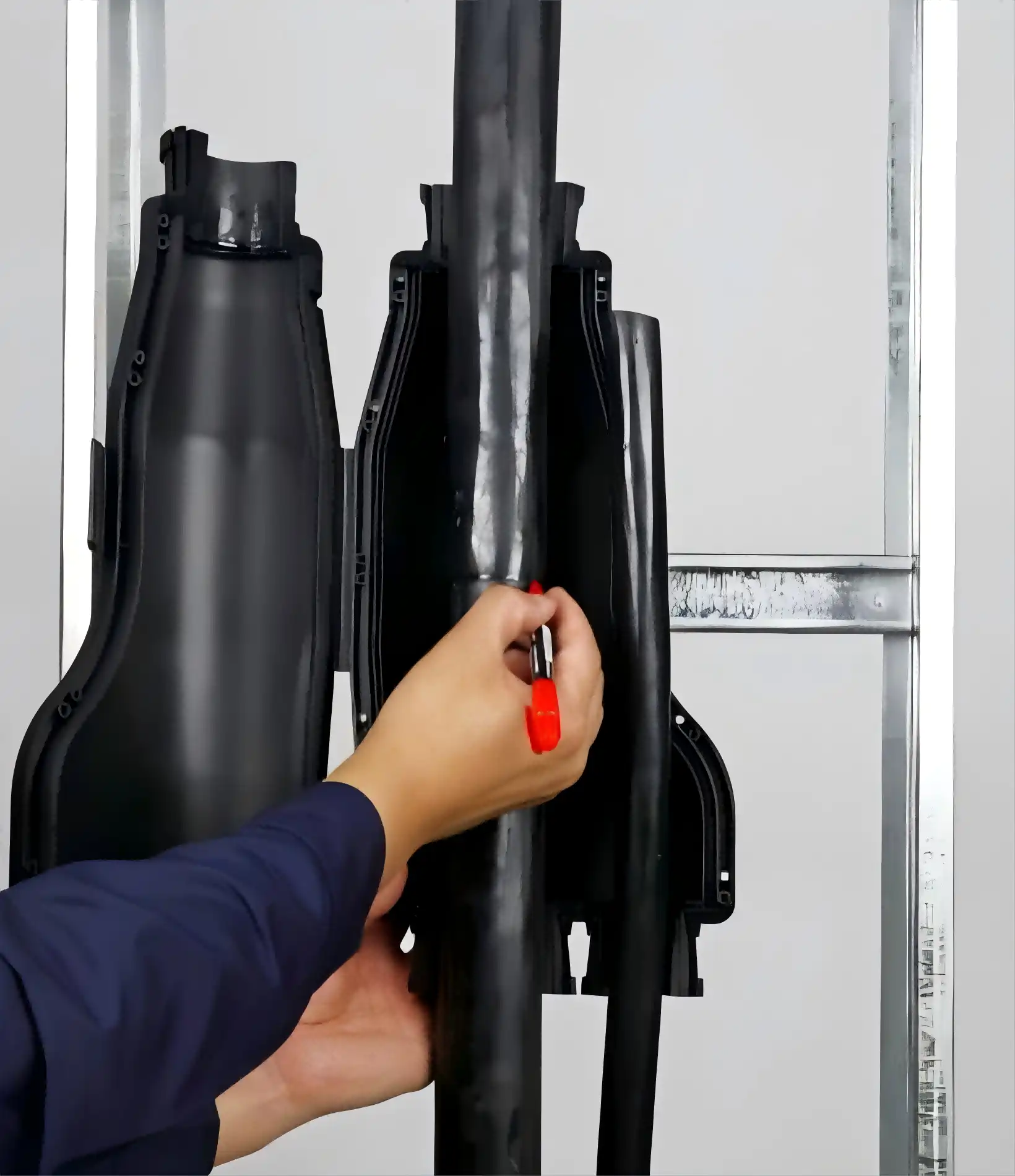

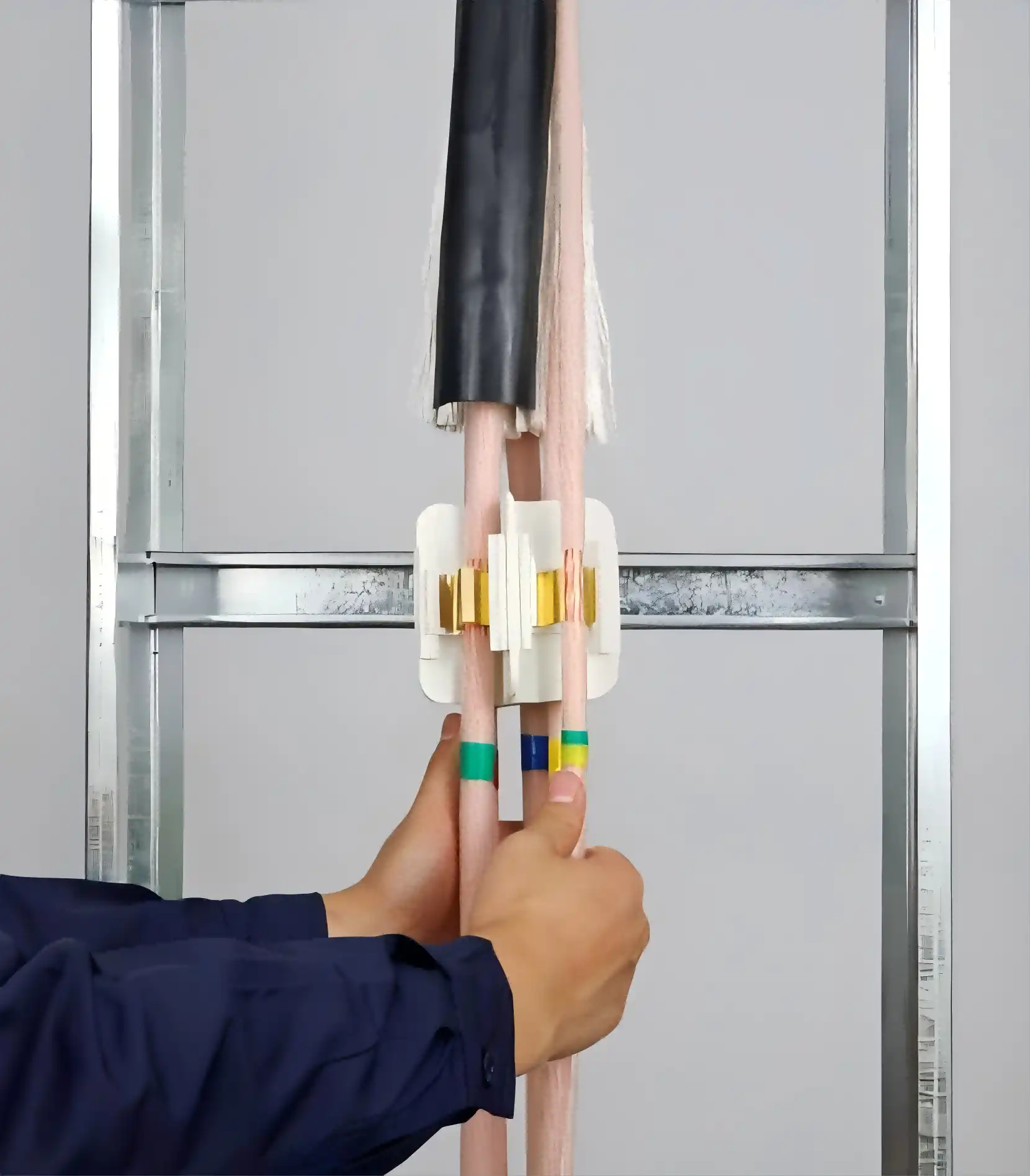

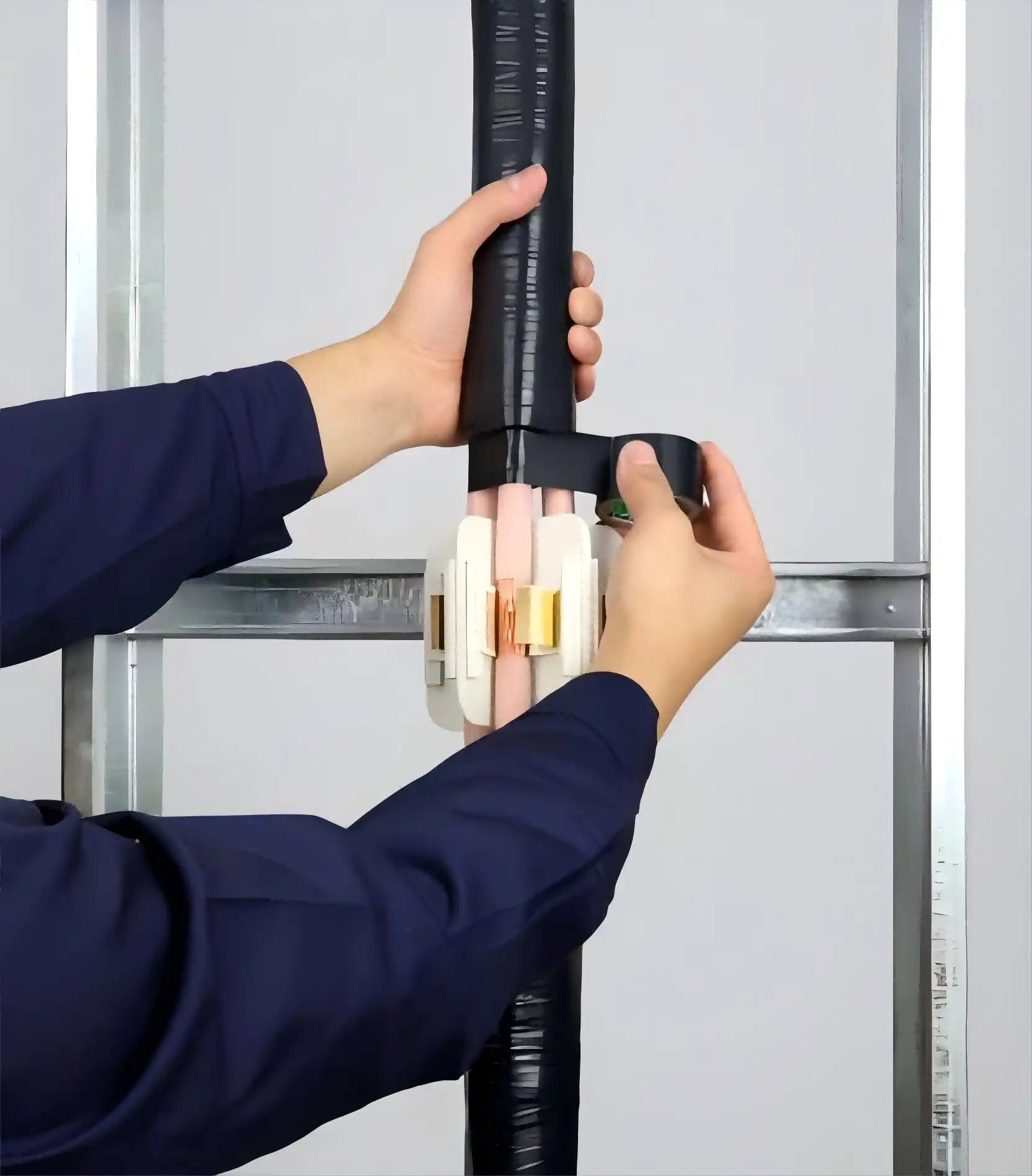

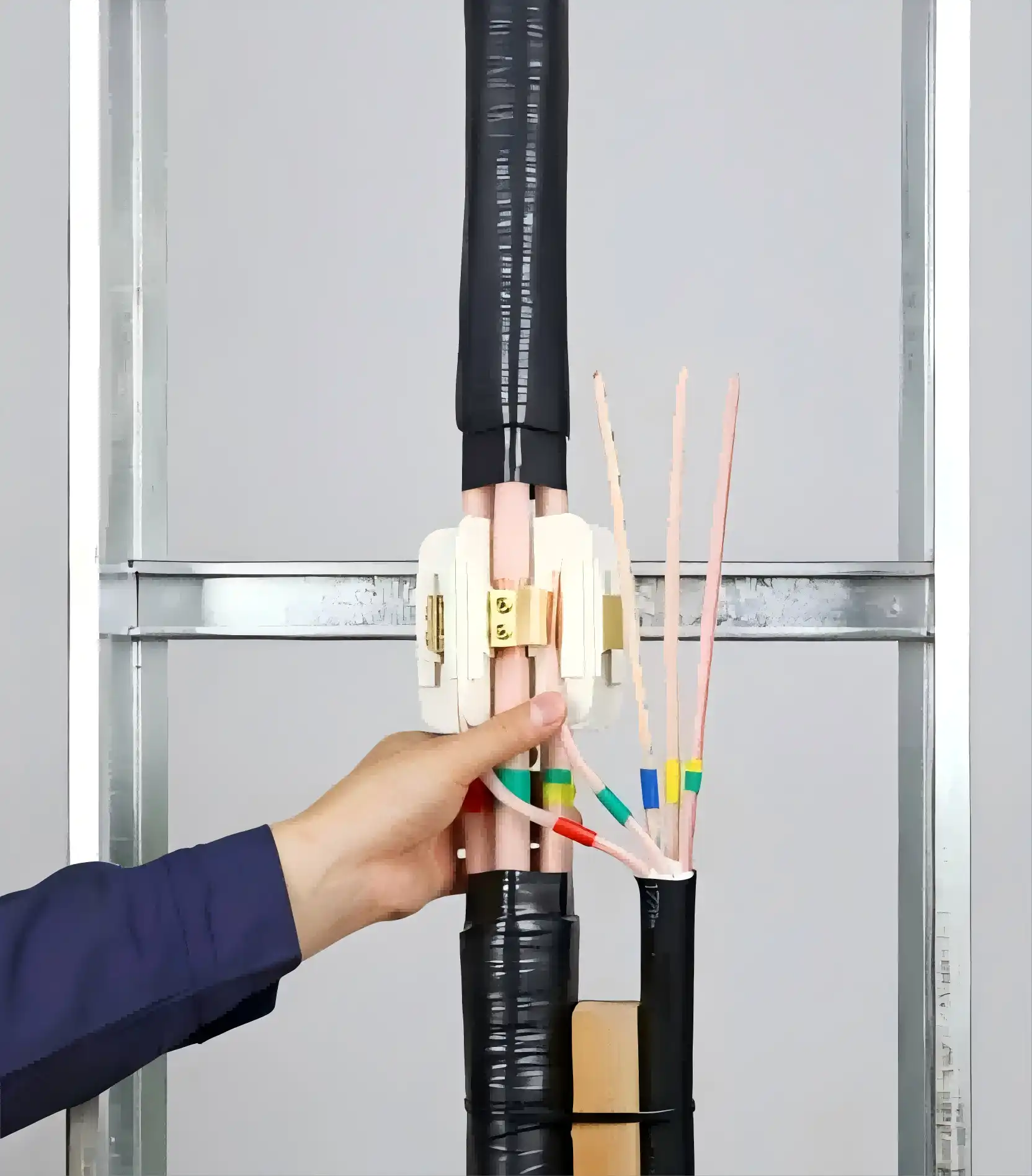

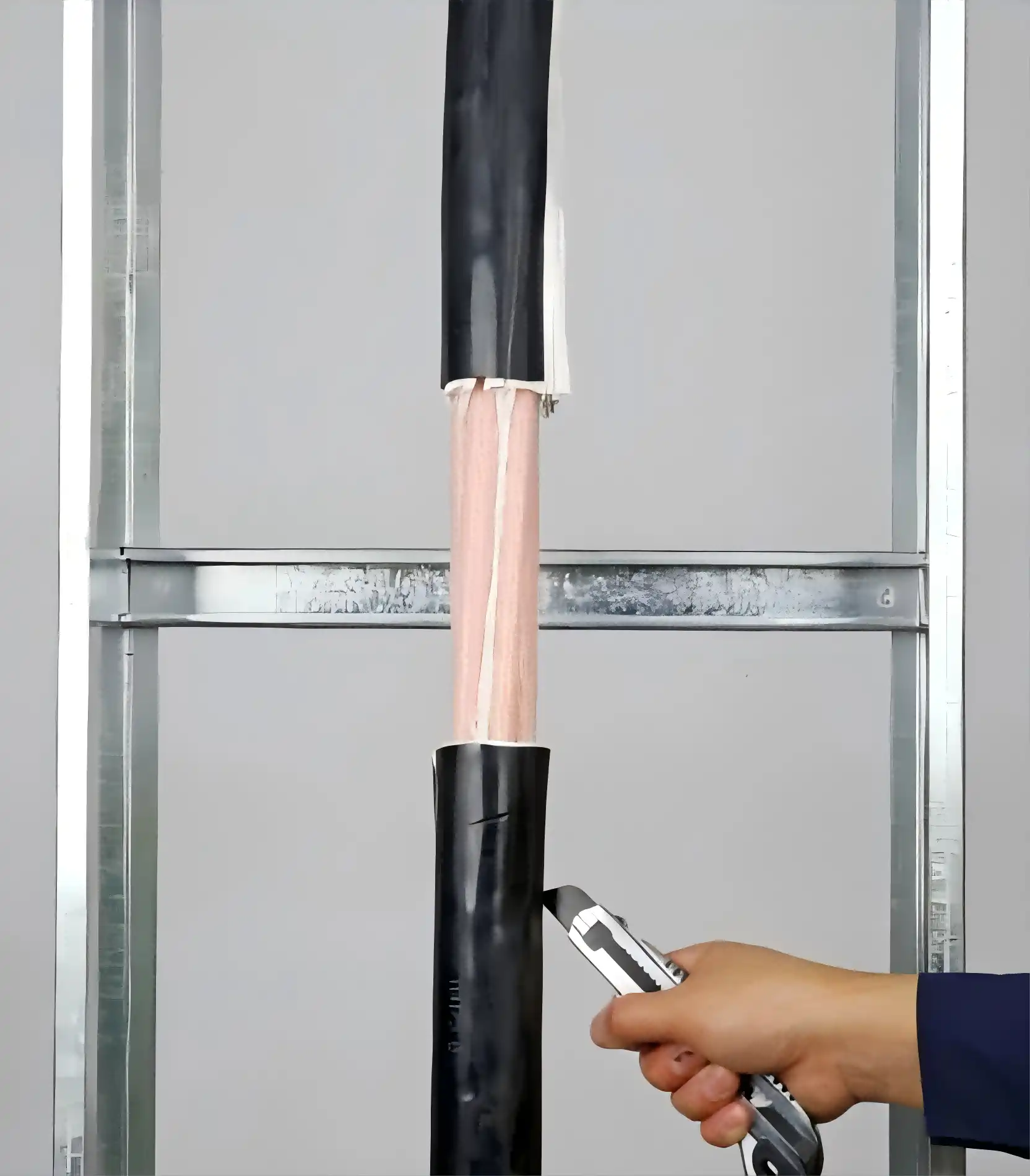

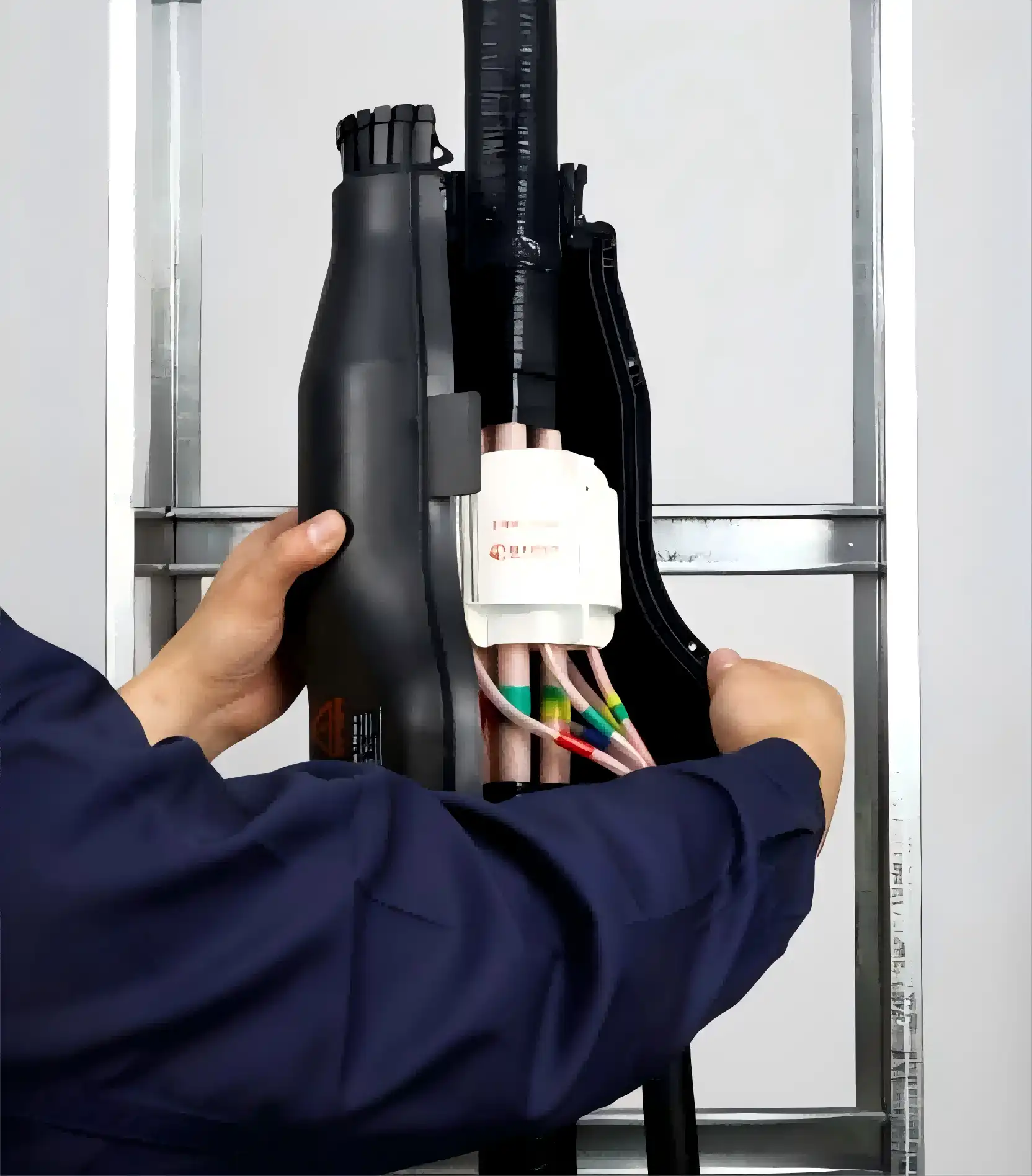

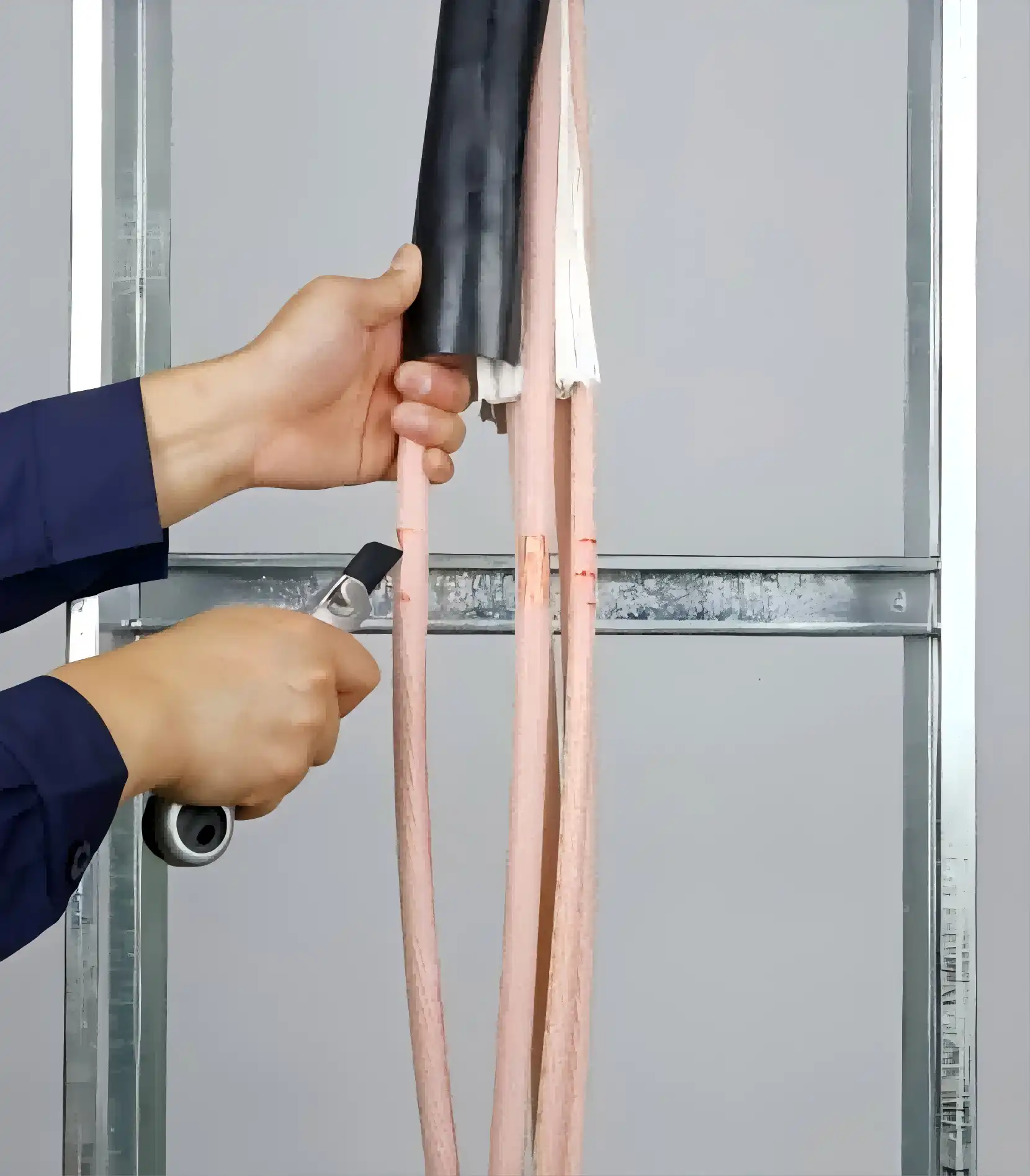

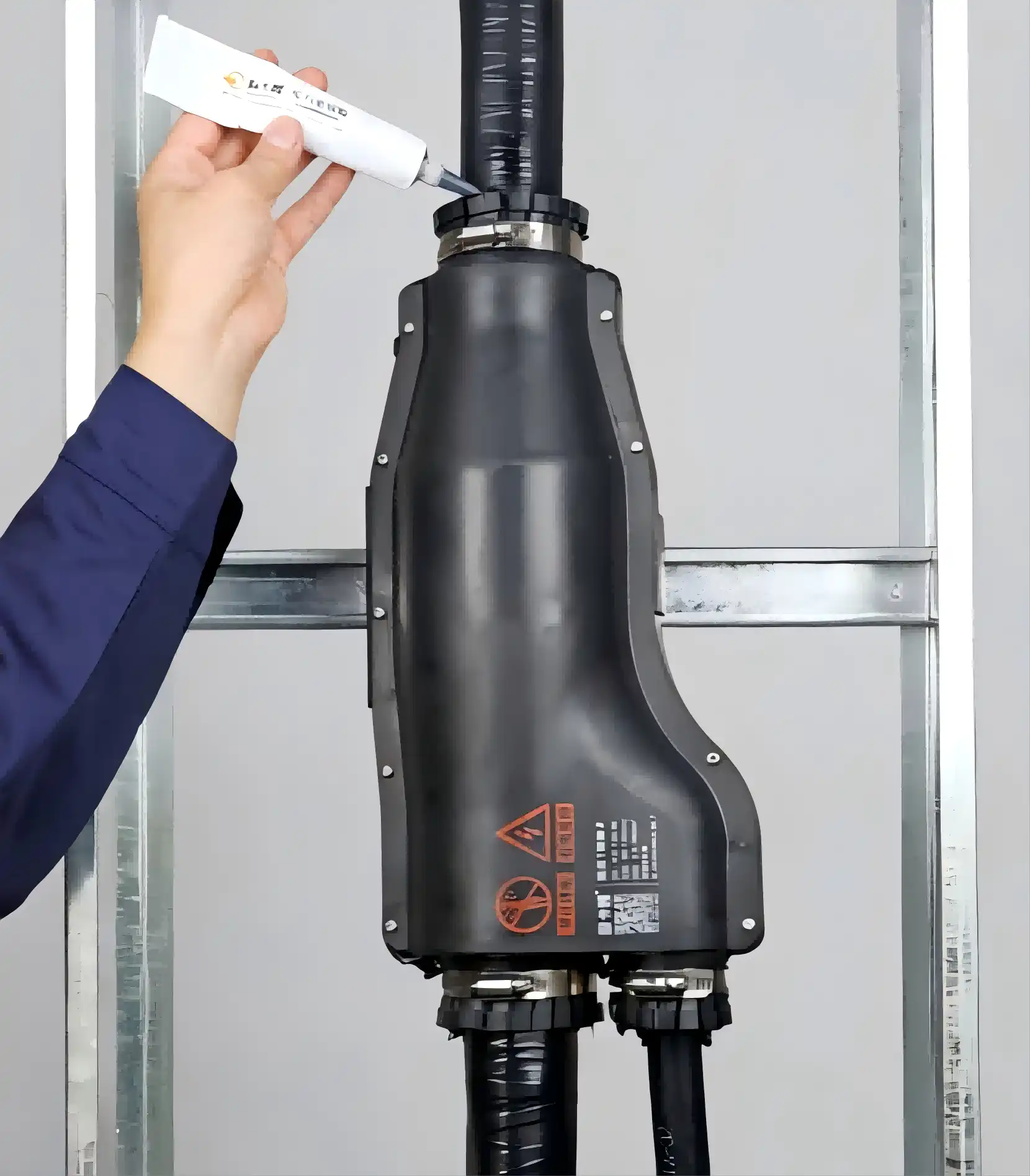

Installation Steps
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Advantages
-
Versatile On-Site Installation: Our connector allows for easy branch connections at any position without the need to cut the main cable. This flexibility is ideal for various installation scenarios, whether on-site or in a controlled environment.
-
Integrated Design: The product boasts an integrated structure that enhances safety and reliability. Its compact and elegant design not only saves space but also ensures a clean and professional installation.
-
Durable and Reliable: Constructed with high-quality materials, the connector is flame-retardant, fire-resistant, dustproof, and waterproof. It’s engineered to withstand harsh conditions, including anti-aging and anti-electrochemical corrosion.
-
Cost-Efficient: By reducing the need for additional cables and saving on labor, this connector offers a low overall cost solution. Its ease of maintenance and reusability further add to its cost-effectiveness.
Technical Features
- No Main Cable Cutting Required: The connector allows for direct branch connections without disrupting the main cable.
- Integrated Connection: Both main and branch cables are connected through the flame-retardant/fire-resistant insulated body of the T-connector.
- Complete Insulation: The entire branch cable is insulated and sealed, providing comprehensive protection.
Application
The Power Cable Joint Connector is explicitly intended for use with insulated waterproof, low-voltage fire-resistant, heatproof, and mineral-protected heat-proof cables. Its flexibility makes it reasonable for a large number of uses, including private, business, and modern settings.
OEM Service
At Xi'an OUKAMU, we comprehend that each undertaking has novel prerequisites. Our OEM administrations offer fitted answers to meet your particular necessities. Whether you require altered plans or concentrated highlights, our group is here to help you accomplish the ideal cable association arrangement.
FAQ
Q: What types of cables can the product be used with?
A: It is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q: Is the connector suitable for outdoor use?
A: Yes, the connector is designed to be waterproof and dustproof, making it suitable for various environmental conditions.
Q: Can the connector be reused?
A: Absolutely. The Power Cable Joint Connector is designed for convenience, allowing for reuse and easy maintenance.
Q: How does the installation process work?
A: The connector allows for on-site installation without the need to cut the main cable, simplifying the branching process.
Contact Us
For more information about the Power Cable Joint Connector or to discuss your specific needs, please reach out to us at info@okmbranchcable.com. Our team is ready to provide you with expert guidance and support.
