Waterproof Cable Joint Kit
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance

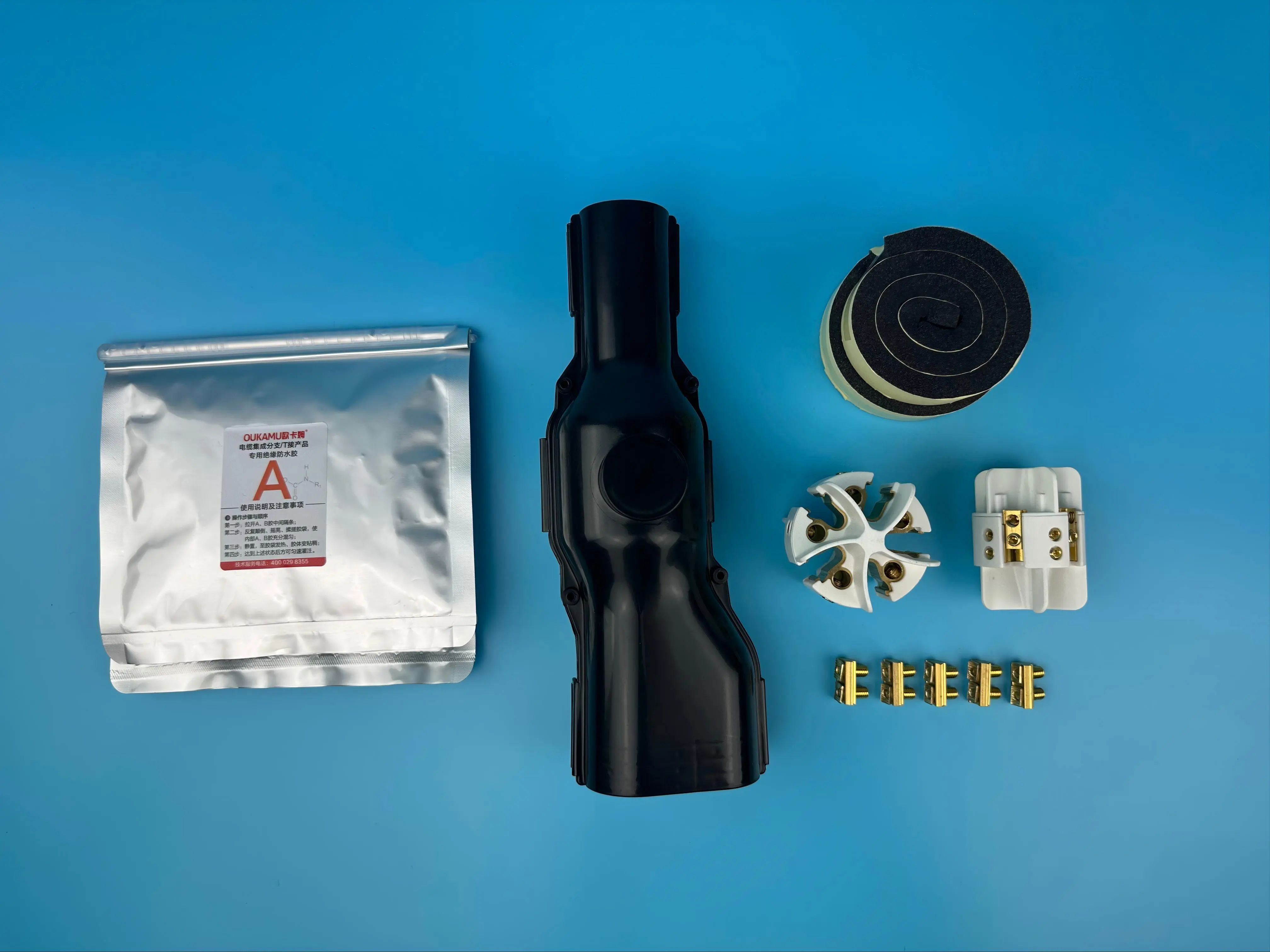

Waterproof Cable Joint Kit Introduction
Our Waterproof Cable Joint Kit is intended to smooth out the association of multi-center main and branch cables. This state of the art arrangement considers fast, safe, and tastefully satisfying associations on location, without the need to cut the storage compartment cable. It's great for low-voltage fire resistant, heat proof, and mineral-protected fireproof cables.
With its consistent coordination and strong development, the kit guarantees dependable execution in different conditions, settling on it a flexible decision for experts in the field.

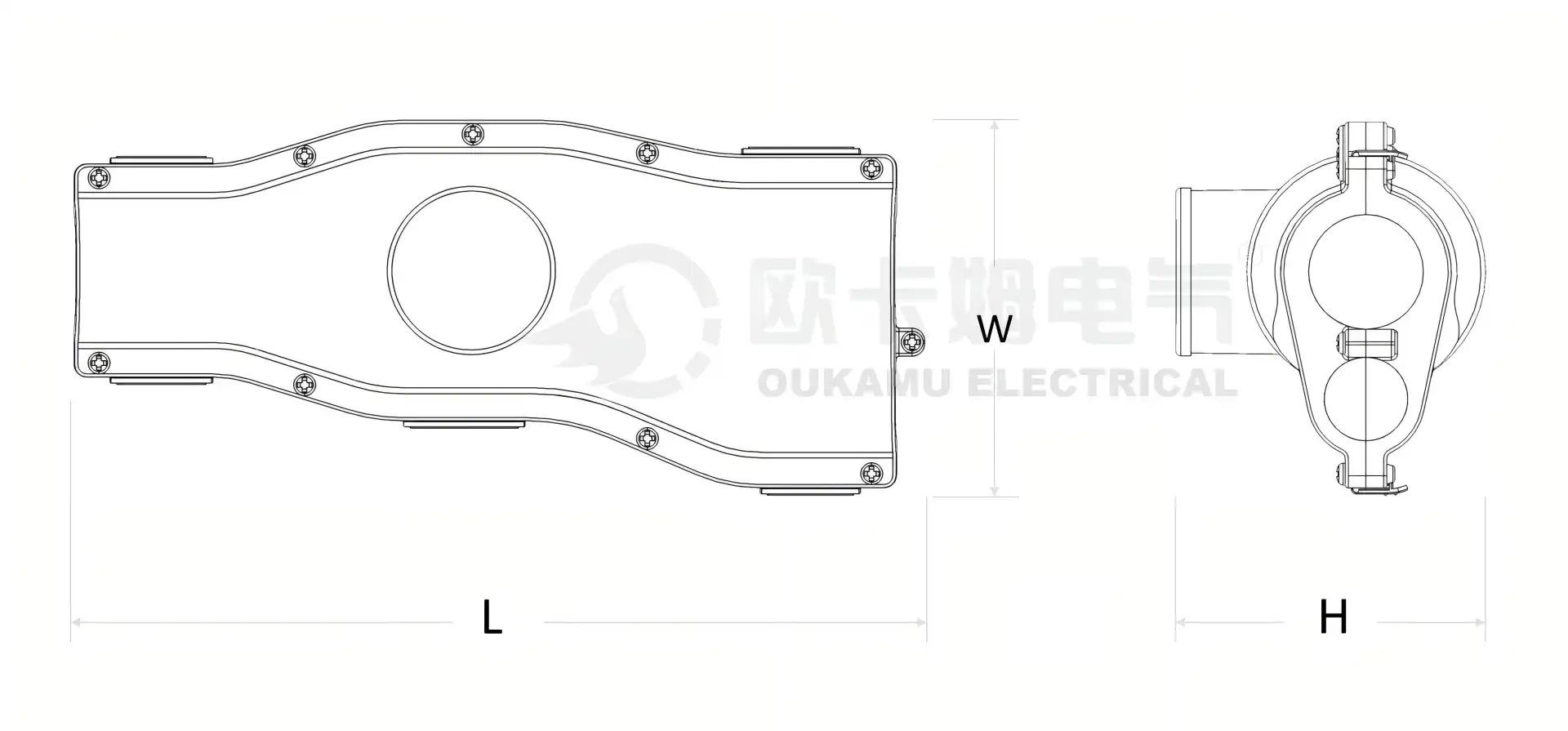

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantages
1. On-Site Flexibility
One of the standout features of our product is its ability to perform branch connections at any position on-site. This flexibility reduces installation time and minimizes disruptions, making your project more efficient.
2. Integrated and Aesthetic Design
Our T-connector combines safety and style. The integrated design ensures that connections are not only secure but also visually appealing. Its compact structure means it can be installed both openly and within cable bridges, saving space and contributing to a cleaner overall look.
3. Durability and Reliability
The kit is built to withstand harsh conditions. It's flame-retardant, fire-resistant, dustproof, waterproof, and resistant to aging and electrochemical corrosion. This durability ensures long-term reliability and reduces maintenance needs.
4. Cost-Effective Solution
By saving cable lengths, reducing building area requirements, and minimizing labor costs, our Waterproof Cable Joint Kit provides a low overall cost solution without compromising quality or performance.
Technical Features
- No Main Cable Cutting: The main cable remains intact, avoiding the complexities and risks associated with cutting.
- Integrated Connection: Main and branch cables connect through the waterproof/flame-retardant/fire-resistant insulated body of the T-connector.
- Insulation and Sealing: The entire branch cable is insulated and sealed to ensure optimal performance.
Application
The product is suitable for various applications, including:
- Industrial Installations: Ideal for factories and industrial environments where safety and durability are crucial.
- Construction Sites: Perfect for use on construction sites where flexibility and on-site installation are essential.
- Infrastructure Projects: Useful for large infrastructure projects requiring reliable and durable cable connections.
- Residential Projects: Suitable for residential applications needing a secure and aesthetically pleasing solution.
OEM Service
At Xi'an OUKAMU, we offer complete OEM administrations to meet your particular necessities. Whether you require specially crafts, explicit arrangements, or mass requests, our group is prepared to team up with you to convey custom fitted arrangements that line up with your undertaking prerequisites.
FAQ
1. How do I install the Waterproof Cable Joint Kit?
Installation is straightforward. The kit allows for on-site connections without the need to cut the main cable. Simply connect the main and branch cables to the T-connector and ensure proper clamping and sealing.
2. What types of cables are compatible with this kit?
The kit is designed for insulated waterproof, low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
3. Can the kit be used in outdoor environments?
Yes, the kit is waterproof and resistant to environmental factors, making it suitable for both indoor and outdoor use.
4. Is the kit reusable?
Yes, the kit is designed for convenience and can be reused, which contributes to its cost-effectiveness.
5. How do I maintain the product?
Routine inspections are recommended to ensure the integrity of the connections and seals. Regular maintenance helps ensure long-term performance and reliability.
