Armoured Cable Branch Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Armoured Cable Branch Joint Introduction
In the world of electrical connections, reliability and efficiency are paramount. The Armoured Cable Branch Joint, a innovative product from Xi'an OUKAMU, is a game-changer in the industry. Our product is designed to provide a safe, reliable, and efficient way to connect multi-core main cables and multi-core branch cables.

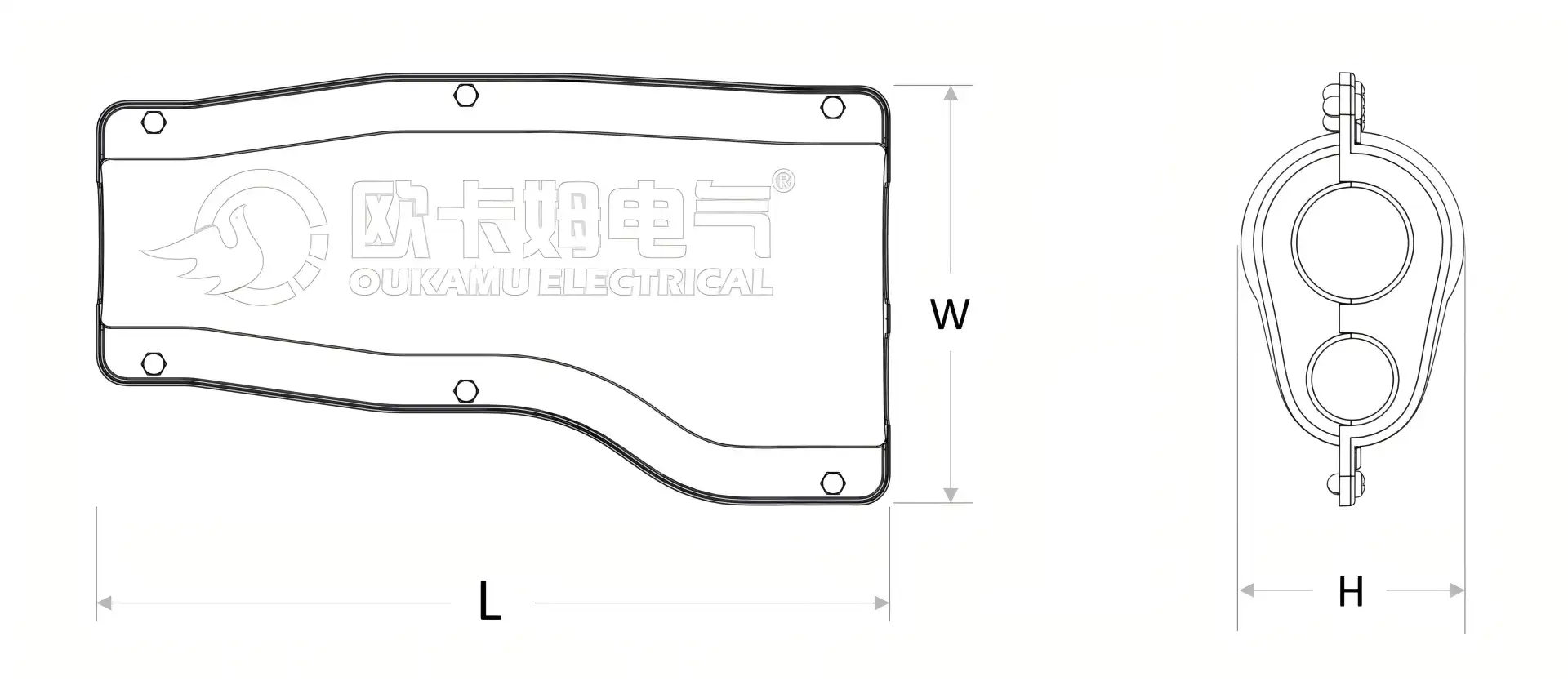

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |
Installation Steps

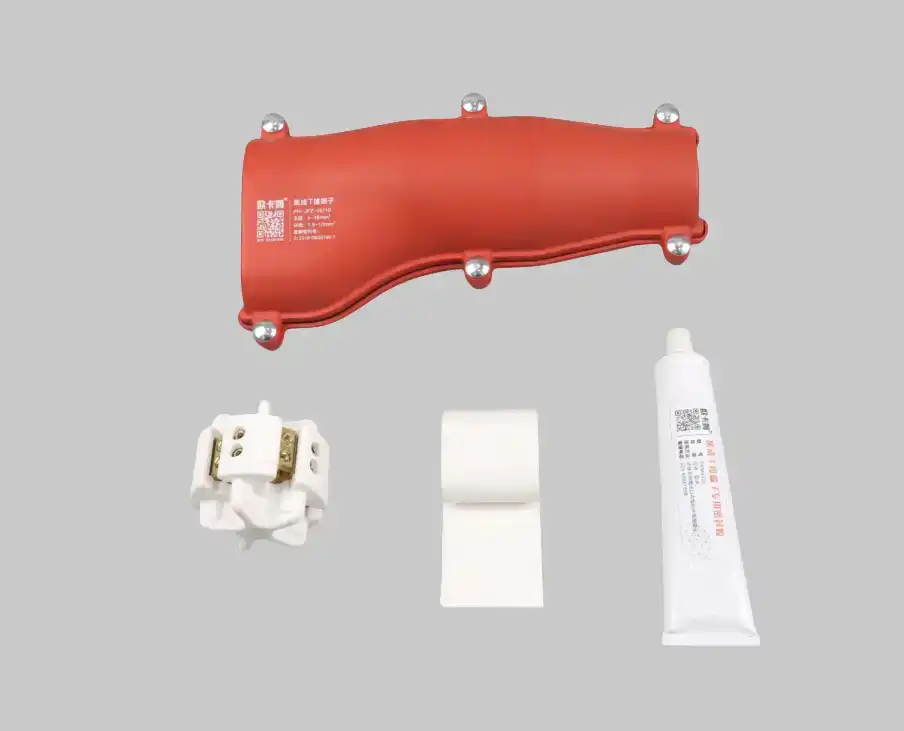

1.Tools

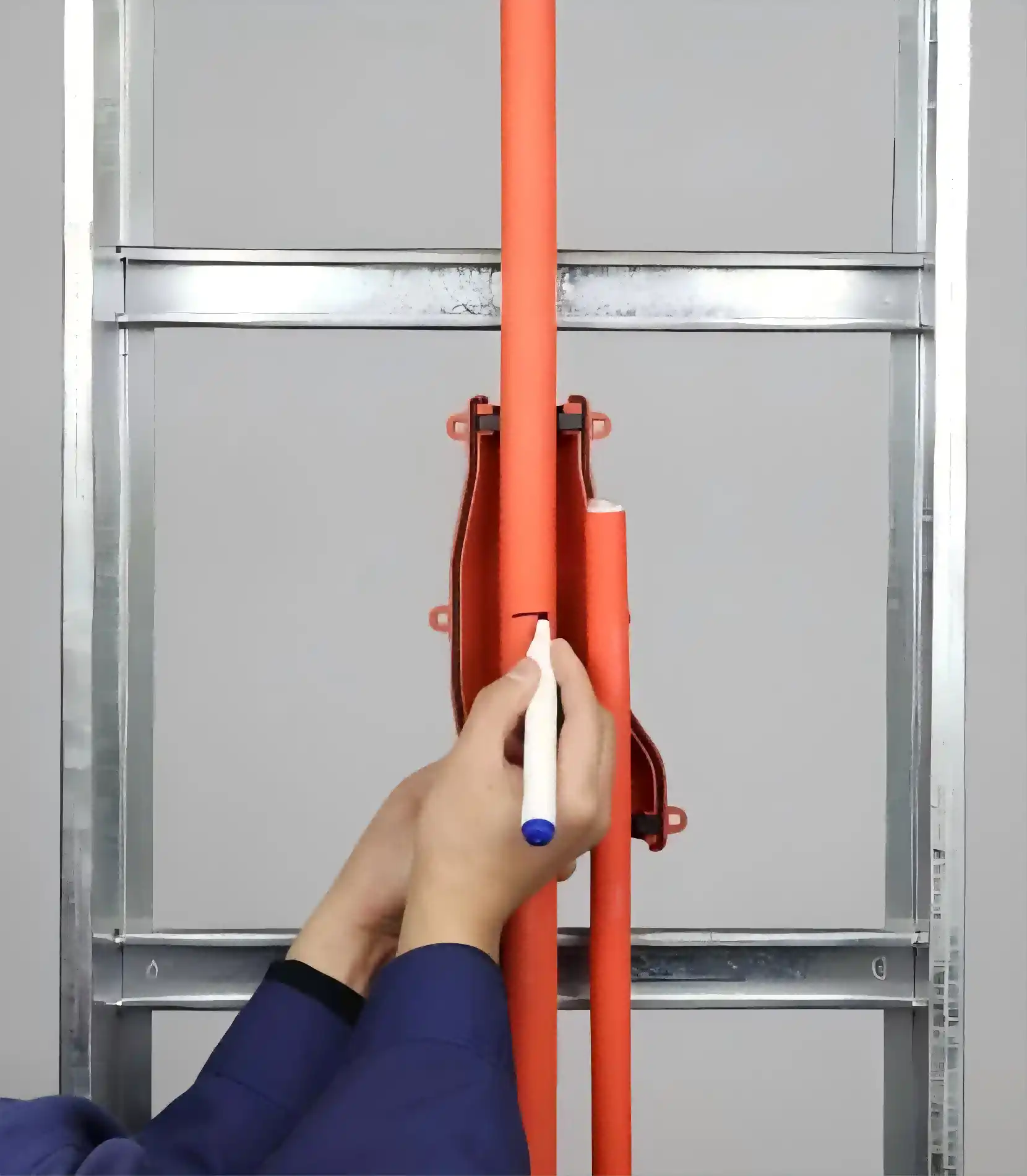

2.Determine the installation location

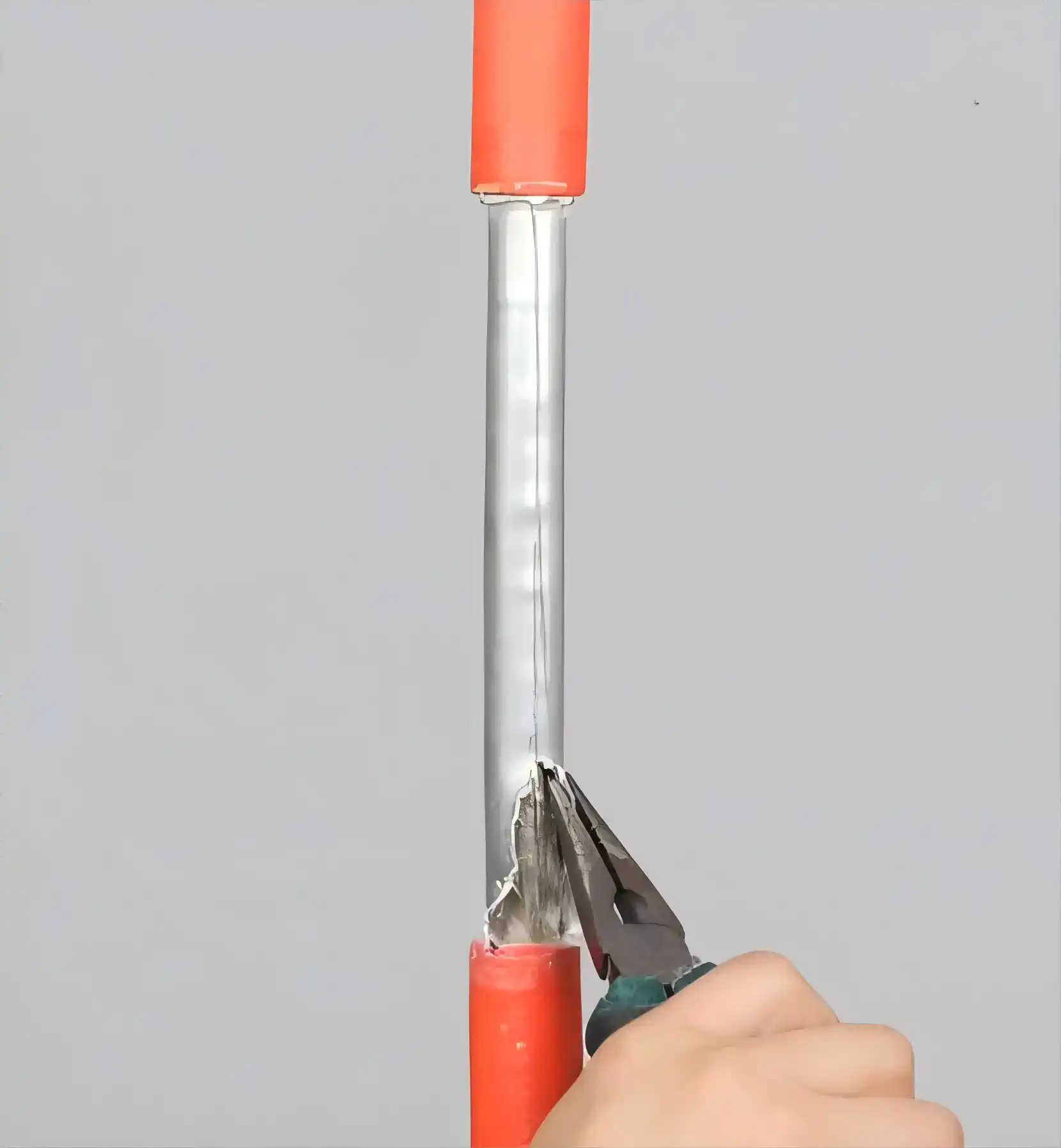

3.Strip the outer sheath and metal layer

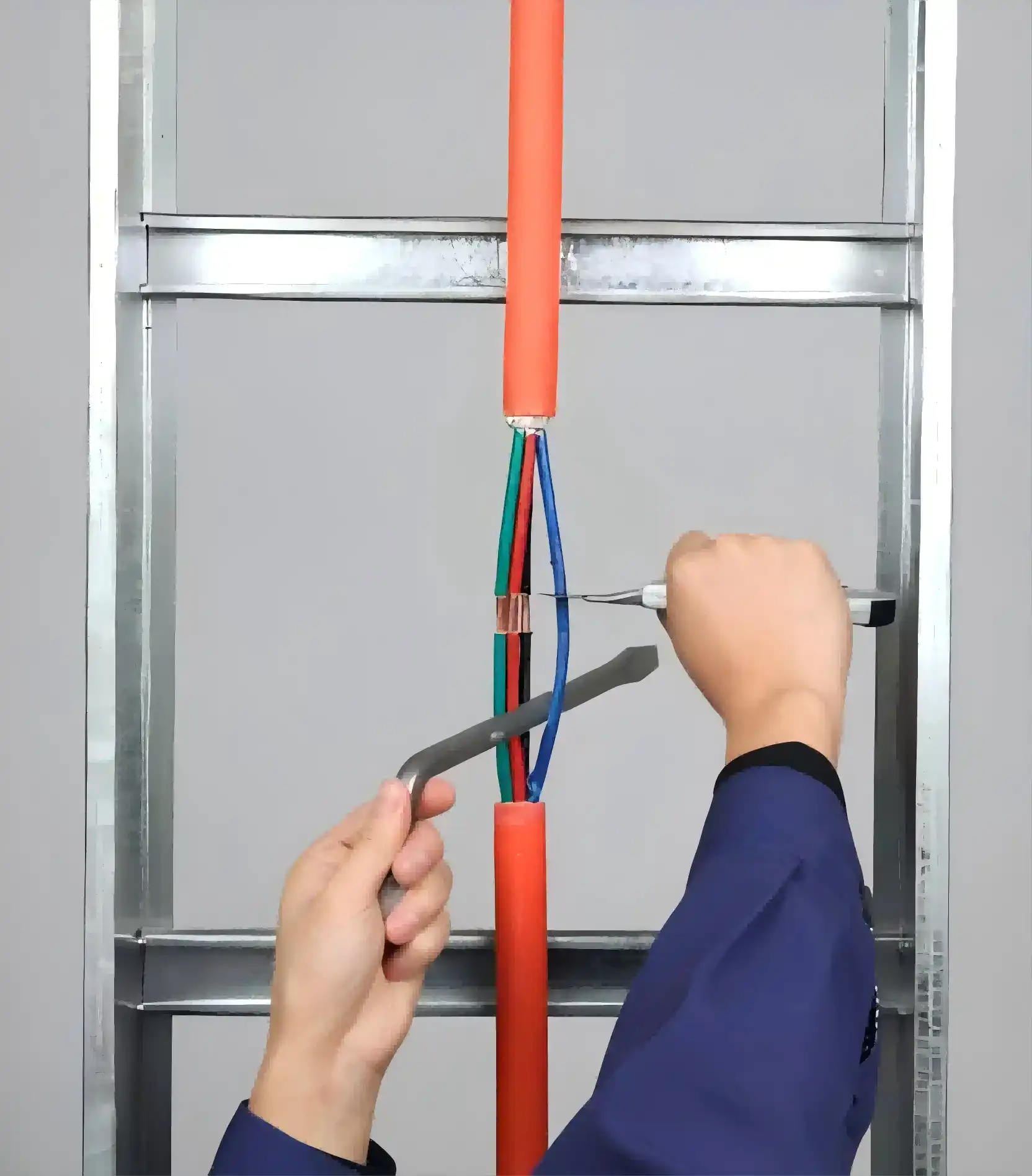

4.Stripping of main cable insulation

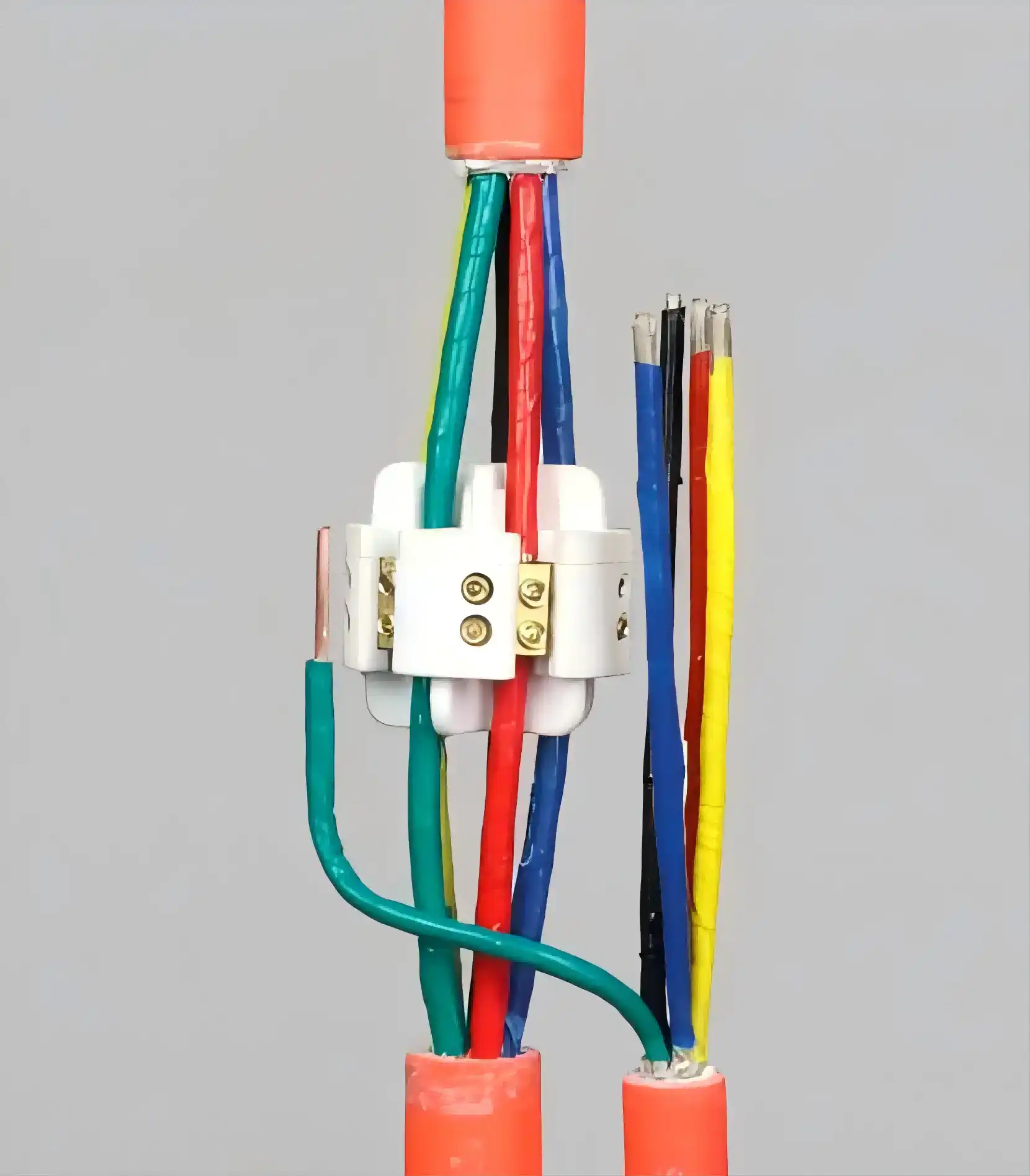

5.Install the branch cable body

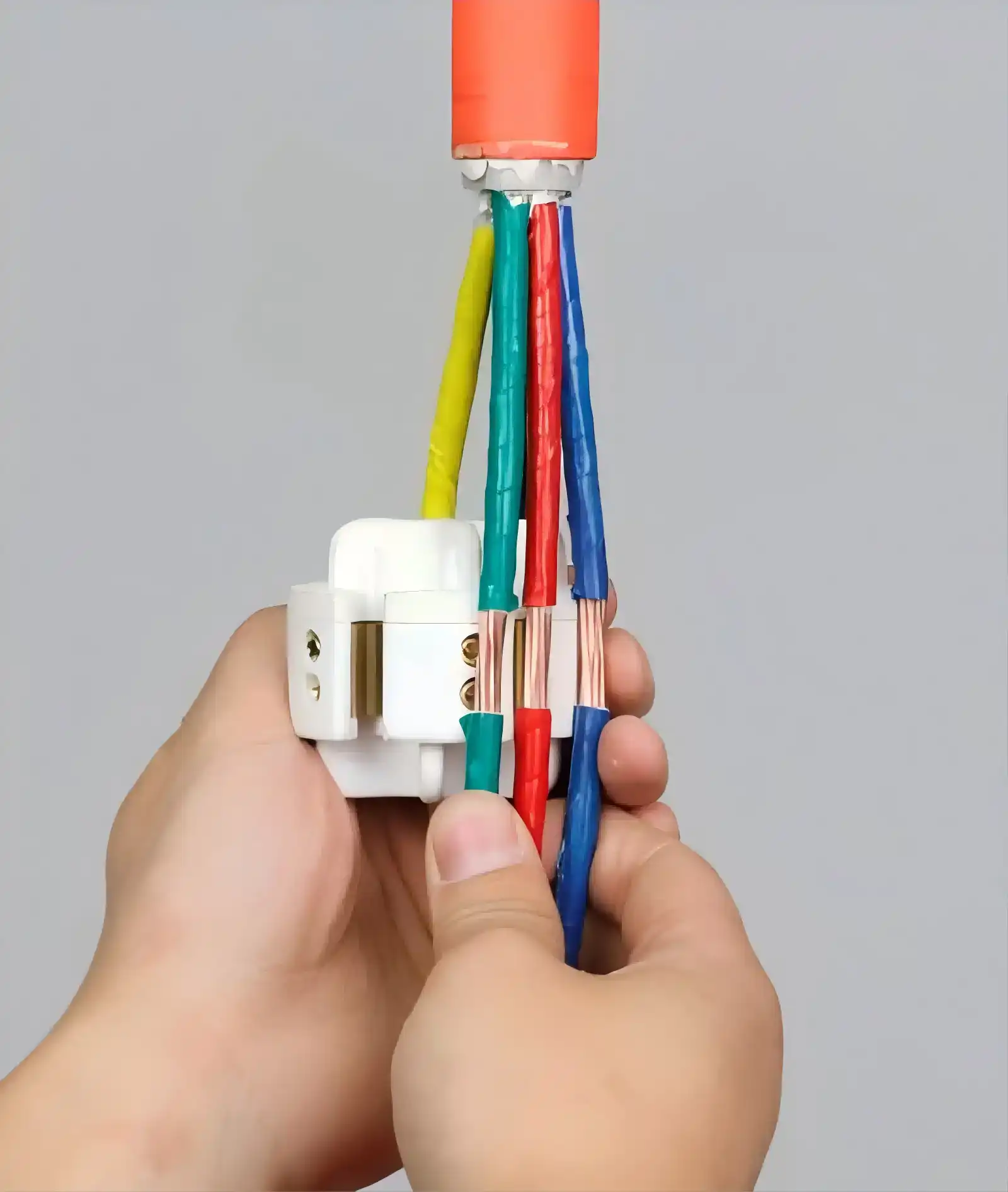

6.Install the branch cables

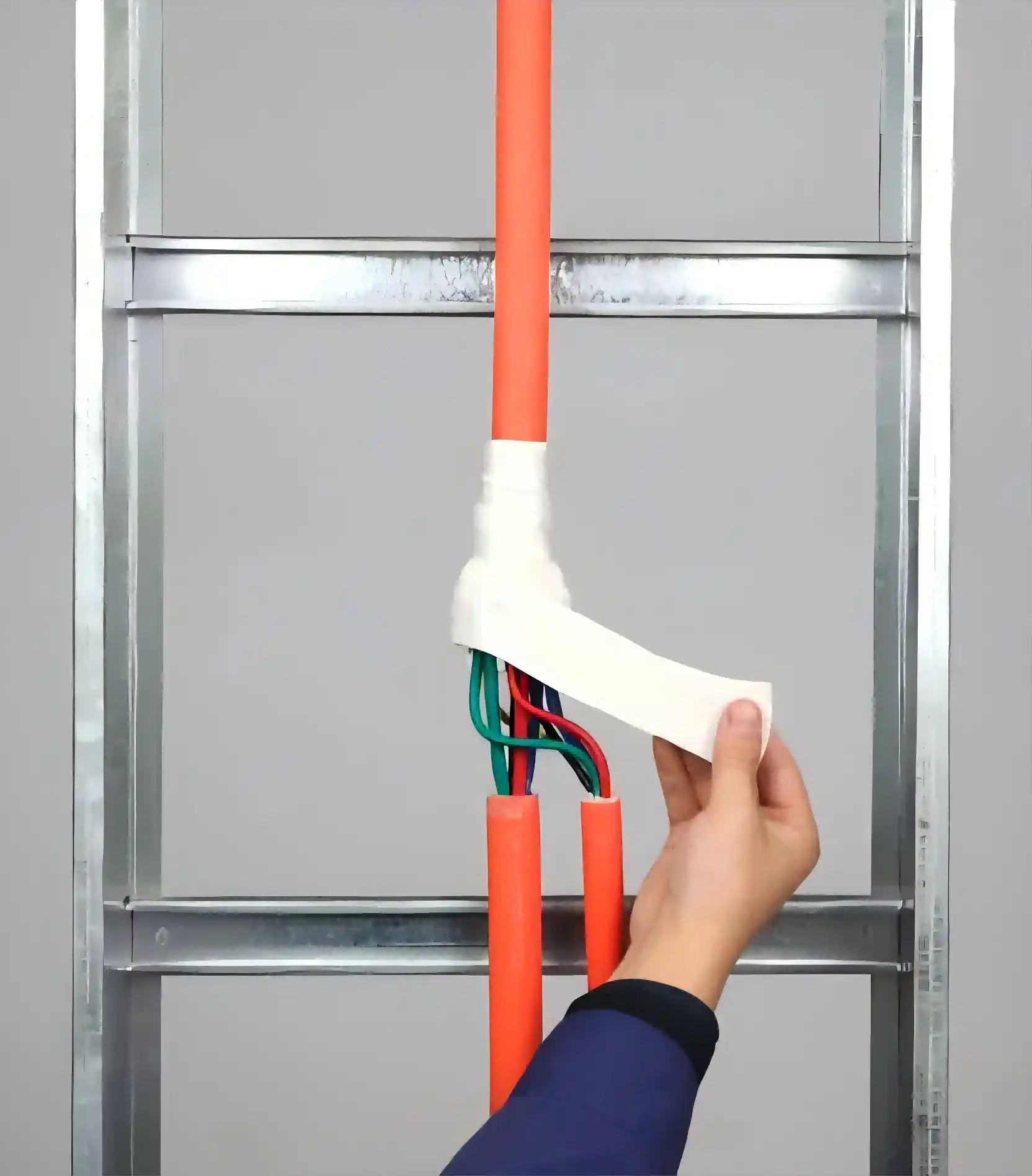

7.Wrap insulation refractory adhesive

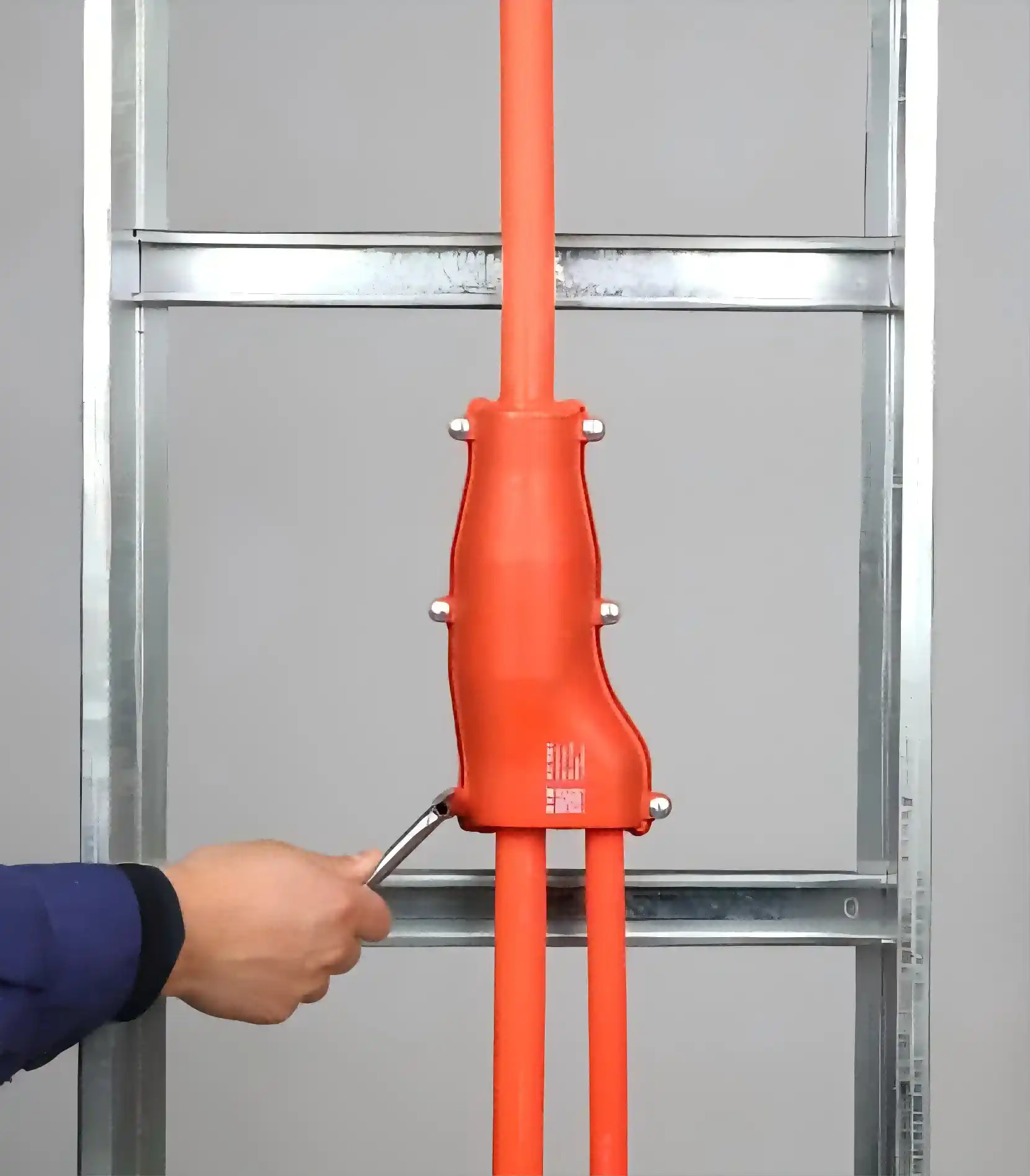

8.Snap-on protective housing

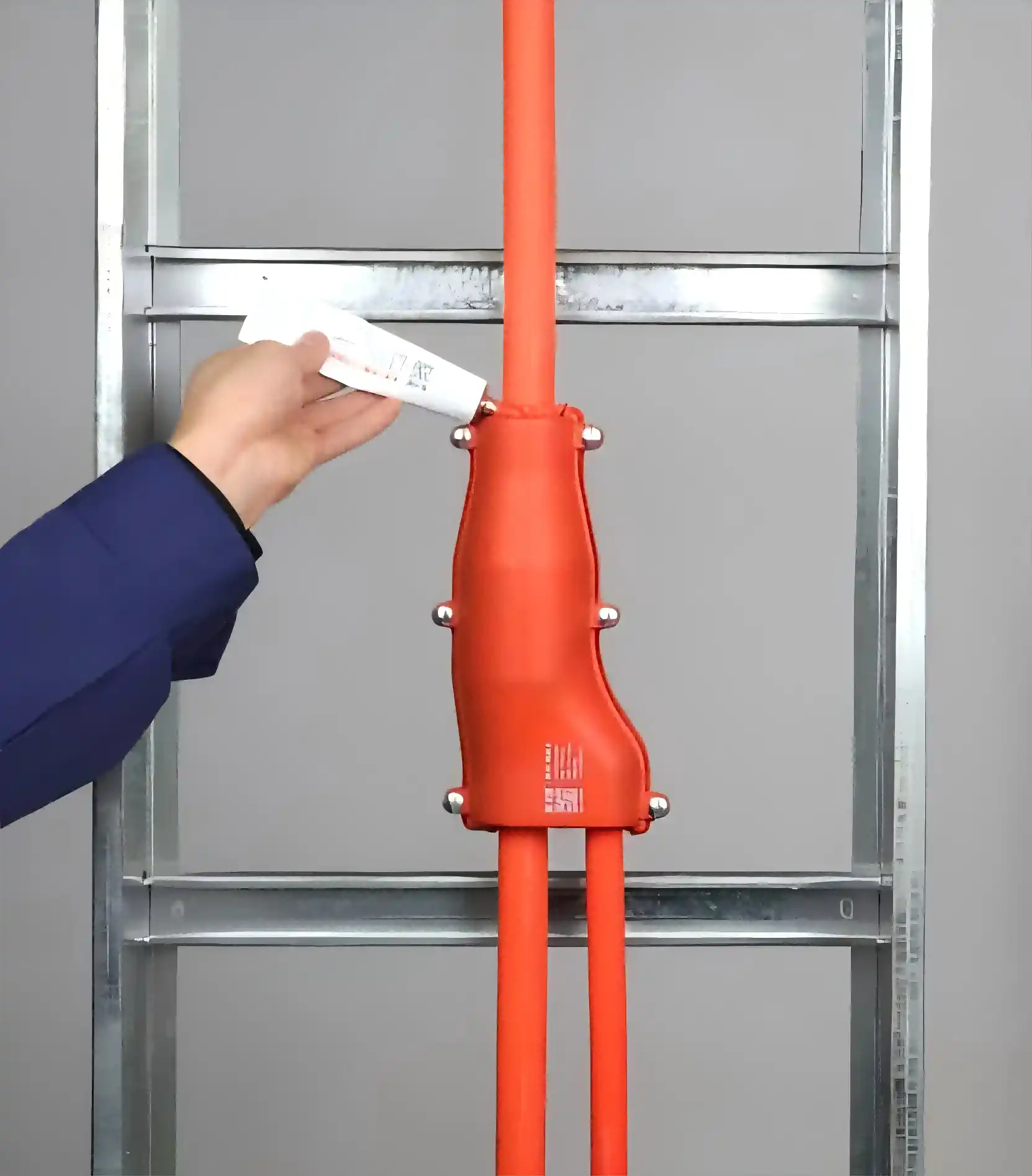

9.Lock and glue the cable outlet

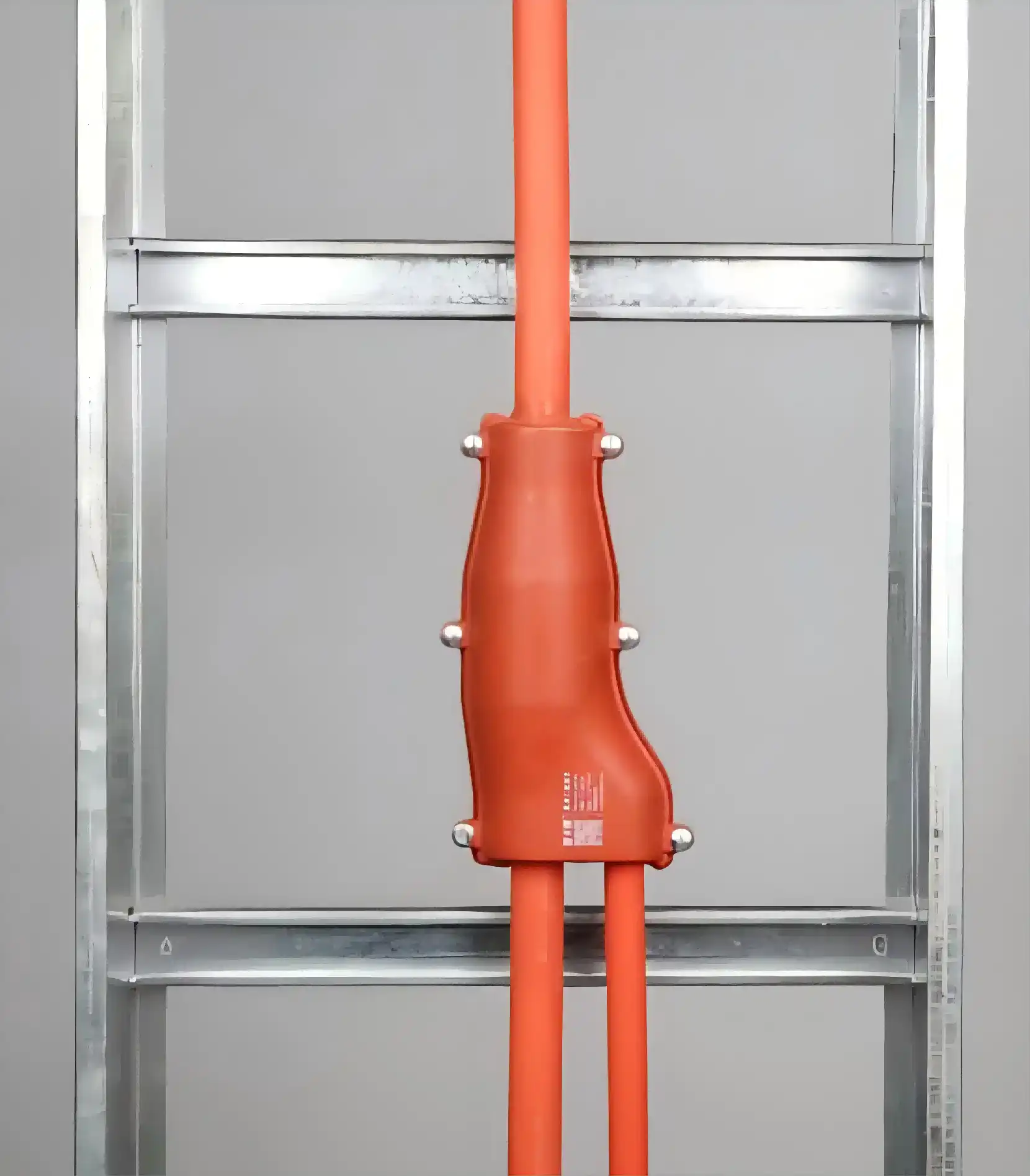

10.Installation completed
Advantages
So, what sets the Armoured Cable Branch Joint apart from other cable connection products? Here are just a few of its key advantages:
On-Site Installation: Convenient and quick installation process that can be done at any position.
Integrated Design: Safe, reliable, and beautiful, with a compact structure that can be installed both openly and in the bridge.
Convenient Construction and Maintenance: Reusable and easy to maintain, with insulation, flame retardant, fire resistant, dustproof, and waterproof properties.
Cost-Effective: Saves cables, building area, labor, and overall cost.
Technical Features
Our Armoured Cable Branch Joint boasts an impressive array of technical features, including:
No Need to Cut Off Main Cable: Convenient and efficient connection process.
Flame-Retardant/Fire-Resistant Insulated Integrated T-Connector Body: Ensuring a safe and reliable connection.
Insulated and Sealed Branch Cable: Providing a safe and reliable connection.
R&D Center
At Xi'an OUKAMU, we're committed to innovation and excellence. Our R&D center is dedicated to developing new and improved products that meet the evolving needs of our customers. Our group of specialists works indefatigably to plan and test new items, guaranteeing that they fulfill the most noteworthy guidelines of value and dependability.
Application
The item is intended for many applications, including:
Low-Voltage Flame-Retardant Cables: Branch connection for low-voltage flame-retardant cables.
Fire-Resistant Cables: Branch connection for fire-resistant cables.
Mineral-Insulated Fire-Resistant Cables: Branch connection for mineral-insulated fire-resistant cables.
Quality Control
At Xi'an OUKAMU, we're focused on conveying the greatest items that fulfill or surpass industry guidelines. Our Armoured Cable Branch Joint undergoes rigorous testing and inspection to ensure that it meets our stringent quality control requirements.
FAQ
Q: What is an our product?
A: Our product is a type of cable connection product that provides a safe, reliable, and efficient way to connect multi-core main cables and multi-core branch cables.
Q: What are the benefits of using an product?
A: The benefits of using an product include on-site installation, integrated design, convenient construction and maintenance, and cost-effectiveness.
Q: What applications are products suitable for?
A: Items are reasonable for a large number of uses, including low-voltage fire resistant cables, heat proof cables, and mineral-protected fireproof cables.
