Parallel Branch Cable Joints

Model: T-GJFZ-16/10
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Product Description

Parallel Branch Cable Joints Introduction

In the world of electrical connections, reliability and efficiency are paramount. The Parallel Branch Cable Joints, a innovative product from Xi'an OUKAMU, is a game-changer in the industry. Our product are designed to provide a safe, reliable, and efficient way to connect multi-core main cables and multi-core branch cables. In this article, we'll delve into the features, benefits, and applications of the product, and explore why it's the go-to solution for professionals and businesses alike.

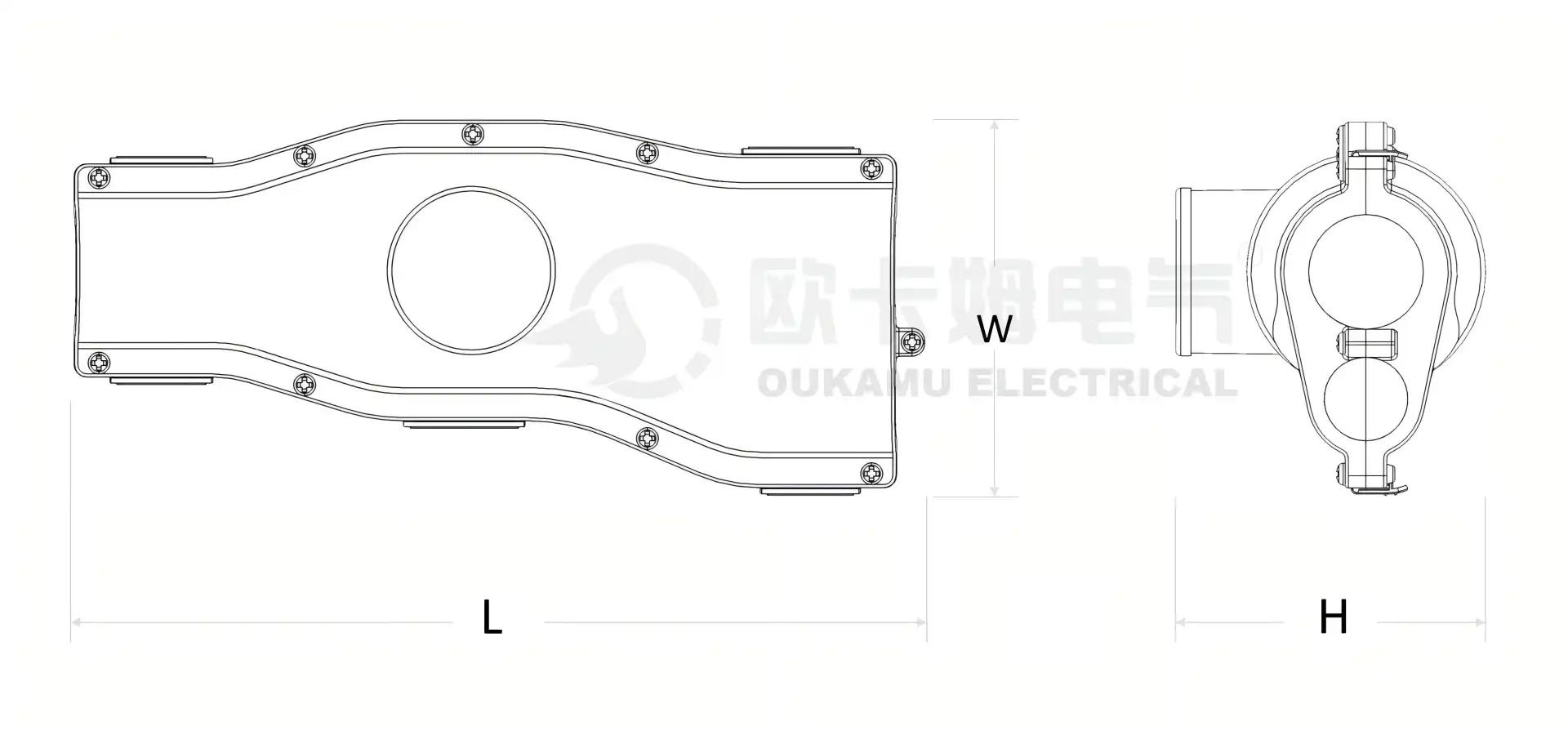

Dimension

Branch Cable Joints

Parameters



MODEL

Specification (cross-sectional area of cable core conductors (mm²)

Technical Parameters

Main Cable

2~5 Cores

Branch Cable

(2~5 Cores)

Rated Voltage

(kV)

Subloaded Current

(A)

Size

L*W*H(mm)

T-GJFZ-16/10

4~16

1.5~10

0.6/1

71

205*100*85

T-GJFZ-35/16

10~35

2.5~16

0.6/1

95

270*115*100

T-GJFZ-70/16

25~70

2.5~16

0.6/1

95

310*125*115

L-GJFZ-35/16

10~35

2.5~16

0.6/1

70

270*115*100

L-GJFZ-70/16

25~70

2.5~16

0.6/1

70

310*125*115

Key Features and Benefits

Simplified Installation: PBJ's streamline the installation process, significantly reducing the time and effort required to create parallel cable branches. Their intuitive design and easy-to-follow instructions ensure that even novice technicians can perform installations with confidence.

Enhanced Safety: Safety is paramount in electrical work, and PBJ's adhere to the highest industry standards. They are designed to prevent short circuits, arcing, and other potential hazards, ensuring the safety of personnel and the integrity of the electrical system.

Increased Flexibility: With PBJ's, you can easily adapt your electrical system to changing requirements. Whether you need to add additional circuits, upgrade your wiring, or modify your layout, PBJ's provide the flexibility to make these changes quickly and efficiently.

Durability and Longevity: Crafted from high-quality materials, PBJ's are built to last. They are resistant to corrosion, wear, and environmental factors, ensuring reliable performance over the long term.

Cost-Effective: By simplifying installation and reducing the need for specialized tools or equipment, PBJ's help to minimize labor costs and overall project expenses. Additionally, their durability and longevity translate into fewer replacements and lower maintenance costs over time.

Advantage

So, what sets the Parallel Branch Cable Joints apart from other cable connection products? Here are just a few of its key advantages:

On-Site Installation: Convenient and quick installation process that can be done at any position.

Integrated Design: Safe, reliable, and beautiful, with a compact structure that can be installed both openly and in the bridge.

Convenient Construction and Maintenance: Reusable and easy to maintain, with insulation, flame retardant, fire resistant, dustproof, and waterproof properties.

Cost-Effective: Saves cables, building area, labor, and overall cost.

Technical Features

Our Parallel Branch Cable Joints boast an impressive array of technical features, including:

No Need to Cut Off Main Cable: Convenient and efficient connection process.

Flame-Retardant/Fire-Resistant/Waterproof Insulated Integrated T-Connector Body: Ensuring a safe and reliable connection.

Insulated and Sealed Branch Cable: Providing a safe and reliable connection.

R&D Center

At Xi'an OUKAMU, we're committed to innovation and excellence. Our R&D center is dedicated to developing new and improved products that meet the evolving needs of our customers. Our team of experts works tirelessly to design and test new products, ensuring that they meet the highest standards of quality and reliability.

Application

The Parallel Branch Cable Joints are designed for a wide range of applications, including:

Low-Voltage Flame-Retardant Cables: Branch connection for low-voltage flame-retardant cables.

Fire-Resistant Cables: Branch connection for fire-resistant cables.

Mineral-Insulated Fire-Resistant Cables: Branch connection for mineral-insulated fire-resistant cables.

Insulated Waterproof Integrated Branch Cables: Branch connection for Insulated waterproof cables.

Quality Control

At Xi'an OUKAMU, we're committed to delivering the highest-quality products that meet or exceed industry standards. Our product undergo rigorous testing and inspection to ensure that they meet our stringent quality control requirements.

FAQ

Q: What are our products?
A: Product are a type of cable connection product that provides a safe, reliable, and efficient way to connect multi-core main cables and multi-core branch cables.

Q: What are the benefits of using products?
A: The benefits of using Product include on-site installation, integrated design, convenient construction and maintenance, and cost-effectiveness.

Q: What applications are products suitable for?
A: They are suitable for a wide range of applications, including insulated waterproof cables, low-voltage flame-retardant cables, fire-resistant cables, and mineral-insulated fire-resistant cables.

Contact Us

If you're interested in learning more about the Parallel Branch Cable Joints or would like to place an order, please don't hesitate to contact us at info@okmbranchcable.com. Our friendly and knowledgeable team is always happy to help.

In conclusion, the product are a revolutionary product that has transformed the world of cable connections. With its impressive array of technical features, product advantages, and applications, it's the perfect solution for professionals and businesses looking for a safe, reliable, and efficient connection solution.
