Resin Joints For Cables
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm.
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Resin Joints For Cables Introduction
When it comes to ensuring the reliable connection of cables, especially in challenging environments, Resin Joints For Cables stand out as an exceptional solution. Developed by Xi'an OUKAMU, these resin joints provide a robust and durable method for joining cables, particularly in low-voltage, flame-retardant, fire-resistant, and mineral-insulated applications.
Technical Parameters
Understanding the technical specifications of the product is essential for selecting the right product for your project. Our resin joints are engineered to meet stringent industry standards, offering the following key parameters:
Voltage Drop: <3.2mV
Withstand Voltage: 3.5kV
Resistance Value: >500MΩ
Protection level: IP65 safety protection.
Mechanical Strength: High tensile and compressive strength, ensuring durability under mechanical stress.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps
1.Tools
2.Determine installation location

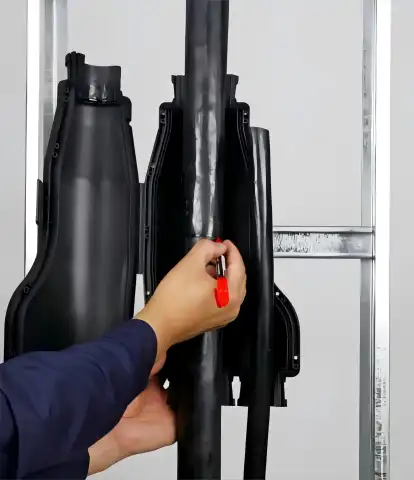

3.Open outer sheath
4.Strip main cable insulation

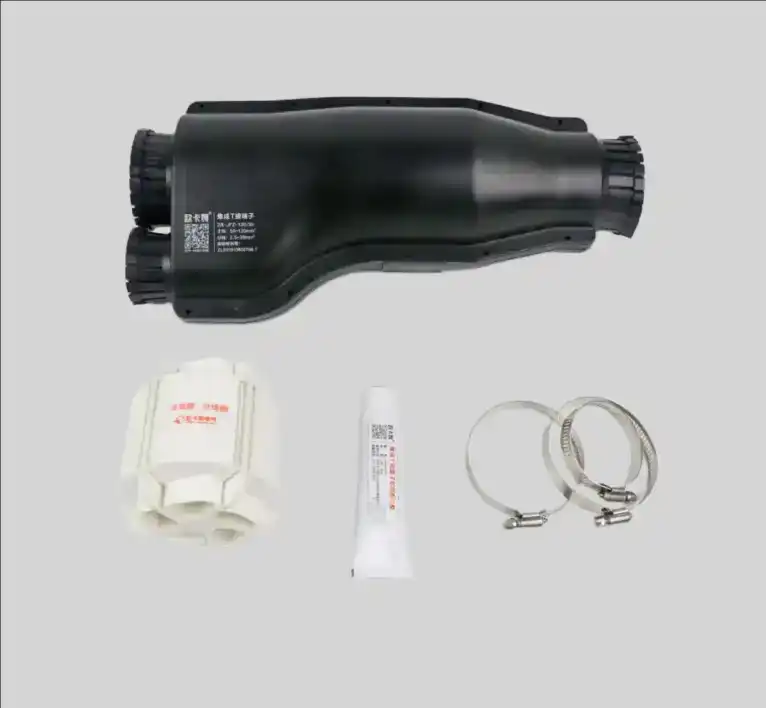

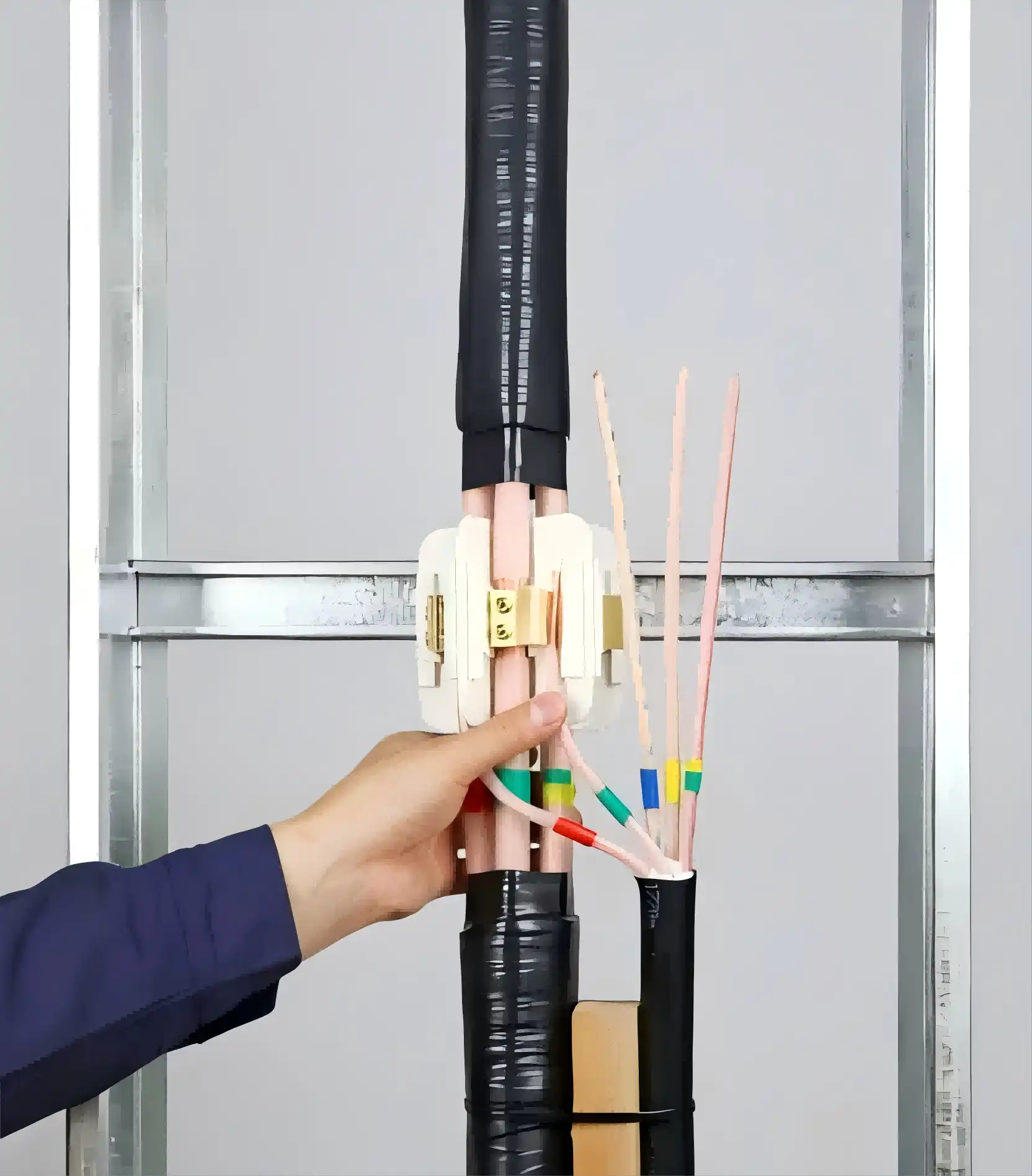

5.Installation of branch cable body

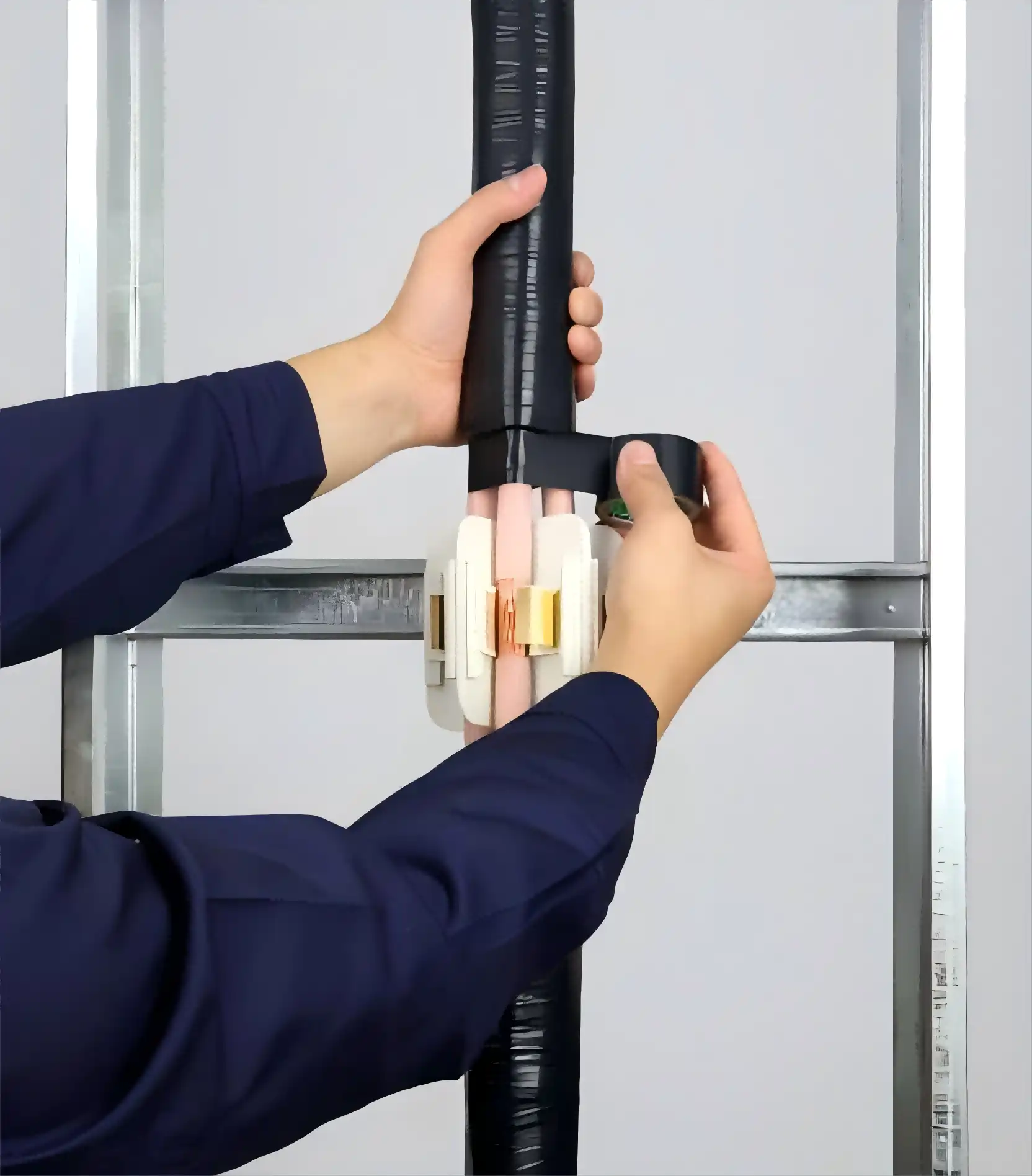

6.Overwrap open seams
7.Installation of branch cables

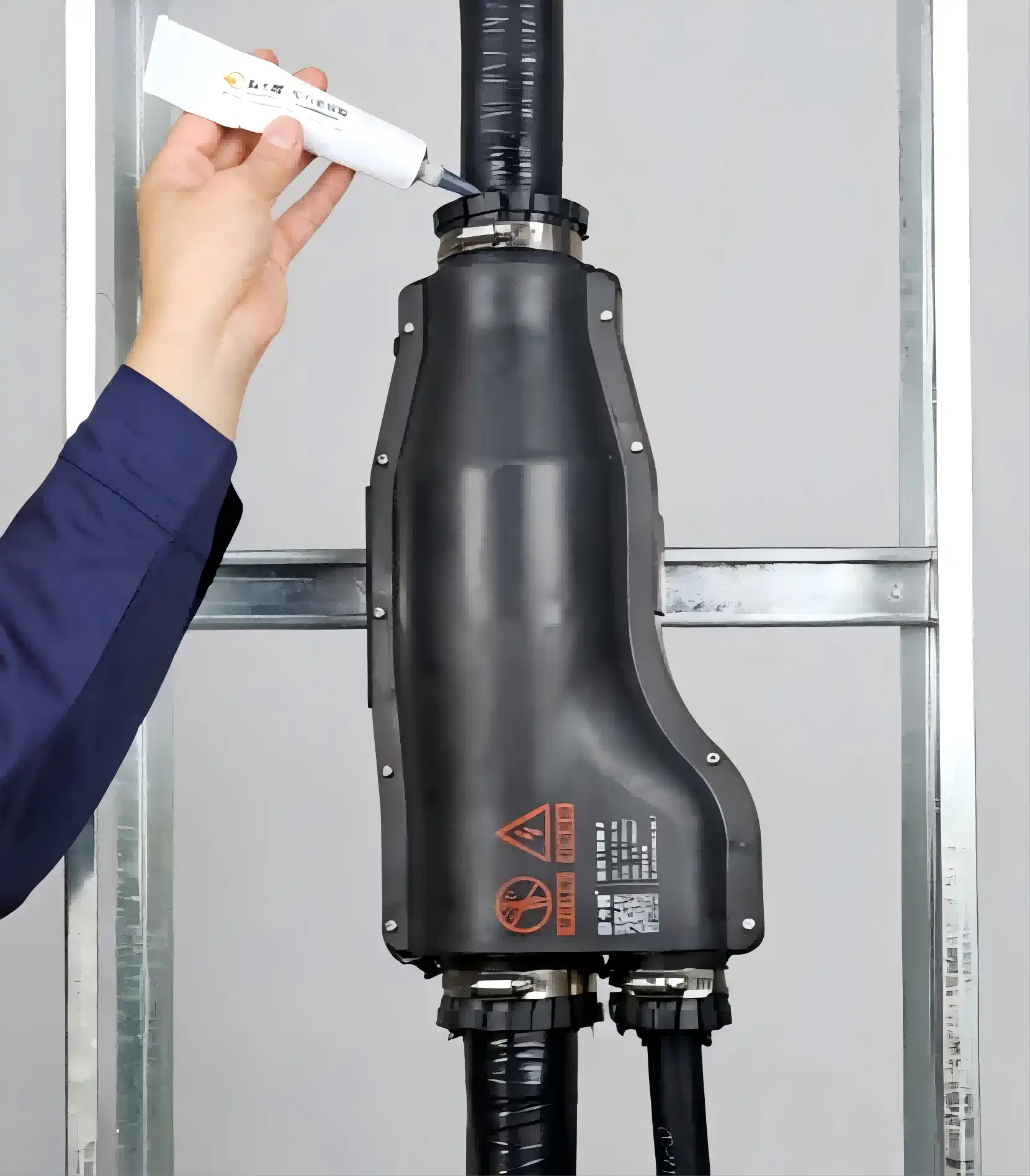

9.Lock and glue the cable outlet
9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Features
Our Resin Joints For Cables are designed with cutting-edge technology, offering unique features that set them apart:
-
No Need to Cut Main Cables: The design allows for easy integration with the main cable without the need for cutting, maintaining the integrity of the original cable structure.
-
Integrated Connection: Both the main and branch cables are connected directly to the flame-retardant/fire-resistant insulated body, ensuring a secure and efficient connection.
-
Insulated and Sealed Branch Cables: The entire branch cable is insulated and sealed, offering protection against environmental factors, such as moisture, dust, and chemicals.
Composition and Classification
The Resin Joints For Cables are composed of high-quality materials that ensure their reliability and longevity:
- Resin Compound: A specially formulated resin that provides excellent insulation, flame retardancy, and mechanical protection.
- Insulating Body: Constructed from a durable, flame-retardant, and fire-resistant material that can withstand harsh environmental conditions.
These joints are classified based on their application and cable compatibility, ensuring that you can find the perfect match for your specific needs.
Application
Resin Joints For Cables are versatile and suitable for a wide range of applications:
- Industrial Plants: Ensures safe and reliable cable connections in harsh industrial environments.
- Commercial Buildings: Ideal for maintaining electrical integrity in commercial settings, especially where fire safety is a concern.
- Underground Cables: Provides a durable solution for underground cable installations, protecting against water ingress and mechanical damage.
- Marine Applications: With their excellent waterproof properties, these joints are perfect for marine and offshore installations.
Packaging and Transportation
To ensure that our products arrive in impeccable condition, we implement secure and durable packaging solutions designed to protect the products during transit. Our packaging options are varied to accommodate different sizes and quantities of joints, and include robust wooden crates for larger shipments, foam-filled boxes for added cushioning, and waterproof wrappings to safeguard against moisture and environmental factors.
Contact Us
For more information about Resin Joints For Cables or to place an order, please contact us at info@okmbranchcable.com. Our team of experts is ready to assist you with any inquiries and help you find the perfect solution for your cable connection needs.
