Cable Joints
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 50~120mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Cable Joints Introduction

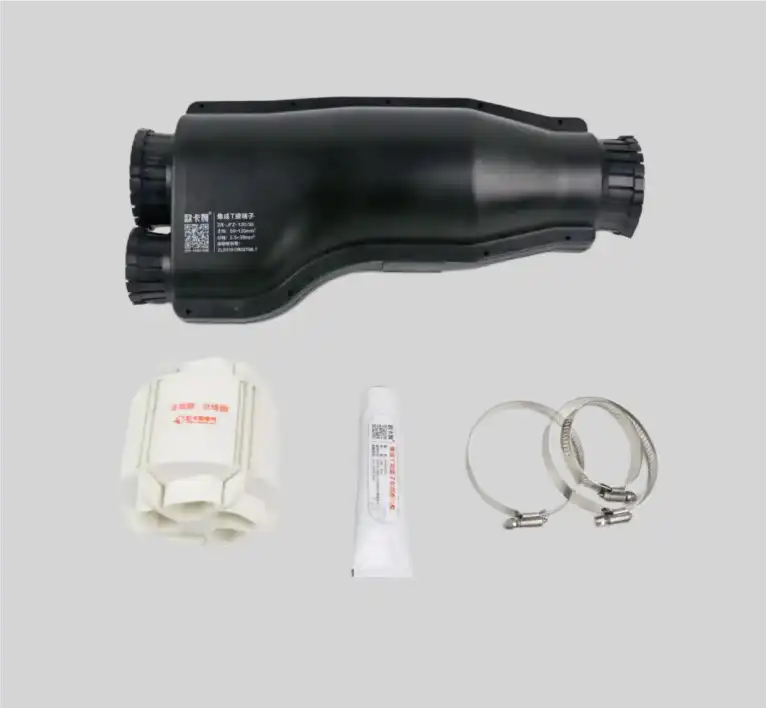

At Xi'an OUKAMU, our dedication to innovation and excellence is exemplified by our groundbreaking integrated T-connector, which we proudly introduced in 2015. This advanced Cable Joints represents a significant leap forward in the cable connection industry, setting new benchmarks for performance and reliability.
The integrated T-connector is engineered to seamlessly connect multi-core main cables with branch cables, addressing a wide range of applications with unparalleled ease. Its robust design ensures not only the safety and reliability of cable connections but also enhances overall efficiency.
This versatility makes it suitable for a variety of demanding environments, including those requiring flame-retardant, fire-resistant, and mineral-insulated cables.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps

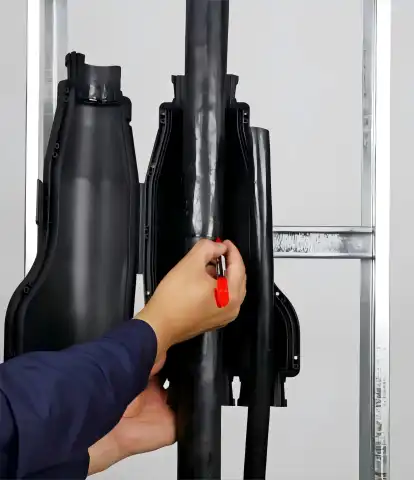

2.Determine installation location
3.Open outer sheath

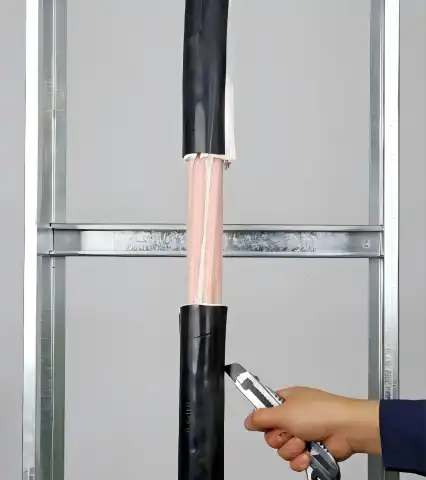

4.Strip main cable insulation

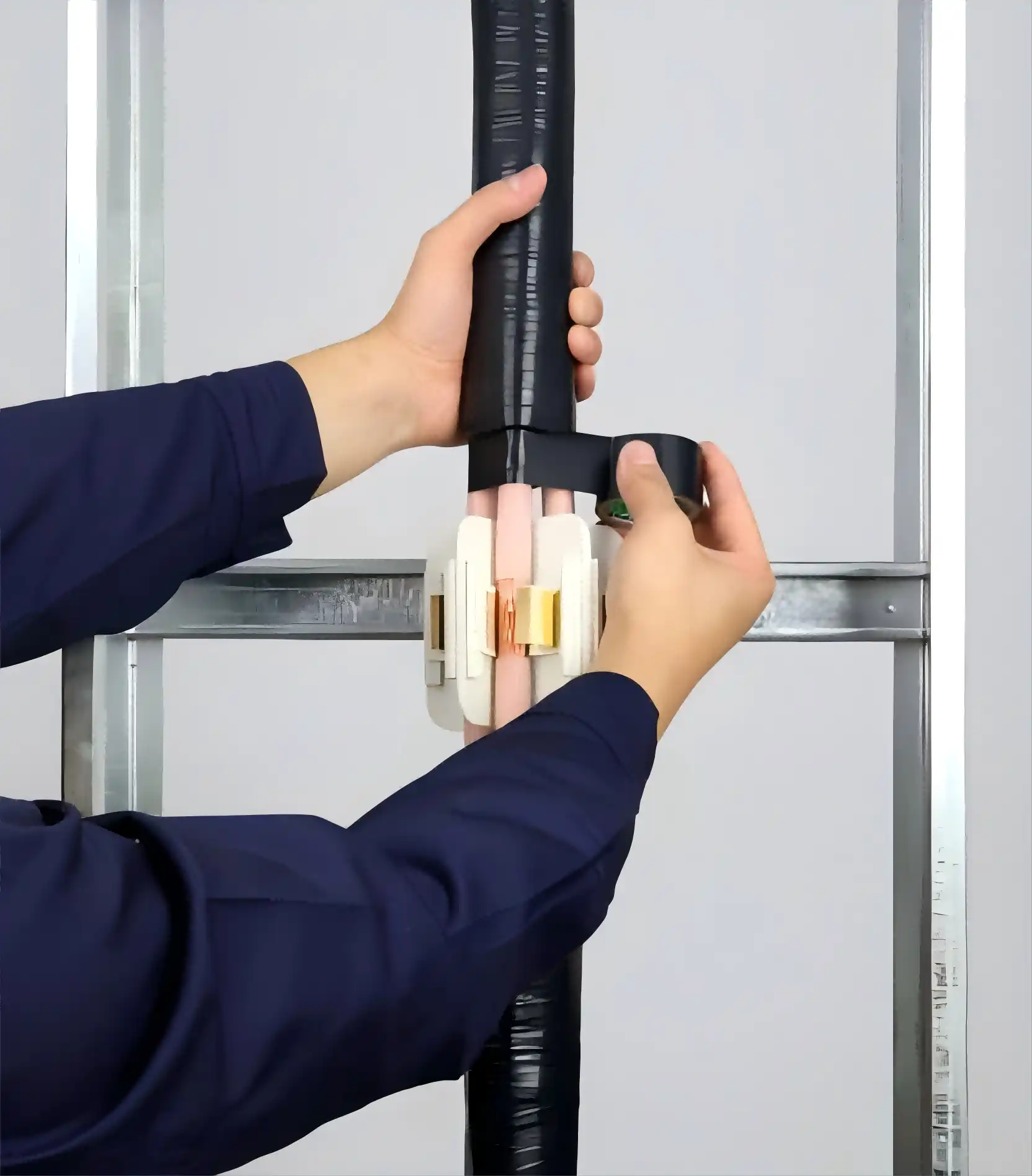

5.Installation of branch cable body
6.Overwrap open seams
7.Installation of branch cables
8.Snap-on protective housing

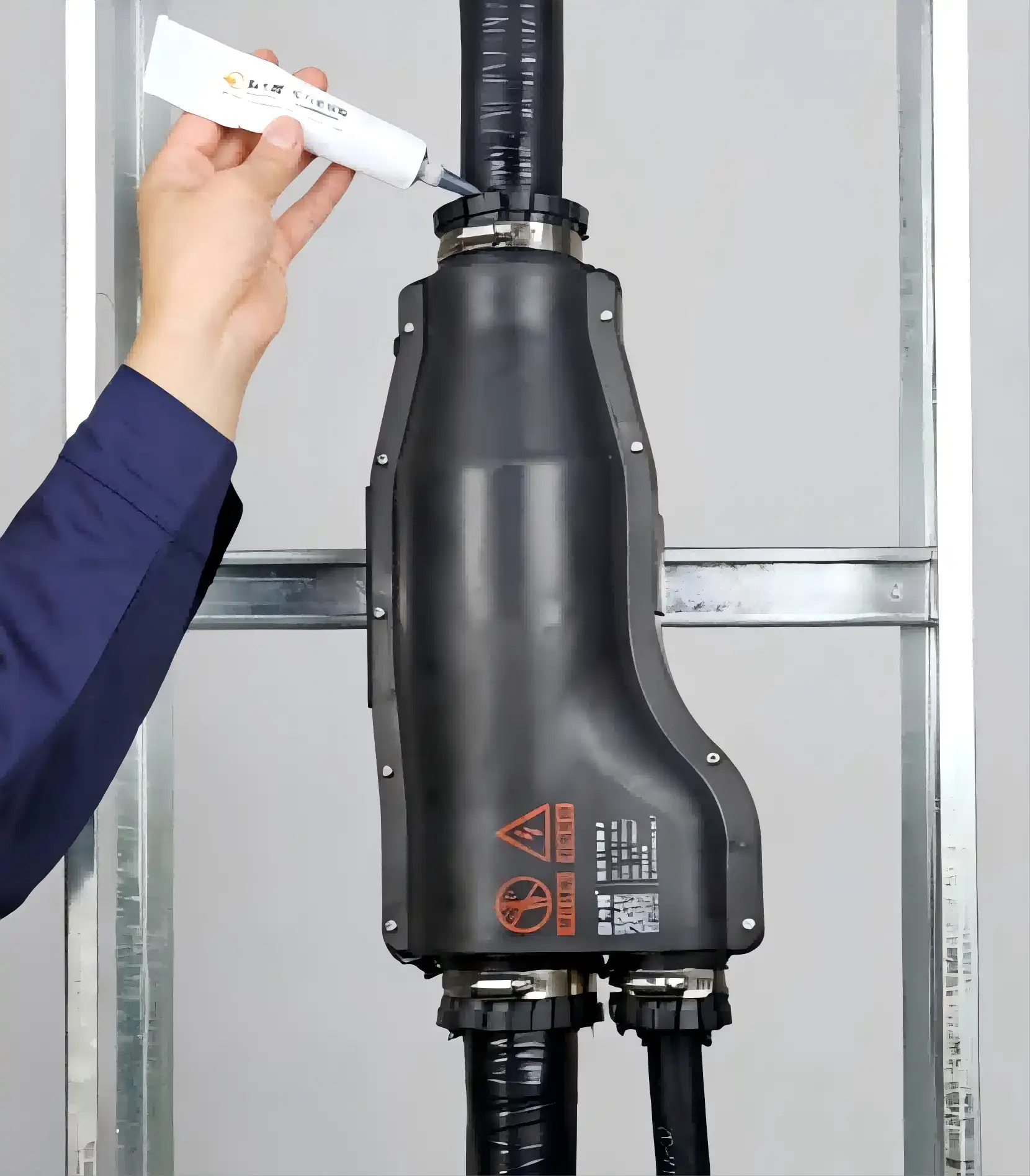

9.Lock and glue the cable outlet
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Key Features of the Integrated T-connector include
Enhanced Safety: The T-connector is designed with advanced insulation and protection mechanisms, reducing the risk of electrical hazards and ensuring secure connections even in high-risk settings.
Reliability in Extreme Conditions: Its construction supports performance in harsh environments, making it ideal for use in industries where durability and resistance to environmental factors are critical.
Efficient Installation: The design simplifies the installation process, reducing downtime and labor costs associated with cable connections. Its user-friendly interface allows for quick and accurate connections, improving overall project efficiency.
Versatility: Whether used in flame-retardant, fire-resistant, or mineral-insulated cable systems, the T-connector adapts to diverse requirements, making it a flexible solution for various applications.
Innovative Design: Incorporating cutting-edge technology and materials, the T-connector ensures long-lasting performance and minimal maintenance, setting a new standard for quality in the industry.
Advantages
Our Cable Joints offer numerous advantages that make them the preferred choice for professionals worldwide:
- On-Site Flexibility: These connectors allow for branch connections at any position on-site, providing unparalleled flexibility during installation.
- Integrated Design: The compact and integrated design not only ensures safety and reliability but also enhances the aesthetic appeal of the installation.
- Durability: With properties such as insulation, flame retardancy, fire resistance, dustproofing, anti-aging, and anti-electrochemical corrosion, our products are built to last.
- Cost Efficiency: Save on cable, building area, and labor costs with our efficient design that reduces the overall installation expenses.
Technical Features
Our Cable Joints are engineered with cutting-edge technology to meet the highest standards:
- Non-Cut Installation: The main cable remains uncut, ensuring the integrity and continuity of the cable system.
- Complete Insulation: The branch cable is fully insulated and sealed, offering superior protection against environmental factors.
R&D Center
At Xi'an OUKAMU, we pride ourselves on our robust research and development capabilities. Our R&D center is equipped with the latest technology and a team of experts dedicated to continuously improving our profucts. We focus on enhancing performance, safety, and ease of installation, ensuring that our products remain at the forefront of the industry.
Application
Our Cable Joints are versatile and can be used in a variety of applications, including:
- Low-Voltage Systems: Ideal for branch connections in low-voltage cable systems.
- Fire-Resistant Installations: Perfect for environments requiring flame-retardant or fire-resistant cables.
- Industrial and Commercial Buildings: Suitable for use in both open installations and in cable bridges.
Quality Control
Quality is at the core of everything we do. Our Cable Joints undergo rigorous testing and quality control processes to ensure they meet international standards. From raw material selection to final inspection, every step is monitored to guarantee the highest quality product reaches our customers.
FAQ
Q1: Can the products be reused after installation?
A1: Yes,they are designed to be reusable, offering flexibility for future adjustments or modifications.
Q2: Are these connectors suitable for outdoor installations?
A2: Absolutely. Our products are dustproof, waterproof, and resistant to environmental factors, making them ideal for outdoor use.
Q3: How do these joints compare in terms of cost?
A3: Our design is highly cost-efficient, saving on cables, labor, and installation space, leading to lower overall costs.
Q4: What safety features are included in the design?
A4: The joints are insulated, flame-retardant, and fire-resistant, providing excellent safety features for critical installations.
Q5: Do you provide technical support for installation?
A5: Yes, our team offers comprehensive technical support to ensure smooth installation and optimal performance.
