Cable Joint Kit
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Cable Joint Kit Introduction
Welcome to our innovative Cable Joint Kit page! At Xi'an OUKAMU, we are thrilled to present our revolutionary integrated T-connection terminal—a groundbreaking advancement in cable connectivity. As the pioneers of this cutting-edge product, we have designed it to transform the way multi-core main and branch cables are connected.
Our integrated T-connection terminal represents a significant leap forward in convenience and safety. Its design simplifies the connection process, reducing installation time and minimizing potential for errors. The terminal's sleek and modern appearance not only ensures a professional finish but also enhances the overall aesthetic of cable installations.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |
Installation Steps

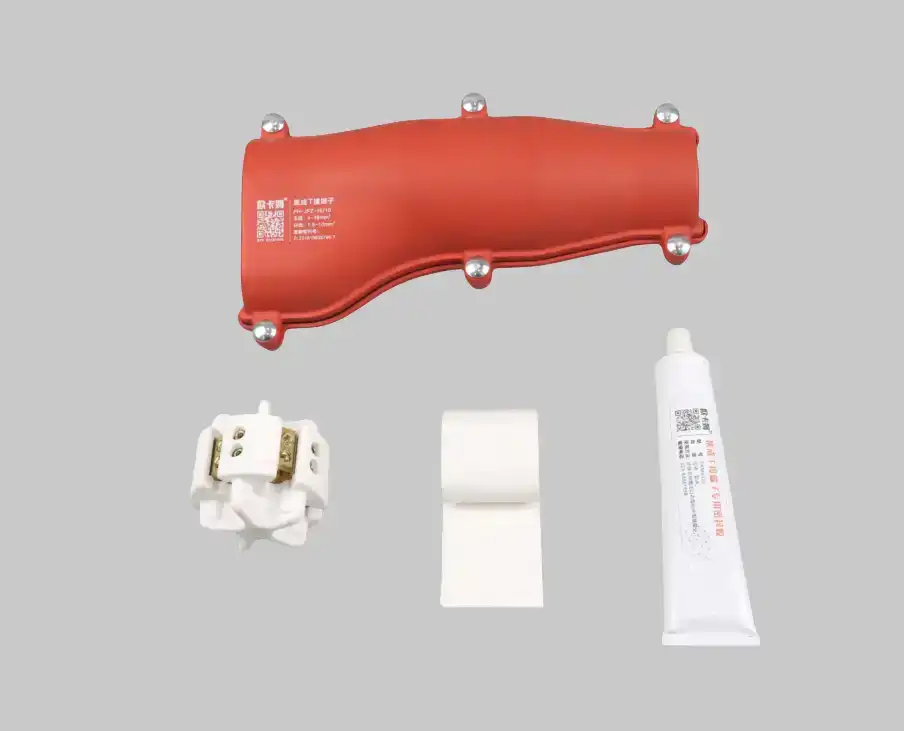

1.Tools

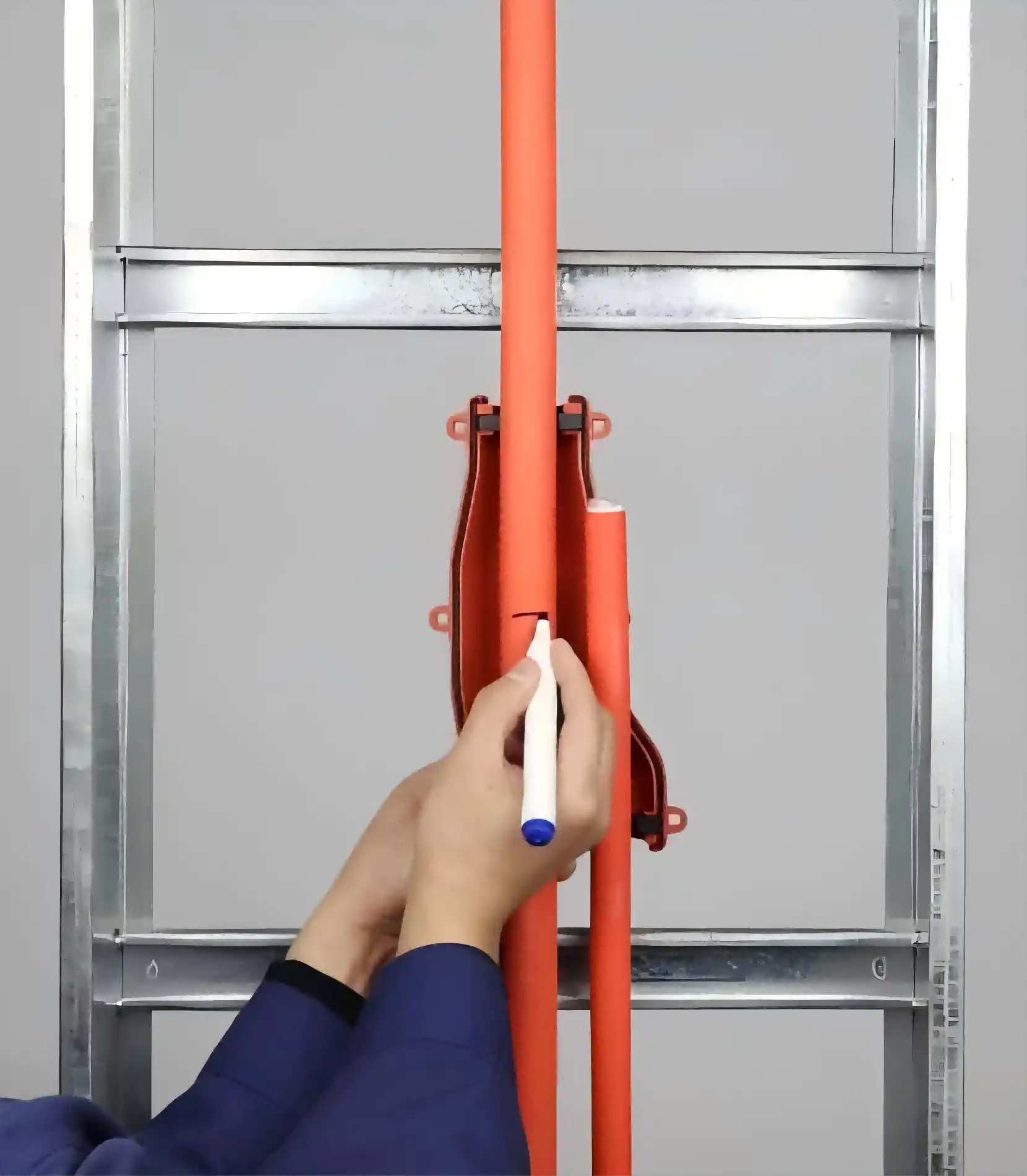

2.Determine the installation location

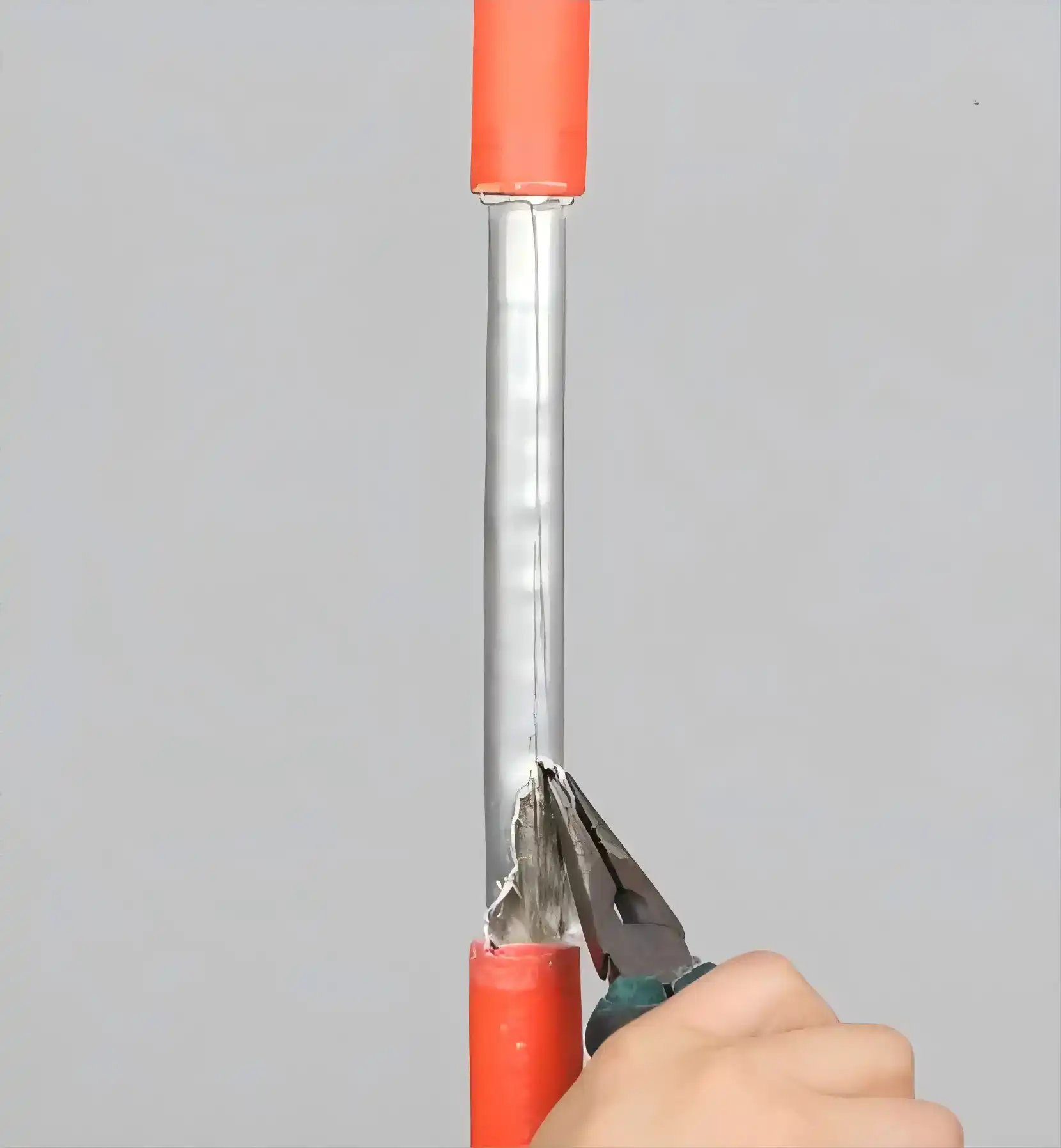

3.Strip the outer sheath and metal layer

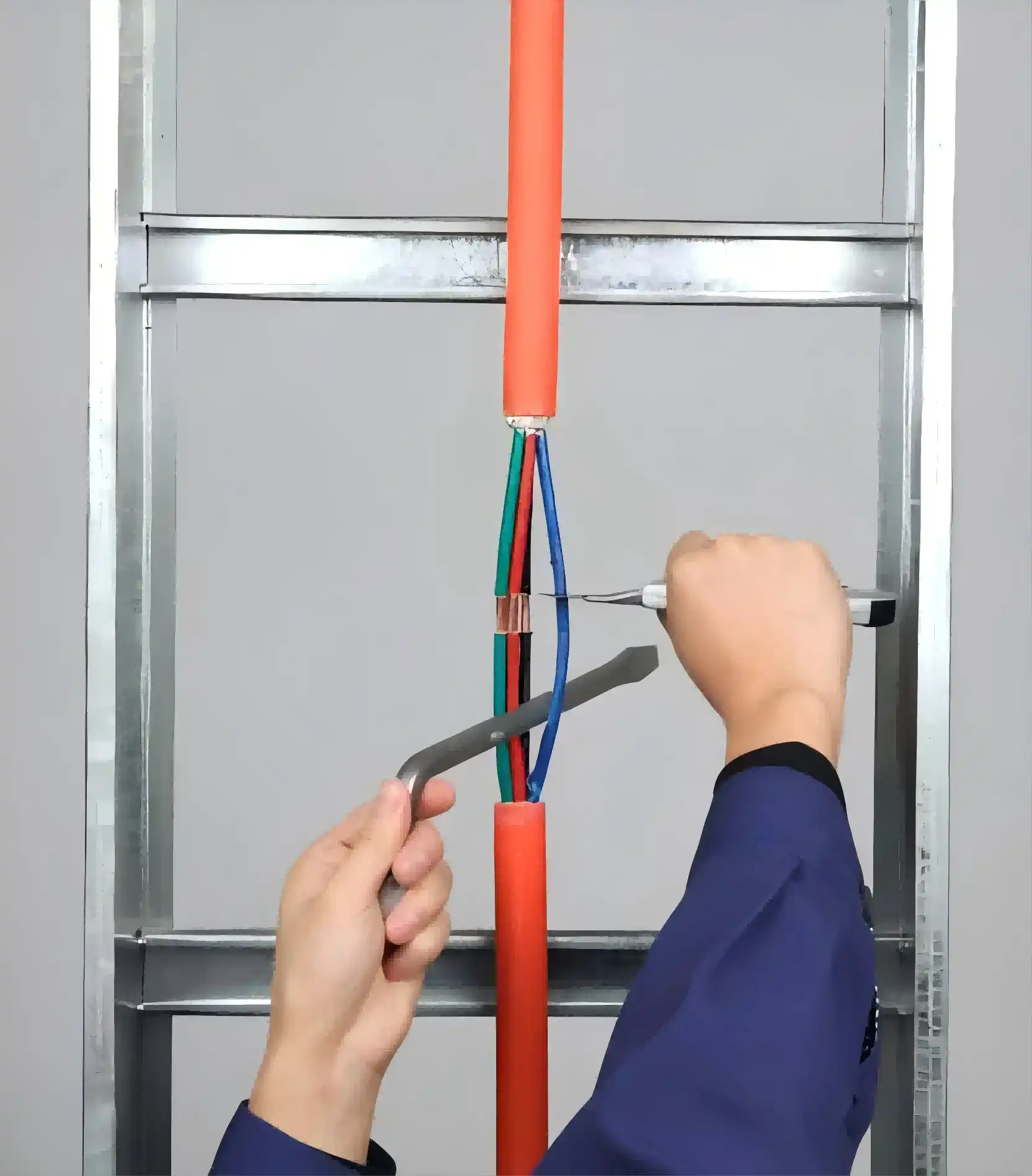

4.Stripping of main cable insulation

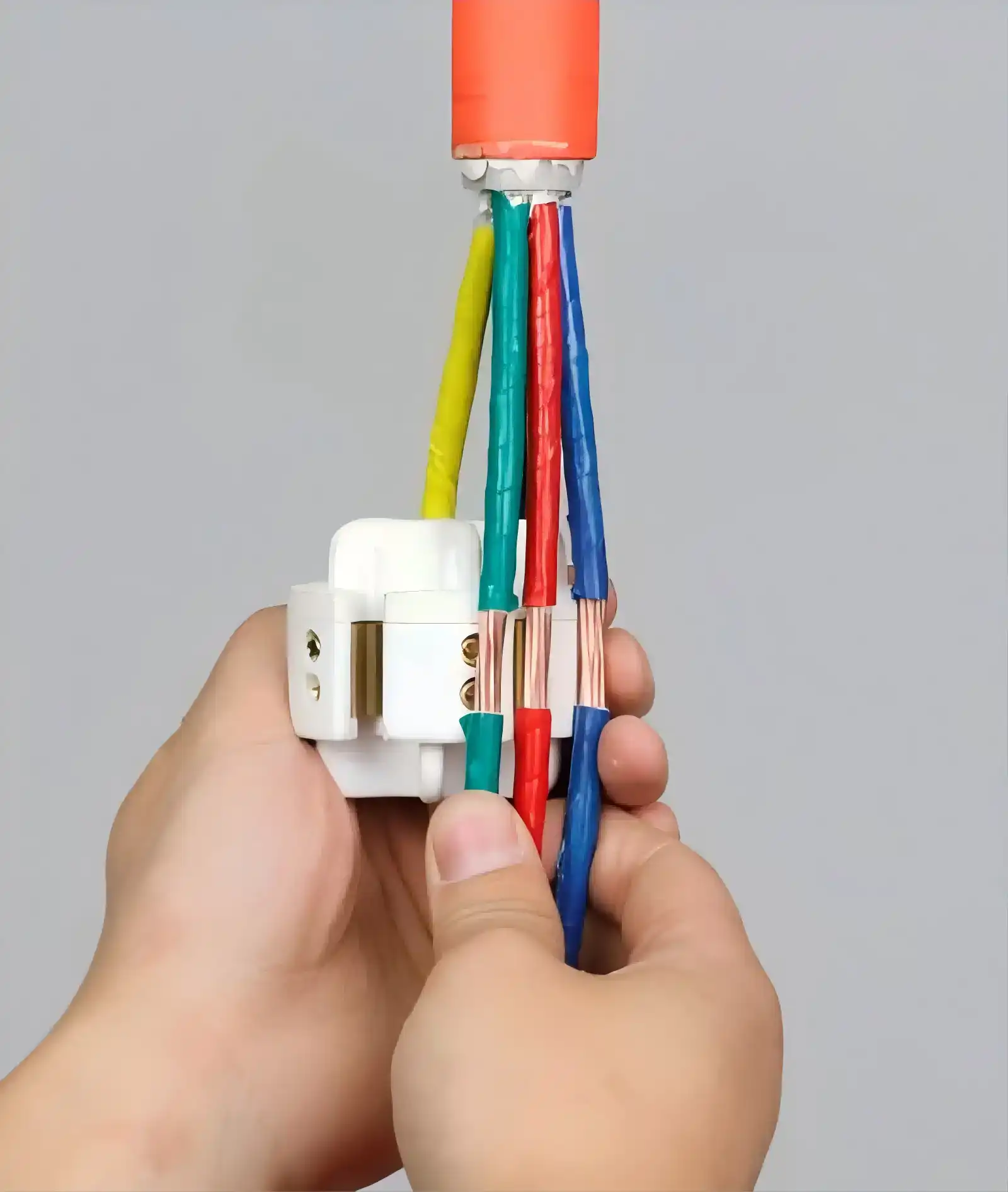

5.Install the branch cable body

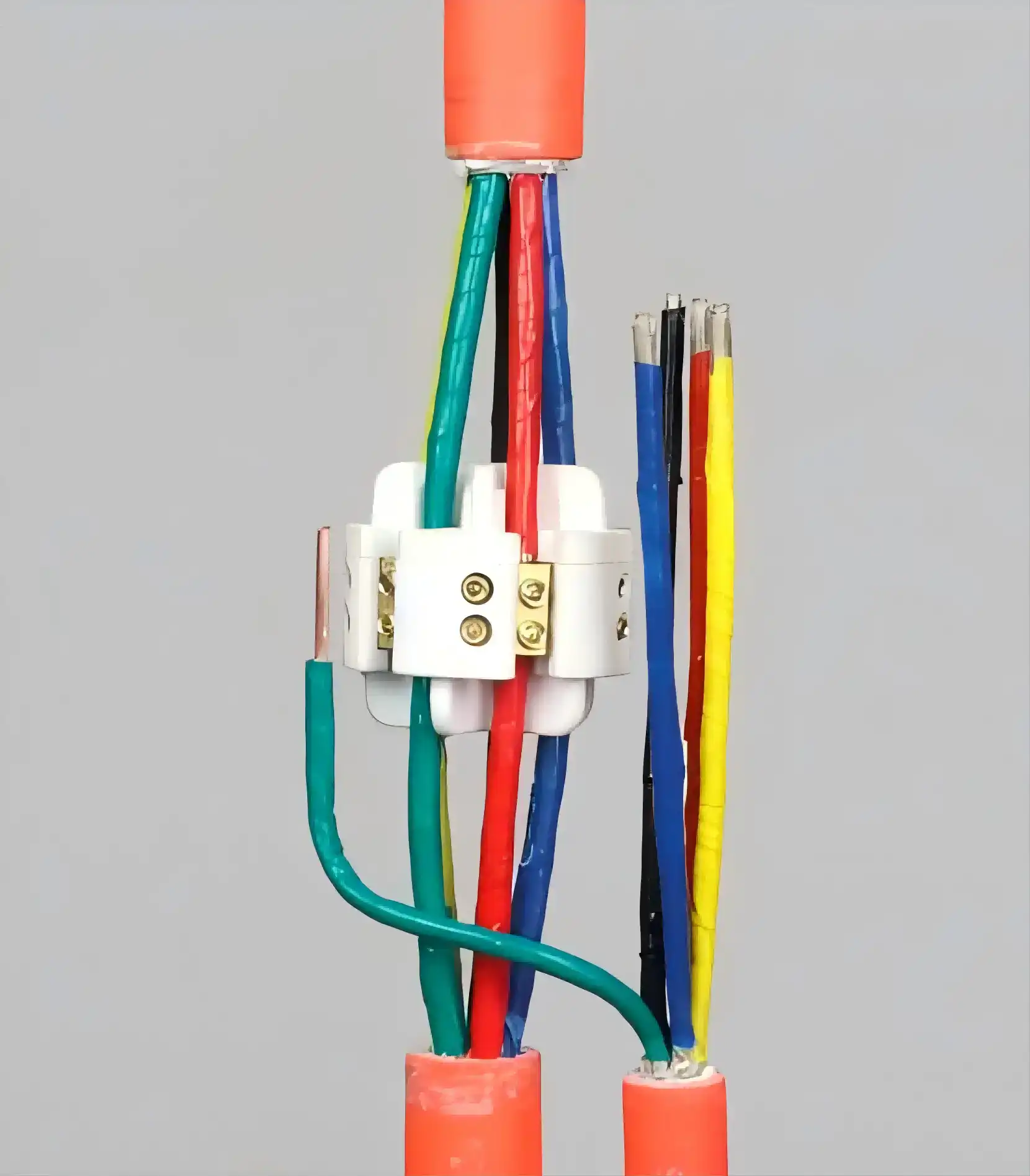

6.Install the branch cables

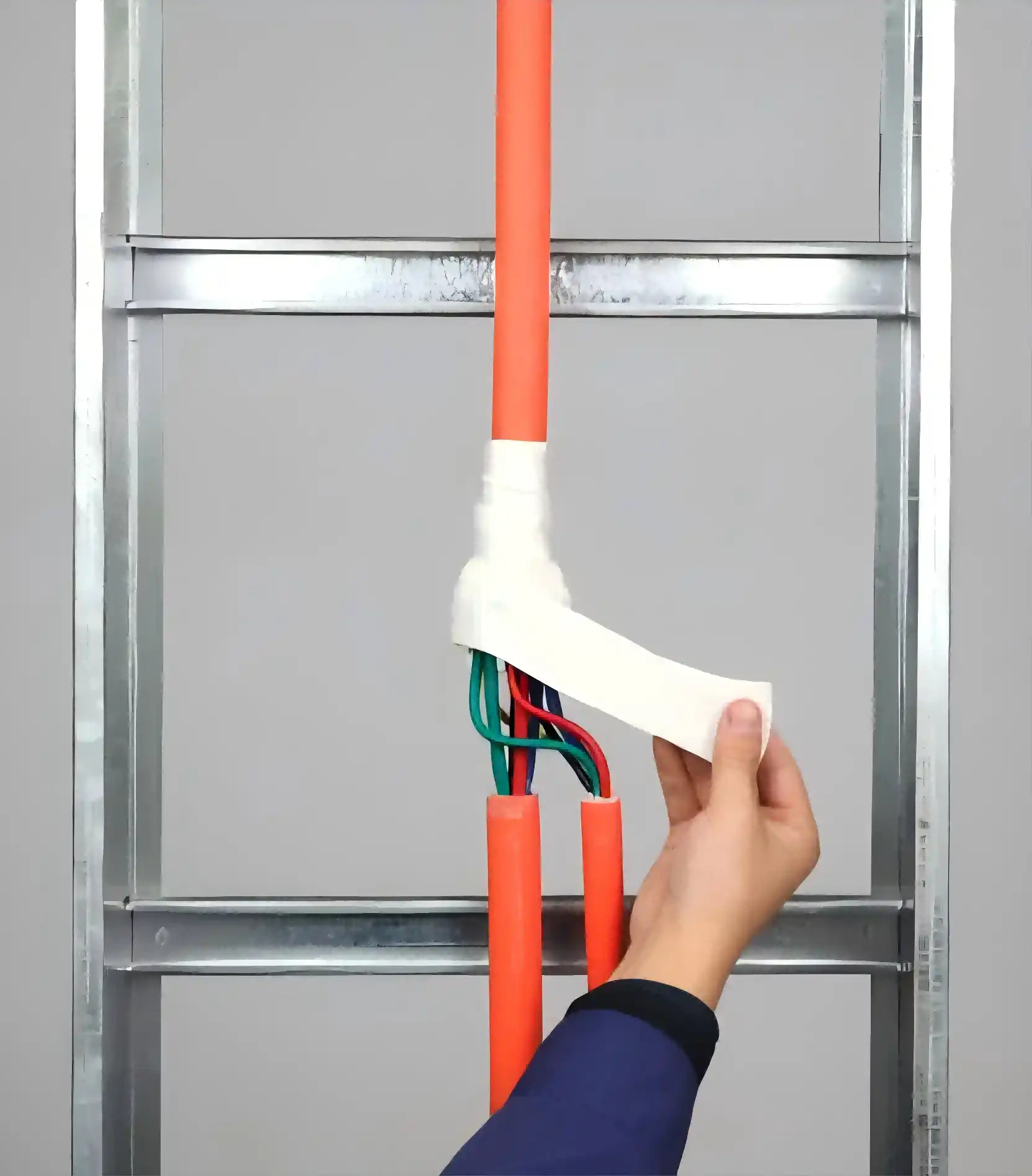

7.Wrap insulation refractory adhesive

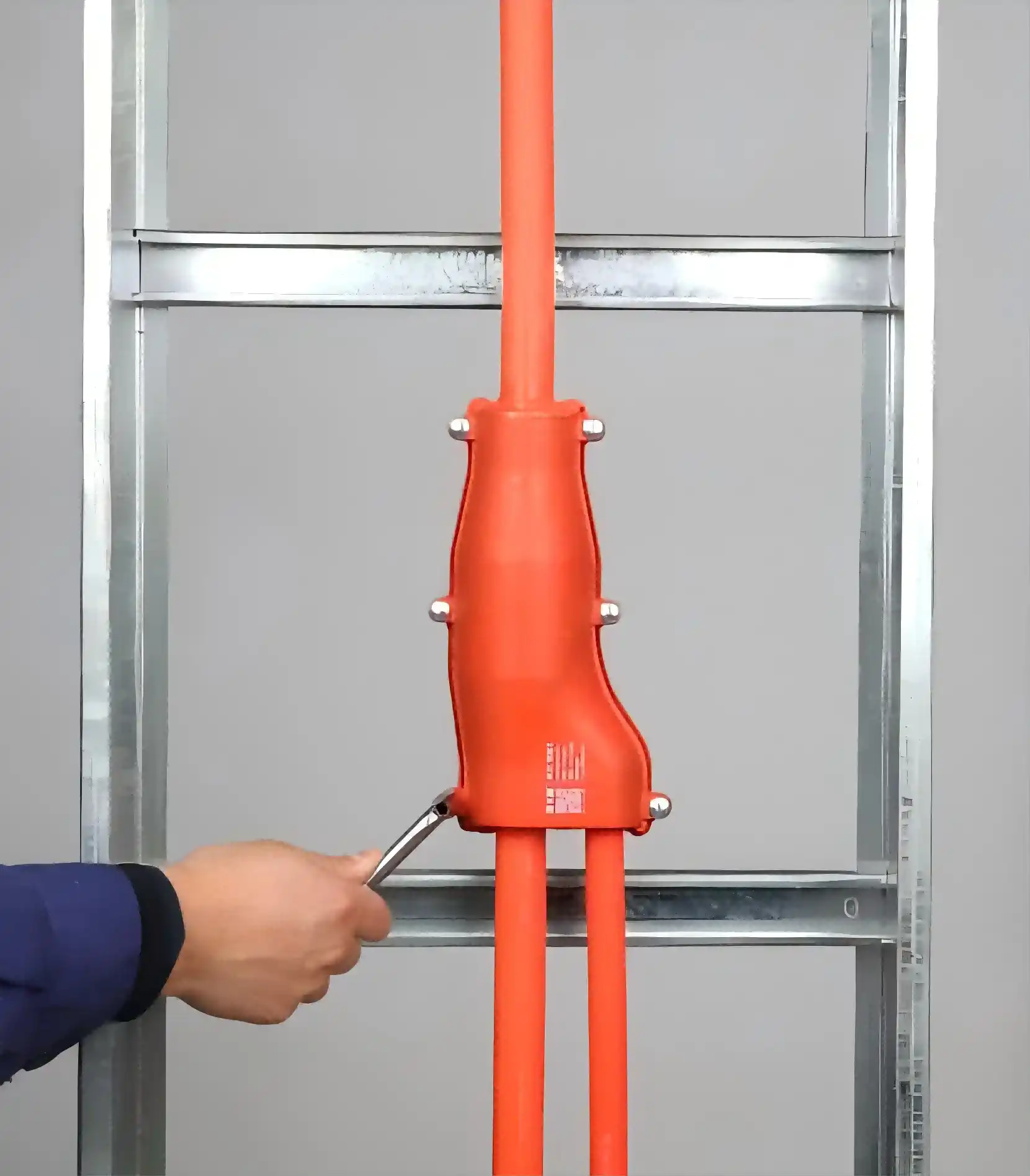

8.Snap-on protective housing

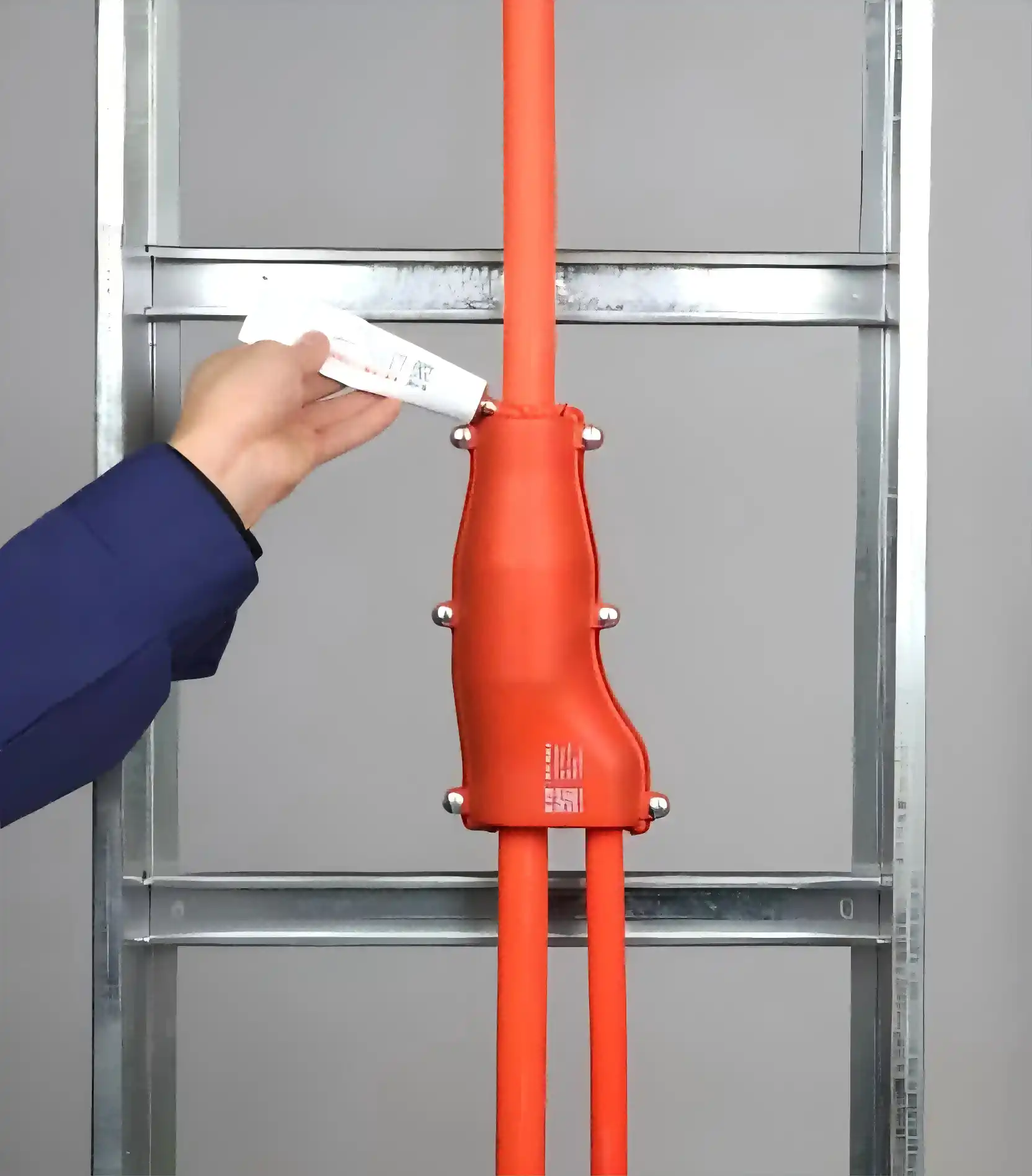

9.Lock and glue the cable outlet

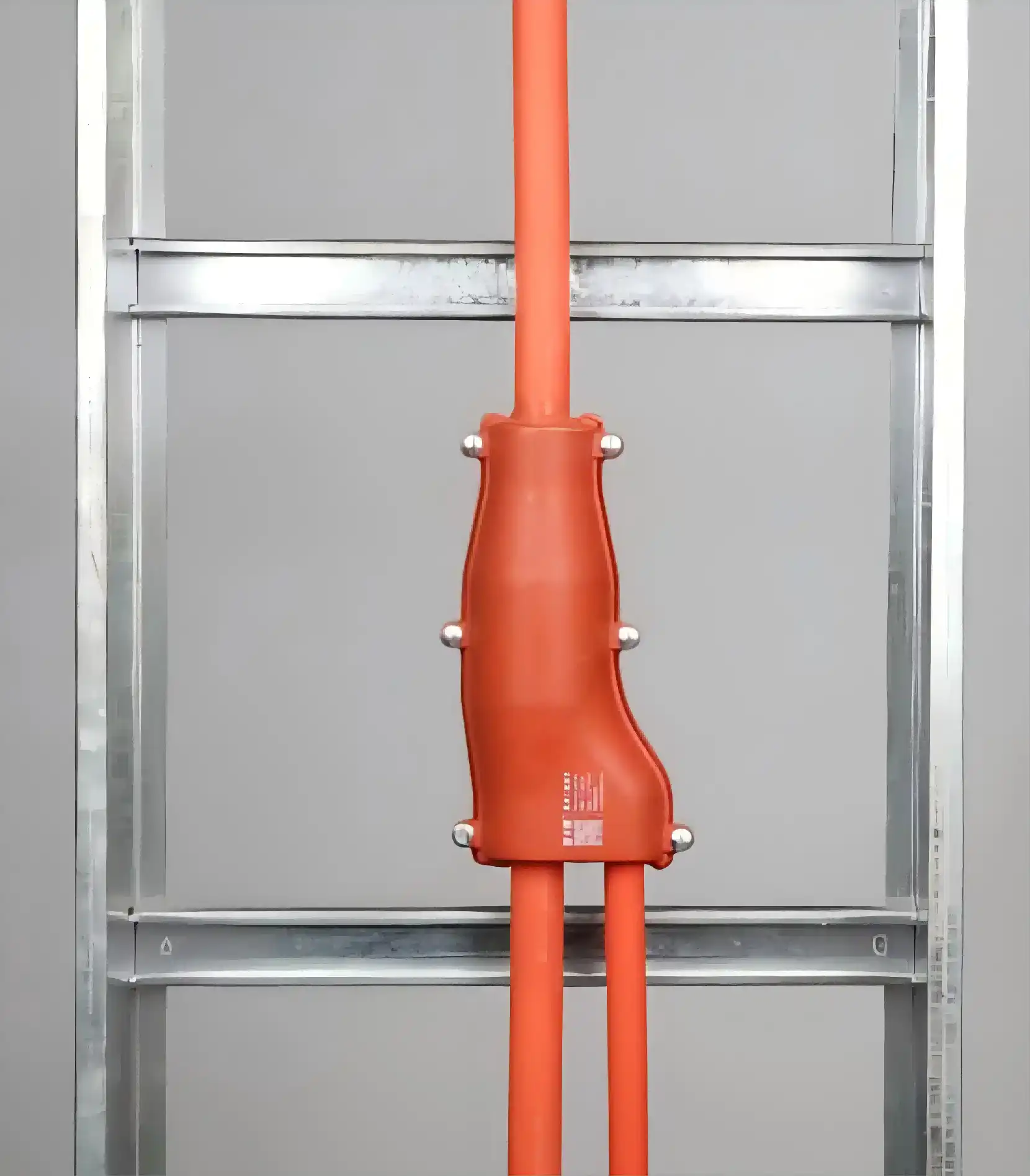

10.Installation completed
Key Benefits of Our Integrated T-Connection Technology:
1. Seamless Integration: Easily connects multi-core main cables with branch cables, providing a smooth and efficient link with minimal effort.
2.Enhanced Safety: Engineered with advanced insulation and protection features, it offers superior safety by reducing risks associated with electrical connections.
3.Reliability and Durability: Built to withstand demanding conditions, our terminal ensures long-lasting performance and reliability, even in challenging environments.
4.Effortless Installation: Designed for quick and straightforward installation, our product streamlines the process, saving time and reducing labor costs.
5.Aesthetically Pleasing Design: The terminal’s clean and elegant design complements any installation, adding a polished touch to your cable management system.
Our integrated T-connection technology embodies our commitment to innovation and excellence, providing a top-tier solution that meets the highest standards of performance and safety. Experience the ultimate in cable connection technology with Xi'an OUKAMU's cutting-edge product.
Advantages
Choosing our Cable Joint Kit brings several benefits:
Versatile Installation: Whether you're working on-site or in a controlled environment, our kit allows for branch connections at any position, offering unmatched flexibility.
Compact and Efficient Design: The integrated structure is not only safe and reliable but also compact, making it suitable for both open and concealed installations.
Durability and Reliability: Our kit is designed to withstand the toughest conditions, offering insulation, flame retardancy, fire resistance, and protection against dust, water, aging, and electrochemical corrosion.
Cost-Effective: Save on materials, labor, and space with our efficient design, which reduces overall project costs.
Technical Features
Our Cable Joint Kit stands out with the following technical features:
Non-Destructive Connection: The main cable remains intact, ensuring the integrity and continuity of your power distribution system.
Integrated T-Connector: Both main and branch cables are securely connected using our flame-retardant/fire-resistant insulated body.
Sealed Insulation: The branch cable is fully insulated and sealed, ensuring long-term safety and reliability.
R&D Center
At Xi'an OUKAMU, innovation is at the core of what we do. Our state-of-the-art R&D center is dedicated to developing advanced cable connection technologies.
Our R&D efforts have led to the creation of the world's first integrated T-connection terminal, setting a new benchmark in the industry.
Product Application
The Cable Joint Kit is ideal for a wide range of applications, including:
Low-Voltage Systems: Perfect for flame-retardant, fire-resistant, and mineral-insulated cables, ensuring safety in critical environments.
Commercial Buildings: Streamline cable connections in office buildings, shopping centers, and other commercial properties.
Industrial Facilities: Ensure reliable and secure cable connections in manufacturing plants, warehouses, and other industrial settings.
Quality Control
Quality is our top priority. At Xi'an OUKAMU, we implement rigorous quality control measures at every stage of production. From the selection of raw materials to the final inspection, we ensure that every product meets the highest standards.
FAQ
Q1: What cables are compatible with the product?
A1: The kit is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated cables, making it versatile for various applications.
Q2: How easy is the installation process?
A2: The installation is straightforward and can be performed on-site without specialized tools, saving time and labor costs.
Q3: Can the product be reused?
A3: Yes, the kit is designed for easy maintenance and can be reused, making it a cost-effective solution.
Q4: What safety standards does the kit meet?
A4: Our product meets international safety standards, including insulation, flame retardancy, and fire resistance, ensuring long-term reliability.
Q5: Where can I purchase the product?
A5: You can contact us directly at okmcablebranch@gmail.com for purchase inquiries and more information.
Contact Us
Ready to learn more or place an order? Contact our team at info@okmbranchcable.com for personalized assistance.
We're here to help you find the best Cable Joint Kit solutions for your needs.
