Cable Resin Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 35~95mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Cable Resin Joint Introduction
Welcome to the fate of cable associations with Xi'an OUKAMU's progressive Cable Resin Joint. Beginning around 2015, our organization has been driving the way in cable T-connection technology innovation, and our coordinated T-connector is a demonstration of our development. Intended to offer a consistent and productive answer for interfacing multi-center main cables with branch cables, our product guarantees wellbeing, unwavering quality, and simplicity of establishment. Whether you're managing low-voltage fire resistant cables or mineral-protected heat proof cables, our item is designed to address your issues with unparalleled execution.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps
1.Tools
2.Determine installation location

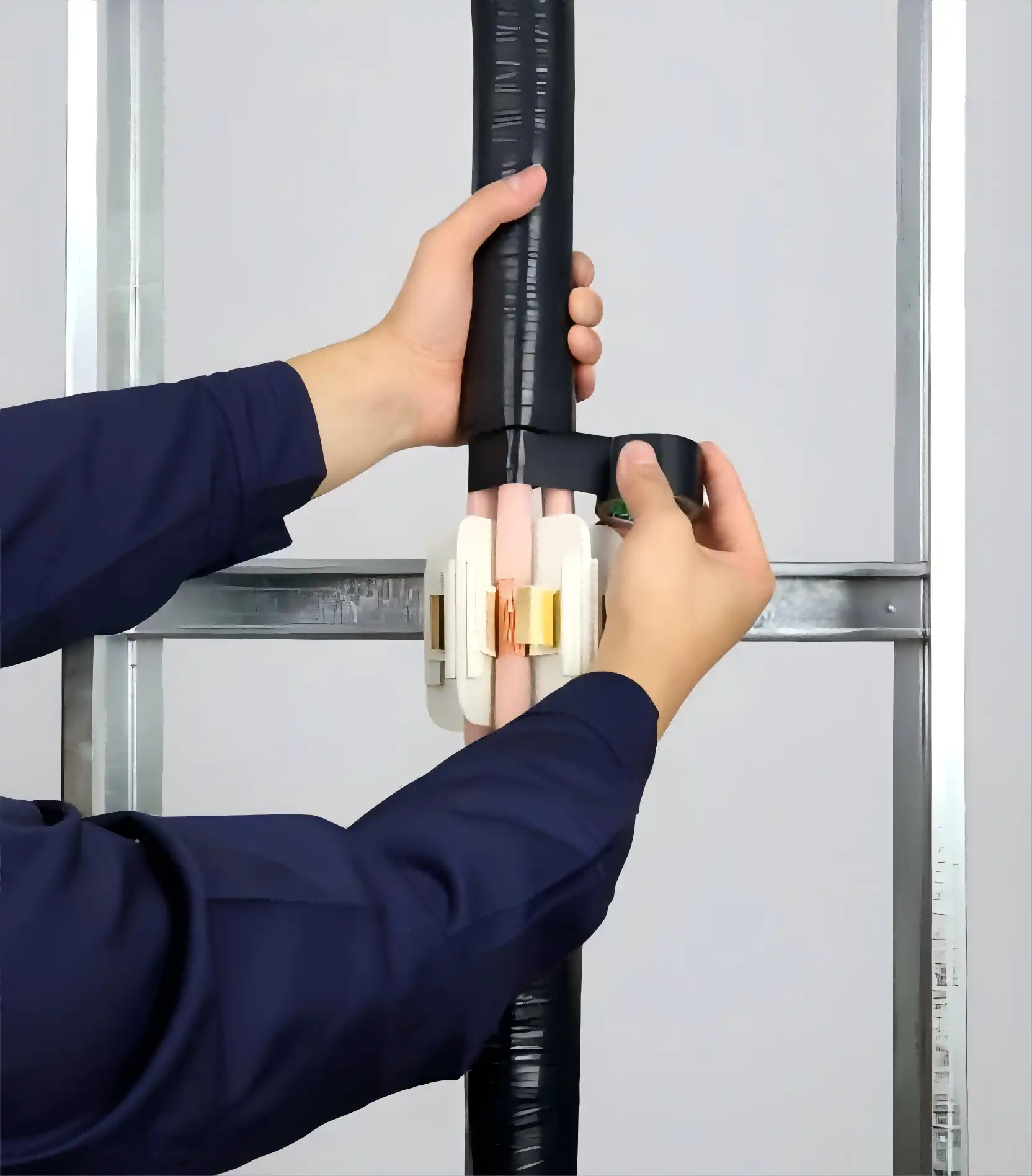

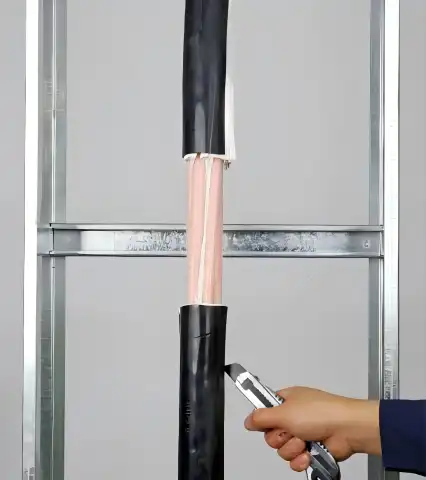

3.Open outer sheath
4.Strip main cable insulation

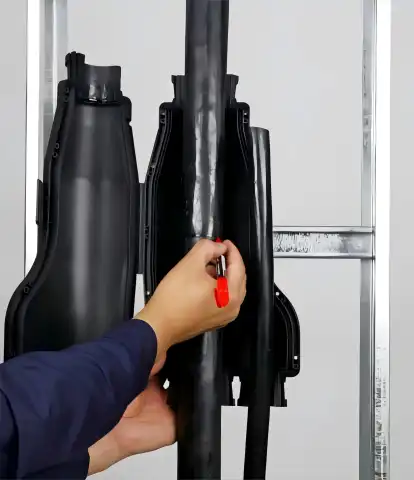

5.Installation of branch cable body
6.Overwrap open seams
7.Installation of branch cables
8.Snap-on protective housing

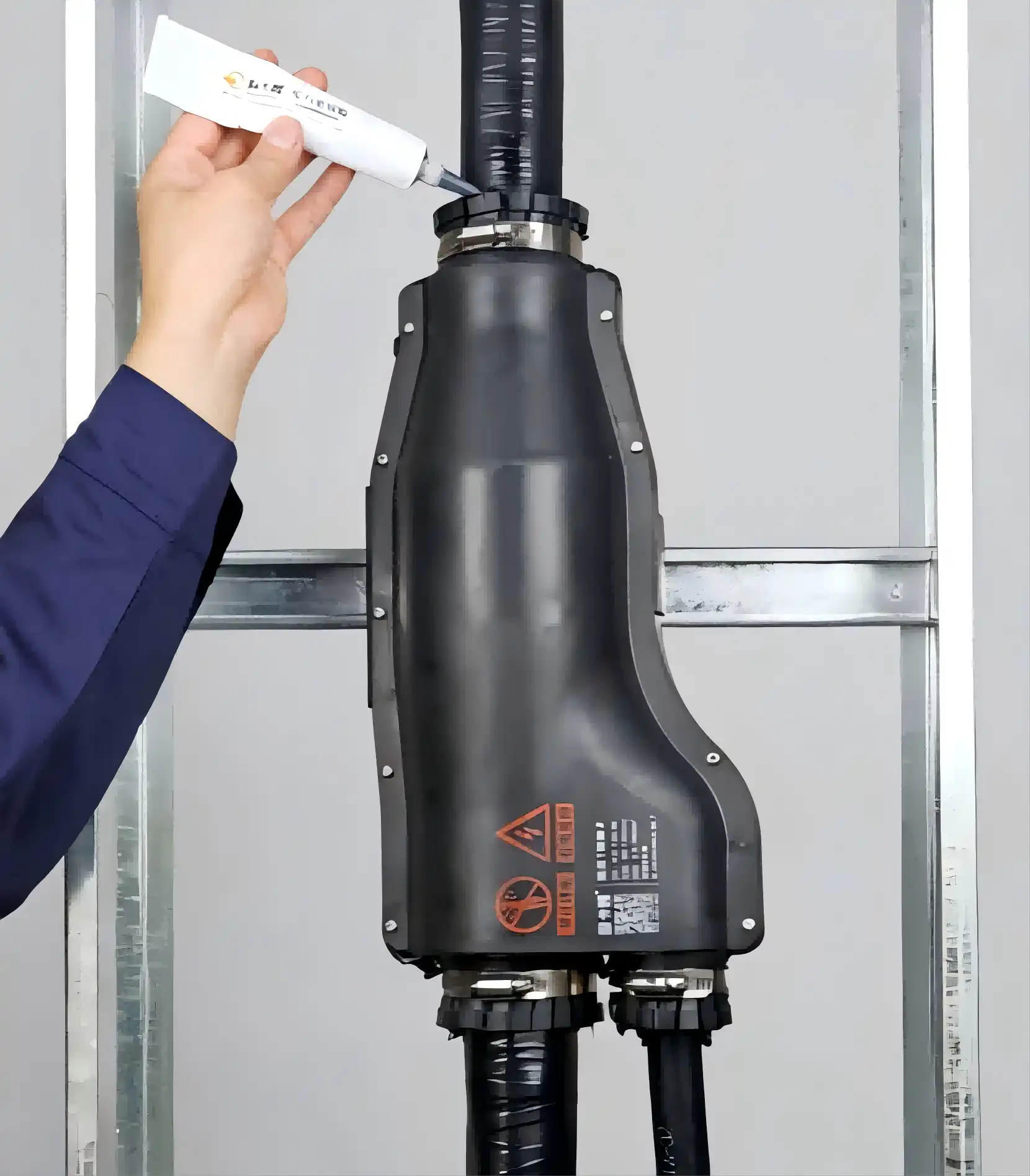

9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
Our Cable Resin Joint stands out for its numerous advantages:
- On-Site Installation Flexibility: Install and connect branches at any location without the need to cut the main cable.
- Integrated Design: Combines safety, reliability, and aesthetic appeal in one compact unit.
- Compact and Versatile: Small size allows for installation both openly and in bridges, saving space and maintaining aesthetics.
- Ease of Use: Designed for convenience, the joint can be installed quickly and requires minimal maintenance.
- Durable and Resilient: Features insulation, flame retardant properties, fire resistance, dustproofing anti-aging, and resistance to electrochemical corrosion.
- Cost-Effective: Reduces cable usage and overall building space, leading to savings in labor and materials.
Technical Features
Our product is engineered with cutting-edge technology to ensure optimal performance:
- Non-Intrusive Connection: The main cable remains uninterrupted during installation.
- Integrated Body: The main and branch cables connect through a flame-retardant/fire-resistant insulated T-connector body.
- Complete Insulation: The branch cable is insulated and sealed in a single, comprehensive process.
Application
The Cable Resin Joint is ideal for a range of applications, including:
- Low-Voltage Cable Networks: Perfect for flame-retardant and fire-resistant cable systems.
- Industrial Installations: Suitable for environments requiring high durability and safety.
- Commercial Buildings: Excellent for reducing clutter and maintaining clean, safe cable connections.
OEM Service
At Xi'an OUKAMU, we comprehend that each task accompanies its own novel difficulties and prerequisites. That is the reason our OEM administrations are intended to furnish altered arrangements that adjust impeccably with your particular necessities. We don't have confidence in a one-size-fits-all methodology. All things being equal, we perceive the significance of adaptability and accuracy in conveying items that meet as well as surpass your assumptions.
FAQ
Q1: How is the product installed?
A1: The joint is installed by connecting the main and branch cables directly onto the integrated branch cable connector without cutting the main cable. It can be installed at any position on the cable network.
Q2: What makes it flame-retardant?
A2: The T-connector body is designed with flame-retardant materials, ensuring that it can withstand high temperatures and prevent fire hazards.
Q3: Can the product be used in outdoor applications?
A3: Yes, the joint is designed to be waterproof and dustproof, making it suitable for both indoor and outdoor environments.
Q4: How does it save costs?
A4: By reducing the need for additional cables and saving on labor and building space, the joint offers a cost-effective solution for cable management.
Q5. What is the lifespan of the product?
A5: The joint is built to be durable and resistant to aging and corrosion, ensuring a long service life with minimal maintenance.
