Electeical Cable Joint Connector
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 120~300mm, branch cable 10~95mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Electeical Cable Joint Connector Introduction
Welcome to the future of cable connection technology with our Electeical Cable Joint Connector. At Xi'an OUKAMU, we pride ourselves on leading the industry with innovative solutions designed for efficiency, safety, and reliability. Our integrated T-connector, introduced in 2015, is a groundbreaking product that revolutionizes how multi-core main cables and branch cables connect. This advanced technology not only simplifies the process but also ensures a secure and durable connection every time.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

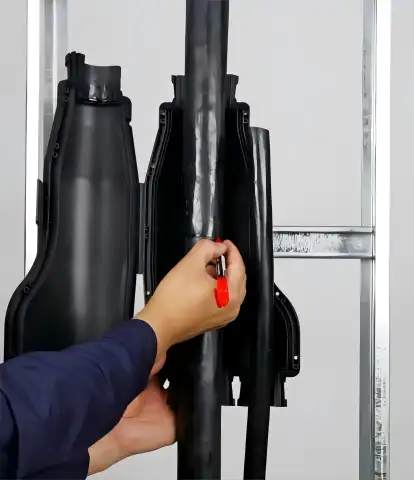

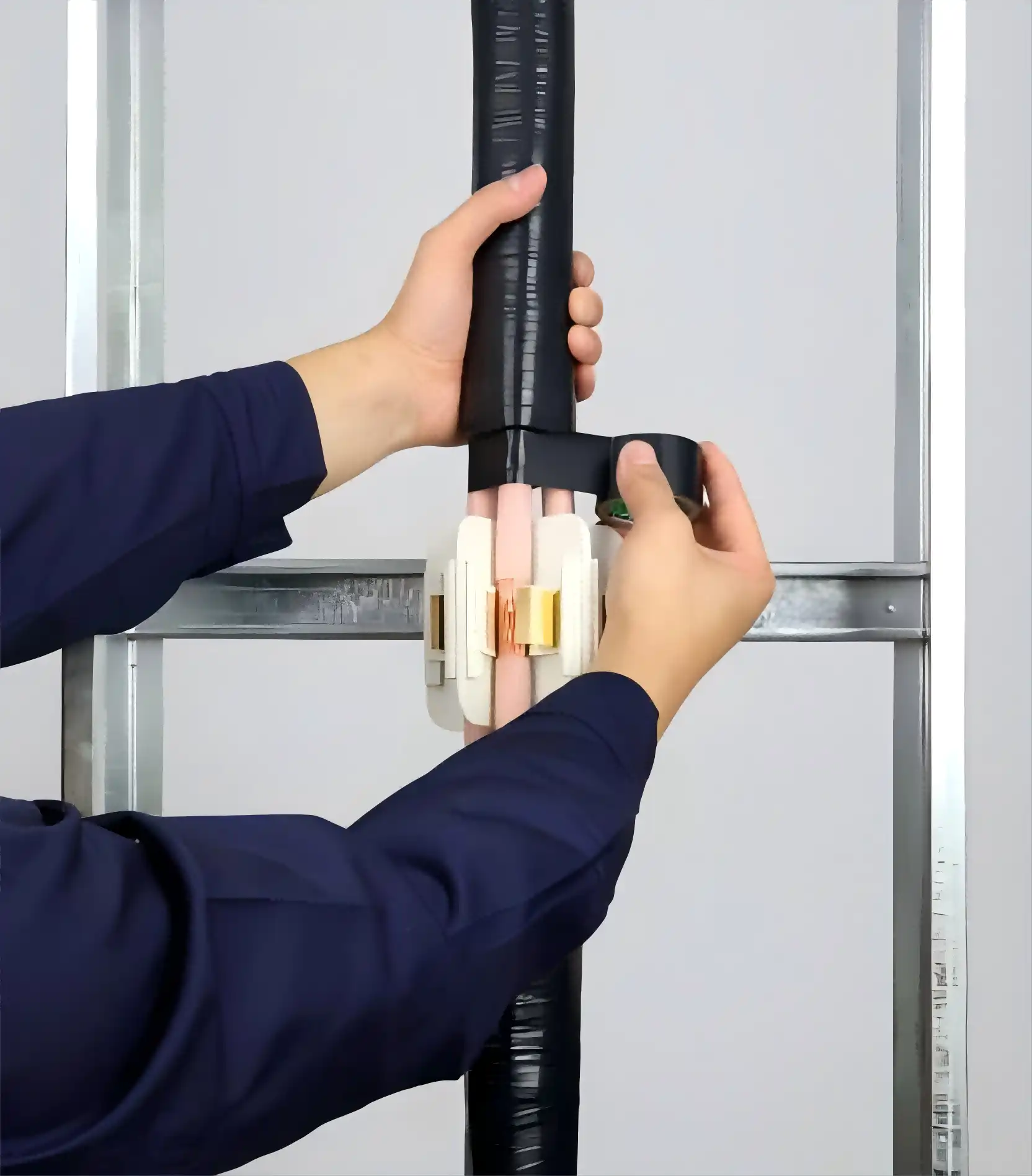

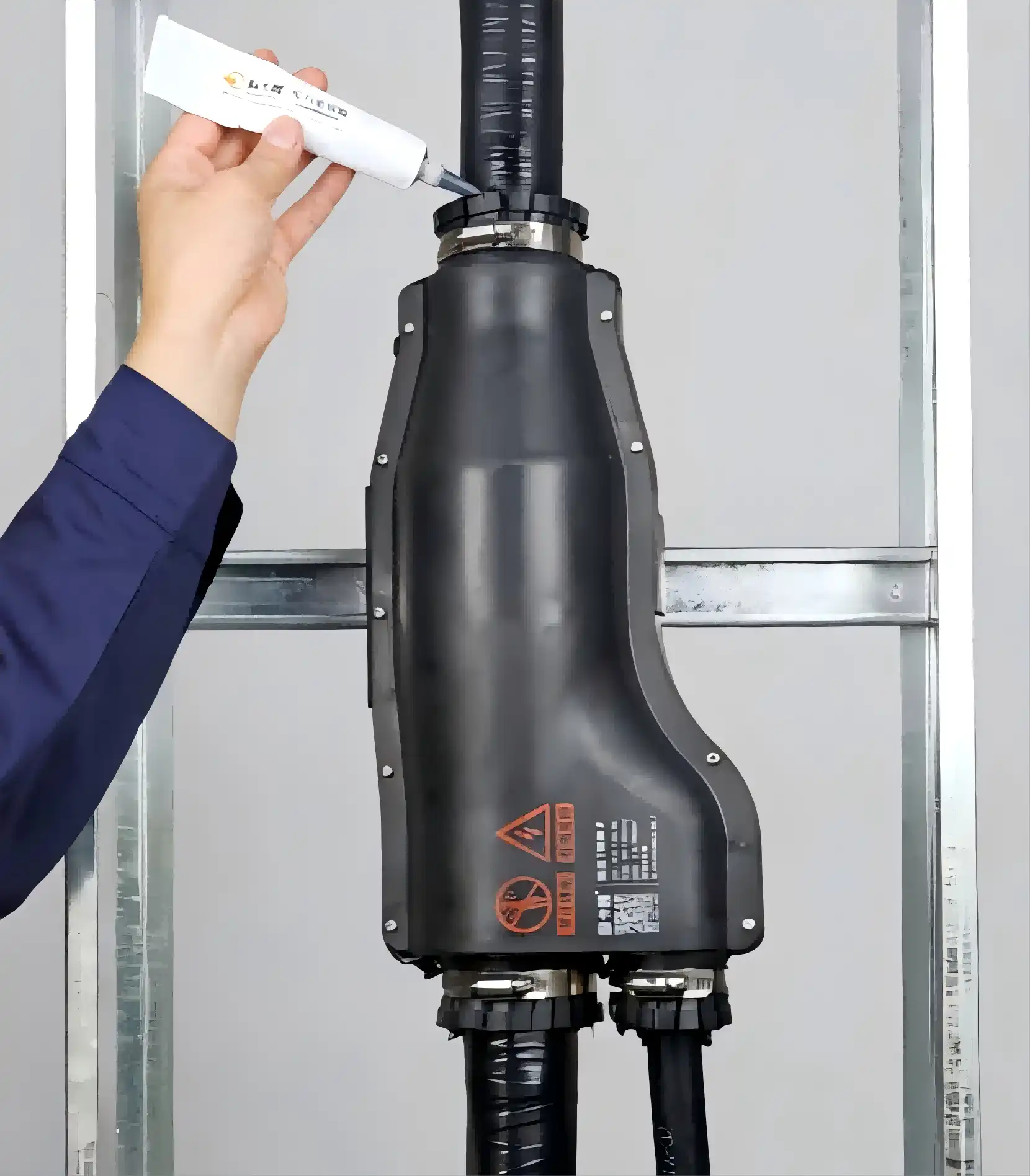

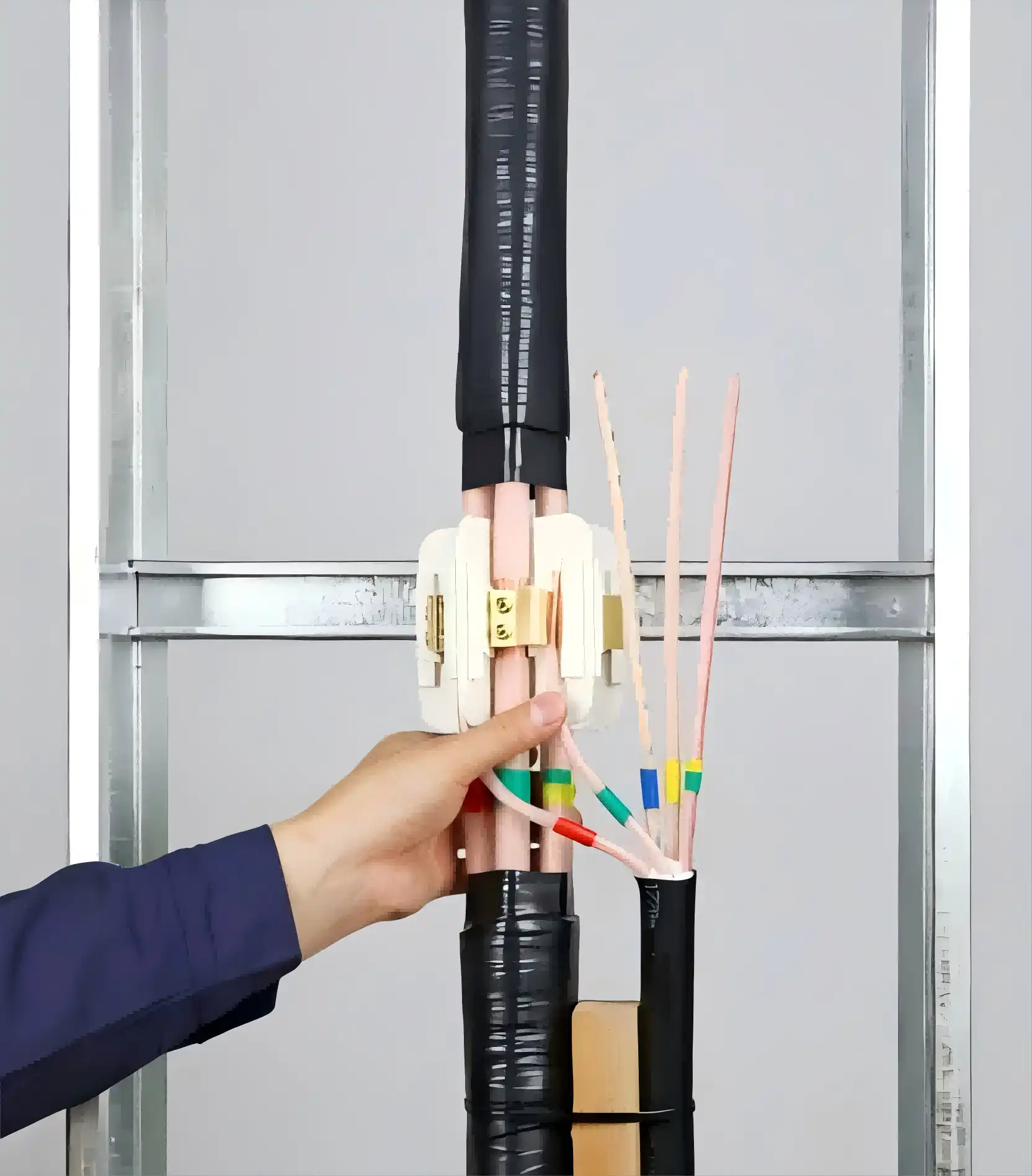

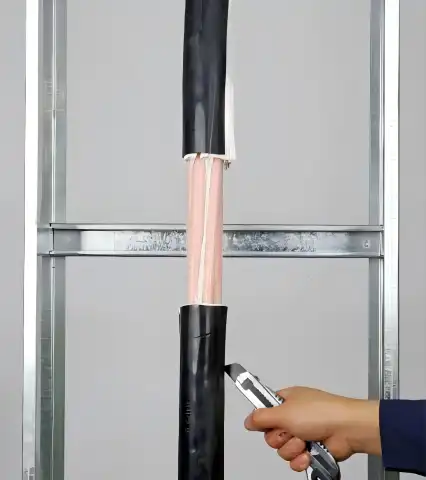

Installation Steps
2.Determine installation location
5.Installation of branch cable body
6.Overwrap open seams
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
The Electeical Cable Joint Connector offers numerous benefits that set it apart from traditional cable connection methods:
- On-site Installation Flexibility: Whether you need a branch connection at a specific point or multiple points, our connector adapts to your requirements, providing unmatched installation flexibility.
- Safety and Reliability: Designed with safety in mind, this connector ensures a secure and reliable connection that withstands harsh environments, including flame-retardant and fire-resistant applications.
- Space-Saving Design: Its compact structure and small size make it ideal for both open installations and those within cable trays or bridges, saving valuable space.
- Durable and Reusable: Built to last, our connector is not only durable but also reusable, making it a cost-effective solution for long-term projects.
- Protection and Longevity: The connector is insulated, flame-retardant, fire-resistant, dustproof, waterproof, anti-aging, and resistant to electrochemical corrosion, ensuring long-lasting performance.
Technical Features
Our Electrical Cable Joint Connector stands out with the following technical features:
- No Need to Cut the Main Cable: The main cable remains intact, reducing potential points of failure and ensuring the integrity of the cable.
- Integrated Connection: The main and branch cables connect within the flame-retardant/fire-resistant insulated body of the T-connector, ensuring a seamless and secure connection.
- Complete Insulation and Sealing: The branch cable is fully insulated and sealed, providing additional protection against environmental factors.
Application
The Electrical Cable Joint Connector is versatile and suitable for a wide range of applications:
- Low-Voltage Flame-Retardant Cables: Ideal for environments where fire safety is a priority.
- Fire-Resistant Cables: Perfect for installations that require extra protection against fire hazards.
- Mineral-Insulated Fire-Resistant Cables: Suitable for critical infrastructure where fire resistance and reliability are essential.
OEM Service
At Xi'an OUKAMU, we understand that each project has unique requirements. That’s why we offer customizable OEM services to tailor the product to your specific needs. Our team of experts works closely with you to ensure that every product meets your exact specifications, from design to functionality.
