Cast Resin Cable Joint
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cast Resin Cable Joint Introduction
The Cast Resin Cable Joint is a cutting-edge solution designed for seamless and reliable cable connections, specifically developed by Xi'an OUKAMU. Known for its innovative approach to cable T-connection technology, this product ensures secure and durable connections for various cable types. This product is a result of advanced engineering and meticulous manufacturing, offering superior performance in challenging environments.

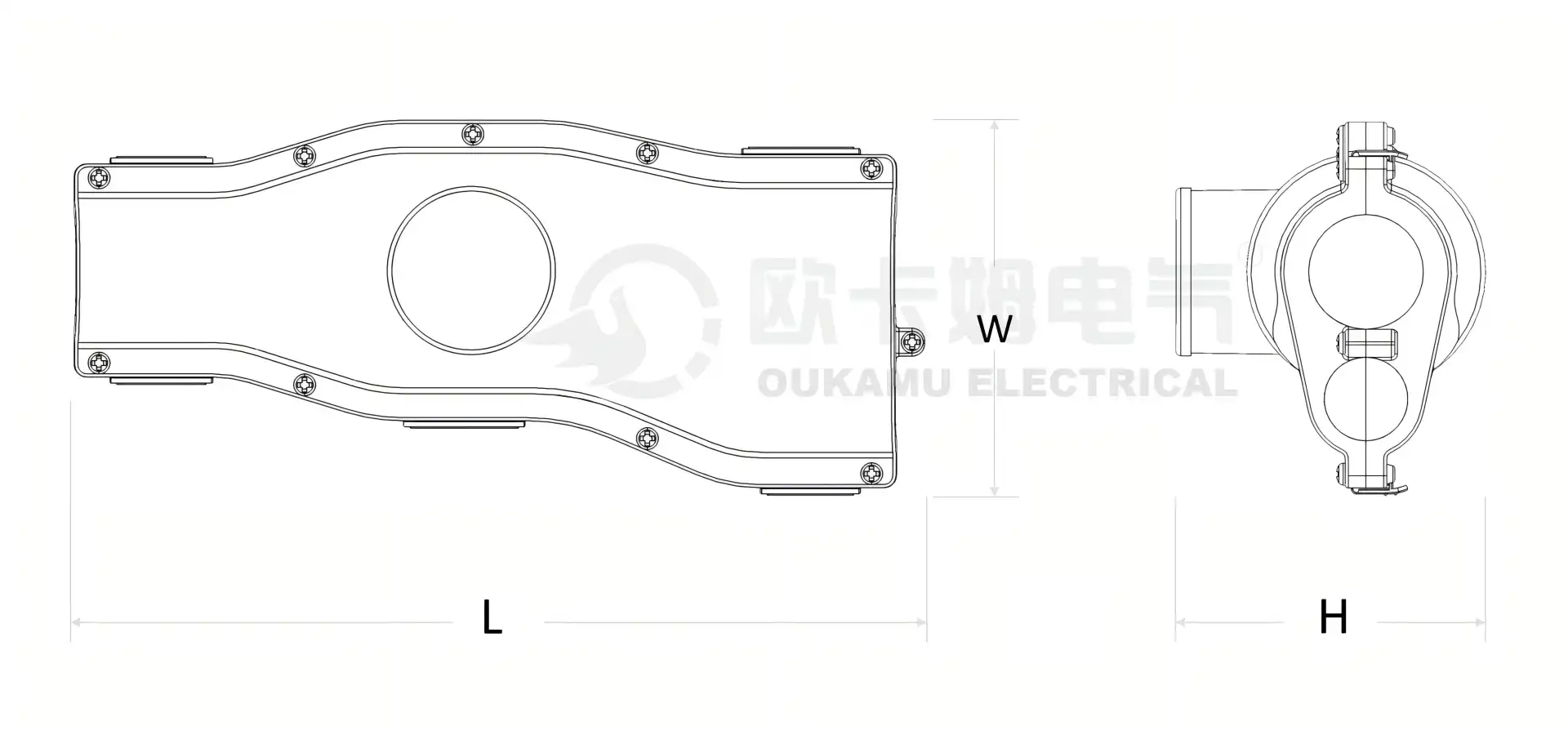

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantages
Our Cast Resin Cable Joint stands out due to its numerous advantages:
- Durable and Reliable: Made from high-quality materials, this joint offers excellent durability, ensuring long-lasting performance even in harsh conditions.
- Superior Insulation: The cast resin provides robust insulation, protecting the cables from external factors such as moisture, dust, and chemical exposure.
- Easy Installation: Designed with the end-user in mind, the Cast Resin Cable Joint is easy to install, reducing downtime and labor costs.
- Compact Design: Its compact structure allows for installation in tight spaces without compromising on performance.
- Insulated Waterproof: The joint is built with waterproof properties, enhancing safety in the external environments.
- Cost-Effective: By minimizing the need for extensive cable runs and reducing installation time, this joint offers significant cost savings.
Technical Features
- Main Cable Integrity: The main cable remains intact, eliminating the need for cutting during installation.
- Integrated Connection: The joint integrates both main and branch cables within the insulated waterproof, flame-retardant, fire-resistant insulated T-connector body.
- Sealed Insulation: The branch cable is fully insulated and sealed, preventing any exposure to external elements.
Application
Our product is versatile and can be used in various applications:
- Industrial Facilities: Ideal for connecting low-voltage, insulated waterproof, flame-retardant, and fire-resistant cables in industrial settings.
- Construction Projects: Perfect for building sites where secure and reliable cable connections are critical.
- Power Distribution: Used in power distribution systems to ensure safe and efficient electrical connections.
- Mining Operations: Suitable for harsh environments like mining, where durability and reliability are paramount.
OEM Service
At Xi'an OUKAMU, we offer comprehensive OEM services to meet the unique needs of our clients. Our team of experts works closely with customers to develop customized solutions that align with their specific requirements. Whether you need a particular size, shape, or configuration, we can provide tailored Cast Resin Cable Joints that meet the highest standards of quality and performance.
FAQ
Q1: How long does the Cast Resin Cable Joint last?
A1: This is designed for long-term use, with a lifespan that can extend over several decades, depending on the installation environment and maintenance practices.
Q2: Can the joint be used in outdoor applications?
A2: Yes, the product is fully insulated and sealed, making it suitable for both indoor and outdoor installations.
Q3: What are the maintenance requirements?
A3: Minimal maintenance is required. Regular inspections are recommended to ensure optimal performance, especially in harsh environments.
Q4: Is the installation process complex?
A4: No, the product is designed for easy installation, requiring no special tools or extensive training.
Q5: Does Xi'an OUKAMU provide technical support?
A5: Yes, we offer full technical support to our customers, including installation guidance and after-sales service.
Contact Us
For more information about the Cast Resin Cable Joint or to discuss your specific requirements, please feel free to contact us at info@okmbranchcable.com. Our team is ready to assist you in finding the perfect solution for your cable connection needs.
