Piercing Wire Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Piercing Wire Connector Introduction
The Piercing Wire Connector is a state of the art choice for safely and really joining link branches in private and business settings. By precisely piercing two insulated wires, this cutting-edge connector makes it possible to establish a dependable electrical connection without stripping the insulation layer. The product from Xi'an OUKAMU sets a new standard for cable connection systems by incorporating cutting-edge T-connection technology.
Product Composition
The Piercing Wire Connector is crafted with the highest quality materials to ensure long-lasting performance and safety. Key components include:
- Piercing Conductor: Made from high-conductivity silver-copper alloy, the conductor boasts excellent strength, low resistance, and superior current-carrying capacity.
- Plastic Shell: Designed to withstand high reverse clamping forces, the plastic shell ensures a secure and reliable connection without adding excess bulk.
- Double-Blade Multi-Tooth Design: This design increases the piercing contact points, creating a large surface area for more effective electrical conductivity.
Technical Parameters
The product is built to perform in various challenging environments. Its key technical specifications are:
- Conductor Material: Silver-copper alloy with extremely low resistance
- Contact Area: Increased through multi-tooth design
- Conductor Width: 8–15mm
- Installation Torque: Constant puncture torque to ensure consistent and reliable connection
Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|

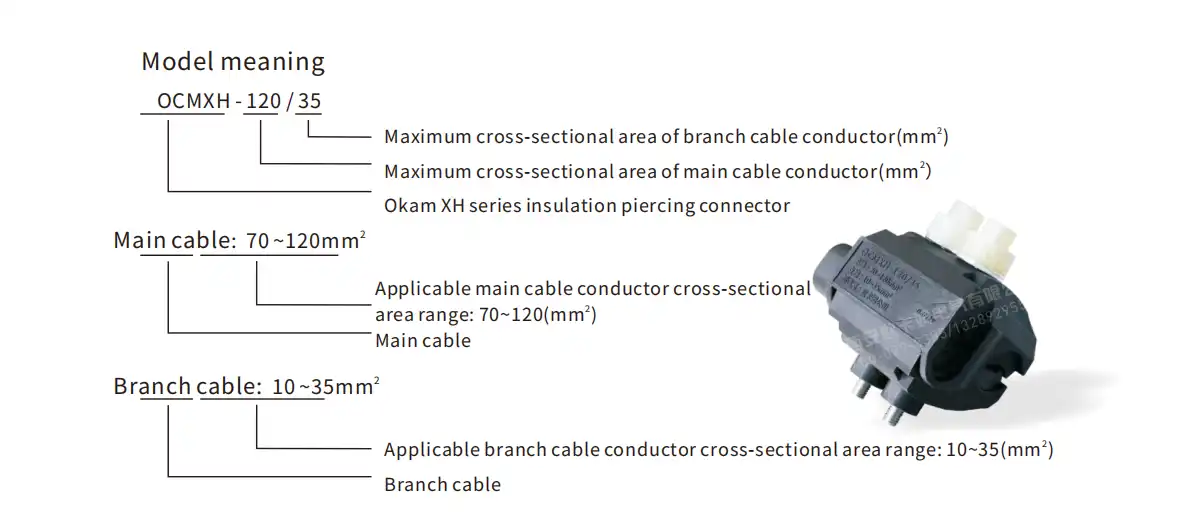

OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
- No Cable Cutting or Stripping: The Piercing Wire Connector simplifies installation by allowing direct branch connections without cutting or stripping the main cable.
- Quick Installation: Its compact structure and innovative design make installation easy and quick, saving valuable time and resources on-site.
- Compact and Space-Saving: With a small footprint, the connector doesn't occupy excessive space on cable bridges or in confined areas.
- Stable and Reliable: The constant puncture torque mechanism ensures consistent performance over time, minimizing the risk of connection failures or power outages.
- Cost-Efficient: By reducing the need for extra cables, labor, and building space, the product offers a cost-effective solution for large-scale electrical projects.
Product Usage
The versatility of the Piercing Wire Connector makes it ideal for a range of applications, including:

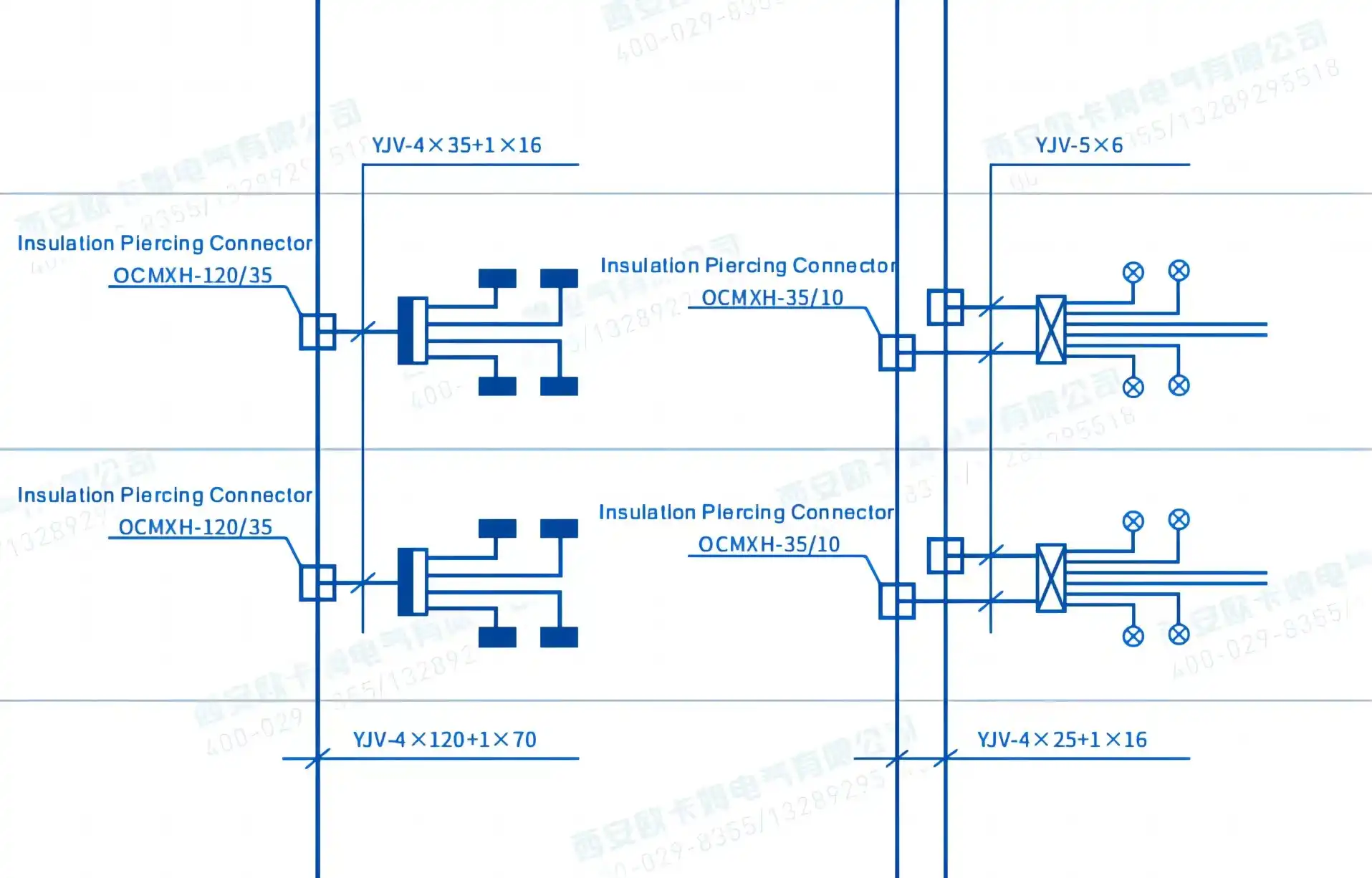

- Industrial and Residential Power Distribution: Efficiently handle cable branching for buildings and infrastructure.
- Tunnels, Subways, and Underground Pipe Galleries: Perfect for the complex and demanding environments of underground cable systems.
- Overhead Power Cables: Secure and reliable connections for above-ground power distribution networks.
- Urban Lighting and Landscape Projects: Support modern urban planning with safe and efficient cable connections for lighting systems.
Packaging and Transportation
At Xi'an OUKAMU, we are aware of the significance of secure packaging and prompt delivery. Our products are packaged in sturdy, weather-resistant boxes to prevent damage during transport. Each box is clearly labeled with the product name, specifications, and quantity to make inventory management simpler upon arrival. We offer a variety of shipping options to ensure that your order arrives on time, regardless of whether you are working on a local or global installation.
