LV Insulation Piercing Connectors
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
LV Insulation Piercing Connectors Introduction
The LV Insulation Piercing Connectors by Xi'an OUKAMU is a state-of-the-art solution for creating safe and reliable cable branch connections without the need to strip the insulation layer. This innovative connector effectively pierces the insulation of two insulated wires to establish a solid electrical connection. Xi'an OUKAMU pioneered this technology, ensuring that the product stands at the forefront of global markets. With unmatched performance, safety, and ease of installation, the LV Insulation Piercing Connector is ideal for a wide range of industrial and civil applications.
Product Usage

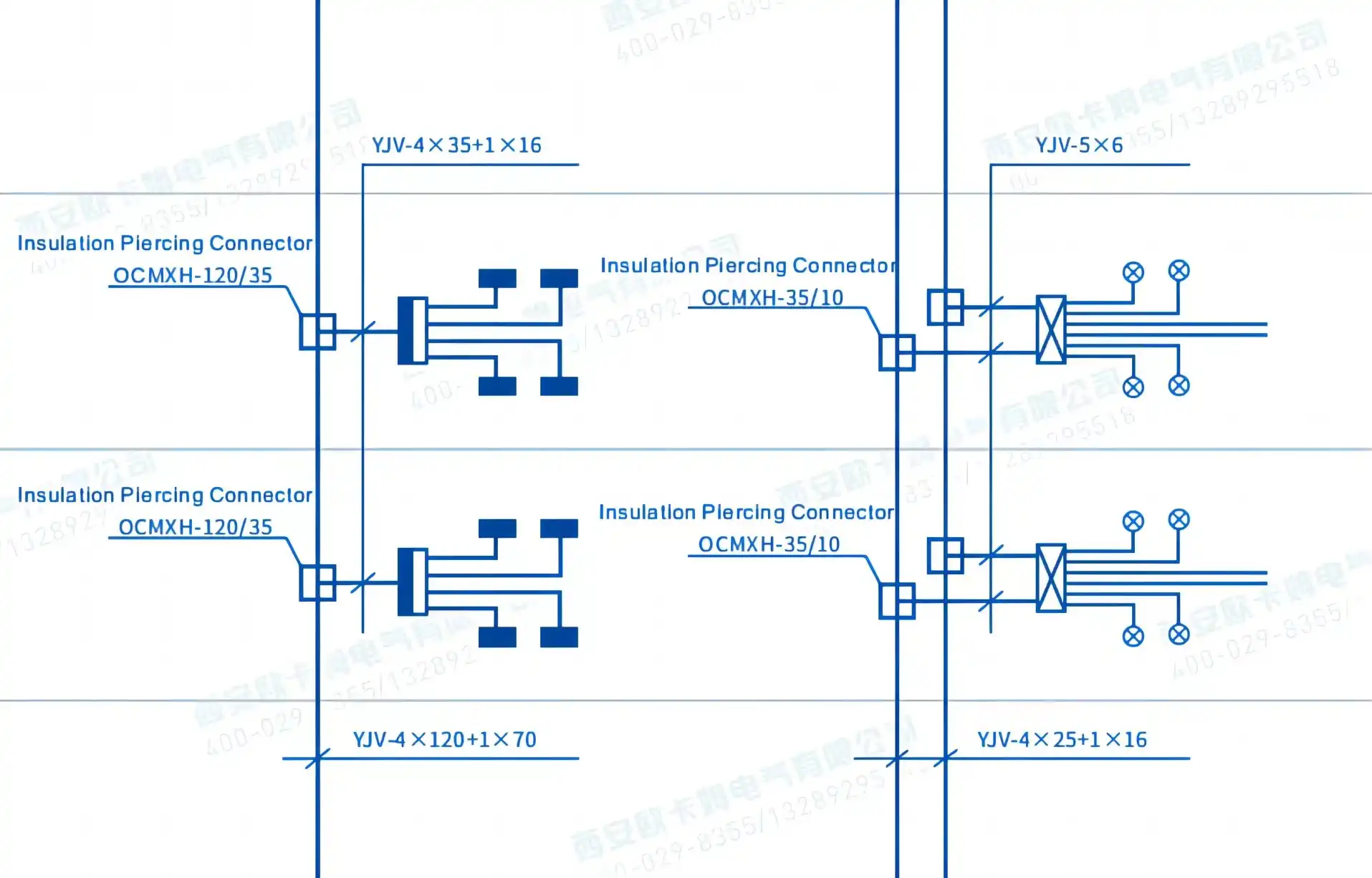

The LV Insulation Piercing Connector is versatile, and designed to meet the needs of various cable branch connection projects:
- Power Distribution for Industrial and Civil Buildings: Ensures efficient energy distribution without the hassle of traditional splicing methods.
- Tunnels, Subways, and Bridges: Perfect for underground and elevated installations, where space and durability are critical.
- Overhead Cables: Provides a robust solution for overhead distribution systems, ensuring minimal disruption and maximum reliability.
- Urban and Landscape Lighting: Supports buried cable connections for lighting projects, adding value to urban planning and beautification efforts.
Technical Parameters
- Piercing Conductor Material: High-conductivity silver copper alloy plate.
- Piercing Conductor Dimensions: Back width ranging from 8~15mm.
- Core Design: Multi-tooth piercing design for a large contact area and high current-carrying capacity.
- Current Capacity: Excellent conductivity due to the alloy material, ensuring low resistance and high durability.
- Installation Torque: Constant puncture torque to guarantee reliable and stable connections.

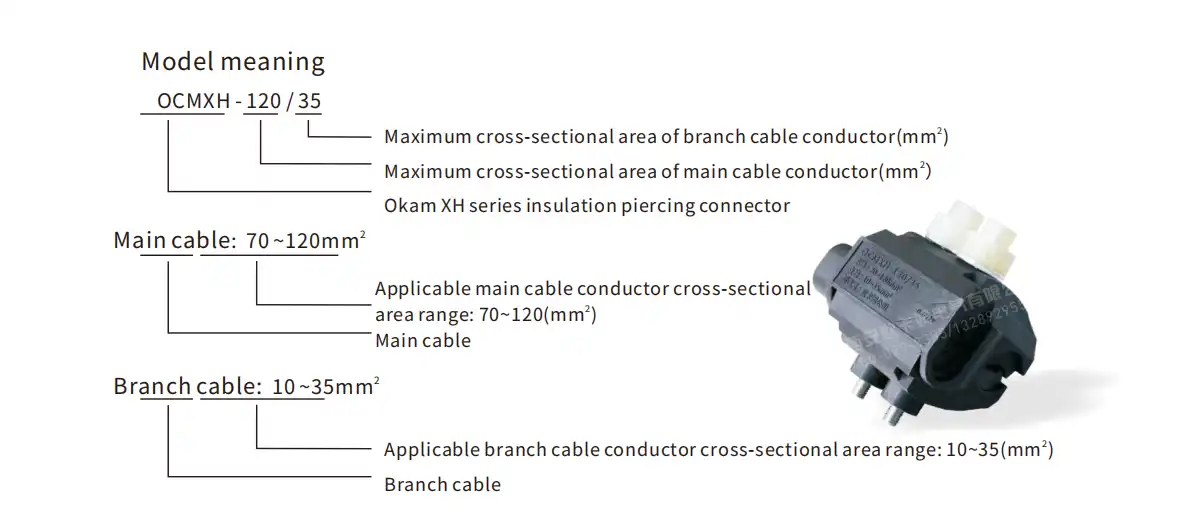

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
- Multi-Tooth Piercing Design: The connector features a single double blade with multiple piercing contact points. This ensures a large piercing contact area for improved conductivity.
- Superior Conductivity: Made from a high-conductivity silver copper alloy, the connector offers extremely low resistance, ensuring efficient current flow.
- Minimal Strain on Plastic Shell: The innovative design ensures minimal reverse clamping force, protecting the integrity of the plastic shell and improving the longevity of the connection.
Product Advantages
- Non-Invasive Installation: No need to cut or strip the trunk cable. The connector pierces the insulation layer without damaging the core.
- Quick and Easy Setup: Installation is simple, fast, and efficient, reducing labor costs and installation time.
- Compact Design: The connector’s compact structure allows it to fit into tight spaces without taking up excess room, making it suitable for space-constrained installations such as bridges and tunnels.
- Consistent Performance: Constant puncture torque ensures a stable and reliable contact effect, reducing the risk of faulty connections.
- Cost-Efficiency: Saves on cable length, labor, and installation costs while ensuring a high-performance connection for a wide range of applications.
Quality Control
At Xi'an OUKAMU, we prioritize quality at every stage of production. Each LV Insulation Piercing Connectors undergoes rigorous testing to ensure it meets global standards for safety, durability, and efficiency. Our quality control processes are designed to detect and eliminate defects, ensuring that every product we deliver performs flawlessly under even the most demanding conditions.
Packaging and Transportation
Our packaging solutions are meticulously crafted with one primary goal in mind – to provide unwavering protection to the product during transit. Every aspect of our packaging is carefully thought out, from the choice of durable materials to the design of secure closures. We understand that different projects have unique requirements, which is why we offer customizable packaging options. Whether you need special sizing, branding, or additional cushioning, our team can tailor the packaging to suit your specific project needs. Additionally, we ship globally, leveraging a network of reliable logistics partners. These partners are carefully selected for their track record of timely delivery and commitment to handling packages with care.
Contact Us
For more information on the LV Insulation Piercing Connectors or to request a quote, feel free to reach out to us. We are here to assist you with your project needs and provide tailored solutions for your specific requirements. Contact us at info@okmbranchcable.com.
