Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~4 times that of the same size wire.
Piercing Connector Introduction
The Piercing Connector, also known as the piercing wire clamp, is a revolutionary solution designed to simplify cable branch connections. Unlike traditional methods, this connector allows two mutually insulated wires to be electrically connected without stripping the insulation layer of the main wire. By piercing the cable insulation and creating a reliable electrical connection, it ensures efficiency and safety in a variety of power distribution scenarios. This product is a game-changer for industries that rely on seamless, quick, and reliable cable connections.

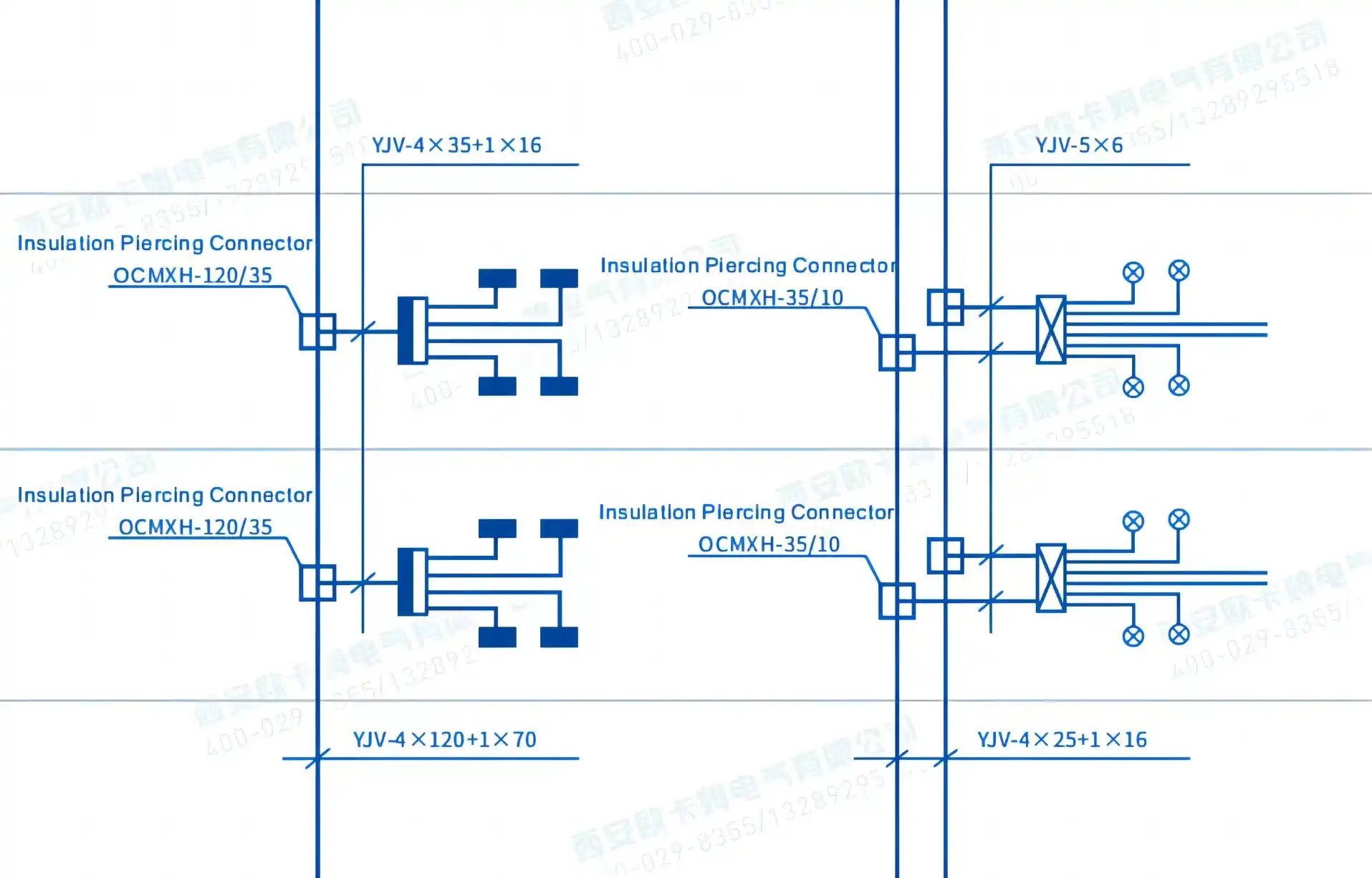

Usage
The product is versatile and adaptable for a wide range of applications, including:
- Power distribution in industrial and civil buildings: Ensures seamless branch connections without interrupting the main power supply.
- Tunnels, subways, and bridges: Provides reliable branch connections in environments that require secure and long-lasting cable setups.
- Overhead cables: Ideal for overhead power systems, minimizing maintenance and maximizing efficiency.
- Urban and landscape lighting: A perfect fit for buried cables in lighting systems, making installations more efficient and cost-effective.
Technical Parameters
It is meticulously engineered to deliver exceptional performance. Its key technical specifications include:
- Piercing Current-Carrying Conductor: Made from high-conductivity silver-copper alloy, ensuring excellent conductivity and low resistance.
- Conductor Width: 8~15mm, optimized to reduce the reverse clamping force on the plastic shell, enhancing the product’s durability and reliability.
- Piercing Contact Points: Designed with multi-tooth, single-double blade technology, providing a large piercing contact area for superior current flow and connection stability.
Parameters

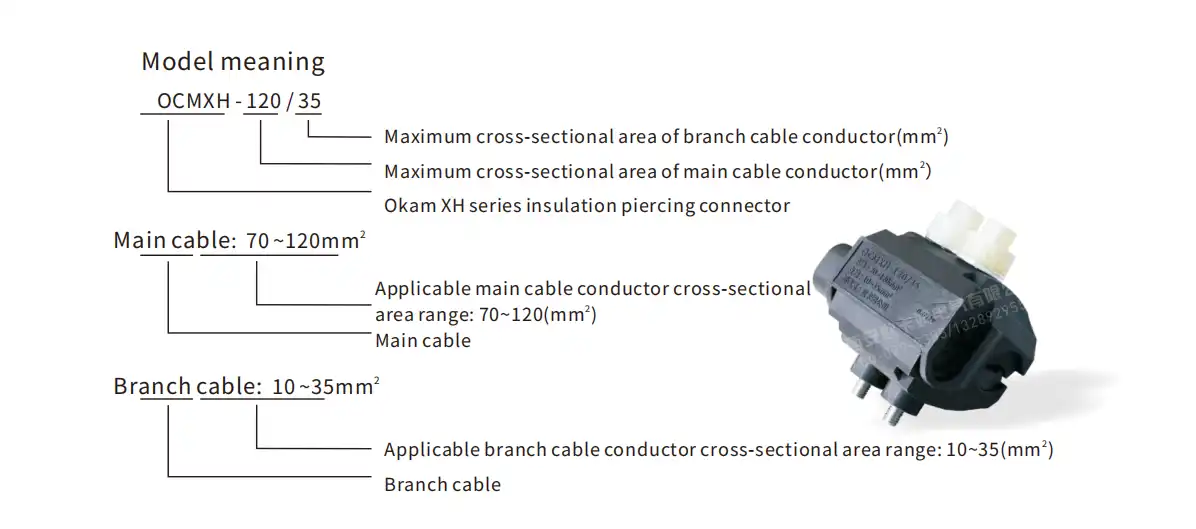

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
The Piercing Connector stands out for several critical features:
- Multiple Piercing Contact Points: Ensures a stable and reliable connection, minimizing the risk of connection failure.
- Low Resistance: The high-conductivity alloy used in the connector reduces energy loss and enhances the efficiency of the electrical system.
- High Strength and Durability: The conductor’s robust design ensures it can handle large current capacities while maintaining operational integrity.
Product Advantages
- No Need for Cable Stripping: Simplifies the installation process by eliminating the need to strip the insulation layer of the cable core.
- Quick and Easy Installation: Reduces labor costs and installation time with its user-friendly design.
- Compact and Space-Saving: Its small size and compact structure make it an excellent choice for installations in confined spaces, such as cable bridges.
- Consistent Puncture Torque: Ensures optimal contact and connection, enhancing long-term reliability.
- Cost-Effective: Saves on materials, labor, and space, leading to significant cost savings for large-scale projects.
Quality Control
At Xi'an OUKAMU, we prioritize quality control at every stage of the manufacturing process. Each Piercing Connector undergoes rigorous testing to ensure it meets the highest industry standards for durability, conductivity, and safety. Our dedicated quality assurance team inspects every component, from raw materials to the finished product, guaranteeing that only the best products reach our customers.
