IPC Cable Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
IPC Cable Connector Introduction
When it comes to electrical connections, unwavering quality and sufficiency are essential. The process of connecting cables to branches has been transformed by the revolutionary IPC Cable Connector, also known as the piercing wire clamp. Another industry standard has been set by this item, which was created by Xi'an OUKAMU, a trailblazer in link T-association innovation. The product's features, benefits, and applications, as well as the reasons why professionals and businesses prefer it, will be discussed in this article.
Product Usage
The IPC Cable Connector is versatile and essential for various applications, including:

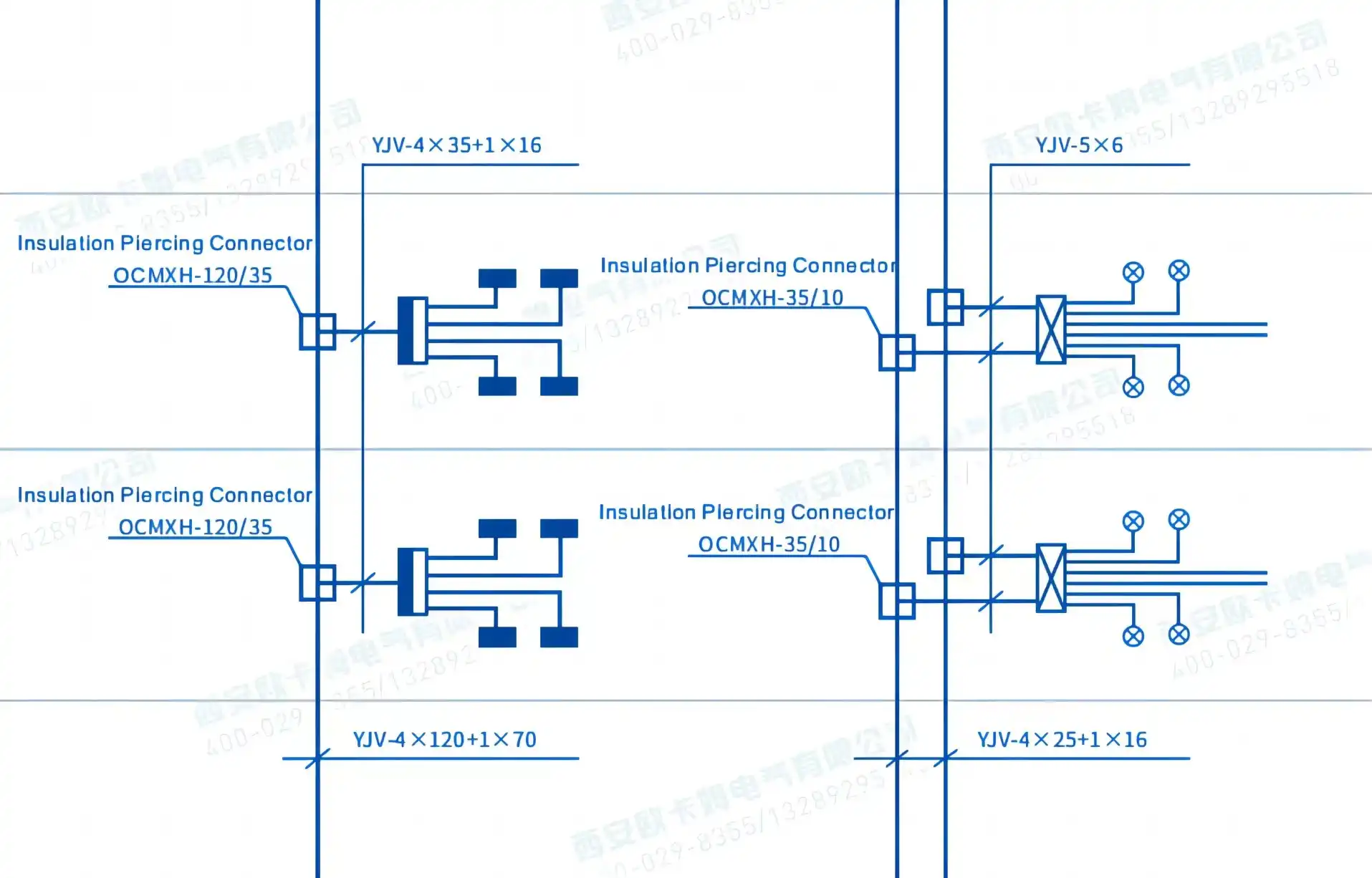

1.Power Distribution in Industrial and Civil Buildings: Simplify branch connections of power distribution cables, ensuring efficient power management.
2.Tunnels, Subways, and Underground Galleries: Ideal for complex and demanding environments, providing reliable connections for power distribution cables.
3.Power Overhead Cables: Enhance the reliability and safety of overhead cable connections with our innovative solution.
4.Buried Cables for Urban Lighting and Landscape Lighting: Perfect for urban infrastructure, ensuring seamless and secure connections for lighting systems.
Technical Parameters
- Model: IPC-1000
- Material: High-conductivity silver-copper alloy plate
- Piercing Contact Points: Multiple, ensuring a large contact area
- Back Width: 8~15mm
- Resistance: Extremely low due to high-conductivity materials
- Current Carrying Capacity: Strong, suitable for high-demand applications
Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|

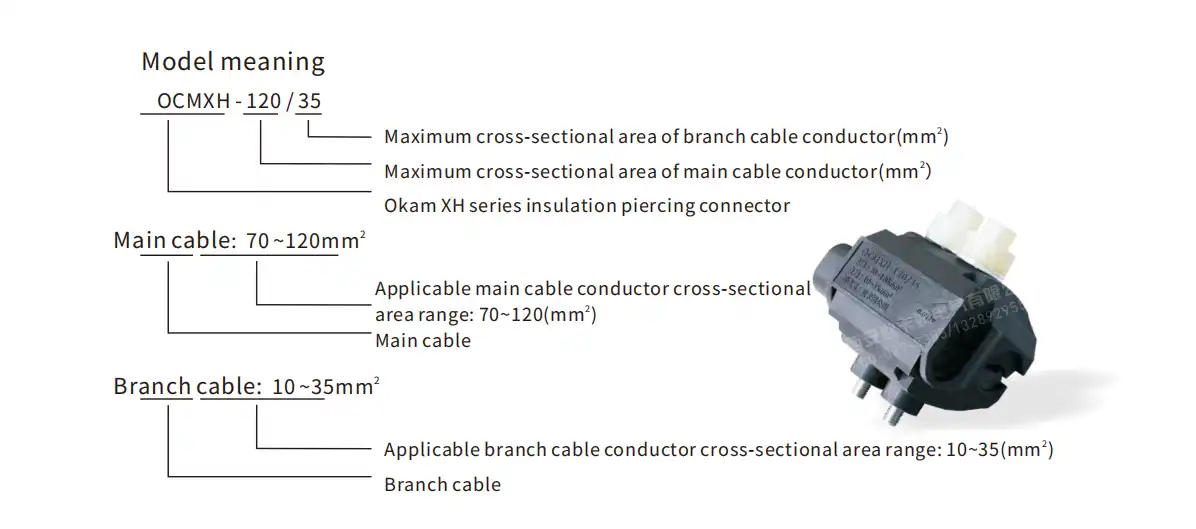

OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*10 |
Core Advantages
- Enhanced Contact Points: Our single double blade multi-tooth piercing current-carrying conductor ensures numerous contact points, enhancing the connection's reliability.
- Low Resistance: Made from high-conductivity silver-copper alloy, the piercing current-carrying conductor guarantees minimal resistance and superior performance.
- Ease of Installation: No need to cut off the trunk cable or strip the insulation layer, making installation quick and hassle-free.
- Compact Design: The IPC Cable Connector features a compact structure, saving space and ensuring a neat installation.
- Reliable Operation: Constant puncture torque ensures a stable and secure connection, providing peace of mind for long-term use.
Product Advantages
- No Cable Cutting Required: Install without cutting the trunk cable or stripping the insulation layer, saving time and reducing potential errors.
- Simple Installation: Our user-friendly design ensures a quick and straightforward installation process.
- Space-Saving: The compact structure does not occupy bridge space, making it ideal for tight installations.
- Consistent Performance: The constant puncture torque guarantees a reliable connection, maintaining optimal performance over time.
- Cost-Effective: Save on cables, building area, and labor costs with our efficient and reliable product.
Quality Control
Quality is our top priority at Xi'an OUKAMU. To ensure that it meets the highest industry standards, our product is subjected to stringent testing and quality control procedures. To ensure a flawless product, each step is meticulously monitored, from material selection to final inspection. You will receive a dependable, long-lasting connector that performs exceptionally in all conditions as a result of our dedication to excellence.
Packaging and Transportation
We are aware of how crucial it is to have secure transportation. To prevent damage during shipping, our products are carefully packaged. Each connector arrives in perfect condition thanks to protective packaging. Our coordinated factors group invests some part of energy to ensure your request arrives on time and in a protected manner, so you don't need to stress over anything from getting it to introducing it.
Contact Us
We are available to assist you with any requests or financial assistance. Please contact us at info@okmbranchcable.com if you would like to place an order or learn more about our IPC Cable Connector. Our dedicated customer service team is prepared to assist you in achieving career success.
