LV Insulation Piercing Connector For ABC Cable Fittings
Specialising in Insulation Piercing Connectors for 20 years

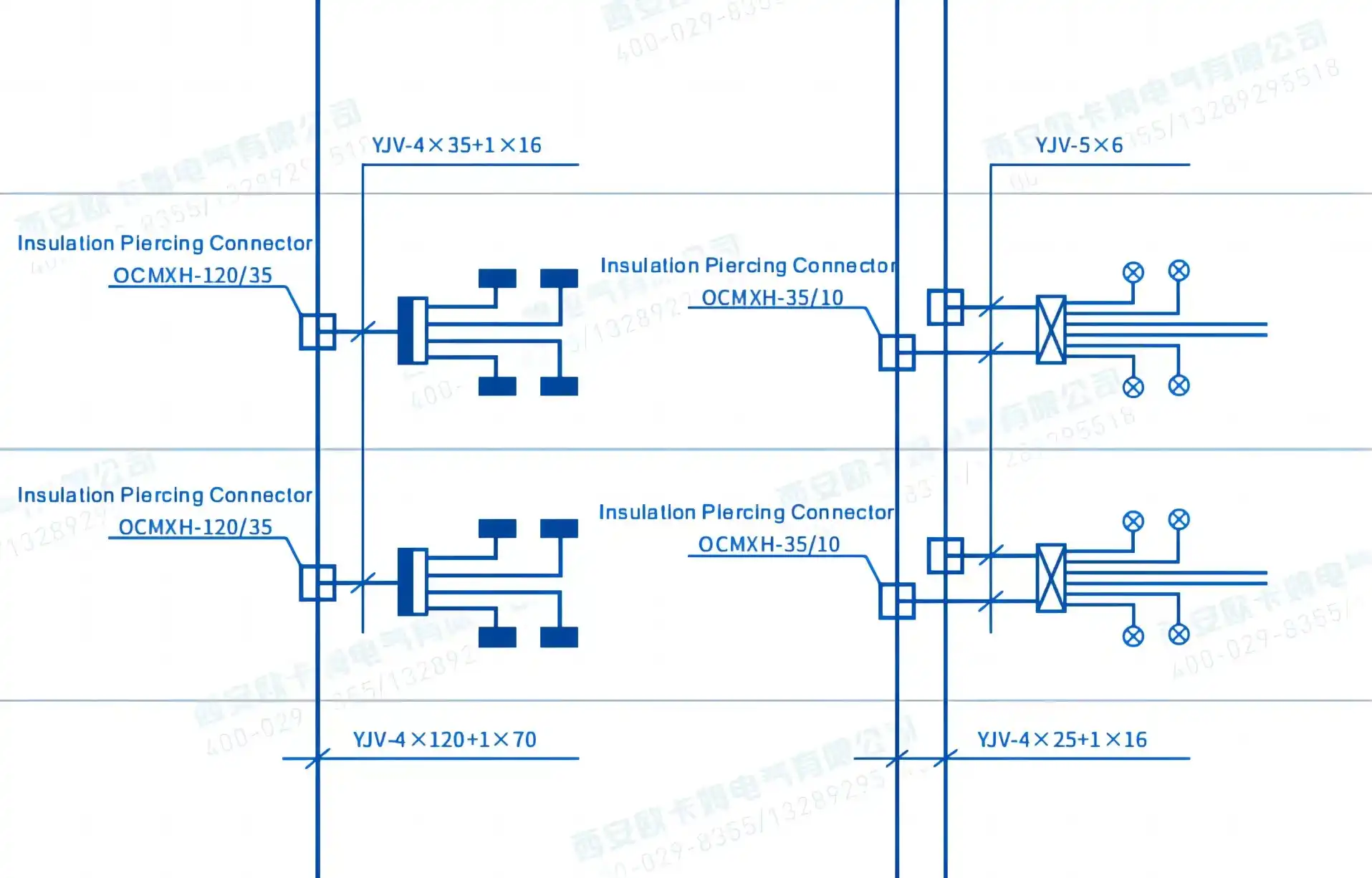

Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~7 times that of the same size wire.
LV Insulation Piercing Connector For ABC Cable Fittings Introduction
The LV Insulation Piercing Connector for ABC Cable Fittings is an inventive and fundamental arrangement outlined to streamline the cable branching handle. Electrical associations that are both solid and successful can be made by branching control dissemination cables with this connector without having to expel the cover layer. The connector is made with state-of-the-art craftsmanship puncturing development and utilizations correct contact centers to guarantee a strong and steady affiliation between two secured wires, diminishing the likelihood of openness or hurt. Various mechanical and gracious control conveyance ventures favor it as a result.
Product Usage
The LV Insulation Piercing Connector is widely utilized in various applications due to its versatility and ease of use:
- Industrial and Civil Buildings: Facilitates the branching connection of power distribution cables, ensuring smooth and uninterrupted electricity flow.
- Tunnels, Subways, and Underground Infrastructure: Reliable for use in challenging environments where space is limited and safety is paramount.
- Overhead Power Cables: Provides stable connections for overhead cables used in urban and rural power distribution networks.
- Urban Lighting and Landscape Lighting: Ideal for buried cables that power streetlights, park lights, and other urban lighting solutions.
Technical Parameters
To ensure the high performance of the LV Insulation Piercing Connector for ABC Cable Fittings, it is built with precision engineering and reliable materials. Key technical parameters include:
- Blade Type: Single double-blade multi-tooth design
- Piercing Contact Points: Multiple for enhanced contact and stability
- Piercing Conductor Width: 8-15mm
- Material: High-conductivity silver-copper alloy plate
- Resistance: Extremely low to ensure high efficiency
- Conductor Strength: High, ensuring durability and strong current-carrying capacity
Parameters

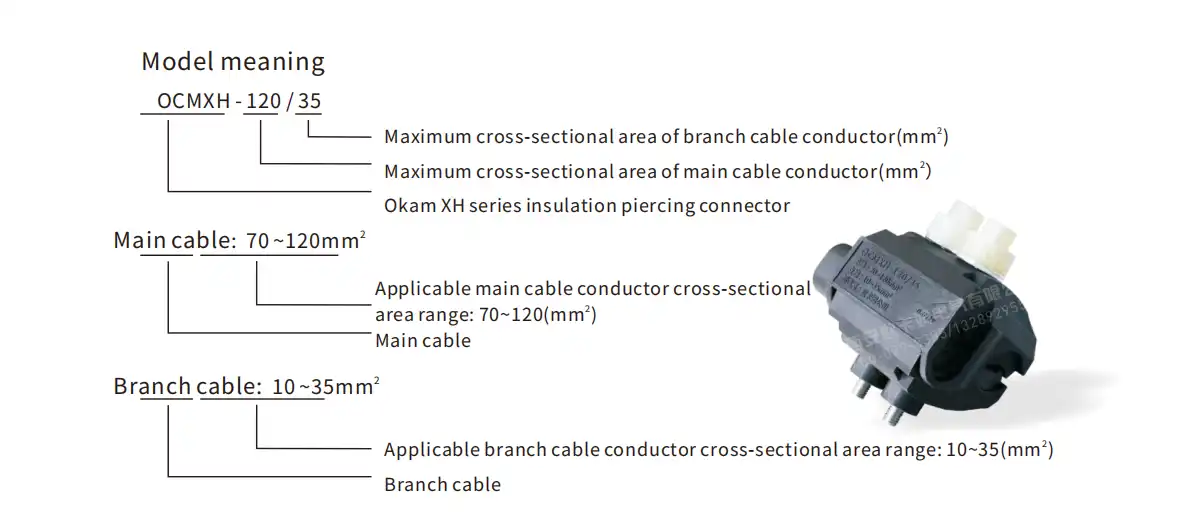

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
The core advantages of the LV Insulation Piercing Connector lie in its cutting-edge design and robust functionality:
- Multiple Contact Points: The piercing conductor has numerous contact points, ensuring a large piercing area for better electrical conductivity and a stable connection.
- Durable Build: Constructed with high-strength silver-copper alloy, the connector offers superior conductivity and resistance to wear and tear.
- Minimal Reverse Clamping Force: Its design minimizes the clamping force borne by the plastic shell, reducing the risk of damage and ensuring longevity.
Product Advantages
In addition to its core advantages, the LV Insulation Piercing Connector offers the following key product benefits:
- No Cable Cutting Required: The connector eliminates the need to cut or strip the insulation from the trunk cable, simplifying the installation process and reducing labor costs.
- Quick Installation: The compact and streamlined design ensures that the connector can be installed quickly and easily, even in tight spaces.
- Safe and Reliable: With constant puncture torque, the connector provides a reliable and secure connection, reducing the risk of malfunction or failure.
- Cost-Effective: The product is designed to save on materials, labor, and overall project costs, making it an economical choice for large-scale installations.
Quality Control
At Xi'an OUKAMU, we adhere to stringent quality control protocols to ensure that each LV Insulation Piercing Connector meets the highest standards. Our quality assurance process includes:
- Material Inspection: We use only premium-grade materials to ensure longevity and performance.
- Rigorous Testing: Each product undergoes multiple testing stages, including mechanical strength tests, conductivity checks, and safety evaluations.
- Certification: Our products meet industry standards and are certified for use in power distribution networks worldwide.
Packaging and Transportation
To ensure that the LV Insulation Piercing Connectors arrive in perfect condition, we use durable packaging materials designed to protect the product during transit. Our packaging solutions include:
- Eco-friendly Packaging: We use recyclable materials that are both sturdy and environmentally friendly.
- Custom Fit: The packaging is designed to securely hold the connectors in place, minimizing the risk of damage during transport.
- Global Shipping: We offer reliable and timely shipping to customers worldwide, ensuring that your products arrive on schedule and in excellent condition.
Contact Us
For inquiries, pricing, or additional information on our LV Insulation Piercing Connector for ABC Cable Fittings, please don't hesitate to reach out to us. We're here to assist with any questions or custom solutions you may require.
- Email: info@okmbranchcable.com
Our team of experts is ready to help you choose the best solutions for your power distribution needs.
