Wire Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Wire Piercing Connector Introduction
The Wire Piercing Connector item page from Xi'an OUKAMU is where development and productivity meet. Our product exemplifies the market-first approach to branching cable. This connector, made with state of the art innovation, gives an exceptional answer for various applications. It smoothes out the establishment cycle and guarantees dependable associations by eliminating the need to strip or cut links.
Product Composition
The Wire Piercing Connector consists of several key components designed to ensure seamless operation:
- Piercing Blade: The core of the connector, made from high-conductivity silver-copper alloy, ensures a secure and efficient electrical connection.
- Insulating Shell: A durable plastic shell that provides protection and stability, reducing the reverse clamping force on the conductor.
- Current-Carrying Conductor: Features a wide back width of 8~15mm, enhancing contact and conductivity.
- Contact Points: Equipped with multiple piercing contact points to maximize the electrical connection and minimize resistance.
Technical Parameters
Here are the crucial technical specifications for our product:
- Material: Silver-copper alloy plate with high conductivity
- Conductor Back Width: 8~15mm
- Piercing Contact Points: Multiple for enhanced contact area
- Insulation Type: High-strength plastic
- Installation Type: No need to strip insulation or cut cables
- Application: Suitable for industrial, civil, and overhead cable connections

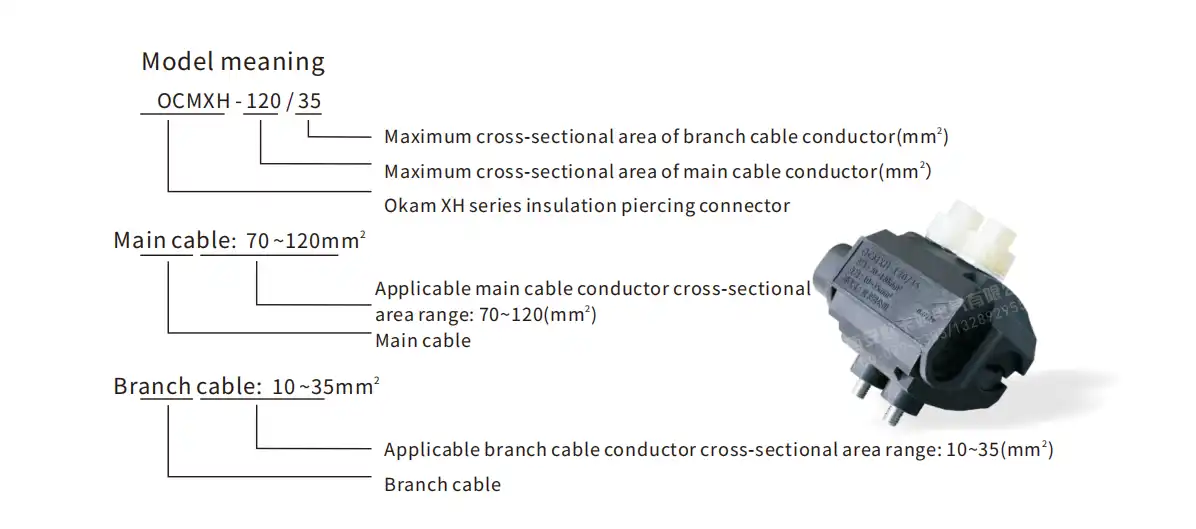

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
Our product offers several core advantages:
- Enhanced Conductivity: The silver-copper alloy conductor ensures minimal resistance and excellent current-carrying capacity.
- Efficient Design: The connector’s design allows for multiple piercing contact points, providing a secure and reliable connection.
- Ease of Use: No need to strip or cut cables simplifies the installation process and reduces labor time.
- Compact and Space-Saving: The small size and compact structure mean it fits easily into tight spaces, saving valuable bridge and installation area.
Product Usage
The product is versatile and can be used in various applications, including:

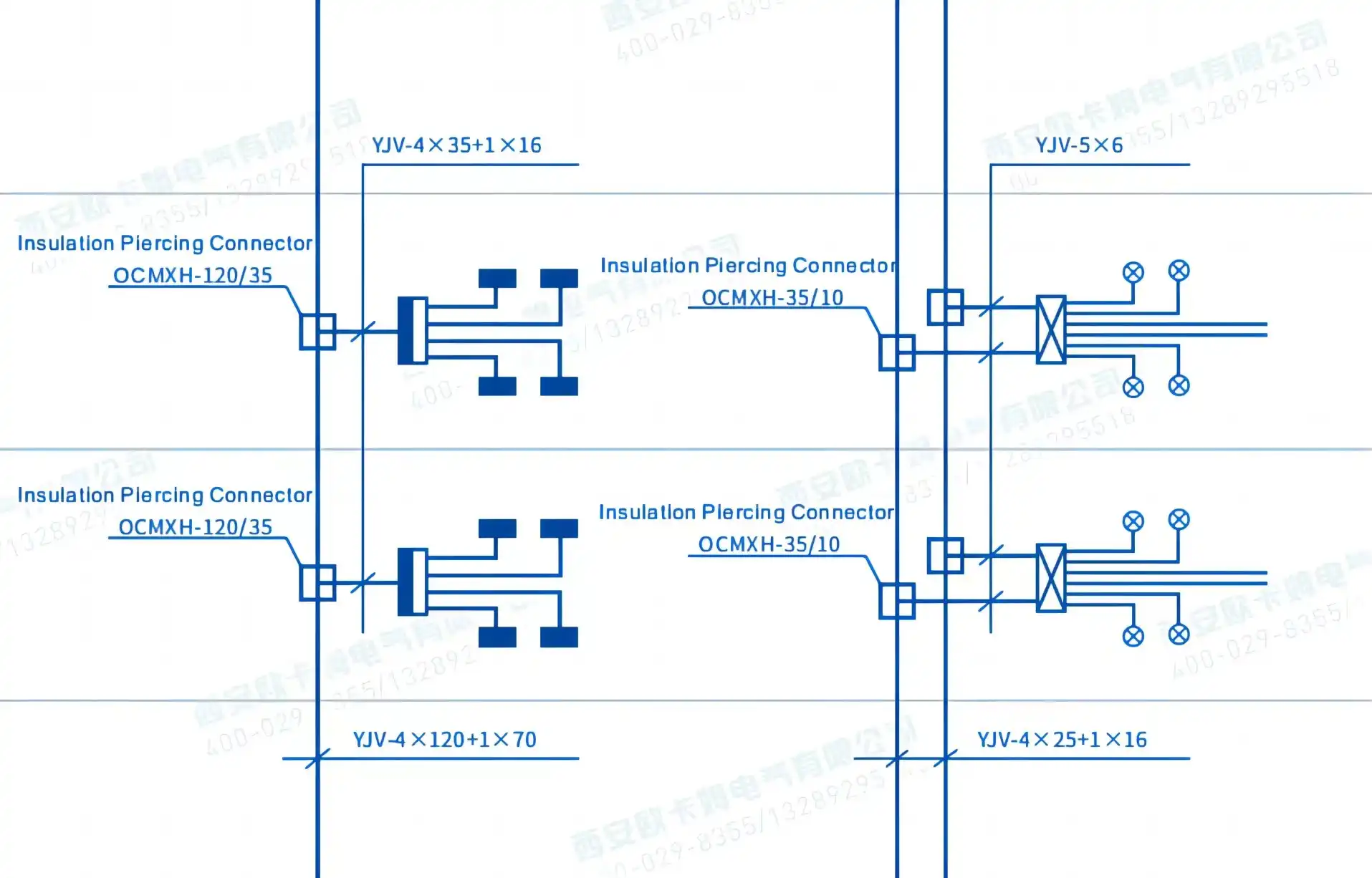

- Power Distribution Cables: Ideal for branch connections in both industrial and civil buildings.
- Tunnels and Subways: Perfect for cable connections in tunnels, subways, and underground integrated pipe galleries.
- Overhead Cables: Effective for branch connections in overhead power cables.
- Urban and Landscape Lighting: Suitable for buried cables in urban lighting and landscape projects.
Packaging and Transportation
We ensure that our Wire Piercing Connector is packaged securely so that their quality remains intact during transportation. Strong bundling prevents damage by pressing each connector separately. Our logistics team puts in a lot of effort to get your products to you as quickly as possible and in good condition.
