Insulated Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~3 times that of the same size wire.
Insulated Piercing Connector Introduction
The Insulated Piercing Connector (IPC) is an innovative solution for cable branch connections, offering a streamlined, efficient way to connect two insulated wires without the need for stripping the insulation. Xi'an OUKAMU's pioneering cable-integrated T-connection terminal technology provides an industry-leading method for safe and reliable connections in various applications. With its compact design and user-friendly installation process, this product is an excellent choice for both industrial and civil cable distribution needs.
Usage
The IPC is versatile and suitable for multiple applications, including:

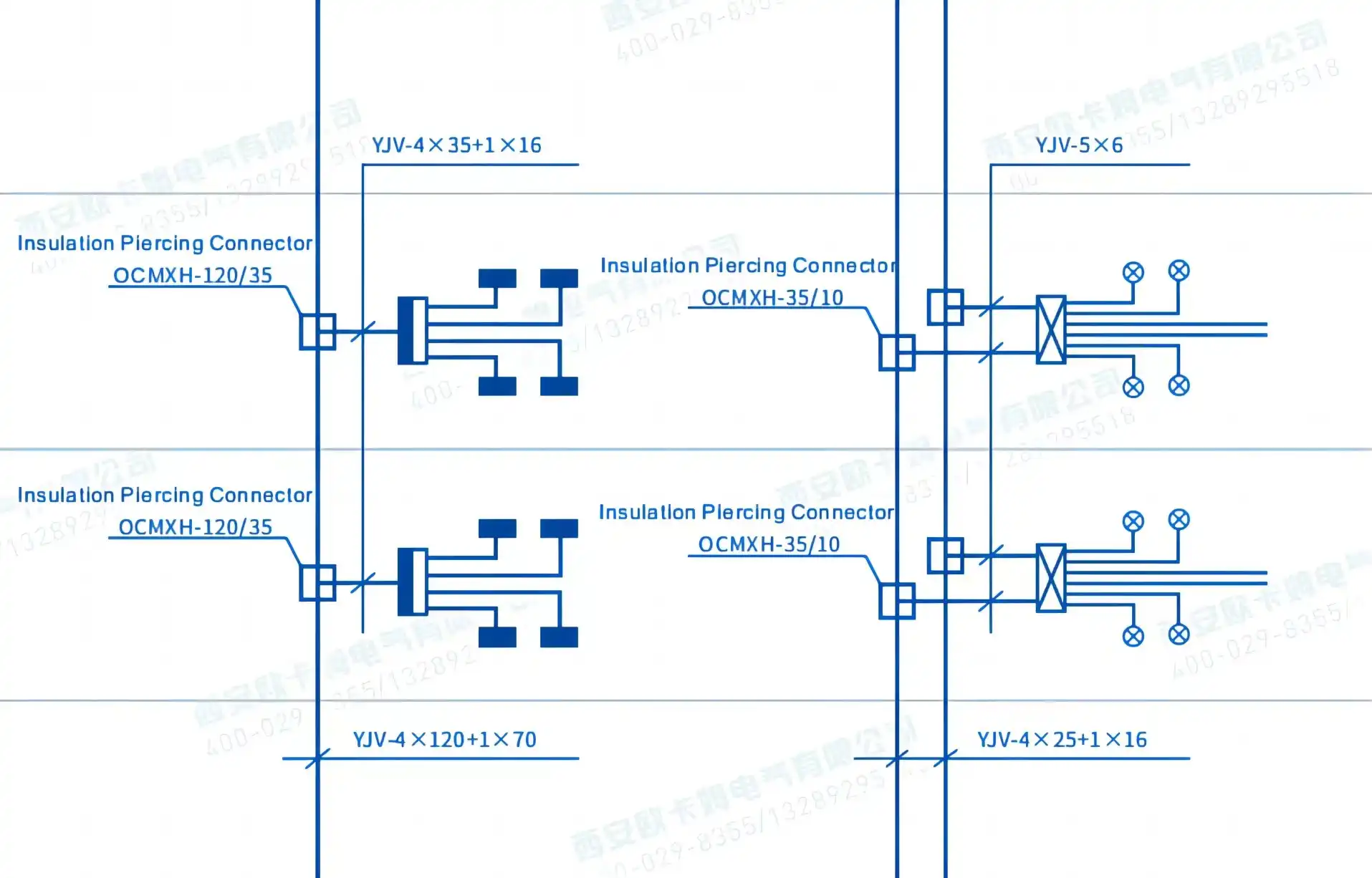

- Industrial and Civil Buildings: Ensuring secure and stable power distribution cable connections.
- Tunnels, Subways, and Bridges: Ideal for complex environments where safety and efficiency are paramount.
- Overhead Power Cables: Offers a reliable solution for aerial cable connections.
- Urban Lighting and Landscape Projects: A perfect fit for buried cable connections in public lighting systems, enhancing both durability and performance.
Technical Parameters
- Piercing Mechanism: Single and double-blade multi-tooth piercing design for enhanced contact points.
- Conductor Material: High-conductivity silver-copper alloy plate, providing superior strength, conductivity, and current-carrying capacity.
- Piercing Conductor Width: 8–15mm, ensuring optimal reverse clamping force without damaging the plastic shell.
- Resistance: Exceptionally low resistance due to the silver copper alloy, reducing energy loss and ensuring long-term performance.

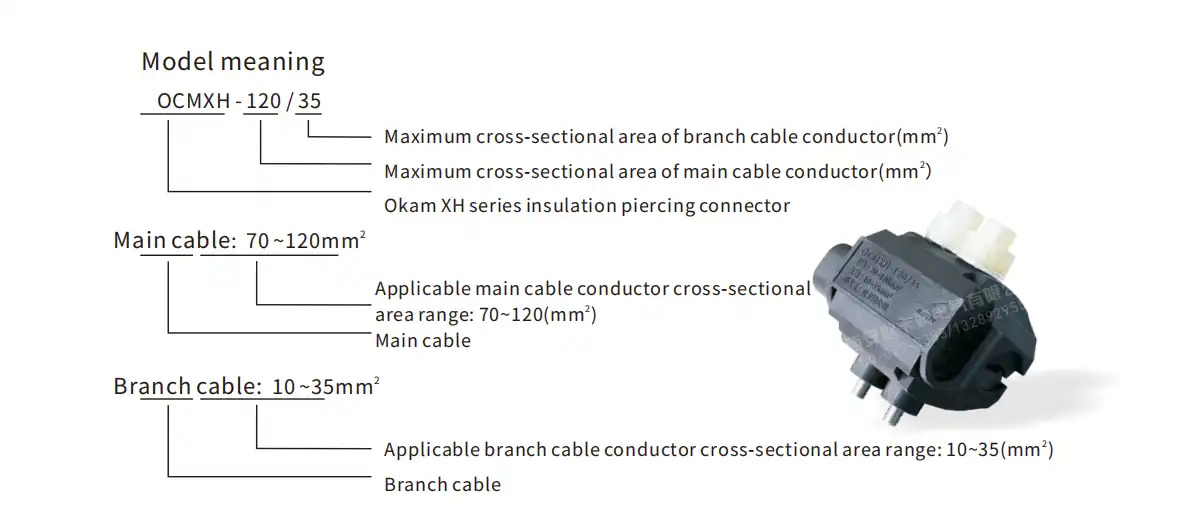

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Advantages
- High Contact Efficiency: The multi-tooth piercing design offers many contact points, increasing the connection's reliability.
- Enhanced Conductivity: The use of silver copper alloy ensures that the connector maintains a strong current-carrying capacity with minimal resistance.
- Minimal Clamping Force: The design reduces pressure on the plastic shell, ensuring durability and longevity.
Advantages
- No Cable Stripping Required: The connector allows for a direct connection without the need to cut or strip cables, preserving cable integrity and reducing installation time.
- Quick and Easy Installation: The IPC's simple design allows for rapid installation, even in difficult or cramped spaces.
- Compact Design: Its small size makes it ideal for use in space-restricted environments such as bridges and tunnels.
- Consistent Puncture Torque: This feature ensures that the piercing contact remains secure and effective, providing long-term reliability.
- Cost-Effective: The IPC saves on material costs, installation labor, and overall operational expenses, making it a cost-efficient choice for large and small projects alike.
Quality Control
At Xi'an OUKAMU, we take pride in our unwavering dedication to quality control in the production of the Insulated Piercing Connector. We meticulously oversee every stage, starting from the sourcing of high-quality materials. Rigorous inspections are conducted at each step, leaving no room for compromise. Our team is committed to ensuring that these connectors not only meet but exceed international standards for safety, durability, and performance. This commitment guarantees that each connector can perform optimally even in the harshest and most demanding conditions, providing reliable solutions for various applications.
Packaging and Transportation
We fully understand the crucial significance of safe and secure delivery. This is precisely why our products (IPCs) are packaged with utmost care and precision. Every product is carefully housed in sturdy and protective packaging. This packaging is designed to prevent any damage or harm that could occur during transportation. Whether we are shipping domestically within the country or internationally to distant locations, our dedicated logistics team leaves no stone unturned to ensure timely and safe delivery to our esteemed clients. They meticulously plan the shipping routes, choose reliable carriers, and monitor the progress of each shipment closely. Our team is committed to providing a seamless delivery experience, so that our clients can receive their high-quality IPCs in perfect condition, ready to be put to use in their various projects and applications.
Contact Us
Ready to learn more or place an order? Get in touch with us today! Our team at Xi'an OUKAMU is here to assist you with your Insulated Piercing Connector needs. Reach out via email at info@okmbranchcable.com, and we'll be happy to answer any questions and provide a personalized solution for your project.
