Insulation Piercing Connectors
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Insulation Piercing Connectors Introduction
Insulation Piercing Connectors (IPCs) are cutting-edge cable association items planned to disentangle the handle of making department associations in control dissemination frameworks. These connectors permit for a consistent electrical association between two protected wires without the requirement to strip absent the cover layer. The penetrating component guarantees a secure and dependable association while keeping up the astuteness of the cable's separator. IPCs have become a favored arrangement in both mechanical and gracious applications due to their ease of establishment, security, and cost-effectiveness.
Usage
They are versatile and applicable across a wide range of industries. Here are some of their primary uses:
-

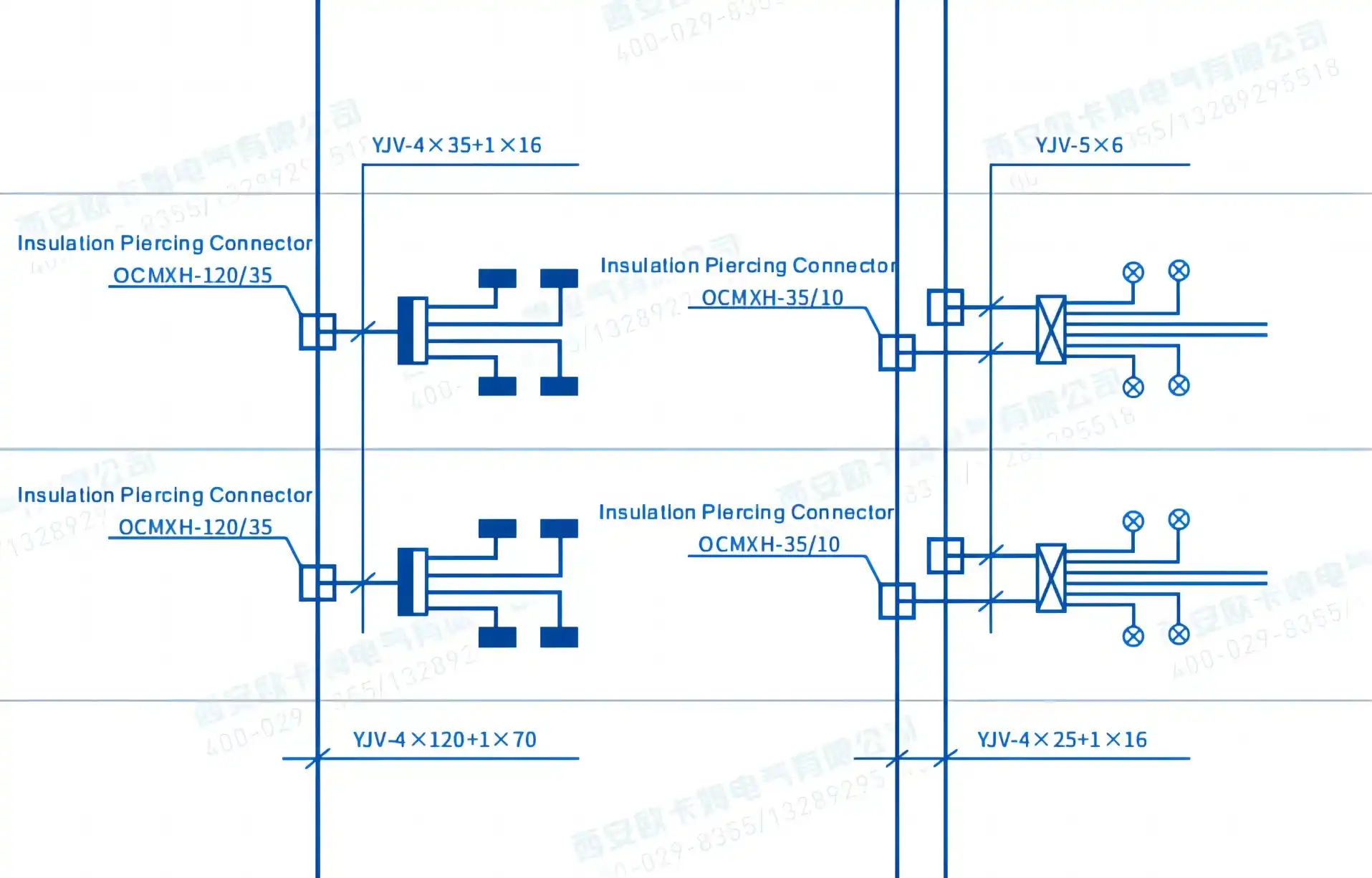

Power Distribution in Industrial and Civil Buildings: IPCs are widely used in buildings to connect power distribution cables, allowing for efficient and safe electrical branch connections.
-
Tunnel and Subway Installations: In underground environments such as tunnels, subways, and integrated pipe galleries, IPCs provide reliable cable branch connections that ensure continuous power flow.
-
Overhead Power Cables: IPCs offer an excellent solution for creating branch connections in overhead power cables, minimizing the need for complex modifications to existing infrastructure.
Technical Parameters
- Piercing Conductor Material: High-conductivity silver-copper alloy
- Conductor Contact Points: Multi-tooth piercing contact points for enhanced connectivity
- Back Width of Piercing Conductor: 8–15mm
- Conductor Resistance: Extremely low, providing efficient current transfer
- Torque: Constant puncture torque to ensure a consistent connection
These technical features ensure the durability, safety, and high performance of the product in a variety of applications.

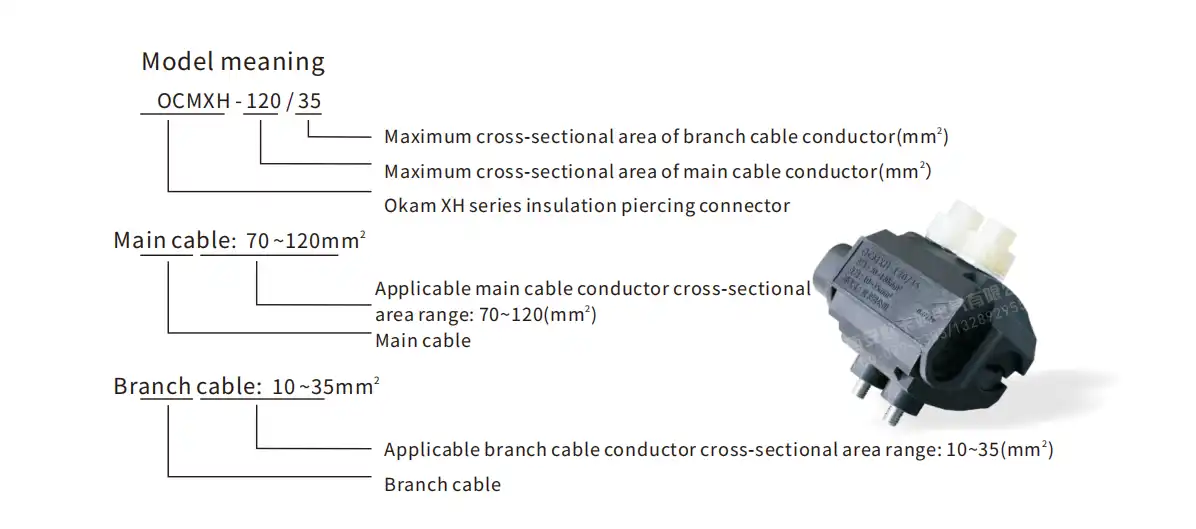

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Advantages
Insulation Piercing Connectors offer several core advantages that set them apart from traditional cable connection methods:
-
Multi-Tooth Piercing Technology: With multiple contact points, the piercing conductor ensures a stable and reliable connection, significantly reducing the risk of connection failure.
-
High-Conductivity Material: Made from silver copper alloy, the conductor offers exceptional conductivity and strength, making it suitable for high-current applications.
-
Efficient Design: The compact design of the connector allows for easy integration into confined spaces, without compromising on performance.
Advantages
-
No Insulation Stripping Required: One of the standout features of IPCs is the ability to create a secure connection without stripping the insulation from the cables, reducing installation time and labor costs.
-
Quick Installation: The simple design of the IPC allows for fast and hassle-free installation, making it an ideal choice for both professionals and DIY users.
-
Compact and Space-Saving: IPCs are designed to take up minimal space, making them perfect for use in environments with limited room, such as cable bridges and underground installations.
Quality Control
Xi'an OUKAMU maintains strict quality control protocols to ensure that every Insulation Piercing Connector meets the highest industry standards. Each product undergoes rigorous testing, including:
- Electrical Conductivity Testing: Ensures that the connector provides a low-resistance, high-performance electrical connection.
- Mechanical Durability Testing: Confirms the product's ability to withstand physical stress, environmental conditions, and prolonged use.
- Safety Compliance Testing: Ensures that the product adheres to national and international safety standards.
Packaging and Transportation
We understand the importance of delivering products in pristine condition. They are carefully packaged to protect them from damage during transportation. Each bundle is outlined to oblige the measure and shape of the connectors, guaranteeing that they arrive at their goal securely and are prepared for installation.
We offer adaptable shipping choices, counting sped-up administrations, to meet the differing needs of our worldwide clients. Our coordination group works closely with driving carriers to guarantee opportune and secure conveyance.
Contact Us
At Xi'an OUKAMU, we are committed to providing top-quality Insulation Piercing Connectors and excellent customer service. Whether you're looking for technical assistance or product recommendations, our team is here to help.
Feel free to reach out to us at info@okmbranchcable.com for more information or to place an order. Let us help you find the perfect solution for your cable connection needs.
