How is Cable Jointing Done?

Cable jointing is a critical process in ensuring the proper connection and functionality of electrical cables. Whether for industrial or residential purposes, correctly jointing cables is essential for long-lasting, safe installations. This blog will guide you through the cable jointing process, its importance, and the innovations our company has brought to this field.

The Cable Jointing Process: Step-by-Step Guide

Preparation: Setting the Stage for Success

Preparation is crucial in cable jointing. This phase involves gathering all necessary tools, materials, and ensuring the work environment is safe and conducive to precise work. Key steps include:

- Selecting the Right Tools and Materials: The type of cable jointing materials varies based on the cable type, voltage level, and environmental conditions. Common materials include jointing kits, insulating tapes, and connectors.

- Assessing the Cable: Before proceeding, it’s important to inspect the cable for any damage or irregularities. This ensures that the jointing process will be effective and long-lasting.

- Worksite Safety: Implementing proper safety measures, such as wearing protective gear and ensuring the absence of live electricity, is essential to prevent accidents.

Stripping and Cleaning the Cable: Ensuring a Strong Connection

Once the preparation is complete, the next step involves stripping and cleaning the cable. This step is vital for ensuring that the jointing process is secure and effective.

- Stripping the Cable: Carefully strip the cable to expose the conductive core. This step requires precision to avoid damaging the conductor.

- Preparing the Insulation: The insulation around the conductor must be prepared properly to ensure that it meets the jointing requirements. This may involve additional stripping or shaping.

Jointing the Cables: Techniques and Methods

The actual jointing of the cables involves connecting the conductive cores and securing them with the appropriate materials. Several cable jointing methods can be employed depending on the type of cable and the application.

- Mechanical Jointing: This involves using mechanical connectors to join the cables. It’s a common method for low and medium-voltage cables.

- Heat Shrink Jointing: In this method, heat shrink tubing is applied over the joint to provide insulation and protection. The tubing shrinks when heated, forming a tight seal around the joint.

- Cold Shrink Jointing: Similar to heat shrink, but without the need for heat. Cold shrink tubes are stretched over the joint and then allowed to contract, forming a secure connection.

- Cable Splicing: For certain applications, splicing might be required. This involves joining the ends of the cables directly and securing them with insulating tape or other materials.

Why Cable Jointing is Essential for System Reliability

Ensuring Continuity in Power Distribution

Cable jointing is indispensable for ensuring the continuity of electrical systems, especially in extended power networks where cables need to be spliced together to cover long distances. A poor joint can lead to power outages, voltage drops, or inefficient energy transfer, which can disrupt operations in industrial settings or even pose safety risks in residential areas. Properly performed cable jointing guarantees that the system will function seamlessly without interruptions.

Preventing Electrical Faults and Hazards

One of the primary reasons cable jointing is so critical is to prevent electrical faults. Faulty or poorly executed joints can result in overheating, which can lead to fires or damage to connected equipment. A high-quality cable joint effectively manages electrical stress, ensuring that the current flows smoothly without any points of high resistance, which could otherwise cause arcing or sparking.

Reducing Maintenance Costs

Reliable cable jointing reduces the frequency of maintenance and repairs. Well-executed joints last longer and are less prone to failure. This not only minimizes downtime but also reduces the costs associated with maintenance. Industries that rely on uninterrupted power can particularly benefit from reduced downtime due to fewer joint failures.

Innovations in Cable Jointing: The Xi'an OUKAMU Advantage

The Integrated T-Connection Technology

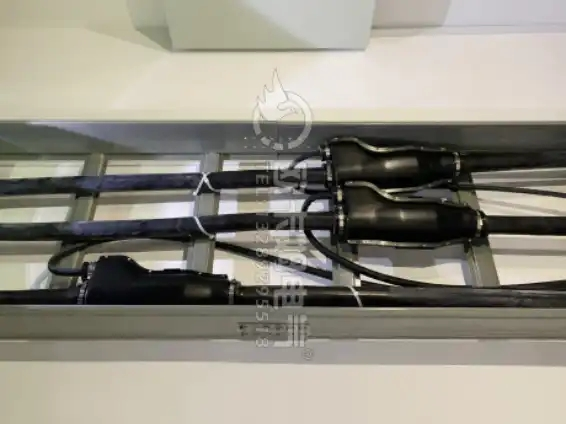

Xi'an OUKAMU is a pioneer in cable jointing technology, having developed the world’s first cable integrated T-connection terminal. This groundbreaking innovation simplifies the cable jointing process while enhancing its reliability and performance. The integrated T-connection terminal offers several advantages:

- Compact design: This reduces the overall footprint of the cable joint, allowing for more flexibility in confined spaces.

- Improved conductivity: The terminal is engineered to provide superior electrical conductivity, minimizing energy loss and ensuring maximum efficiency.

- Enhanced durability: Designed to withstand harsh environmental conditions, the integrated T-connection terminal extends the lifespan of cable joints, even in challenging operating environments.

Faster and More Efficient Installation

Traditional cable jointing methods can be time-consuming and labor-intensive. However, Xi'an OUKAMU’s innovative T-connection technology streamlines the process, reducing installation times and minimizing the risk of errors. This not only makes the process more efficient but also lowers labor costs for companies that require extensive cable jointing operations.

Exclusive Market Share and Global Reach

Having secured an exclusive market share for this advanced cable jointing solution, Xi'an OUKAMU’s technology is now being used worldwide. From urban power grids to remote industrial sites, the integrated T-connection terminal has proven to be a reliable and cost-effective solution for diverse cable jointing needs. The company's dedication to research and development continues to push the boundaries of what’s possible in the cable jointing industry.

Conclusion

Cable jointing is a fundamental aspect of electrical systems, ensuring power distribution remains continuous, safe, and efficient. Whether you are installing new power lines or maintaining existing infrastructure, understanding the cable jointing process can help prevent faults, reduce costs, and enhance the overall reliability of your systems. Xi'an OUKAMU has taken cable jointing technology to the next level with its innovative integrated T-connection terminal, providing a faster, more durable, and more efficient solution for global industries.

For more information on how our cable T-connection products can benefit your projects, please contact us at okmcablebranch@gmail.com.
