Gel Cable Joint Protector
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Gel Cable Joint Protector Introduction
Introducing the Gel Cable Joint Protector from Xi'an OUKAMU, a revolutionary solution designed to enhance the safety, reliability, and longevity of your cable connections. Developed using cutting-edge integrated T-connection technology, this protector provides a seamless and secure connection for various cable types, including low-voltage flame-retardant, fire-resistant, and mineral-insulated cables. Whether you're working in a residential, commercial, or industrial environment, the product ensures your cable joints are protected against environmental hazards and mechanical stress.

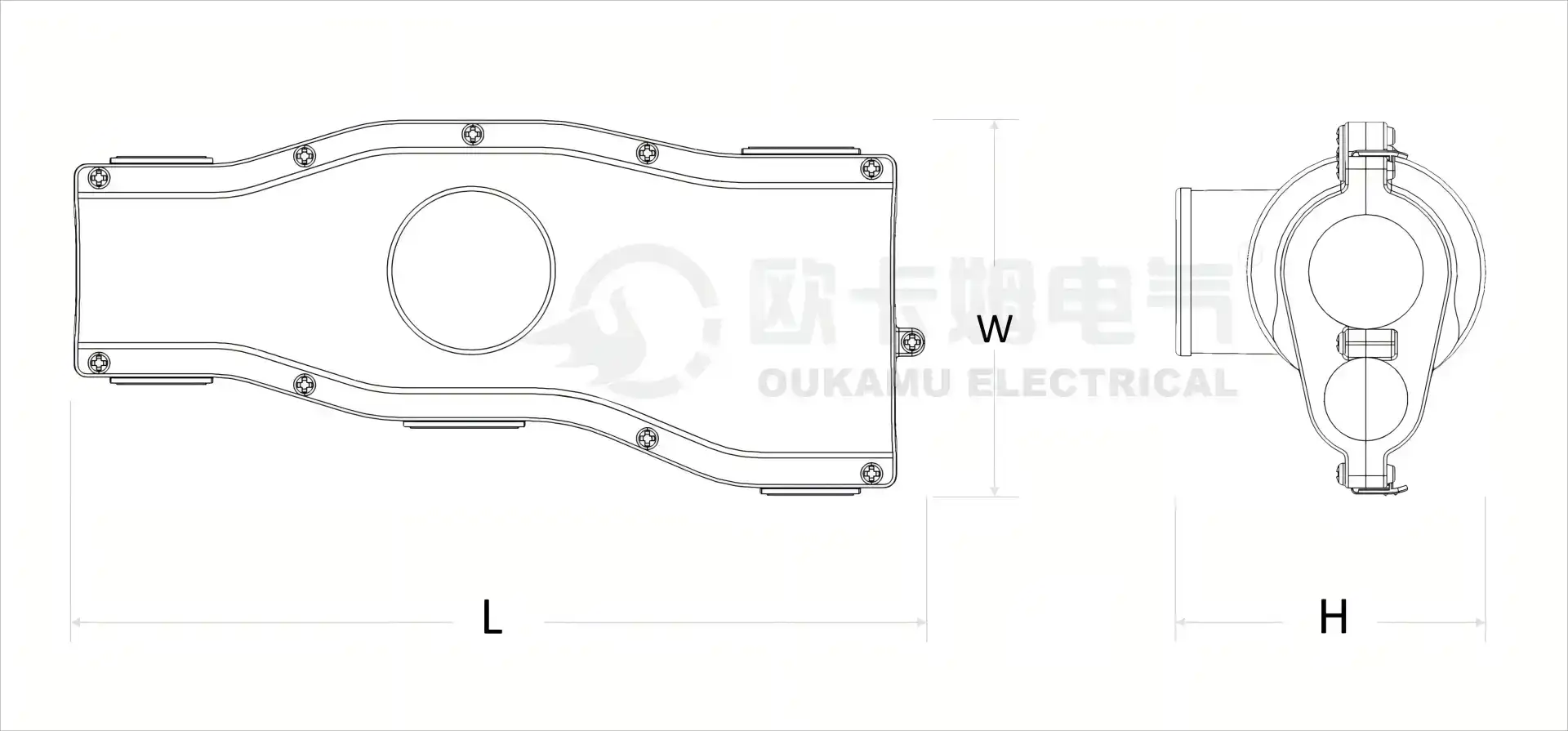

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantage
The Gel Cable Joint Protector stands out for its numerous benefits, making it an essential component for any cable installation:
-
Ease of Installation: With its innovative design, the protector allows for quick and easy on-site installation without needing specialized tools. This reduces labor costs and minimizes downtime.
-
Enhanced Safety: The protector is built to withstand extreme conditions, offering fire-resistant, flame-retardant, and waterproof properties. This ensures that your cable connections remain intact and secure even in challenging environments.
-
Versatility: Suitable for various cable types and sizes, the product can be used in open installations or confined spaces such as cable trays or bridges, providing flexibility in different installation scenarios.
-
Durability: Engineered with high-quality materials, the protector resists aging, electrochemical corrosion, and mechanical damage, guaranteeing a long service life.
-
Cost-Effective: By preventing damage and reducing the need for frequent maintenance, the product helps lower overall operational costs.
Technical Features
The Gel Cable Joint Protector boasts several advanced technical features:
- Integrated Design: The protector integrates seamlessly with the cable system, ensuring a uniform connection that enhances performance.
- Non-Cut Main Cable: The innovative design allows the main cable to remain uncut during installation, preserving its integrity and reducing potential failure points.
- Insulation and Sealing: The entire branch cable is insulated and sealed, offering excellent protection against moisture, dust, and other contaminants.
R&D Center
At Xi'an OUKAMU, our Research and Development Center is at the heart of innovation. Our team of experts is dedicated to continuously improving our products, ensuring they meet the highest standards of safety, performance, and reliability. The product is a result of our commitment to excellence and our drive to stay at the forefront of the industry.
Application
The product is versatile and suitable for various applications:
- Residential Installations: Protect your home’s electrical systems with reliable cable joint protection.
- Commercial Buildings: Ensure the safety and reliability of electrical connections in offices, shopping centers, and other commercial spaces.
- Industrial Environments: The protector is ideal for use in factories, warehouses, and other industrial settings where cables are exposed to harsh conditions.
- Infrastructure Projects: Perfect for use in public utilities, transportation networks, and other large-scale infrastructure projects.
Quality Control
Quality is our top priority at Xi'an OUKAMU. Every Gel Cable Joint Protector undergoes rigorous testing and quality assurance processes to ensure it meets our high standards. From material selection to final inspection, we guarantee that each product delivers outstanding performance and reliability. Our commitment to quality is backed by our ISO 9001 certification, reflecting our dedication to providing the best products to our customers.
FAQ
Q1: Can the product be used with all types of cables?
A1: Yes, it is compatible with various cable types, including insulated waterproof, low-voltage flame-retardant, fire-resistant, and mineral-insulated cables.
Q2: Is the installation process complicated?
A2: Not at all! The protector is designed for easy on-site installation without needing specialized tools.
Q3: How does the protector enhance cable safety?
A3: It offers fire-resistant, flame-retardant, and waterproof properties, protecting your cable joints from environmental hazards.
Q4: Can the protector be reused?
A4: Yes, the protector is designed for reuse, making it a cost-effective solution for long-term cable protection.
Q5: What are the packaging and delivery options?
A5: We offer customized packaging solutions to meet your specific needs, ensuring safe and secure delivery to your location.
Contact Us
For more information about the Gel Cable Joint Protector or to place an order, please contact us at info@okmbranchcable.com. Our team is ready to assist you with all your cable protection needs.
