Armoured Cable Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Low overall cost, high cost performance
Armoured Cable Joint Introduction
Welcome to Xi'an OUKAMU, the pioneers of innovative cable connection technology. Our Armoured Cable Joint represents the cutting edge in cable branch connections, designed to meet the highest standards of safety and efficiency. Discover how our exclusive T-connection technology can enhance your projects with reliability and ease.
The product is a revolutionary cable branch connection product developed by Xi'an OUKAMU. Since its invention in 2015, this integrated T-connector has set new benchmarks in cable connectivity. Engineered for convenience and reliability, it allows for seamless connections of multi-core main cables and branch cables directly on site, ensuring a safe, fast, and aesthetically pleasing installation process.
Dimension
Parameters
|

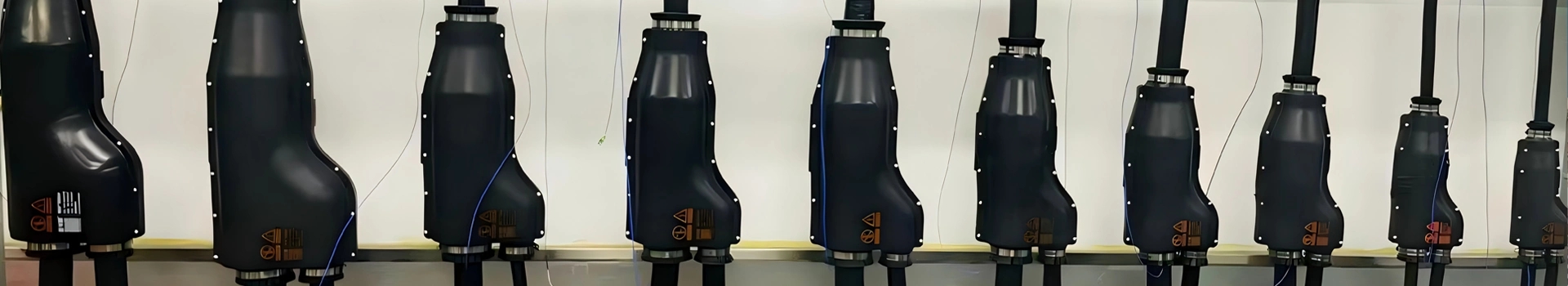

MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |

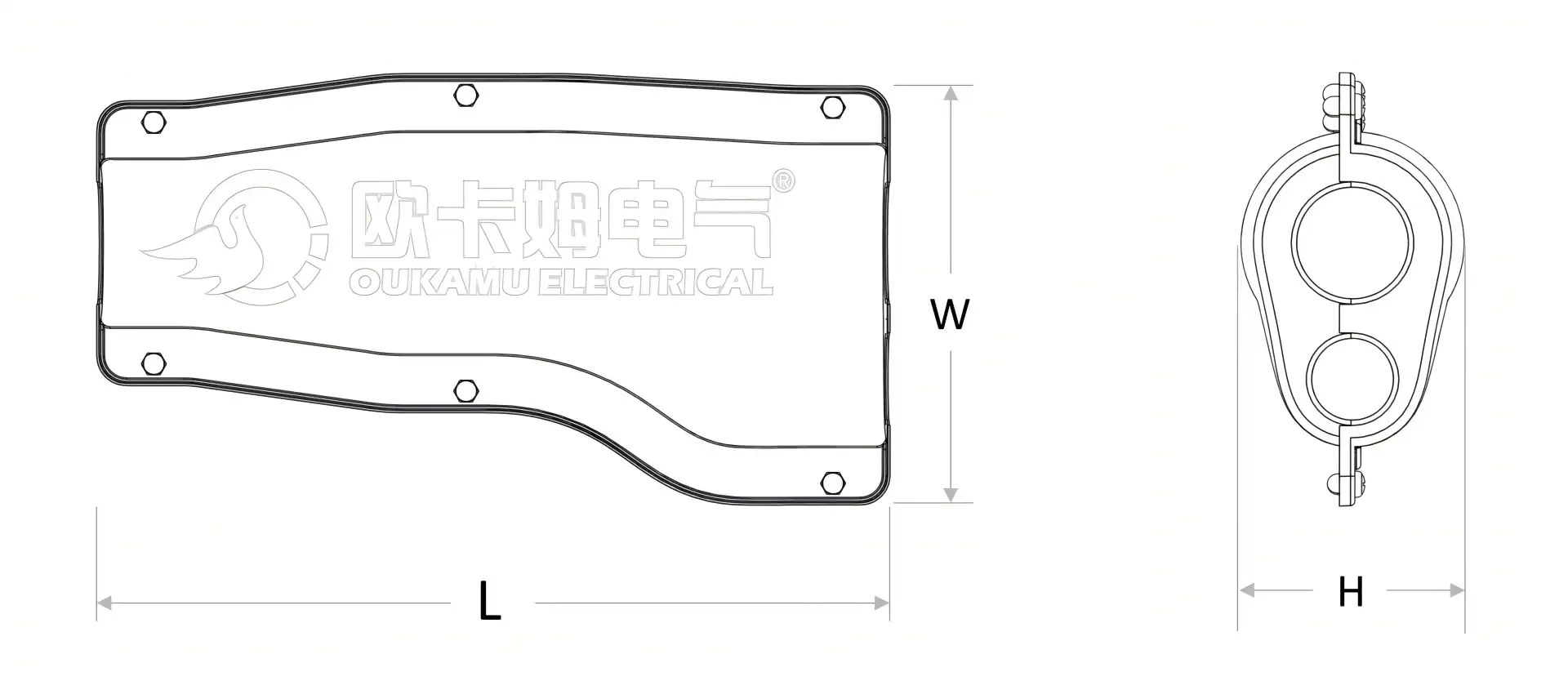

Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |
Installation Steps
1.Tools

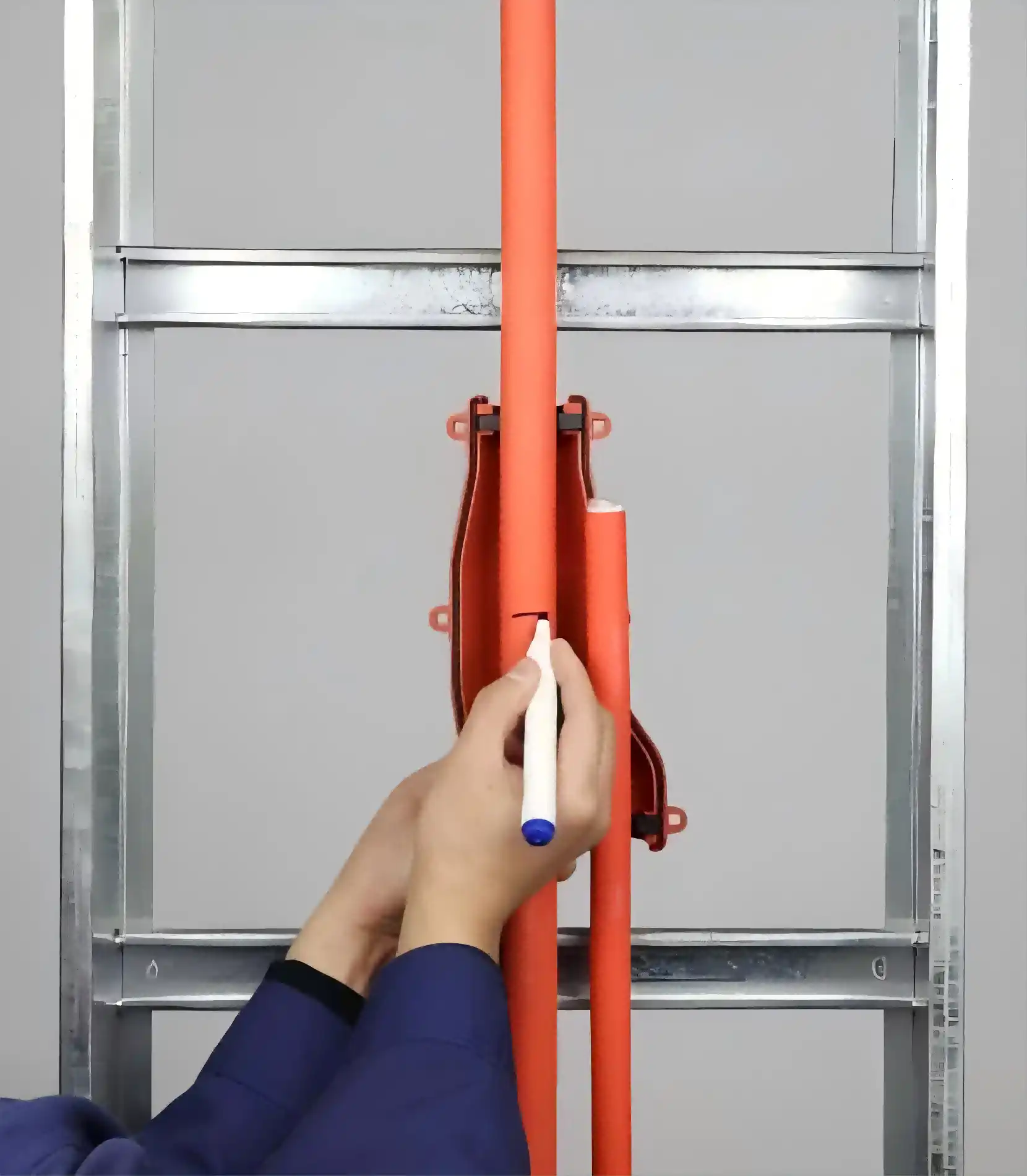

2.Determine the installation location

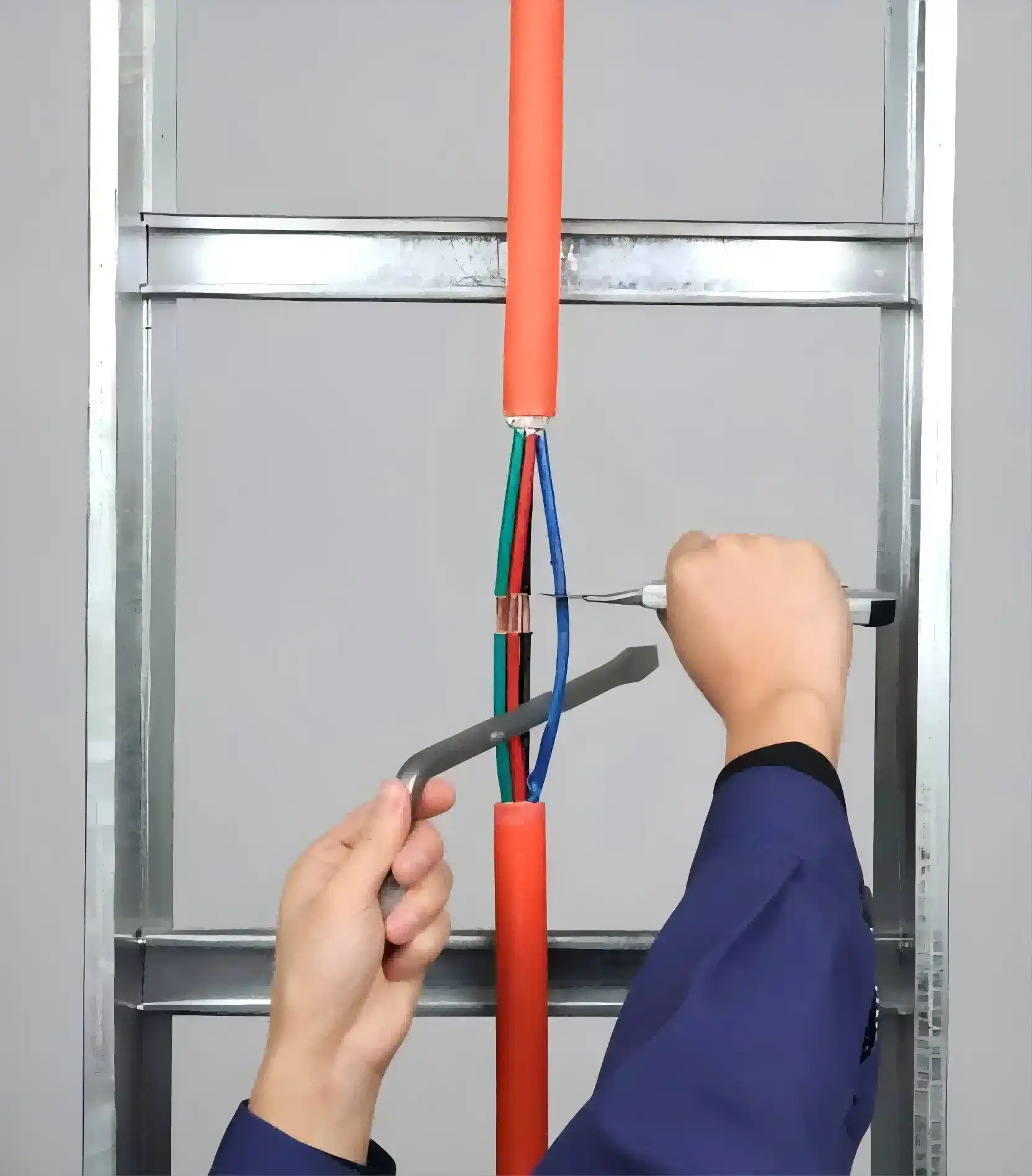

3.Strip the outer sheath and metal layer
4.Stripping of main cable insulation

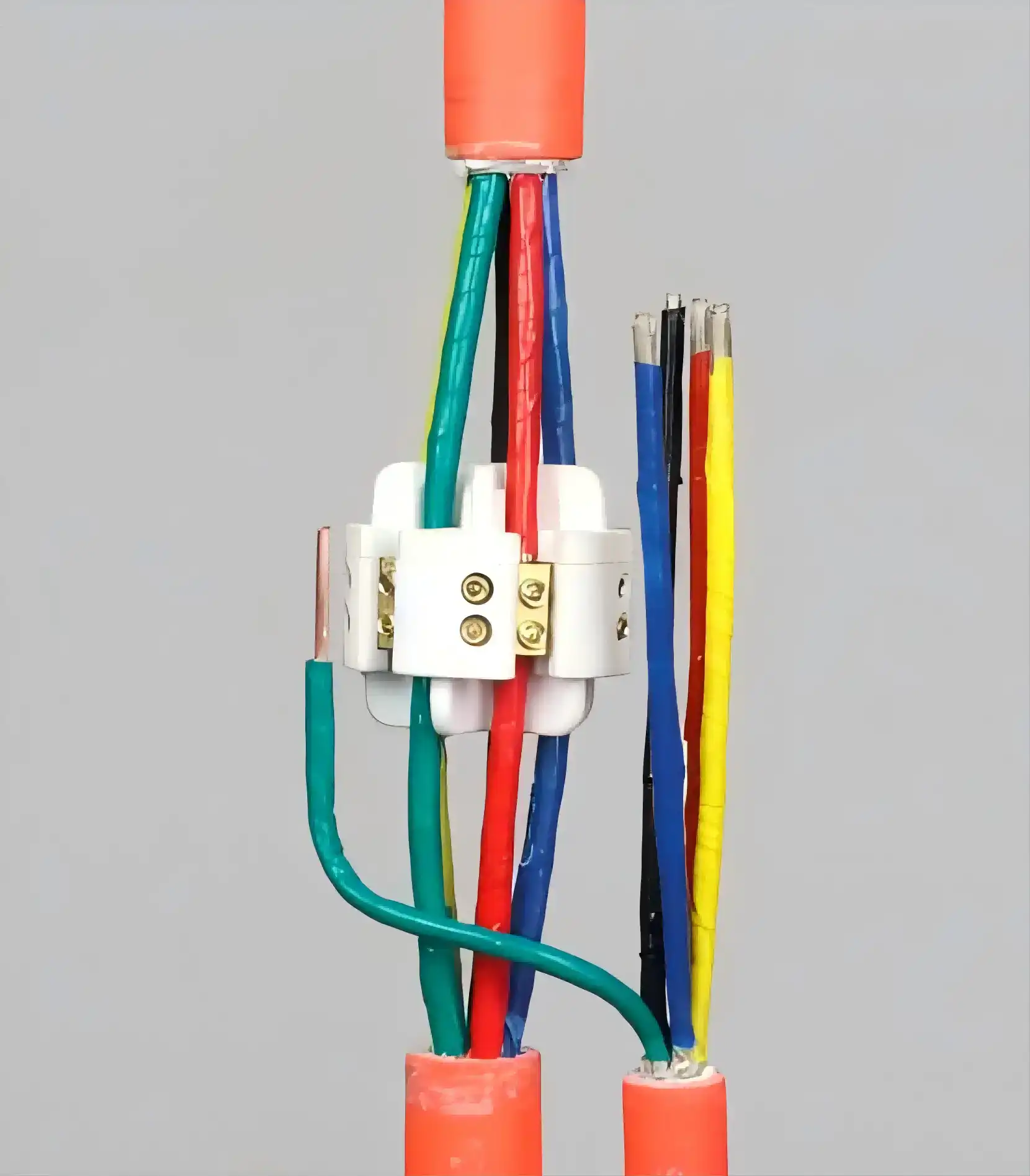

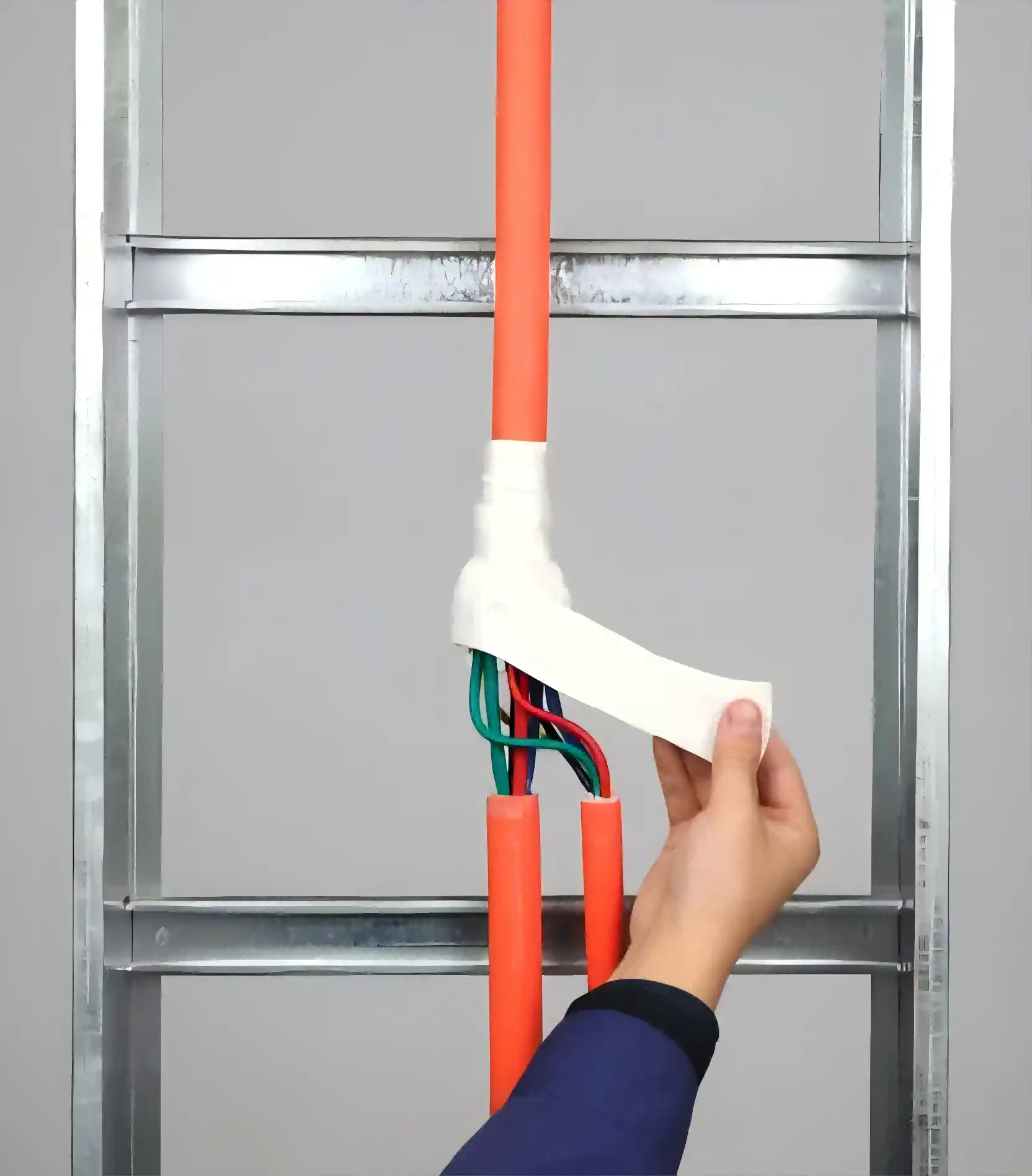

5.Install the branch cable body
6.Install the branch cables
7.Wrap insulation refractory adhesive

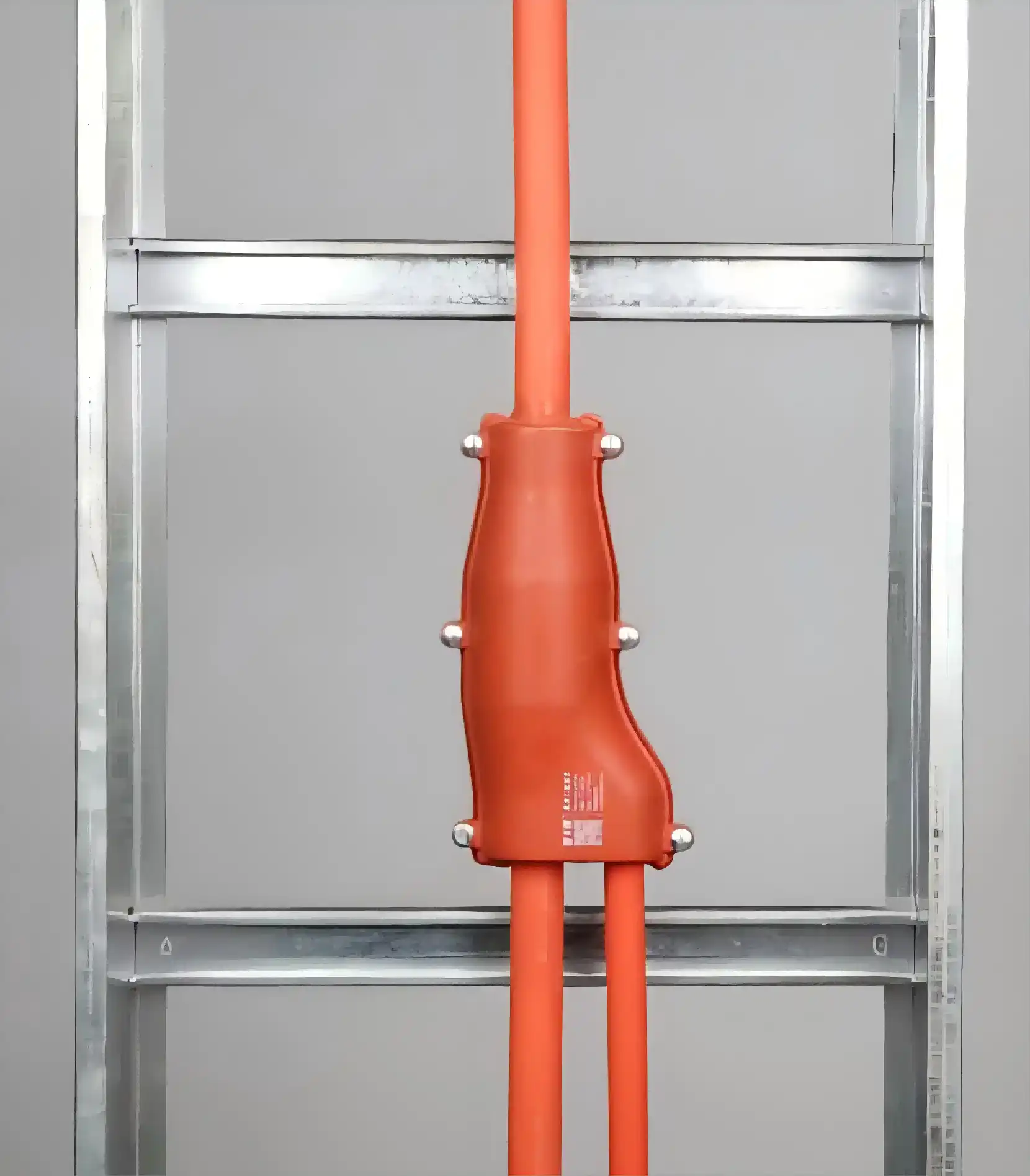

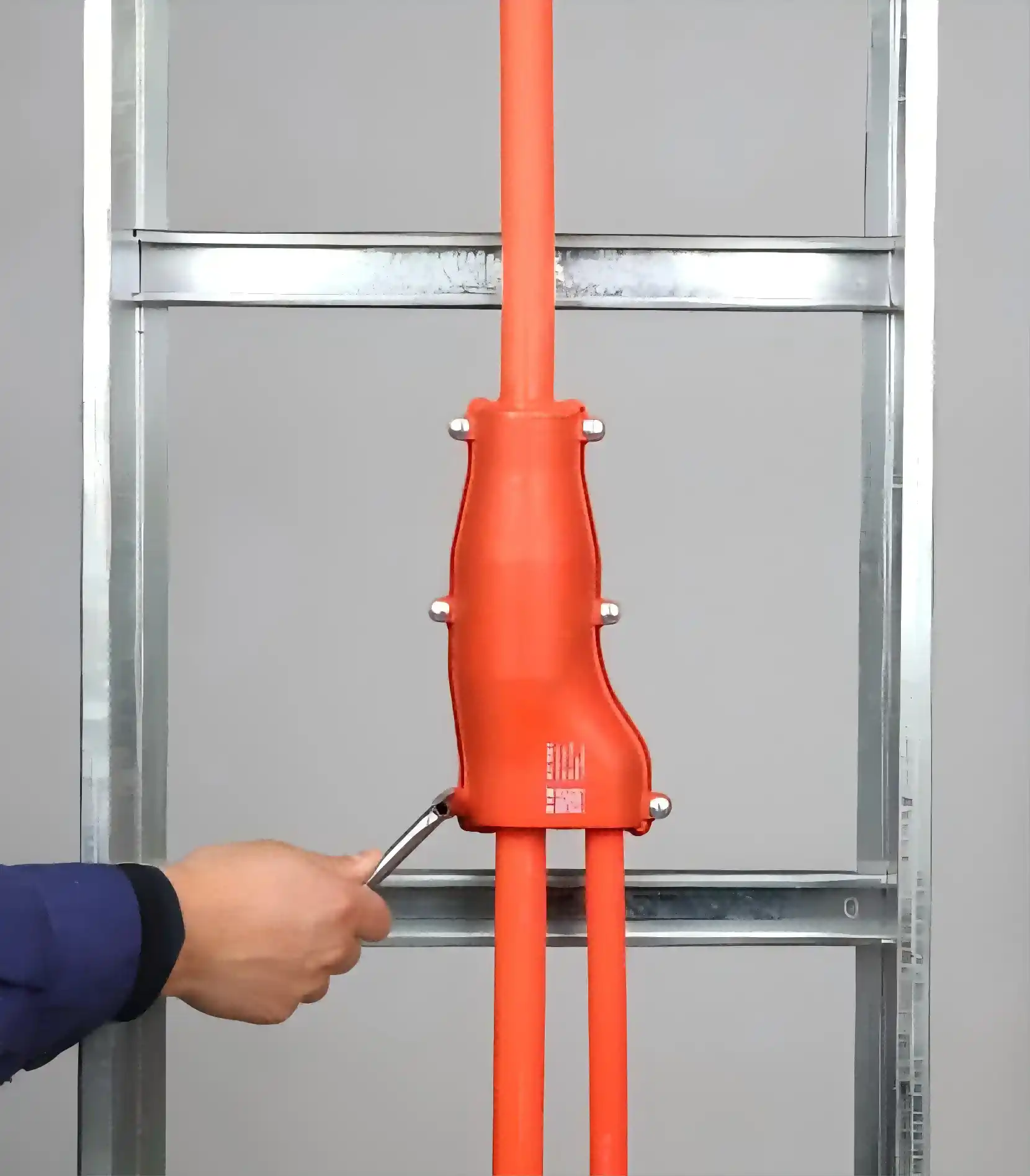

8.Snap-on protective housing

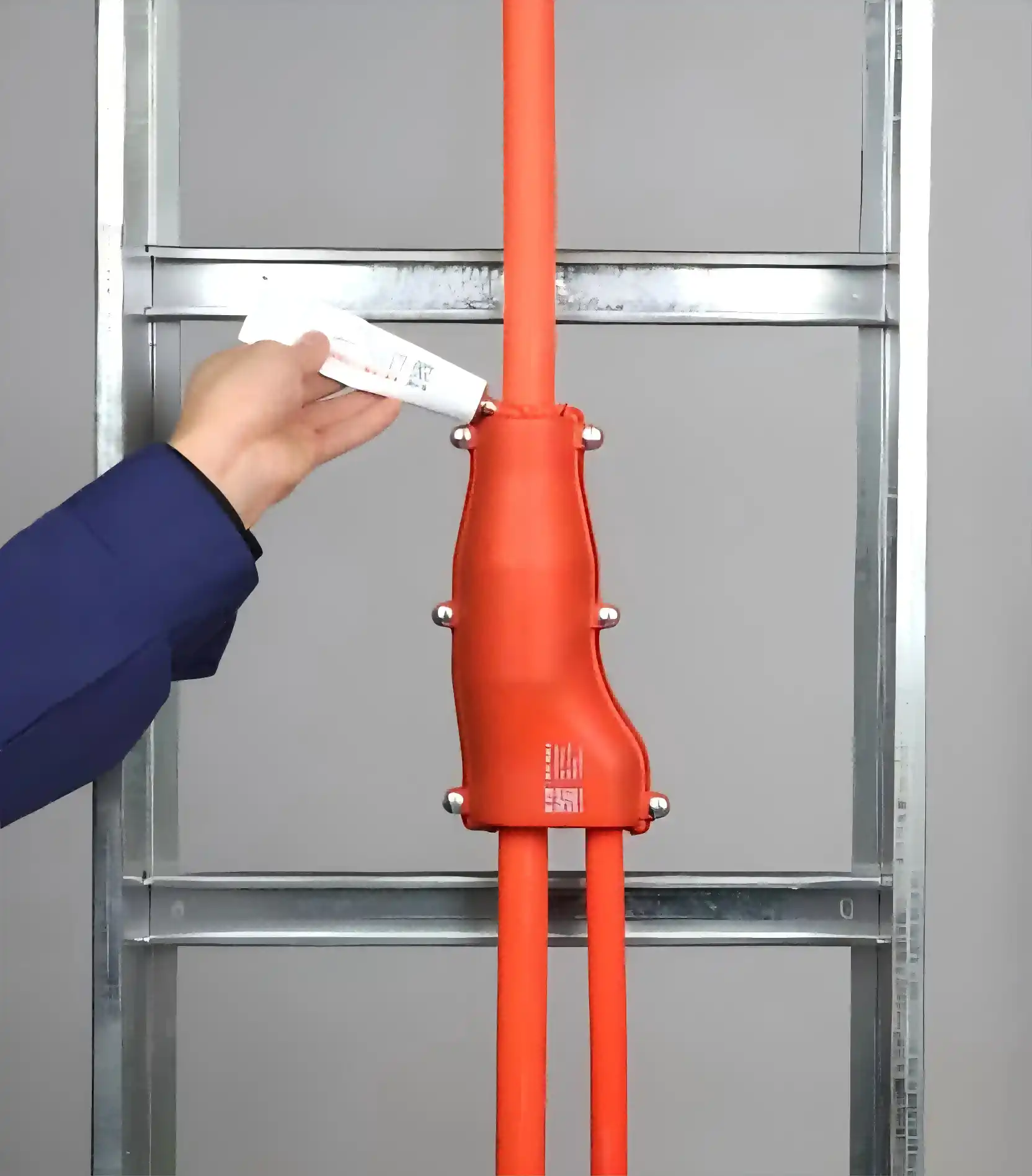

9.Lock and glue the cable outlet
10.Installation completed
Advantages
Our product offers several key advantages:
- Flexible Installation: Ideal for branch connections at any point, whether in open spaces or on bridges.
- Integrated Design: Features a compact structure that is both visually appealing and functional.
- Reusability: Designed for easy construction, maintenance, and reuse, reducing overall project costs.
- Durability: Boasts insulation, flame retardant properties, and resistance to fire, dust, water, aging, and electrochemical corrosion.
- Cost Efficiency: Helps save on cables, building space, and labor, contributing to a lower total cost of ownership.
Technical Features
The product stands out due to its advanced technical specifications:
- No Need to Cut Main Cable: Facilitates connections without interrupting the main cable.
- Integrated Connector: Both main and branch cables connect directly on the flame-retardant/fire-resistant insulated body.
- Complete Insulation and Sealing: Ensures thorough protection and reliability.
Application
The Armoured Cable Joint is expertly crafted to accommodate low-voltage cables featuring flame-retardant, fire-resistant, or mineral-insulated fire-resistant properties. Its robust design makes it an indispensable component for a broad spectrum of applications where secure and reliable cable branching is crucial.
Whether employed in industrial settings requiring rigorous safety and performance standards, commercial environments with complex wiring demands, or residential projects needing dependable electrical connections, this joint ensures optimal functionality and durability. Its advanced construction facilitates seamless integration with existing infrastructure, providing a high level of protection against environmental and operational stresses.
In industrial applications, the joint offers exceptional resilience and stability, vital for maintaining system integrity under heavy-duty conditions. For commercial projects, it enhances the reliability of electrical networks, meeting stringent safety codes and operational requirements. In residential settings, it ensures a secure and long-lasting connection, contributing to the overall safety and efficiency of home electrical systems. The product versatility and strength make it a superior choice for any project that demands reliable cable management and exceptional performance.
OEM Service
At Xi'an OUKAMU, we offer tailored OEM services to meet your specific needs. Whether you require custom specifications or large-scale orders, our team is equipped to deliver high-quality products that align with your project requirements. Contact us to discuss how we can support your unique cable connection needs.
FAQ
Q1: What types of cables can the product be used with?
A1: The joint is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q2: Can the product be used in outdoor installations?
A2: Yes, it is designed to be durable and resistant to various environmental factors, making it suitable for both indoor and outdoor use.
Q3: How does the product contribute to cost savings?
A3: By reducing the need for additional cables, saving space, and simplifying installation and maintenance, the joint lowers overall project costs.
Q4: Is the product reusable?
A4: Yes, the joint is designed for easy reuse, which adds to its cost-effectiveness and convenience.
Q5: What is the lead time for OEM orders?
A5: Lead times vary based on order size and specifications. Please contact us for detailed information regarding your OEM requirements.
