Insulation Piercing Connector IPC
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~6 times that of the same size wire.
Insulation Piercing Connector IPC Introduction
The Insulation Piercing Connector IPC is a revolutionary solution in cable connection technology. Designed to streamline the cable branching process, this connector allows for seamless connections without the need to strip the insulation from the main conductor. This innovation reduces installation time and ensures that electrical integrity remains intact. Whether you're working with industrial power distribution cables or urban lighting systems, the IPC is engineered to offer a reliable, efficient, and safe connection.

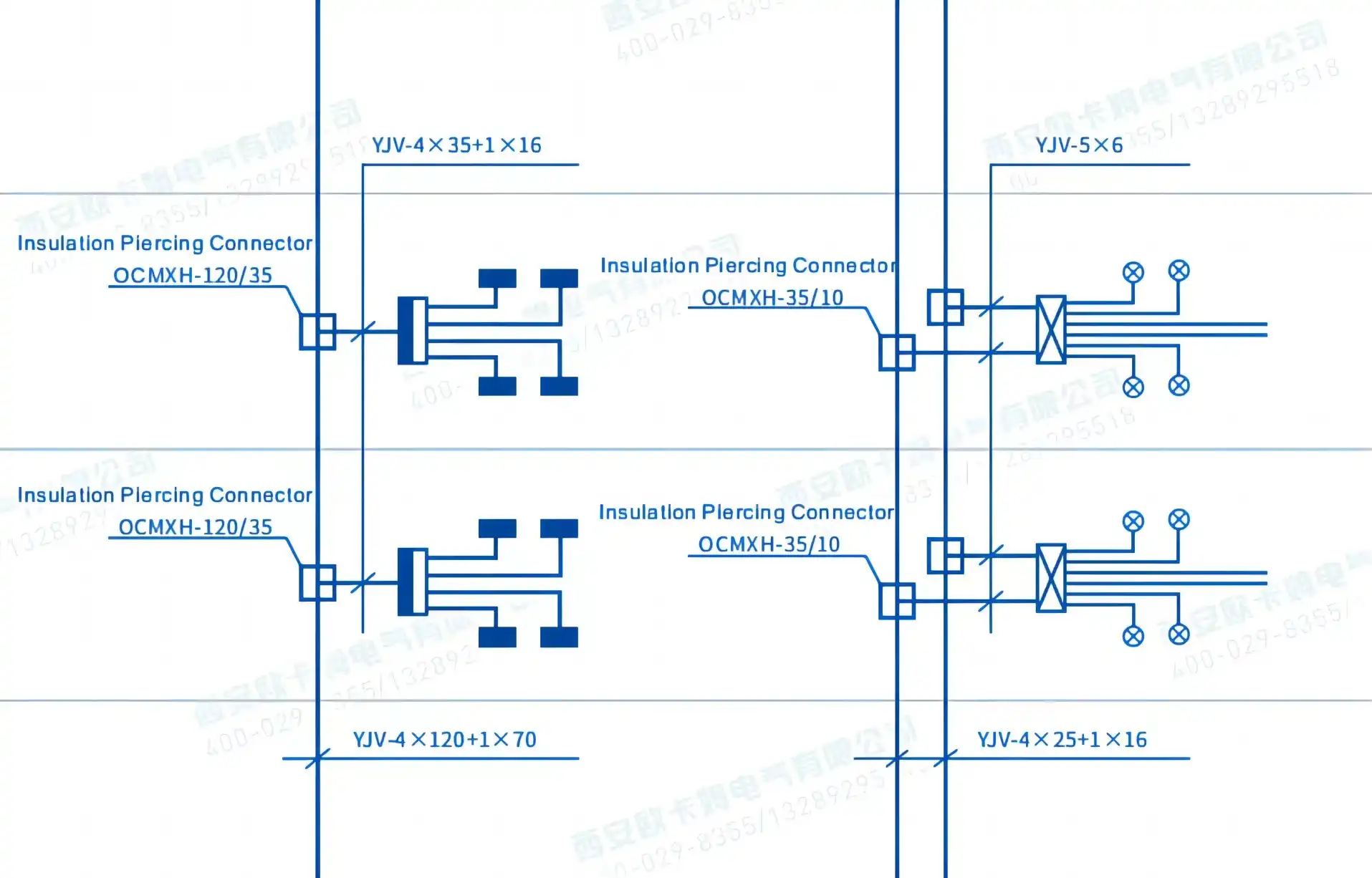

Product Usage
The Insulation Piercing Connector IPC is a versatile tool used across various sectors, ensuring secure and long-lasting connections for different types of electrical systems:
- Industrial and Civil Building Applications: Ideal for branching power distribution cables in large-scale industrial projects and residential developments.
- Tunnel, Subway, and Bridge Connections: Perfect for hard-to-reach areas such as tunnels, subways, and bridges, where dependable cable connections are critical.
- Overhead Power Cables: The IPC excels in creating secure connections for overhead cable systems.
- Urban and Landscape Lighting: Provides reliable connections for urban lighting systems, landscape illumination, and other outdoor electrical systems.
Technical Parameters
- Piercing Conductor Material: High-conductivity silver-copper alloy plate for superior conductivity and durability.
- Conductor Dimensions: Back width ranging from 8mm to 15mm to ensure a wide contact area for enhanced current flow.
- Piercing Mechanism: Single-double blade multi-tooth design for maximum contact points and piercing effectiveness.
- Torque Control: Equipped with constant puncture torque to guarantee secure and consistent connections.
Parameters

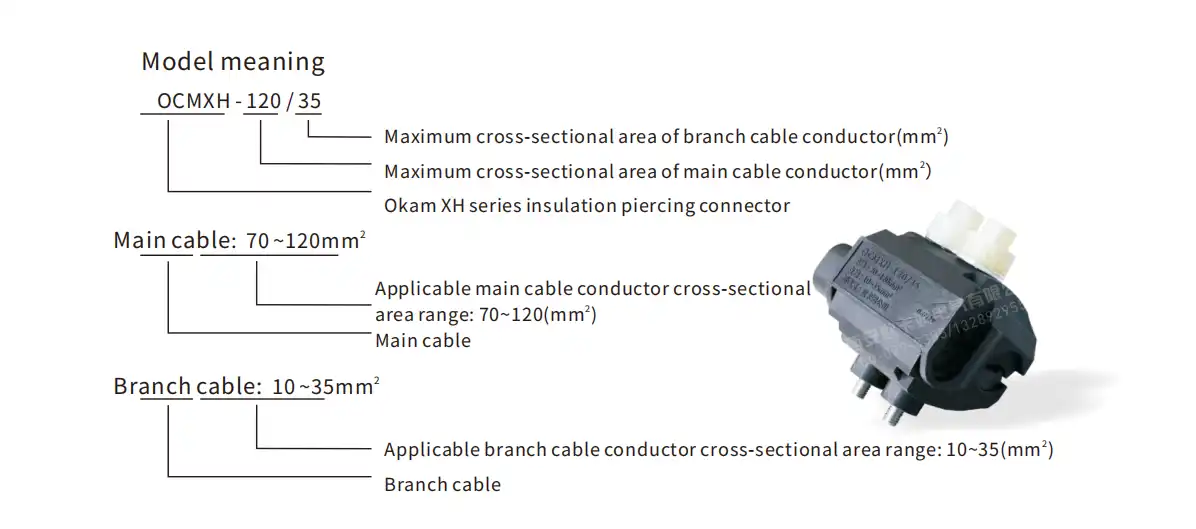

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
The Insulation Piercing Connector IPC stands out due to its advanced design and technical innovations:
- Superior Piercing Contact: The multi-tooth design ensures numerous contact points, enhancing the electrical connection's stability and performance.
- High Strength Conductor: The conductor is fabricated using a silver copper alloy, offering both strength and exceptional conductivity.
- Minimized Reverse Clamping Force: With an optimized design, the reverse clamping force is reduced, preventing unnecessary stress on the plastic shell.
Product Advantages
The Insulation Piercing Connector IPC offers several significant benefits, making it a preferred choice for electrical contractors and engineers:
- No Need to Strip the Cable: Installation is simplified since there's no need to cut the trunk cable or strip the insulation.
- Quick and Easy Installation: With its innovative design, installation can be done quickly, saving both time and effort.
- Compact and Space-Efficient: Its small size ensures that it doesn’t occupy excessive space, making it ideal for bridge applications and confined installations.
- Reliable and Safe: With constant puncture torque, the IPC provides reliable contact, ensuring the safety and stability of the electrical system.
- Cost-Effective: By reducing the need for additional cable lengths and minimizing labor, the IPC offers a low overall cost while delivering high performance.
