Waterproof Insulation Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Waterproof Insulation Piercing Connector Introduction
Welcome to the cutting edge of cable branch connection technology with our Waterproof Insulation Piercing Connector. As innovators in cable connection solutions, Xi'an OUKAMU proudly presents a product that combines advanced technology with unparalleled performance. Discover how our connector can transform your cable connection needs.
Introduction
Our product is designed for seamless and efficient cable branching without the need for insulation stripping. This revolutionary product ensures a secure electrical connection by piercing through the insulation layer, making it ideal for various applications in power distribution.
Product Composition
The Waterproof Insulation Piercing Connector is meticulously designed with a focus on durability and performance, incorporating several advanced features. At the heart of its design is the Piercing Blade, which employs a sophisticated double-blade, multi-tooth structure. This intricate design enhances its piercing efficiency, allowing the connector to penetrate insulation materials with unparalleled precision and ease. The Conductive Material used in the connector is a premium silver-copper alloy, selected for its superior electrical conductivity. This material minimizes resistance and ensures the connector can handle high current loads effectively, promoting reliable electrical connections. Additionally, the connector is encased in a carefully engineered Plastic Shell. This shell is constructed to endure substantial reverse clamping forces while maintaining structural integrity with minimal deformation. The combination of these high-quality components ensures that the the connector not only performs optimally but also stands up to rigorous operational demands, making it a highly reliable choice for various applications.
Technical Parameters
- Piercing Conductor Width: 8~15mm
- Material: Silver-copper alloy plate
- Resistance: Extremely low
- Application Temperature Range: Wide temperature range suitable for diverse environmental conditions

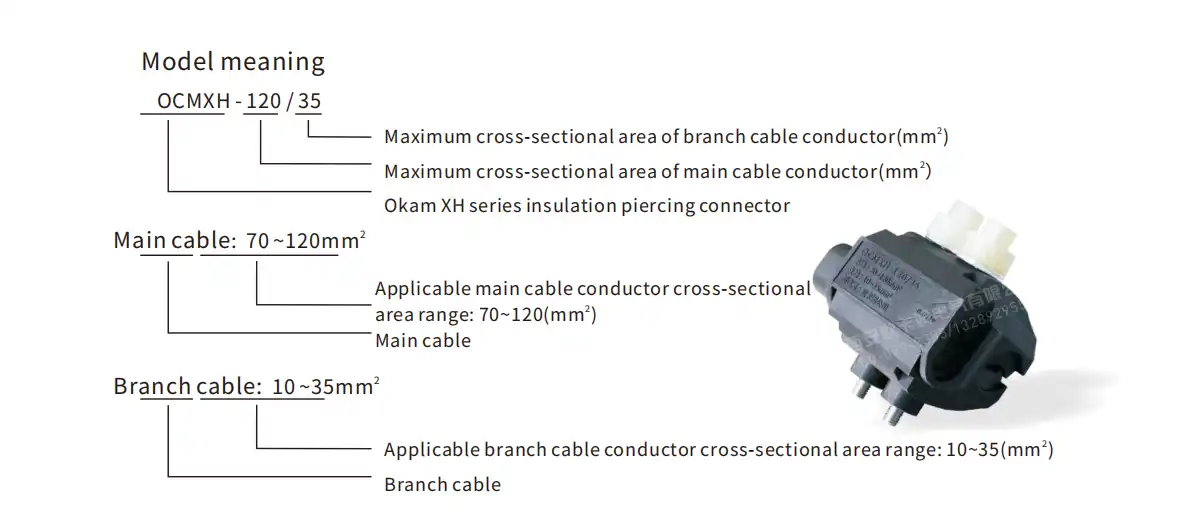

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
The connector is engineered to deliver exceptional performance through several core advantages. Firstly, its high efficiency is achieved through the double-blade, multi-tooth piercing conductor, which creates multiple contact points. This design ensures a strong and reliable connection by maximizing the contact area, thereby enhancing the overall effectiveness of the connector. Additionally, the connector’s innovative design minimizes the clamping force applied to the plastic shell. This reduction in force not only contributes to the shell's longevity but also improves the connector's overall durability, ensuring long-term reliability in demanding applications. Furthermore, the connector boasts superior conductivity due to its high-conductivity silver-copper alloy plate. This premium material guarantees robust strength and outstanding electrical performance, enabling the connector to handle substantial current loads with ease. Collectively, these advantages underscore the connector's exceptional capability, making it an ideal choice for high-performance and reliable electrical connections in various settings.
Product Usage

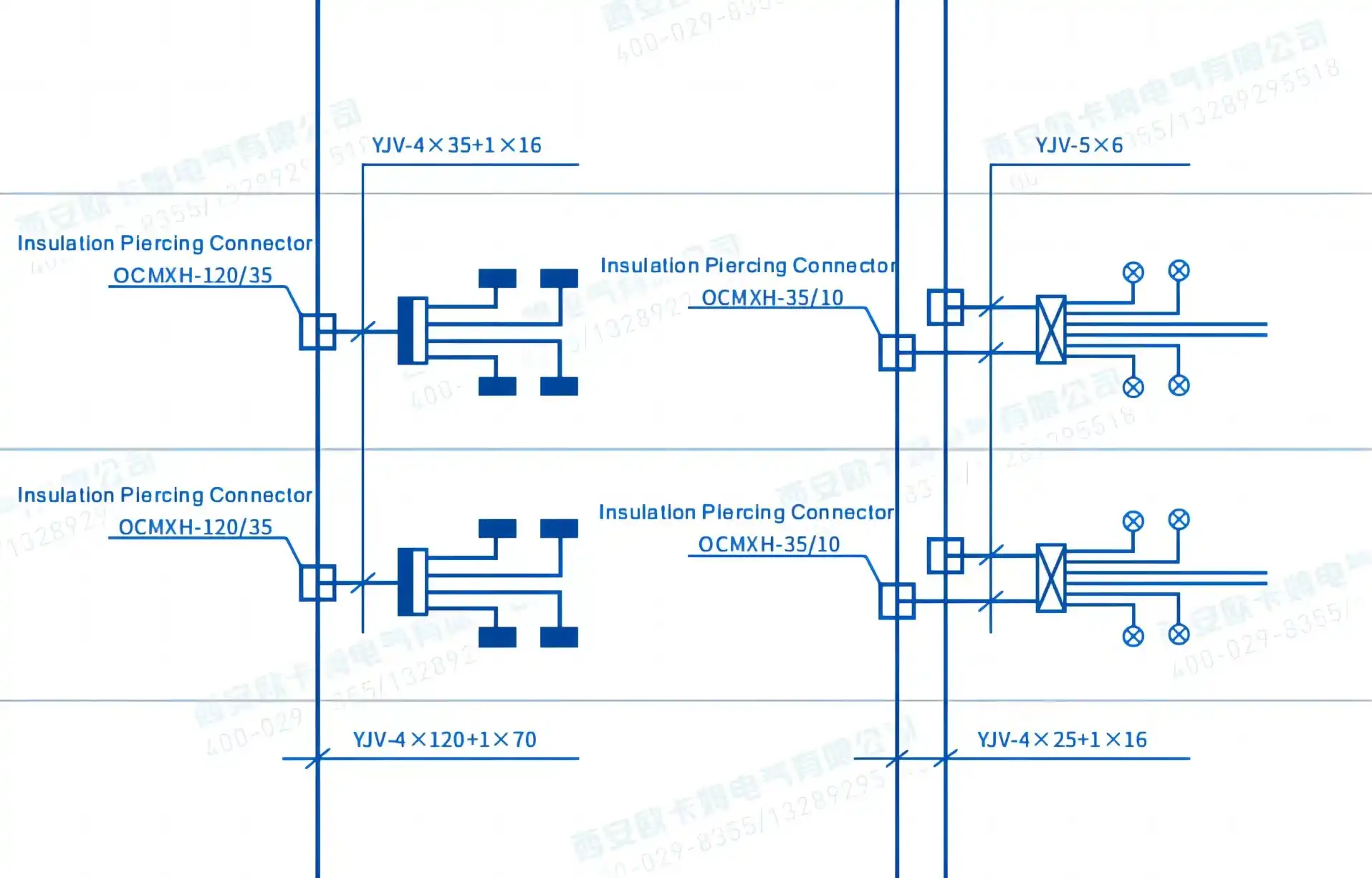

Our product offers exceptional versatility, making it an ideal solution for a range of applications. Its robust design ensures reliability in power distribution cables, catering to both industrial and civil construction projects. In the context of tunnels and subways, this connector proves indispensable, providing consistent performance in subterranean infrastructures where durability and resistance to environmental factors are crucial. For overhead cable systems, the connector facilitates efficient branching, optimizing power distribution and maintaining high performance even in challenging conditions. Additionally, it is perfectly suited for urban lighting projects, including those involving buried cables in cityscapes and landscape designs. The connector's resilience and adaptability to various environmental demands make it a preferred choice for diverse installation scenarios, ensuring seamless and reliable electrical connections across different sectors and applications.
Packaging and Transportation
Our connectors are packaged to ensure they arrive in optimal condition. Each unit is carefully packed with protective materials to prevent damage during transit. We offer flexible shipping options to meet your specific needs, ensuring timely delivery to your location.
Contact Us
For more information or to place an order, please contact us at:
Email: info@okmbranchcable.com
Feel free to reach out with any questions or for assistance with your Waterproof Insulation Piercing Connector needs. Our team is here to help you find the perfect solution.
