ABC Insulation Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
ABC Insulation Piercing Connector Introduction
The ABC Insulation Piercing Connector is a cutting-edge solution designed for safe and efficient cable branching without stripping the insulation layer. This advanced connector ensures that mutually insulated cables are securely connected via a unique piercing method. Whether used in industrial, civil, or overhead power applications, the product provides a seamless and reliable connection, making it the top choice for modern cable management systems.
Product Usage
Our ABC Insulation Piercing Connector is versatile and ideal for various applications, including:

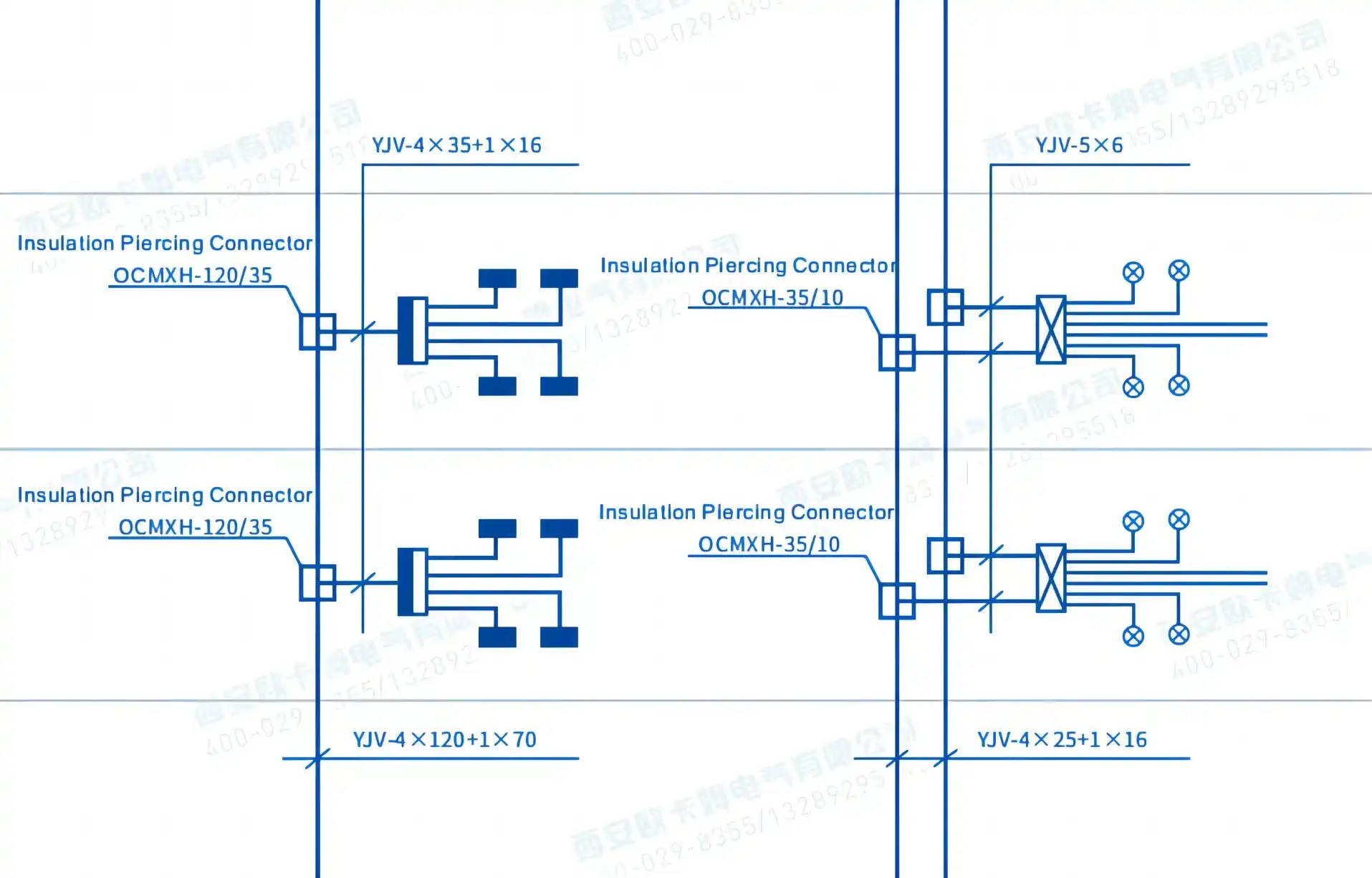

- Industrial and Civil Buildings: Ensure secure branch connections for power distribution cables in both commercial and residential buildings.
- Tunnels, Subways, and Bridges: Perfect for branch connections in infrastructure projects requiring durable and safe electrical connections.
- Overhead Power Cables: Provides secure connections for overhead power distribution systems.
- Urban Lighting and Landscape Lighting: Ideal for buried cables, ensuring consistent and reliable power distribution in city lighting and landscape projects.
Technical Parameters
The ABC Insulation Piercing Connector boasts superior technical features:
- Piercing Conductor Material: High-conductivity silver copper alloy for excellent electrical conductivity and durability.
- Conductor Size Range: Suited for multiple cable sizes, accommodating diverse cable management systems.
- Piercing Blade Design: Single double-blade multi-tooth configuration with multiple contact points, providing a wide piercing area for better connectivity.
- Piercing Conductor Back Width: Ranges from 8-15mm, minimizing reverse clamping force and ensuring stable and safe usage.
Parameters

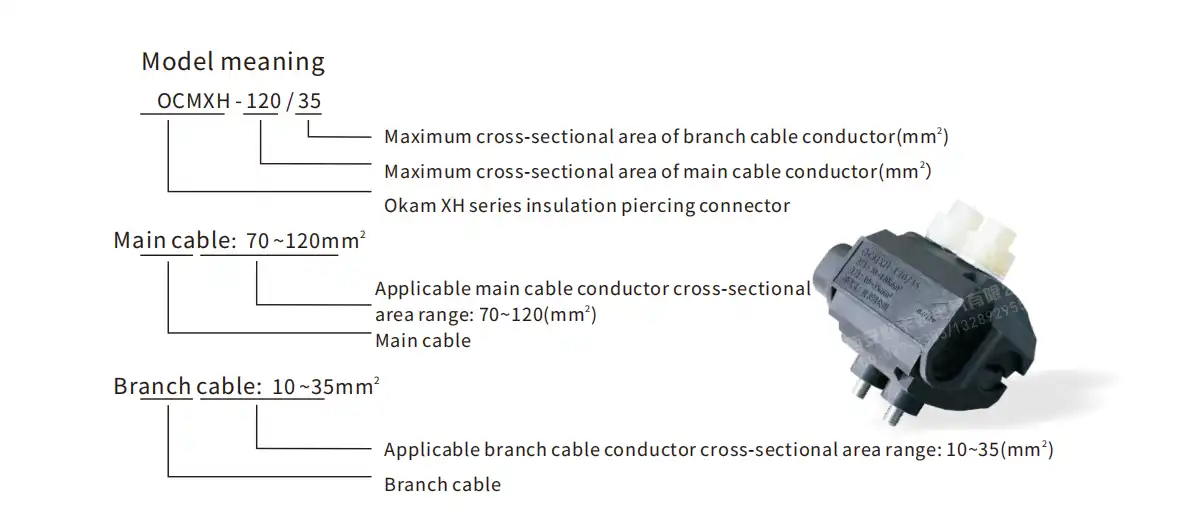

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
- Multiple Contact Points: The multi-tooth design enhances the reliability of the electrical connection by increasing the contact area, ensuring consistent performance.
- Durability and Conductivity: Made from a silver copper alloy, the piercing conductor offers superior strength, low resistance, and high current-carrying capacity.
- Low Reverse Clamping Force: The wide back of the piercing conductor reduces the force on the plastic shell, improving the longevity of the connector.
Product Advantages
- No Cable Stripping: There is no need to cut or strip the insulation layer, simplifying the installation process and reducing installation time.
- Simple and Quick Installation: The connector's design allows for a hassle-free setup, making it a time-saving solution for electricians and engineers.
- Compact and Space-Saving: The connector's compact size is ideal for installations with limited space, such as in bridges or tunnels.
- Constant Puncture Torque: Ensures a reliable puncture contact and a secure connection throughout its lifespan.
- Stable Operation and Safety: The connector ensures reliable, safe, and continuous operation under various conditions, reducing the risk of failure or disconnection.
- Cost-Effective: By saving on materials, labor, and space, this product delivers excellent value for any project requiring cable branching.
Quality Control
At Xi'an OUKAMU, we adhere to stringent quality control standards to guarantee the best performance of the product. Each unit undergoes rigorous testing to ensure:
- Electrical Conductivity: Consistent and stable current flow.
- Mechanical Durability: High resistance to physical stress, ensuring long-lasting performance.
- Weather Resistance: The connector is designed to withstand harsh environmental conditions, ensuring reliability in both indoor and outdoor applications.
Packaging and Transportation
Our packaging solutions are meticulously crafted with one primary goal in mind – to provide unwavering protection to the product during transit. Every aspect of our packaging is carefully thought out, from the choice of durable materials to the design of secure closures. We understand that different projects have unique requirements, which is why we offer customizable packaging options. Whether you need special sizing, branding, or additional cushioning, our team can tailor the packaging to suit your specific project needs. Additionally, we ship globally, leveraging a network of reliable logistics partners. These partners are carefully selected for their track record of timely delivery and commitment to handling packages with care.
Contact Us
For more information about our ABC Insulation Piercing Connector or to request a quote, please contact us at:
- Email: info@okmbranchcable.com
We're here to help you find the right solution for your cable management needs!
