Insulation Piercing Branch Connectors
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Insulation Piercing Branch Connectors Introduction
Insulation Piercing Branch Connectors, a cutting-edge solution for cable branch connections, are the subject of this product page. We at Xi'an OUKAMU take great pride in developing cutting-edge technologies, such as our unique cable integrated T-connection terminals. Find out how our products can help you connect cables in a way that works well and is reliable.
Introduction
Insulation Piercing Branch Connectors are essential components in modern electrical systems because they can establish a strong and effective connection between two protected wires without requiring protection to be removed. These connectors use cutting-edge technology to cut through the insulation and make contact with the conductor inside to guarantee a reliable and stable electrical connection.
By discarding the need to strip assurance, protection puncturing branch connectors out and out develop the affiliation association. Not in the least does this accelerate the establishment, yet it additionally brings down the opportunity that the protection and guides will be harmed. Consequently, the connectors aid in making the wiring process simpler and more efficient, ultimately saving time and effort.
The mix of this development further develops as a rule faithful quality, as the connectors give an anticipated and good affiliation that is less disposed to issues like sad contact or oxidation. The products are made to meet the needs of modern electrical systems while ensuring long-term performance and durability. They are reasonable for various applications, including private wiring and complex modern arrangements.
Product Composition
Our products are crafted with precision and high-quality materials to ensure optimal performance. The product consists of:
- Piercing Conductor: Made from high-conductivity silver-copper alloy, this component ensures minimal resistance and robust current-carrying capacity.
- Plastic Shell: A durable casing that provides protection and stability while maintaining a small footprint.
- Insulation Piercing Mechanism: Designed to pierce through insulation and make contact with the conductor efficiently.
Technical Parameters
- Material: Silver-copper alloy plate
- Piercing Conductor Width: 8~15mm
- Contact Points: Multiple contact points for improved connectivity
- Insulation Piercing Force: Low reverse clamping force for easy installation
- Conductivity: High conductivity for minimal resistance and strong current carrying capacity
Parameters

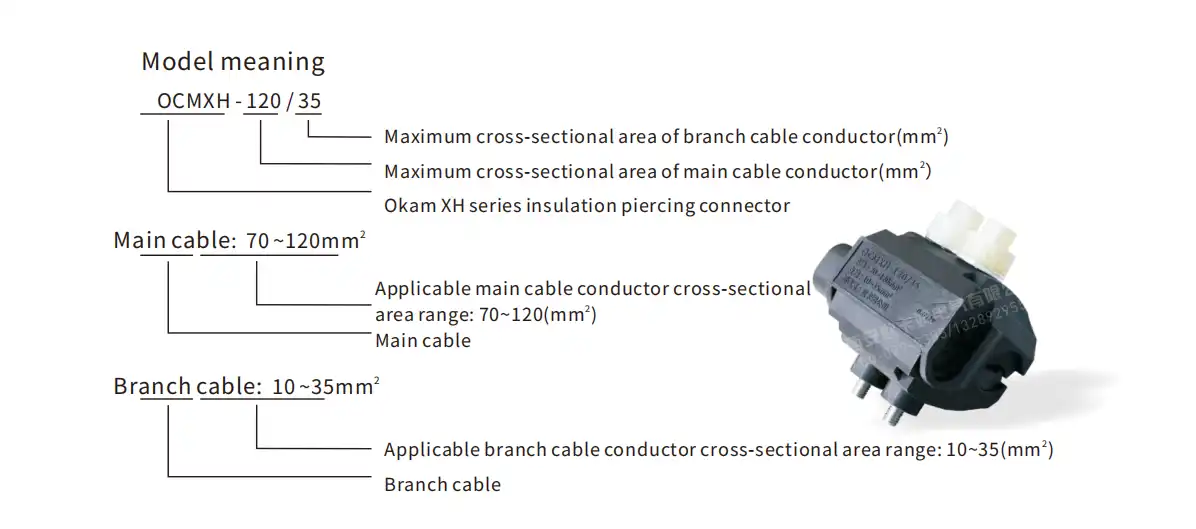

| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
- Effective Contact for Piercing: Our connectors have a single double-blade, multi-tooth design that provides a large piercing area and multiple contact points. By ensuring a thorough and dependable connection between the conductor and the connector, this novel design boosts electrical conductivity. The electrical link's overall performance and stability are enhanced by the increased surface area of the contact.
- Minimum Force of Clamping: The plan of the connector essentially lessens the opposite cinching force applied to the plastic shell. In addition to extending the connector housing's operational lifespan, this reduction in stress also prevents potential damage. The connector maintains its structural integrity over time by reducing clamping force, ensuring consistent performance and dependability.
- Material of High Conductivity: A high-quality silver-copper alloy that is well-known for its superior electrical conductivity is used in the production of the connectors. The selection of this material results in a connection that is both stable and durable thanks to its low resistance and high strength. The connector is made of silver-copper alloy, which ensures that it can withstand high currents without deteriorating in quality or performance.
Product Usage

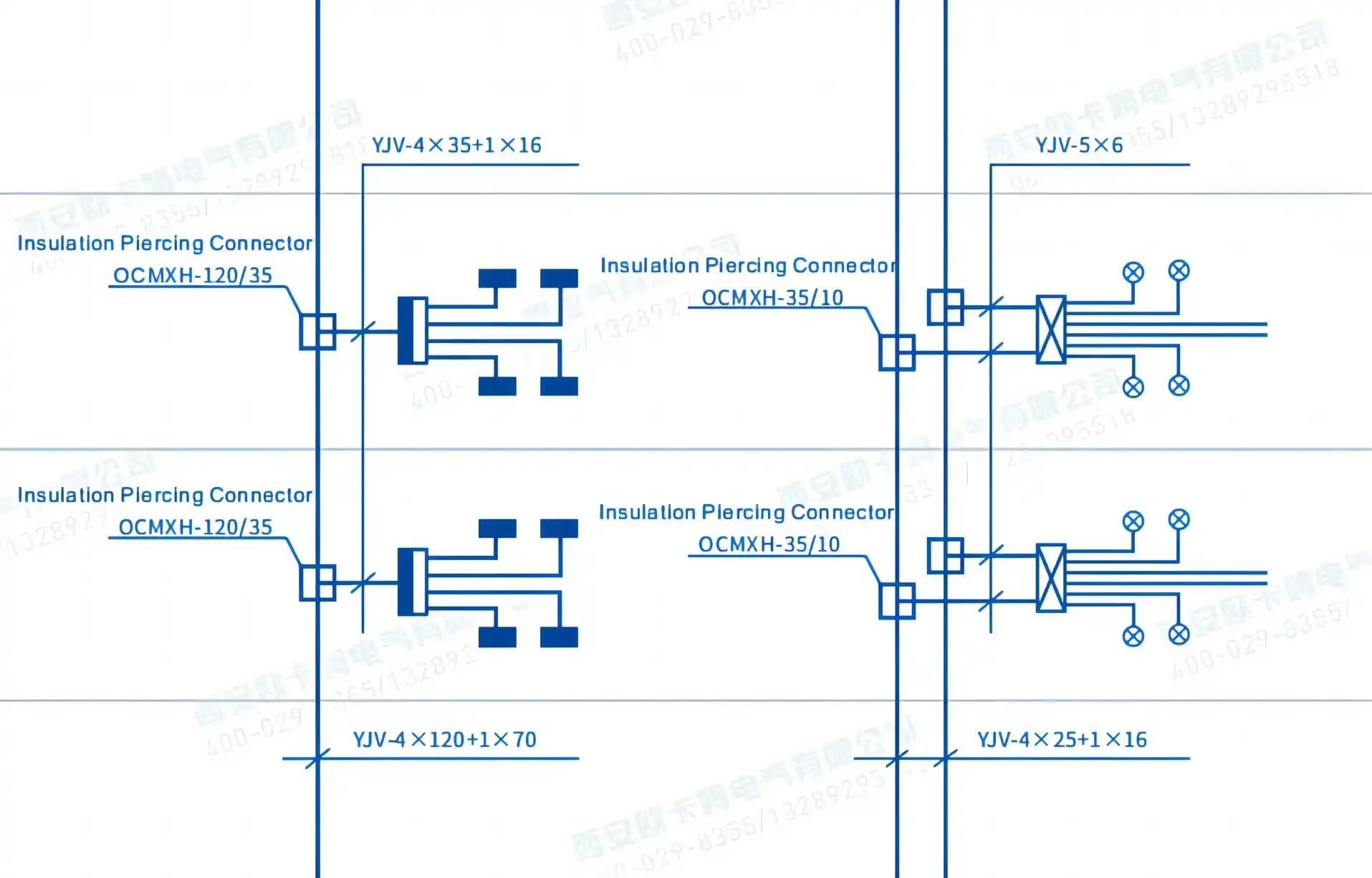

Insulation Piercing Branch Connectors are versatile and suitable for various applications, including:
- Power Distribution Cables: Ideal for industrial and civil buildings, providing a reliable branch connection.
- Tunnels and Subways: Used in underground infrastructure to ensure stable power distribution.
- Overhead Power Cables: Efficiently connects branch cables for overhead installations.
- Urban and Landscape Lighting: Connects buried cables in city lighting and landscape applications.
Packaging and Transportation
To guarantee safe and secure delivery, our Insulation Piercing Branch Connectors are carefully packaged. In order to prevent damage during transportation, each unit is individually packed. We provide adaptable shipping options to meet your requirements and guarantee prompt delivery.
Contact Us
For more data or to put in a request, kindly reach us at info@okmbranchcable.com. Our group at Xi'an OUKAMU is here to help you with any requests and offer help for your link association needs.
