Insulating Cable Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Insulating Cable Connector Introduction
We would like to warmly welcome you to Xi'an OUKAMU, the location where cutting-edge cable connection technology meets unparalleled dependability. By connecting cables in a way that is simple, quick, and safe, our Insulating Cable Connector is designed to meet the shifting requirements of contemporary electrical systems.
Product Composition
The product consists of several key components:
- Piercing Blade: A high-precision blade that ensures a reliable electrical connection by piercing through the insulation of the wires.
- Conductive Plate: Made from high-conductivity silver-copper alloy, this plate guarantees excellent conductivity and strength.
- Insulating Shell: Designed to protect the connection and ensure safety, the shell is made from durable plastic that withstands various environmental conditions.
Technical Parameters
Our product is engineered to meet the highest standards. Here are some technical specifications:
- Conductive Plate Material: Silver-copper alloy with extremely low resistance.
- Piercing Contact Area: Optimized for maximum contact points and efficiency.
- Back Width: 8-15mm, providing a stable and secure connection.
- Torque: Constant puncture torque for consistent contact performance.

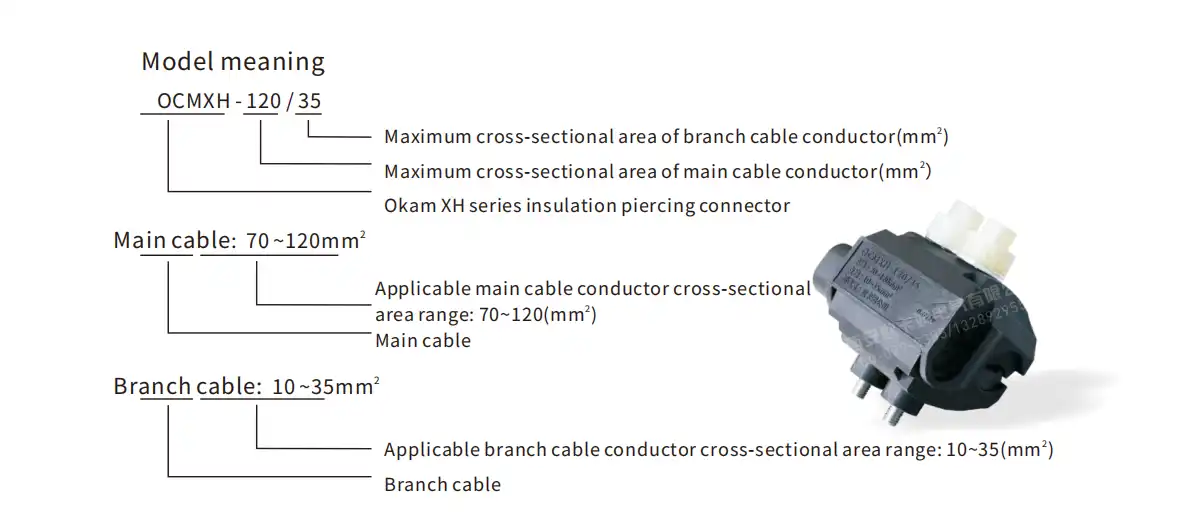

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
- High Conductivity: The use of silver-copper alloy ensures low resistance and high current-carrying capacity.
- Efficient Installation: No need to strip wires or cut cables, which simplifies the process and reduces installation time.
- Compact Design: The small size of the connector saves space and fits easily into tight areas.
- Reliable Performance: The constant puncture torque ensures a stable and effective connection, even in demanding conditions.
- Cost-Effective: By saving on cable usage and installation labor, our connector offers a low comprehensive cost while maintaining high performance.
Product Usage
The Insulating Cable Connector is versatile and can be used in various applications, including:

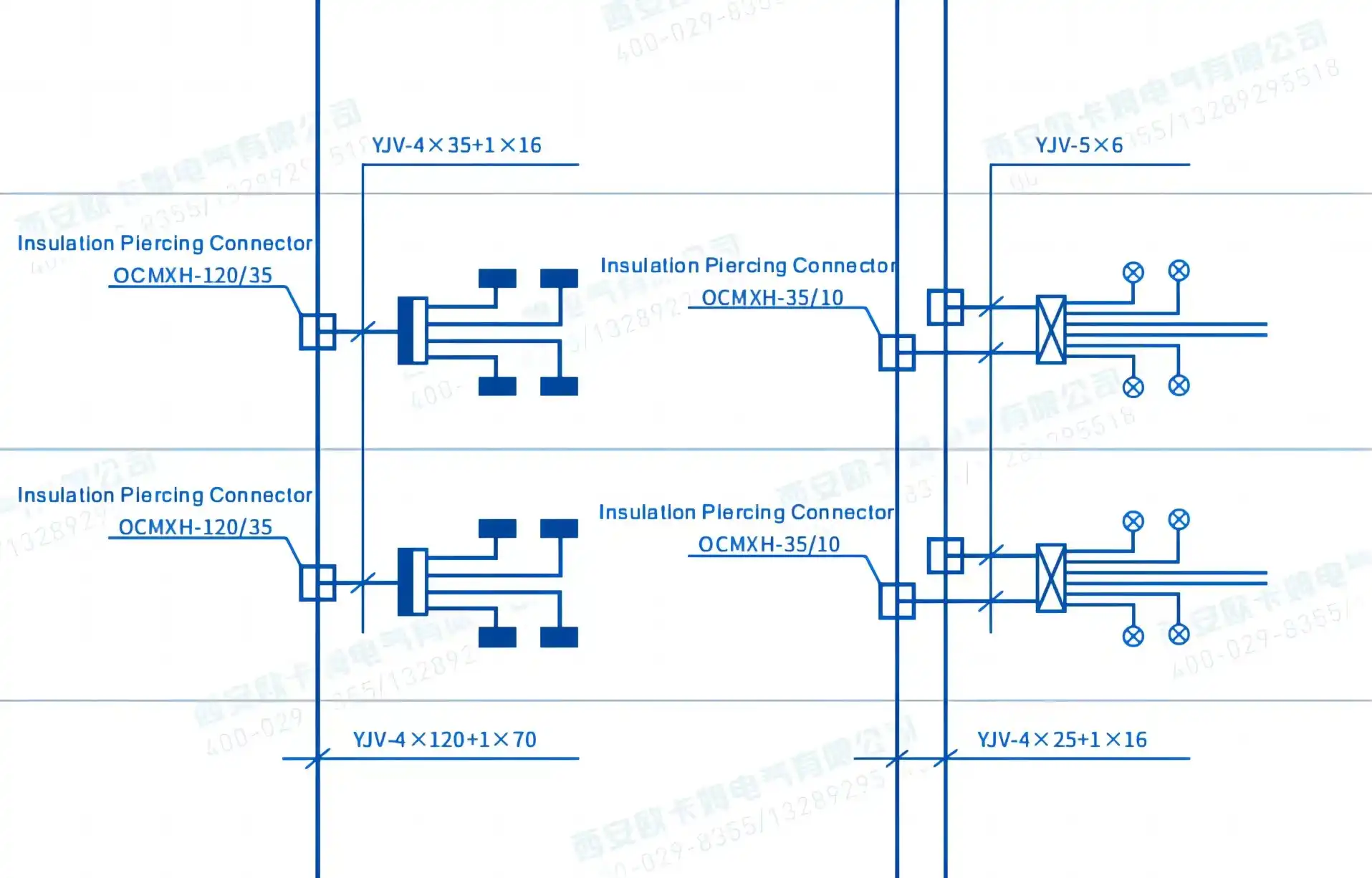

- Industrial and Civil Buildings: Ideal for power distribution cables in large-scale projects.
- Tunnels, Subways, and Underground Pipe Galleries: Ensures reliable connections in challenging environments.
- Overhead Power Cables: Suitable for branch connections in power distribution systems.
- Urban and Landscape Lighting: Effective for connecting buried cables in urban and scenic lighting installations.
Packaging and Transportation
To guarantee that our products will arrive in perfect condition, they are packaged. In order to prevent damage during transportation, each unit is securely packed. To meet the requirements of our international clients, we provide adaptable shipping options that guarantee prompt delivery and effective handling.
