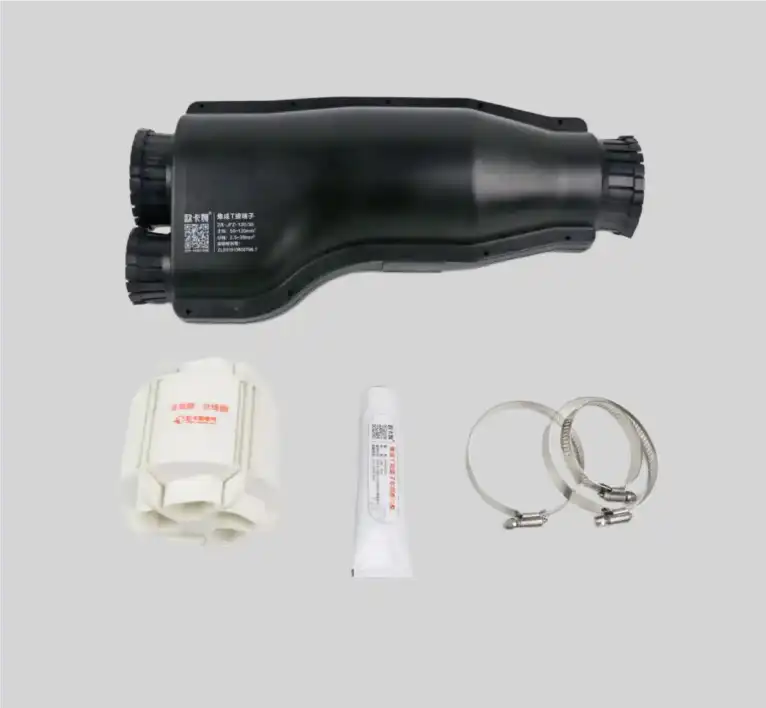

Tunnel Integrated Branch Connector
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance."
Tunnel Integrated Branch Connector: Revolutionizing Cable Branch Connection
At Xi'an OUKAMU, we're proud to introduce our innovative Tunnel Integrated Branch Connector, a game-changing solution for low-voltage cable branch connections. This cutting-edge product is ideal for a wide range of applications because it connects multi-core trunk and branch cables in a secure, dependable, and cost-effective manner.
Our product is a new type of cable branch connection product that was invented by our team of experts in 2015. This revolutionary product allows for convenient, safe, and reliable connection of multi-core trunk cables and multi-core branch cables at the construction site. With its compact structure and small size, this connector can be installed both openly and in the bridge, making it a versatile solution for various applications.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

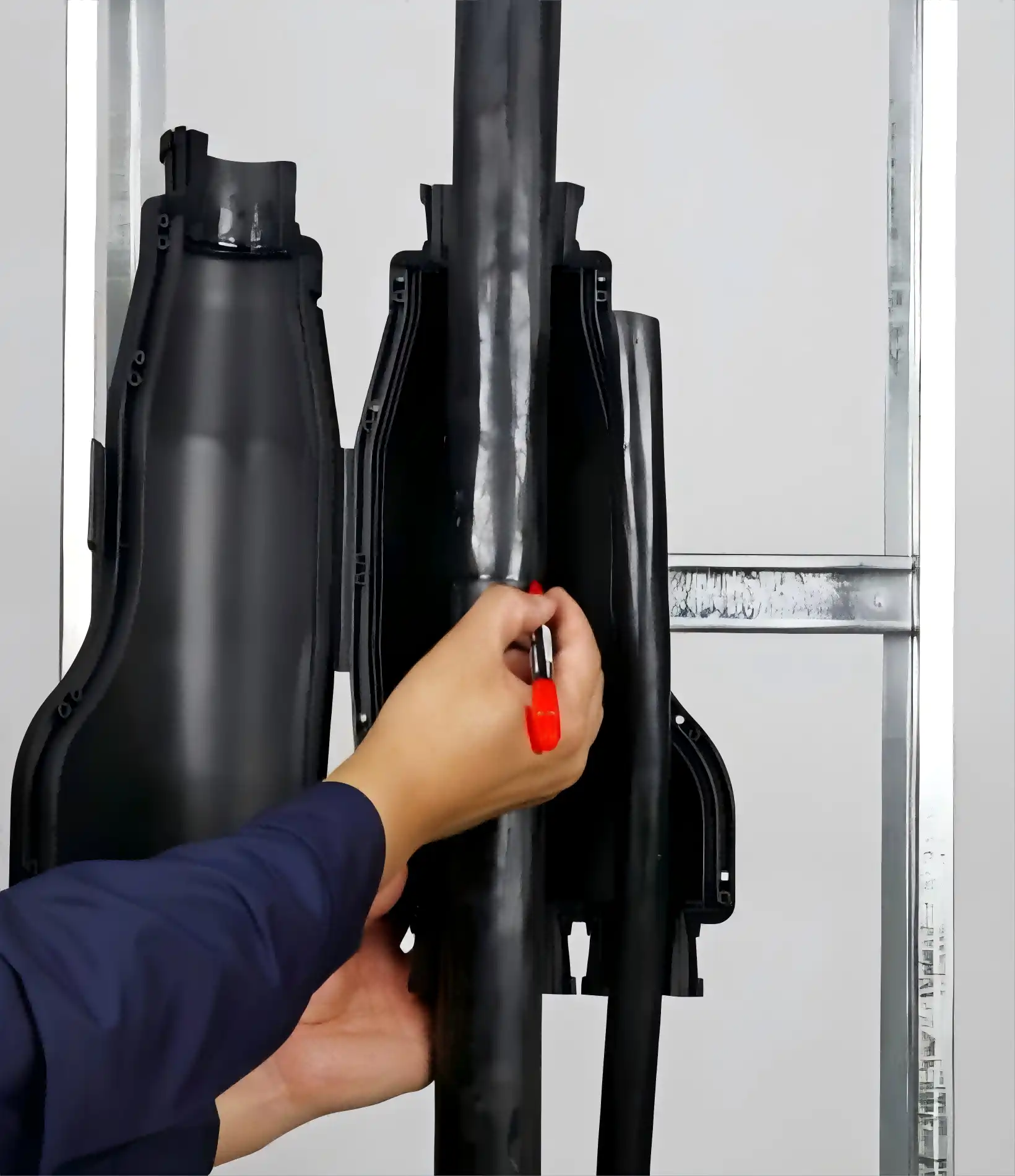

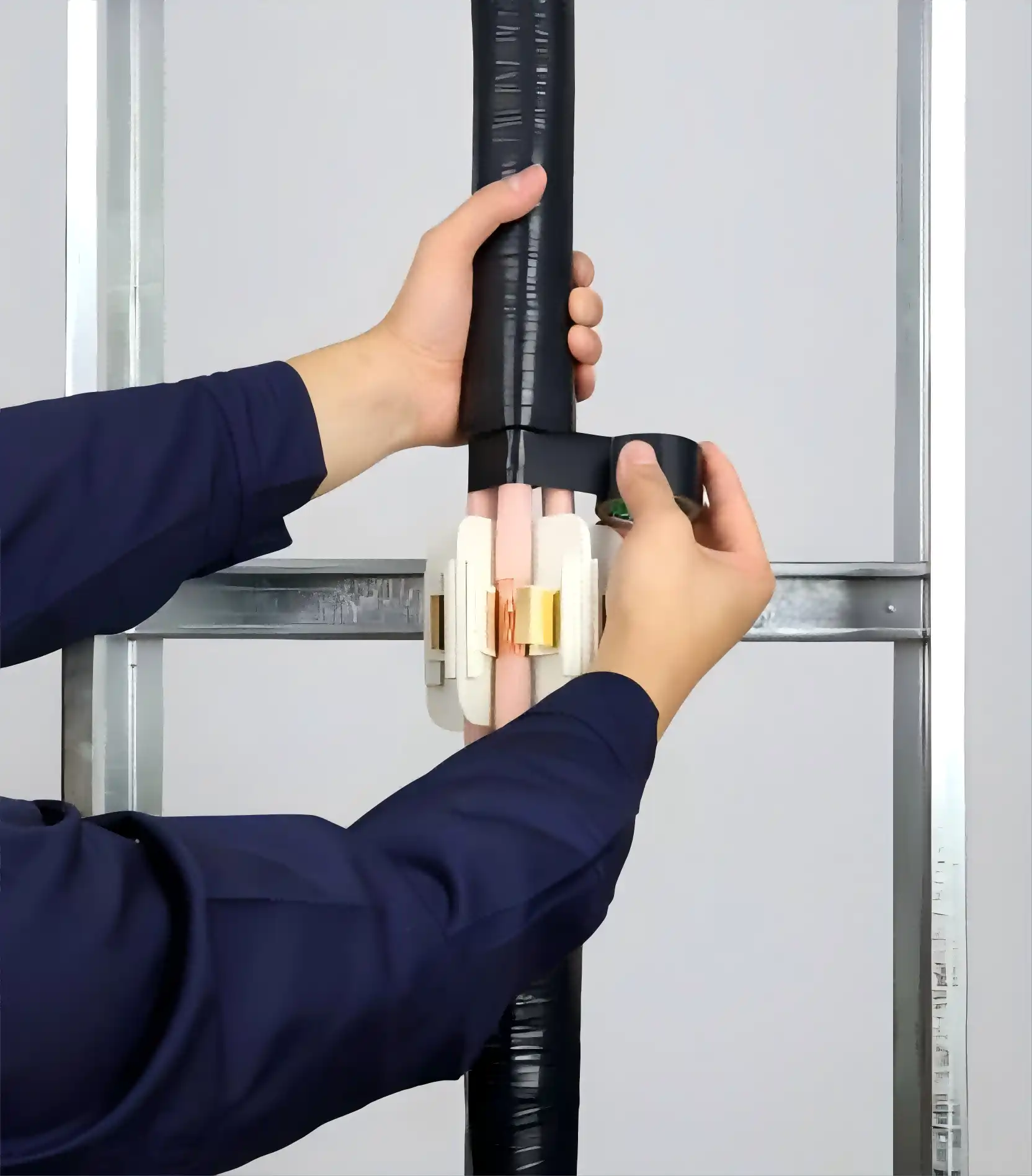

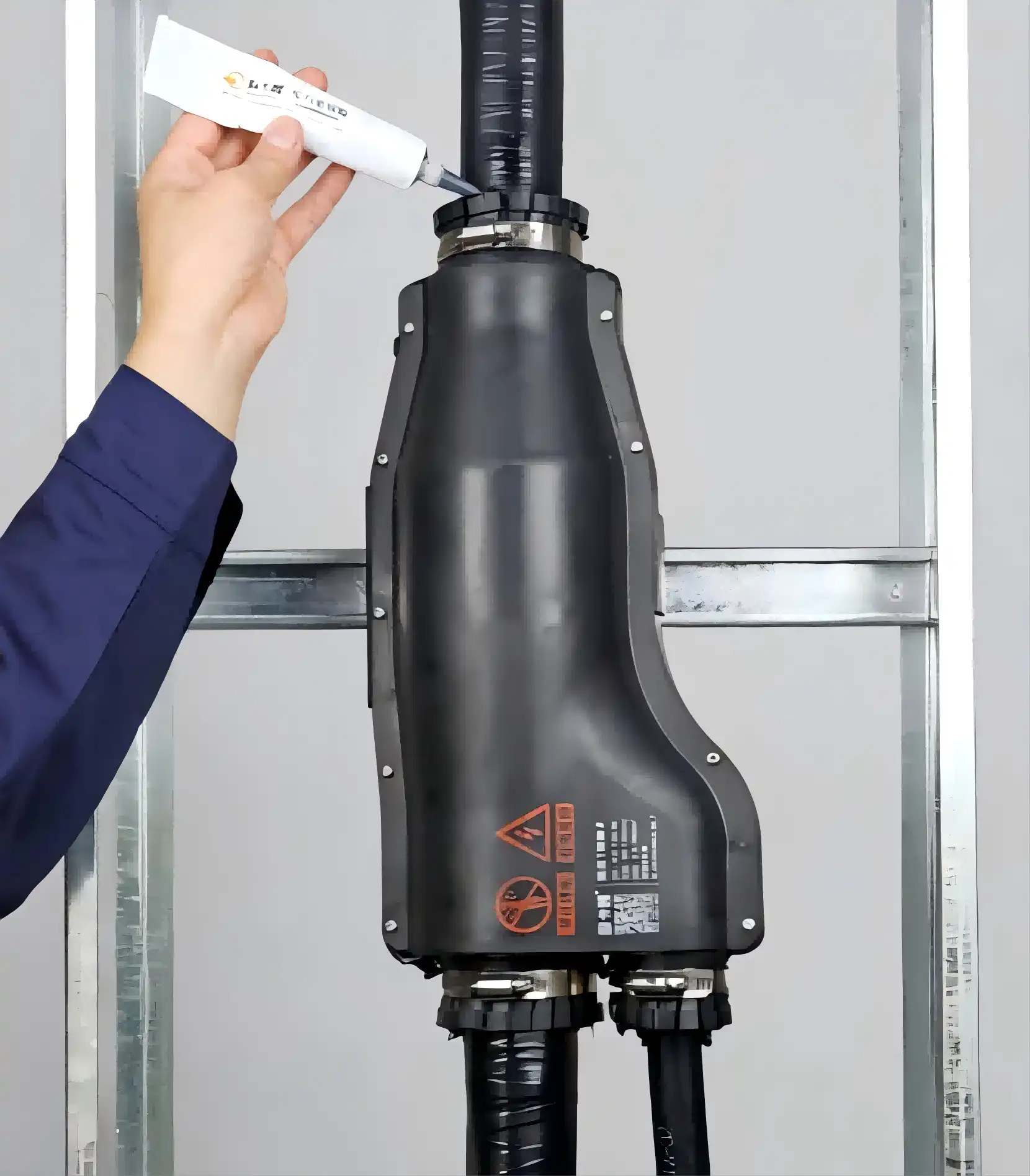

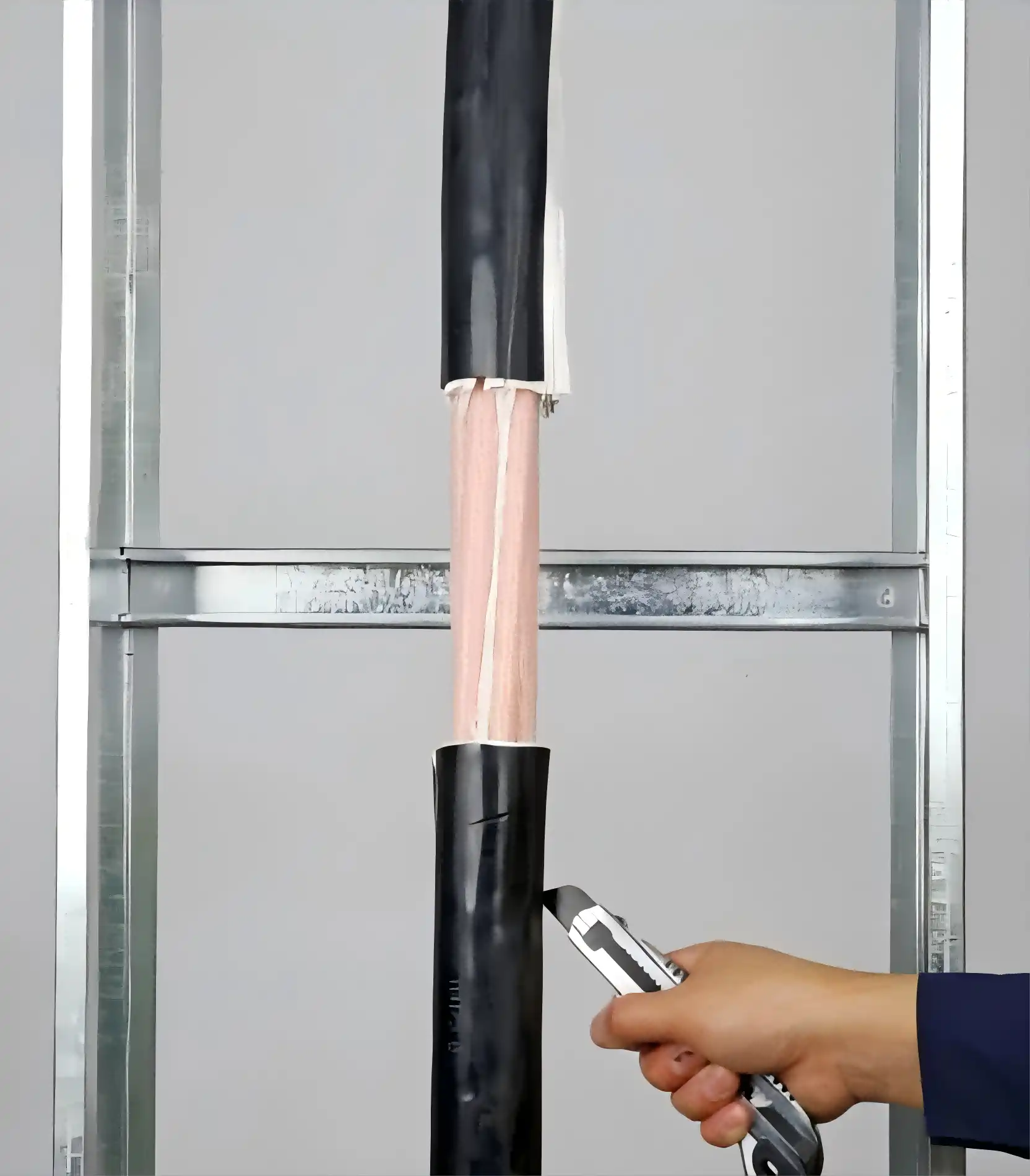

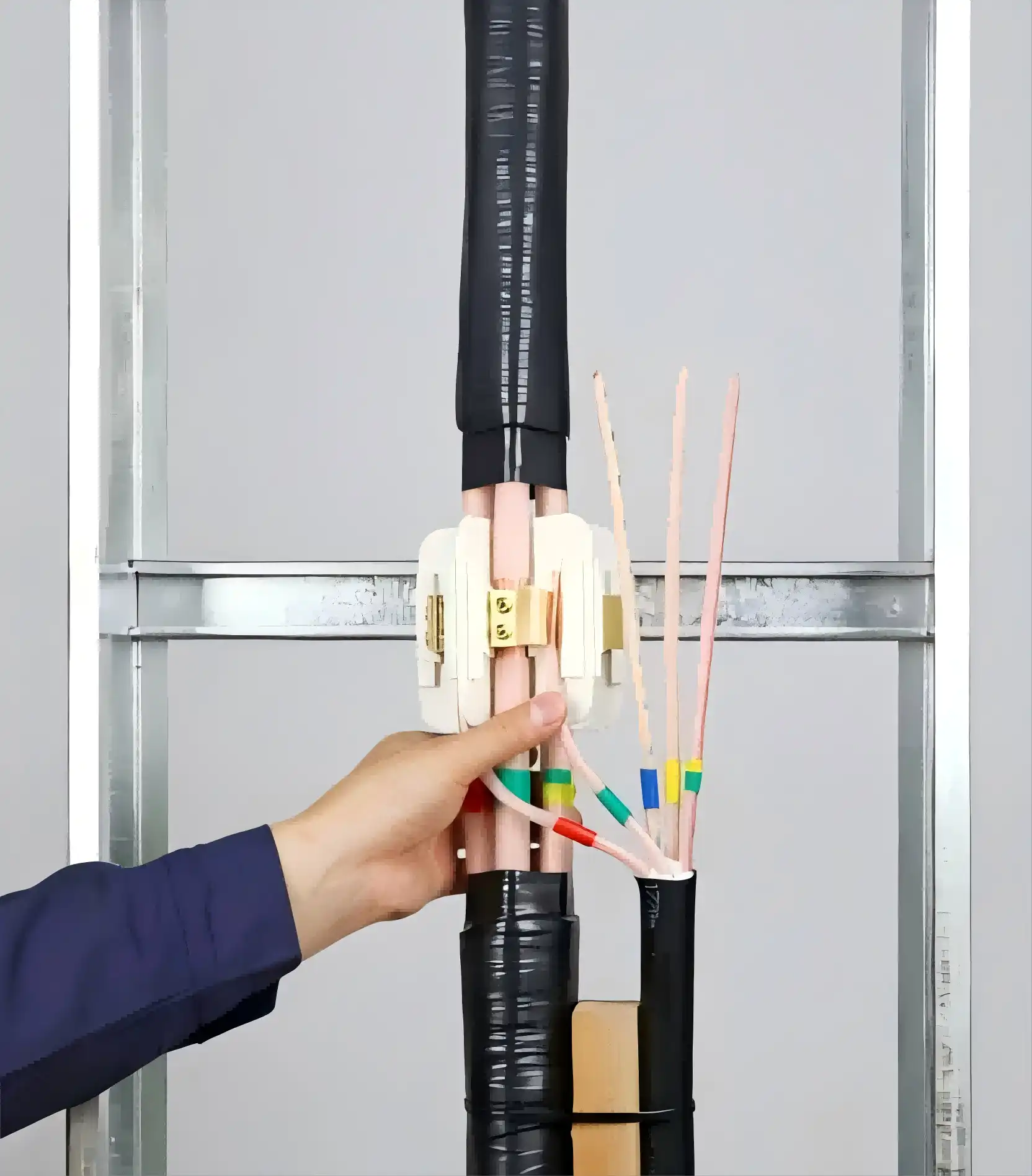

Installation Steps
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Product Usage
The product is specifically designed for branch connection of low-voltage flame-retardant, fire-resistant, and mineral insulated fire-resistant cables. Its unique design allows for on-site installation and construction, making it an ideal solution for projects that require flexibility and efficiency.
Technical Parameters
Our Tunnel Integrated Branch Connector features a range of technical innovations that make it a superior solution for cable branch connections. These include:
The trunk cable does not need to be cut off, reducing waste and saving time
The trunk cable and branch cable are connected on the flame-retardant/fire-resistant insulated integrated T-connector body, ensuring a safe and reliable connection
The same-phase trunk conductor and branch conductor are clamped in the trunk U groove and branch U groove of the double U-shaped tapping terminal for compression connection, providing a secure and efficient connection
The branch line is insulated and sealed as a whole, ensuring a safe and reliable connection
Core Advantages
Our product offers a range of benefits that make it an ideal solution for cable branch connections. These include:
On-site installation and construction, allowing for branch connection at any position
Integrated, safe, reliable, beautiful, and generous design
Compact structure and small size, making it easy to install and maintain
Convenient construction and maintenance, reusable
Insulation, flame retardant, fire resistant, dustproof, and waterproof, anti-aging, and anti-electrochemical corrosion
Saves cables, building area, labor, and overall cost
Product Advantages
Our Tunnel Integrated Branch Connector provides a variety of product-specific advantages in addition to its fundamental advantages. These are some:
Simple establishment and upkeep, decreasing work costs and further developing proficiency
Reusable plan, decreasing waste and saving assets
Minimal design and little size, making it simple to ship and store
Protection and fixing, guaranteeing a protected and solid association
