Cell Pack Cable Joint Kit
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cell Pack Cable Joint Kit Introduction
Welcome to the future of cable connections with the Cell Pack Cable Joint Kit from Xi'an OUKAMU. Our innovative solution revolutionizes how multi-core main and branch cables connect, providing a seamless, reliable, and efficient way to handle cable branching. This kit is not just a product; it's a result of pioneering technology that ensures safety, convenience, and superior performance in any installation.

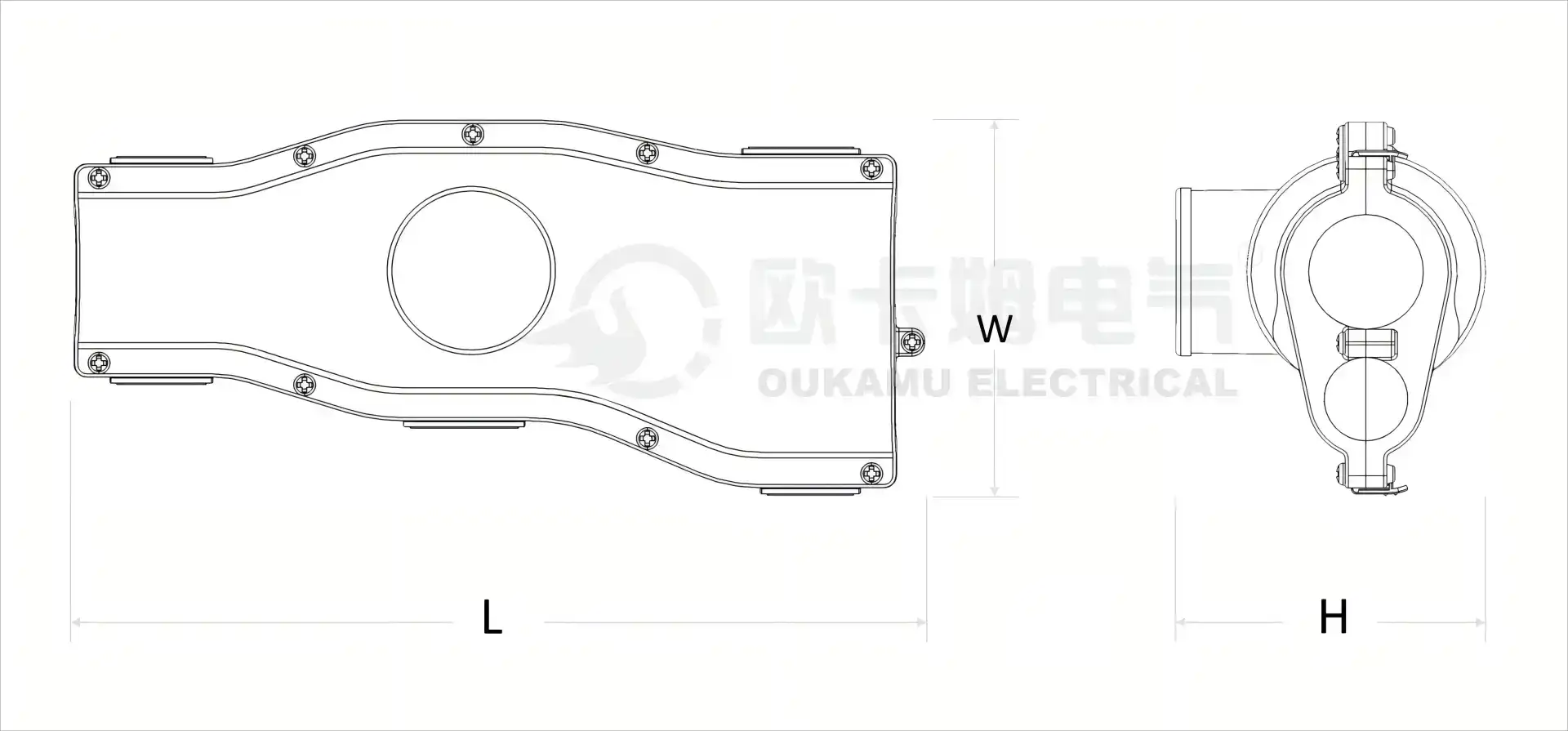

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantage
Why should you go with the Cell Pack Cable Joint Kit? Our product is designed to provide unparalleled advantages:
Installation on-site that is simple: Say goodbye to arduous procedures. Our kit makes on-site installations simple and quick by allowing branch connections at any position.
Design with Integrity: This kit not only saves space but also ensures a neat and pleasing installation thanks to its compact, integrated structure.
Security and Dependability: Our product is resistant to fire, flame retardant, and provides excellent insulation. It is constructed to withstand aging, electrochemical corrosion, dust, and water.
Cost-Effective: With our all-in-one solution, you can cut costs on cables, labor, and installation time all at once.
Technical Features
The Cell Pack Cable Joint Kit is packed with advanced technical features that set it apart from traditional solutions:
- No Need to Cut Main Cable: The main cable remains intact, eliminating the risk of weakening the cable's structure.
- Flame-Retardant Insulated T-Connector Body: Both main and branch cables connect securely within a specially designed, flame-retardant, and fire-resistant body.
- Comprehensive Insulation: The branch cable is fully insulated and sealed, offering an extra layer of protection and longevity.
Application
The Cell Pack Cable Joint Kit is versatile and can be used in a variety of applications, particularly where safety and reliability are paramount. It’s ideal for:
- Branch connections in low-voltage flame-retardant systems.
- Fire-resistant and mineral-insulated cable systems.
- Situations where quick, secure, and clean installations are required.
OEM Service
At Xi'an OUKAMU, we understand that different projects have different needs. That's why we offer comprehensive OEM services to customize our product to your specific requirements. Whether you need a particular size, material, or additional features, our team is here to provide a tailored solution that meets your needs perfectly.
FAQ
Q1: Is the installation process complicated?
A1: Not at all! Our kit is designed for easy, on-site installation, allowing you to make branch connections quickly and efficiently without the need for specialized tools.
Q2: Can this kit be used in outdoor environments?
A2: Yes, the product is designed to withstand harsh conditions, including exposure to dust, water, and extreme temperatures, making it suitable for both indoor and outdoor applications.
Q3: How does this kit improve safety?
A3: The kit offers superior insulation waterproof, is flame-retardant, and fire-resistant, significantly reducing the risk of electrical hazards.
Q4: Can the kit be reused?
A4: Absolutely. Our product is designed for durability and can be reused, offering long-term value and cost savings.
Q5: What support is available if I have questions during installation?
A5: We provide comprehensive customer support, including detailed installation guides and direct access to our technical team for any questions or concerns.
Contact Us
Ready to elevate your cable connections? Get in touch with us today to learn more about the Cell Pack Cable Joint Kit. Our team is here to help you find the perfect solution for your needs.
Email: info@okmbranchcable.com
