Straight-Through Cable Joints With Connectors
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm.
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Comprehensive cost can be reduced by 300%~500%, high cost performance.
Straight-Through Cable Joints With Connectors Introduction
At Xi'an OUKAMU, we pride ourselves on innovation and quality in the cable connection industry. Our Straight-Through Cable Joints With Connectors represent a breakthrough in cable connection technology, offering unmatched convenience and reliability for on-site construction. This product, part of our integrated T-connector series, simplifies the connection of multi-core main and branch cables, making it ideal for low-voltage flame-retardant, fire-resistant, and mineral-insulated cables.

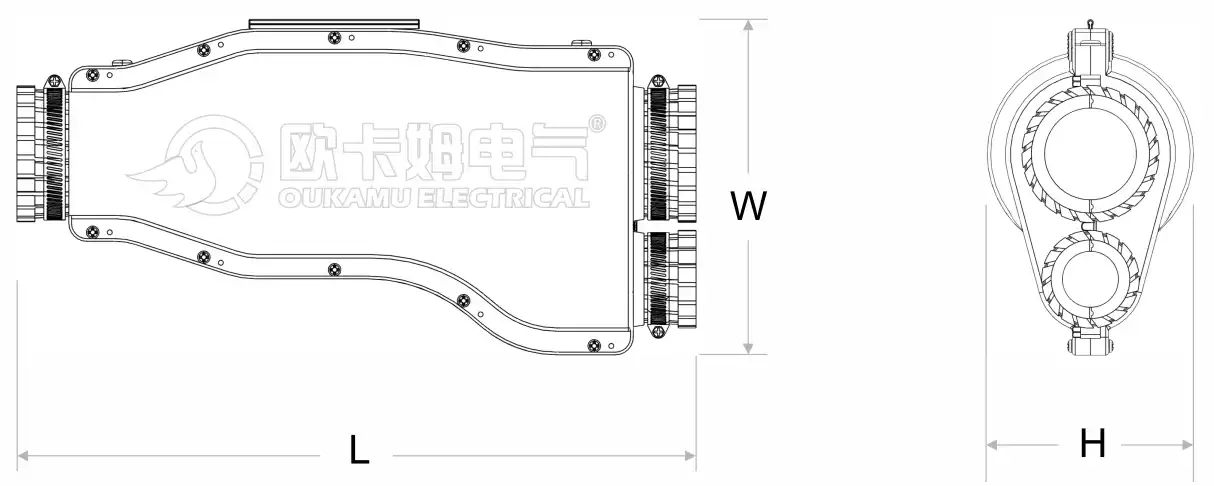

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps

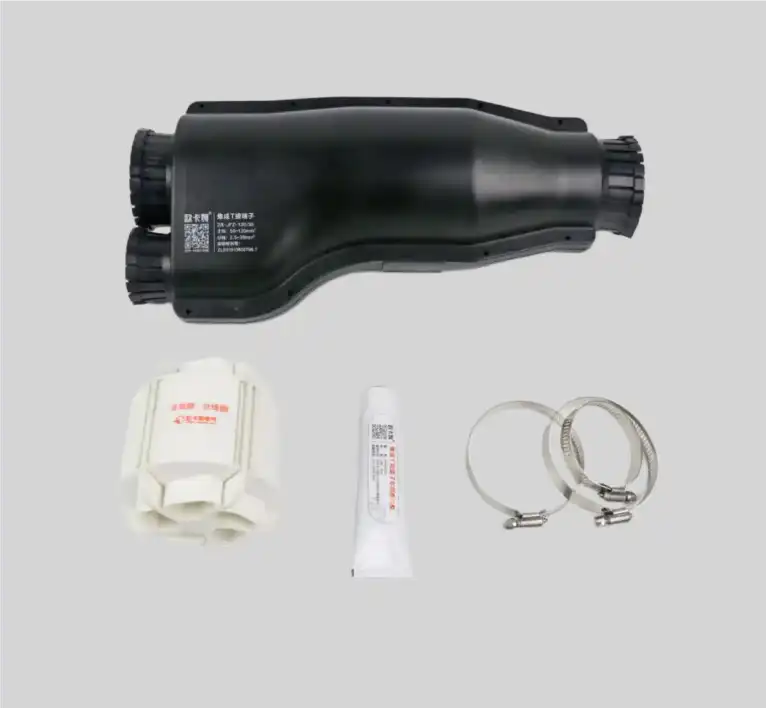

1.Tools
2.Determine installation location

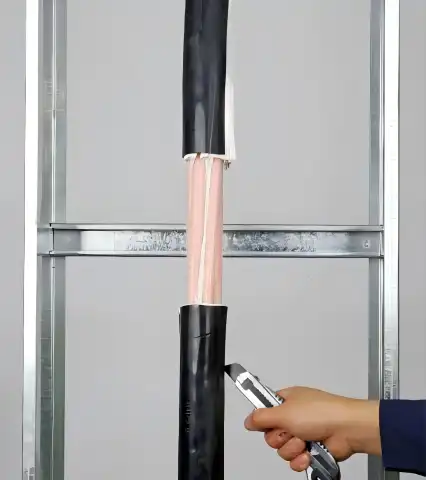

3.Open outer sheath

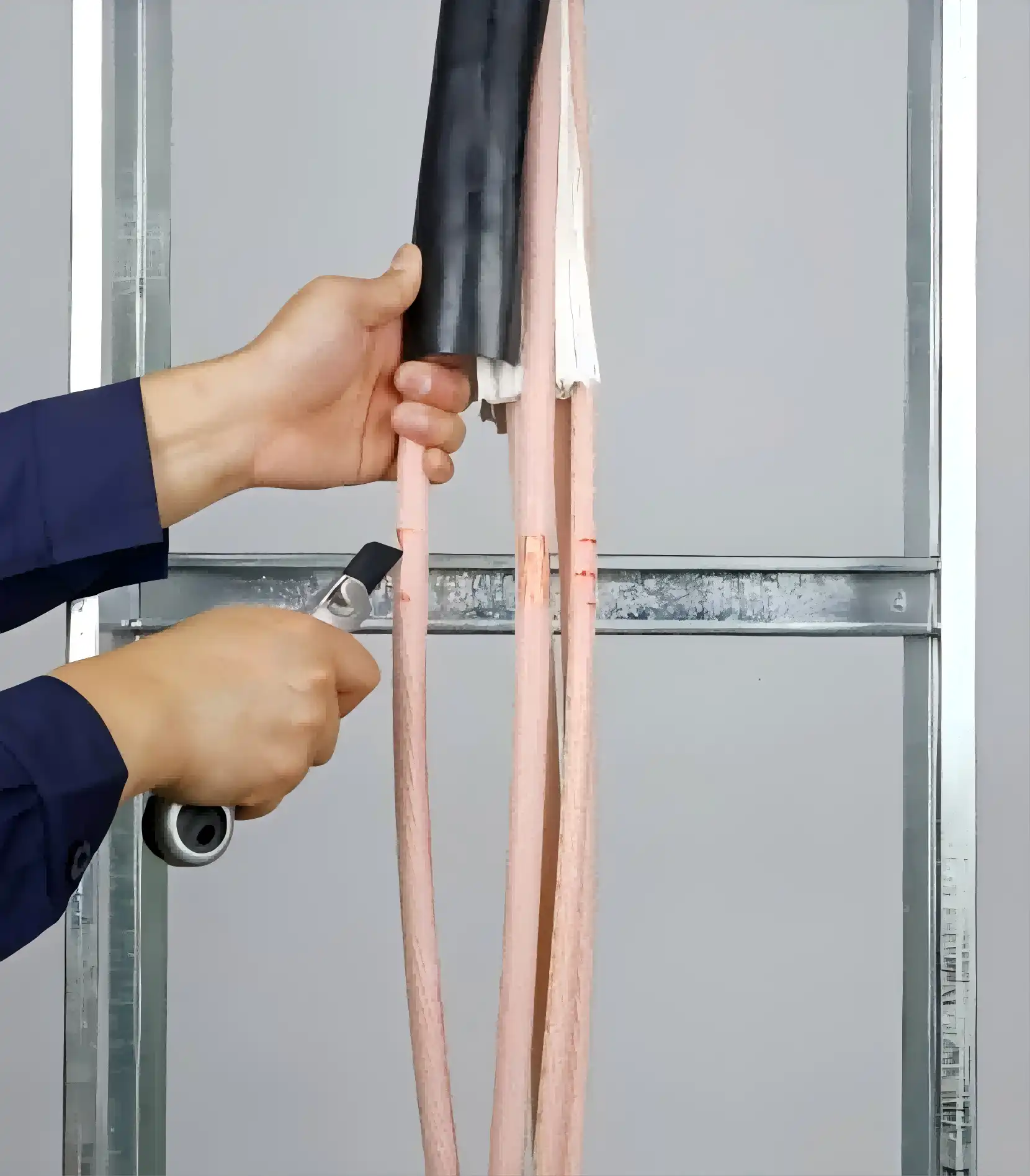

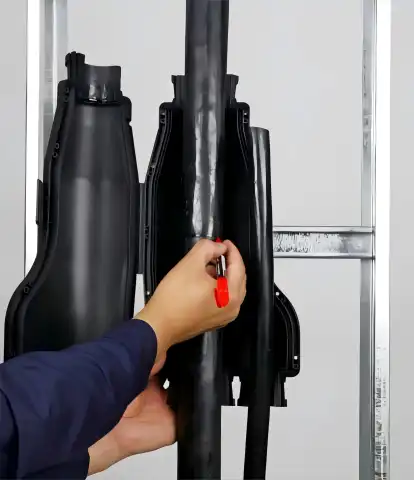

4.Strip main cable insulation

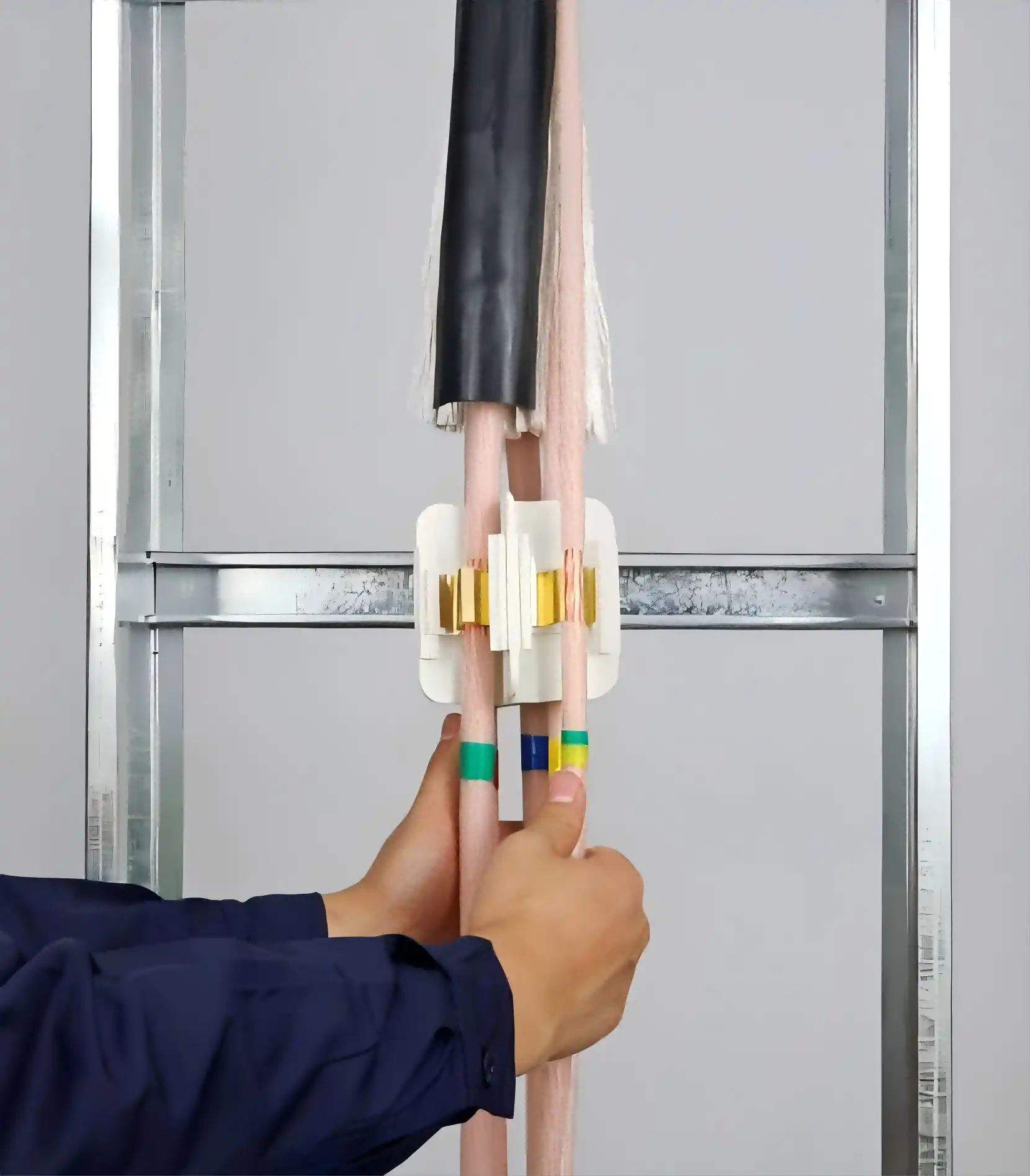

5.Installation of branch cable body

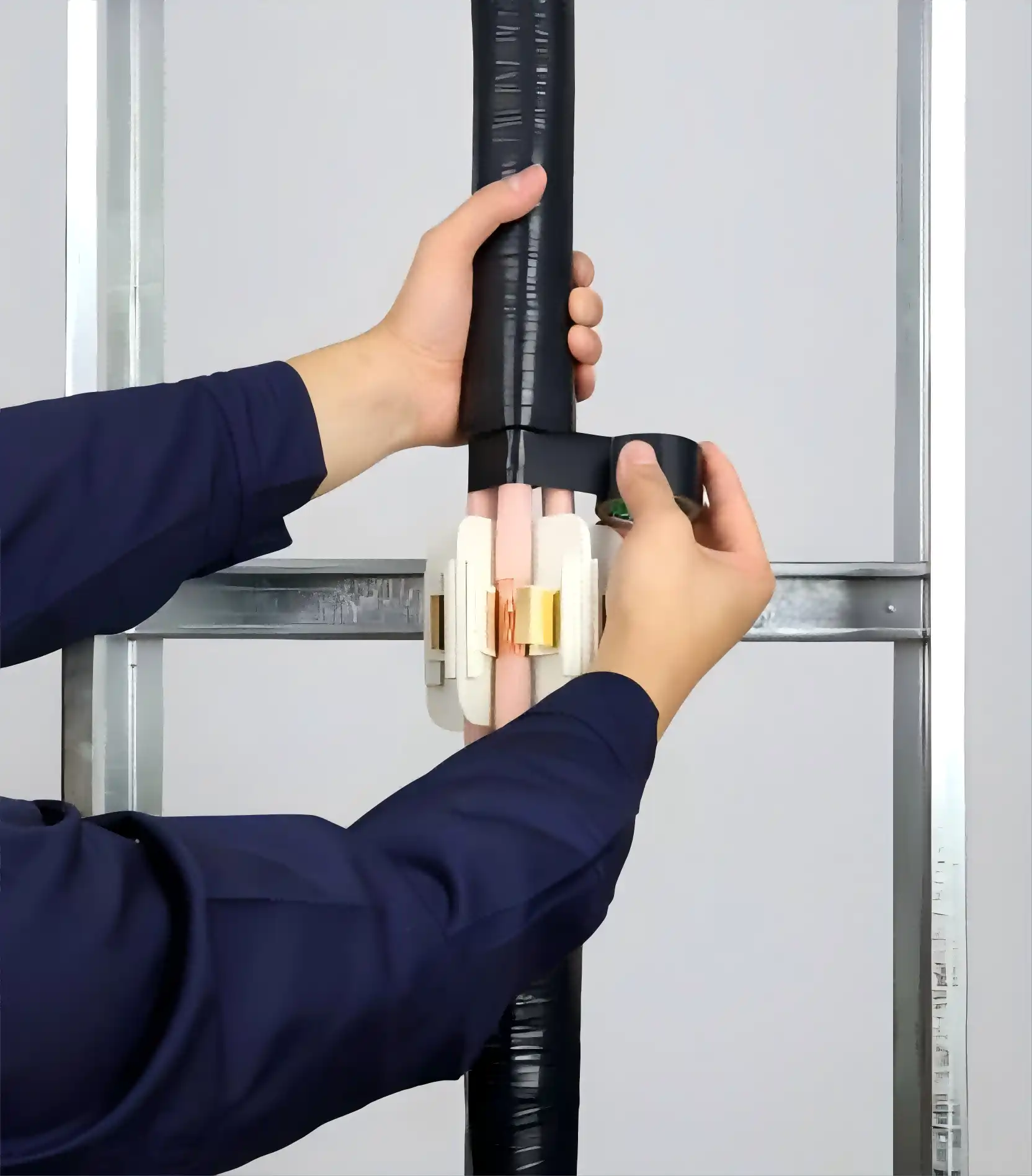

6.Overwrap open seams

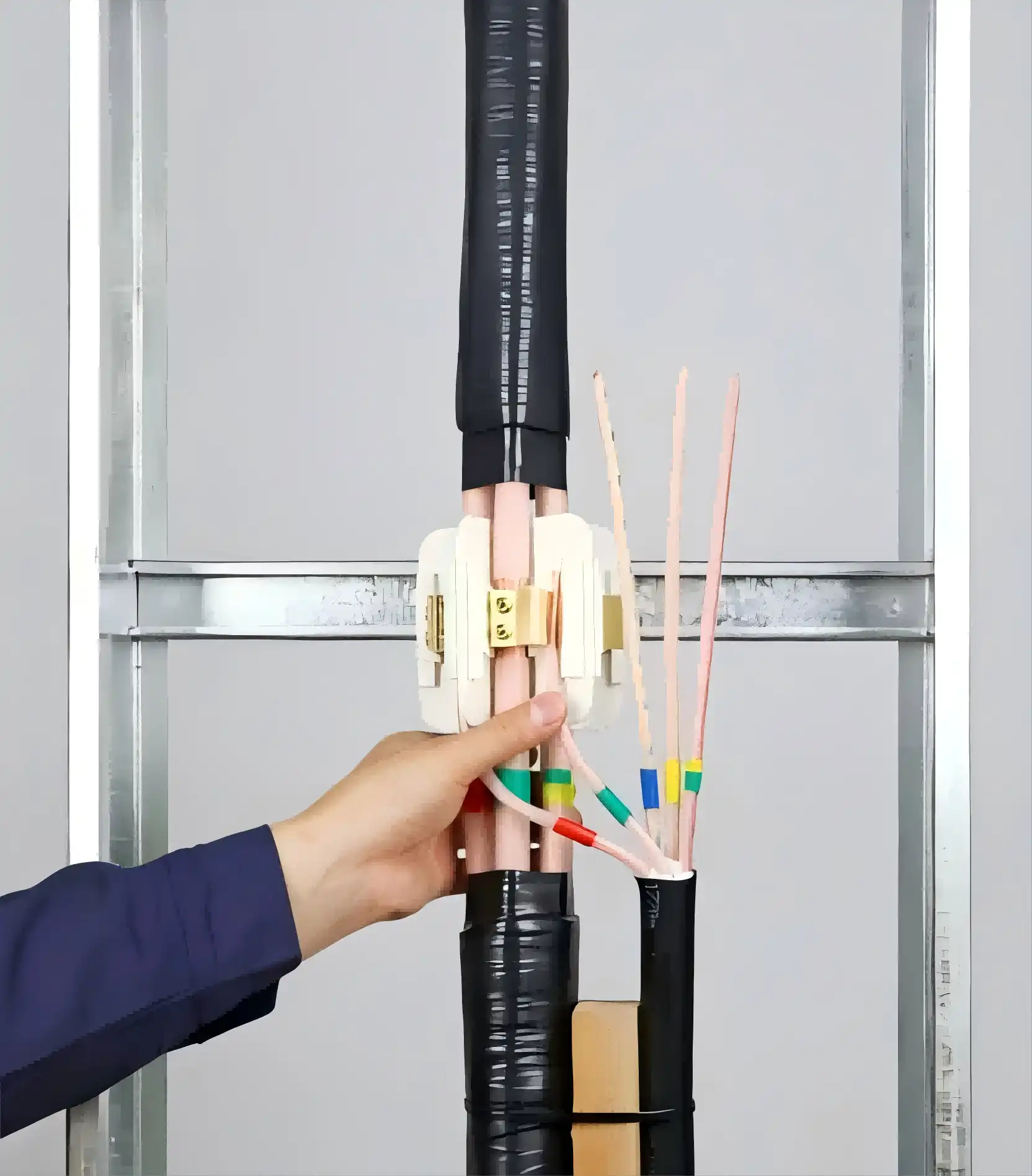

7.Installation of branch cables

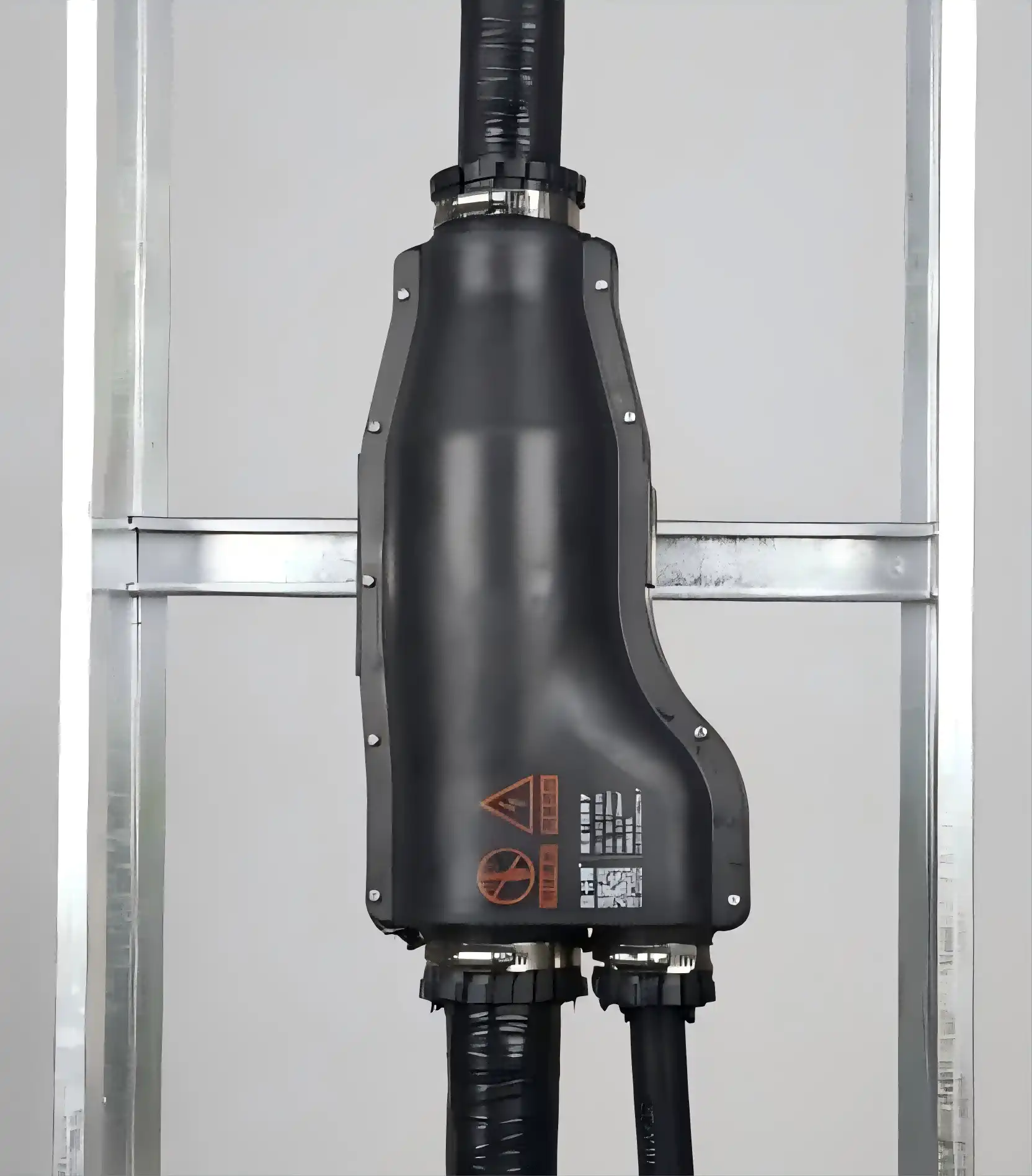

8.Snap-on protective housing

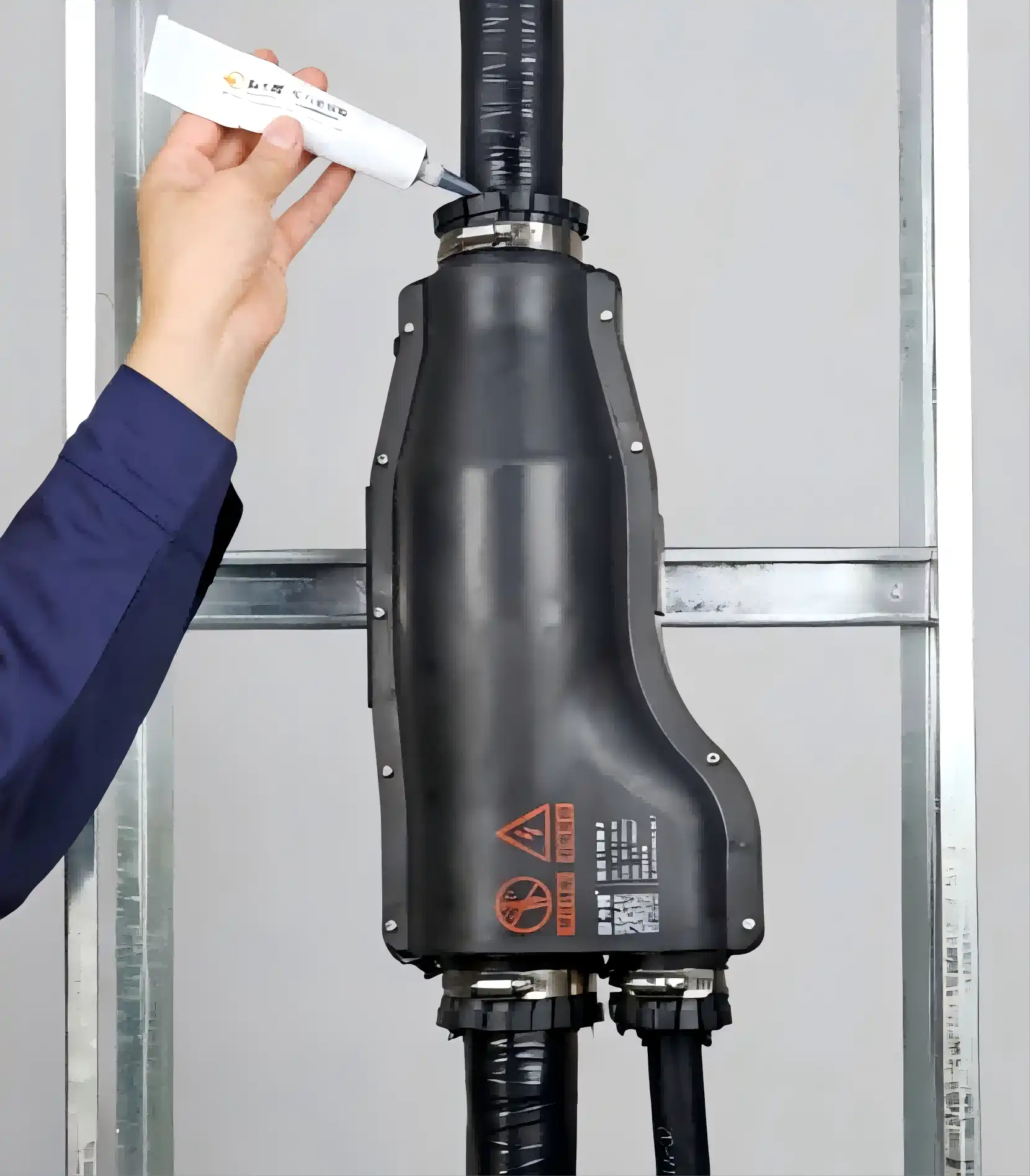

9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
Our Straight-Through Cable Joints With Connectors come with numerous benefits that set them apart:
- Convenient On-Site Installation: Designed for ease of use, these connectors allow for branch connections at any position, reducing the need for extensive cable preparation.
- Safety and Reliability: The connectors are built with safety in mind, ensuring a secure and durable connection that meets industry standards.
- Compact and Versatile: With a compact structure, these connectors can be installed both openly and within cable bridges, saving space and reducing clutter.
- Durable Construction: Resistant to fire, dust, water, and aging, these connectors are built to last, ensuring long-term reliability and performance.
- Cost-Effective: By saving on cable length, installation time, and labor costs, our connectors offer a cost-effective solution without compromising quality.
Technical Features
The Straight-Through Cable Joints With Connectors are designed with the following technical features:
- No Need to Cut Main Cable: The connectors allow for seamless connections without the need to cut the main cable, preserving cable integrity.
- Integrated Insulation: Both main and branch cables are connected on a flame-retardant/fire-resistant insulated body, ensuring safety.
- Complete Insulation and Sealing: The entire branch cable is insulated and sealed, protecting it from external elements and enhancing safety.
R&D Center
At Xi'an OUKAMU, innovation is at the heart of what we do. Our dedicated R&D Center focuses on developing cutting-edge solutions that meet the evolving needs of the cable connection industry. Our group of specialists constantly chips away at working on our items, guaranteeing they fulfill the most noteworthy guidelines of wellbeing, dependability, and productivity.
Application
The product are versatile and can be used in various applications, including:
- Building Wiring: Ideal for flame-retardant and fire-resistant cable installations in commercial and residential buildings.
- Industrial Applications: Suitable for use in factories, warehouses, and other industrial settings where reliable cable connections are critical.
- Infrastructure Projects: Perfect for large-scale infrastructure projects requiring durable and long-lasting cable connections.
Quality Control
Quality is our top priority at Xi'an OUKAMU. Our Straight-Through Cable Joints With Connectors undergo rigorous testing and quality control procedures to ensure they meet the highest industry standards. We are committed to delivering products that are not only safe and reliable but also perform flawlessly in the most demanding environments.
FAQ
Q1: Can these connectors be reused?
A1: Yes, our connectors are designed for easy disassembly and reinstallation, making them reusable for multiple projects.
Q2: Are these connectors resistant to environmental factors?
A2: Absolutely. Our connectors are built to withstand fire, dust, water, and aging, ensuring long-term durability.
Q3: What is the installation process like?
A3: Installation is straightforward and can be completed on-site without the need for special tools or equipment.
Q4: Are these connectors suitable for outdoor use?
A4: Yes, they are designed to perform well in both indoor and outdoor environments.
Q5: How do these connectors save costs?
A5: By reducing the need for extensive cable preparation and installation time, these connectors help save on labor and material costs.
Contact Us
We are here to help you with all your cable connection needs. For more information about our Straight-Through Cable Joints With Connectors or to place an order, please contact us at info@okmbranchcable.com. Our team is ready to assist you.Thank you for choosing Xi'an OUKAMU for your cable connection solutions.
