Cable Joint Resin
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Cable Joint Resin Introduction
Cable Joint Resin is a specialized product designed for the seamless connection of cable joints, offering high durability, protection, and reliability in various industrial settings. Xi'an OUKAMU, a leader in cable T-connection technology, proudly presents this resin as an integral solution for maintaining the integrity of cable systems. With our extensive expertise in developing cable integrated branch joint, it stands as a crucial component in ensuring secure and efficient cable branch connections.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps

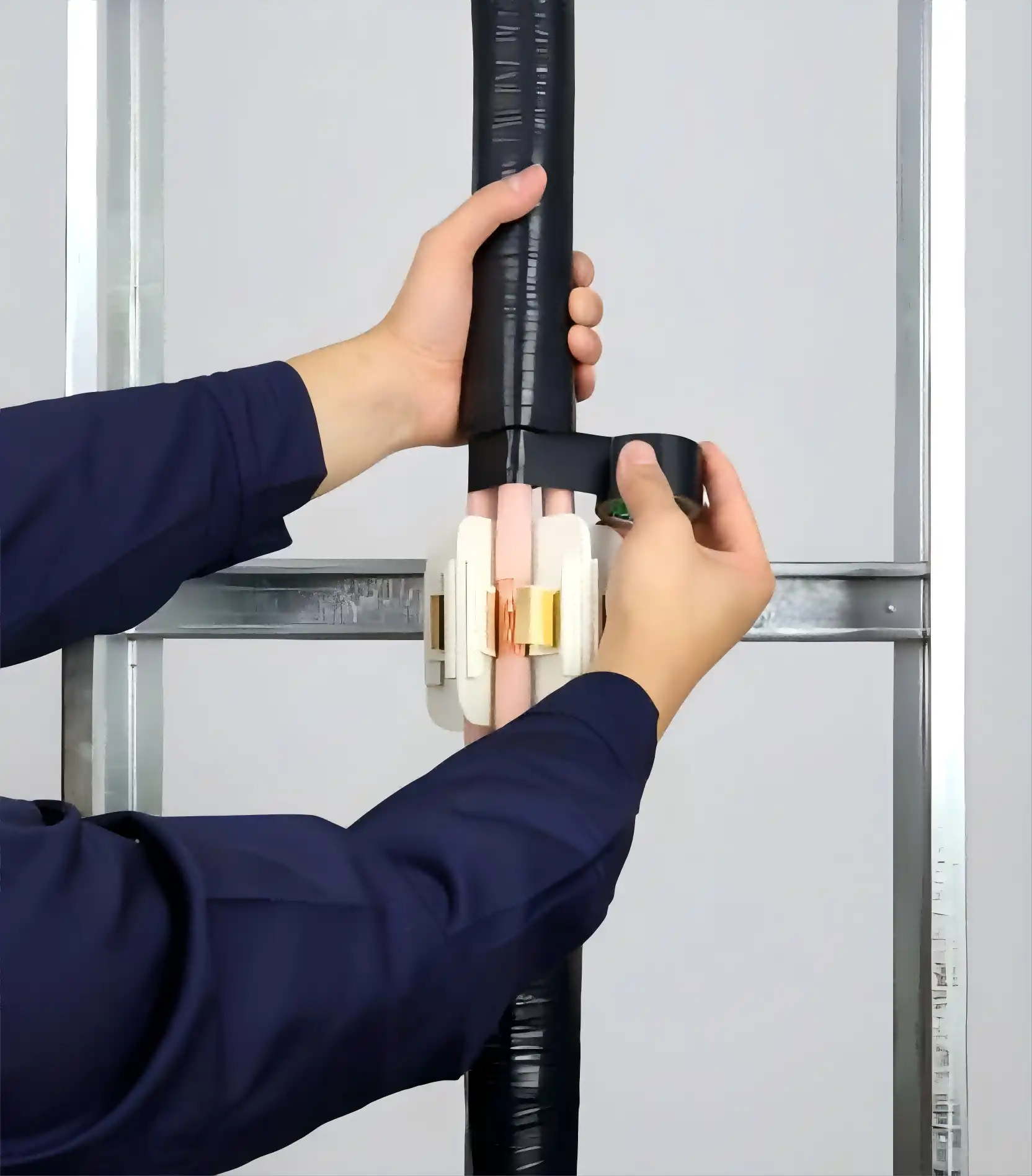

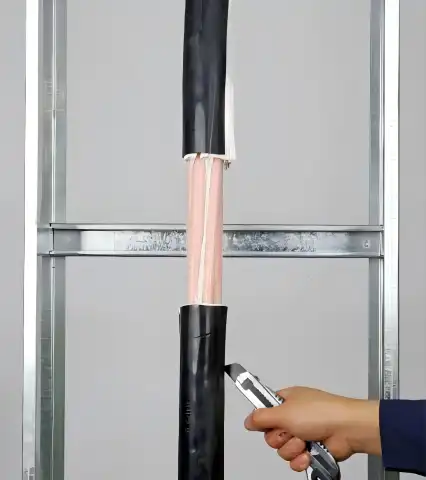

3.Open outer sheath

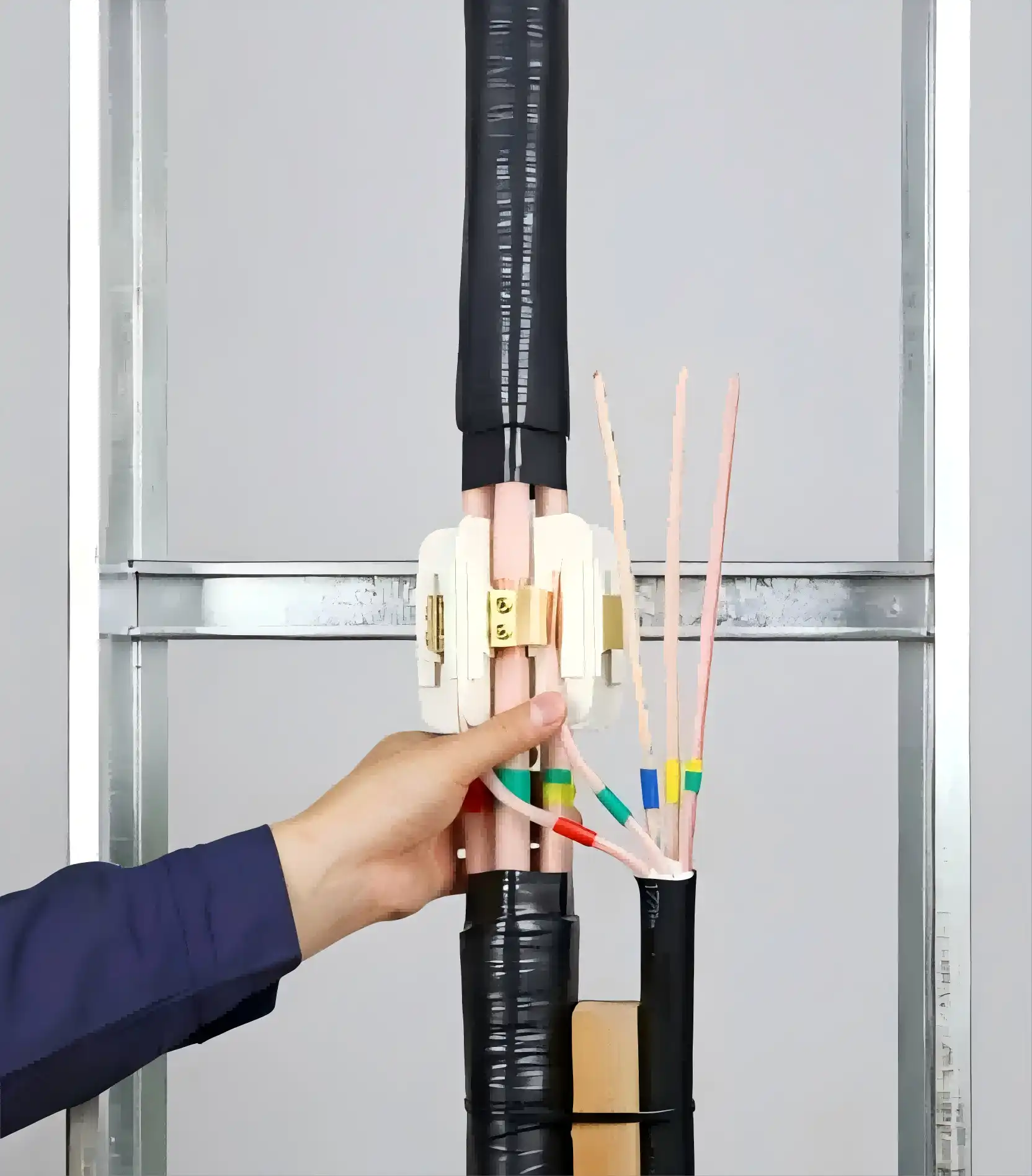

4.Strip main cable insulation

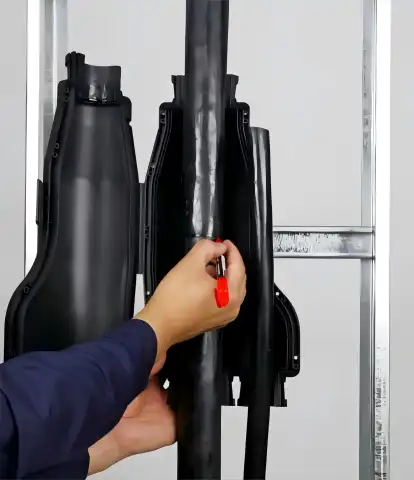

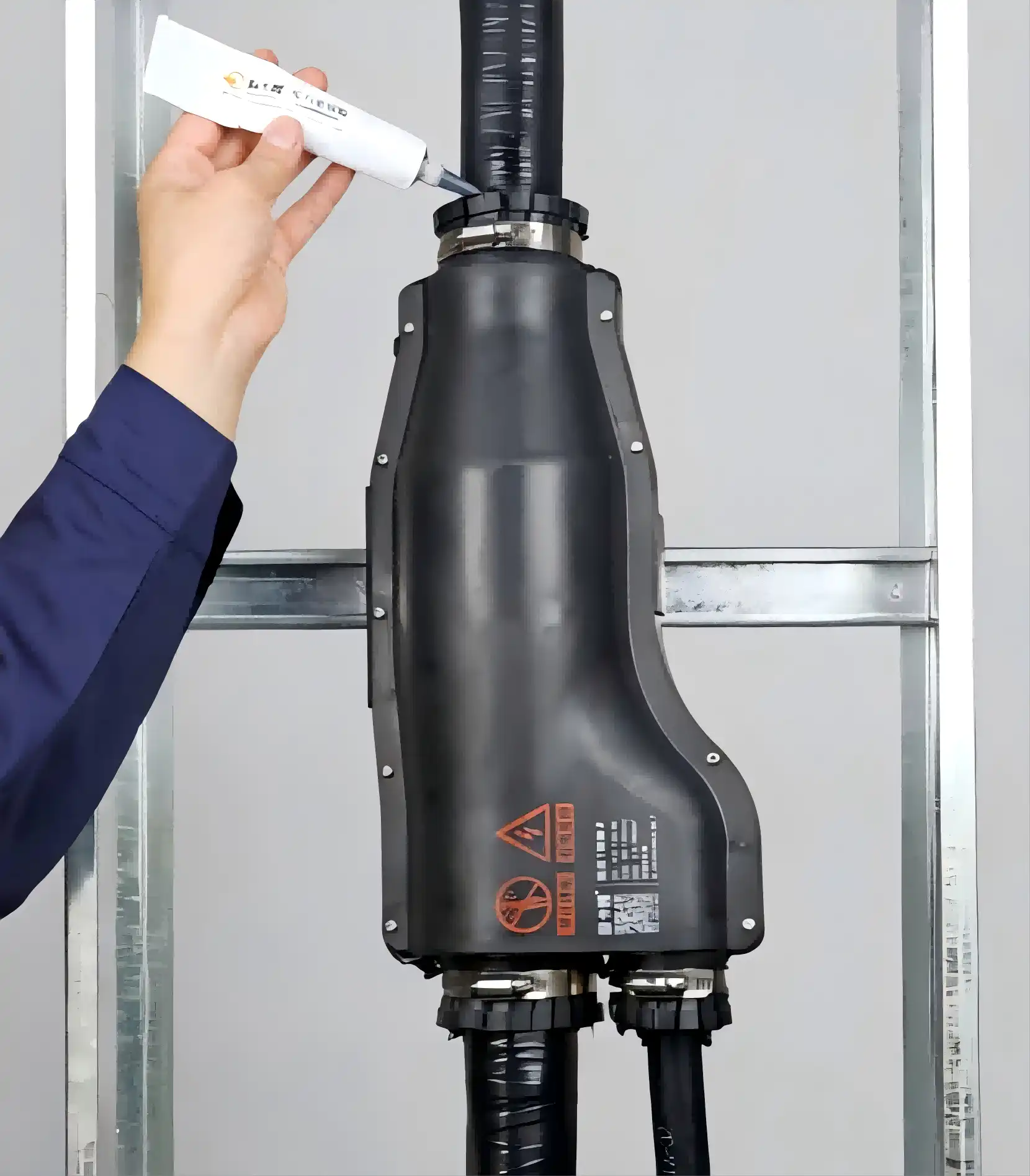

5.Installation of branch cable body
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Parameters
Our Cable Joint Resin is engineered to meet stringent industrial standards, providing excellent mechanical and chemical properties:
- Voltage Drop: <3.2mV
- Withstand Voltage: 3.5kV, 5min, no breakdown
- Resistance Value: >500MΩ
- Protection Level: >IP65
These parameters ensure that the resin performs optimally under various conditions, providing lasting protection and reliability.
Technical Features
Xi'an OUKAMU's offers several technical advantages that make it a preferred choice for cable joint applications:
- High Adhesion: Ensures a strong bond with cable surfaces, preventing detachment.
- Excellent Insulation: Provides superior electrical insulation, reducing the risk of short circuits.
- Dustproof: Protects the cable joint from environmental factors, enhancing longevity.
- Flame Retardant: Meets fire safety standards, preventing the spread of flames in case of a fire.
- Easy Application: The resin is easy to mix and apply, reducing installation time and effort.
These features contribute to the resin's ability to maintain the integrity and functionality of cable systems, even in harsh environments.
Composition and Classification
Cable Joint Resin is composed of high-quality raw materials that ensure optimal performance:
- Base Resin: Epoxy or Polyurethane, providing excellent mechanical strength and insulation.
- Sealant: The main and branch cable is fully sealed, preventing any exposure to external elements.
Classification of the resin is based on its application and curing method:
- Type 1: Fast-curing resin for quick installations.
- Type 2: High-strength resin for heavy-duty applications.
- Type 3: Flexible resin for applications requiring movement or expansion.
This classification helps in selecting the right type of resin based on the specific needs of the project.
Application
Cable Joint Resin is versatile and can be used in various industries and environments:
- Power Transmission and Distribution: Ensures reliable connections in underground and overhead cable systems.
- Construction: Used in building projects for secure cable connections in walls and floors.
- Industrial Facilities: Provides durable connections in manufacturing plants, refineries, and other industrial settings.
- Marine and Offshore: Suitable for use in environments exposed to water and salt, offering long-lasting protection.
- Renewable Energy: Ideal for connecting cables in wind farms, solar power installations, and other renewable energy projects.
These application fields demonstrate the resin's adaptability and effectiveness in different scenarios, making it a valuable addition to any cable installation project.
Packaging and Transportation
It is available in a variety of packaging options to suit different project sizes:
- Standard Packaging: 1 kg, 5 kg, and 20 kg containers
- Custom Packaging: Available upon request for large-scale projects
- Transportation: Securely packed to prevent leakage and damage during transit; options include air, sea, and land transport.
We ensure that all packaging meets international standards, providing safe and efficient delivery to your location.
