Cast Resin Cable Joints
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cast Resin Cable Joints Introduction
Cast Resin Cable Joints from Xi'an OUKAMU offer several extended advantages that make them a standout choice for various applications.
The excellent thermal resistance of these joints means they can function efficiently across a wide temperature range, making them suitable for both extreme cold and heat, which can be a common challenge in diverse geographical settings.

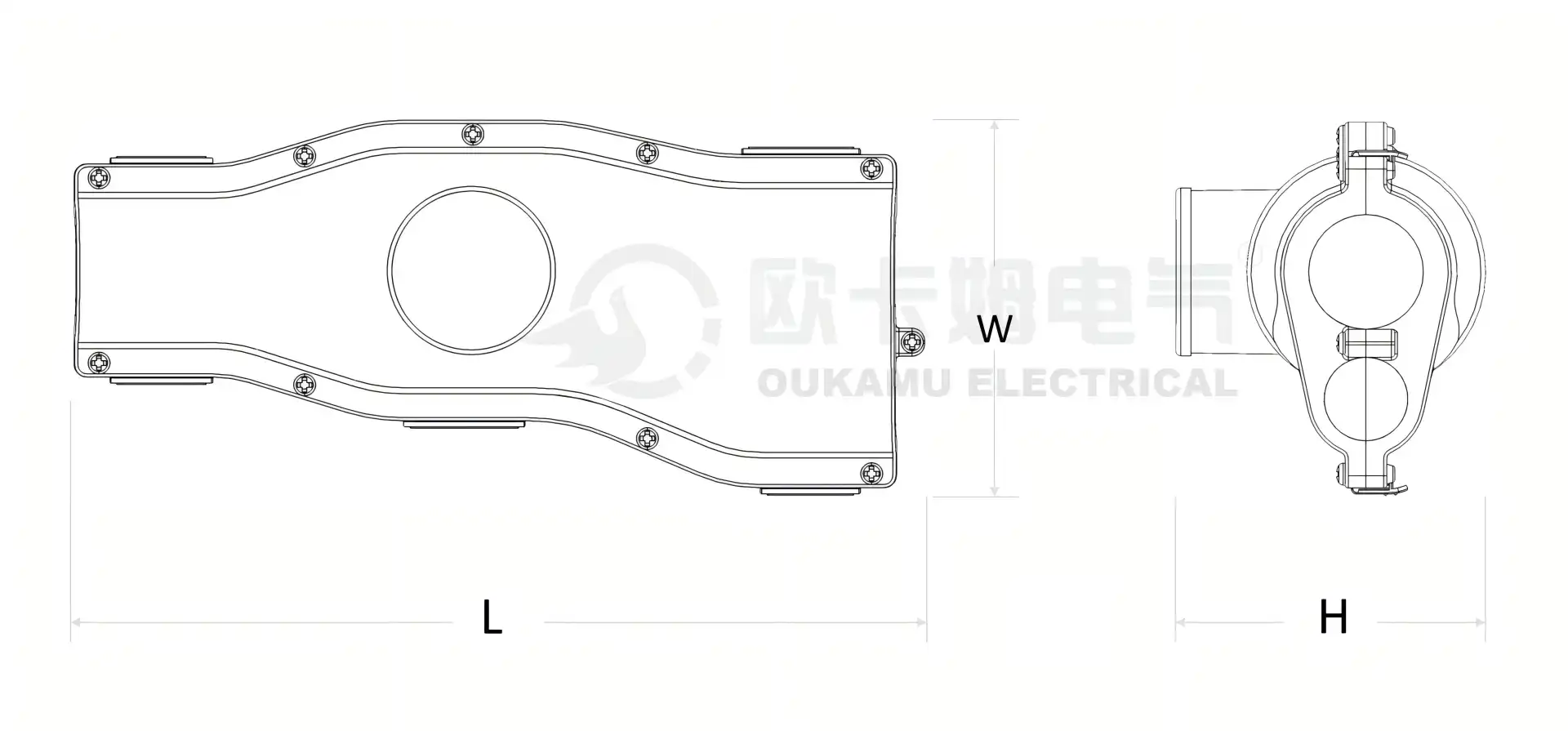

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantage
So, what sets the Cast Resin Cable Joints apart from other cable connection products? Here are just a few of its key advantages:
On-Site Installation: Convenient and quick installation process that can be done at any position.
Integrated Design: Safe, reliable, and beautiful, with a compact structure that can be installed both openly and in the bridge.
Convenient Construction and Maintenance: Reusable and easy to maintain, with insulation, flame retardant, fire resistant, dustproof, and waterproof properties.
Cost-Effective: Saves cables, building area, labor, and overall cost.
Technical Features
Our Cast Resin Cable Joints boast an impressive array of technical features, including:
No Need to Cut Off Main Cable: Convenient and efficient connection process.
Flame-Retardant/Fire-Resistant/Insulated Waterproof Integrated T-Connector Body: Ensuring a safe and reliable connection.
Insulated and Sealed Branch Cable: Providing a safe and reliable connection.
Cast Resin Cable Joints Application
The Cast Resin Cable Joints are designed for a wide range of applications, including:
Low-Voltage Flame-Retardant Cables: Branch connection for low-voltage flame-retardant cables.
Fire-Resistant Cables: Branch connection for fire-resistant cables.
Mineral-Insulated Fire-Resistant Cables: Branch connection for mineral-insulated fire-resistant cables.
Insulated Waterproof Cables: Branch connection for waterproof cables.
OEM Service
At Xi'an OUKAMU, we offer a comprehensive OEM service that allows you to customize our products to meet your specific needs. Our team of experts will work with you to design and manufacture a product that meets your exact requirements.
FAQ
Q: What are our products?
A: They are a type of cable connection product that provides a safe, reliable, and efficient way to connect multi-core main cables and multi-core branch cables.
Q: What are the benefits of using products?
A: The benefits of using products include on-site installation, integrated design, convenient construction and maintenance, and cost-effectiveness.
Q: What applications are the products suitable for?
A: They are suitable for a wide range of applications, including insulated waterproof, low-voltage flame-retardant cables, fire-resistant cables, and mineral-insulated fire-resistant cables.
Contact Us
If you're interested in learning more about the Cast Resin Cable Joints or would like to place an order, please don't hesitate to contact us at info@okmbranchcable.com. Our friendly and knowledgeable team is always happy to help.
