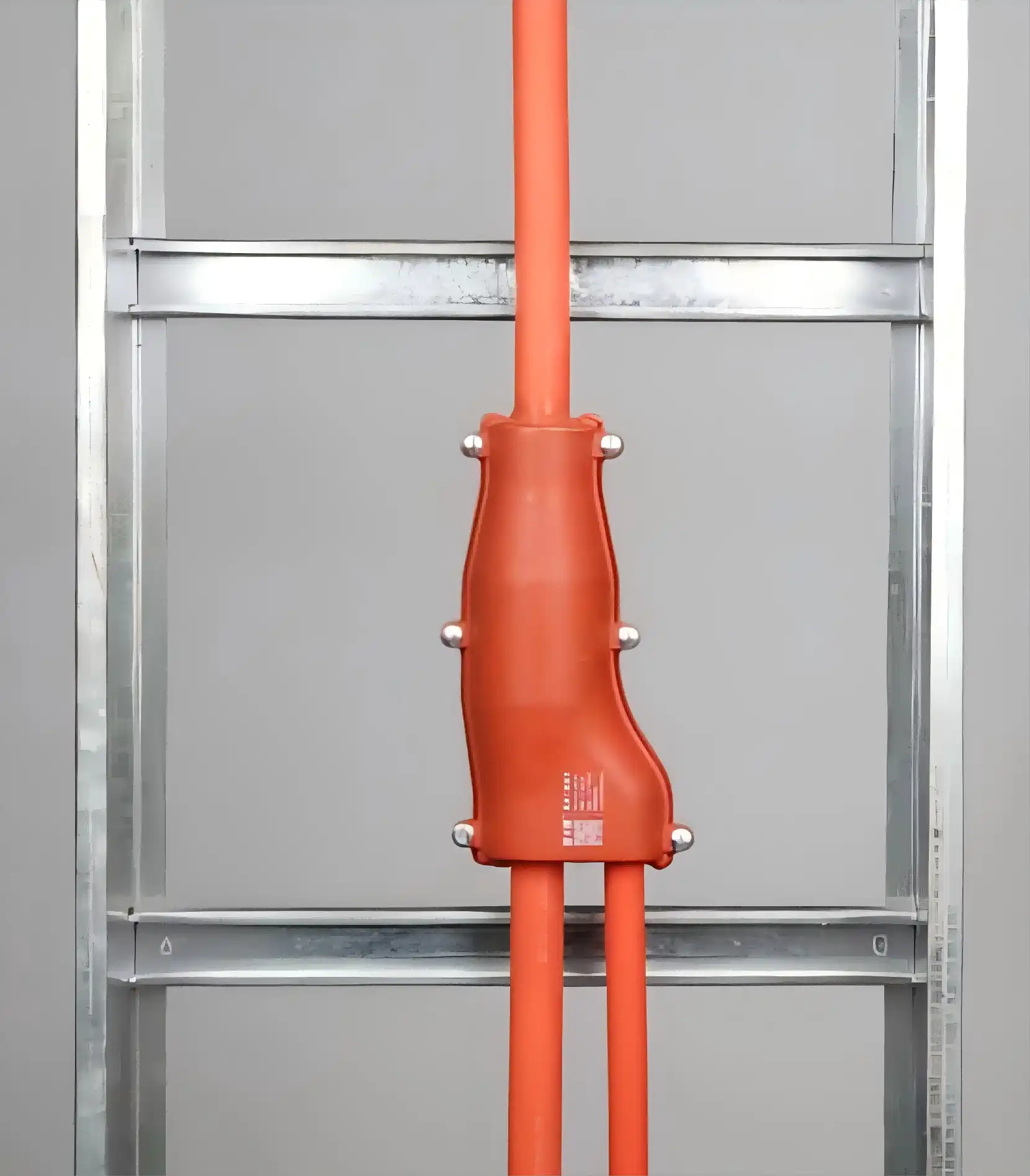

Low Voltage Cable Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Low Voltage Cable Joint Introduction
In the world of electrical connections, reliability and efficiency are paramount. Xi'an OUKAMU's Low Voltage Cable Joint is an innovative product that offers a safe, reliable, and efficient solution for connecting multi-core main cables and multi-core branch cables. Crafted with high-quality materials, this cable joint ensures long-lasting durability, minimizes the risk of electrical faults and short circuits, and enhances overall system efficiency. Its easy installation makes it a practical choice for various applications, whether in residential, commercial, or industrial settings.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
| NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |

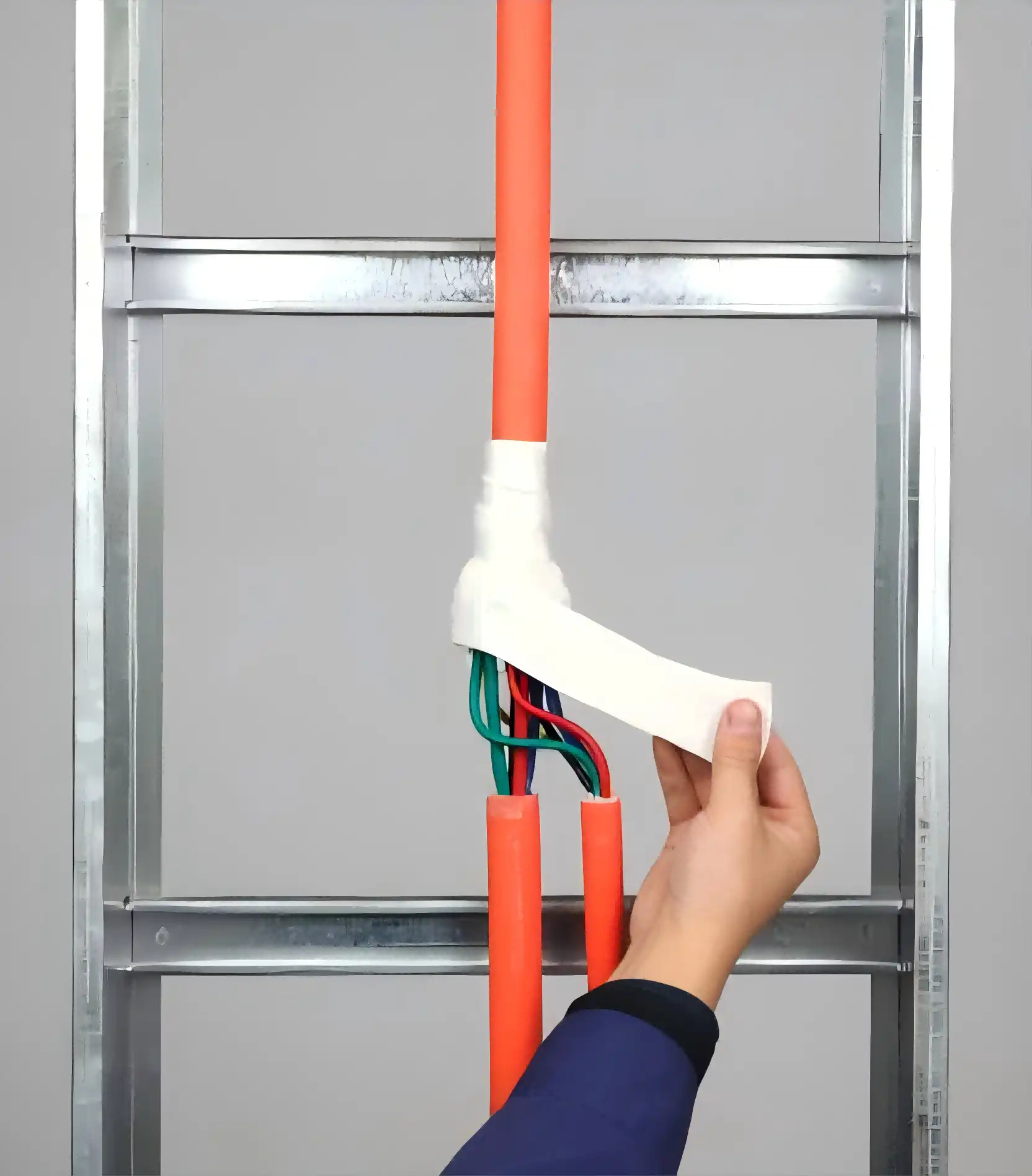

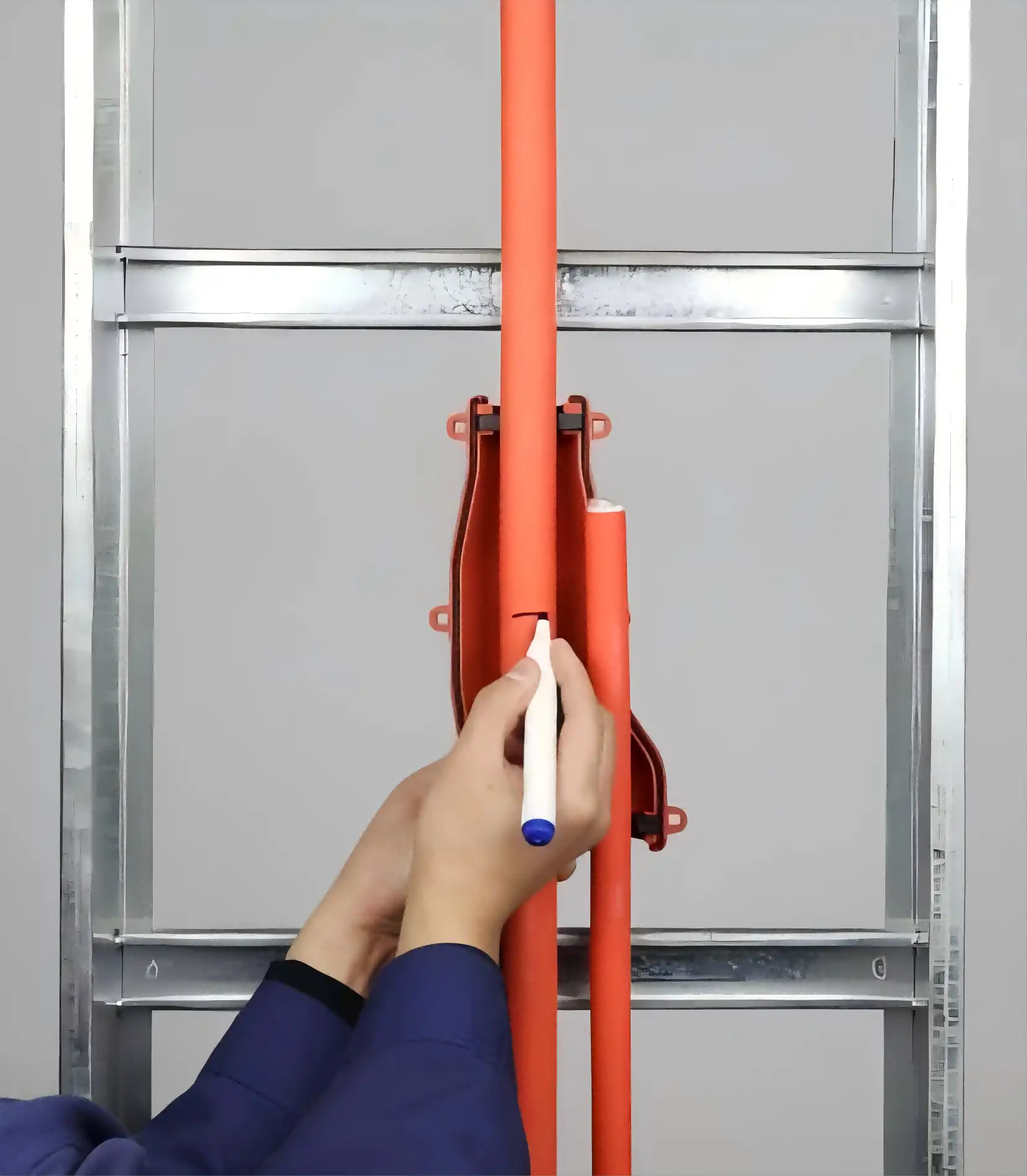

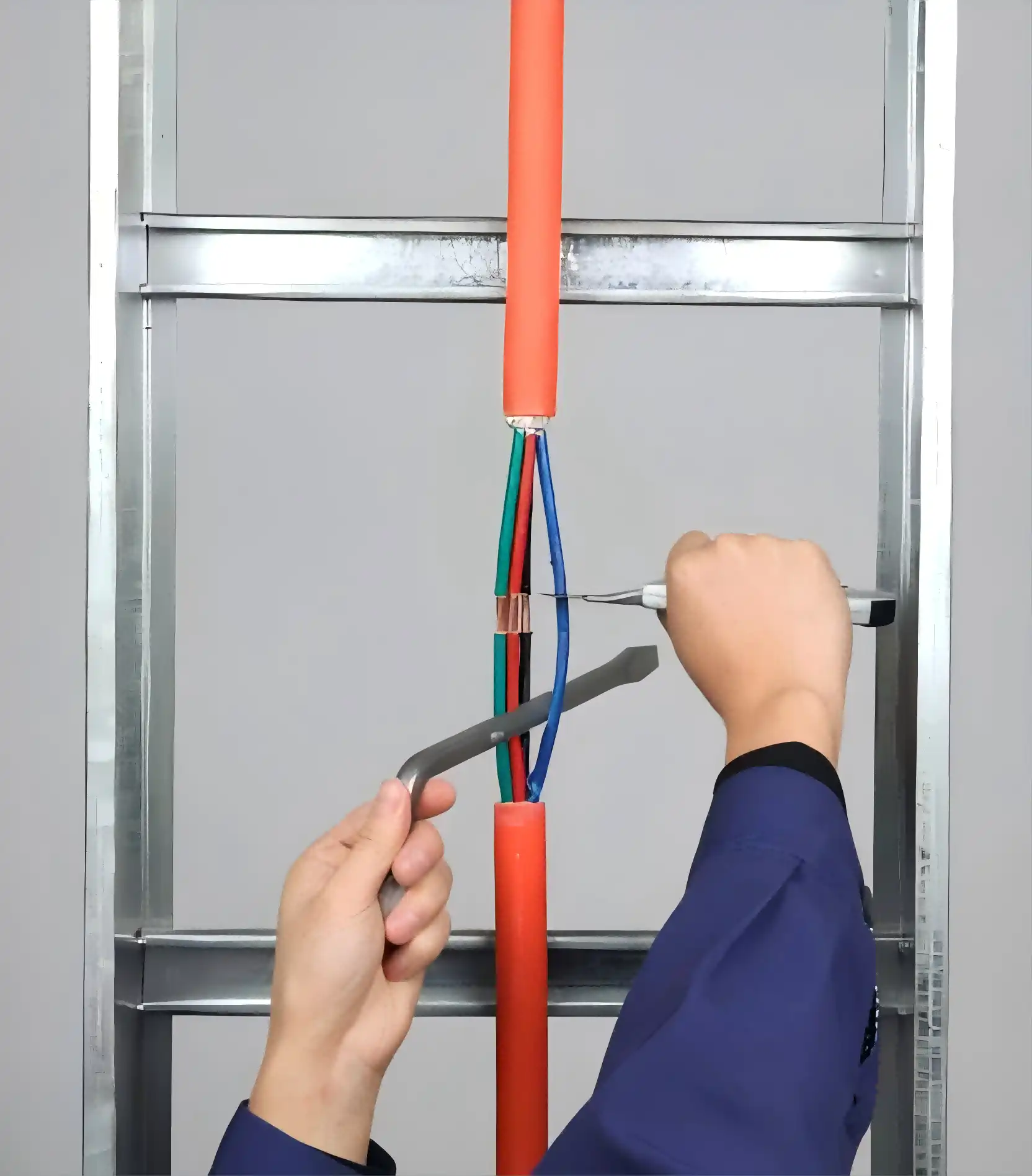

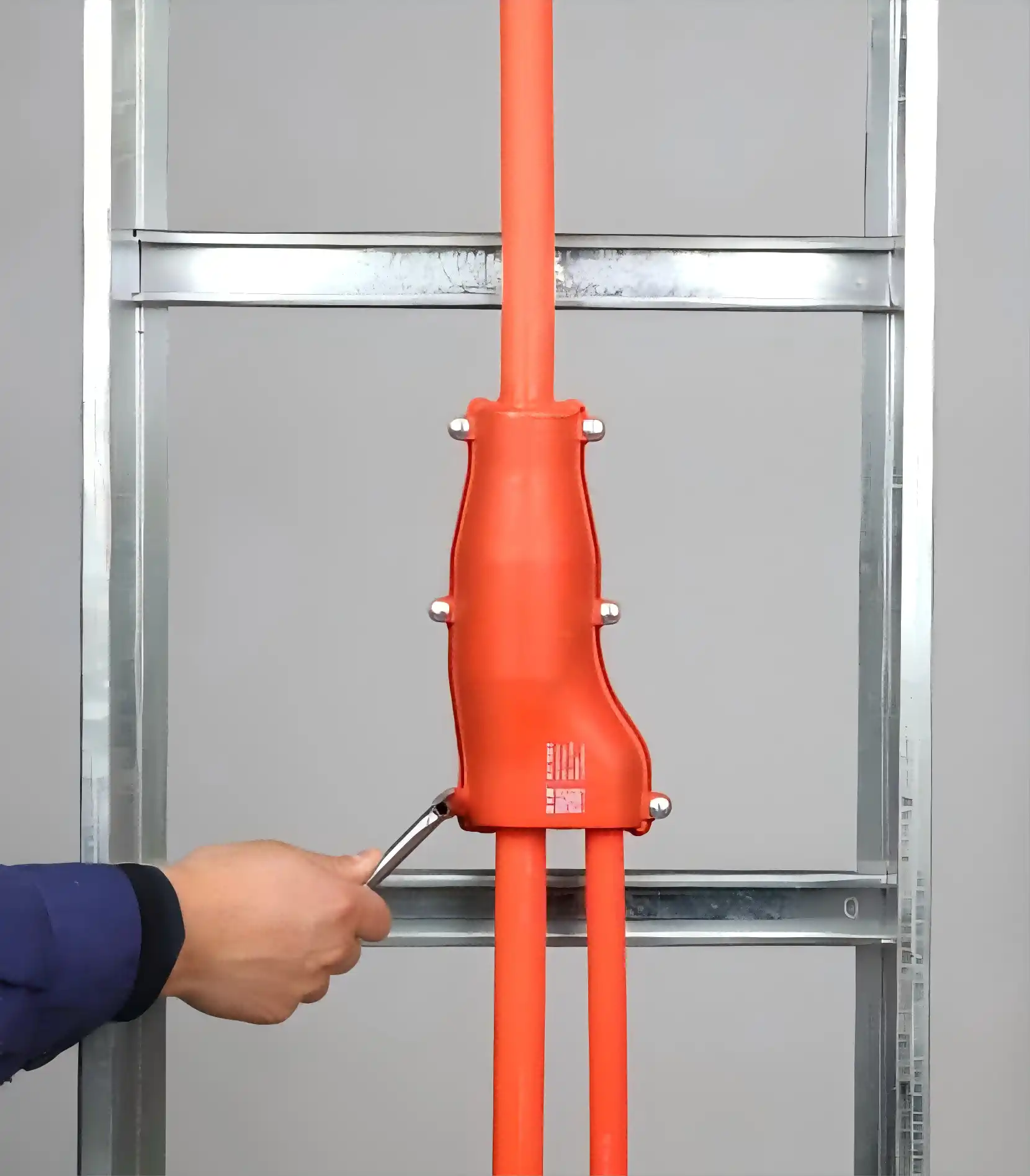

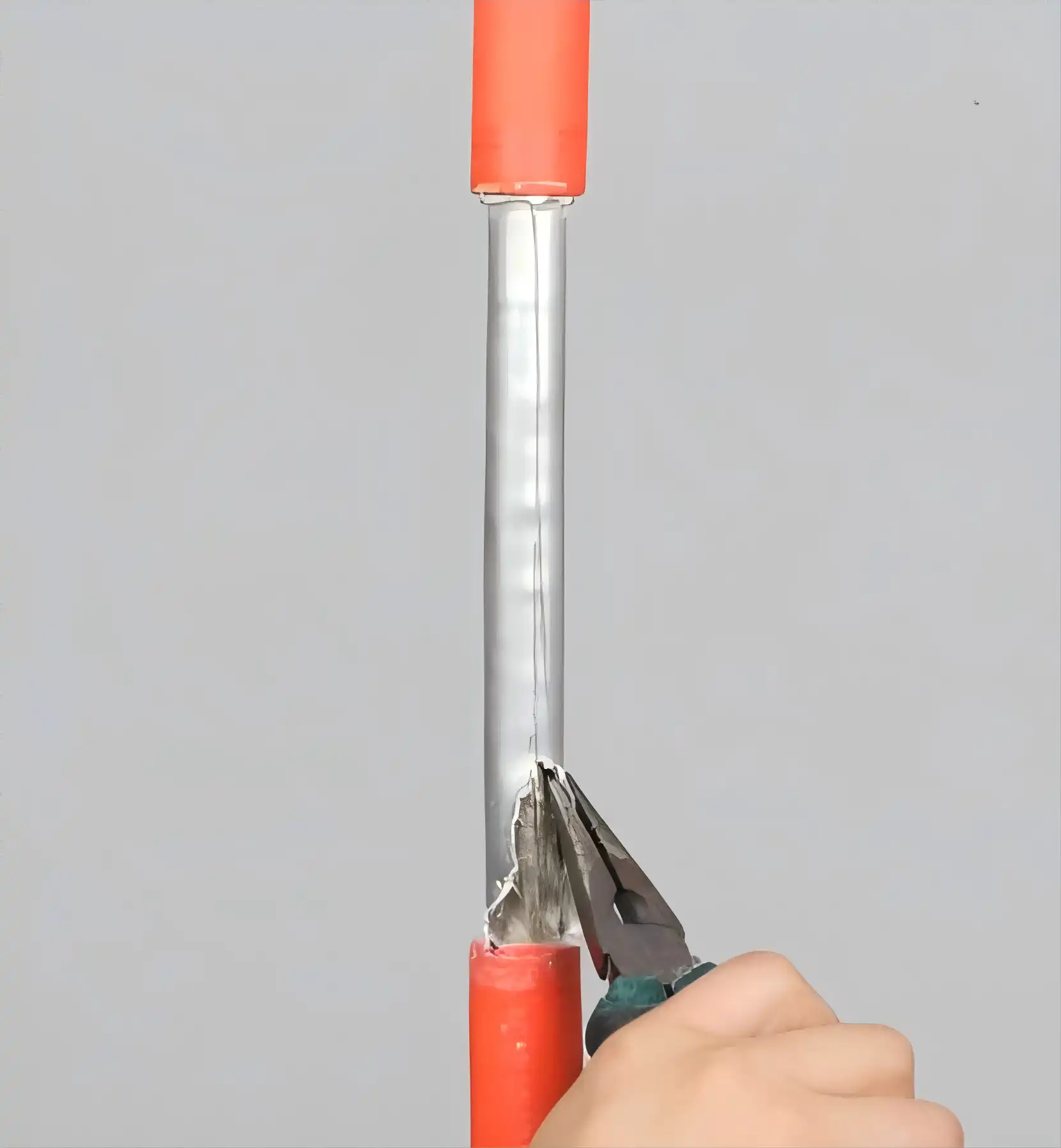

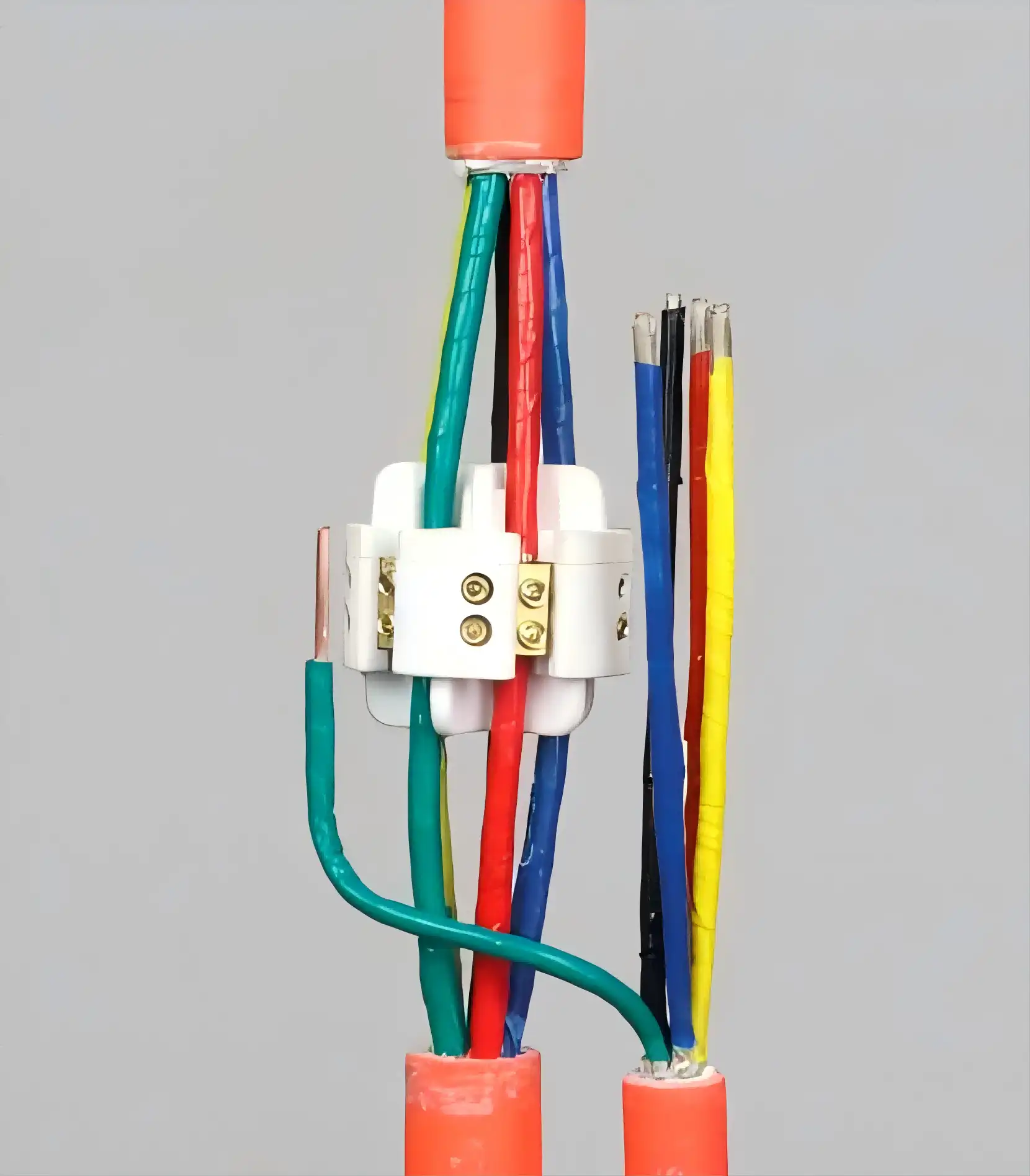

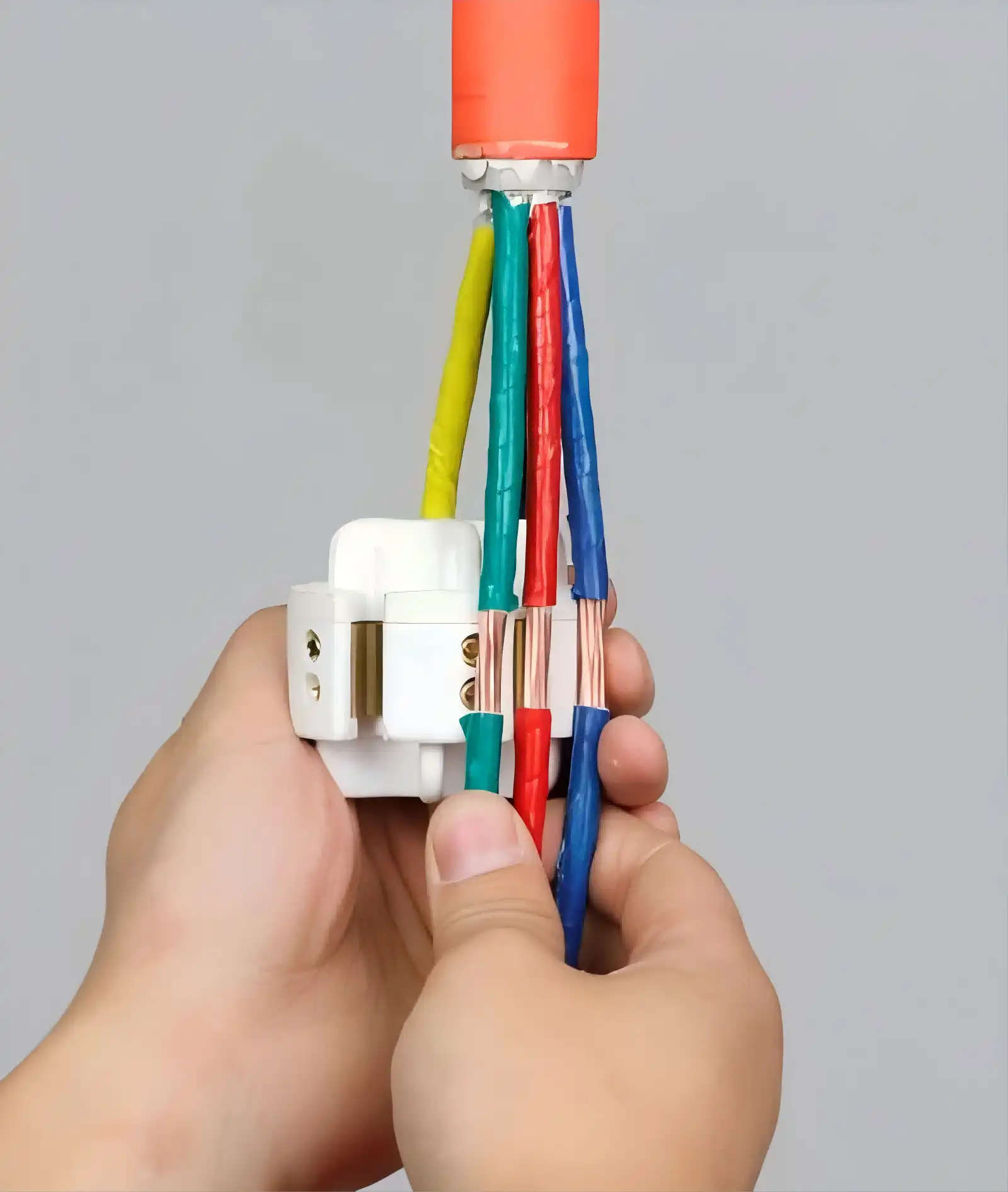

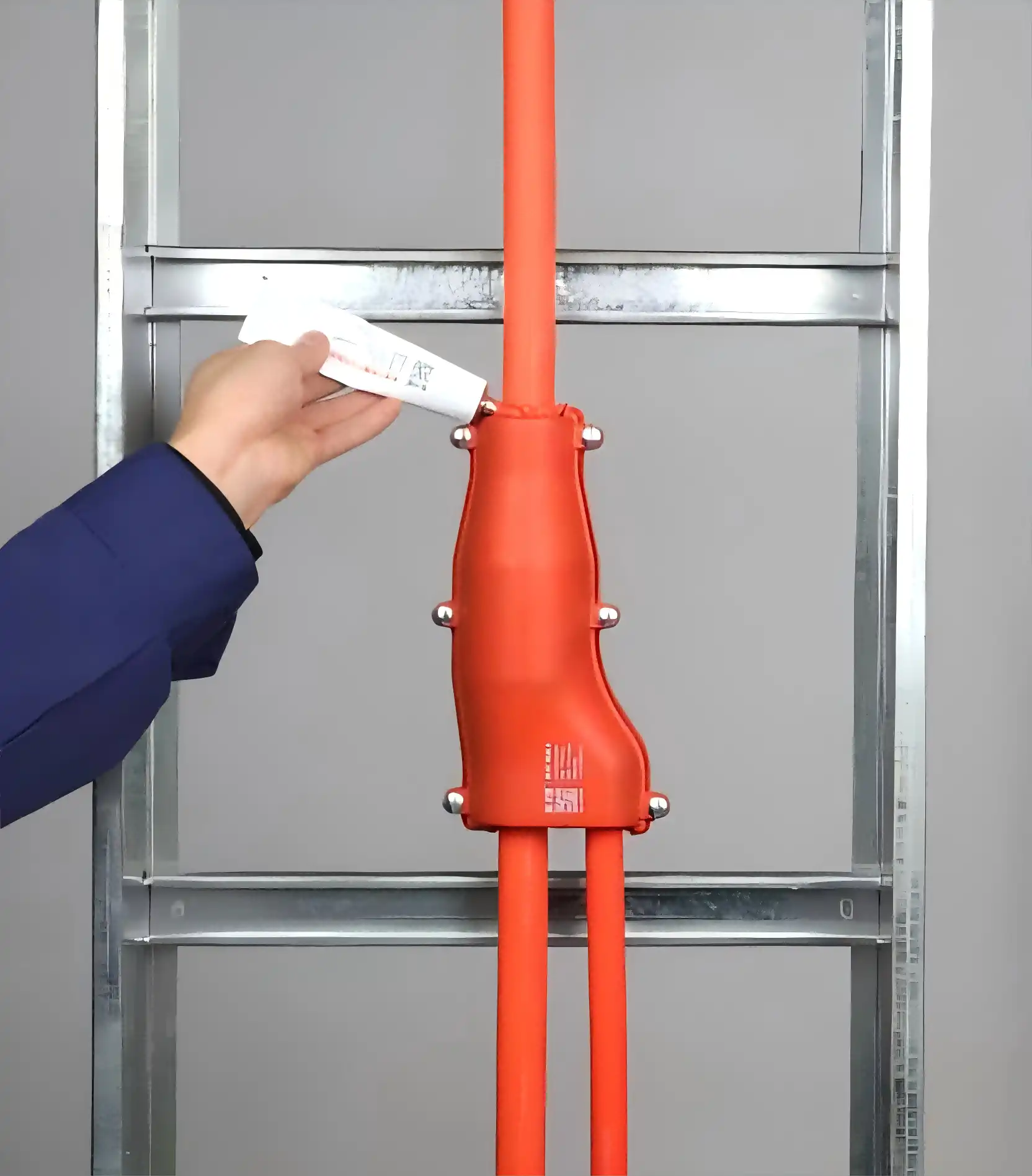

Installation Steps
Technical Parameters
Our Low Voltage Cable Joint meets or exceeds the following technical parameters:
Fire-resistant Temperature: 750~1000℃
Withstand Voltage: 3.5kV
Voltage Drop: <3.2mV
Insulation Resistance: >500MΩ
Rated Voltage: 0.6/1kV
Insulation Material: Cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR)
Conductor Material: Copper or aluminum
Technical Features
Our product boasts an impressive array of technical features, including:
No Need to Cut Off Main Cable: Convenient and efficient connection process.

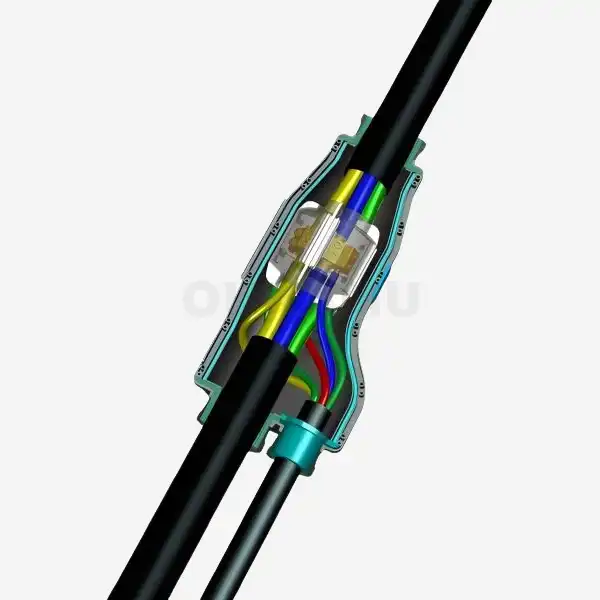

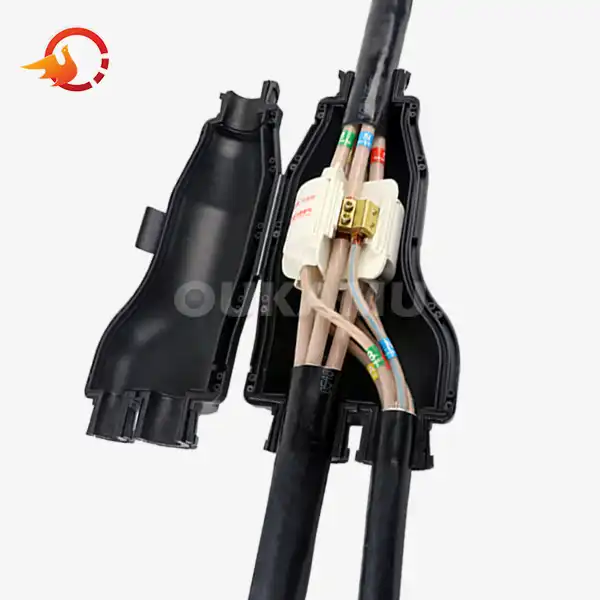

Flame-Retardant/Fire-Resistant Insulated Integrated T-Connector Body: Ensuring a safe and reliable connection.
Insulated and Sealed Branch Cable: Providing a safe and reliable connection.

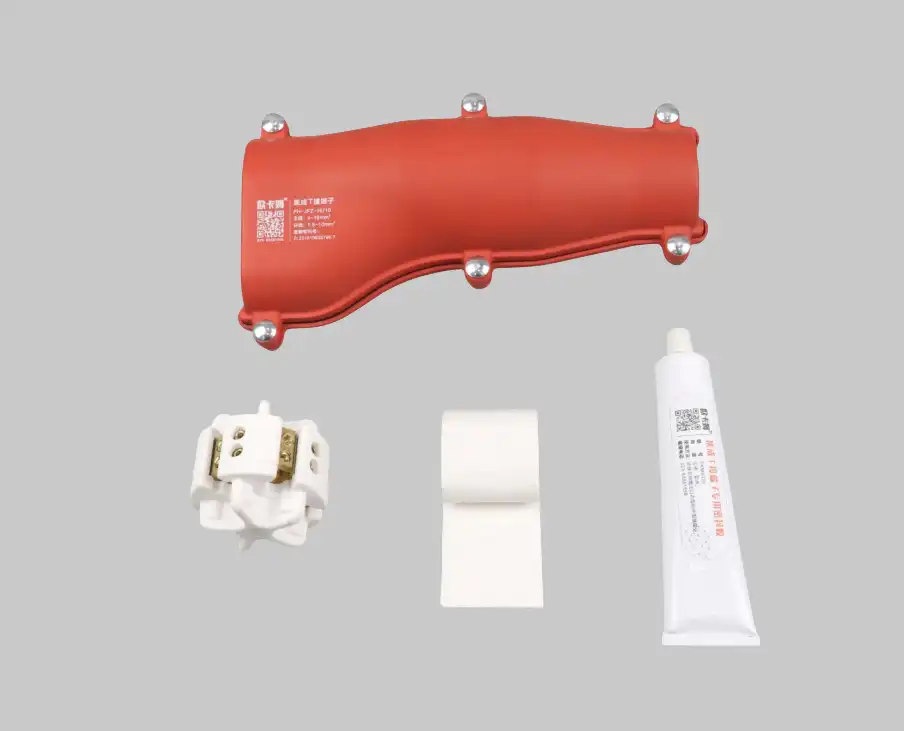

Composition and Classification
Our Low Voltage Cable Joint is composed of the following components:
Insulated T-connector Body: Made of flame-retardant/fire-resistant materials.
Insulation Material: Cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR).
Conductor Material: Copper or aluminum.
Our Low Voltage Cable Joint can be classified into the following categories:
Indoor Type: Suitable for indoor applications.
Outdoor Type: Suitable for outdoor applications.
Underground Type: Suitable for underground applications.

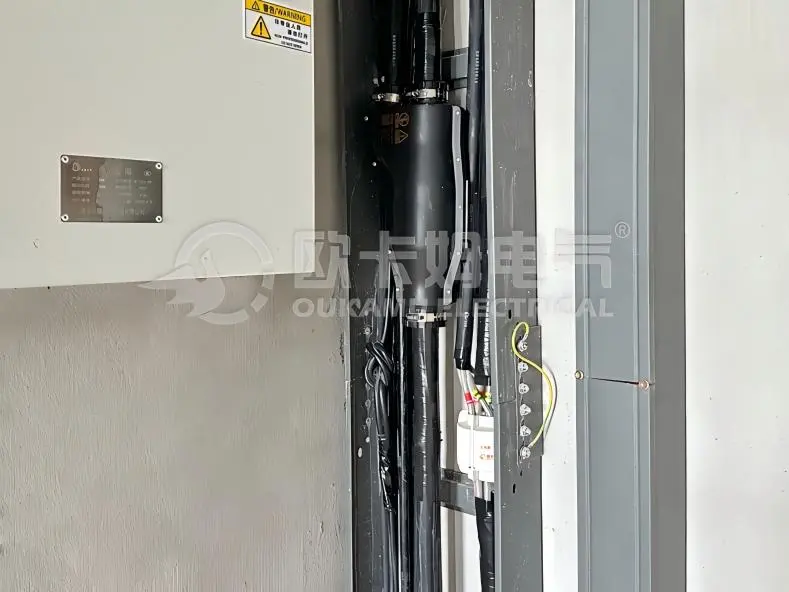

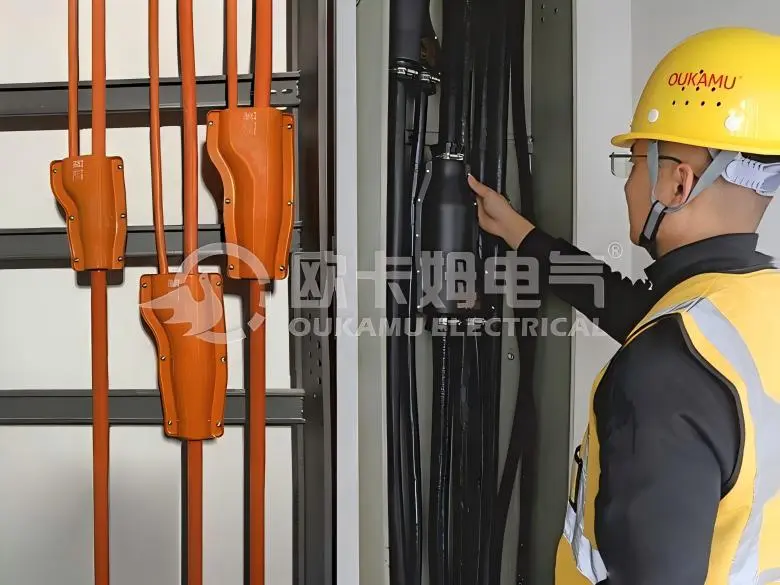

Application
Our product is suitable for a wide range of applications, including:
Power Distribution Systems: Connecting power distribution cables in substations, power plants, and industrial facilities.
Industrial Control Systems: Connecting control cables in industrial facilities, such as factories and manufacturing plants.
Building Automation Systems: Connecting building automation cables in commercial and residential buildings.
Packaging and Transportation
Our products are carefully packaged and transported to ensure safe and secure delivery. Each item is meticulously wrapped using high-quality packaging materials that provide maximum protection against potential damage. We use sturdy boxes designed to withstand the rigors of transportation, whether by air, sea, or land. These durable packaging solutions help prevent any impact or environmental damage, ensuring that your order arrives in perfect condition, ready for immediate use.

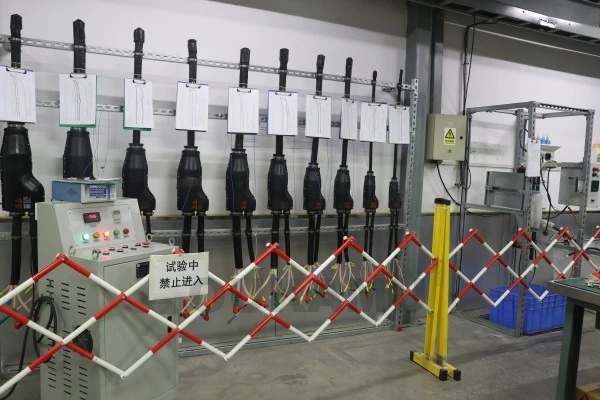

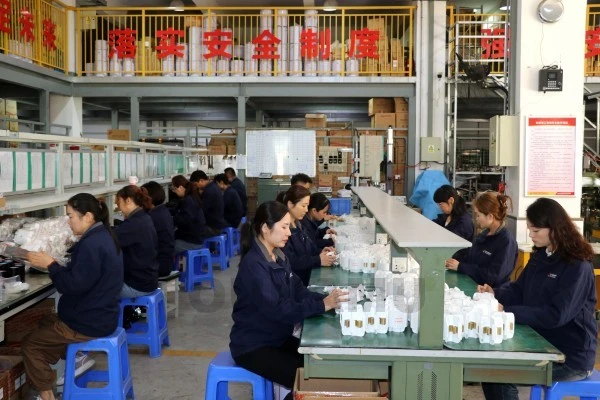

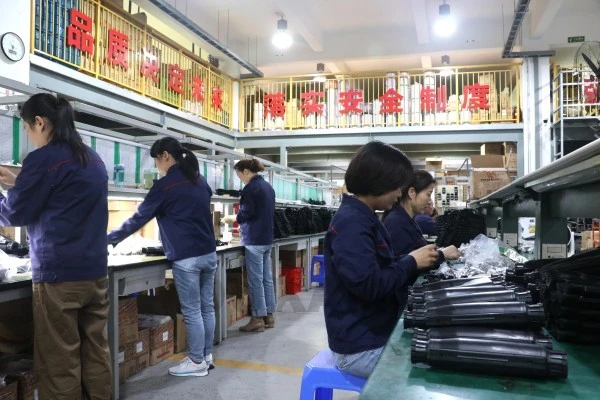

Our Factory
Contact Us
If you're interested in learning more about the or would like to place an order, please don't hesitate to contact us at info@okmbranchcable.com.
Our friendly and knowledgeable team is always happy to help.
In conclusion, the Low Voltage Cable Joint is more than just a product—it's a revolutionary advancement that has significantly transformed the landscape of cable connections. With its impressive array of technical features, from robust construction to enhanced safety mechanisms, this cable joint is engineered to meet the highest standards of reliability and efficiency.
Its superior composition ensures durability and long-term performance, making it an ideal choice for a wide range of applications.
Whether you're a professional in the electrical industry or a business seeking to optimize your electrical systems, the productoffers a seamless, safe, and efficient connection solution that stands out in the market.
This product not only addresses the current demands of the industry but also sets a new benchmark for what professionals and businesses can expect in terms of quality and performance.
With the Low Voltage Cable Joint, you're investing in a connection solution that delivers unmatched reliability, ensuring the smooth operation and longevity of your electrical systems.
