Fire Resistant Cable Joints
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 16~50mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Low overall cost, high cost performance
Fire Resistant Cable Joints Introduction
In today's fast-paced world, safety and reliability in electrical installations are paramount. Fire Resistant Cable Joints are designed to meet the rigorous demands of modern infrastructure, ensuring that connections remain secure even under extreme conditions. Developed by Xi'an OUKAMU, these cable joints offer a revolutionary solution for connecting multi-core main and branch cables without compromising on performance or aesthetics. Whether for residential, commercial, or industrial applications, they are engineered to deliver unparalleled reliability and safety.

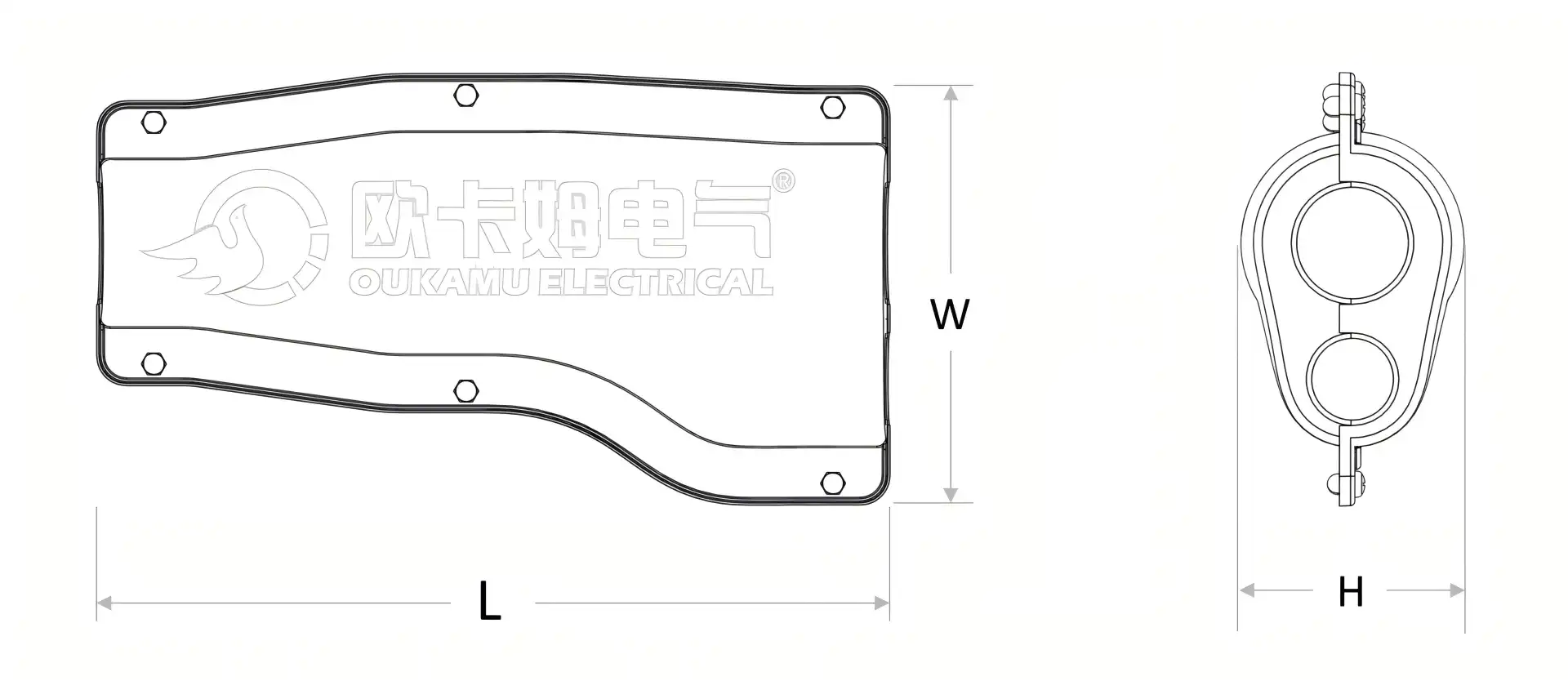

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |

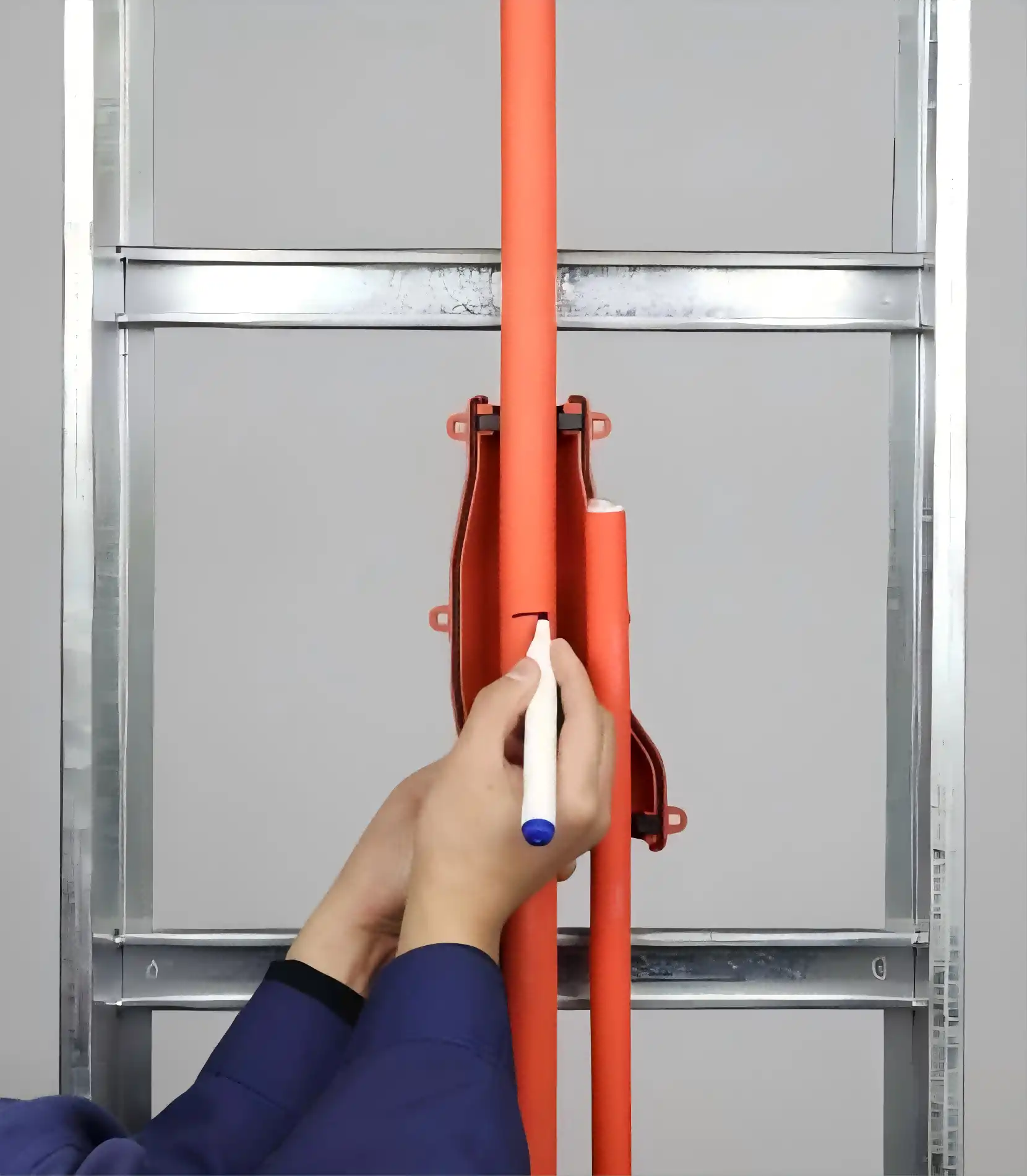

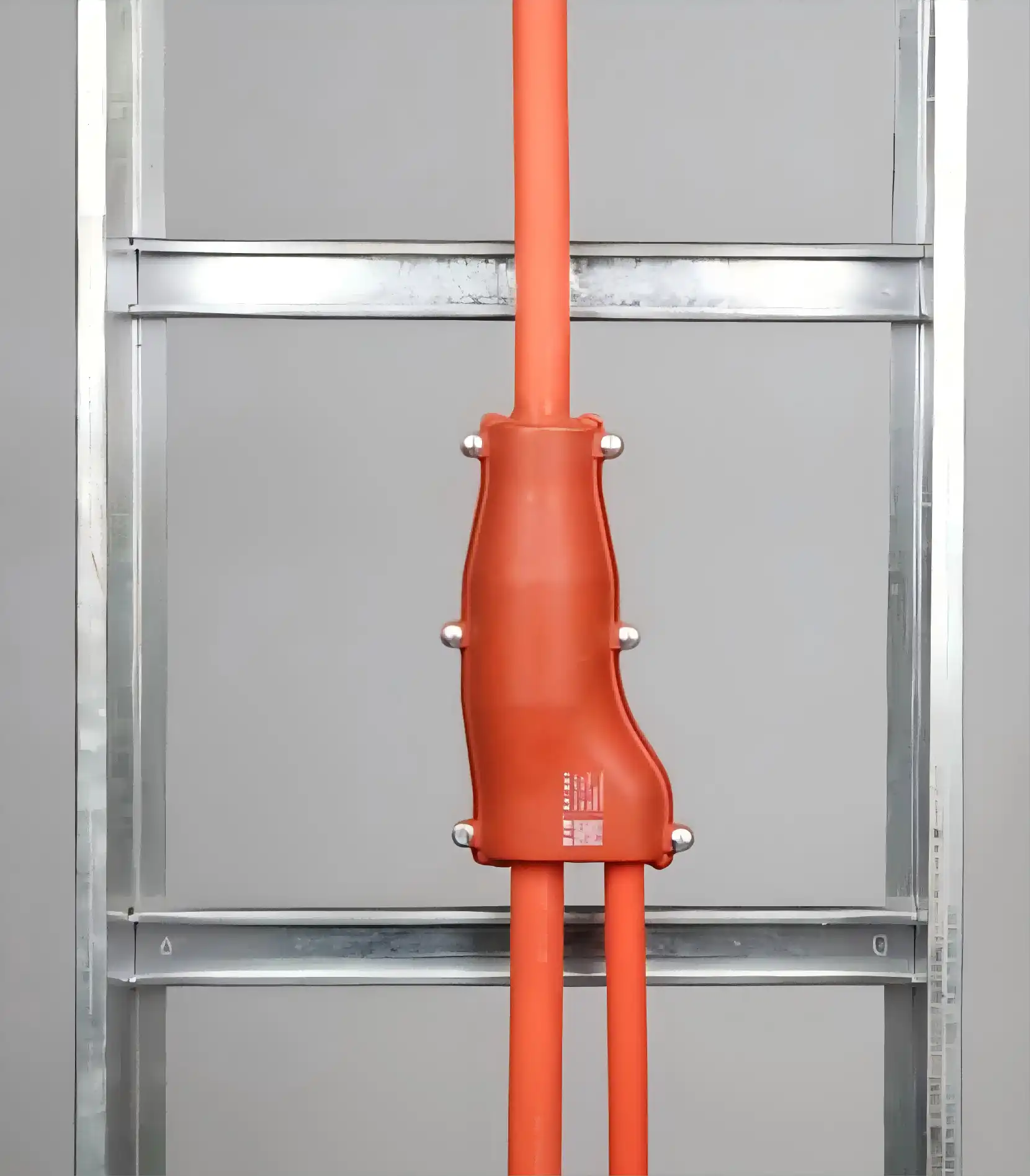

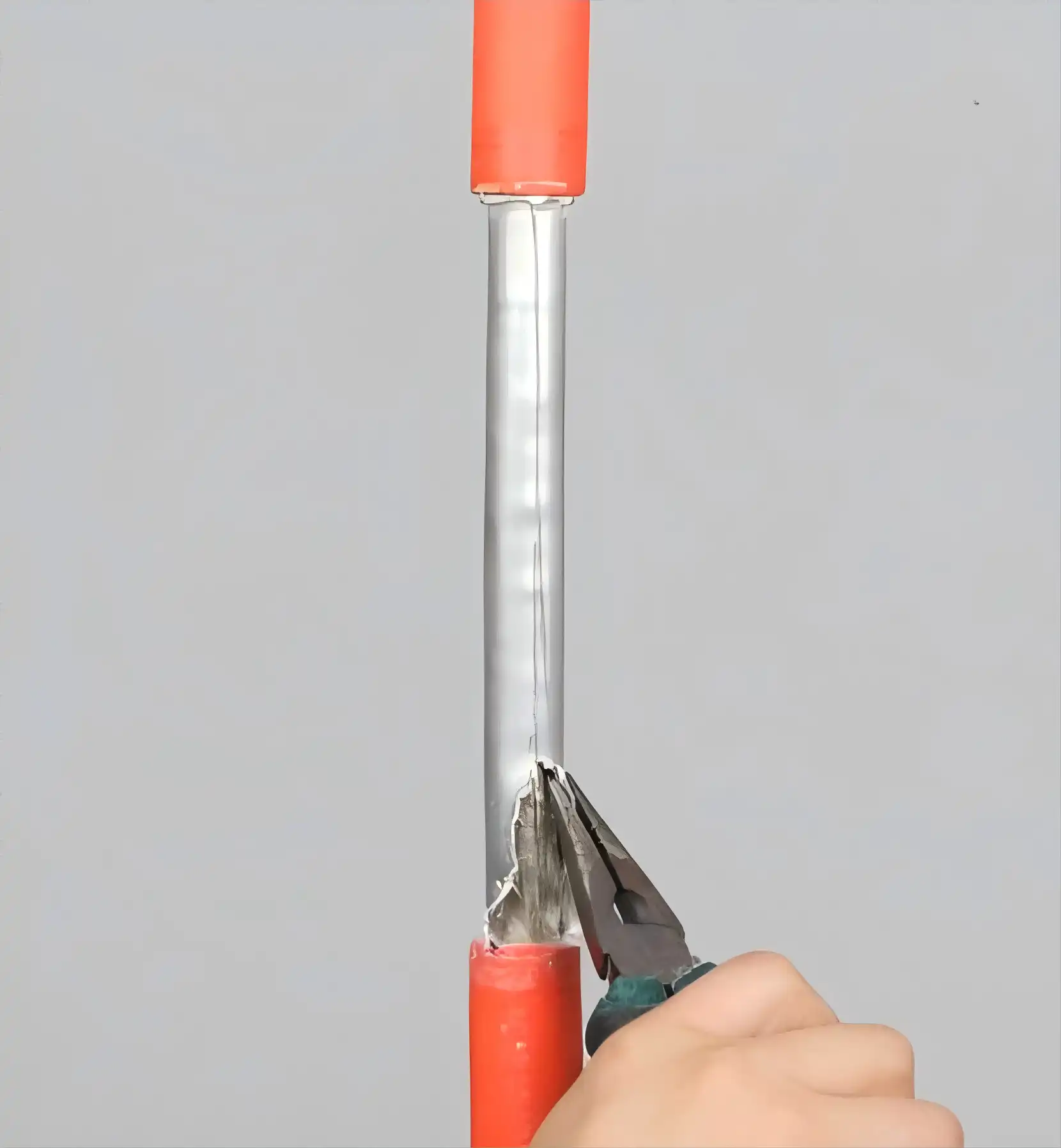

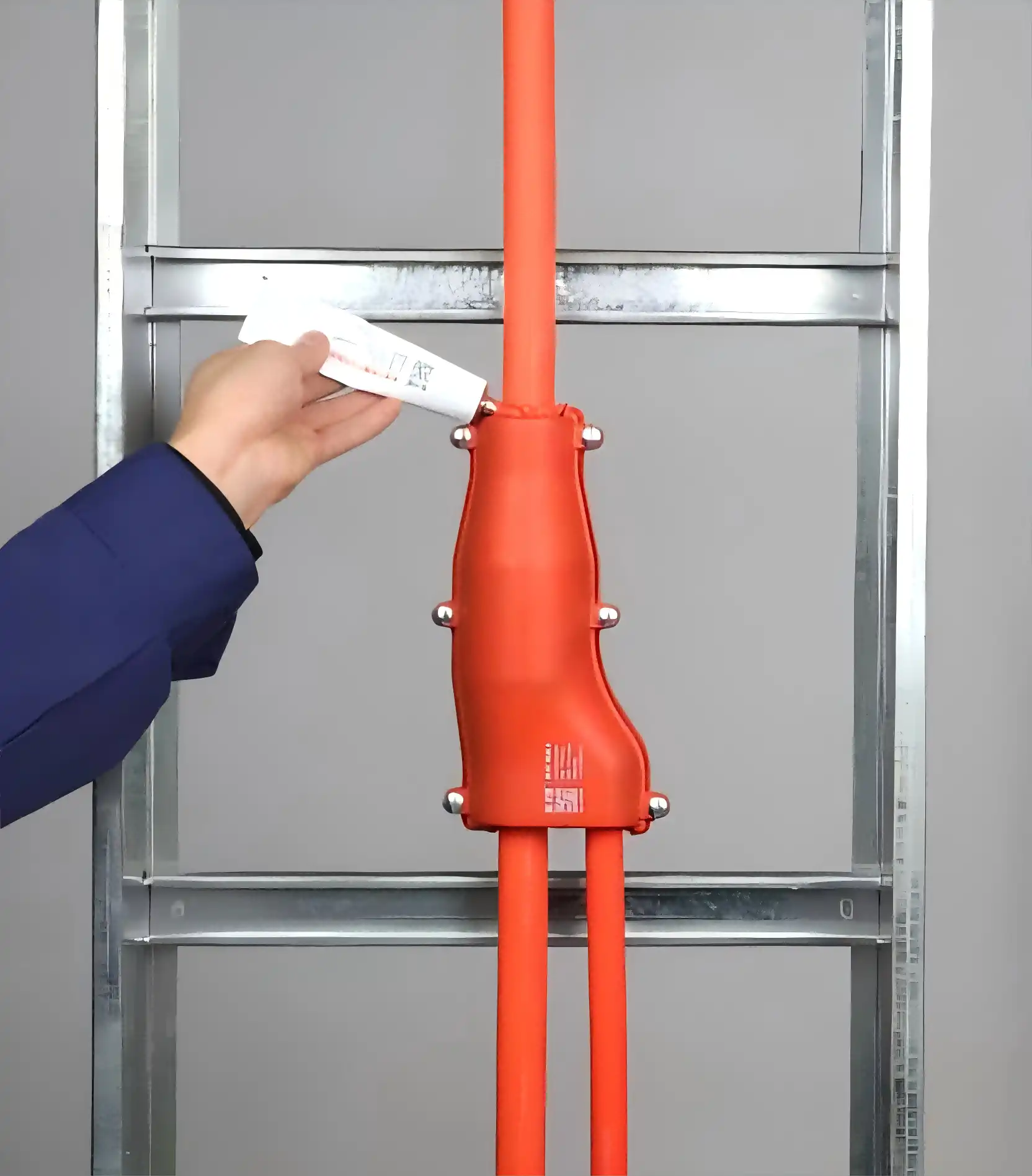

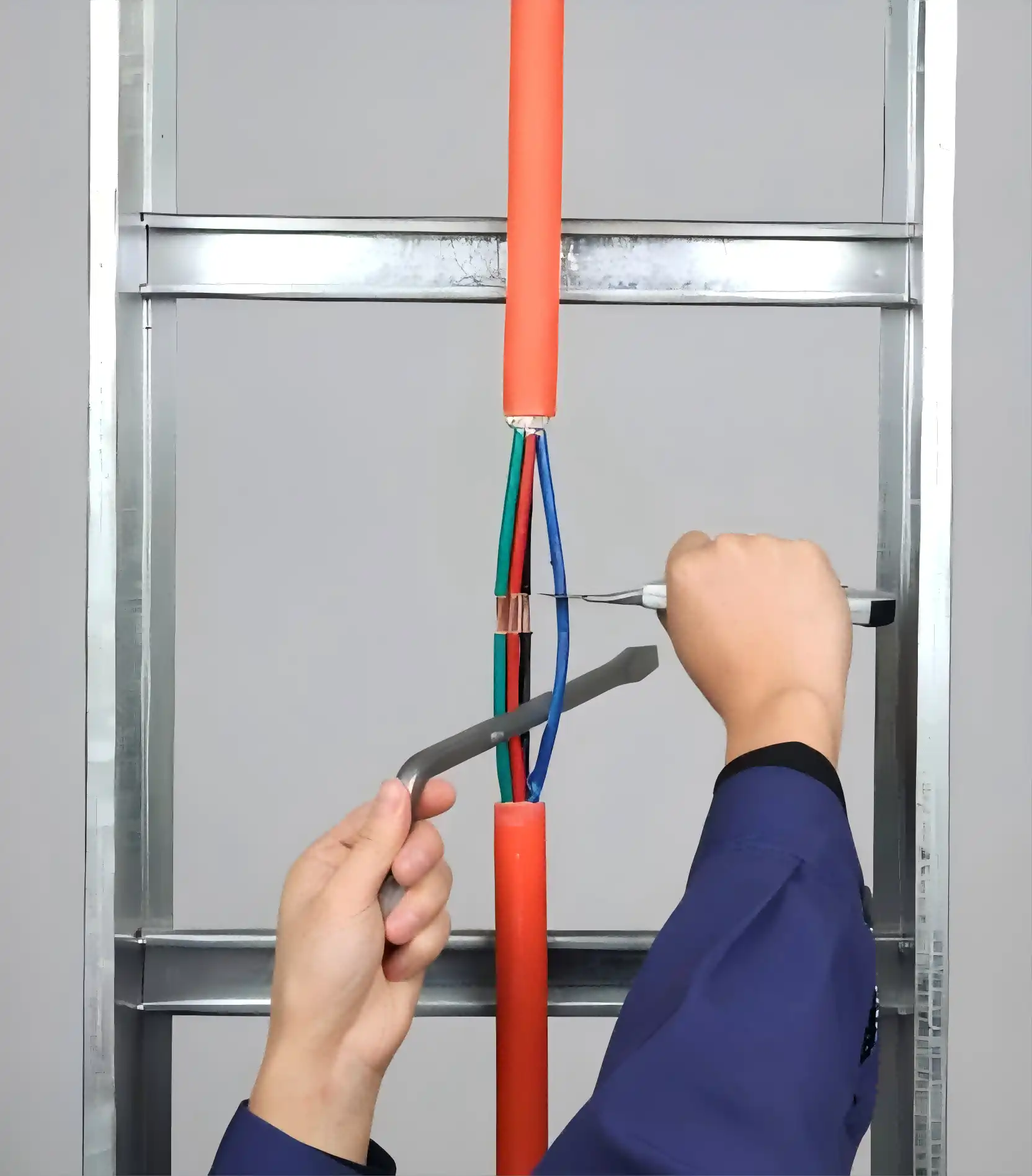

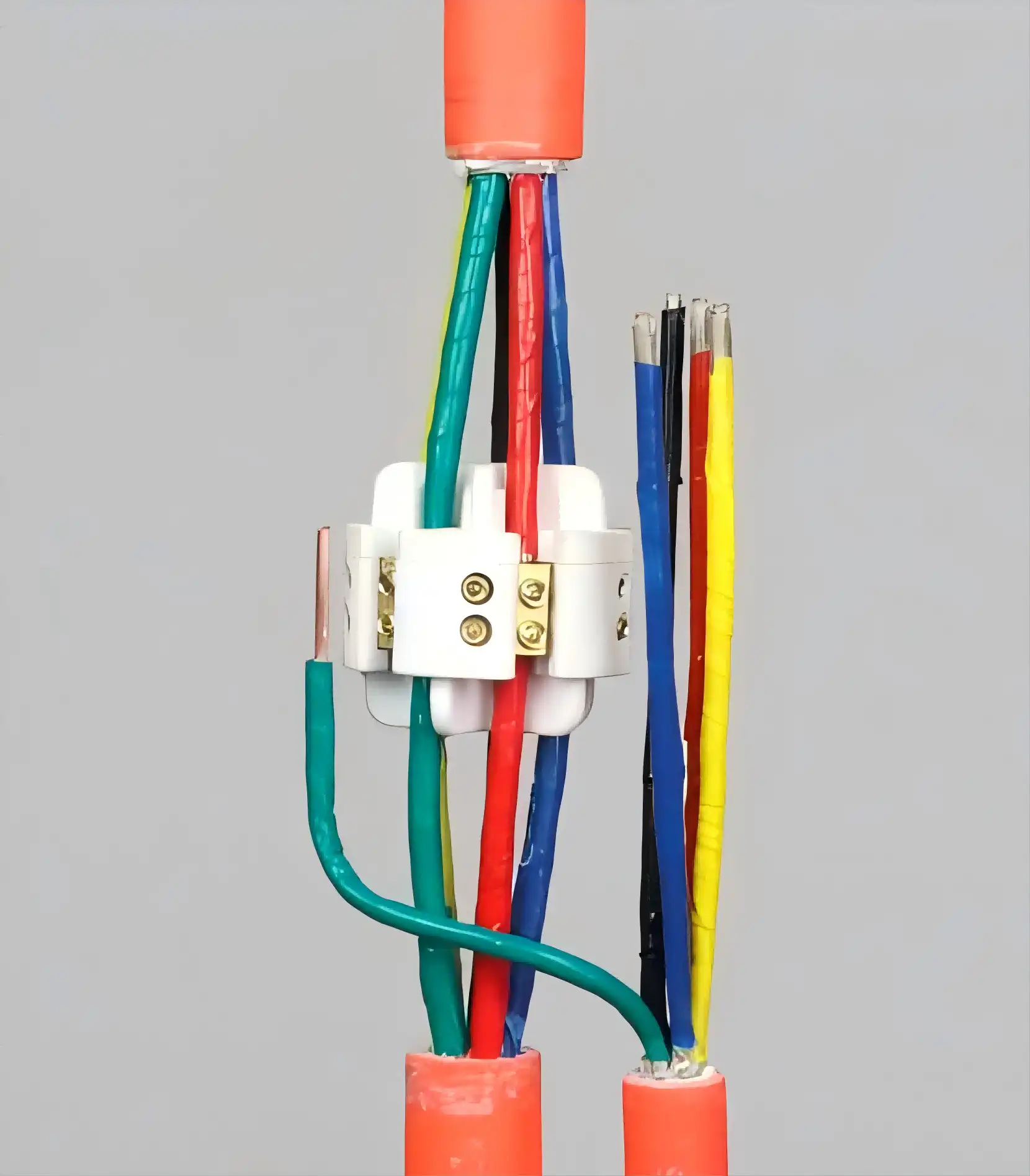

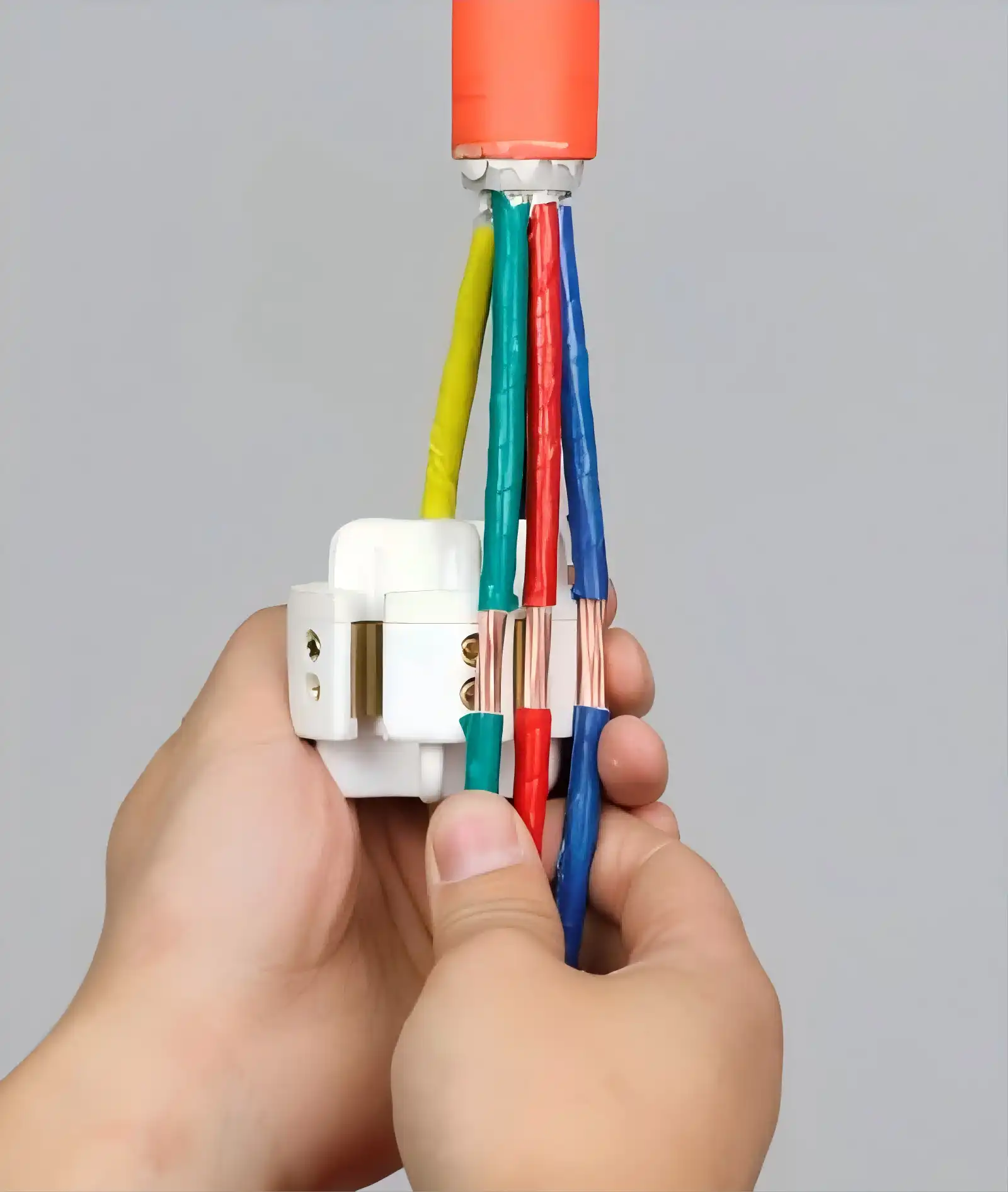

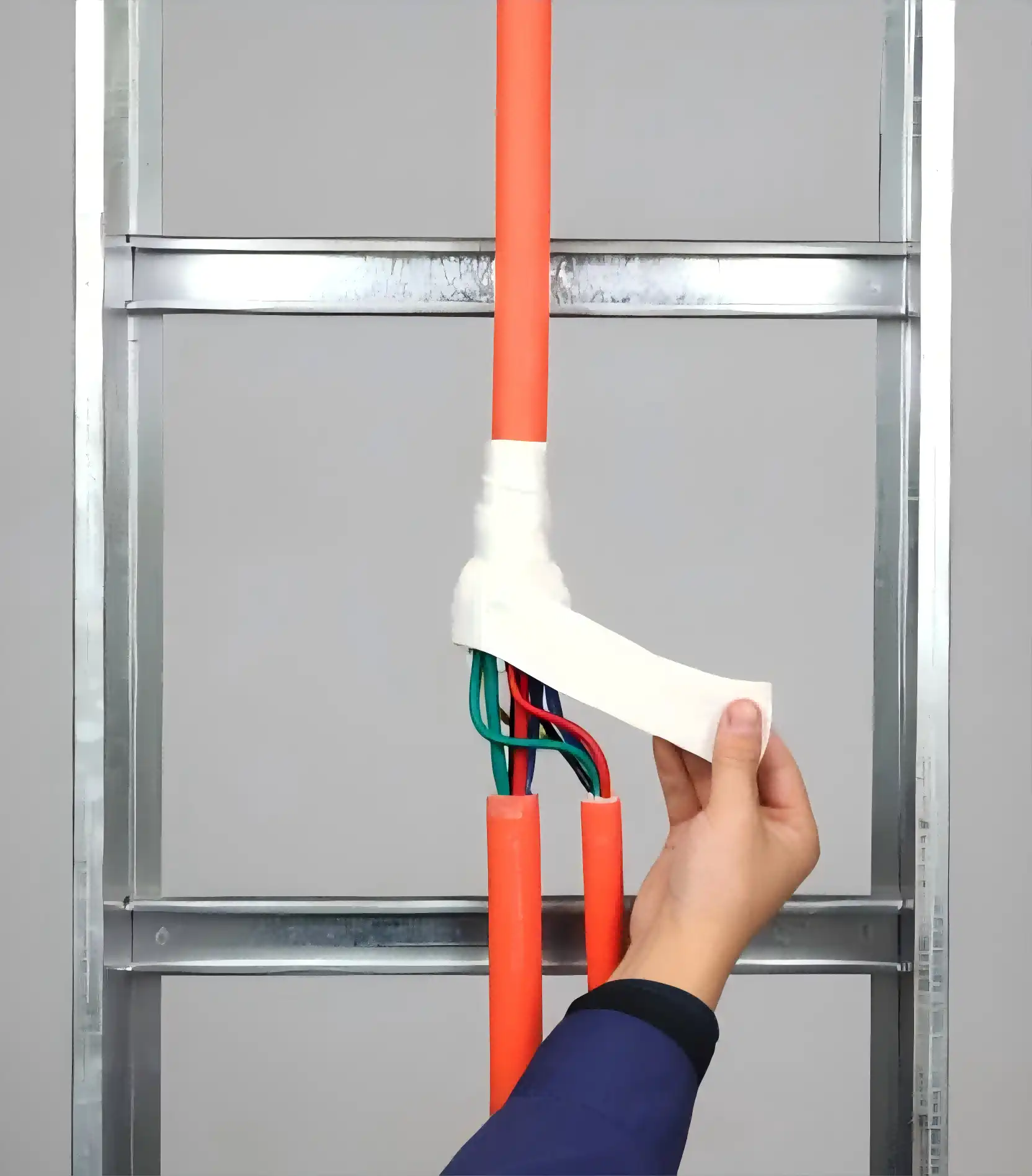

Installation Steps
Technical Parameters
To guarantee optimal performance, Fire Resistant Cable Joints are crafted with precision, adhering to the highest industry standards. The key technical parameters include:
- Fire-resistant Temperature: 750~1000℃
- Withstand Voltage: 3.5kV
- Voltage Drop: <3.2mV
- Insulation Resistance: >500M
- Material: Flame-retardant, fire-resistant insulation with anti-aging properties
These parameters ensure that our cable joints can withstand harsh environmental conditions while maintaining robust electrical connections.
Technical Features
Our Fire Resistant Cable Joints incorporate innovative design and engineering features that set them apart in the market:
- No Need to Cut the Main Cable: The integrated design allows for seamless connections without cutting the main cable, preserving its integrity.
- Integrated Connection: Both main and branch cables are connected within the flame-retardant/fire-resistant insulated T-connector, ensuring a safe and secure bond.
- Insulated and Sealed: The branch cable is fully insulated and sealed, offering enhanced protection against environmental factors.
These features make our cable joints not only efficient but also reliable and easy to install, reducing installation time and costs.
Composition and Classification
The creation of our Fire Resistant Cable Joints is custom fitted to give greatest strength and insurance:
- The Fundamentals: High-conductivity copper/aluminum
- Protection Material: Compound that resists fire and has a high dielectric strength materials
- Protective Layer: Resist aging and corrosion to ensure long-term performance
Classification:
- Joints for Low-voltage (LV) Cables: Suitable for applications up to 1kV
- Medium Voltage (MV) Cable Joints: Intended for 1kV to 36kV applications
Each type is carefully intended to meet the particular requirements of various voltage ranges, guaranteeing that all establishments are protected and consistent with significant guidelines.
Application
Our Fire Resistant Cable Joints are adaptable and suitable for numerous uses, including:
- Residential Structures: Connecting homes, condominiums, and apartment complexes in a secure and dependable manner.
- Facilities for Business: Ideal for commercial buildings like office buildings and shopping malls where fire safety is important.
- Industrial Facilities: Ensuring strong connections in production facilities, warehouses, and factories.
- Projects for the Infrastructure: Fundamental for passages, spans, and other huge scope foundation projects where imperviousness to fire is compulsory.
These joints offer users and installers alike peace of mind and are especially useful in settings where fire safety is of the utmost importance.
Packaging and Transportation
We offer the following options for packaging and transportation to guarantee the safety and integrity of our Fire Resistant Cable Joints during transit:
- Packaging: A shock-resistant, moisture-resistant box with additional padding protects each cable joint from damage during transport.
- Transportation: In order to guarantee prompt delivery to any location worldwide, we provide a variety of logistics options, including air, sea, and land transportation.
Your products will arrive in perfect condition and ready for installation because our packaging and transportation solutions are built to international standards.
Contact Us
At Xi'an OUKAMU, we are committed to providing the highest quality products and services to our customers. If you have any questions or would like to place an order, please do not hesitate to contact us:
Email: info@okmbranchcable.com
Our team of experts is always ready to assist you with your needs, ensuring that you receive the best possible solution for your project.
