Branch Cables
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 70~185mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Branch Cables Introduction

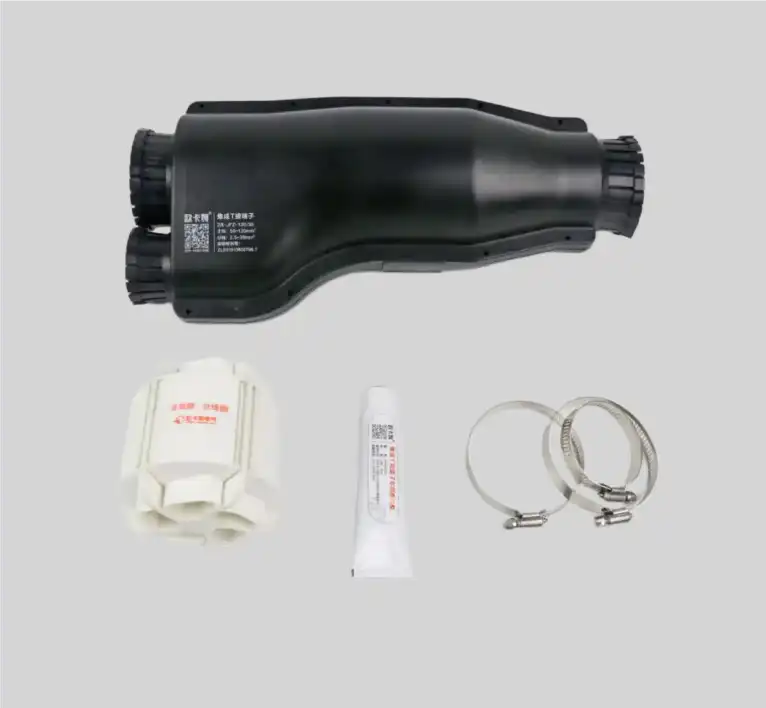

Welcome to the future of cable connections with Xi'an OUKAMU's Branch Cables. As pioneers in cable T-connection technology, our innovative integrated T-connector is revolutionizing how multi-core main and branch cables are connected. Designed for simplicity and efficiency, our product offers a seamless, reliable solution for your cable connection needs.

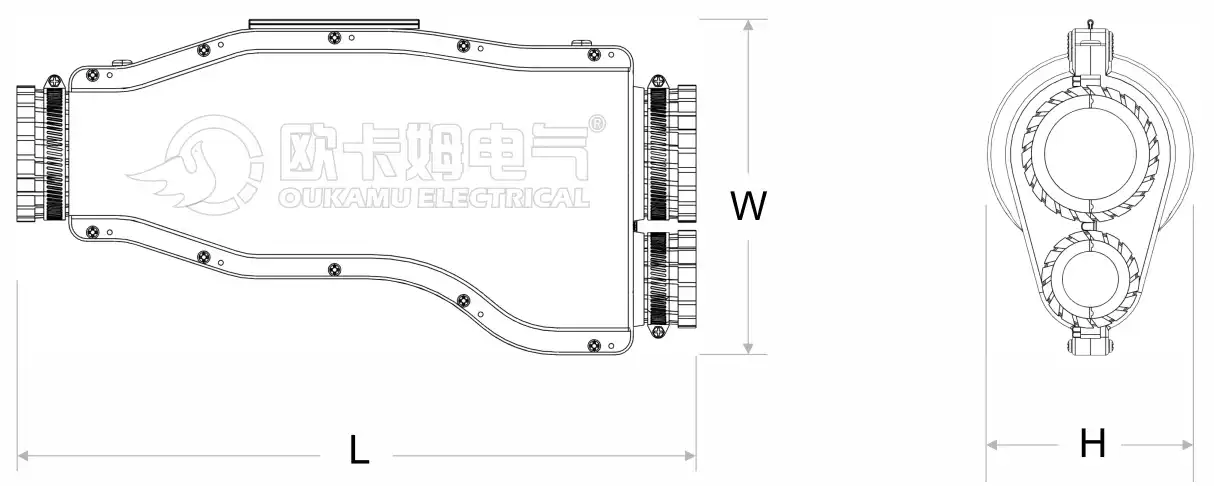

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

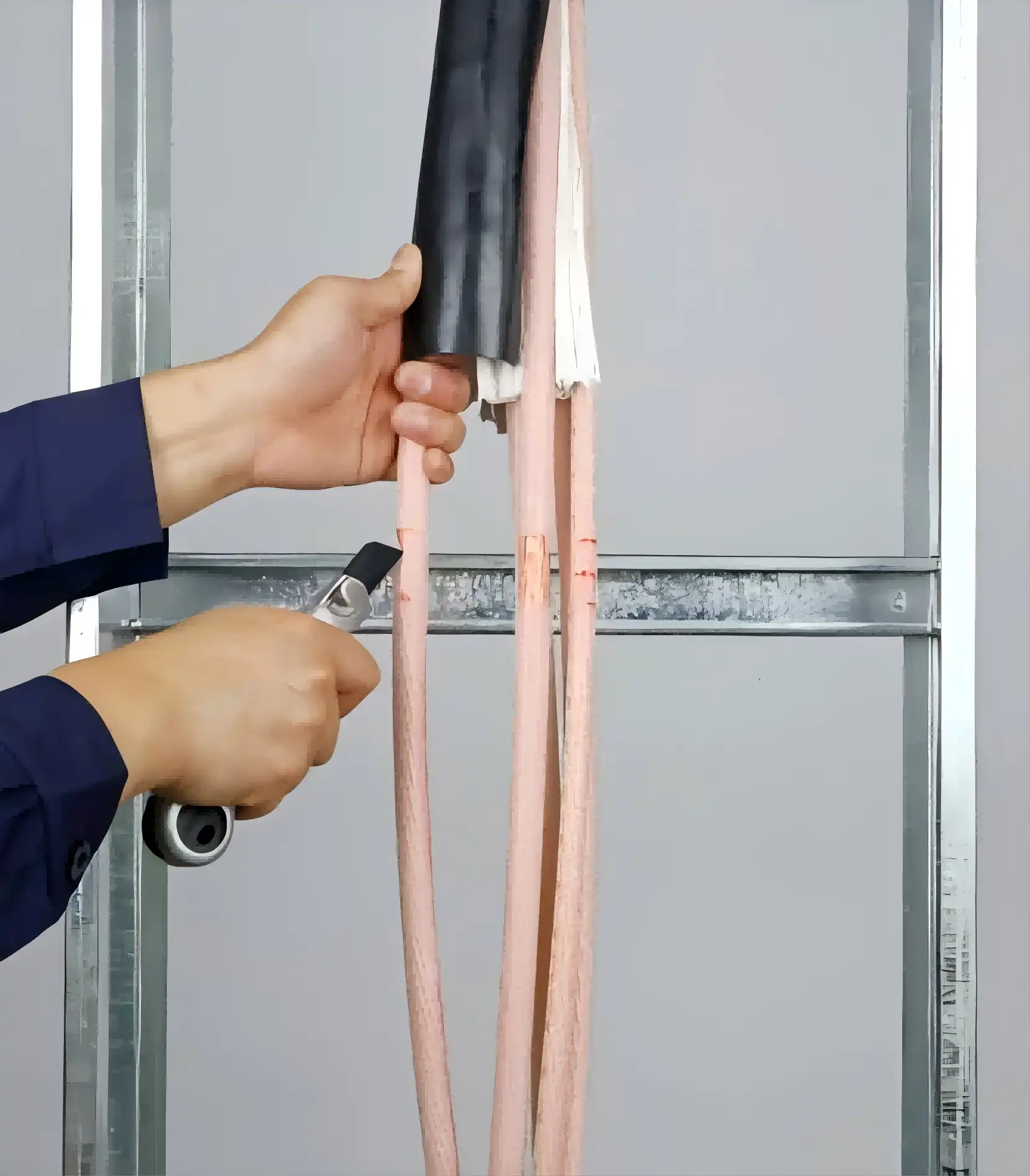

Installation Steps
1.Tools

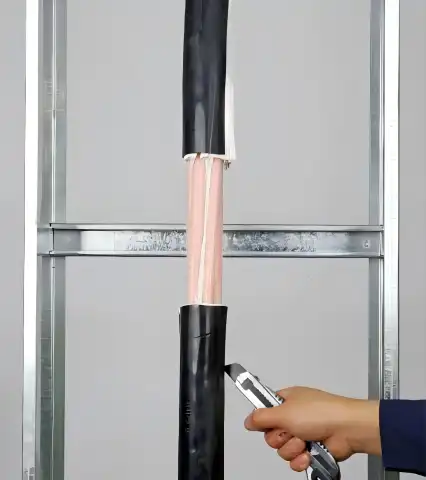

2.Determine installation location

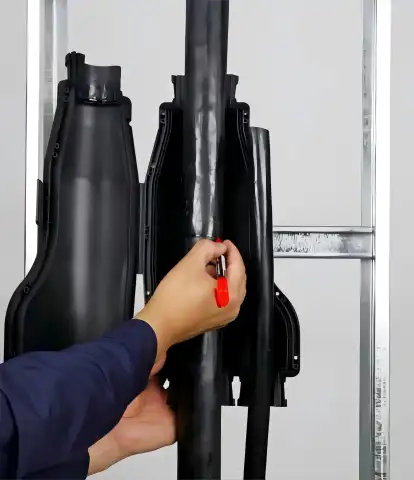

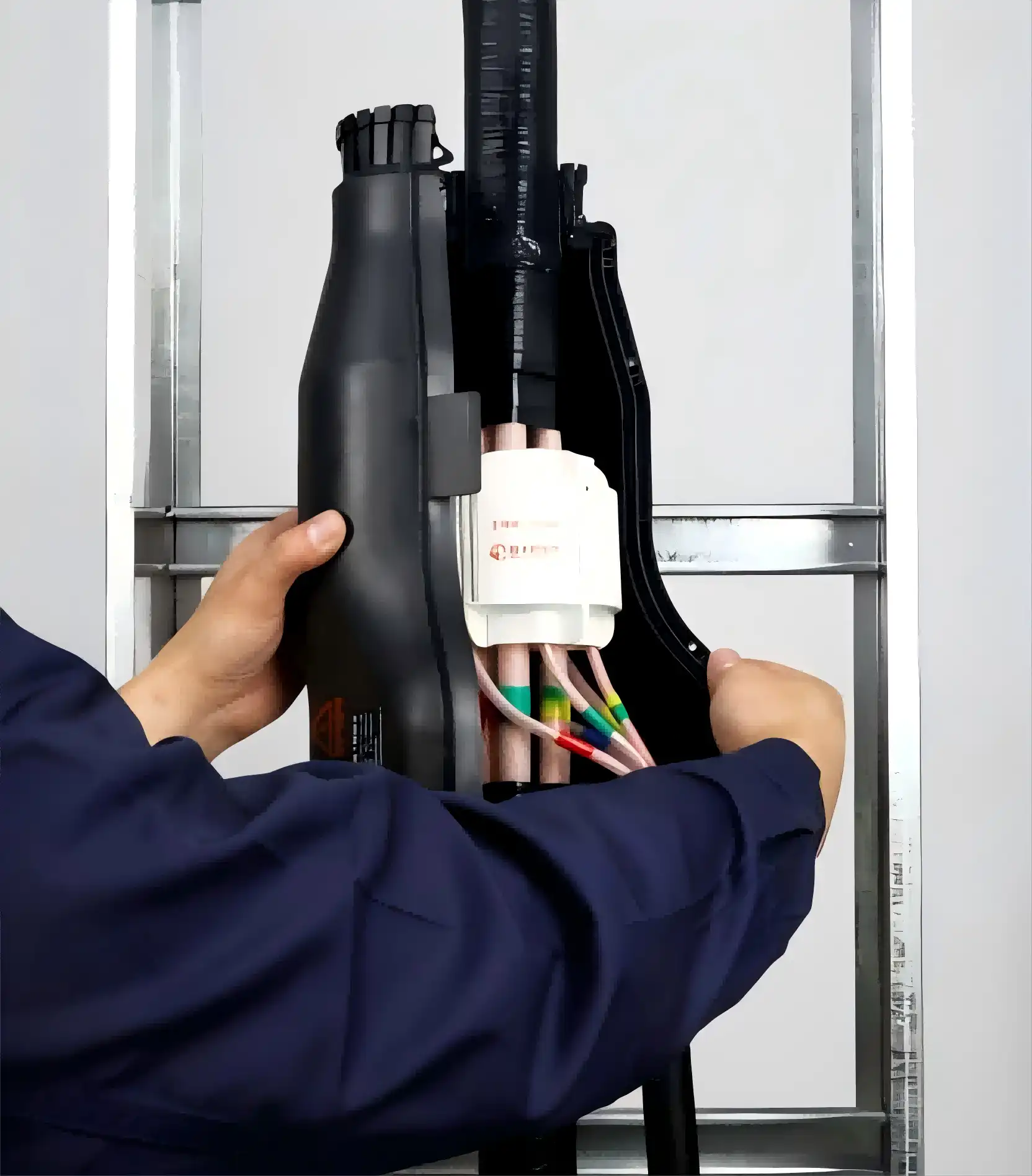

5.Installation of branch cable body

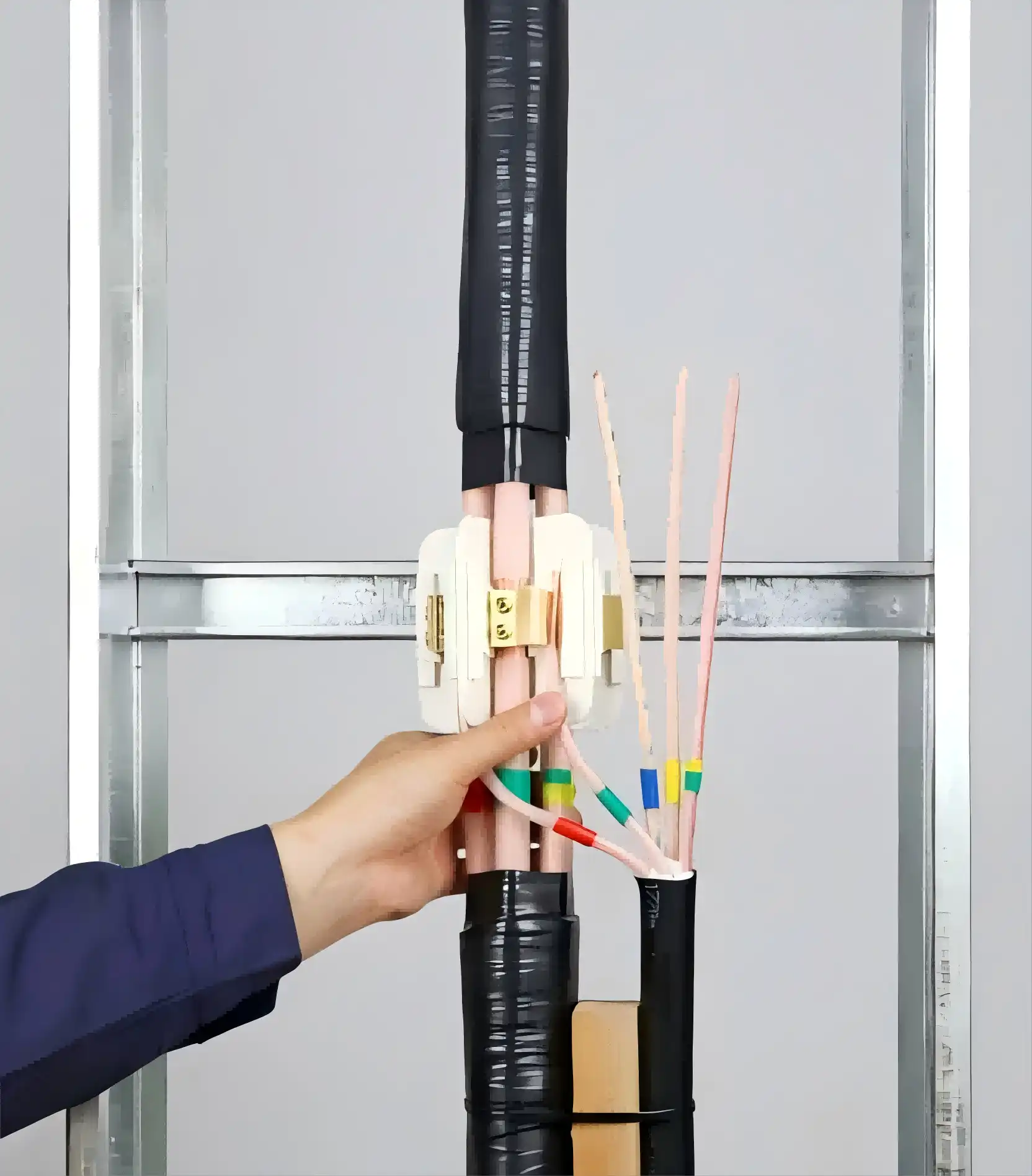

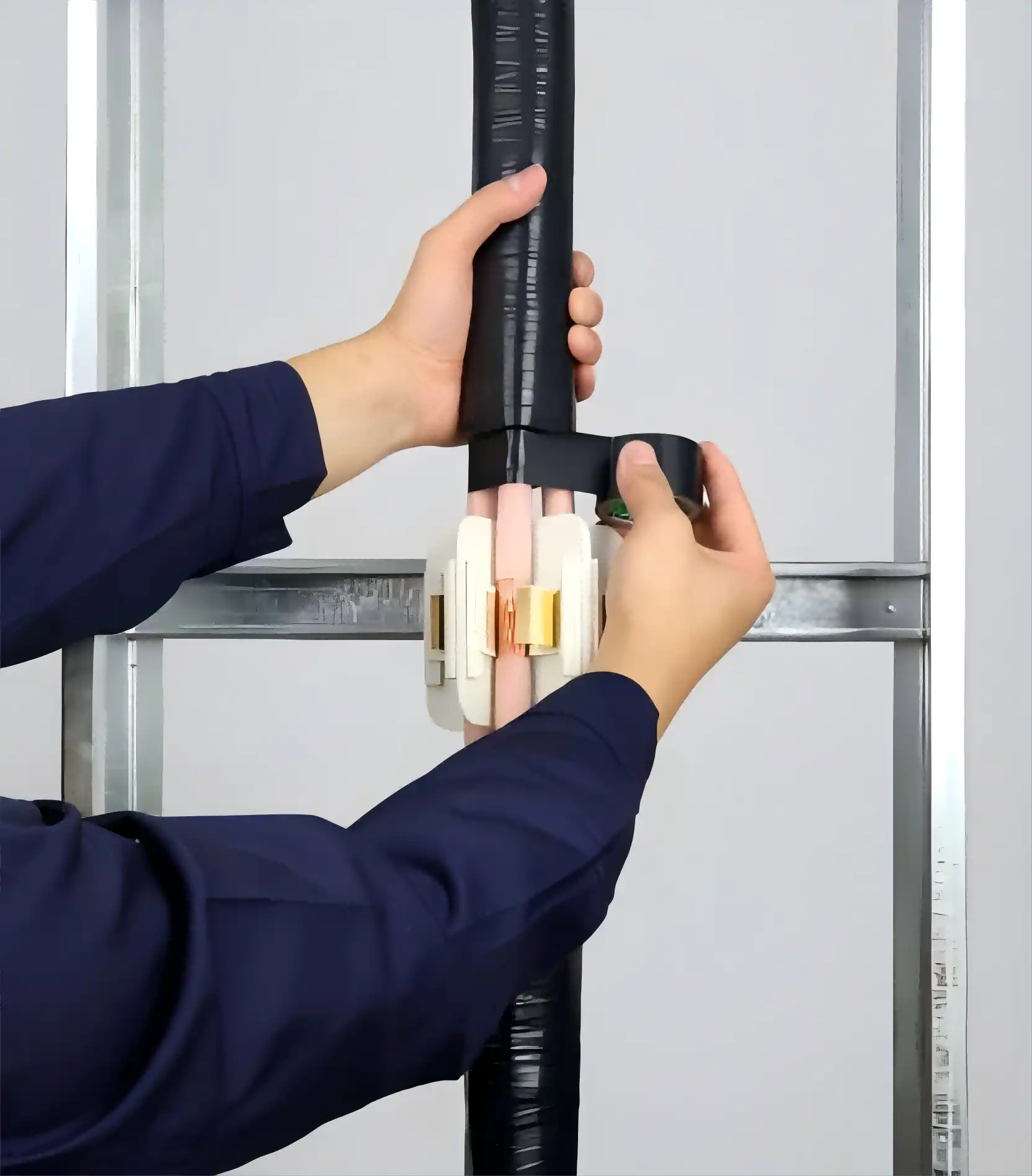

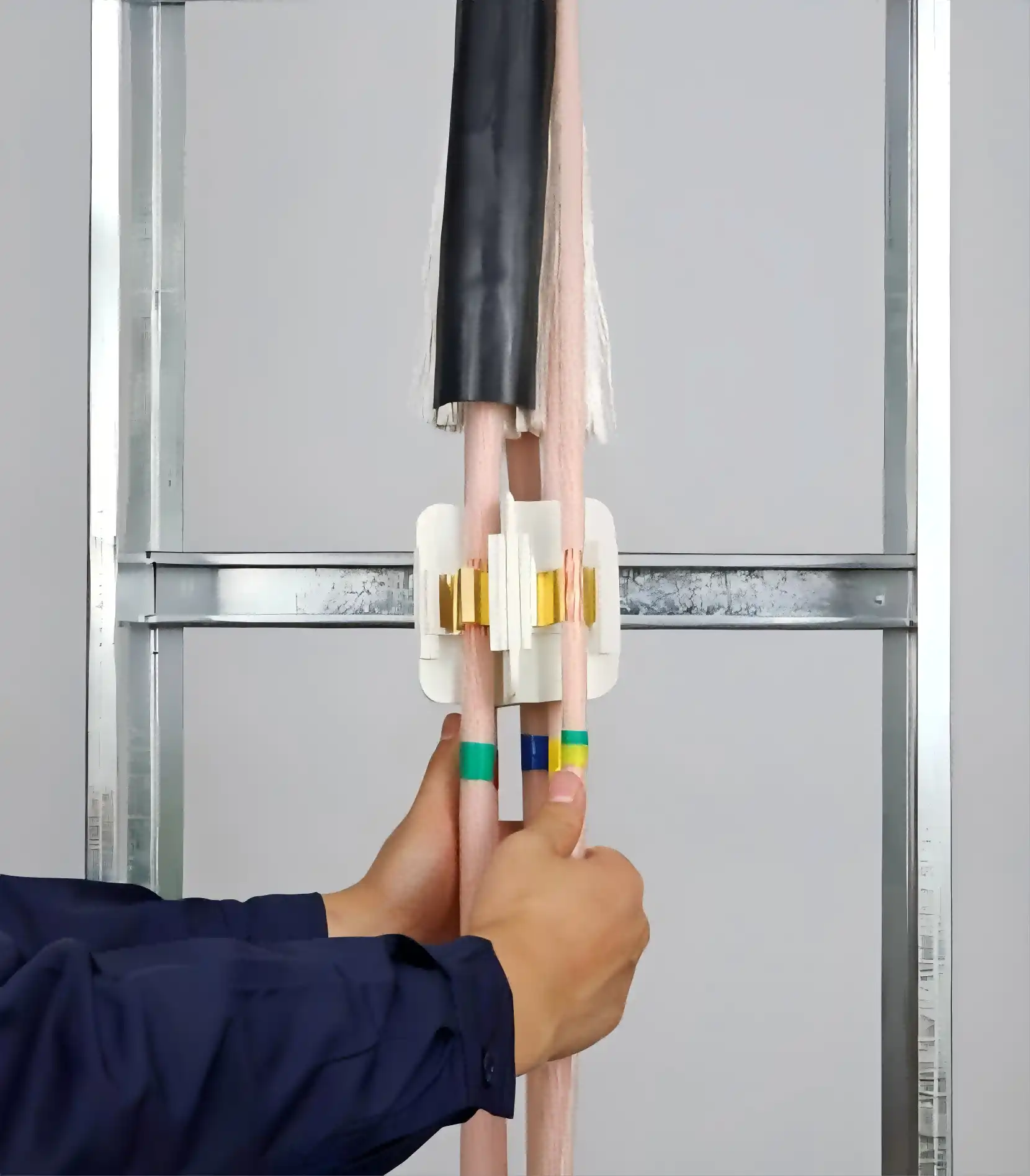

7.Installation of branch cables

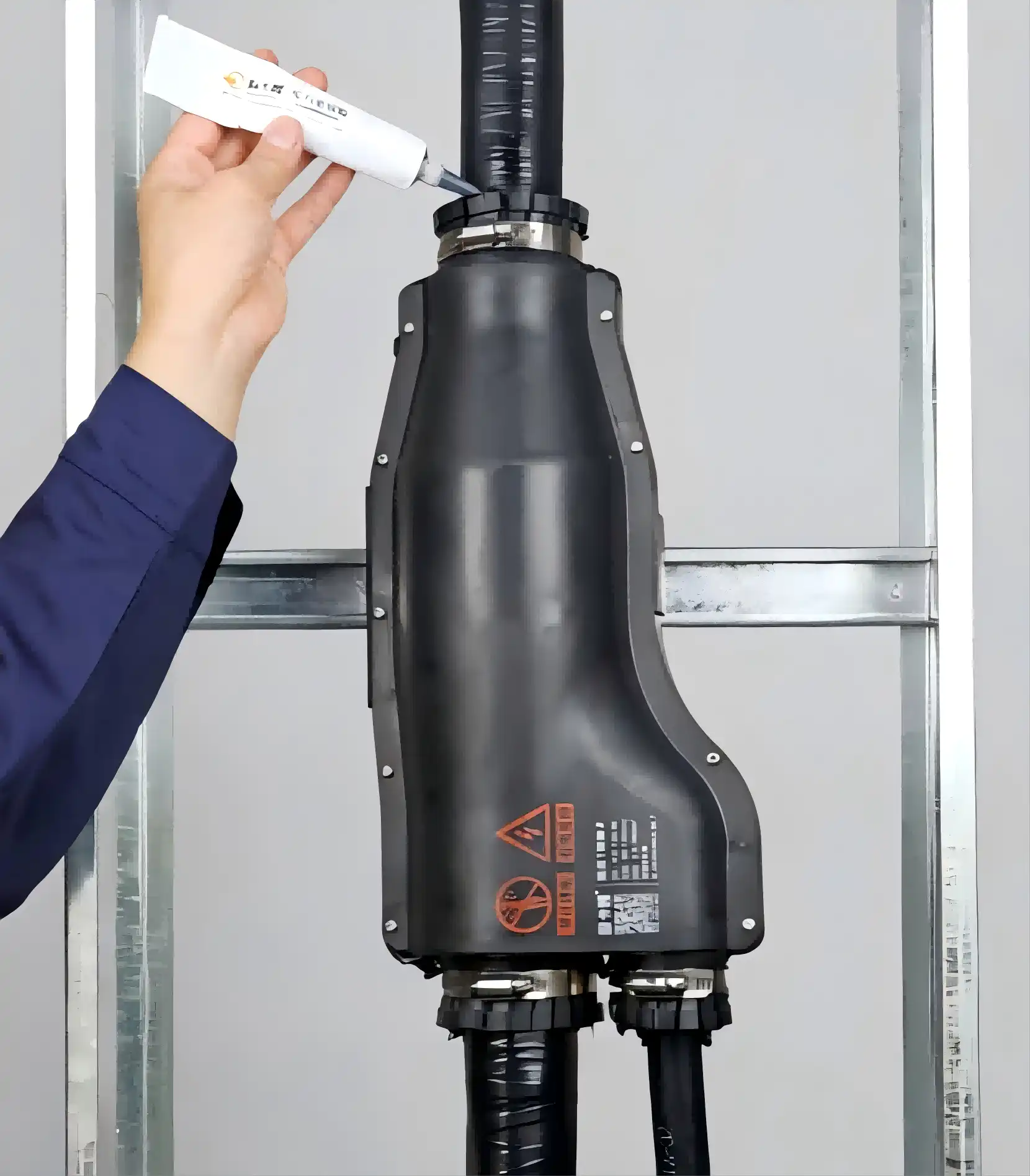

9.Lock and glue the cable outlet

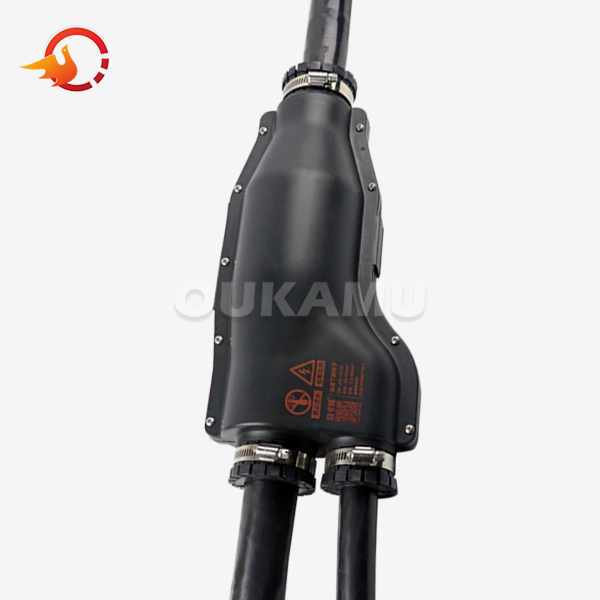

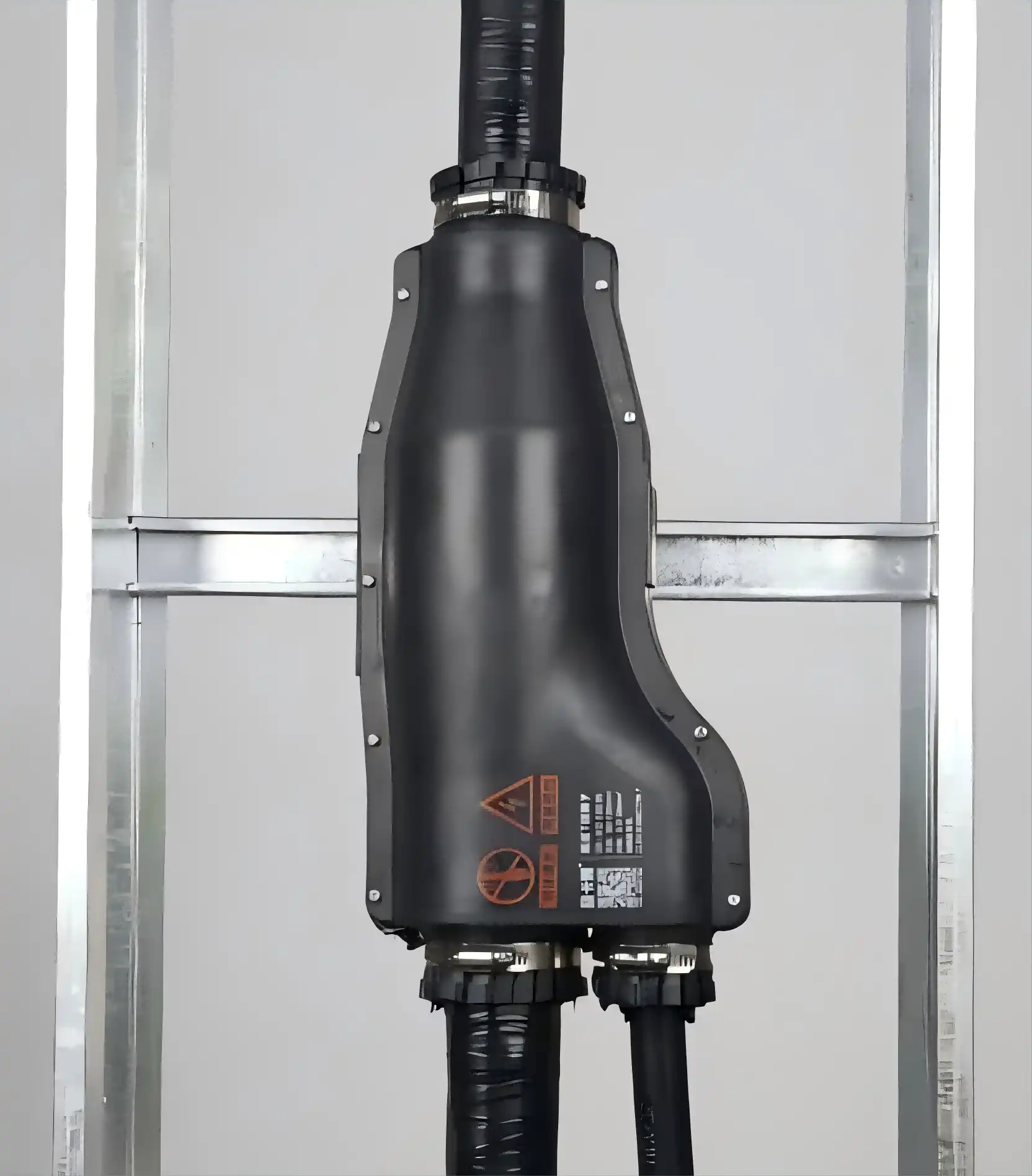

10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
Effortless Installation
Say goodbye to complicated installations. Our product allows for quick, safe, and beautiful connections right at the construction site. With no need to cut off the main cable, you can achieve a secure branch connection with ease.

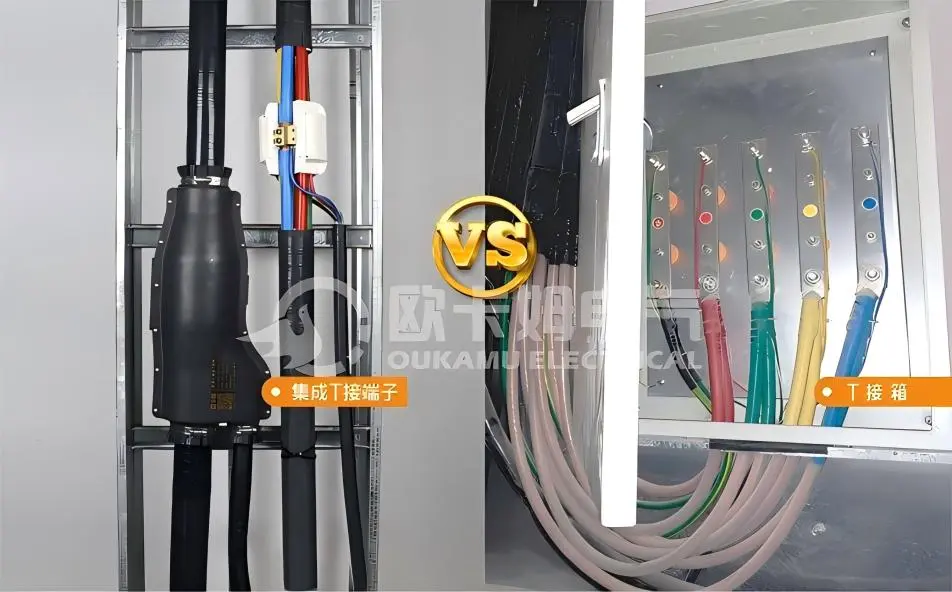

Integrated Design
Our cable joint is not only functional but also aesthetically pleasing. The integrated design ensures that the main and branch cables are connected securely within a flame-retardant, fire-resistant insulated body, maintaining both safety and style.

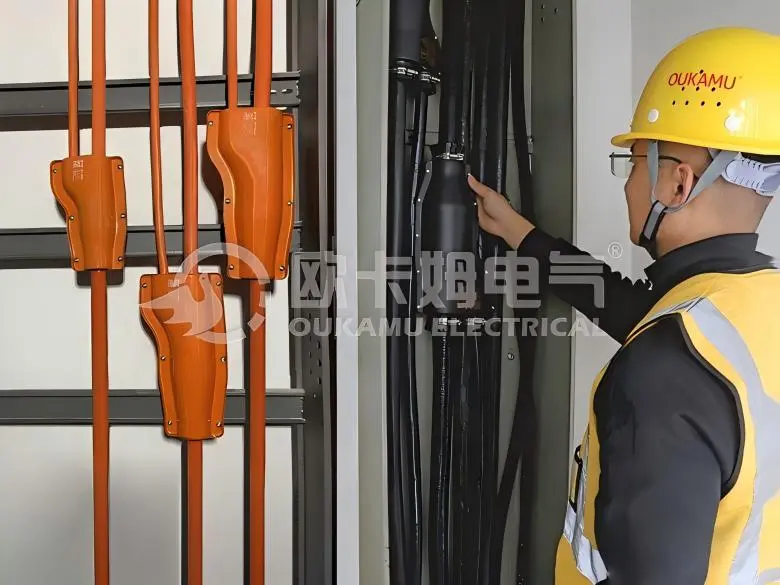

Compact and Versatile
Featuring a compact structure, this cable joint can be installed both openly and within a bridge. Its small size doesn't compromise its effectiveness, making it an ideal choice for various installation environments.
Durability and Safety
Built to withstand the elements, our product is insulation, flame retardant, fire resistant, dustproof and anti-aging. It also resists electrochemical corrosion, ensuring long-lasting performance.
Cost-Effective
By saving on cables and reducing the need for extensive building space, our cable joint helps lower overall costs while delivering exceptional performance. It's designed to be reusable, making it a cost-effective choice for both construction and maintenance.
Technical Features
- No Need for Cable Cuts: The main cable remains intact during installation.

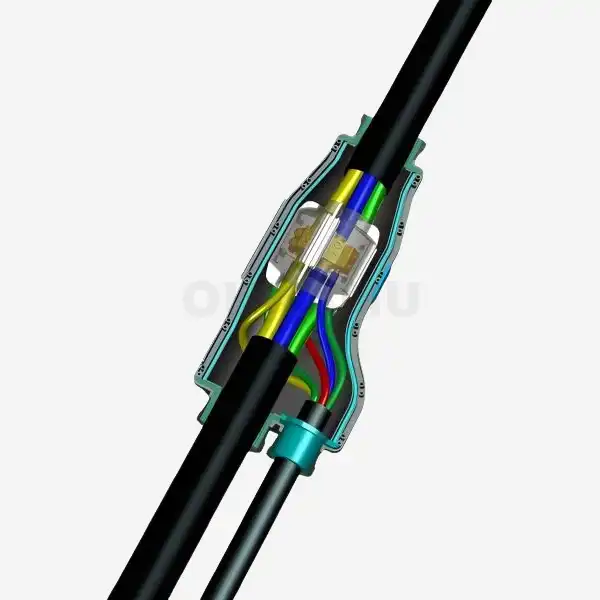

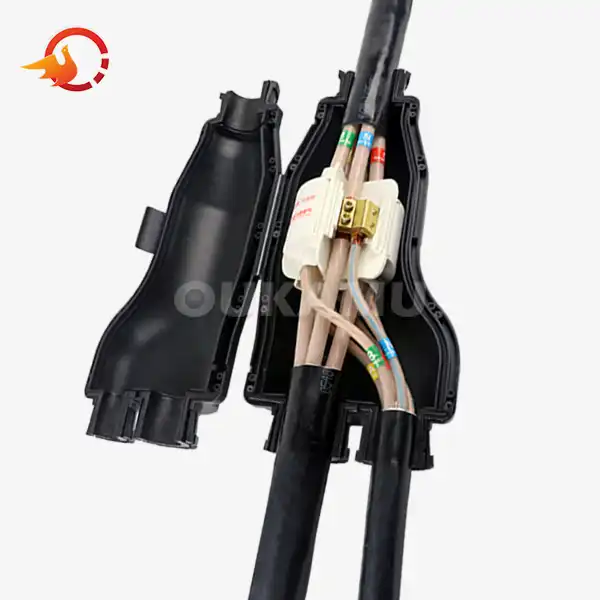

- Integrated Connection: Connects main and branch cables within the insulated T-connector body.
- Insulated and Sealed: Provides comprehensive insulation and sealing for added safety.

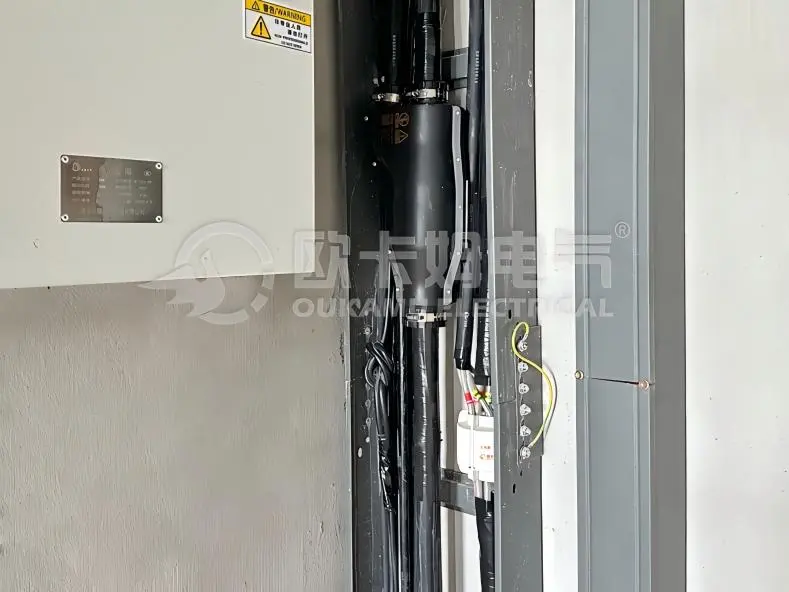

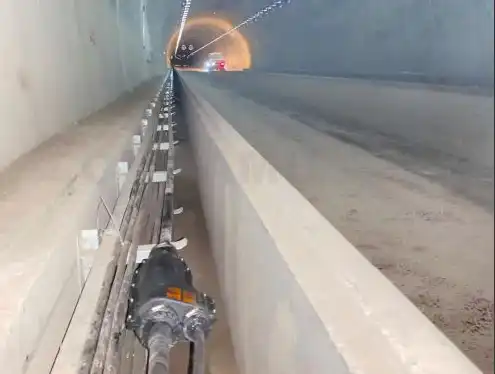

Application
Our Branch Cables are meticulously engineered to accommodate low-voltage cables with flame-retardant, fire-resistant, and mineral-insulated fire-resistant properties. This versatile product is indispensable for a range of applications, whether you are embarking on a new construction initiative or upgrading an existing infrastructure.
In the context of new construction, our cable joint ensures that electrical connections are both secure and efficient, adhering to the highest safety standards and performance benchmarks. It provides an essential component for establishing reliable connections that will serve the long-term operational demands of modern electrical systems.
For infrastructure upgrades, the product seamlessly integrates with existing setups, enhancing the robustness and dependability of current systems. Its advanced design facilitates a smooth installation process and straightforward maintenance, making it a valuable addition to any project. The product's durability and operational efficiency make it an optimal choice for maintaining the integrity and safety of electrical networks in both new and retrofitted environments. By incorporating our cable joint, you ensure superior performance and long-lasting reliability in your electrical infrastructure.
OEM Service
At Xi'an OUKAMU, we understand that every project has unique requirements. Our OEM services are designed to meet your specific needs, offering customized solutions to ensure the perfect fit for your application. Contact us to discuss how we can tailor our product to your project.
FAQ
Q1: What types of cables can be used with the product?
A1: It is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q2: Can the product be reused?
A2: Yes, the joint is designed to be reusable, providing a cost-effective solution for both installation and maintenance.
Q3: How does the integrated T-connector enhance safety?
A3: The integrated design ensures that connections are secure and insulated, reducing the risk of electrical faults and enhancing overall safety.
Q4: Is the installation process complicated?
A4: No, the installation process is straightforward and does not require cutting the main cable, making it easy and efficient.
Contact Us
For more information or to place an order, please contact us at info@okmbranchcable.com. Our team is ready to assist you with any questions or requirements you may have regarding our Branch Cables.
