Cable Jointing Cable Joint Connector Introduction
Welcome to the eventual fate of cable associations with Xi'an OUKAMU's progressive Cable Jointing Cable Joint Connector. This creative item, the coordinated T-connector, addresses a critical jump forward in how cables are associated, setting another norm for comfort, proficiency, and style. Since its origin in 2015 by Xi'an OUKAMU, this momentous innovation has been at the front line of cable jointing arrangements, offering a remarkable methodology that is unrivaled in the business.
The incorporated T-connector is intended to improve on the method involved with associating multi-center main and branch cables straightforwardly on location. This component upgrades the simplicity of establishment as well as guarantees a safe and solid association without fail. Not at all like conventional strategies that frequently include unwieldy and tedious methodology, the T-connector smoothes out the interaction, diminishing both work and material expenses while helping generally speaking effectiveness.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps

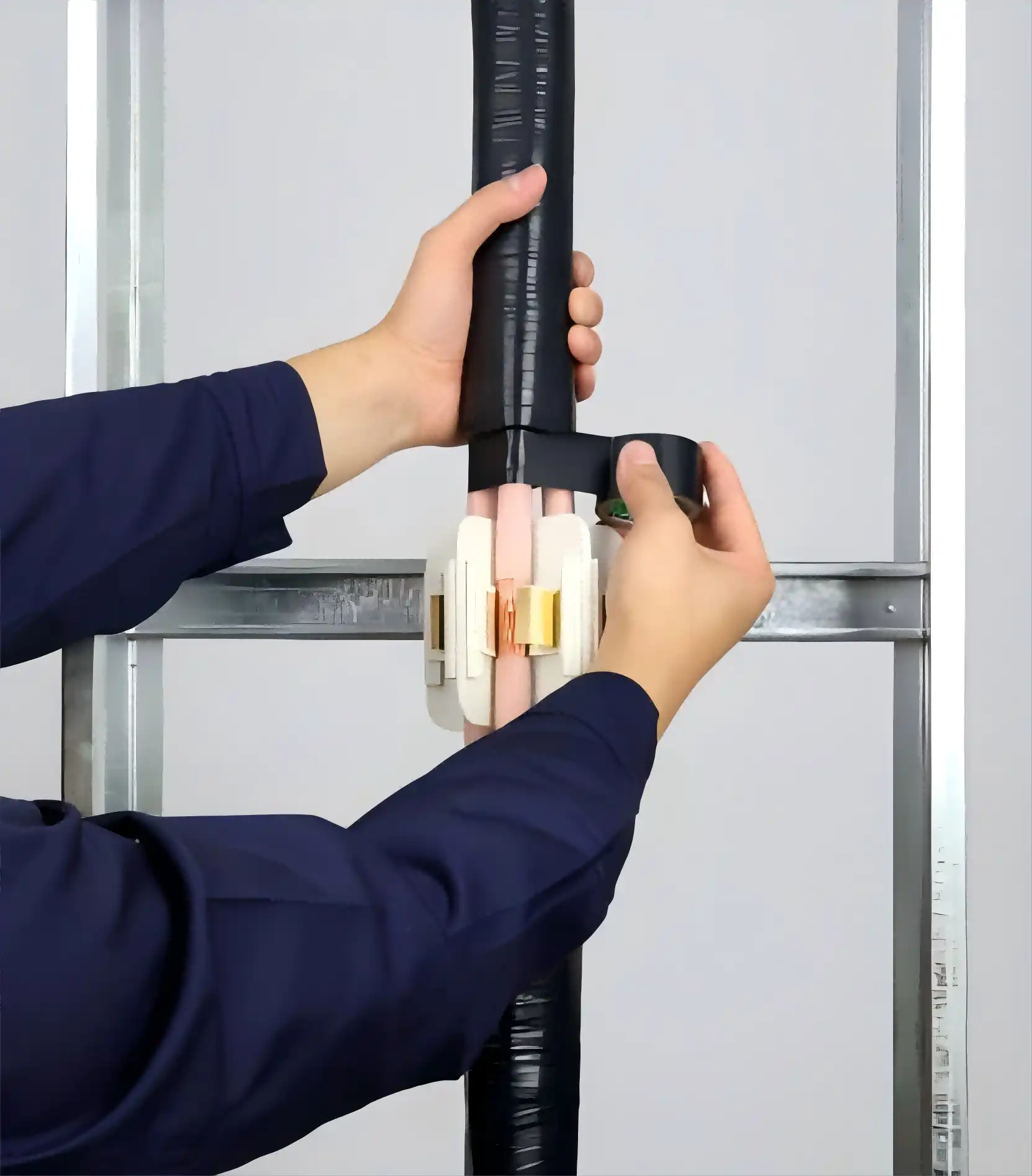

2.Determine installation location

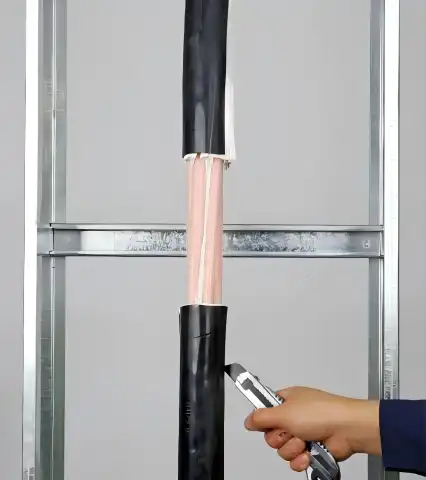

3.Open outer sheath
5.Installation of branch cable body
6.Overwrap open seams

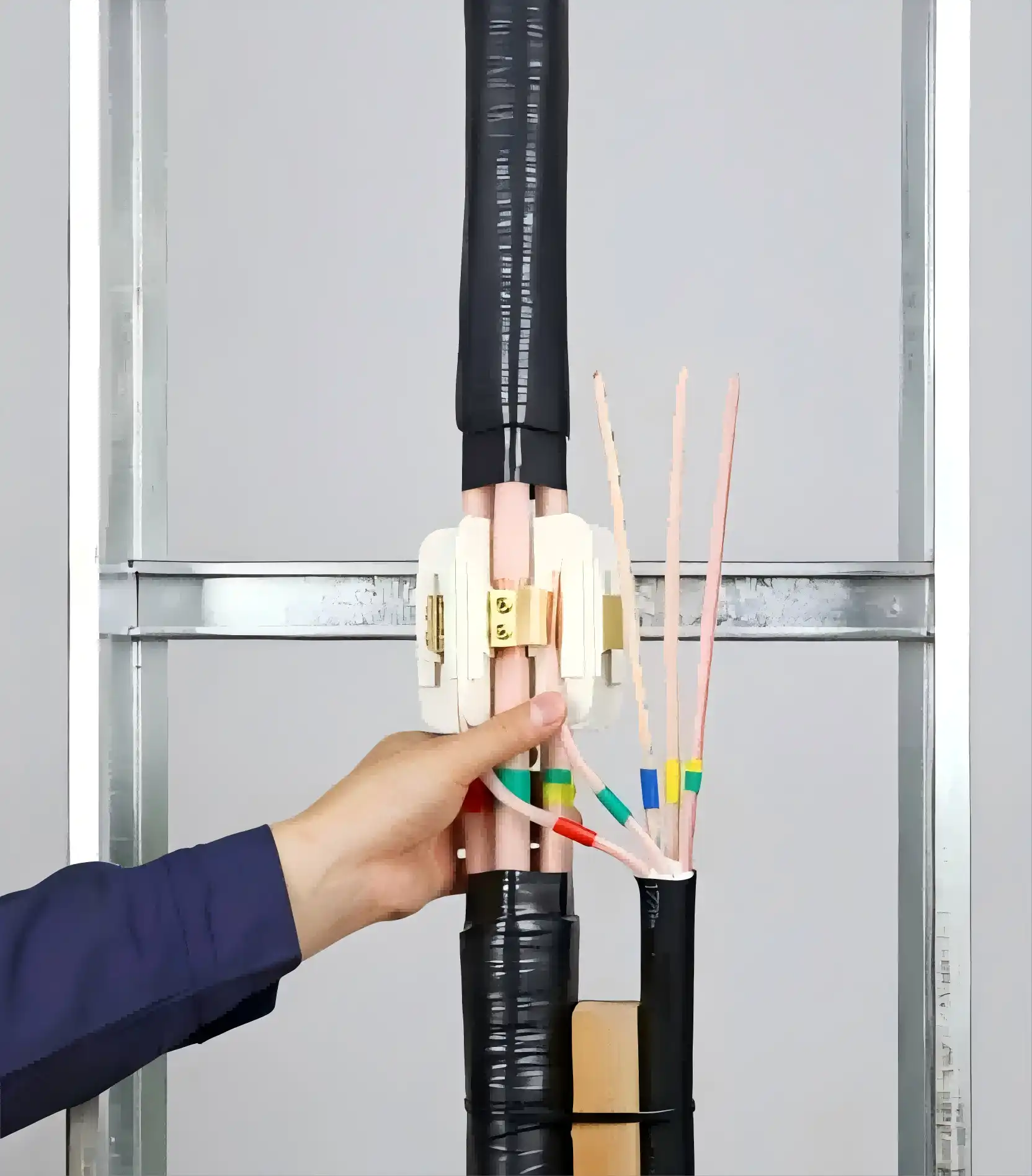

7.Installation of branch cables

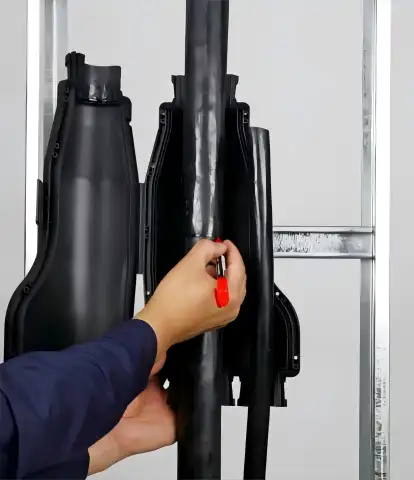

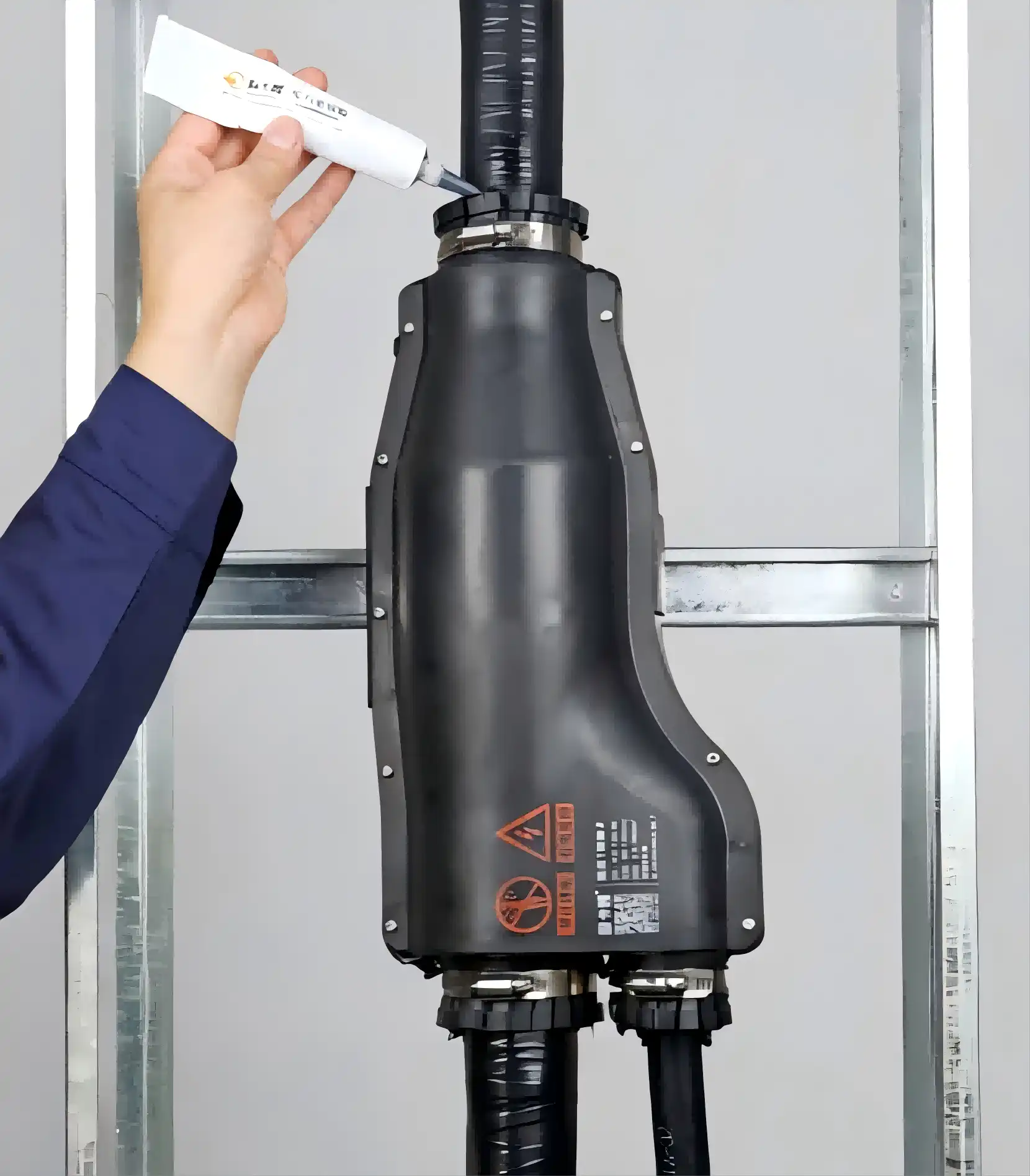

8.Snap-on protective housing
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
The Cable Jointing Cable Joint Connector stands out due to its remarkable advantages, which include:
- On-Site Flexibility: Install and connect cables at any position on-site, ensuring flexibility and efficiency during construction.
- Integrated and Aesthetic: The design is both integrated and visually appealing, making your cable connections safe, reliable, and aesthetically pleasing.
- Compact and Versatile: With a compact structure and small size, it can be installed both openly and in cable bridges.
- Ease of Use: Simple to install and maintain, this connector is reusable, saving time and effort.
- Durability and Protection: It offers superior insulation, flame retardancy, fire resistance, dustproof, waterproof, anti-aging, and anti-electrochemical corrosion features.
- Cost-Efficient: Reduce cable usage, save building space, lower labor costs, and cut down on overall expenses with this efficient solution.
Technical Features
Our product boasts several technical features that ensure superior performance:
- Main Cable Integrity: No need to cut off the main cable, preserving its integrity.
- Seamless Connection: The main and branch cables connect directly to the flame-retardant/fire-resistant insulated integrated T-connector body.
- Complete Insulation: The branch cable is insulated and sealed as a whole, enhancing safety and reliability.
Application
The Cable Jointing Cable Joint Connector is specifically designed for:
- Low-Voltage Cables: Ideal for insulated waterproof, flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
- Versatile Usage: Suitable for various applications where reliable and efficient cable branching is required.
OEM Service
At Xi'an OUKAMU, we offer comprehensive OEM services to meet your specific needs. Whether you require customized connectors or special configurations, our team is ready to provide solutions tailored to your requirements. Our commitment to quality and innovation ensures that you receive a product that exceeds your expectations.
