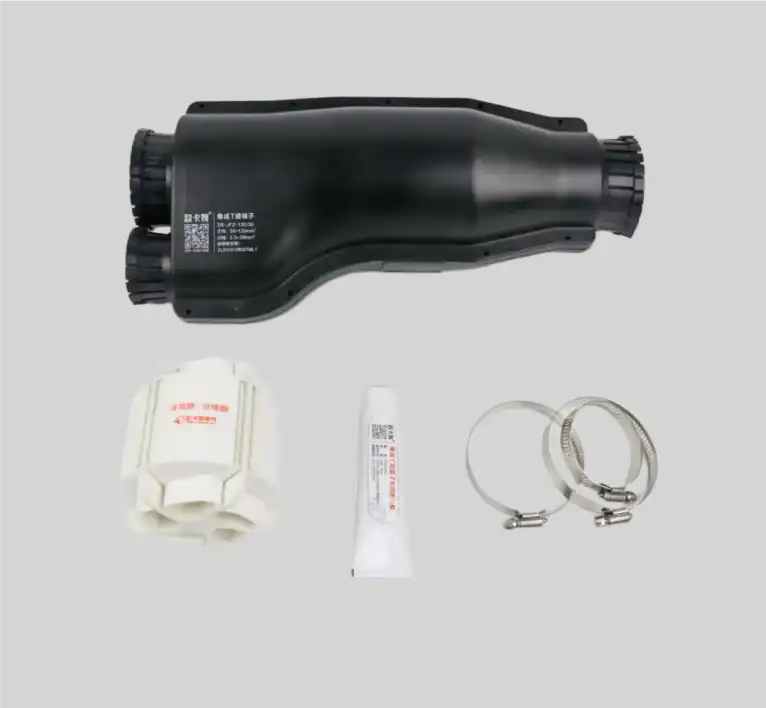

Resin Cable Joints
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Resin Cable Joints Introduction
Welcome to Xi'an OUKAMU, where innovation meets reliability. Our Cast Resin Cable Joints are designed to provide top-notch performance in connecting cables securely and efficiently. These joints are an integral part of our cable T-connection product line, ensuring that your cable connections are safe, durable, and easy to install. With our pioneering cable integrated T-connection technology, we have revolutionized the way cable joints are made, offering you a solution that is both innovative and practical.
Advantage
Due to their distinct advantages, our Cast Resin Cable Joints stand out from the competition:
Ease of Installation: Because they are designed to be simple to use, these joints can be installed quickly and without difficulty, saving you time and money on labor.
Superior adaptability: Our cable joints are made of high-quality materials and have a long service life because they are resistant to chemicals, moisture, and dust from the environment.
Enhanced Safety: Because they are fire-resistant and flame-retardant, our cable joints offer superior protection against potential threats, making them ideal for critical applications.
Options for Using: Because our cable joints can be utilized both inside and outside, they can be utilized in a variety of settings.
Cost-Effective: Because they require less frequent maintenance and replacement, our cable joints are an affordable choice for your cable connection requirements. This helps reduce overall costs.

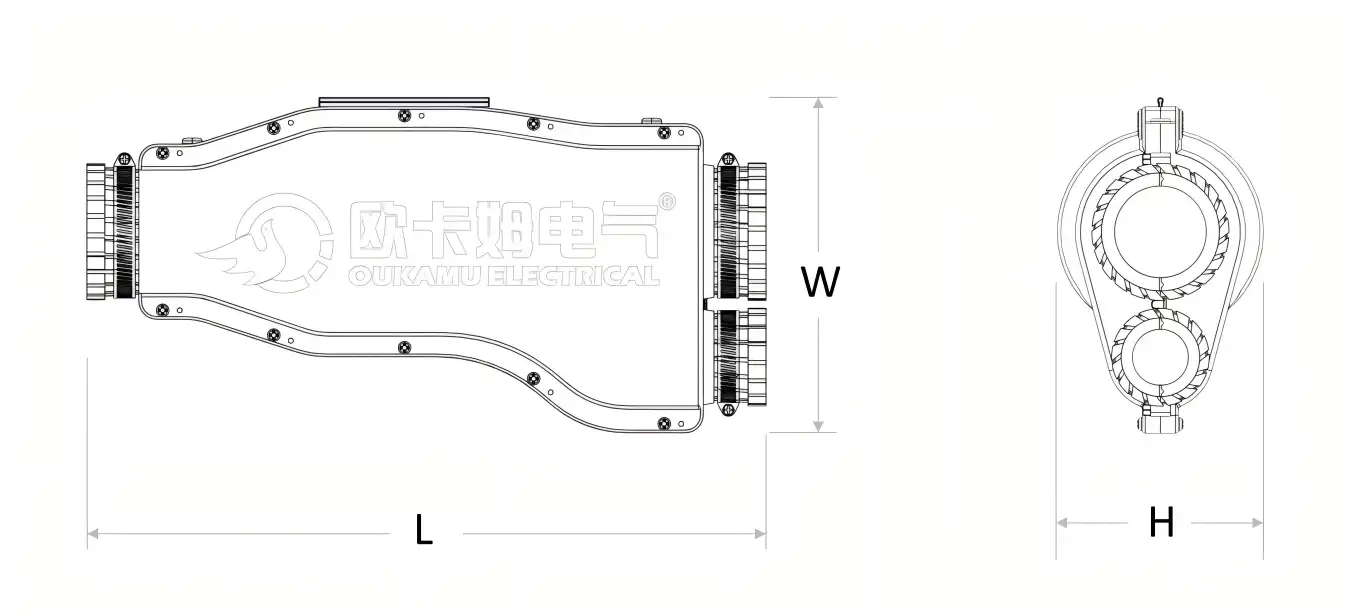

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

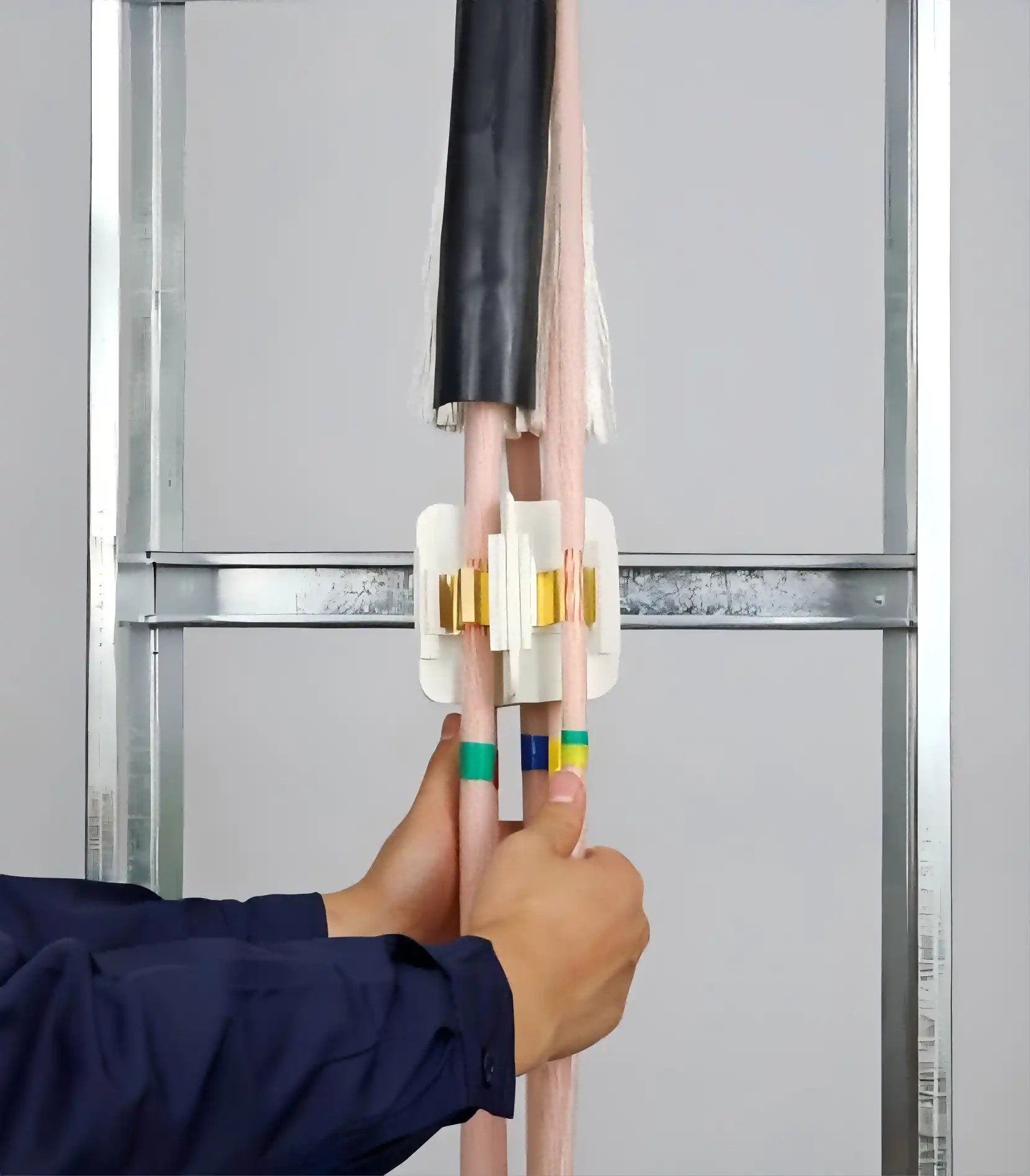

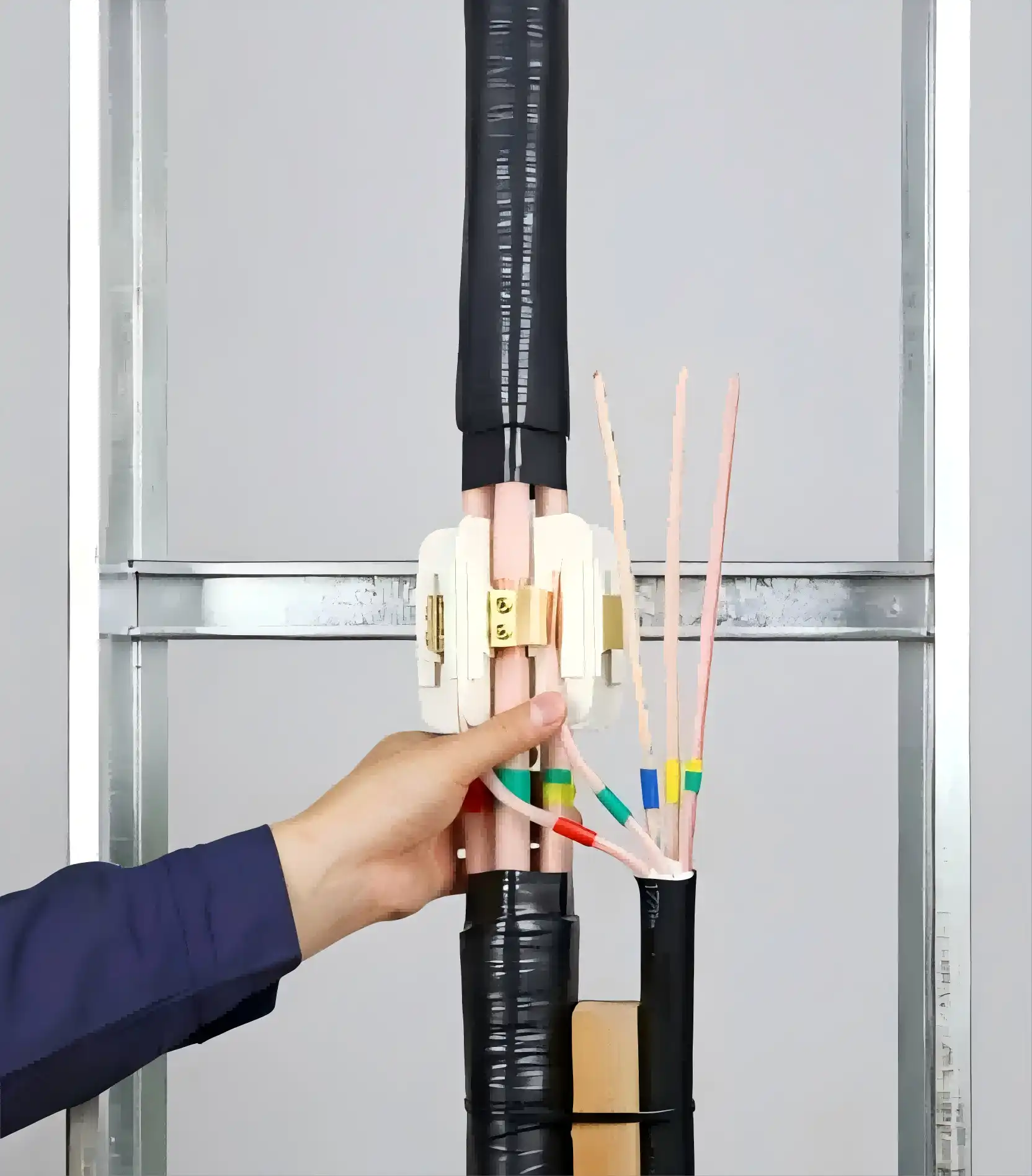

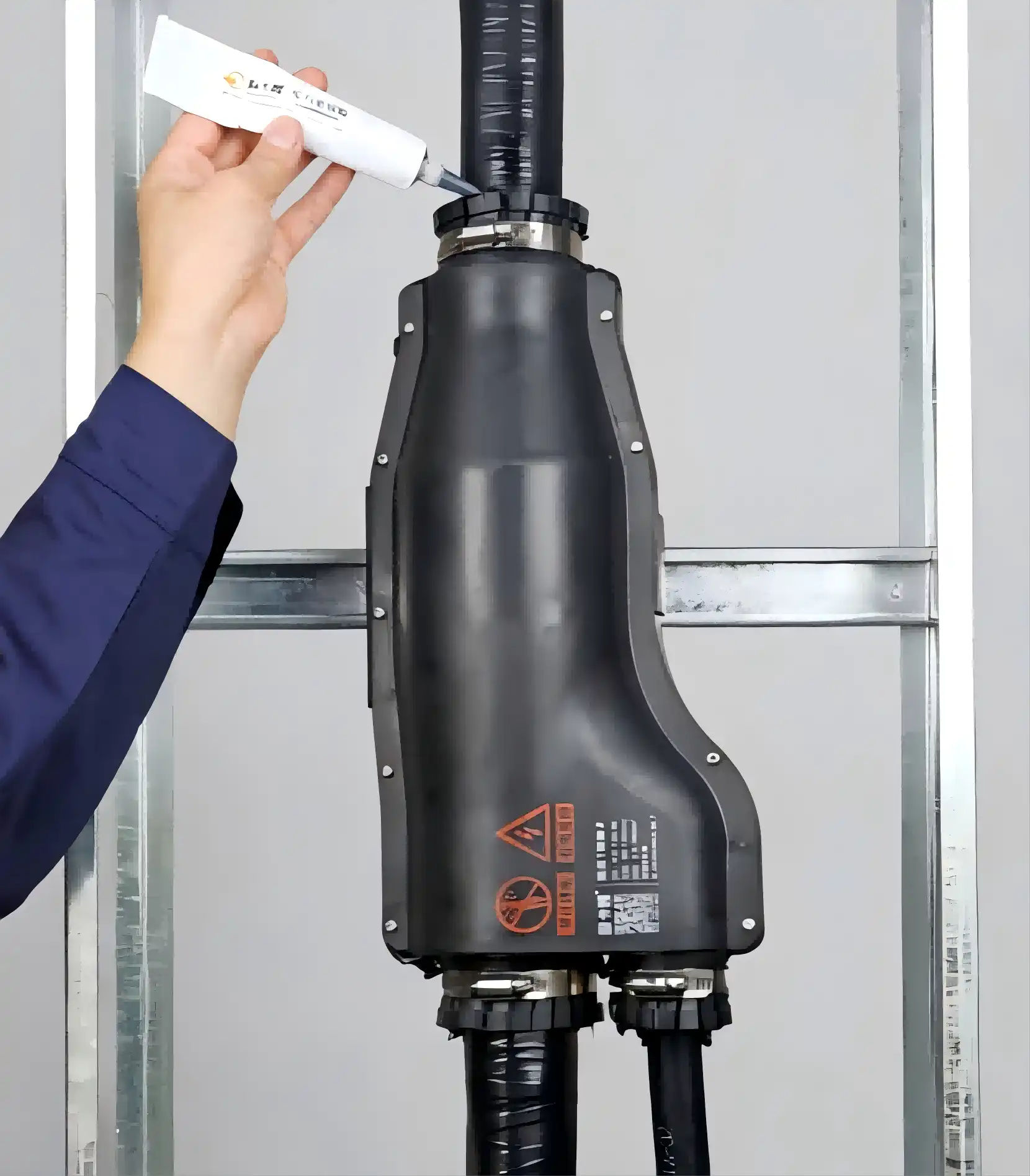

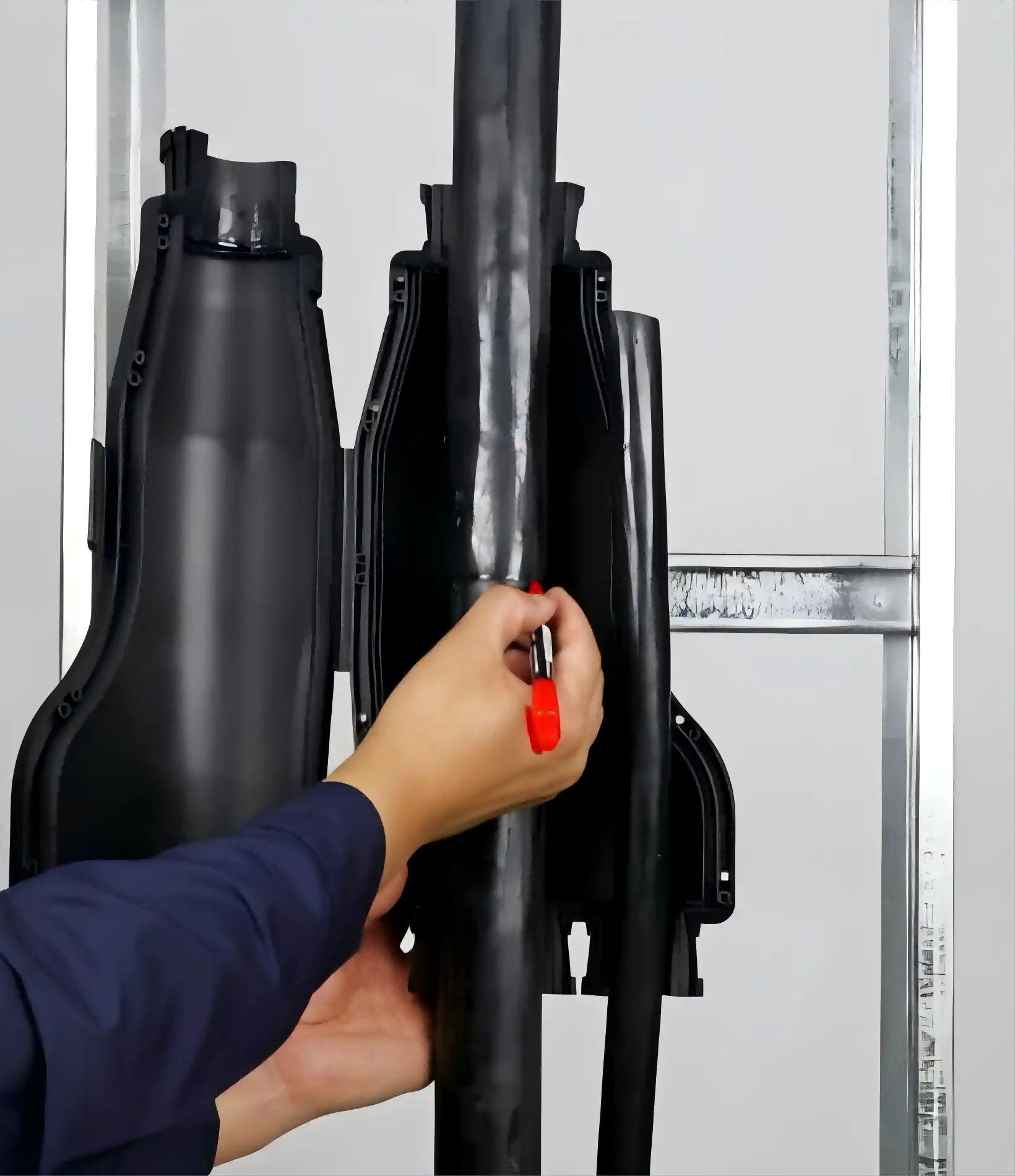

Installation Steps

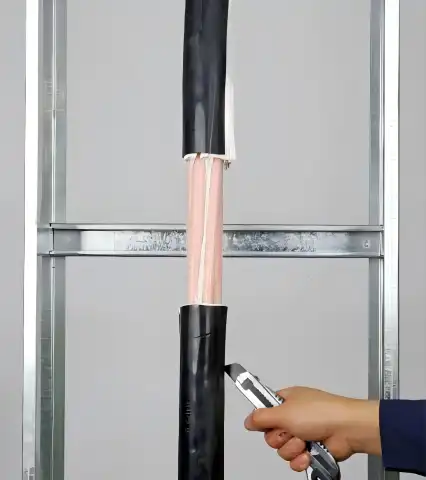

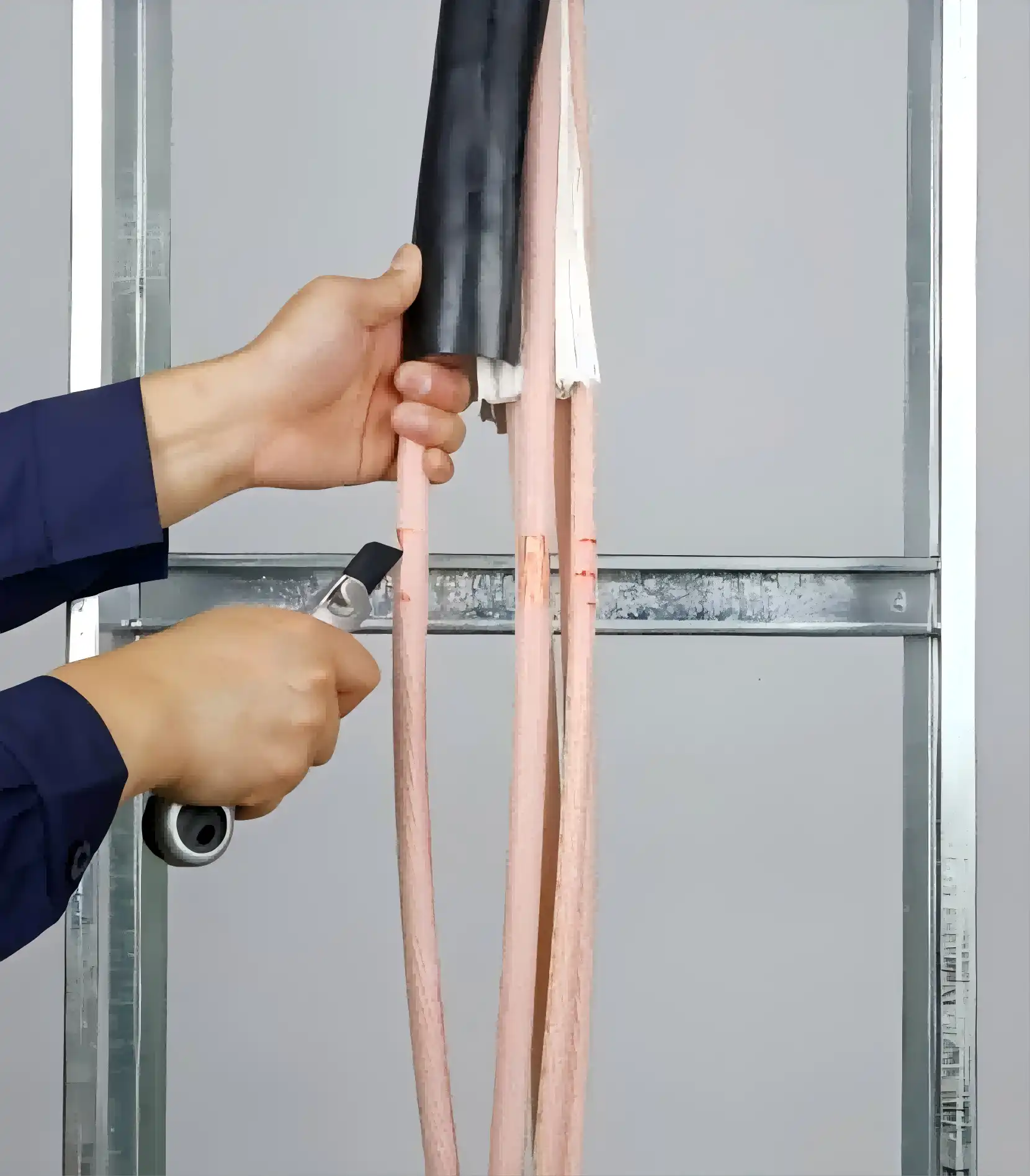

3.Open outer sheath

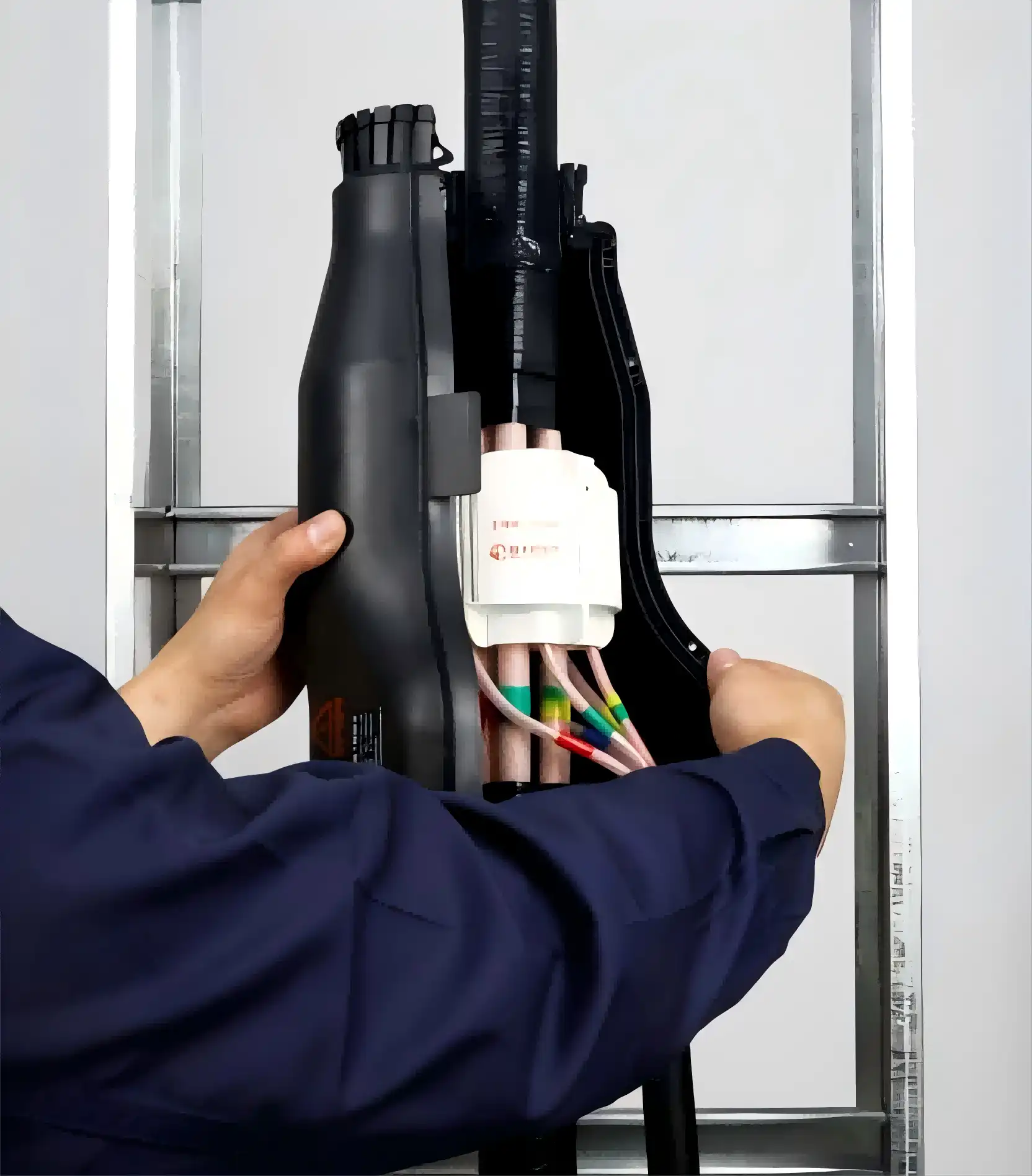

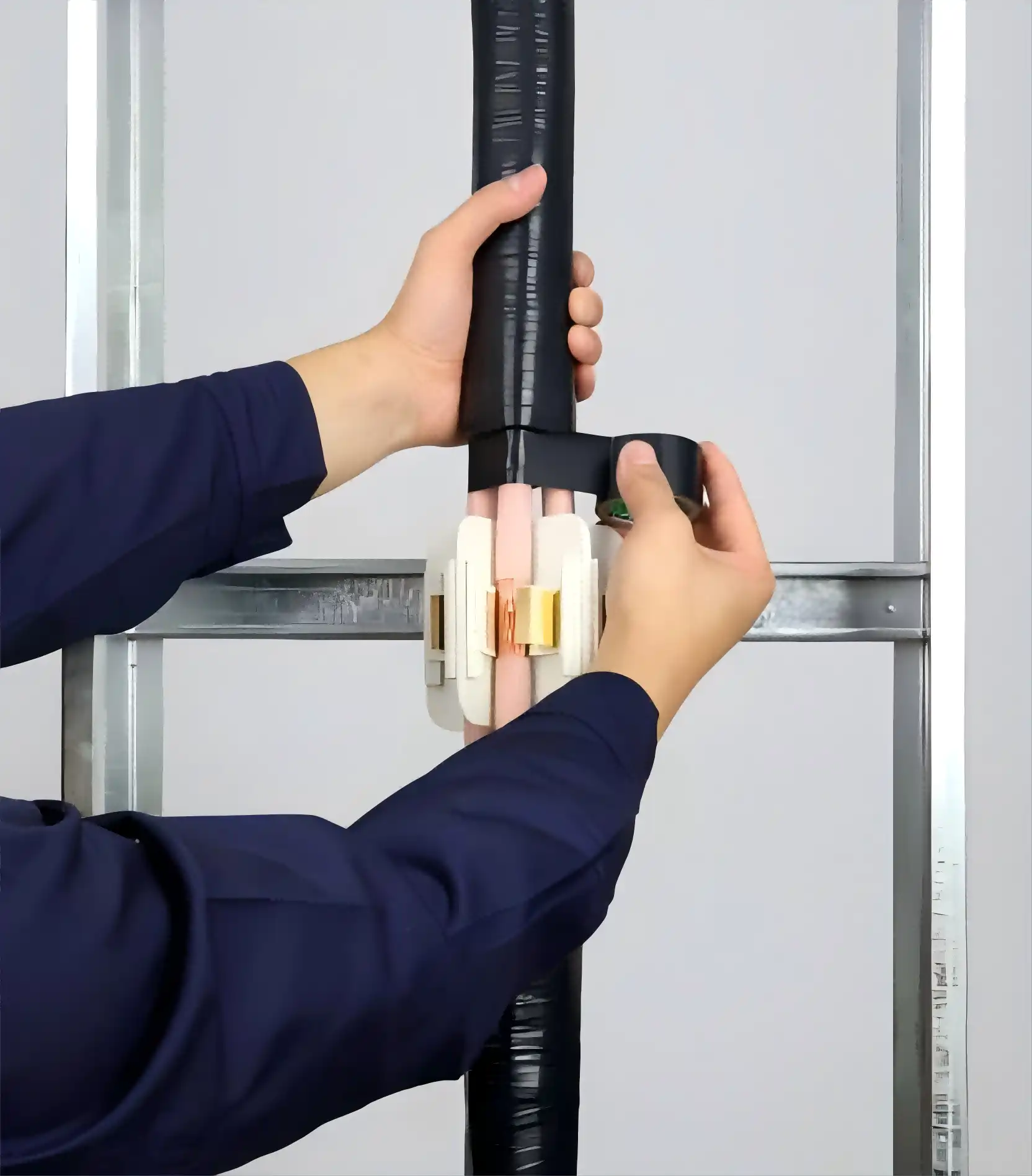

5.Installation of branch cable body

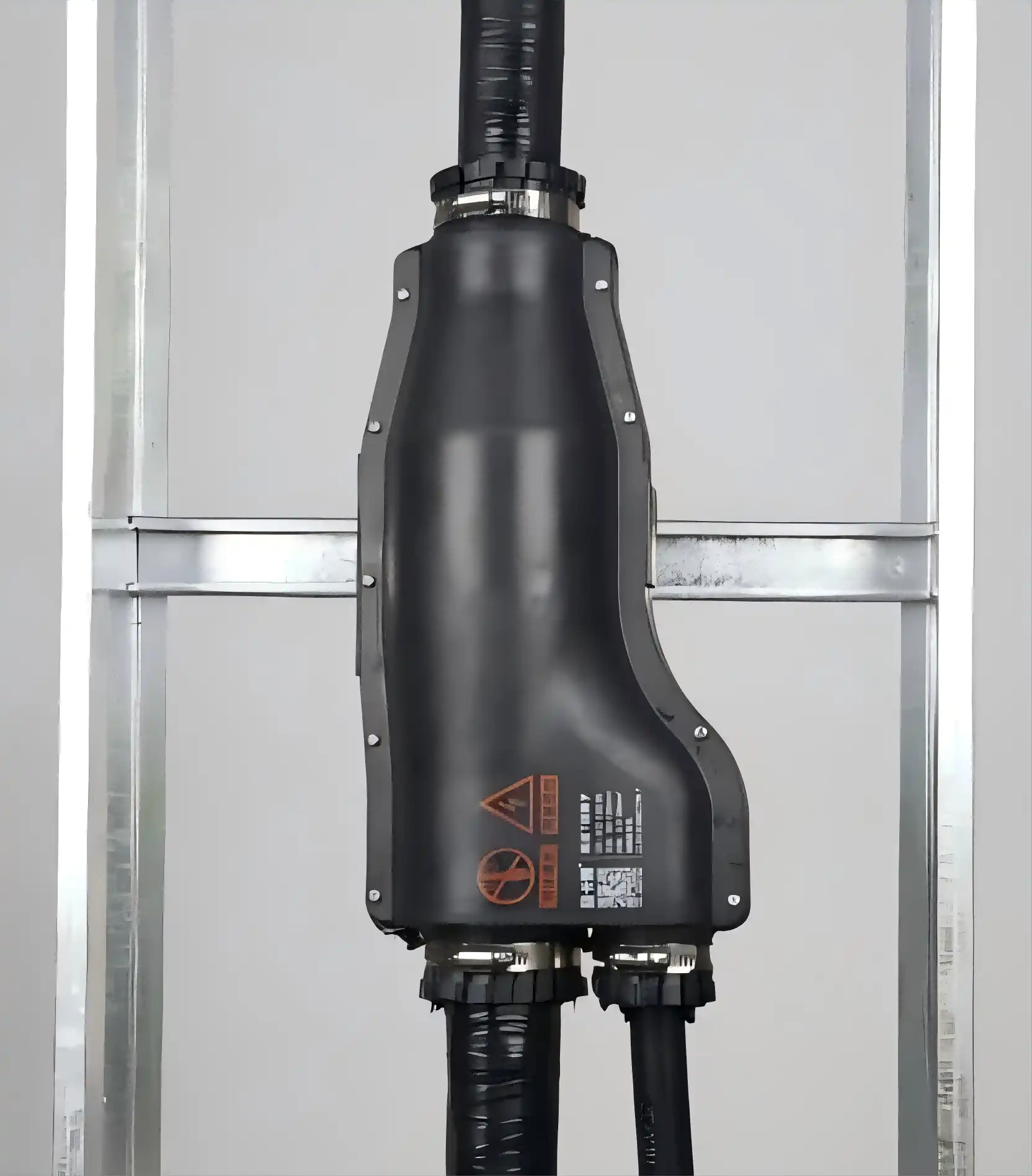

10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Features
The cutting-edge technical features of our product guarantee optimal performance:
Preservation of the Main Cable: There is no need to cut the main cable, which preserves its integrity.
Integrated Linkage: On the fire-resistant and flame-retardant insulated T-connector body, the main and branch cables are connected.
Fixed Protection: The branch cable is sealed and insulated, giving it complete protection from the outside world.
R&D Center
Innovation is at the center of our Research and Development Center at Xi'an OUKAMU.
We constantly strive to improve our products through rigorous testing and the most recent technological advancements.
Our specialists are committed to developing solutions that not only meet but also exceed industry standards.
Consequently, you will receive high-quality goods.
Product Application
Our Cast Resin Cable Joints are suitable for the following applications due to their adaptability:
Power Distribution Systems: ideal for low-voltage power distribution systems that place a high value on security and dependability.
Industries-specific installations: ideal for cables that need to be secured in harsh industrial settings where abrasion resistance and long-term viability are crucial.
Infrastructure construction: suitable for installation in residential, commercial, and industrial structures, ensuring secure and efficient cable connections.
Methods of Fighting a Fire: Due to their flame-retardant and fire-resistant properties, our cable joints are ideal for use in fire safety systems as an additional layer of protection.
Quality Control
Quality is at the center of everything we do at Xi'an OUKAMU. Our products are subjected to stringent quality control procedures to guarantee that they meet the highest standards.
FAQ
Q: What are the key benefits of using Cast Resin Cable Joints?
A: Our cable joints offer easy installation, high durability, enhanced safety, versatile applications, and cost-effectiveness.
Q: Are these cable joints suitable for outdoor use?
A: Yes, our products are designed to withstand various environmental factors, making them suitable for both indoor and outdoor applications.
Q: How do these joints enhance fire safety?
A: They are made with flame-retardant and fire-resistant materials, providing superior protection in environments where fire safety is critical.
Q: Can these cable joints be reused?
A: Yes, the compact and durable design of our cable joints allows for reuse, making them a practical and economical choice.
Q: What kind of maintenance do these cable joints require?
A: Our cable joints require minimal maintenance, helping to reduce overall costs and ensuring long-term reliability.
