Resin Joint For Armoured Cable
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Resin Joint For Armoured Cable Introduction
At Xi'an OUKAMU, innovation drives our product development. We take pride in our pioneering approach, particularly with the Resin Joint For Armoured Cable. This product is a specialized solution designed to enhance the reliability and safety of cable connections in demanding environments. Whether you're working on a critical infrastructure project or need a dependable solution for industrial applications, our Resin Joint ensures secure, long-lasting connections.
It is more than just a connection device; it's a vital component that provides robust protection against environmental factors such as moisture, dust, and mechanical stress. With a focus on ease of use and installation, this product is an ideal choice for engineers and technicians who need to maintain high safety standards without compromising efficiency.

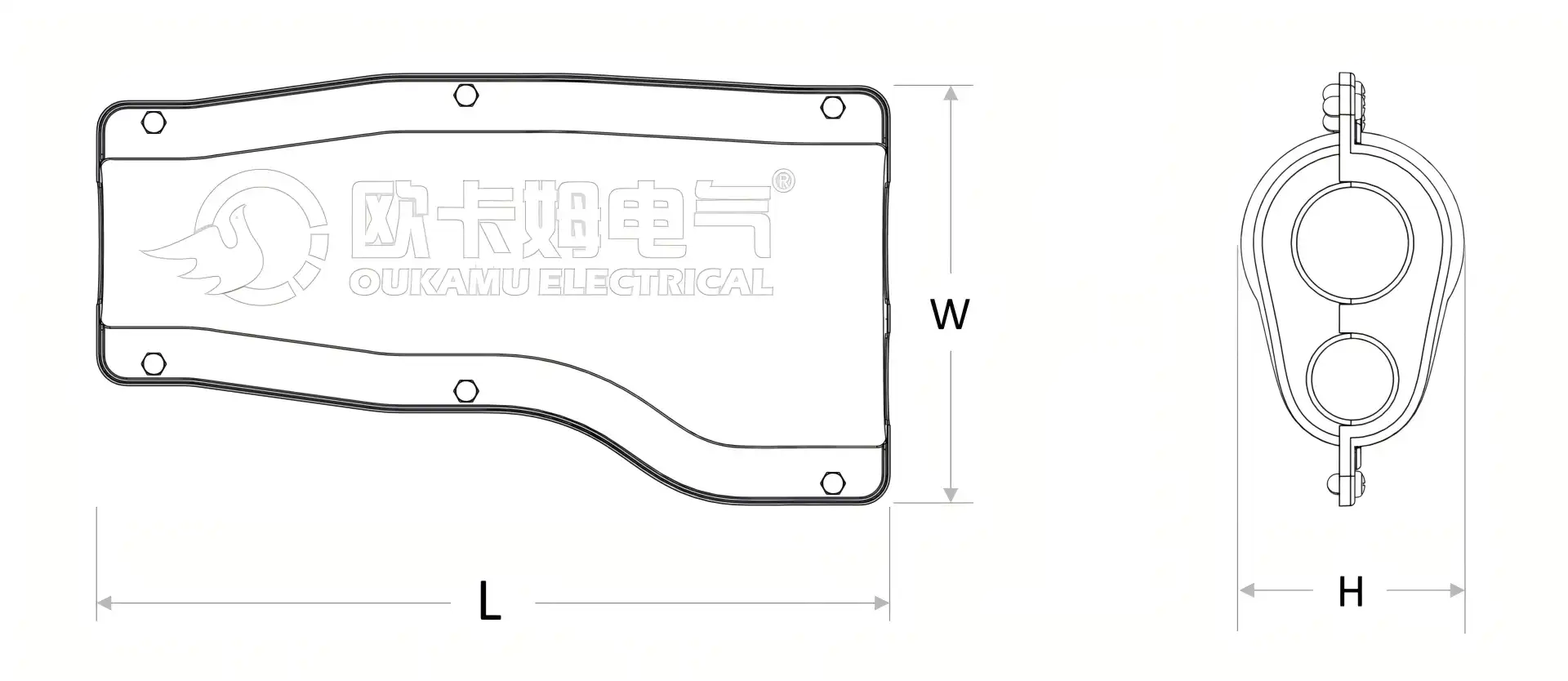

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |

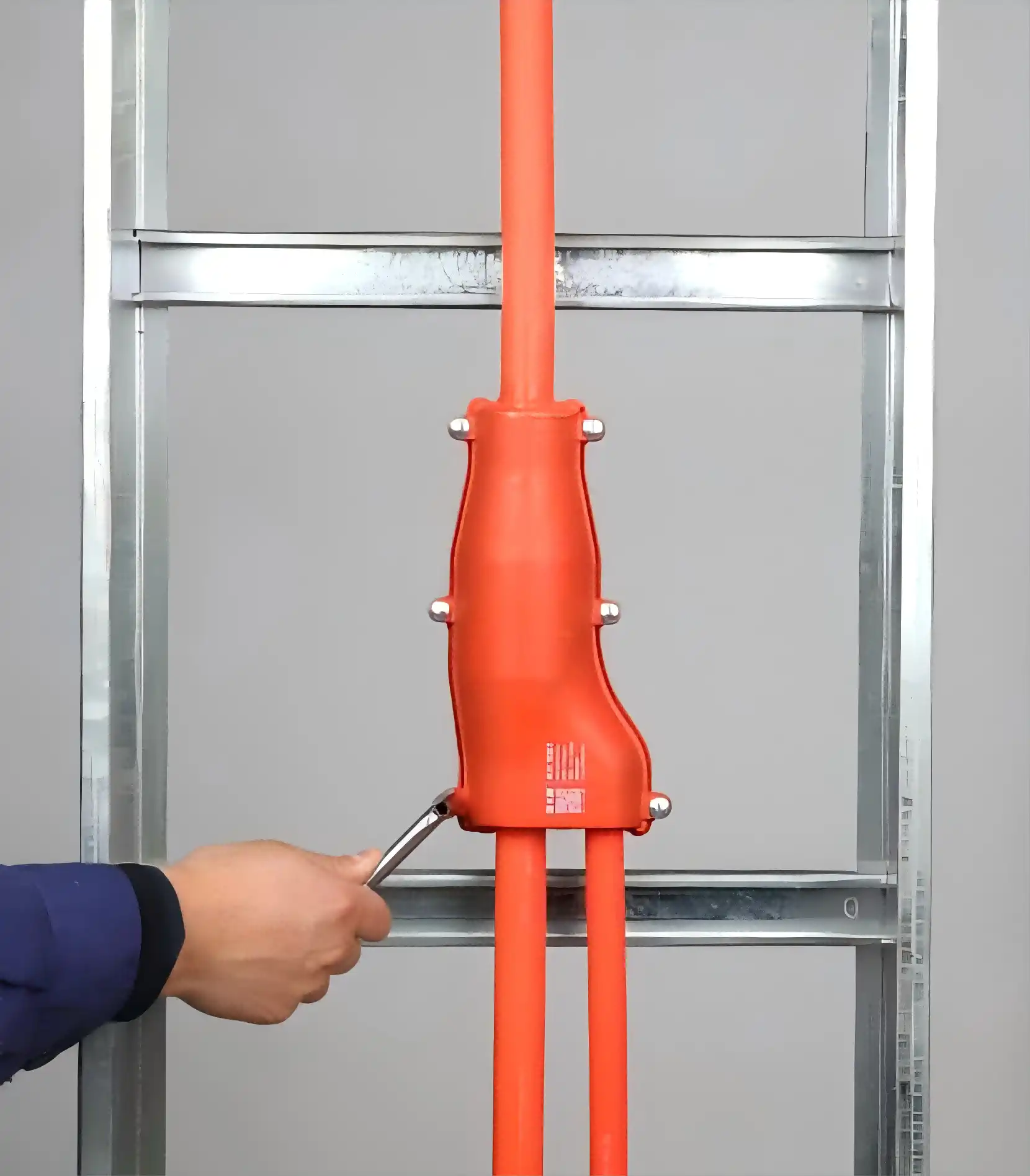

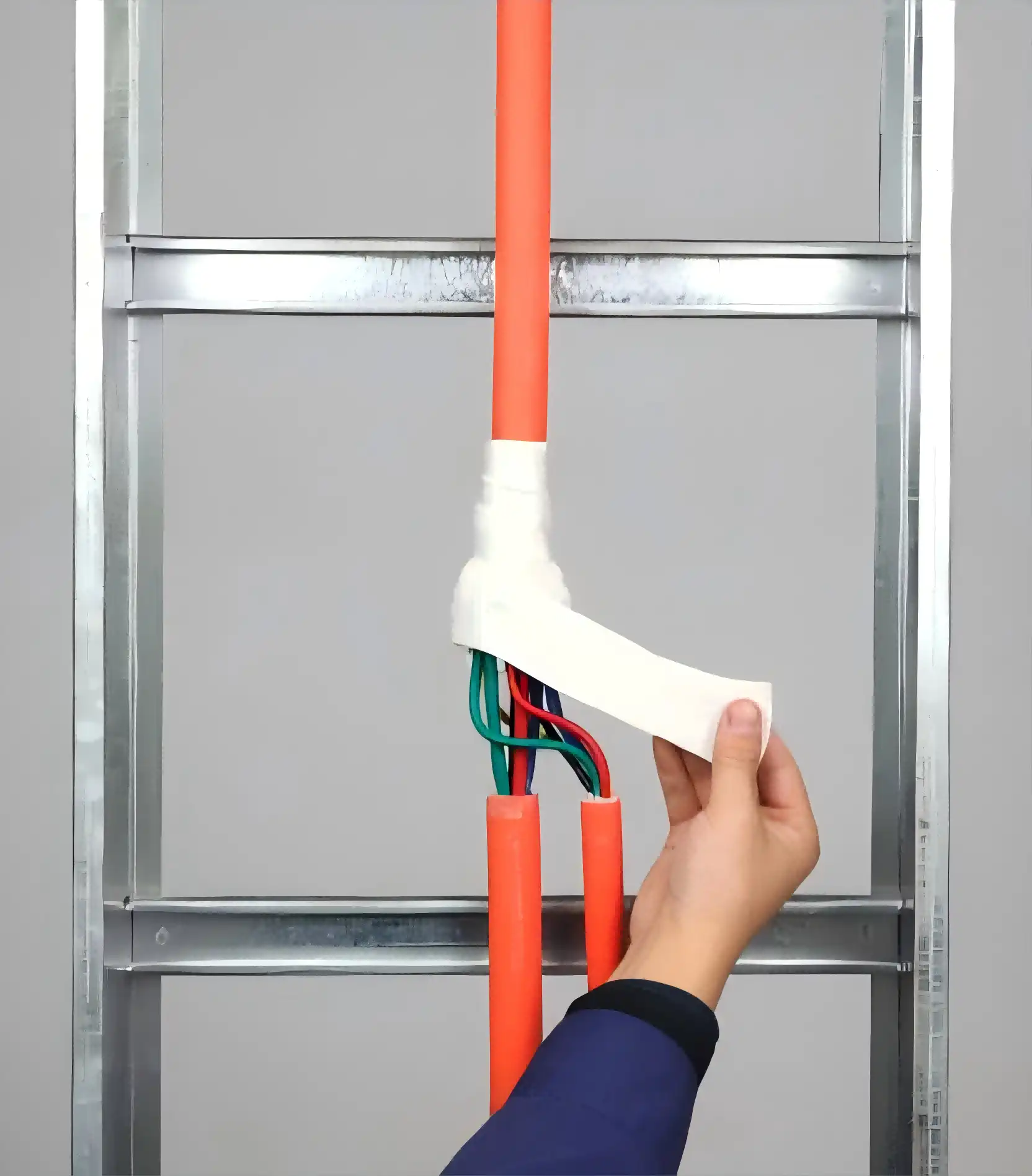

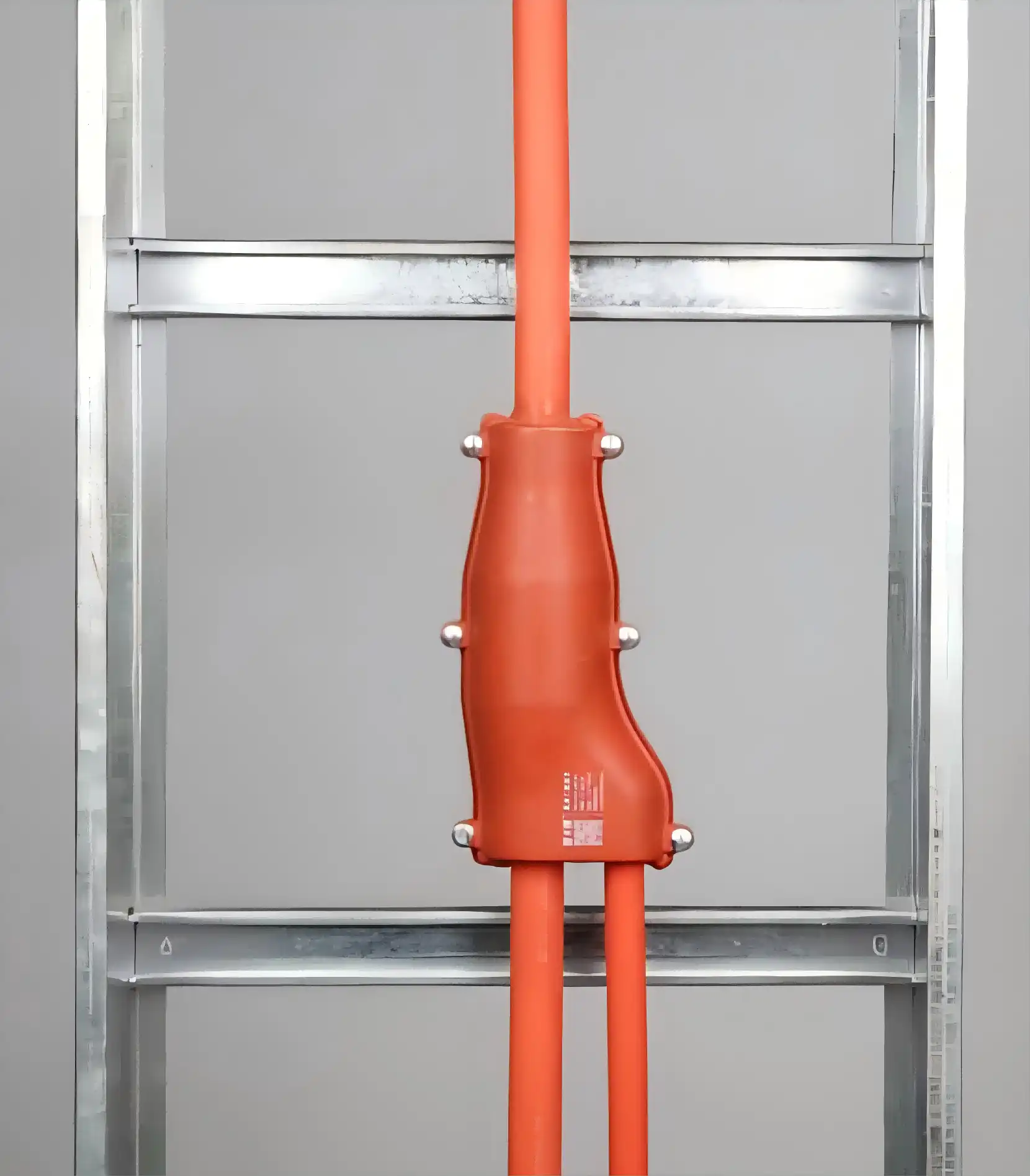

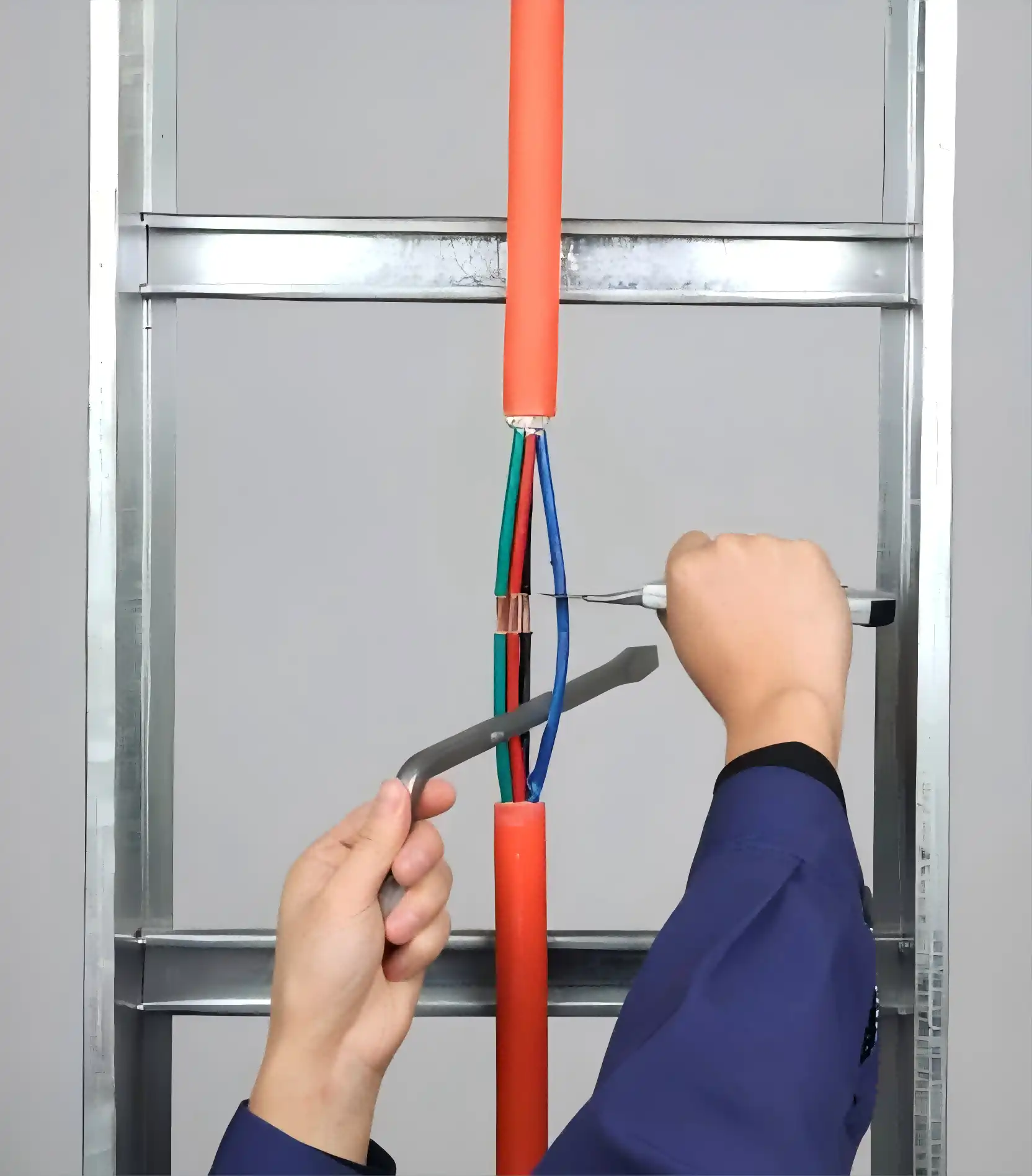

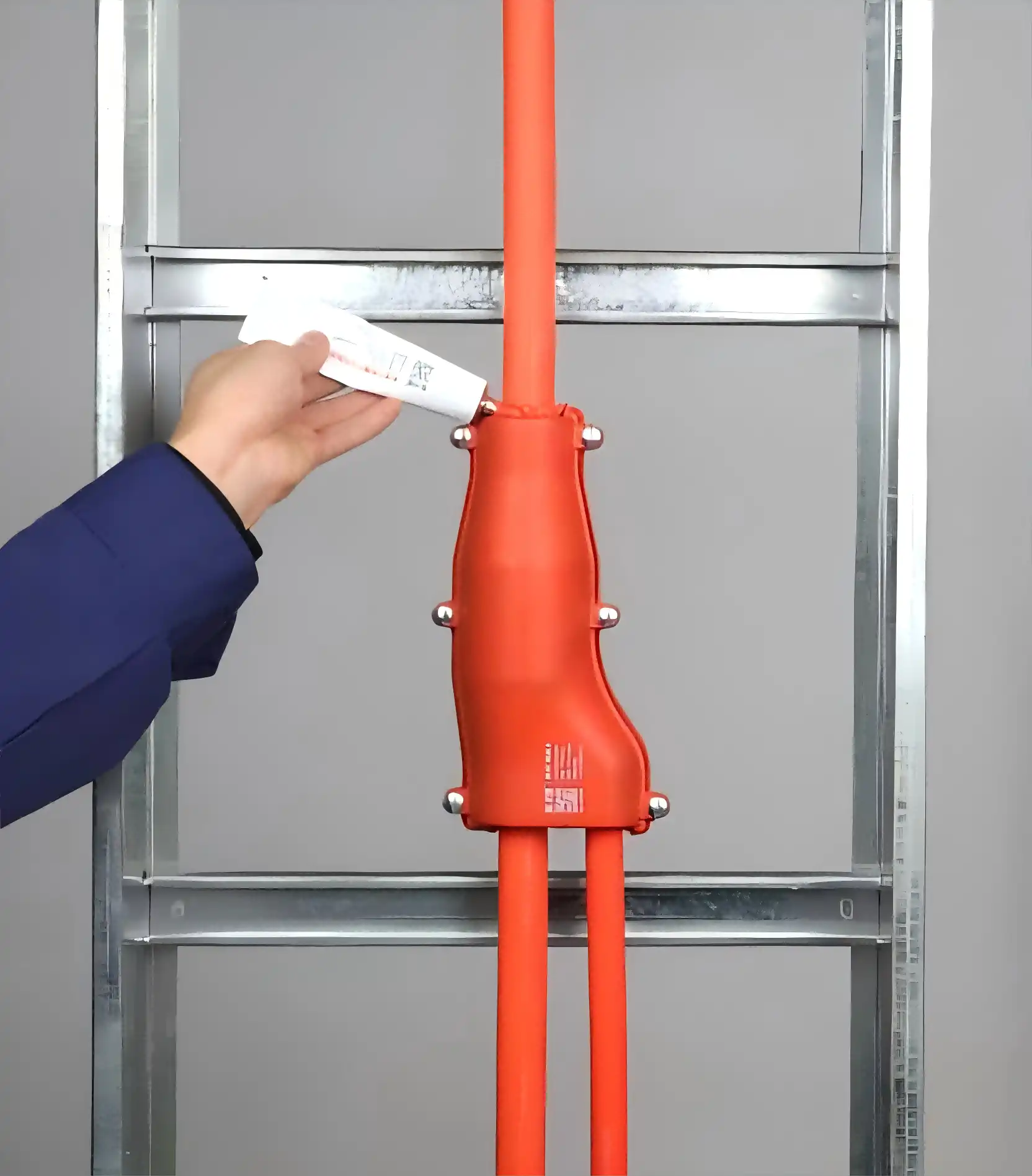

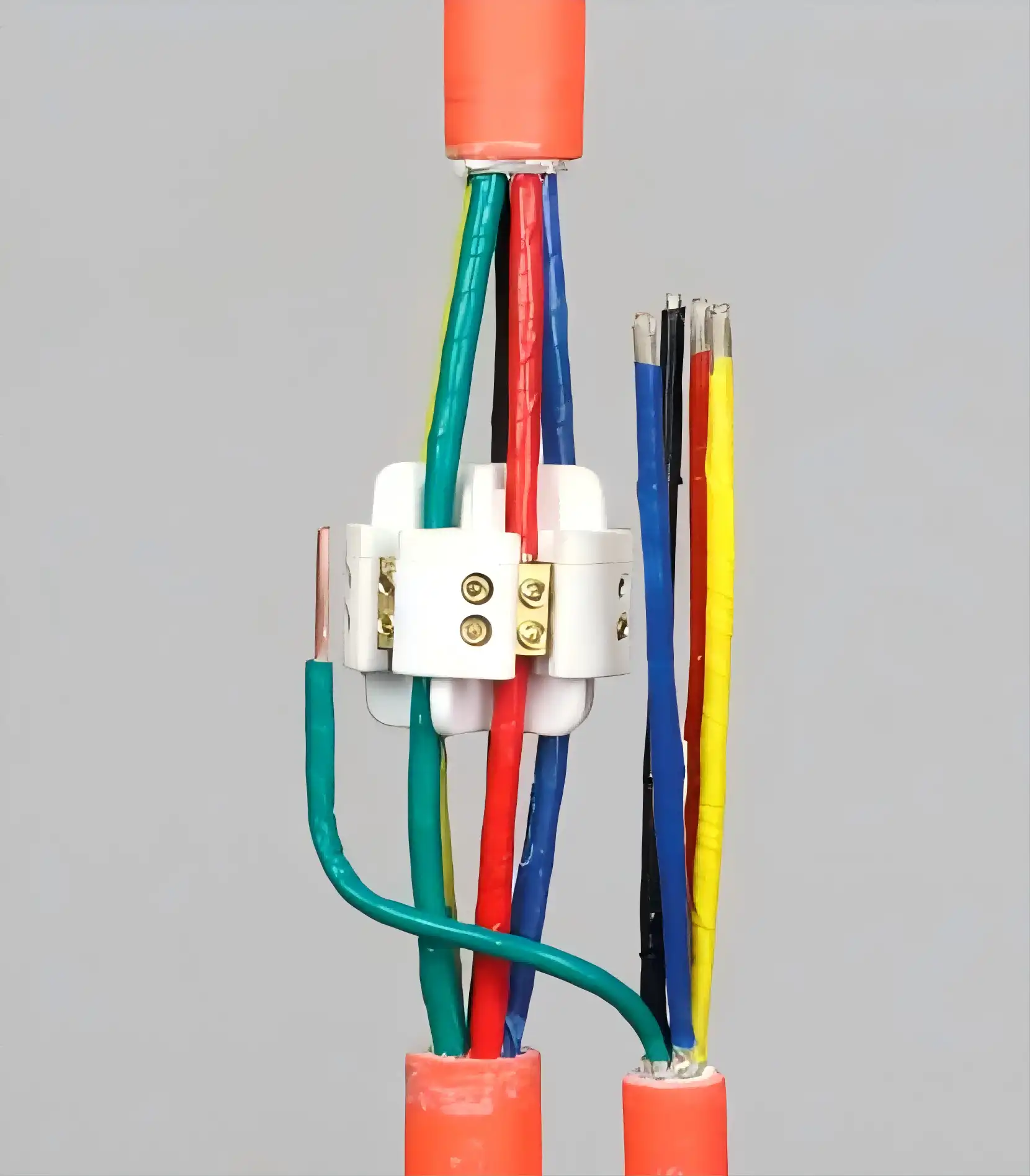

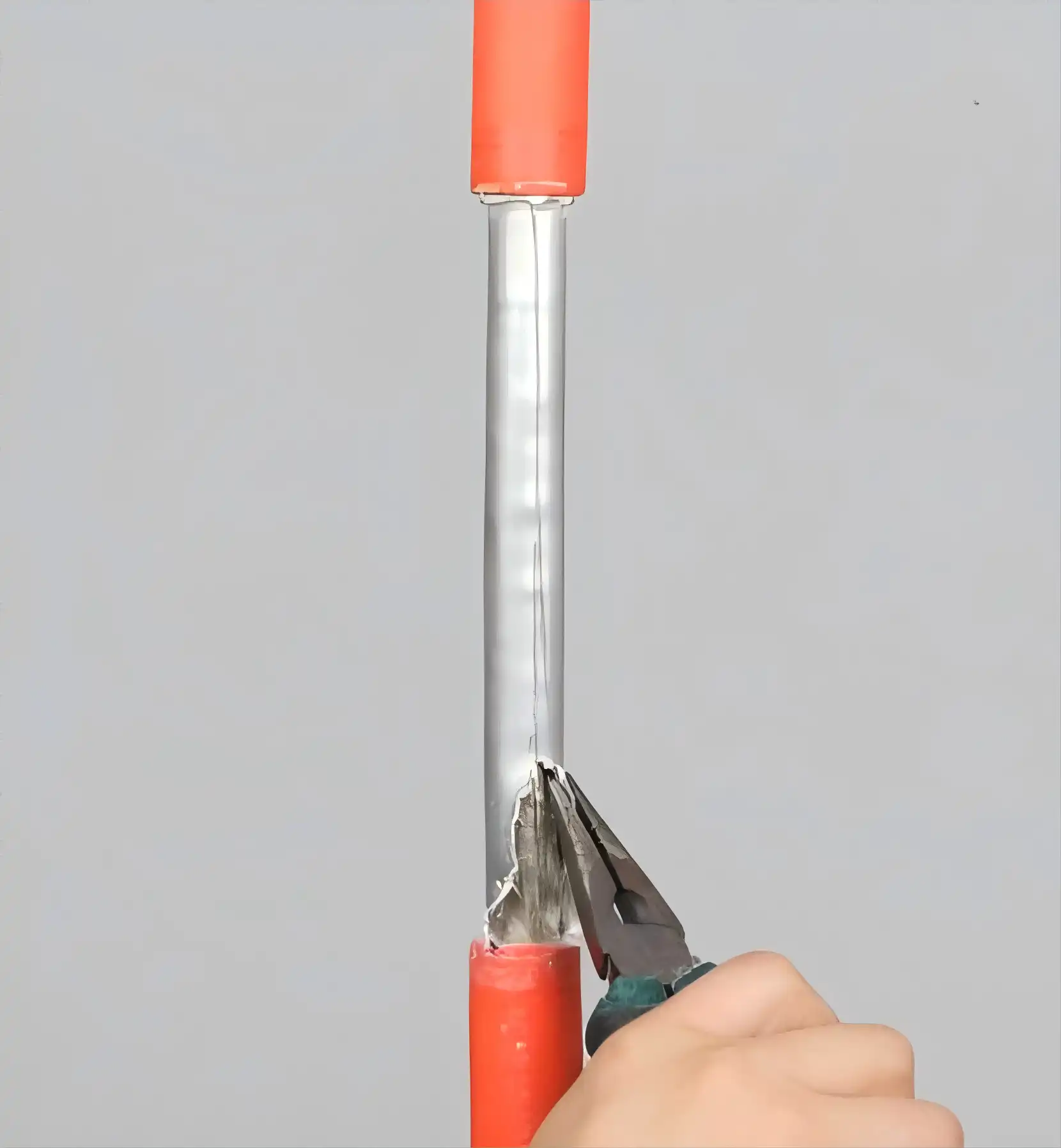

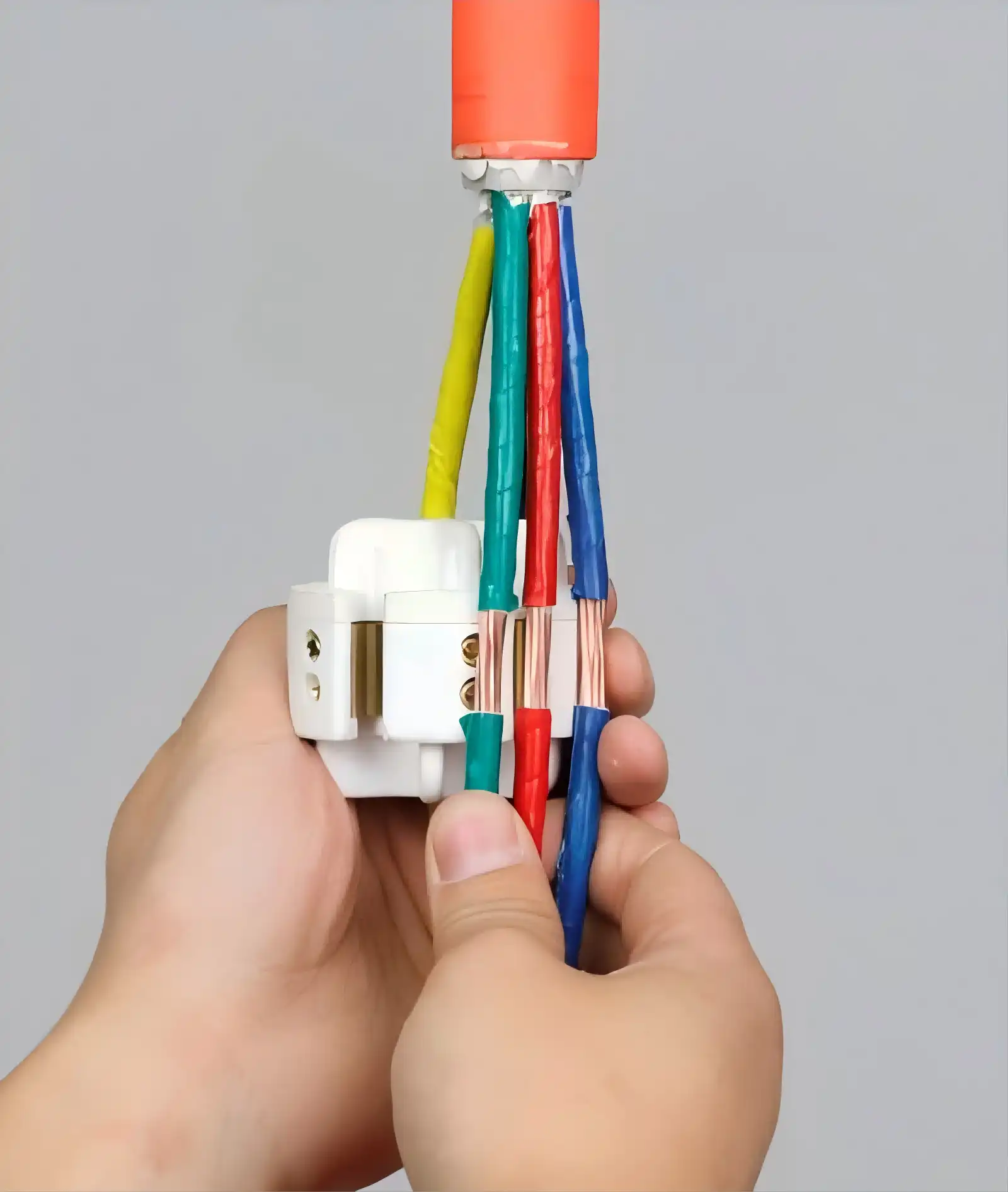

Installation Steps
Technical Parameters
Our Resin Joint For Armoured Cable is built to meet the most rigorous standards in the industry. Below are the key technical parameters:
- Material: High-strength, flame-retardant resin
- Fire-resistant Temperature: 750~1000℃
- Withstand Voltage: 3.5kV
- Voltage Drop: <3.2mV
- Insulation Resistance: >500MΩ
These specifications make our Resin Joint a versatile and reliable solution for various applications, ensuring optimal performance even under the harshest conditions.
Technical Features
The Resin Joint For Armoured Cable incorporates several advanced technical features that set it apart:
- Non-Invasive Installation: The armoured cable remains intact during installation, preserving its integrity.
- Integrated Sealing: The joint provides a comprehensive seal, preventing moisture ingress and ensuring long-term reliability.
- Enhanced Protection: The resin material offers exceptional resistance to environmental stressors, including UV radiation, chemicals, and mechanical impacts.
- User-Friendly Design: Installation is straightforward, minimizing downtime and reducing labor costs.
These features contribute to the overall effectiveness of the Resin Joint, making it a go-to solution for engineers and contractors.

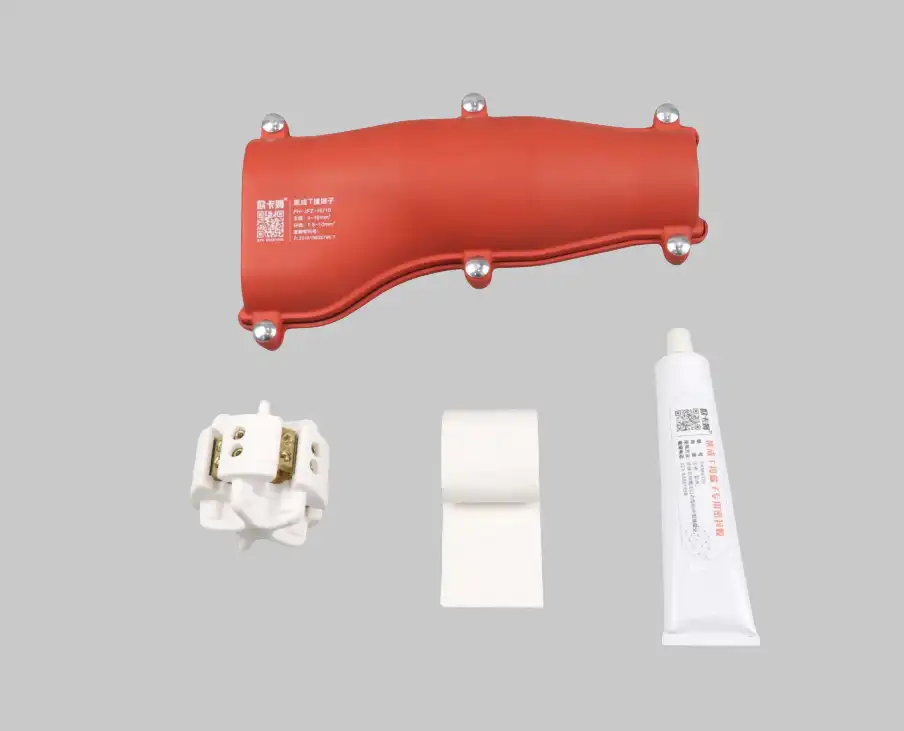

Composition and Classification
It is classified based on its construction and application:
- Type A: Standard resin joint for general-purpose use in non-corrosive environments.
- Type B: Enhanced resin joint with additional UV and chemical resistance, suitable for outdoor installations.
- Type C: Heavy-duty resin joint designed for high-impact and high-temperature environments, providing maximum protection.
Each type is engineered with a specific application in mind, ensuring that you have the right solution for your project.
Application
The versatility of the Resin Joint For Armoured Cable allows it to be used in various fields:
- Infrastructure Projects: Ideal for connecting cables in bridges, tunnels, and other critical infrastructure.
- Industrial Applications: Suitable for use in factories, refineries, and chemical plants where environmental conditions are harsh.
- Renewable Energy: Perfect for solar and wind energy installations, providing reliable connections in challenging outdoor environments.
- Marine and Offshore: Resistant to saltwater corrosion, making it an excellent choice for marine and offshore applications.
With such broad applicability, it is a trusted choice for professionals across multiple industries.
Packaging and Transportation
We understand the importance of safe and secure packaging, especially for products that need to withstand harsh environments. Our product is packaged in durable, moisture-proof containers that ensure the product arrives in perfect condition. Each package includes detailed installation instructions, making it easy for your team to get started right away.
For transportation, we offer flexible options, including sea, air, and land freight, depending on your location and urgency. Our logistics partners are experienced in handling high-value technical products, ensuring timely delivery no matter where your project is located.
