Cable Resin Filled Type Joints For PVC
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cable Resin Filled Type Joints For PVC Introduction
Cable Resin Filled Type Joints for PVC are designed to offer reliable and durable connections for PVC-insulated cables. These joints provide a secure, waterproof, and dustproof solution for cable connections, making them ideal for various industrial and residential applications. Manufactured with precision by Xi'an OUKAMU, these joints ensure seamless integration with PVC cables, reducing the risk of electrical faults and enhancing the overall safety of the installation.

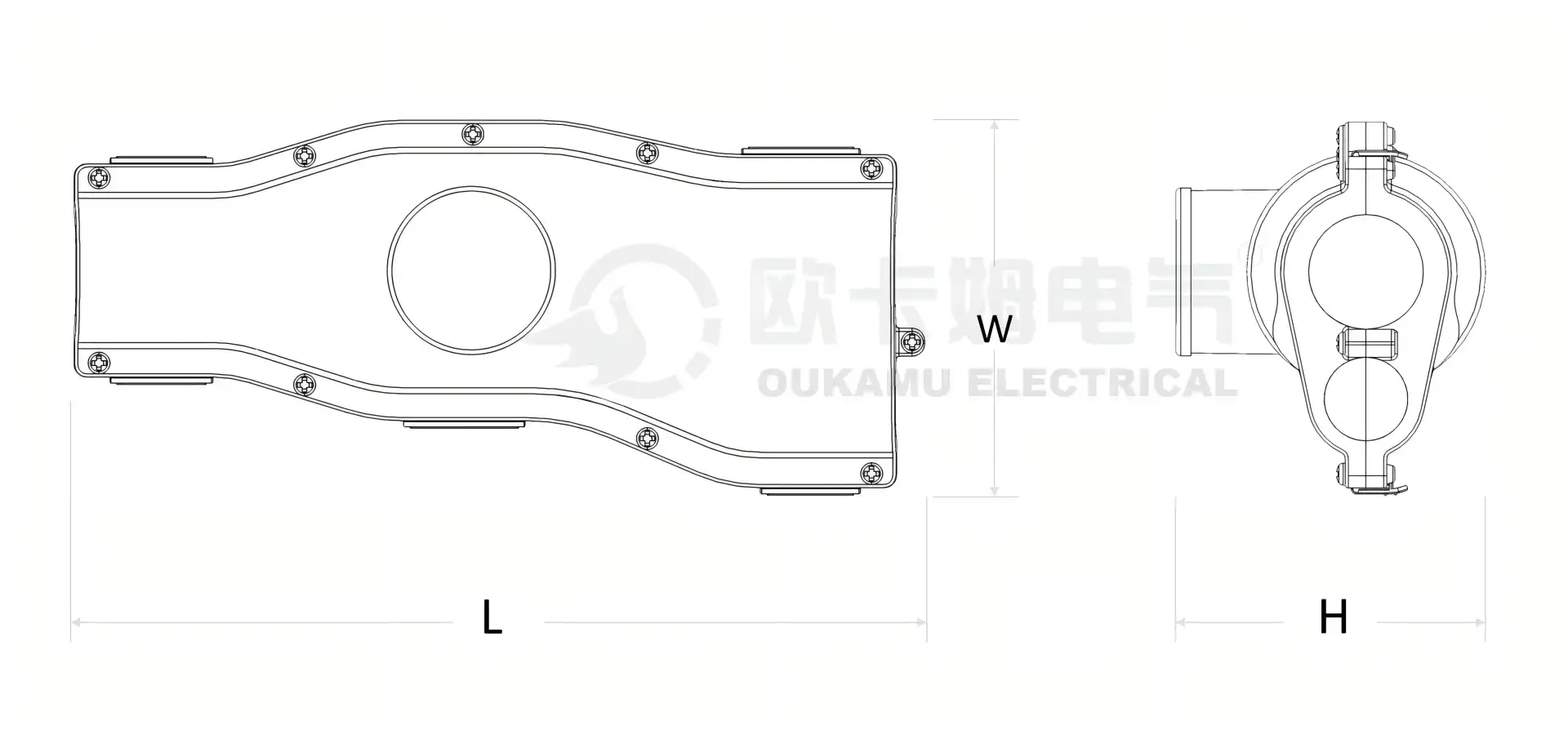

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
- Insulation Resistance Value: >1000MΩ
- Withstand Voltage: 3.5kV, 5min, no breakdown
- Voltage Drop: <3.2mV
- Material: High-quality flame-retardant resin
- Waterproof Level: IP68
- Compatibility: Suitable for all PVC-insulated cables
Technical Features
- Waterproof and Dustproof: Cable Resin Filled Type Joints for PVC design ensures a high level of protection against moisture and dust, making these joints suitable for both indoor and outdoor use.
- Flame Retardant: The materials used are flame retardant, offering additional safety in environments where fire hazards are a concern.
- Durable Construction: These joints are designed to withstand harsh environmental conditions, ensuring long-lasting performance.
- Easy Installation: The joints can be installed quickly and easily, reducing downtime and labor costs.
- Versatile Application: Compatible with various PVC-insulated cables, making them versatile for different installations.
Composition and Classification
Composition:
►Outer Shell: Made from high-strength, flame-retardant material.
►Resin Filling: A special compound that provides waterproofing and insulation.
►Connectors: High-conductivity metal connectors ensure secure and reliable connections.
Classification:
►Type A: Suitable for standard PVC cables in general applications.
►Type B: Enhanced version for cables exposed to higher levels of environmental stress.
►Type C: Specially designed for cables in underground installations, providing extra protection against moisture and mechanical stress.
Application Fields
Cable Resin Filled Type Joints for PVC are widely used in various sectors due to their versatility and reliability:
- Residential Wiring: Ideal for ensuring safe and secure connections in homes.
- Industrial Installations: Used in factories and production facilities where robust and durable cable connections are essential.
- Underground Cabling: Perfect for applications where cables are buried, providing protection against moisture and physical damage.
- Outdoor Installations: Suitable for outdoor use, with high resistance to weather conditions.
Packaging and Transportation
To ensure the integrity and safety of each Cable Resin Filled Type Joints for PVC, we use meticulous packaging practices. Each joint is individually packed in a sealed, moisture-resistant bag, which provides effective protection against environmental elements such as moisture and dust. Clear labeling is applied to each bag to facilitate easy identification and handling, reducing the chance of errors during storage and installation. For large orders, we offer bulk packaging options that are designed to accommodate multiple joints efficiently while still maintaining their safety.
Contact Us
For more information or to place an order, please contact us at info@okmbranchcable.com. Our team of experts is ready to assist you with any questions or concerns you may have.
