Main Line Insulation Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Main Line Insulation Piercing Connector Introduction
Welcome to Xi'an OUKAMU, where unwavering quality meets development consistently. We are thrilled to present our cutting-edge Main Line Insulation Piercing Connector, which facilitates the seamless connection of cable branches. This innovative connector makes it possible to connect two insulated wires electrically quickly, effectively, and without any problems. It also eliminates the need for traditional insulation stripping.
Product Composition
Our product consists of several key components that ensure its efficiency and durability:
- Piercing Current-Carrying Conductor: Made from high-conductivity silver-copper alloy, this conductor boasts exceptional strength and minimal resistance. It features multiple piercing contact points for reliable connections.
- Plastic Shell: Designed to house and protect the piercing conductor, the plastic shell is engineered to withstand reverse clamping forces and ensure long-term stability.
- Insulation Piercing Blades: These blades are crafted to pierce through the insulation of the wires without causing damage, ensuring a secure and uninterrupted electrical connection.
Technical Parameters
Here are the technical specifications for our product:
- Conductor Material: Silver-copper alloy
- Piercing Blade Width: 8-15mm
- Connection Type: Insulation piercing
- Application Voltage: Up to 10kV
- Current Capacity: High strength, suitable for various power distribution needs
- Temperature Range: -40°C to +90°C

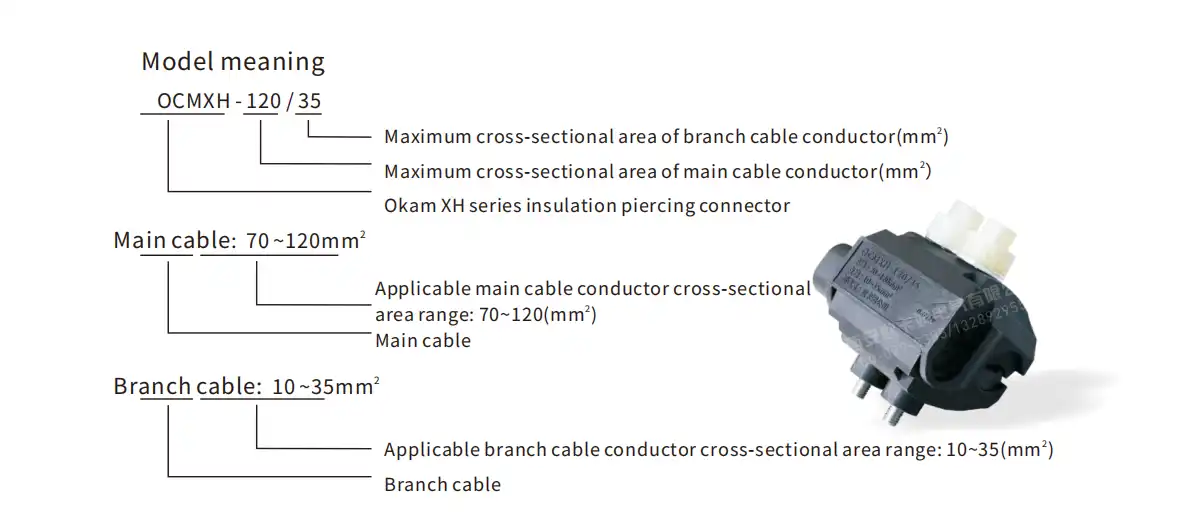

Parameters
| Model |
Specifications(Conductor cross section mm²) |
Piercing blade | Rated voltage(kV) | Split-load current(A) | Torque bolts |
Size L*W*H(mm) |
||||
| Main cable | Branch cable |
Quantity (pcs) |
Teeth NO.(pcs) |
Thickness (mm) |
Quantity (pcs) |
Breaking torque N.m | ||||
|
OCMXH-16/6 |
1~16 |
1~6 |
8 |
24 |
1.5 |
0.6/1 |
51 |
1 |
11 |
33*30*45 |
|
OCMXH-35/10 |
6~35 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
13 |
46*42*66 |
|
OCMXH-95/10 |
16~95 |
1~10 |
8 |
24 |
1.3 |
0.6/1 |
71 |
1 |
15 |
46*42*71 |
|
OCMXH-35/35 |
10~35 |
10~35 |
16 |
48 |
2.0 |
0.6/1 |
150 |
1 |
15 |
46*41*75 |
|
OCMXH-95/35 |
50~95 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
17 |
57*63*78 |
|
OCMXH-120/35 |
70~120 |
10~35 |
24 |
72 |
1.5 |
0.6/1 |
150 |
2 |
19 |
57*63*83 |
|
OCMXH-150/50 |
70~150 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
21 |
61*70*85 |
|
OCMXH-240/50 |
95~240 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
63*70*90 |
|
OCMXH-300/50 |
120~300 |
10~50 |
24 |
72 |
1.5 |
0.6/1 |
190 |
2 |
23 |
65*70*95 |
|
OCMXH-95/95 |
50~95 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
19 |
55*57*78 |
|
OCMXH-150/95 |
70~150 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
24 |
60*65*85 |
|
OCMXH-240/95 |
120~240 |
50~95 |
24 |
72 |
2.0 |
0.6/1 |
290 |
2 |
25 |
67*77*98 |
|
OCMXH-240/240 |
120~240 |
120~240 |
24 |
72 |
2.5 |
0.6/1 |
540 |
2 |
29 |
76*79*100 |
Core Advantages
Our Main Line Insulation Piercing Connector offers several core advantages that set it apart:
- Efficient Conduction: The multi-tooth piercing design ensures a large contact area, providing excellent electrical conductivity and reliability.
- Minimal Clamping Force: The connector's design minimizes reverse clamping forces on the plastic shell, enhancing durability and ease of installation.
- High-Quality Materials: Utilizing a silver-copper alloy, the connector provides superior conductivity and resistance to wear and tear.
Product Usage
The product is versatile and suitable for a range of applications:

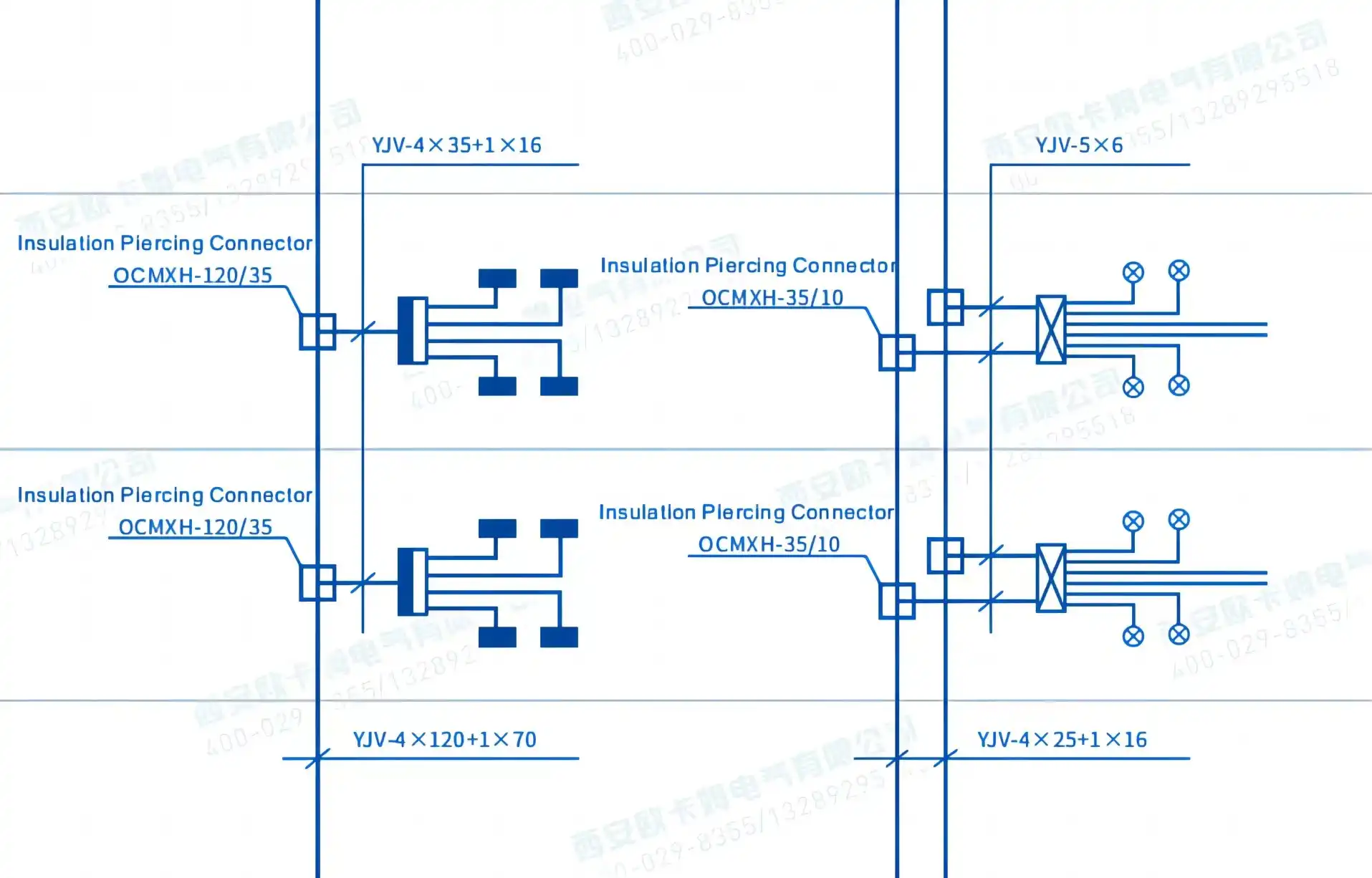

- Distribution of Power in Buildings: Ideal for modern and common structures where effective link expanding is fundamental. This connector works with fast and secure fanning of links, satisfying the needs of complicated power conveyance frameworks and essentially improving establishment effectiveness and association quality.
- Projects for the Infrastructure: Ideal for use in places where space is limited and dependability is essential, such as underground pipe galleries, subways, and tunnels. Because of its small size and high level of dependability, the connector works well in small workspaces and makes connections that are long-lasting and stable for infrastructure projects.
- Power Cables Above Ground: Connects power distribution in overhead cable systems in a dependable manner. The connector is versatile to different ecological circumstances, guaranteeing protected and proficient activity of force frameworks in both metropolitan lattices and far off circulation organizations.
- Landscape and Urban Lighting: Valuable for associating covered links in metropolitan lighting and scene projects. This connector is ideal for a wide range of lighting applications due to its ability to withstand a variety of outdoor environmental conditions, stable power supply, and dependable performance.
Packaging and Transportation
Our Main Line Insulation Piercing Connector is carefully packaged to avoid damage during shipping. To preserve its integrity, each connector is individually wrapped and packed in sturdy packaging. All shipments are handled meticulously by our logistics team, ensuring prompt delivery to your location.
Contact Us
If you would like to place an order or find out more about our products, please get in touch with us at info@okmbranchcable.com. We are here to help you with your projects and answer any questions you may have.
Conclusion
In conclusion, the Main Line Insulation Piercing Connector manufactured by Xi'an OUKAMU is the pinnacle of cable connection technology. This innovative product streamlines the process of connecting insulated wires and eliminates the need for traditional insulation stripping by combining efficiency, dependability, and ease of installation. With its top notch materials, high level plan, and expansive application range, it satisfies the needs of present day electrical frameworks and foundation projects.
