Cable Branch
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 50~120mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance

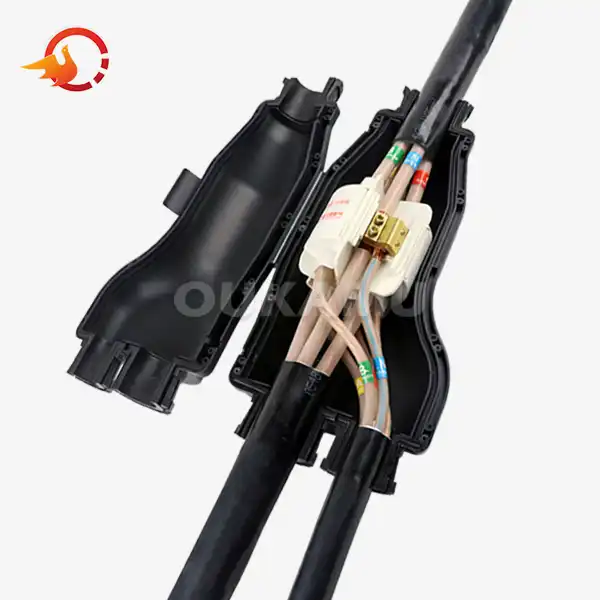

Cable Branch Introduction
Welcome to Xi'an OUKAMU, where we redefine cable connections with cutting-edge technology. Our Cable Branch is a revolutionary advancement in cable T-connection solutions, designed to offer unparalleled convenience, safety, and reliability. Whether you're looking to streamline your cable installations or enhance the durability of your connections, our product is the perfect choice.

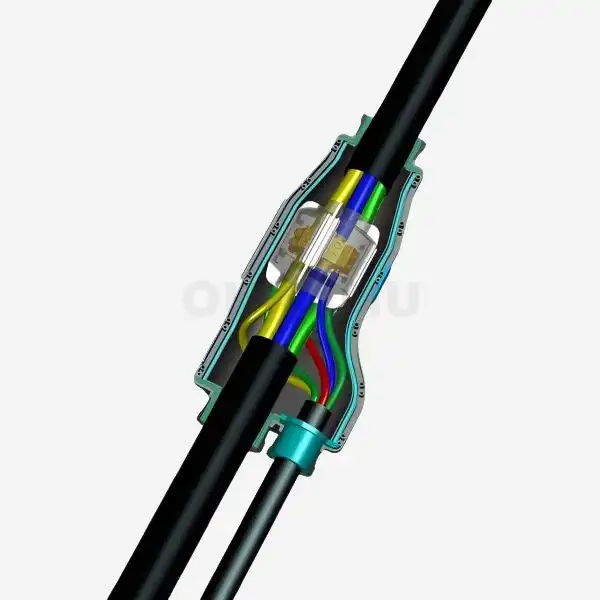

The branch joint, also known as the integrated T-connector, is a groundbreaking innovation by Xi'an OUKAMU. Introduced in 2015, this advanced branch connection product simplifies the process of connecting multi-core main cables to multi-core branch cables. With our product, you can achieve efficient, secure, and aesthetically pleasing connections right at the construction site.

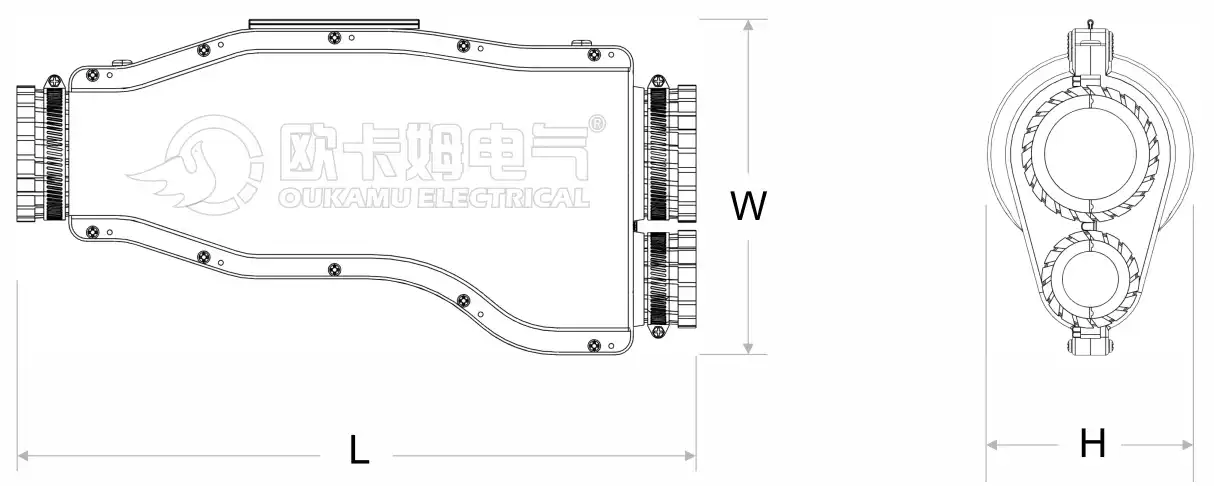

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

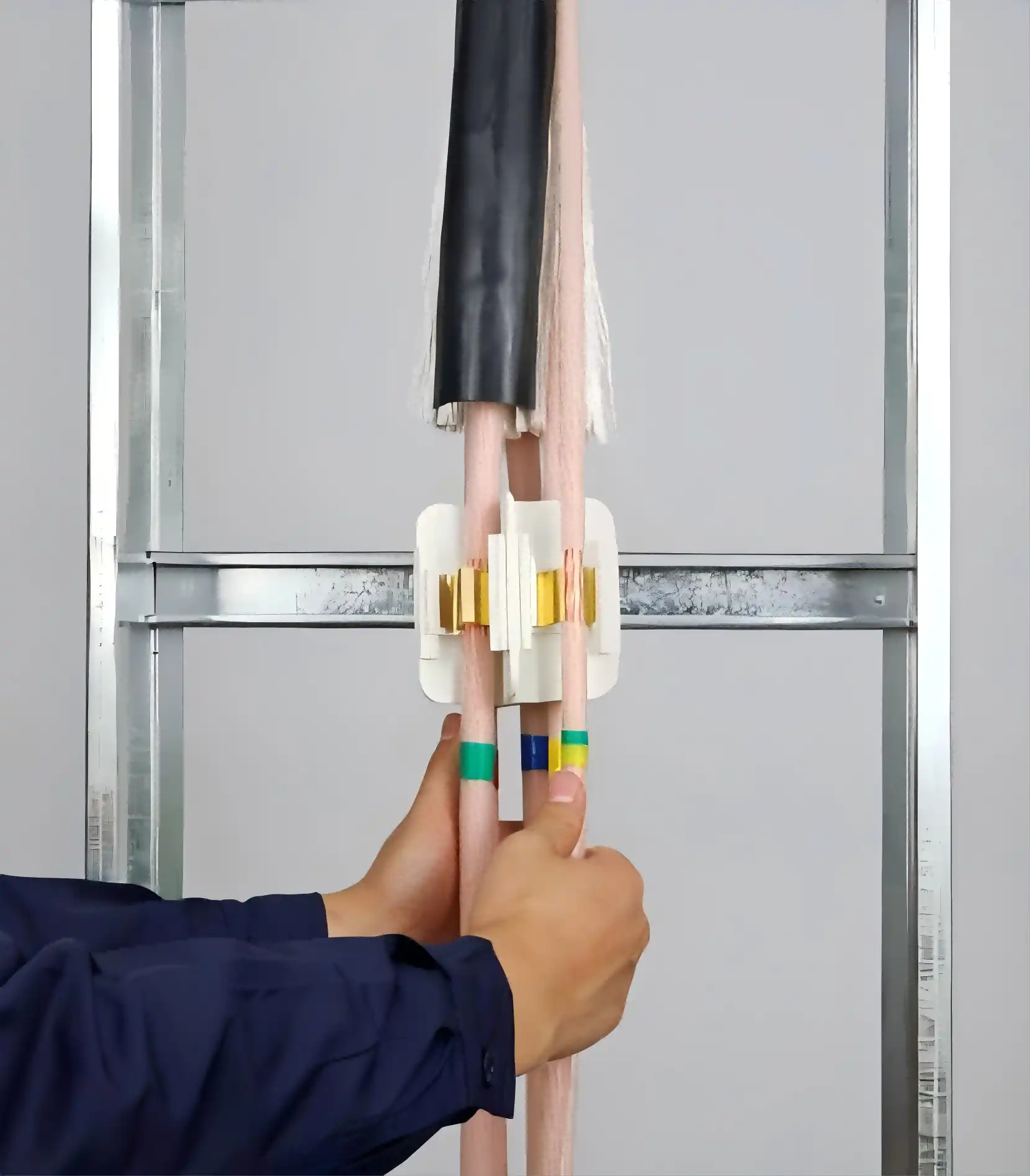

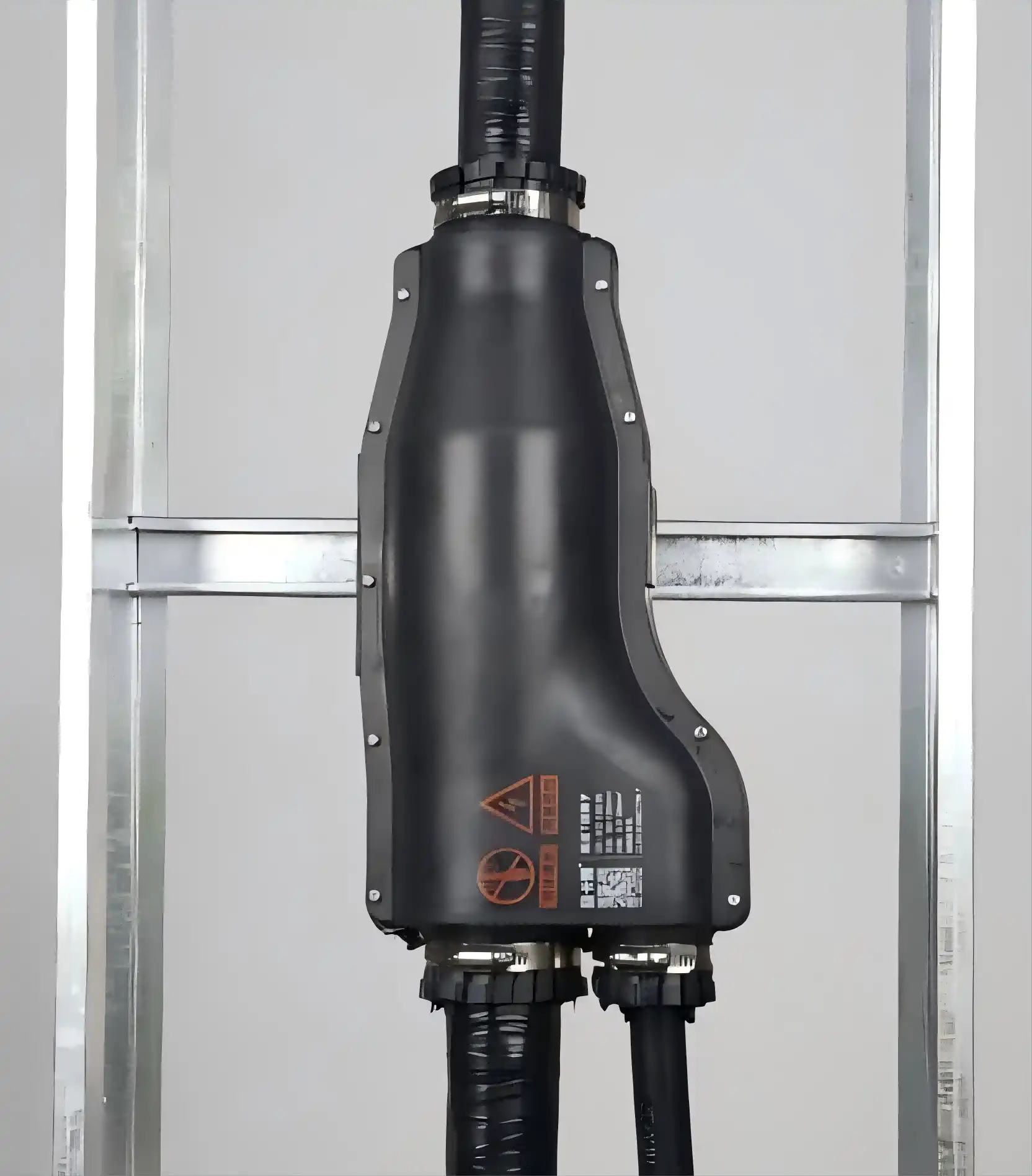

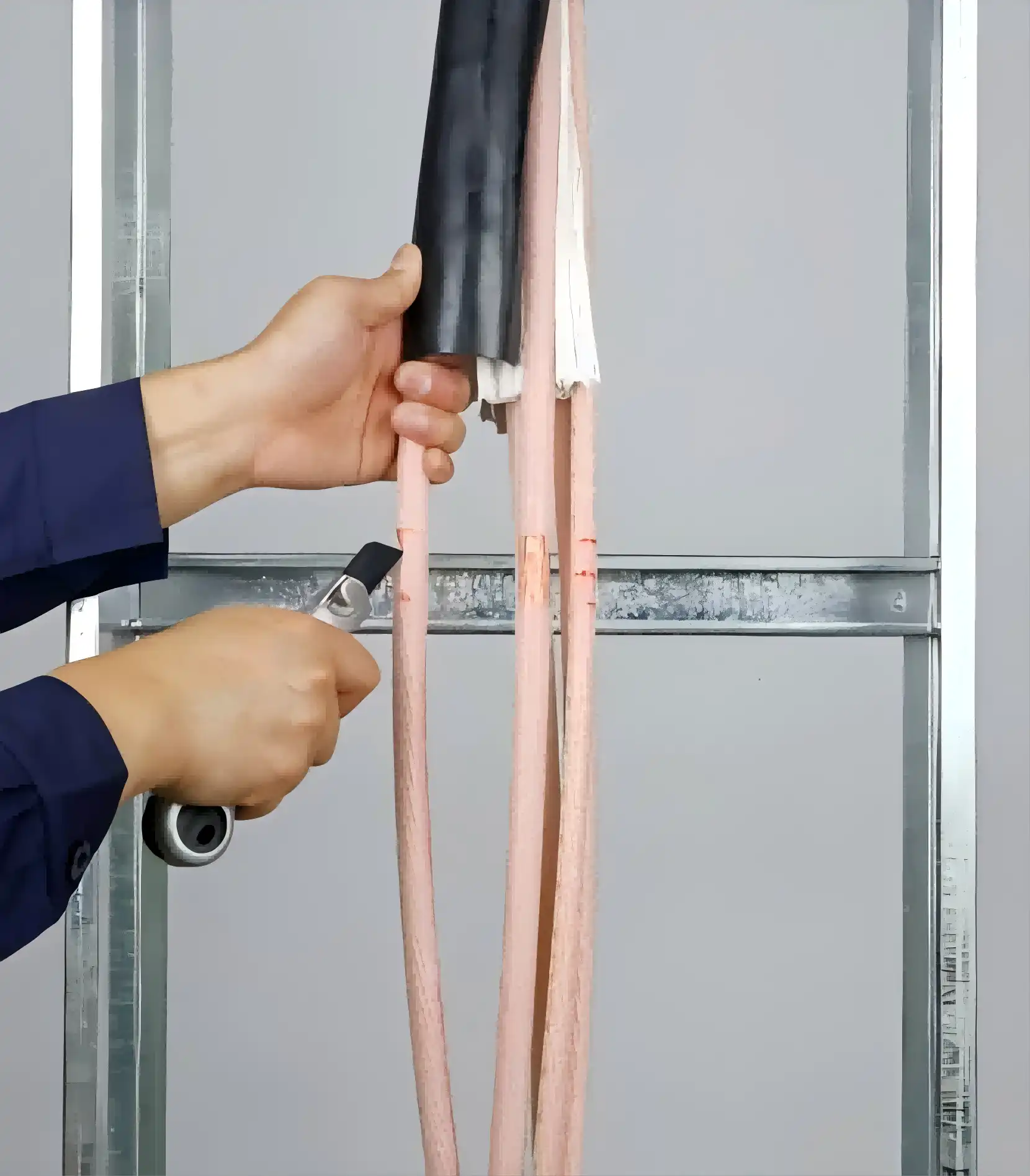

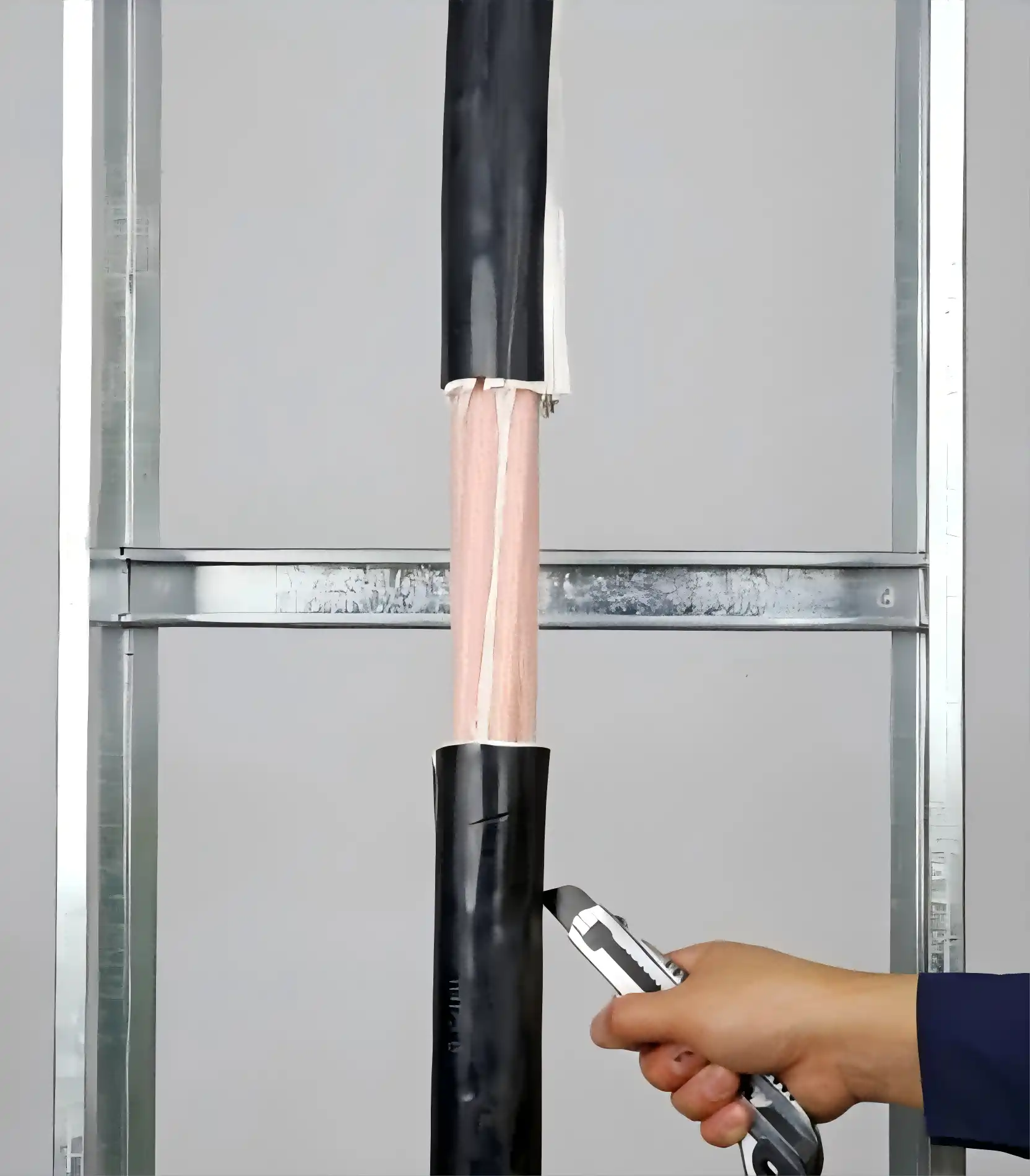

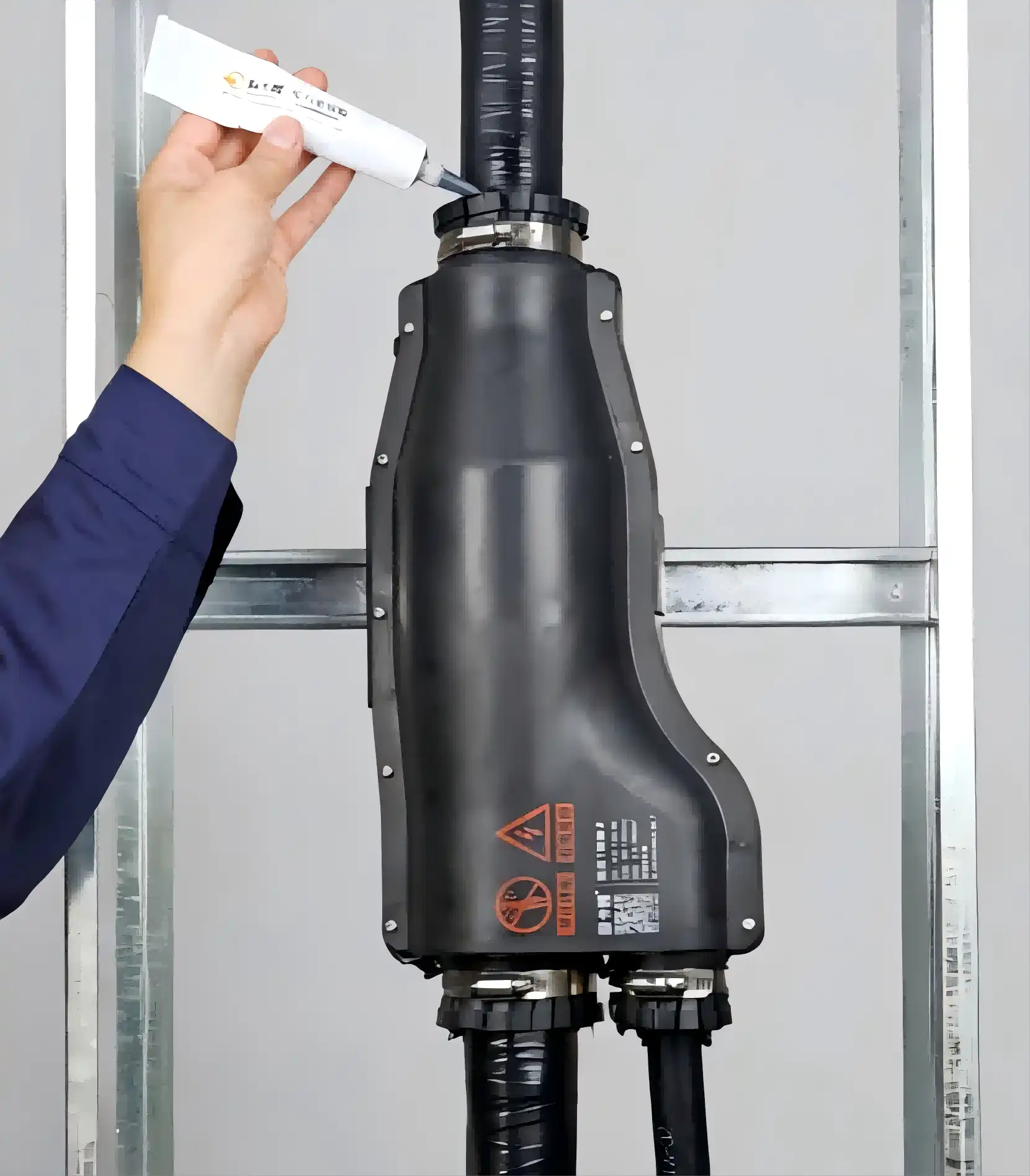

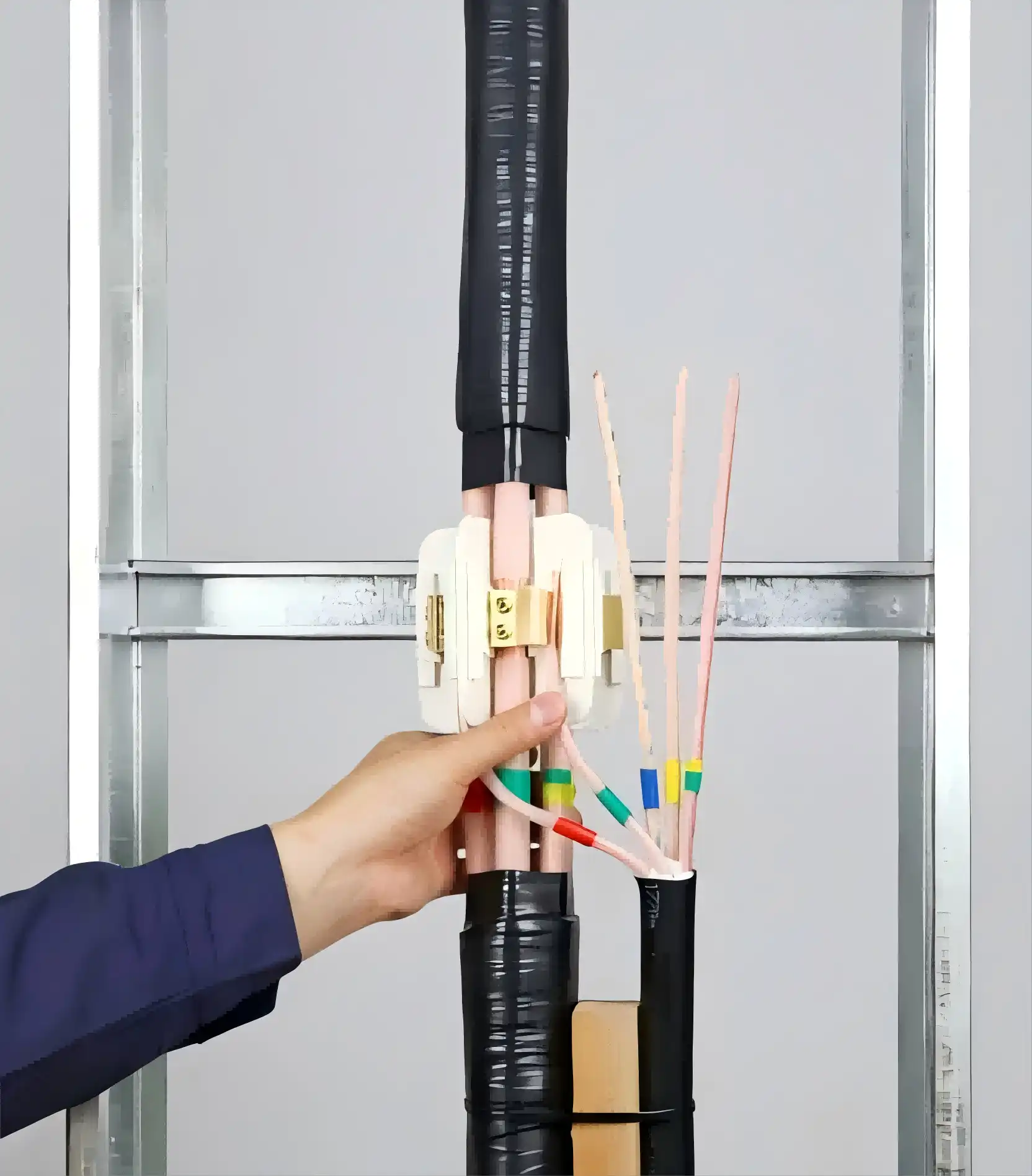

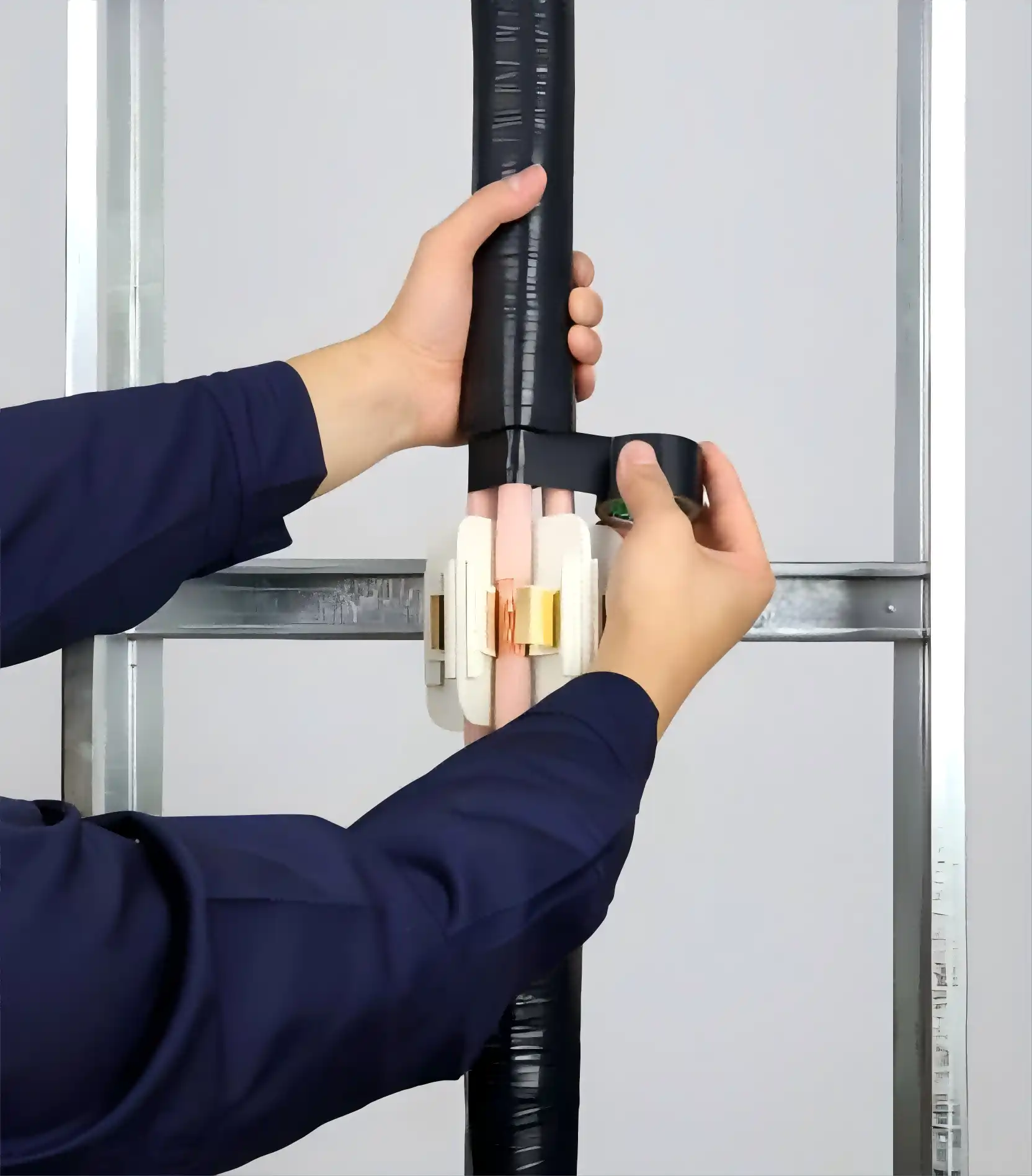

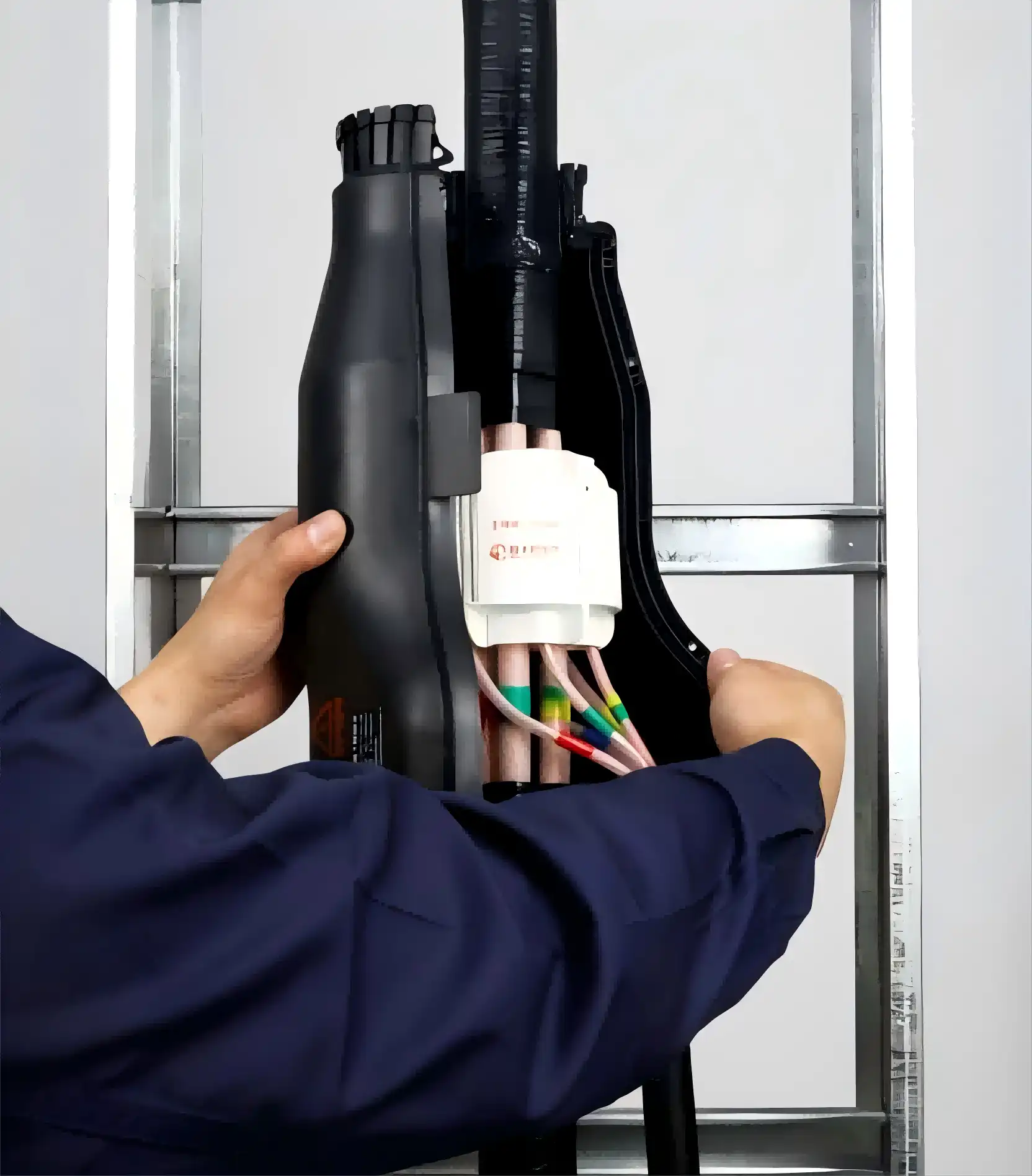

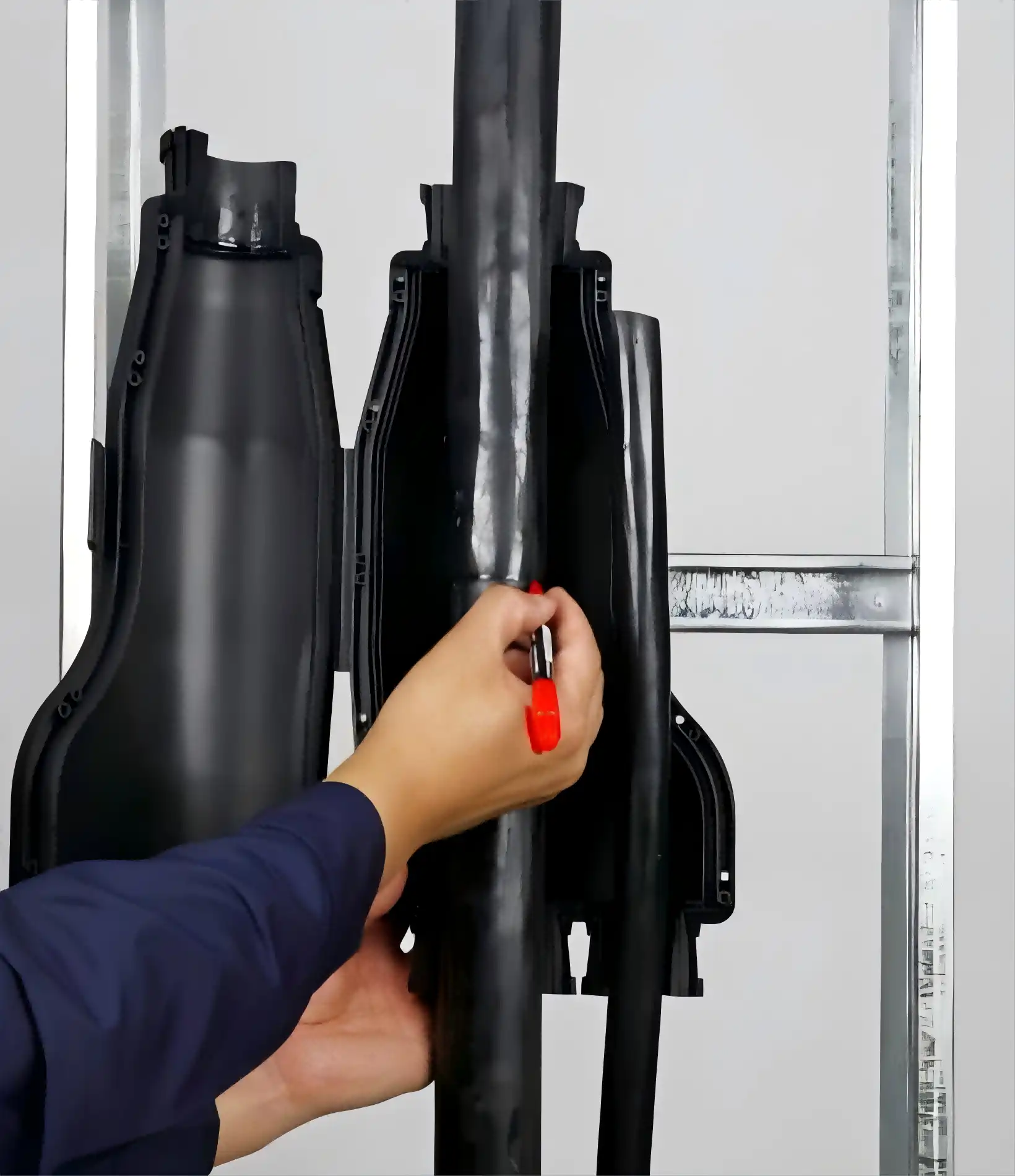

Installation Steps
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC

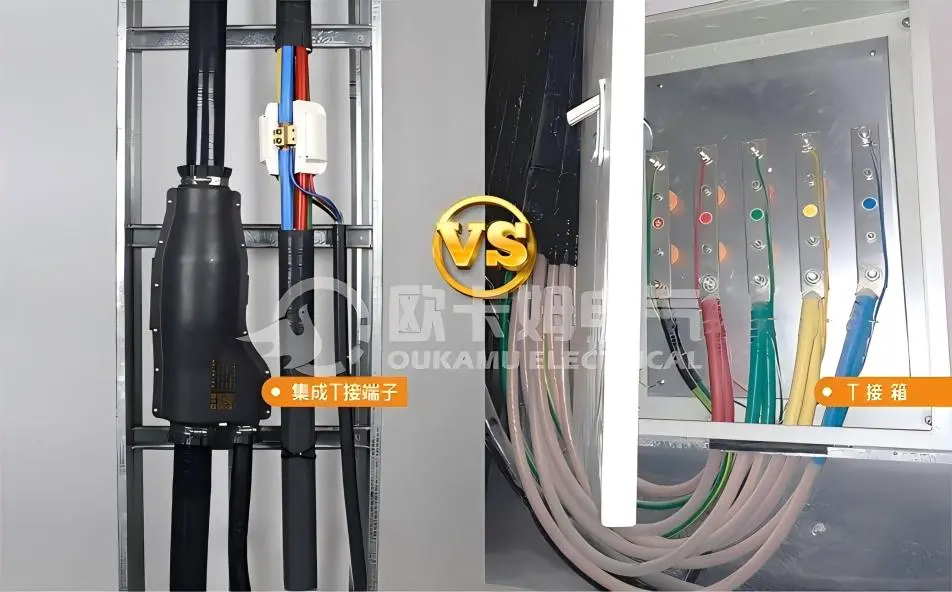

Advantages
- On-Site Flexibility: Our Cable Branch allows for branch connections at any position on-site, making it highly versatile and convenient for various applications.

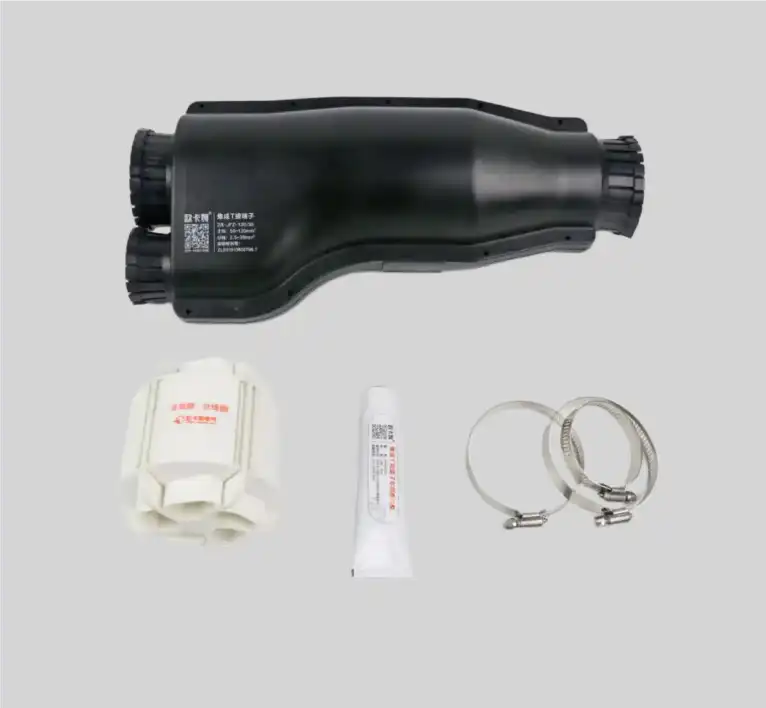

- Integrated Design: The connector integrates all essential components, offering a safe, reliable, and visually appealing solution.
- Compact and Adaptable: Its compact structure and small size enable installation both openly and within bridges, accommodating diverse installation environments.
- Cost-Efficient: By saving cables, reducing building space requirements, and minimizing labor costs, the product delivers a low overall cost solution.
- Durable Construction: Our product features insulation, flame retardancy, fire resistance, dustproofing, anti-aging, and anti-electrochemical corrosion properties.
Technical Features
- No Cable Cutting Required: The main cable remains intact during installation, preserving its integrity.
- Integrated Connection: The main and branch cables connect directly on the flame-retardant/fire-resistant insulated integrated T-connector body.
- Sealed Insulation: The entire branch cable is insulated and sealed as a unit, ensuring robust protection and performance.

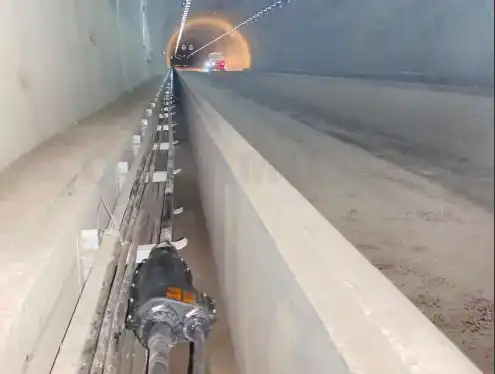

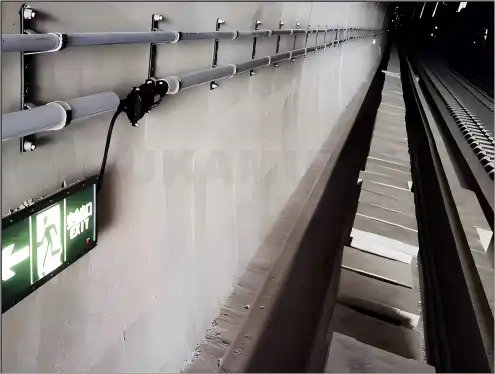

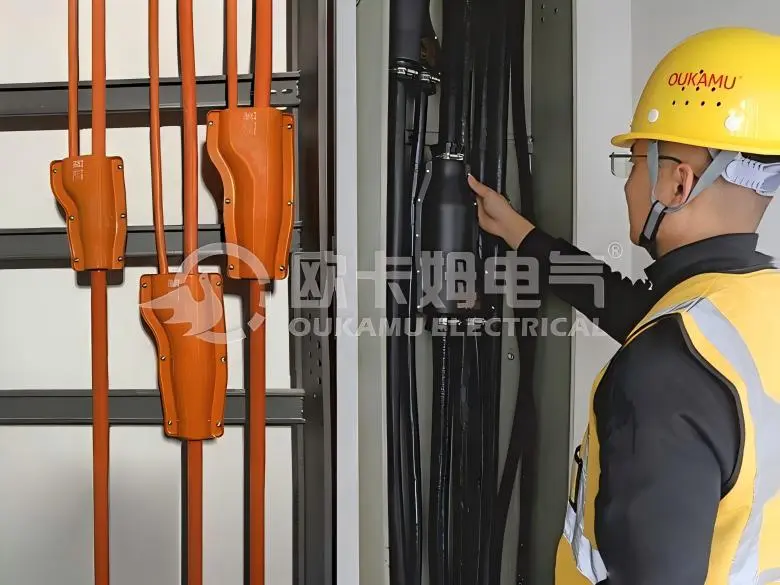

Cable Branch Application
The Cable Branch is expertly engineered to accommodate low-voltage applications, including those involving flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. Its design boasts remarkable versatility, making it an optimal choice for a wide array of industrial and commercial environments.
In industrial settings, the product delivers unparalleled performance by ensuring secure and efficient branching, which is crucial for maintaining the integrity of complex electrical systems. For commercial applications, its reliability and ease of use facilitate seamless integration into existing infrastructures, promoting both safety and operational efficiency.
Whether used in high-demand industrial environments or dynamic commercial applications, the product stands out for its capacity to meet stringent performance requirements. Its robust construction ensures that it performs consistently, even in challenging conditions, thereby providing a dependable solution for all branching needs. This adaptability not only enhances the effectiveness of electrical systems but also supports long-term durability and operational excellence.
OEM Service
At Xi'an OUKAMU, we understand the unique needs of our clients. We offer OEM services to customize the product to meet specific requirements. Whether you need adjustments in design, size, or other features, our team is here to deliver tailored solutions that fit your exact specifications.
FAQ
Q1: What types of cables can the product be used with?
A1: The product is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q2: Is the product suitable for outdoor use?
A2: Yes, the product is designed to be dustproof, waterproof and resistant to aging and electrochemical corrosion, making it suitable for various environmental conditions.
Q3: Can the product be reused?
A3: Yes, the product is designed for convenience in construction and maintenance, and it can be reused.
Q4: How does the product improve installation efficiency?
A4: The product eliminates the need for cutting the main cable and simplifies the connection process, resulting in faster and more efficient installations.
