Branch Cable Joints
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 25~70mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Comprehensive cost can be reduced by 300%~500%, high cost performance.
Branch Cable Joints Introduction
Are you looking for a safe, reliable, and efficient way to connect multi-core main cables and branch cables? Look no further than the Branch Cable Joints, also known as the integrated brancher. Invented by Xi'an Oukamu Electric Co., Ltd. in 2015, this innovative product allows for convenient, quick, and secure branch connections at any construction site.
This is specifically designed for low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. Its compact structure and small size make it suitable for both open installations and in bridge applications. With the integrated T-connector, you can save cables, building area, labor, and reduce overall costs.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps

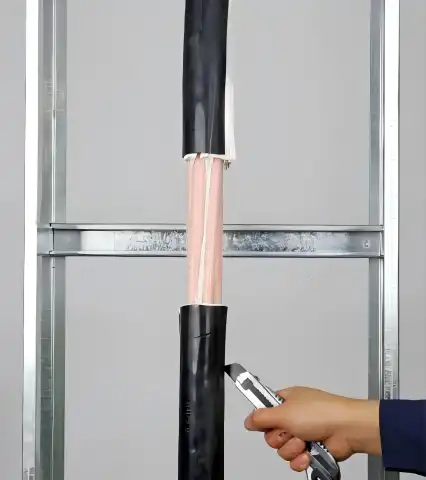

2.Determine installation location

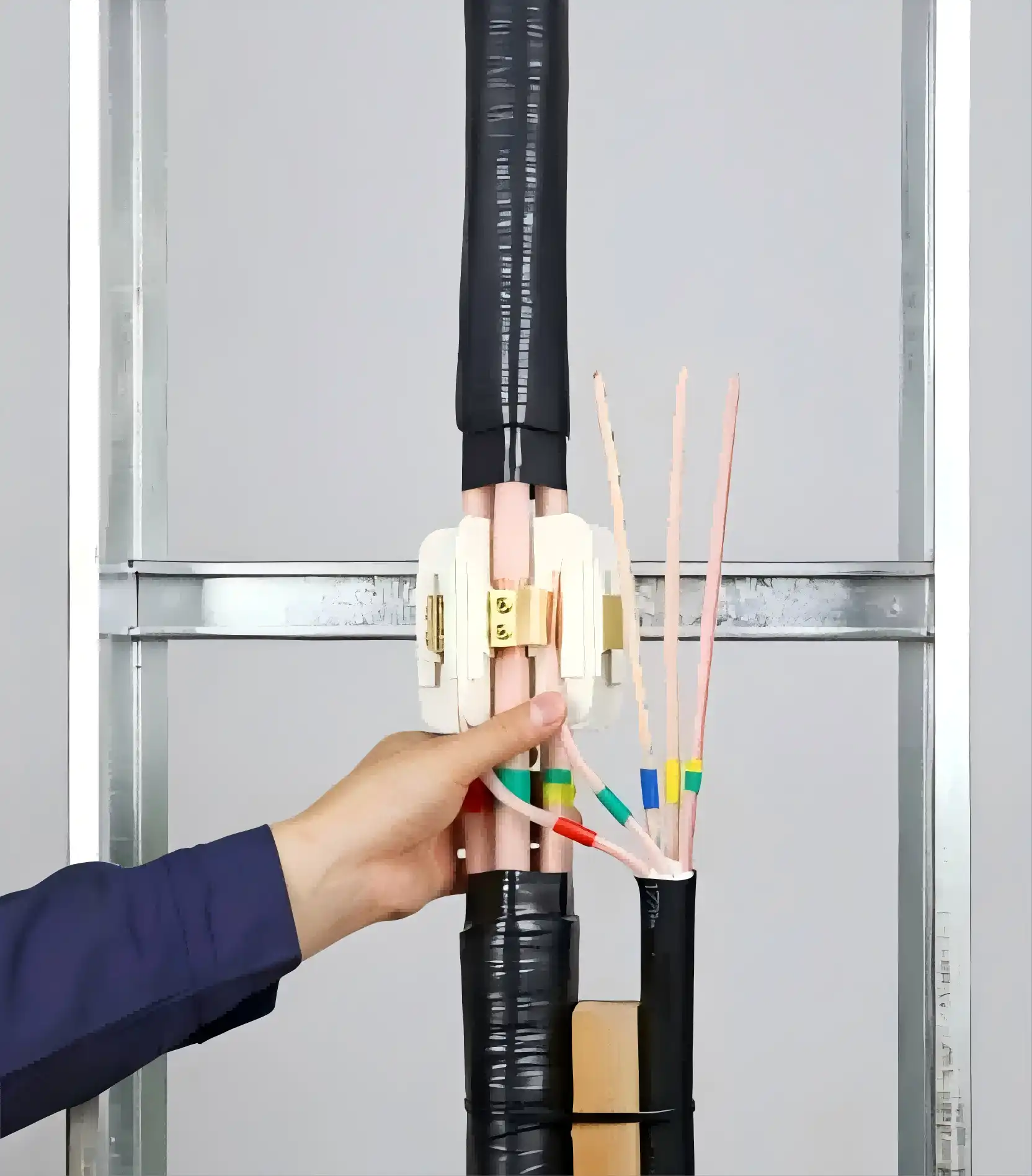

5.Installation of branch cable body

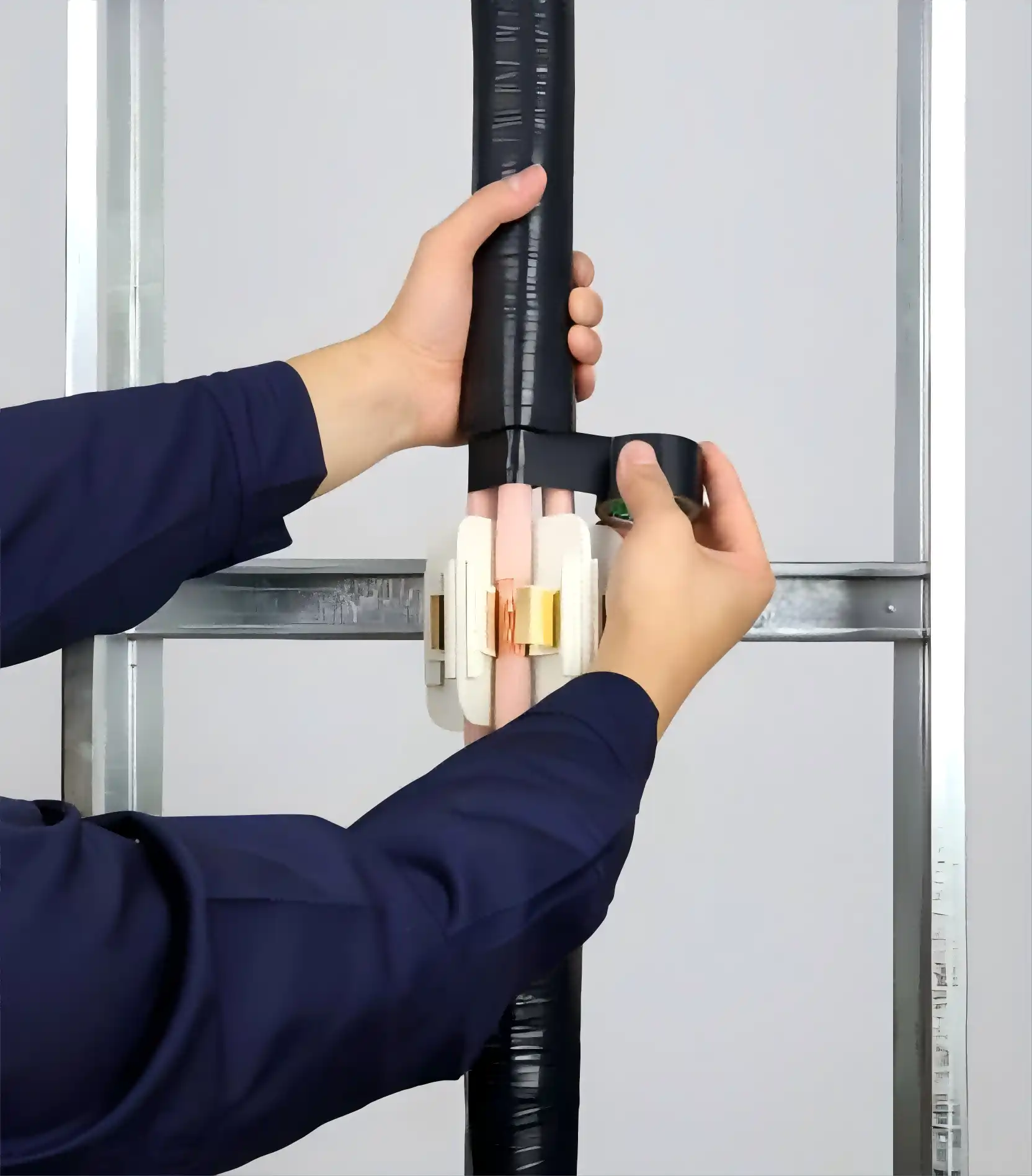

6.Overwrap open seams
7.Installation of branch cables

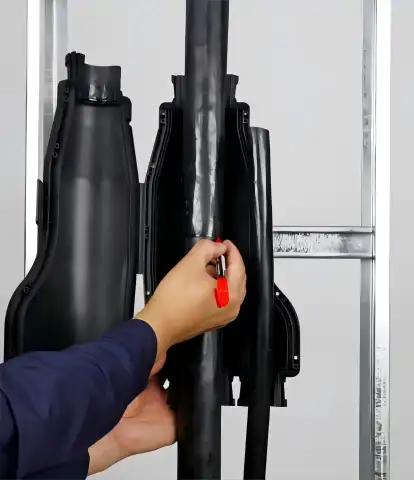

8.Snap-on protective housing

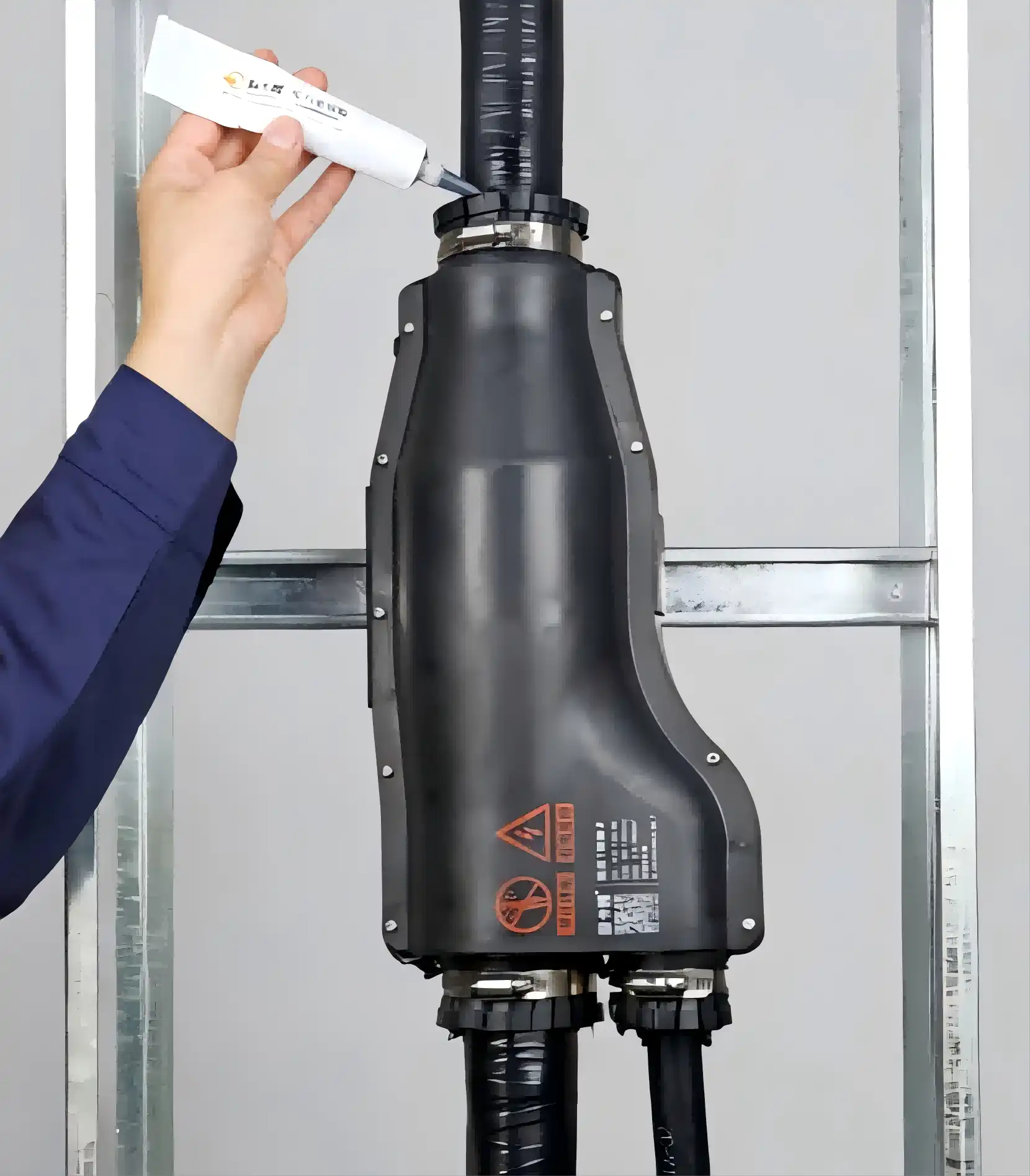

9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: http://https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Parameters
Voltage Drop: <3.2mV
Withstand Voltage: 3.5kV, 5min, no breakdown
Resistance Value: >500MΩ
Protection Level: >IP65
Key Features:
Branch Cable Joints are specialized connections used to create a branch off from a main electrical cable, allowing for the distribution of power or signals to additional circuits or devices.
Configuration: it typically allow one main cable to split into two or more secondary cables, enabling effective distribution in various applications.
Types: There are different types, including:
Heat Shrink Joints: Use heat to shrink insulation over the joint.
Cold Shrink Joints: Utilize a pre-stretched material that shrinks when placed over the joint without heat.
Resin Joints: Use resin for insulation and mechanical strength.
Sealing and Protection: These joints are designed to be weatherproof and resistant to moisture, dirt, and other environmental factors.
Branch Cable Joints Benefits
Versatility: Can be used with various cable sizes and types.
Reliability: Ensures secure and long-lasting connections that minimize the risk of faults.
Efficiency: Aids in organized cable management, reducing clutter in electrical installations.
Technical Features
This product boasts several unique features that set it apart from traditional branch connection methods. Firstly, the main cable does not need to be cut off, ensuring a continuous and uninterrupted connection. The main cable and branch cable are connected on the flame-retardant/fire-resistant insulated integrated T-connector body, providing a secure and durable connection.
Composition and Classification
This product consists of the following main components:

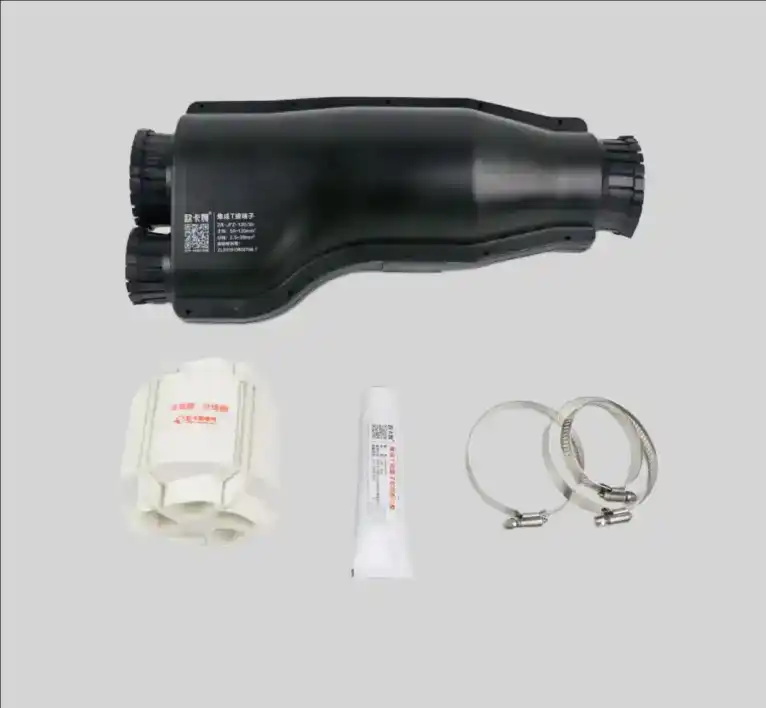

Flame-retardant/fire-resistant insulated T-connector body
Sealing cover
Waterproof and dustproof sealing ring
Stainless steel screws
These are classified based on the number of cores and cross-sectional area of the main and branch cables. They are available in various specifications to cater to different project requirements.
Application Fields
The Branch Cable Joints finds extensive applications in various fields, including:
High-rise buildings
Subway stations
Tunnels
Industrial plants
Data centers
Hospitals
Schools
Shopping malls
Its versatility and reliability make it an ideal choice for any project that requires safe and efficient cable branch connections.
Packaging and Transportation
These are packaged in sturdy, moisture-proof boxes to ensure they remain in perfect condition during transportation and storage. Each box is clearly labeled with the product specifications and quantity for easy identification and inventory management.
Contact Us
If you have any questions or would like to learn more about our Branch Cable Joints please don't hesitate to contact us at info@okmbranchcable.com. Our experienced team is always ready to assist you in finding the best solution for your cable connection needs.
