Cable Jointing
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 50~150mm, branch cable 6~50mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Cable Jointing Introduction
Welcome to Xi'an OUKAMU's product page for our innovative Cable Jointing solutions. Our integrated T-connector is a game-changer in the world of cable connections, designed to streamline the process and provide unmatched performance. Read on to discover why our joint technology is the perfect choice for your needs.
At Xi'an OUKAMU, we are proud to introduce our groundbreaking integrated T-connector, a pioneering solution in the joint technology. Since its invention in 2015, our integrated T-connector has revolutionized the way multi-core main cables and branch cables are connected. Designed with convenience, safety, and aesthetics in mind, this product ensures a quick, reliable, and beautiful connection right at the construction site.

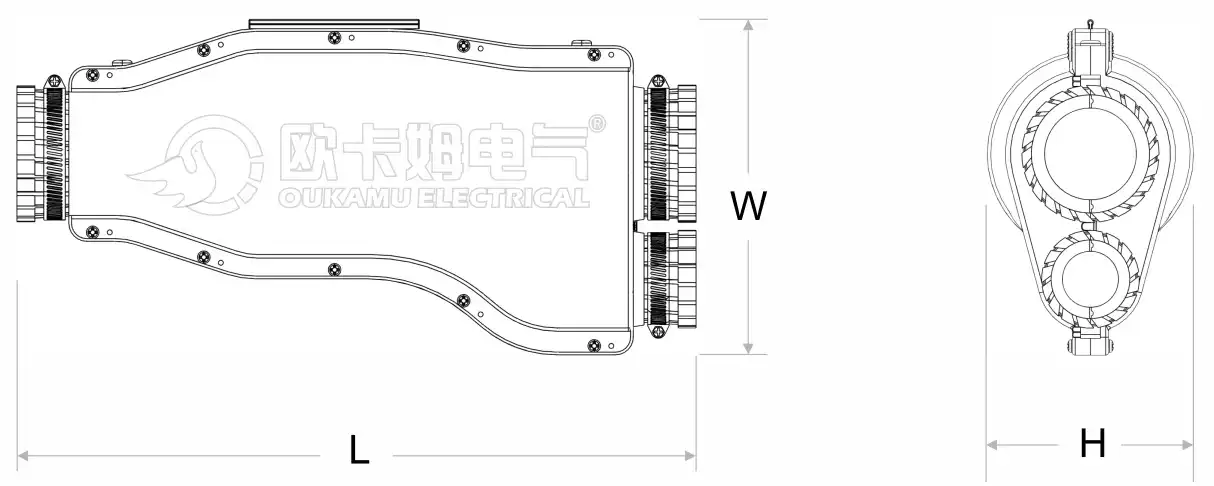

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

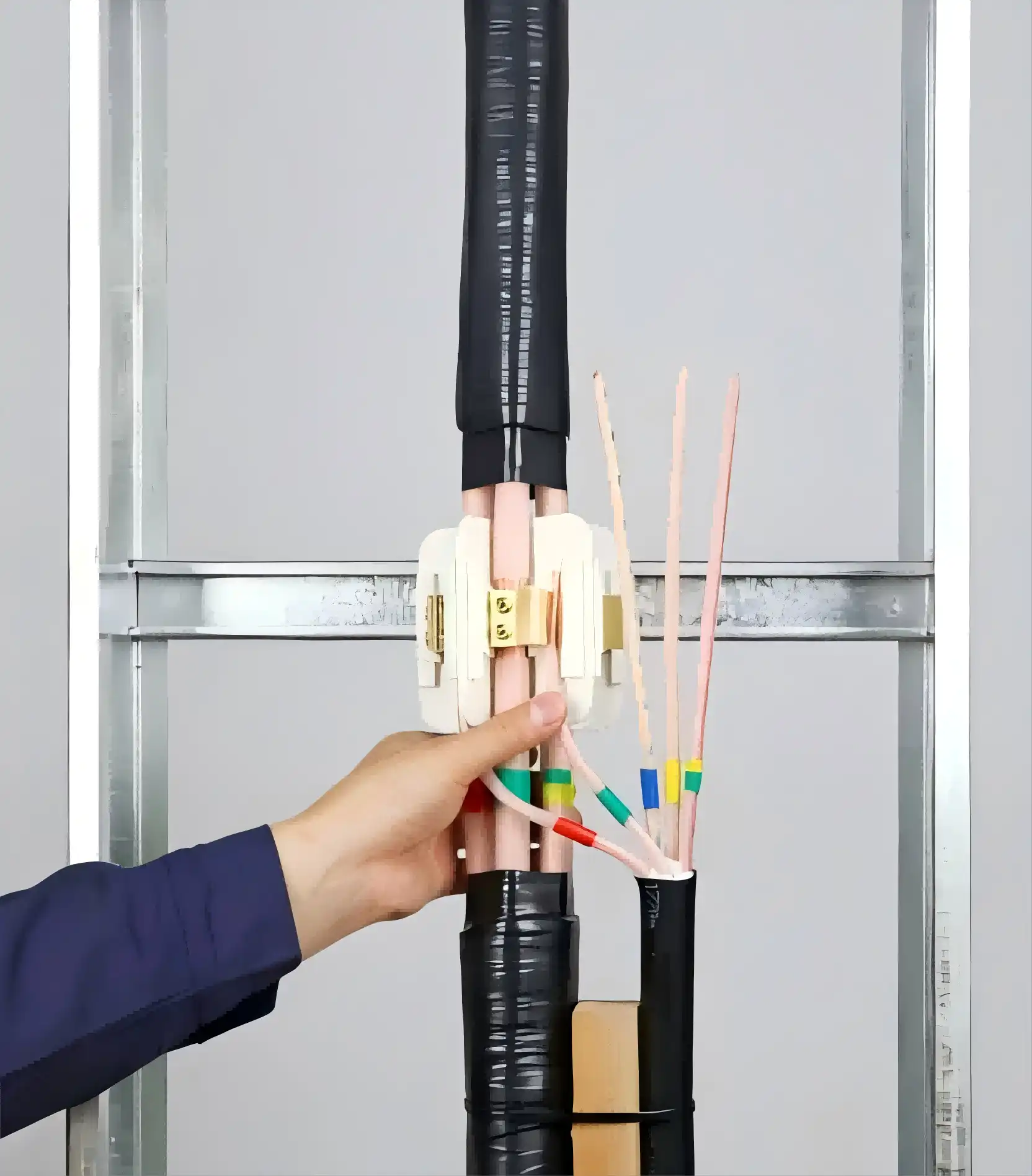

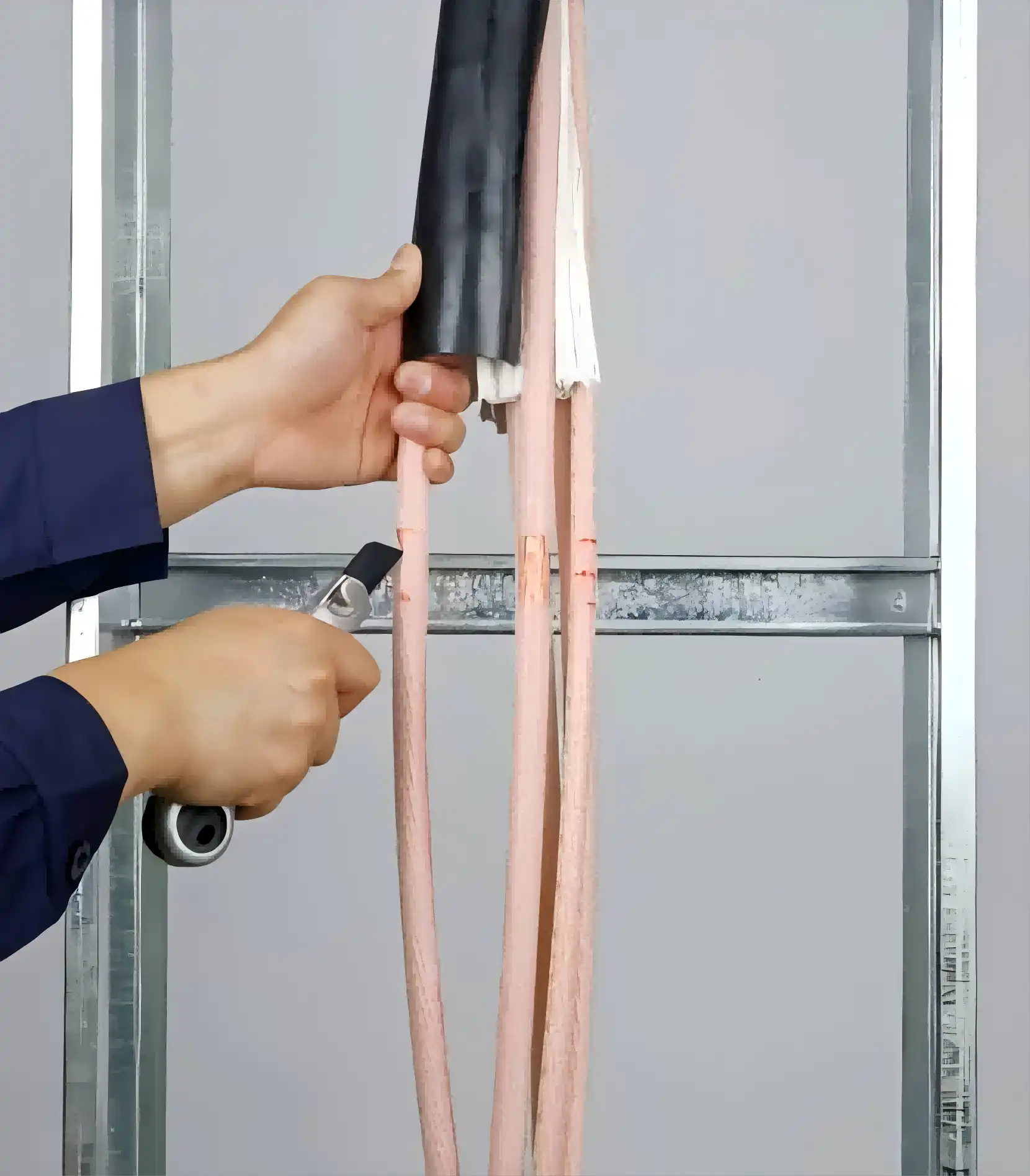

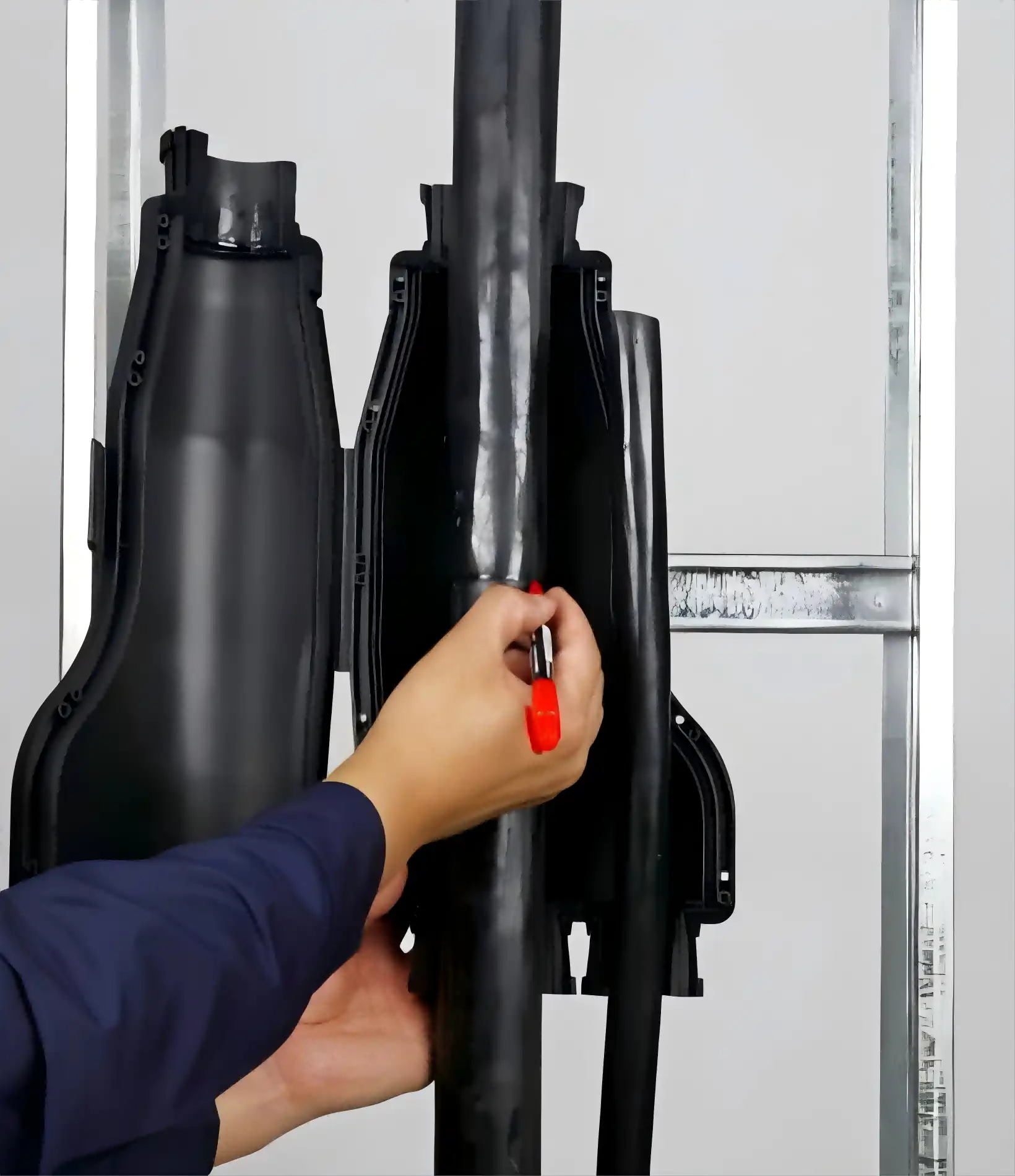

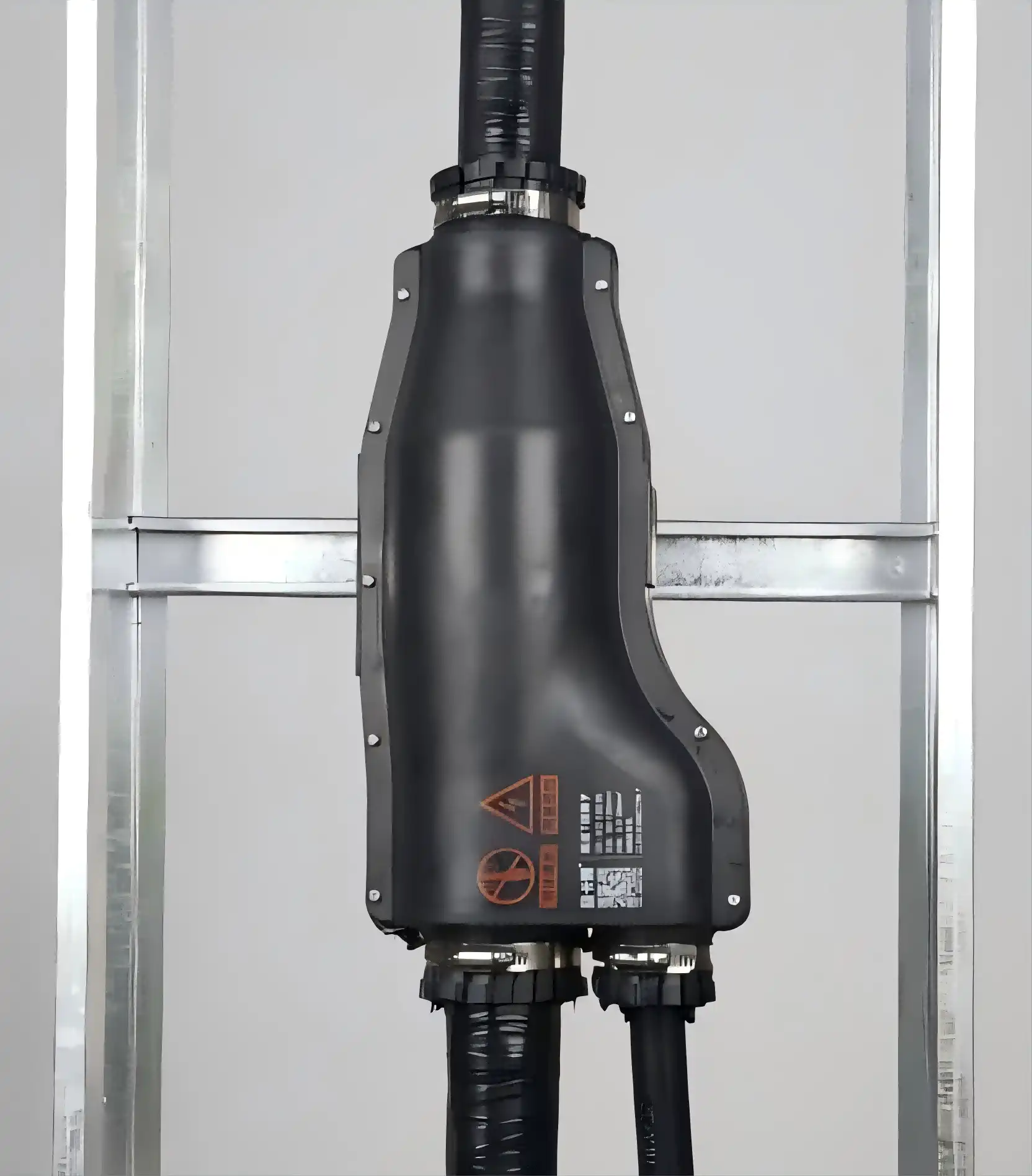

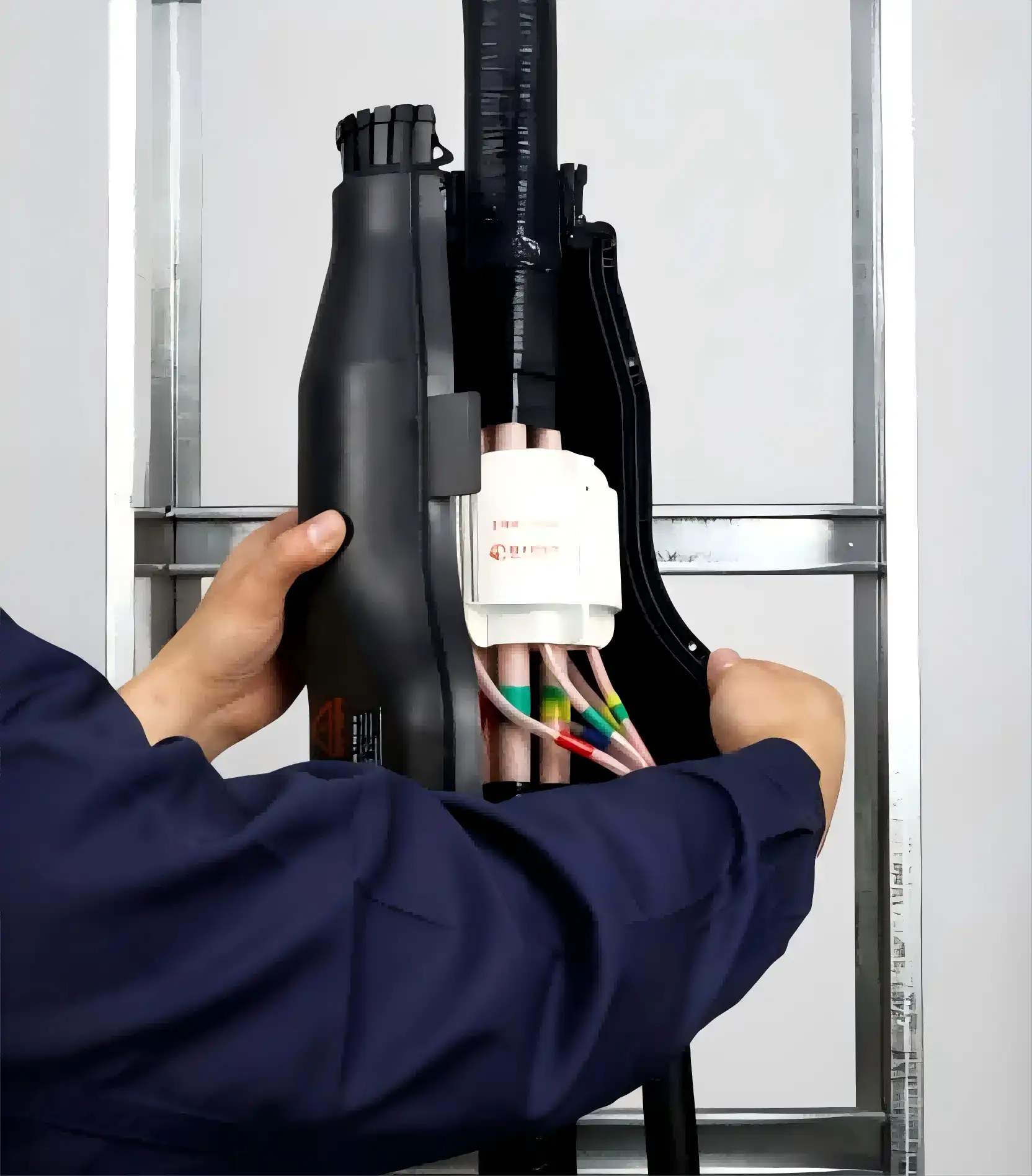

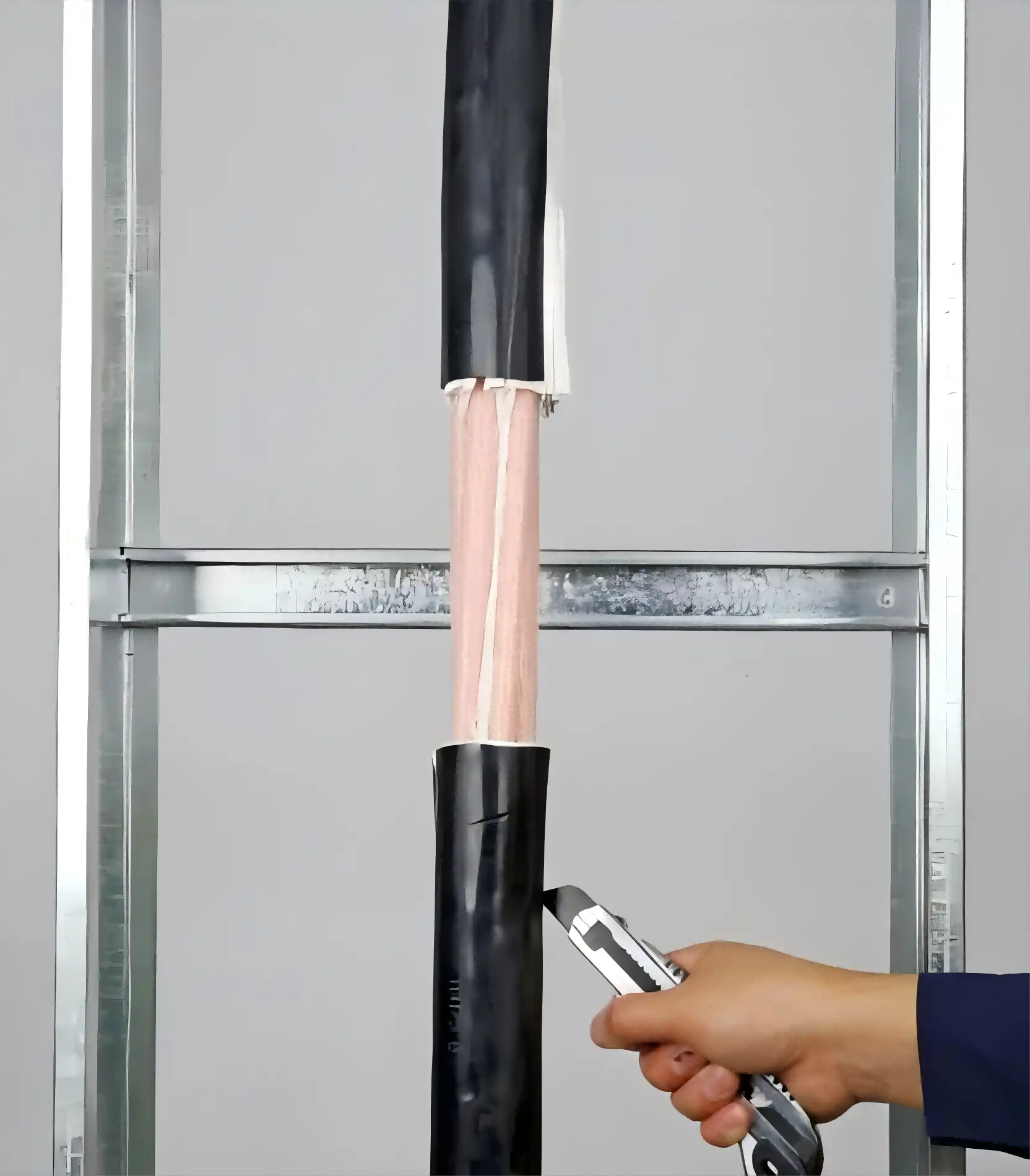

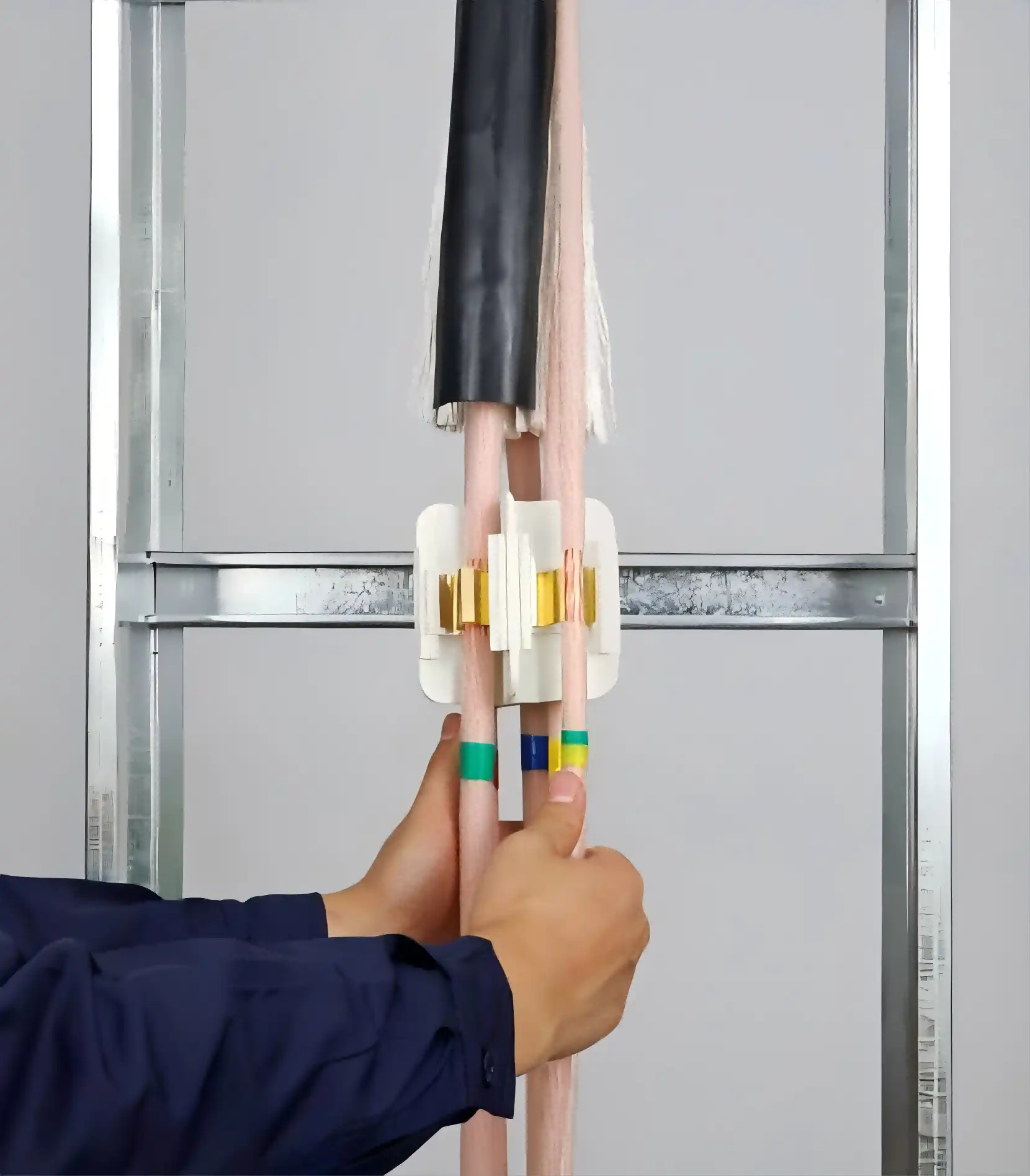

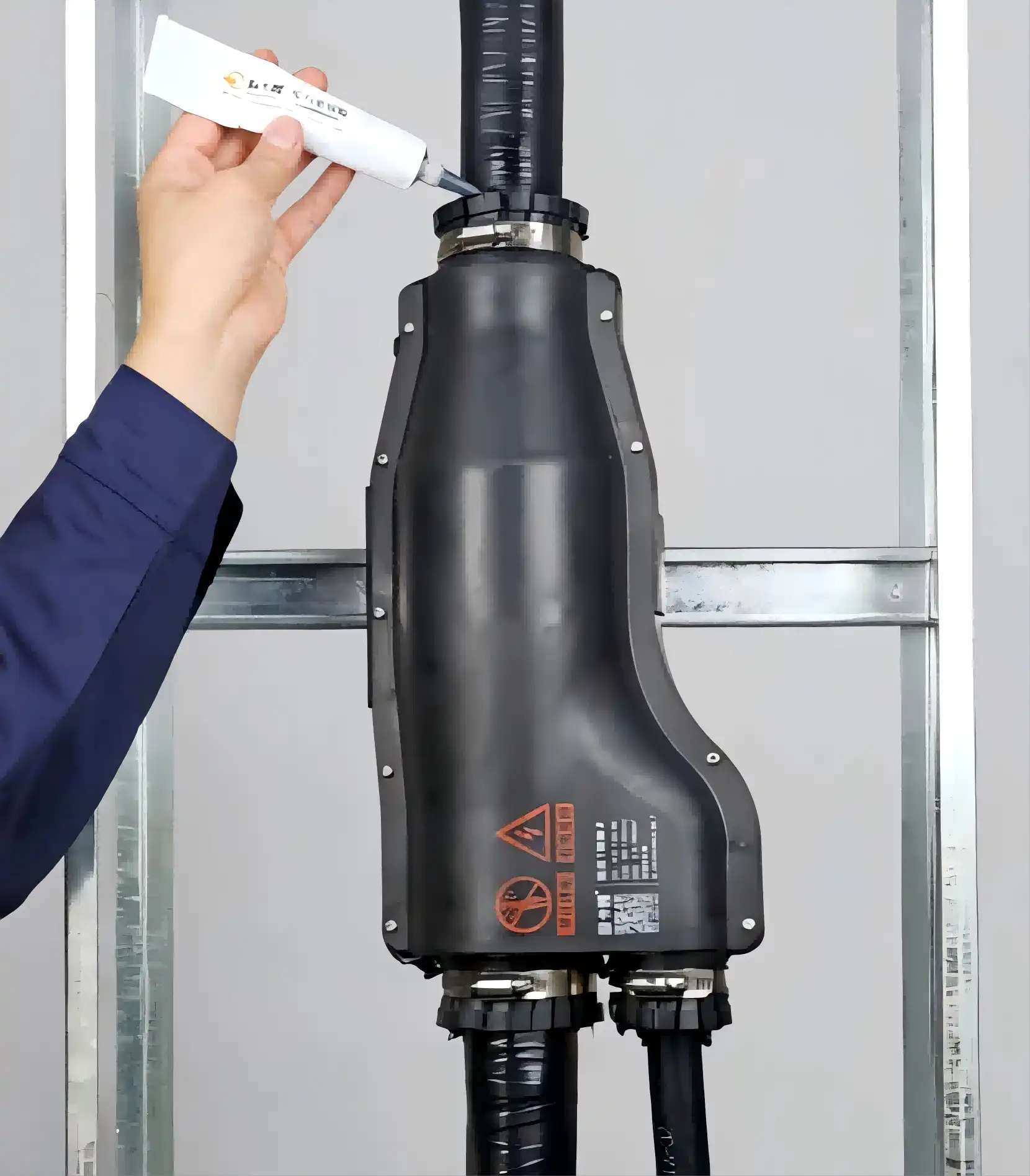

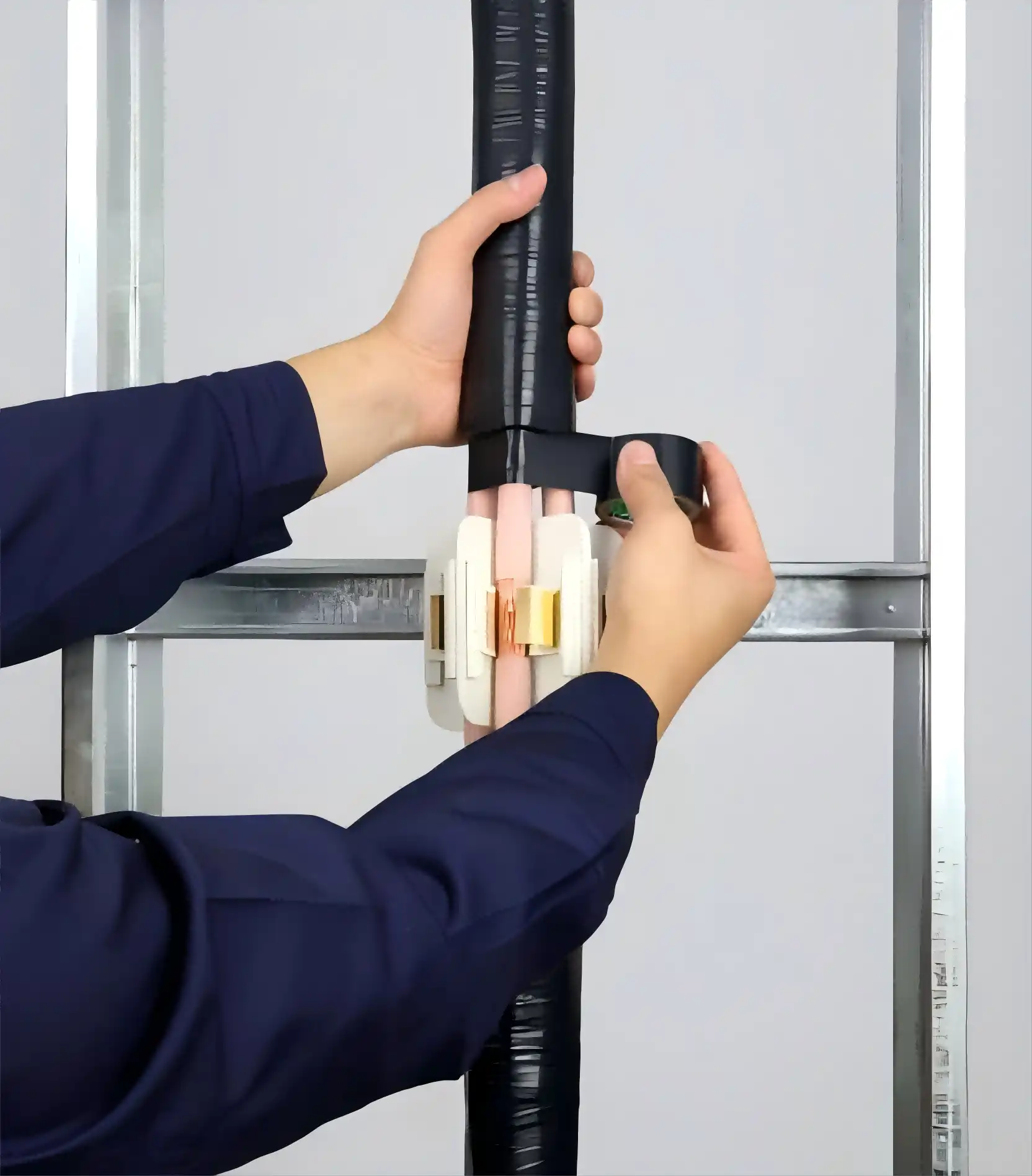

Installation Steps
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
Our integrated T-connector offers a host of benefits that set it apart from traditional cable jointing methods:
- On-Site Flexibility: Perform branch connections at any position without the need for pre-cutting the main cable.
- Integrated Design: Enjoy a safe, reliable, and visually appealing solution that combines several features into one compact unit.
- Space Efficiency: The compact structure allows for installation in both open areas and within cable bridges, saving valuable space.
- Convenient Maintenance: Our design allows for easy maintenance and is reusable, making it a cost-effective choice.

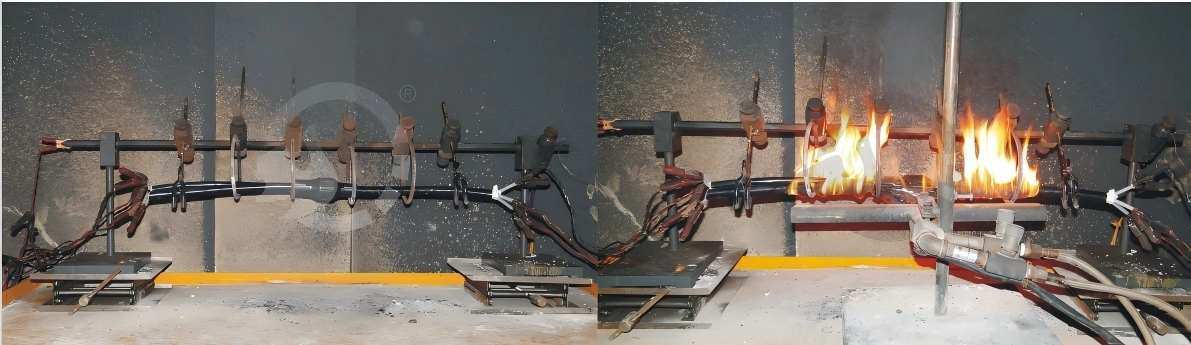

- Durability: With insulation, flame retardant, fire resistance, dustproofing, anti-aging, and anti-electrochemical corrosion features, our connector is built to last.
- Cost Savings: By saving cable length, reducing building area requirements, and minimizing labor costs, our solution offers a low overall cost.
Technical Features
Our integrated T-connector is engineered for top performance with the following technical features:
- No Main Cable Cutting: The main cable remains intact during the connection process.

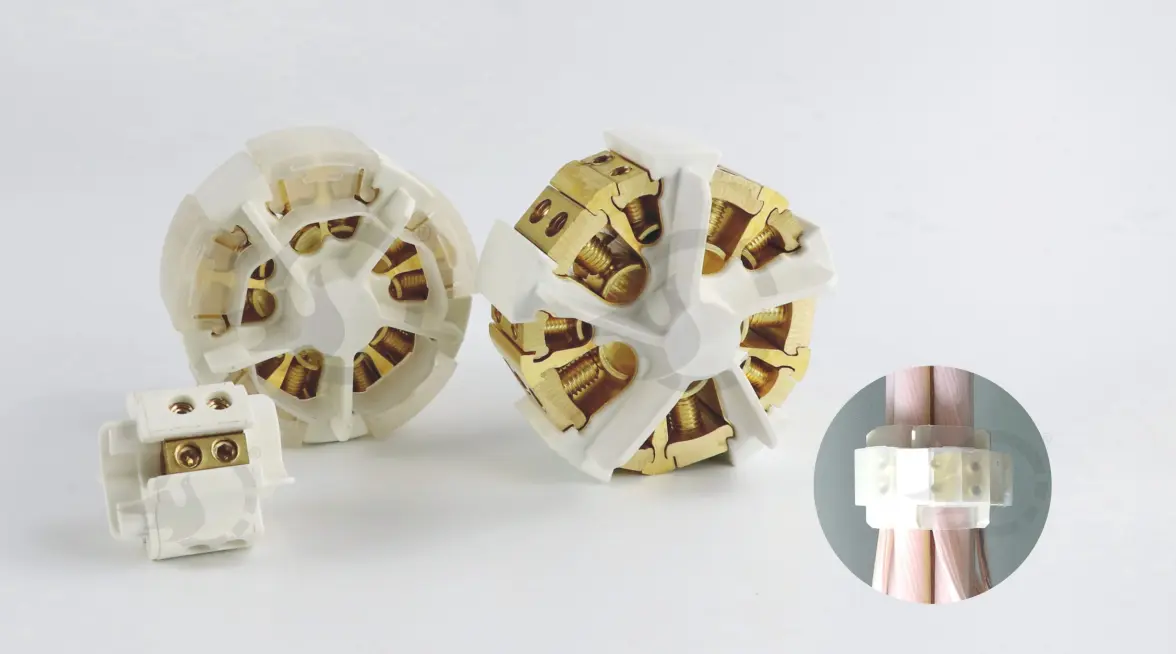

- Integrated Connection: Both the main and branch cables are connected on a flame-retardant/fire-resistant insulated body.
- Sealed Insulation: The branch line is fully insulated and sealed, ensuring maximum safety and efficiency.
Application
The integrated T-connector is ideal for various applications, including:
- Low-Voltage Cable Systems: Perfect for connecting low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
- Construction Sites: Streamline cable connections during construction projects, enhancing safety and efficiency.
- Industrial Settings: Suitable for industrial environments where reliable and durable cable connections are crucial.
OEM Service
At Xi'an OUKAMU, we offer comprehensive OEM services to meet your specific requirements. Whether you need custom designs or specific modifications, our team is dedicated to providing solutions tailored to your needs. Contact us to discuss how we can assist you in achieving your project goals.
FAQ
1. What is the branch joint?
Cable jointing refers to the process of connecting multiple cables to form a continuous electrical pathway. Our integrated T-connector simplifies this process by providing a reliable and aesthetically pleasing solution.
2. How does the integrated T-connector work?
The T-connector allows for easy and secure connection of main and branch cables without the need to cut the main cable. It features integrated insulation and sealing for maximum safety.
3. What types of cables are compatible with the T-connector?
Our T-connector is designed for use with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
4. Can the T-connector be reused?
Yes, our T-connector is designed for easy maintenance and reuse, making it a cost-effective solution for your product needs.
5. How can I place an order or get more information?
For more information or to place an order, please contact us at info@okmbranchcable.com. Our team is ready to assist you with your inquiries.
Contact Us
Ready to enhance your product solutions with our innovative products? Contact Xi'an OUKAMU today to learn more about our integrated T-connectors and how they can benefit your projects. Reach out to us at info@okmbranchcable.com for personalized assistance and further information.
By choosing Xi'an OUKAMU's product solutions, you are investing in cutting-edge technology that ensures reliability, safety, and efficiency. Let us help you streamline your cable connections with our advanced integrated T-connector.
