Y Branch Resin Cable Joint Kit
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Y Branch Resin Cable Joint Kit Introduction
Welcome to Xi'an OUKAMU, where innovation and reliability come together. Our Y Branch Resin Cable Joint Kit is a revolutionary solution for cable branch connections, designed to make your electrical installations more efficient, safe, and aesthetically pleasing. Invented in 2015, this integrated T-connector (integrated brancher) is the world's first of its kind, offering unparalleled convenience and performance.
Y Branch Resin Cable Joint Kit is perfect for connecting multi-core main cables and multi-core branch cables at construction sites. It ensures that your electrical systems are not only functional but also visually appealing. Whether you're working with low-voltage flame-retardant, fire-resistant, or mineral-insulated fire-resistant cables, our kit is the ideal choice for your project.

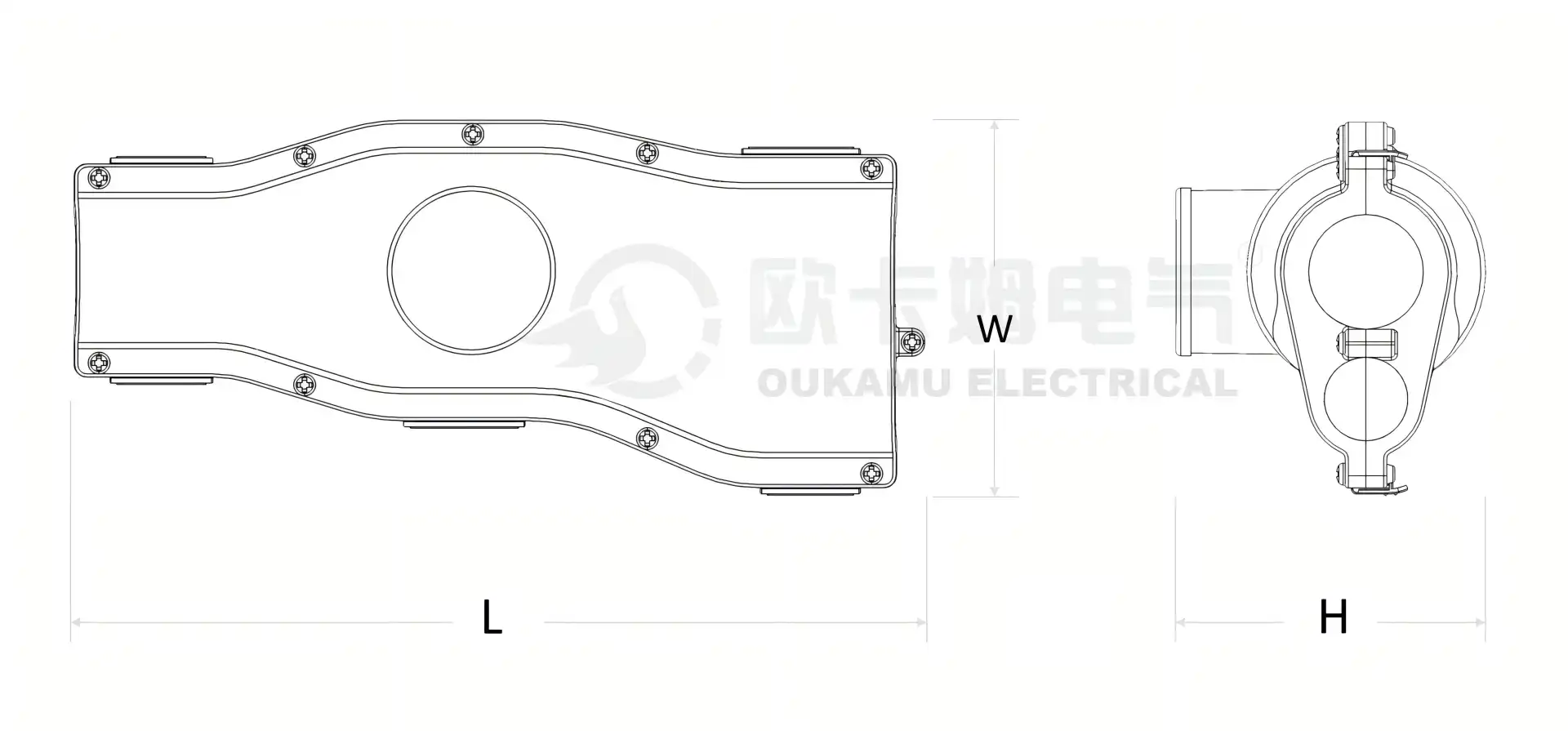

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
Voltage Rating: Suitable for low-voltage applications.
Cable Types: Compatible with flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Conductor Material: Copper or aluminum, depending on the application.
Insulation Material: High-quality, flame-retardant, and fire-resistant insulation.
Operating Temperature: Up to 90°C.
Environmental Resistance: Dustproof, waterproof, and resistant to electrochemical corrosion.
Technical Features
No Main Cable Cut-off Required: The main cable remains intact, eliminating the need for cutting.
Integrated Connection: The main cable and branch cable are connected directly on the flame-retardant/fire-resistant insulated integrated T-connector body.
Sealed and Insulated Branch Cable: The branch cable is insulated and sealed as a whole, ensuring a safe and reliable connection.
Composition and Classification
It is composed of several key components:
Integrated T-Connector Body: Made from high-quality, flame-retardant, and fire-resistant materials.
Resin Insulation and Sealing Components: Provides a dustproof, waterproof, and anti-aging seal around the branch cable.
We offer a range of Y Branch Resin Cable Joint Kits to suit different applications and environments:
Standard: Ideal for general-purpose use.
Fire-Resistant: Specifically designed for applications requiring enhanced fire resistance.
Waterproof : Perfect for outdoor and wet environments.
Application Fields
The Y Branch Resin Cable Joint Kit is versatile and can be used in a wide range of applications, including:
Commercial Buildings: Office complexes, shopping malls, and other commercial spaces.
Industrial Facilities: Factories, warehouses, and manufacturing plants.
Residential Projects: Apartment buildings, housing developments, and single-family homes.
Infrastructure Projects: Airports, train stations, and public utilities.
Special Applications: Hospitals, data centers, and other critical facilities where reliability and safety are paramount.
Packaging and Transportation
Our products are carefully packaged to ensure they arrive in perfect condition. Each kit is individually wrapped and placed in a sturdy box, providing protection during transportation. We also offer custom packaging solutions to meet your specific needs.
For transportation, we work with trusted logistics partners to ensure timely and secure delivery. Whether you need local or international shipping, we have you covered.
Contact Us
If you have any questions for Y Branch Resin Cable Joint Kit or would like to place an order, please don't hesitate to contact us. Our team is here to help and provide you with the best possible service.
Email: info@okmbranchcable.com
