Branch Cable Joint Kit
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Branch Cable Joint Kit: The Future of Cable Connections
Welcome to the world of advanced cable technology! At Xi'an OUKAMU, we are proud to present our innovative Branch Cable Joint Kit, designed to revolutionize the way you connect multi-core main and branch cables. With our protected coordinated T-connector, we offer an answer that isn't just effective and dependable yet additionally simple to introduce and keep up with.
Introduction
The product, featuring the world's first integrated T-connection technology, is the pinnacle of our R&D efforts. Invented in 2015, this product allows for seamless, quick, and secure connections between main and branch cables, without the need to cut off the main cable. Whether you're dealing with low-voltage flame-retardant, fire-resistant, or mineral-insulated fire-resistant cables, our kit ensures a perfect connection every time.

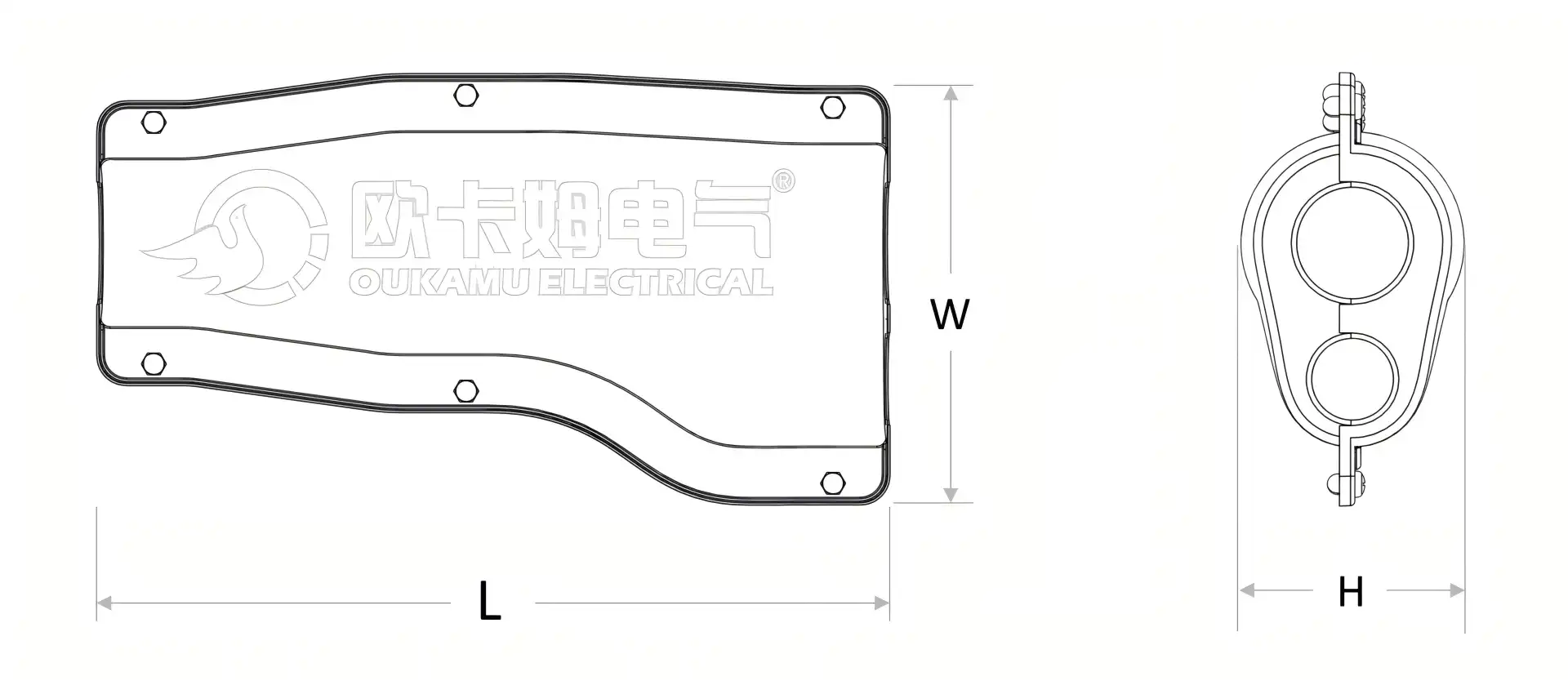

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |
Installation Steps
1.Tools

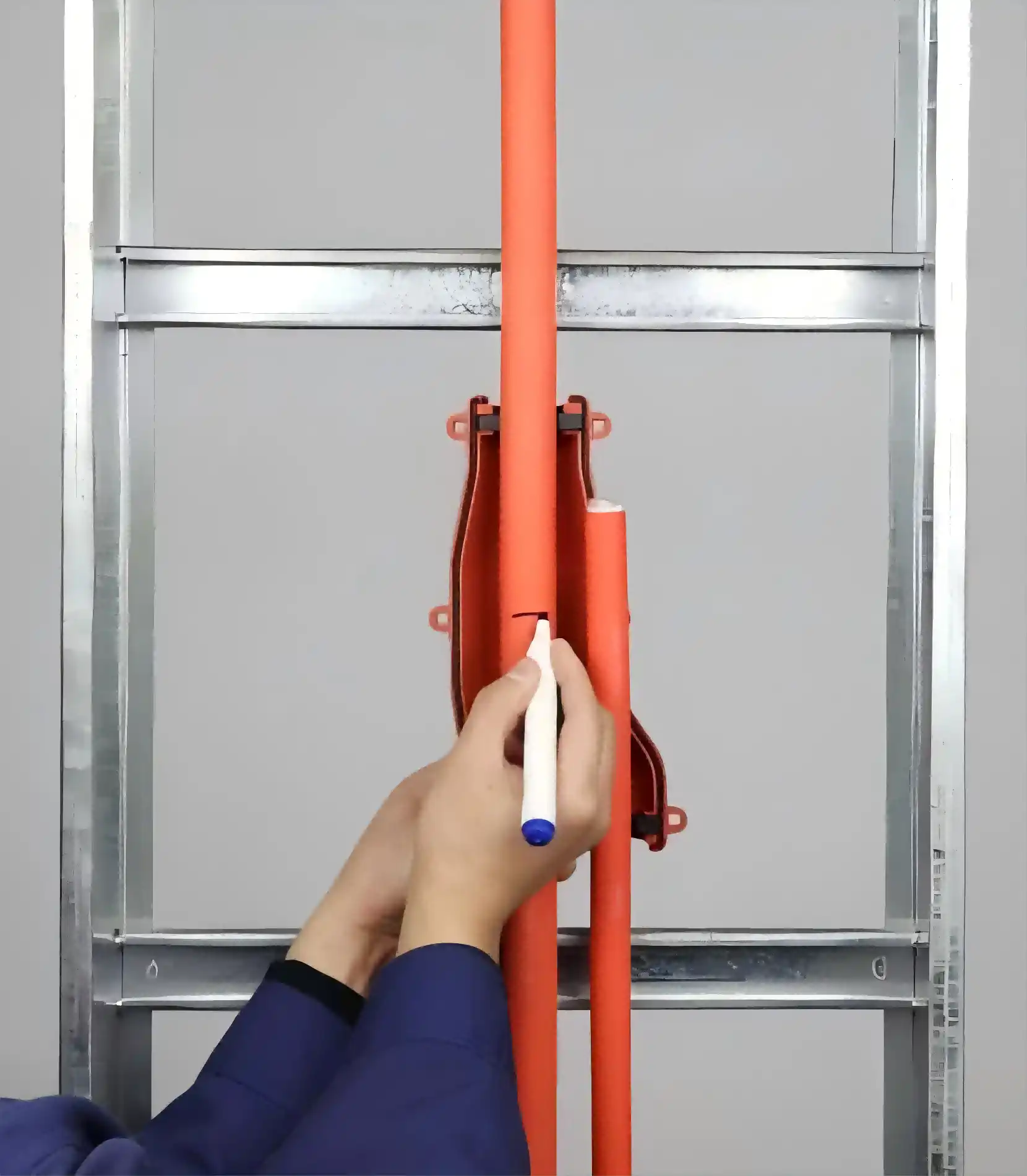

2.Determine the installation location

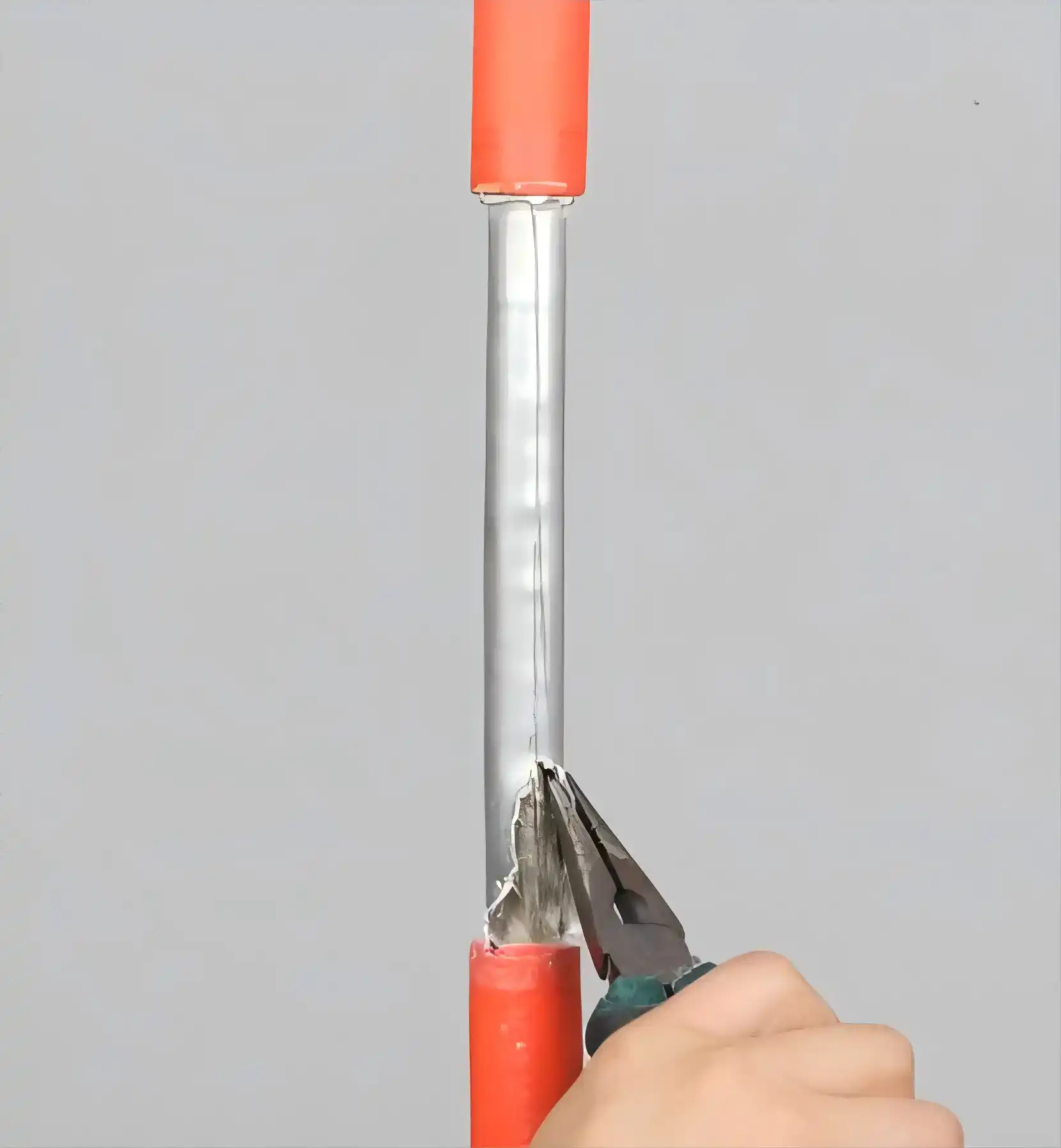

3.Strip the outer sheath and metal layer

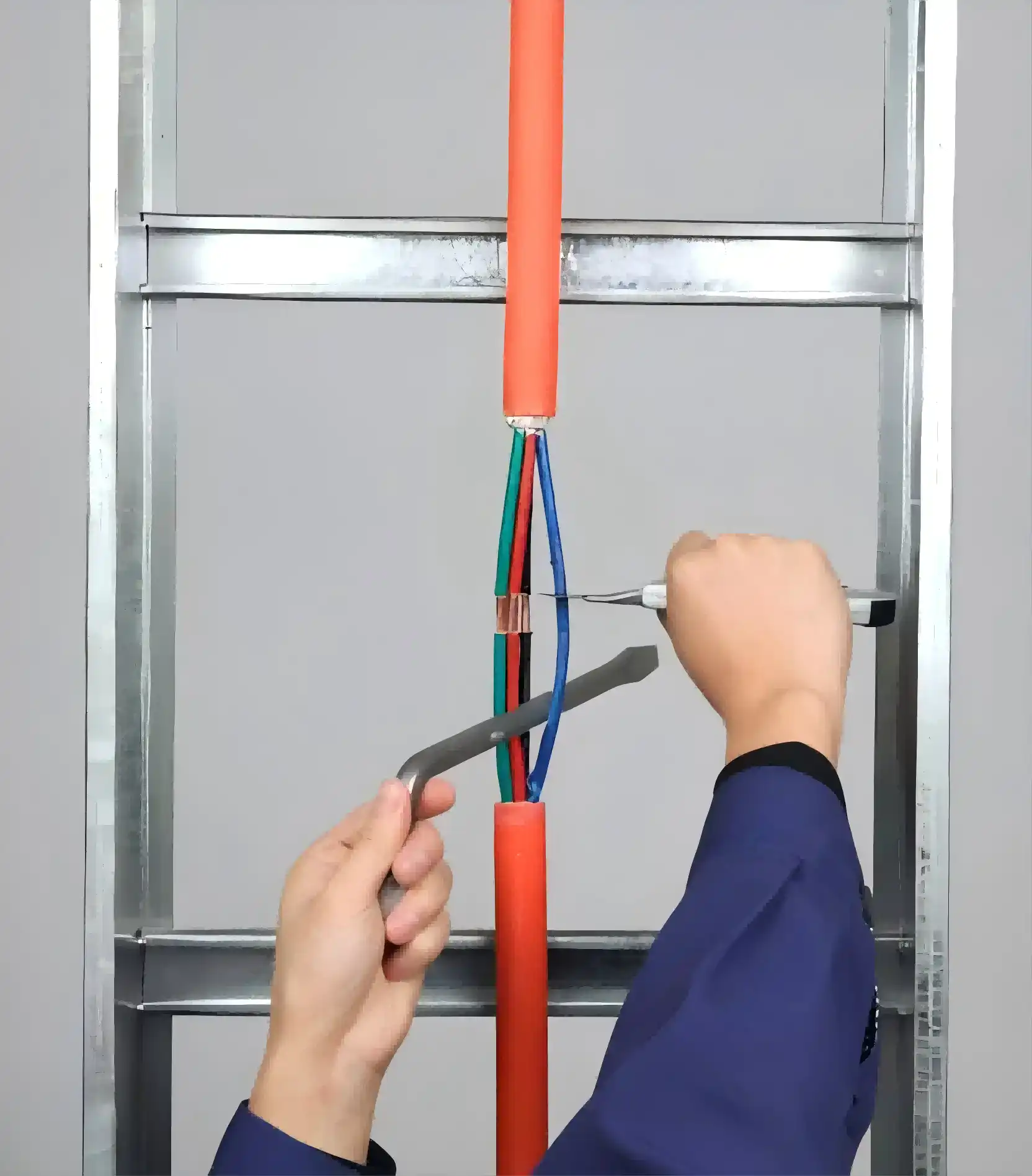

4.Stripping of main cable insulation
5.Install the branch cable body

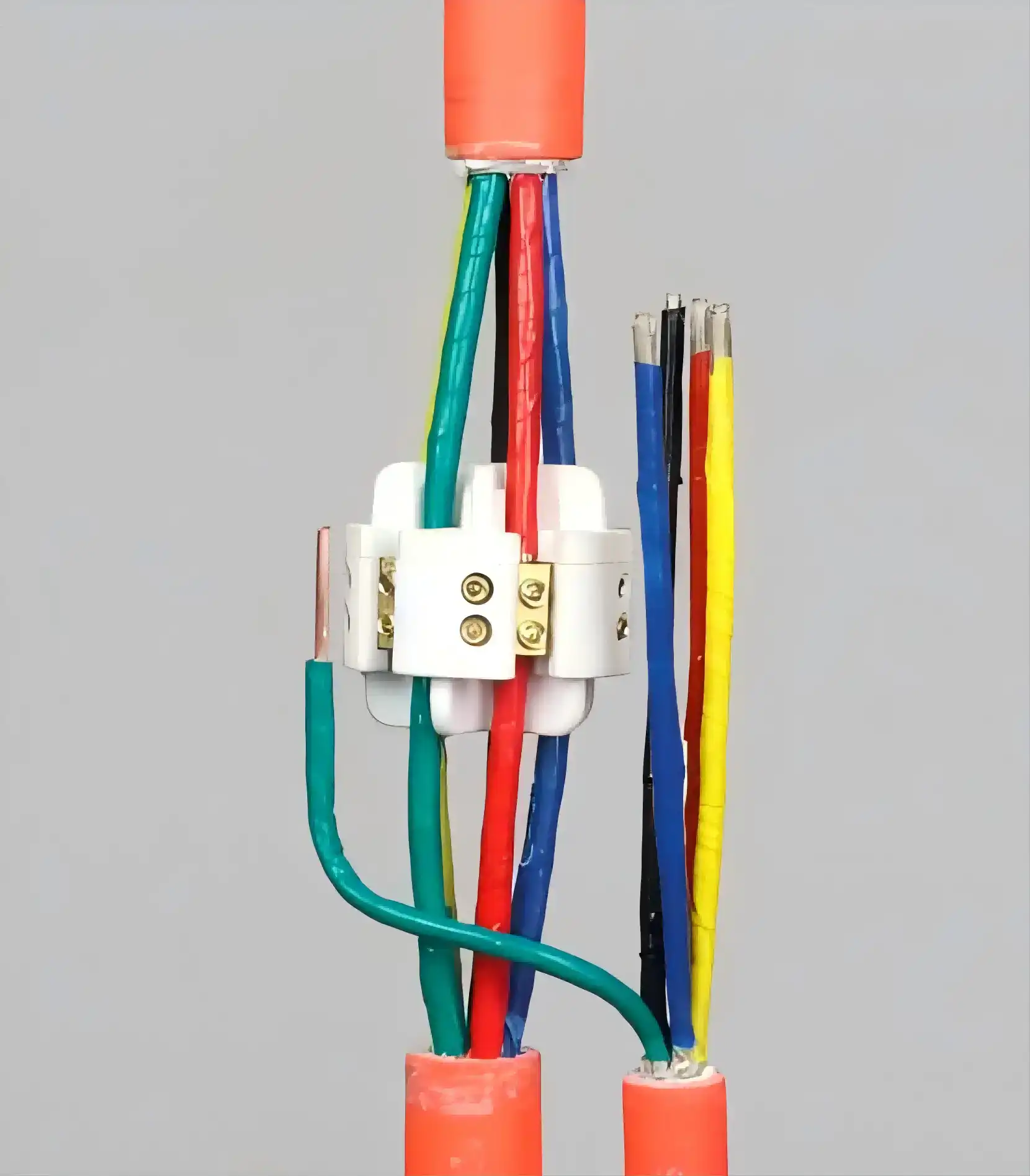

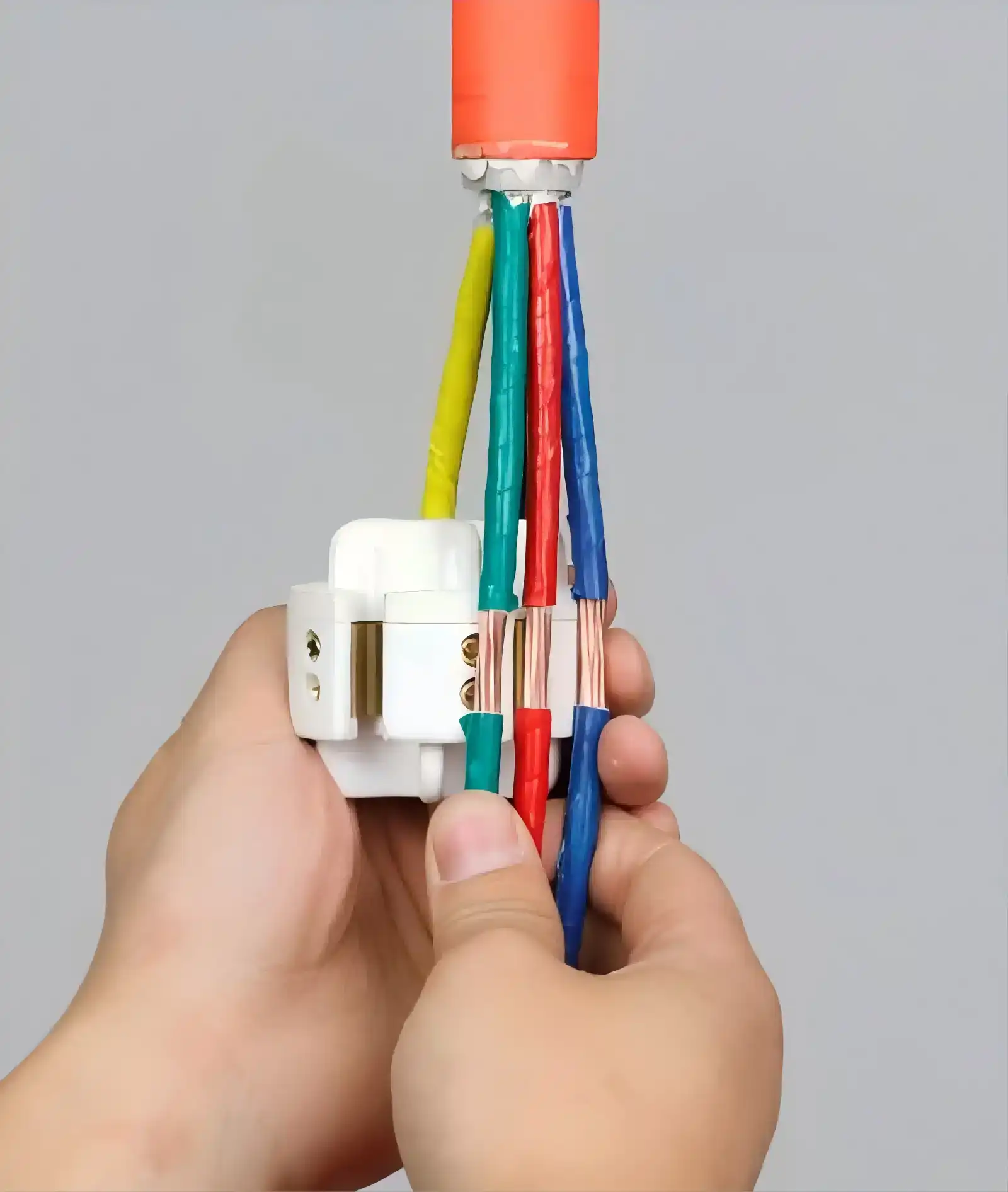

6.Install the branch cables

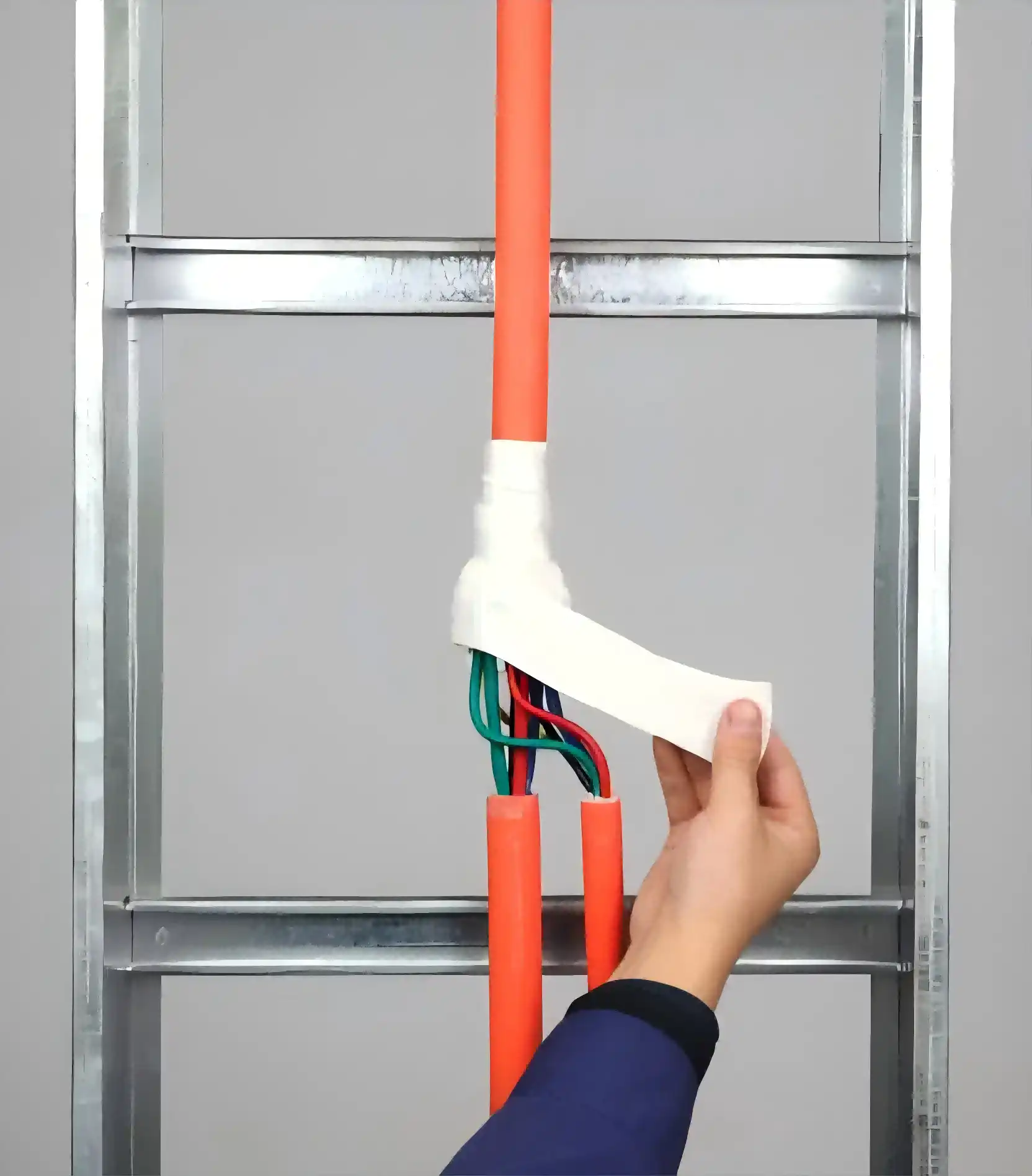

7.Wrap insulation refractory adhesive
8.Snap-on protective housing

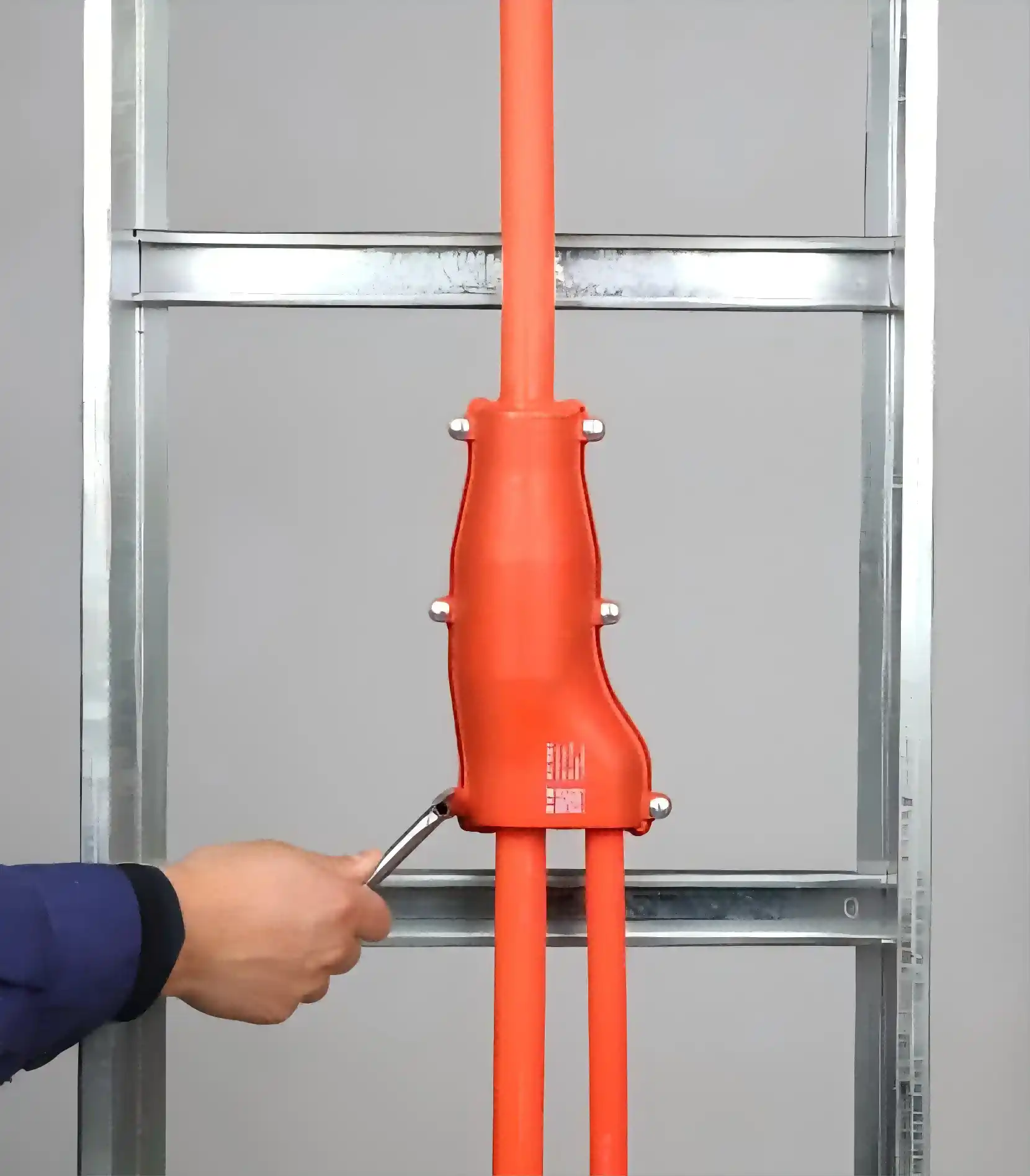

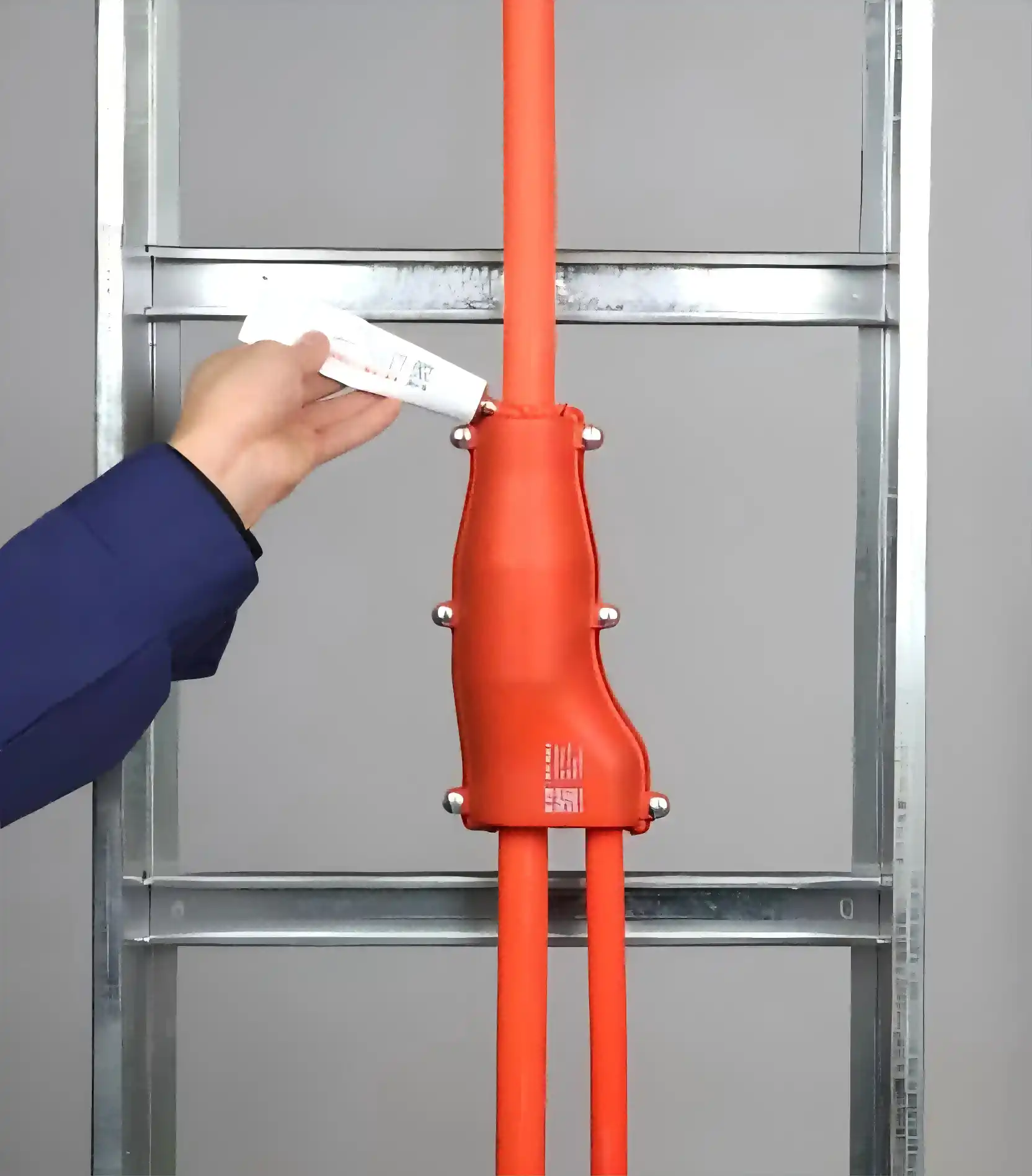

9.Lock and glue the cable outlet

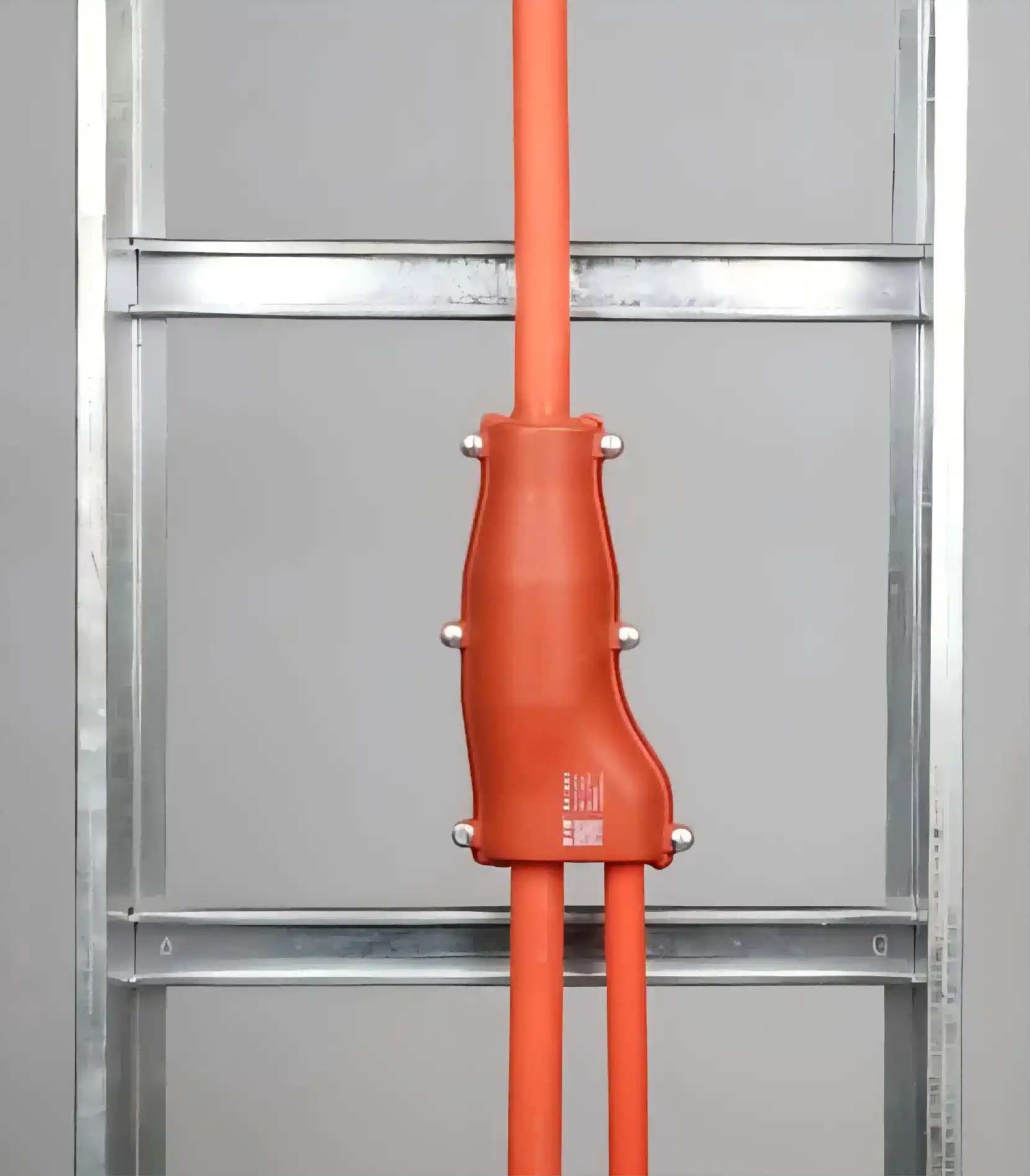

10.Installation completed
Advantages
What sets the product apart? Here are the key advantages:
- On-site Installation: Make branch connections anywhere on the cable, simplifying the construction process.
- Safety and Reliability: Our integrated design is not only visually appealing but also ensures that connections are secure, flame-retardant, and fire-resistant.
- Compact and Versatile: The small size and compact structure allow for easy installation, whether in open spaces or within bridges.
- Cost-Effective: Save on cables, labor, and building area, reducing overall costs.
- Durability: Our product is designed to withstand dust, water, aging, and electrochemical corrosion, ensuring long-term reliability.
Technical Features
Our product is packed with features that make it the superior choice for cable connections:
- No Main Cable Cut Required: Preserve the integrity of your main cables with our innovative design.
- Insulated and Sealed Branch Cables: The entire branch cable is protected, enhancing safety and longevity.
R&D Center
At Xi'an OUKAMU, our R&D center is the heart of our innovation. With a devoted group of specialists and scientists, we consistently push the limits of what is conceivable in cable association technology.This content looks excessively mechanical.Our incorporated T-connector is only one illustration of the historic items that rise up out of our cutting edge offices.
Application
Our product are designed for a variety of applications:
- Construction Sites: Ideal for quick and secure connections in both new builds and retrofits.
- Industrial Settings: Perfect for environments where safety and reliability are paramount.
- Commercial Installations: Use in office buildings, shopping centers, and other commercial spaces where dependable cable connections are essential.
Quality Control
Quality is at the core of everything we do. Each Branch Cable Joint Kit undergoes rigorous testing to ensure it meets the highest standards. Our quality control process includes:
- Material Testing: Ensuring all components are flame-retardant, fire-resistant, and durable.
- Performance Testing: Verifying that each kit performs flawlessly under various conditions.
- Final Inspection: A thorough review of each kit before it leaves our facility to guarantee you receive only the best.
FAQ
Q: Can the Branch Cable Joint Kit be reused?
A: Yes, our kit is designed for reuse, making it a cost-effective solution for multiple projects.
Q: Is it difficult to install?
A: Not at all! The item is easy to use and can be introduced with negligible devices.
Q: What types of cables can it connect?
A: It is compatible with low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q: How does it compare to traditional connection methods?
A: Our kit offers a quicker, safer, and more reliable connection than traditional methods, without the need to cut the main cable.
Q: What is the lifespan of the product?
A: With proper installation and use, our kit is designed to last for many years, even in harsh conditions.
