How to Choose the Right Cable Jointer for Your Project?

When it comes to electrical installations, the importance of selecting the appropriate cable jointer cannot be overstated. A cable jointer, also known as a cable splicer or cable connector, plays a crucial role in ensuring the integrity and efficiency of electrical connections. Whether you're working on a residential, commercial, or industrial project, choosing the right cable jointer is essential for the safety, reliability, and longevity of your electrical system. This comprehensive guide will walk you through the key factors to consider when selecting a cable jointer, helping you make an informed decision for your specific project needs.

Understanding Cable Jointer Types and Applications

Before delving into the selection process, it's essential to grasp the various types of cable jointers available in the market. Cable jointers come in different designs, each tailored to specific applications and environmental conditions. Some common types include:

-Heat shrink cable jointers

-Cold shrink cable jointers

-Resin cable jointers

-Mechanical cable jointers

-Premolded cable jointers

Each type has its unique advantages and limitations. For instance, heat shrink cable jointers offer excellent insulation and moisture resistance, making them ideal for outdoor applications. On the other hand, cold shrink jointers are preferred for their ease of installation and suitability for confined spaces.

The application of your project will significantly influence your choice of cable jointer. Consider factors such as:

-Voltage requirements

-Cable size and type

-Environmental conditions (temperature, humidity, exposure to chemicals)

-Installation location (underground, overhead, or indoor)

-Frequency of maintenance and accessibility

Key Factors to Consider When Selecting a Cable Jointer

Choosing the right cable jointer involves evaluating several critical factors to ensure optimal performance and longevity. Here are some key considerations to keep in mind:

Voltage Rating and Insulation Level

The voltage rating of the cable jointer must match or exceed the operating voltage of your electrical system. Inadequate voltage ratings can lead to insulation breakdown, potentially causing short circuits or electrical fires. Additionally, consider the insulation level required for your application, taking into account factors such as temperature fluctuations and environmental conditions.

Conductor Size and Material Compatibility

Ensure that the cable jointer is compatible with the size and material of your conductors. Different jointers are designed to accommodate specific conductor sizes and materials, such as copper or aluminum. Using an incompatible jointer can result in poor connections, increased resistance, and potential failure points in your electrical system.

Environmental Protection and IP Rating

The Ingress Protection (IP) rating of a cable jointer indicates its level of protection against dust, water, and other environmental factors. For outdoor or harsh environments, opt for jointers with higher IP ratings to ensure long-term reliability and performance. Consider factors such as exposure to UV radiation, chemical contaminants, and extreme temperatures when selecting the appropriate level of environmental protection.

Ease of Installation and Maintenance

Consider the installation process and ongoing maintenance requirements of different cable jointers. Some types, like cold shrink jointers, offer quicker and easier installation, which can be advantageous in time-sensitive projects or confined spaces. Additionally, evaluate the accessibility of the jointer for future maintenance or inspections, particularly in underground or hard-to-reach locations.

Compliance with Industry Standards

Ensure that the cable jointer you choose complies with relevant industry standards and regulations. This may include standards set by organizations such as the International Electrotechnical Commission (IEC), Institute of Electrical and Electronics Engineers (IEEE), or region-specific regulatory bodies. Compliance with these standards ensures the safety, reliability, and interoperability of your electrical system.

Application areas of cable joints

Power distribution

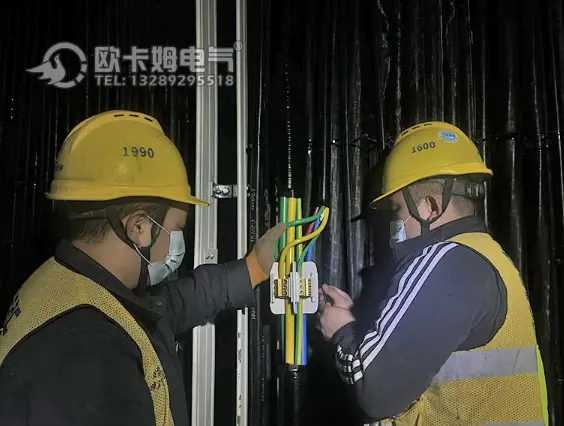

Cable jointers play an important role in power distribution, especially in branching applications of low-voltage cables. They are widely used in residential and commercial buildings to ensure a reliable supply of electricity. For example, in the Xi'an Olympic Village project, cable jointers are used to efficiently branch low-voltage cables to support the infrastructure and residential electricity needs in the area.

Industrial infrastructure

In industrial environments, cable jointers are used to connect cables in factories, warehouses and other facilities to ensure the stable operation of production lines. For example, in a project of a large manufacturing plant, cable jointers effectively connected the power needs of various equipment, ensuring the normal operation and production efficiency of the factory.

Transportation

Cable jointers are crucial in railway systems, airports and other transportation infrastructure, responsible for connecting various power and signal cables. Taking the Hong Kong-Zhuhai-Macao Bridge as an example, cable jointers ensure the power supply of the bridge's lighting, traffic signals and monitoring systems, improving traffic safety and management efficiency.

Construction

In various construction projects, cable jointers are used to branch cables to meet the needs of construction projects of different sizes. Whether it is a large infrastructure project or a small construction project, the flexibility and reliability of cable joints can support the power distribution during the construction process.

Through these application examples, we can see the importance of cable jointers in modern infrastructure construction, which not only improves the reliability of power and communications, but also promotes the development and innovation of various industries.

Conclusion

In conclusion, selecting the right cable jointer for your project requires careful consideration of various factors, including the specific application, environmental conditions, and technical requirements. By thoroughly evaluating these aspects and staying informed about the latest advancements in cable jointing technology, you can make an informed decision that ensures the safety, reliability, and efficiency of your electrical system.

At Xi'an Oukamu Electric Co., Ltd., we're committed to providing innovative cable connection solutions tailored to your project's unique needs. Our team of experts is always ready to assist you in choosing the ideal cable jointer for your application. For personalized advice or more information about our range of cable connection products, please don't hesitate to contact us at info@okmbranchcable.com.

References

1. International Electrotechnical Commission (IEC). (2021). IEC 60502-4: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) - Part 4: Test requirements on accessories for cables with rated voltages from 6 kV (Um = 7,2 kV) up to 30 kV (Um = 36 kV).

2. Institute of Electrical and Electronics Engineers (IEEE). (2017). IEEE Std 404-2012: IEEE Standard for Extruded and Laminated Dielectric Shielded Cable Joints Rated 2.5 kV to 500 kV.

3. Electrical Safety Foundation International (ESFI). (2022). Electrical Safety in the Workplace.

4. National Electrical Manufacturers Association (NEMA). (2020). NEMA Standards Publication No. CC 1: Electric Power Connection for Substations.

5. International Cable Engineers Association (ICEA). (2019). ICEA S-94-649: Standard for Concentric Neutral Cables Rated 5 Through 46 kV.
