Gel-filled Waterproof Junction Box

Gel-filled Waterproof Junction Box: Ultimate Protection for Electrical Connections

When it comes to safeguarding electrical connections in outdoor and harsh environments, the Gel-filled Waterproof Junction Box from Xi’an OUKAMU is the industry’s leading solution. Designed with innovation and durability in mind, our gel-filled junction box offers unmatched protection against moisture, dust, and external damage. Whether you’re working with street lighting systems or other outdoor electrical installations, this junction box ensures long-lasting and reliable performance.

The product is specially designed to provide superior insulation and waterproof protection for electrical connections. It is filled with a gel that forms a waterproof seal around the electrical components, ensuring they remain safe from moisture, dust, and contaminants. This makes it an ideal solution for use in outdoor settings where exposure to the elements is a concern.

At Xi'an OUKAMU, we are proud of our innovative approach to cable T-connection technology. Our product takes this innovation to the next level by offering a compact, easy-to-install, and highly effective solution for protecting sensitive electrical connections.

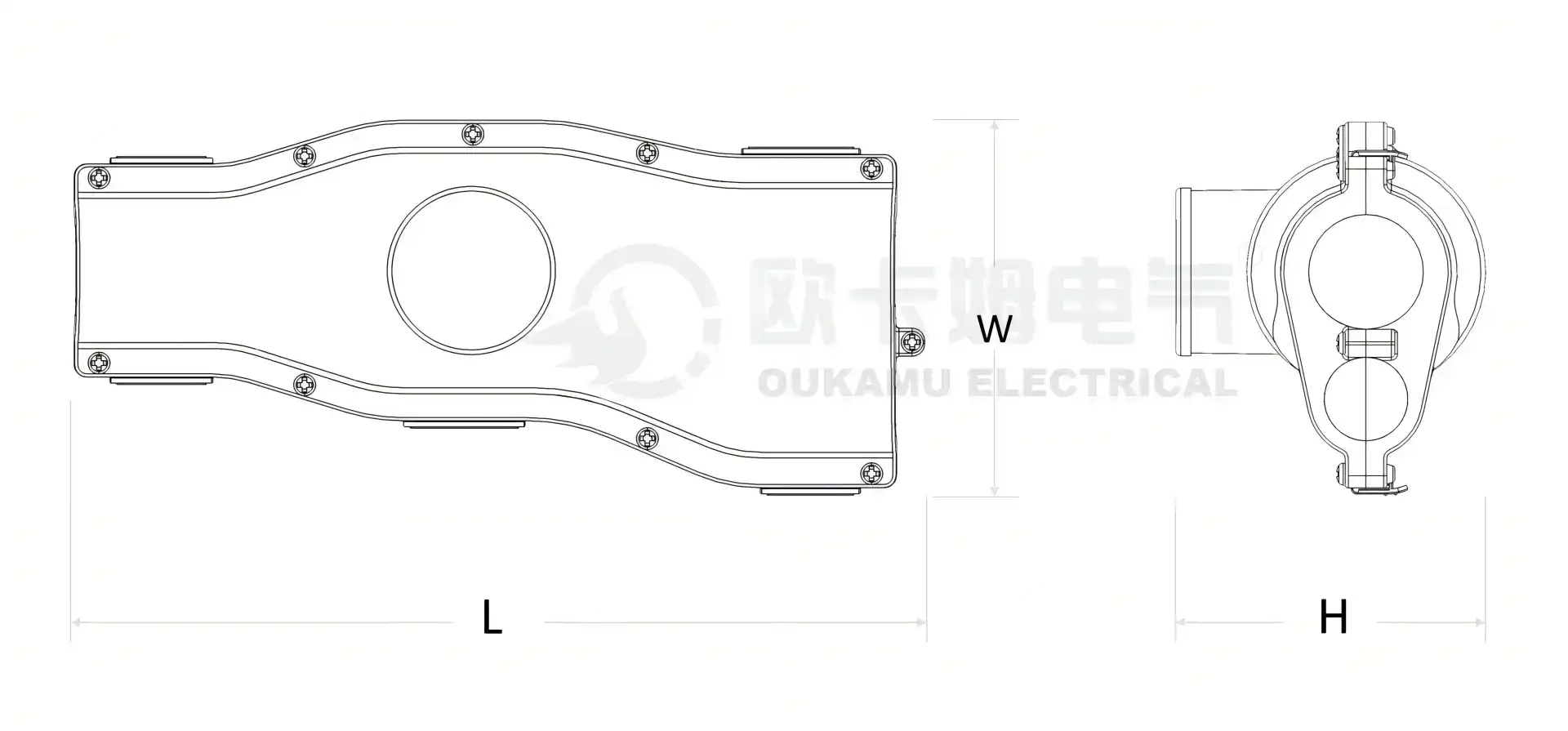

Dimension

Parameters

Technical Parameters

To ensure that our Gel-filled Waterproof Junction Box meets the needs of your specific project, here are the key technical parameters:

Protection Rating: IP>65 (Waterproof and dustproof)

Material: High-quality insulating material with a gel-filled interior

Internal Components: Built-in pure copper grounding or zeroing terminals for electrical safety

Cable Compatibility: Supports a variety of wire sizes and types, securely sealed with waterproof locks

Operating Temperature Range: Suitable for extreme weather conditions, both hot and cold

Dimensions: Compact, customizable size options to suit various installation requirements

Installation Method: Equipped with a metal hanging plate for easy and secure mounting

These parameters ensure that the product can handle even the most demanding environments, offering peace of mind for both electricians and engineers.

Technical Features

The Gel-filled Waterproof Junction Box stands out in the market due to its advanced technical features, which provide superior protection, ease of use, and long-term reliability. Let's take a closer look at these features:

Gel-filled Insulation : The standout feature of this junction box is its gel-filled interior. The gel creates a waterproof and dustproof barrier around the electrical connections, ensuring that they remain safe from environmental factors such as rain, humidity, and dirt. This gel also provides additional insulation, reducing the risk of electrical shorts or failures.

High Protection Rating (IP>65) : With an IP>65 rating, the junction box offers excellent protection against both solid particles and water ingress. This makes it ideal for outdoor applications where the electrical components need to be shielded from the elements. Whether in a street lighting system or an industrial outdoor setup, this protection level ensures long-lasting performance.

Built-in Grounding Terminals : Safety is a top priority, and our product includes built-in pure copper grounding or zeroing terminals. These terminals ensure that the electrical system is properly grounded, reducing the risk of electrical malfunctions or accidents.

Waterproof Cable Locks : The cables entering and exiting the junction box are secured with waterproof locks. These locks ensure a tight seal, preventing any moisture from entering the box and compromising the electrical connections. This feature is especially important for outdoor installations exposed to rain or humidity.

Versatile Component Compatibility : The product is designed to accommodate a variety of electrical components, including 3P circuit breakers, 1P+N leakage circuit breakers, and 3P fuses. This flexibility makes it a versatile choice for a wide range of electrical systems.

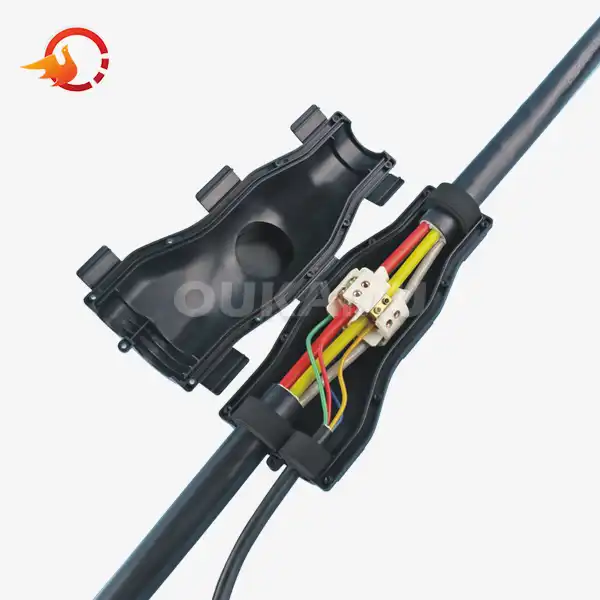

Composition and Classification

The product is composed of several key components that work together to provide superior protection and functionality. These components include:

Insulation Protection Box: The main body of the junction box is made from high-quality insulating material, designed to withstand extreme weather conditions and mechanical stress.

Gel-filled Interior: The interior of the junction box is filled with a gel that provides waterproofing and additional insulation for the electrical connections.

Waterproof Cable Locks: The cables entering and exiting the box are securely fastened with waterproof locks, ensuring no moisture or debris can enter the box.

Grounding Terminals: Built-in pure copper grounding or zeroing terminals for enhanced electrical safety.

Metal Hanging Plate: A metal plate on the back of the box allows for easy and secure mounting on walls or other surfaces.

The Gel-filled Waterproof Junction Box can be classified based on its size, the number of cable entries, and the type of electrical components it supports.

Application Fields

The versatility and durability of the product make it suitable for a wide range of applications. Some of the most common use cases include:

Street Lighting Systems: Provides waterproof protection for street light switches and wiring, ensuring long-term reliability in outdoor environments.

Tunnels and Bridges: Ideal for use in tunnels, bridges, and other infrastructure projects where electrical systems need to be protected from moisture and dust.

Outdoor Electrical Installations: Perfect for any outdoor setup, including industrial sites, commercial buildings, and residential areas where electrical connections are exposed to the elements.

Marine and Coastal Installations: The gel-filled design makes this junction box an excellent choice for coastal and marine environments, where humidity and saltwater exposure can be a challenge.

Industrial Applications: Suitable for use in factories, warehouses, and other industrial settings where electrical systems need to be protected from dust, moisture, and mechanical damage.

Packaging and Transportation

At Xi'an OUKAMU, we ensure that our products are packaged with care to prevent any damage during transportation. Each product is securely packed to ensure it arrives in perfect condition, ready for installation.

Packaging: Each junction box is individually packaged with protective materials to prevent damage during shipping. Bulk orders are packed securely for safe transport.

Transportation: We offer flexible shipping options, ensuring timely delivery to both domestic and international customers. Our logistics partners are experienced in handling delicate electrical components, ensuring that your order arrives safely.

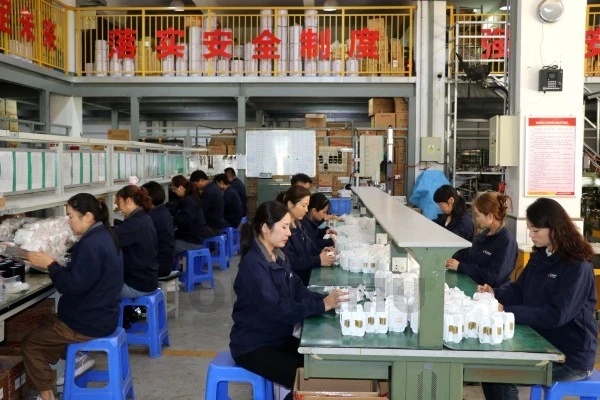

Our Factory

Contact Us

At Xi'an OUKAMU, we're here to help you find the right solutions for your electrical protection needs. If you have any questions about the product or need assistance with your order, don't hesitate to reach out to us.

Email: info@okmbranchcable.com

Phone: Our team is available to provide product information, technical support, and answer any questions you may have.

Location: We serve clients around the world and are happy to assist with both small and large orders.

The Gel-filled Waterproof Junction Box is the perfect solution for anyone seeking reliable and durable protection for their electrical connections. With its innovative gel-filled design, high protection rating, and versatile applications, it is a top choice for engineers, electricians, and project managers.

For more information or to place an order, contact us today. Protect your electrical systems with the product from Xi'an OUKAMU—the industry leader in cable T-connection technology!
