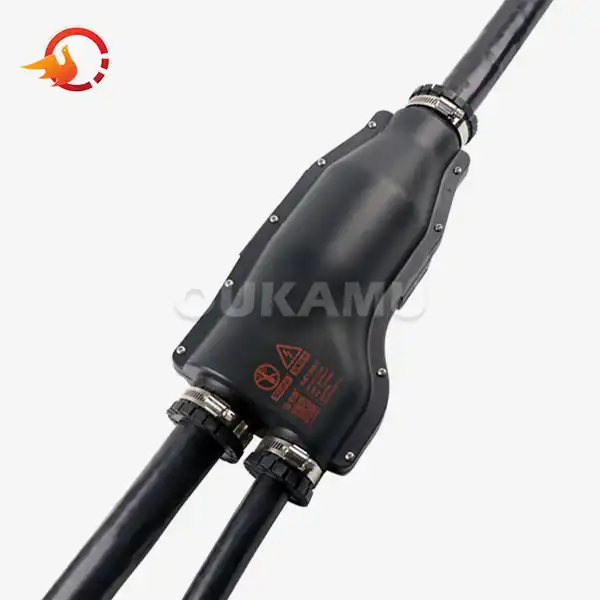

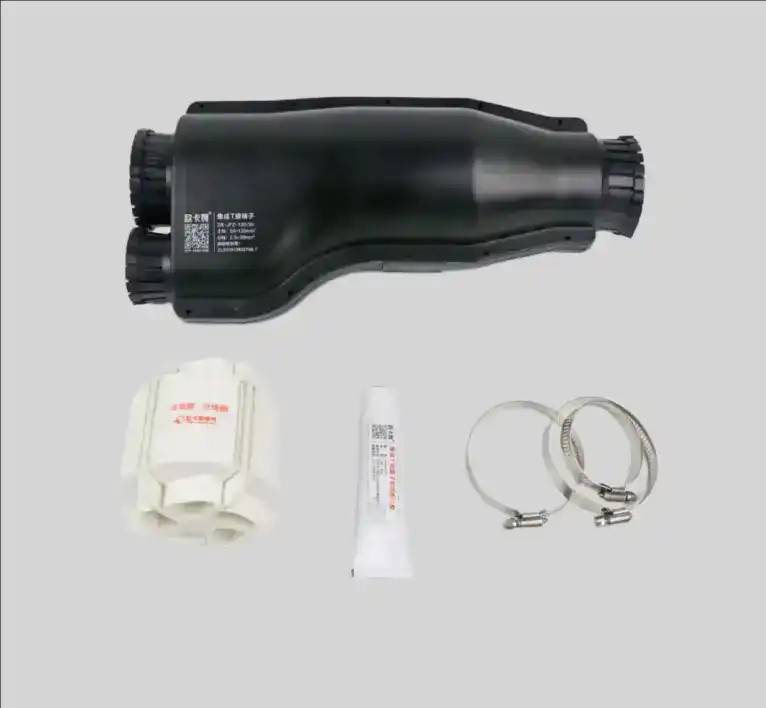

Branch Cable System
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 35~95mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....

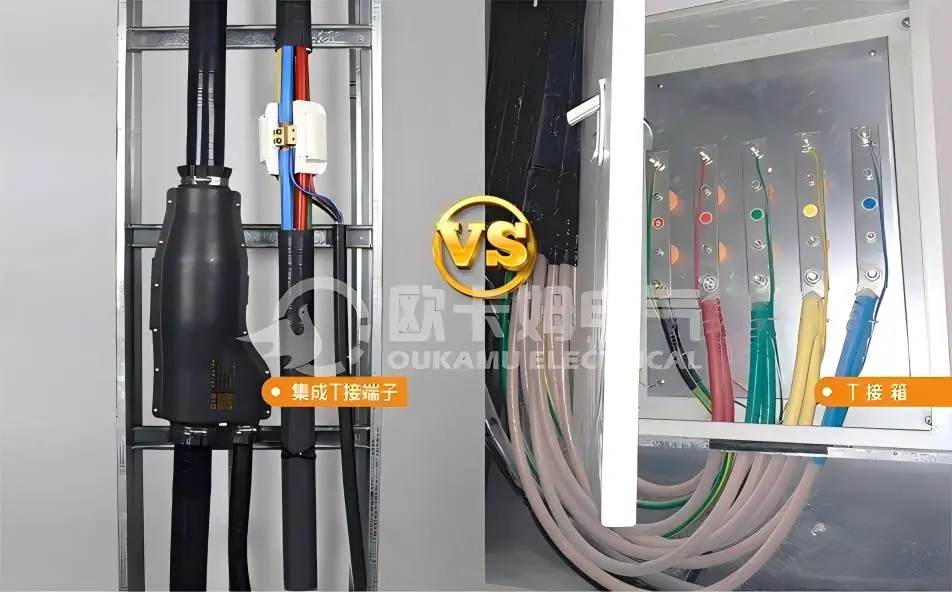

Comprehensive cost can be reduced by 300%~500%, high cost performance.
Branch Cable System Introduction
In the world of electrical infrastructure, a reliable and efficient branch cable system is essential. Traditional methods often involve cutting cables, leading to potential safety hazards and compromising cable integrity. Xi'an Oukamu Electric Co., Ltd. presents a revolutionary solution: the Branch Cable System, a game-changer in the field of low-voltage cable connections.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps
1.Tools
2.Determine installation location

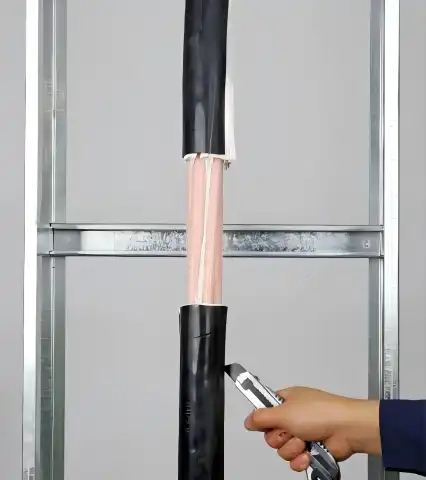

3.Open outer sheath

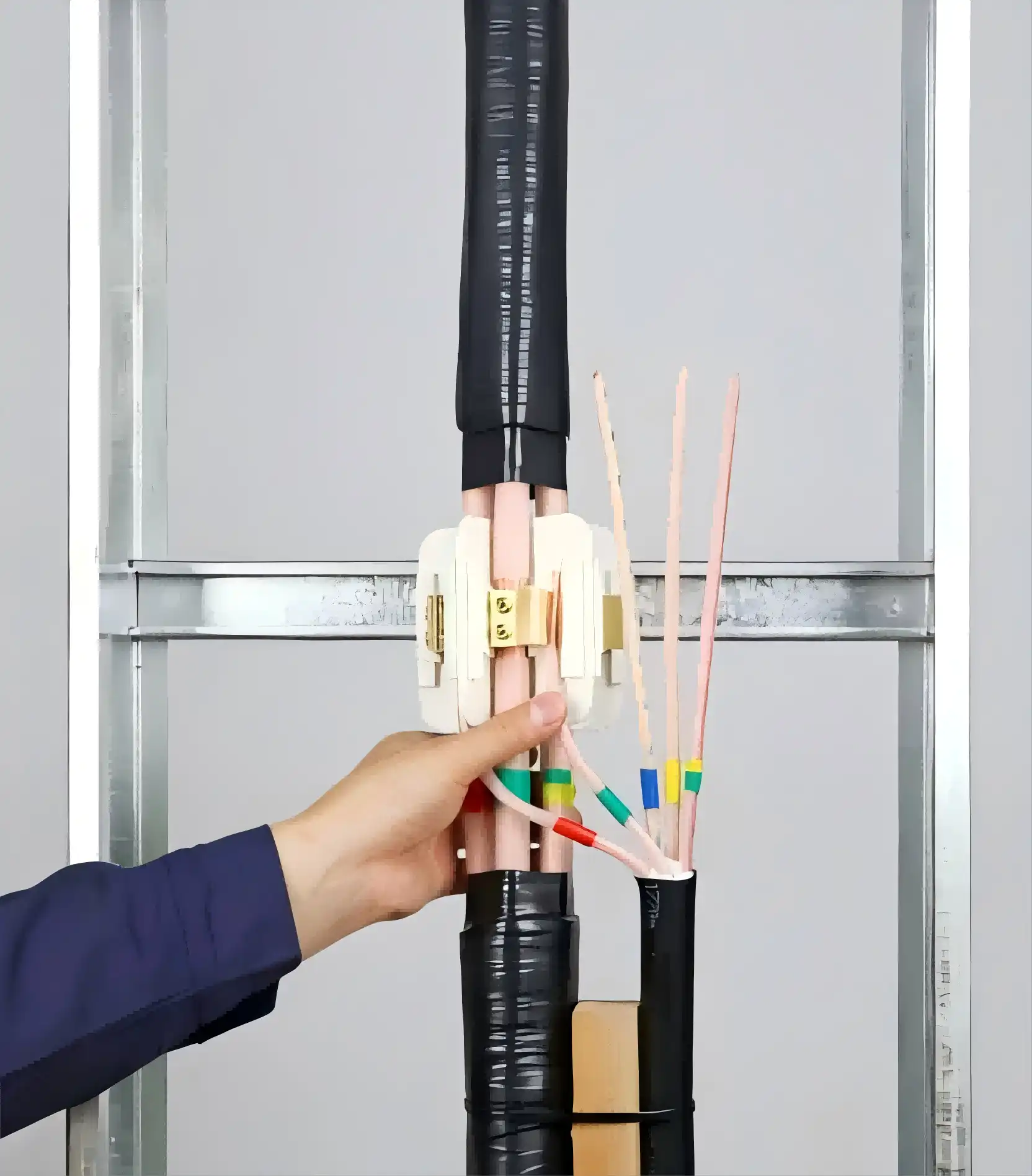

4.Strip main cable insulation
5.Installation of branch cable body
6.Overwrap open seams

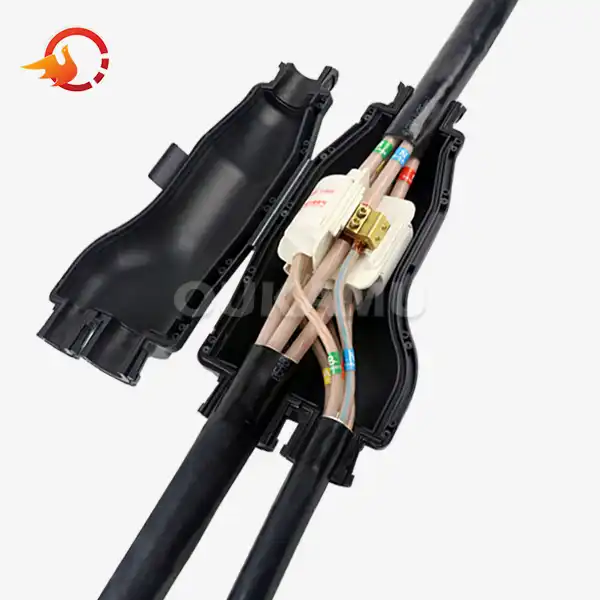

7.Installation of branch cables

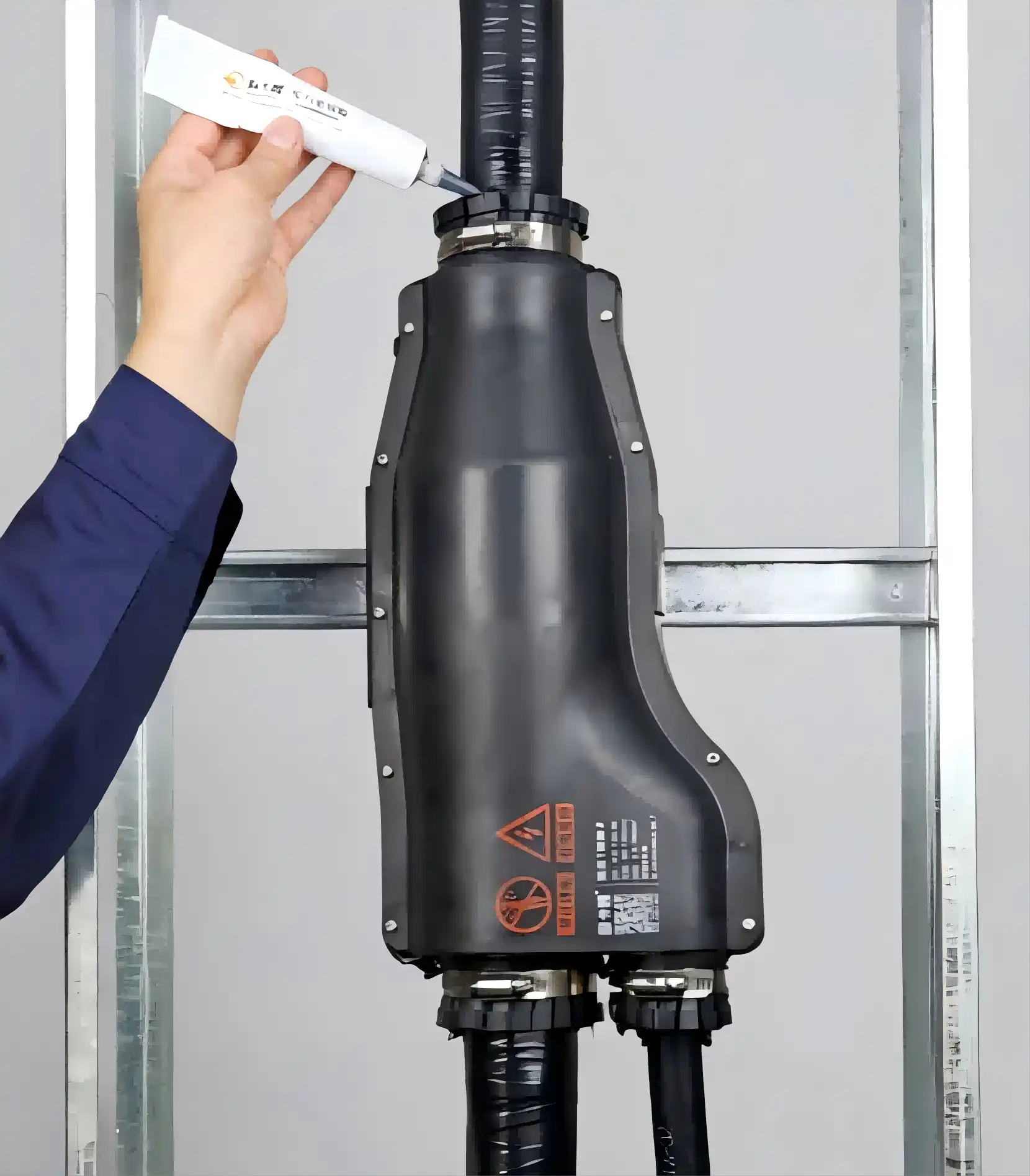

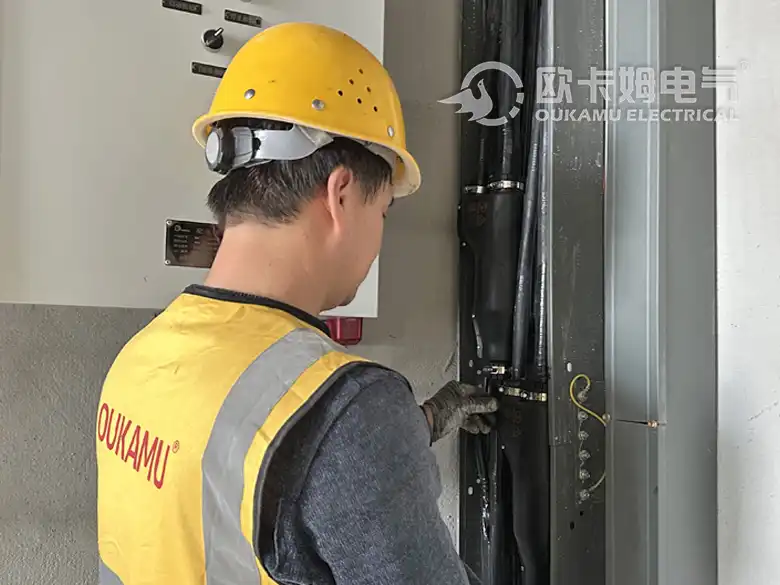

8.Snap-on protective housing
9.Lock and glue the cable outlet

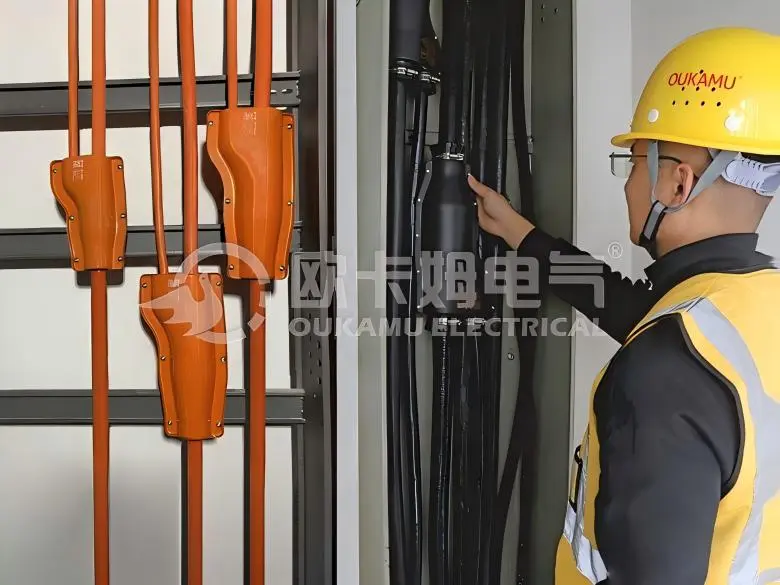

10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Parameters
Application: Connecting low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Material: High-quality flame-retardant and fire-resistant materials designed for robust underground applications.
Installation: Adaptable for both open and bridge installations, offering flexibility for diverse project requirements.
Design: Compact and integrated structure for streamlined installation and minimal space requirements, optimizing space utilization.
Technical Features
This product boasts innovative features that set it apart:
No Cable Cutting: This eliminates the need to sever cables, preserving their integrity and ensuring a safer installation process, minimizing potential risks.

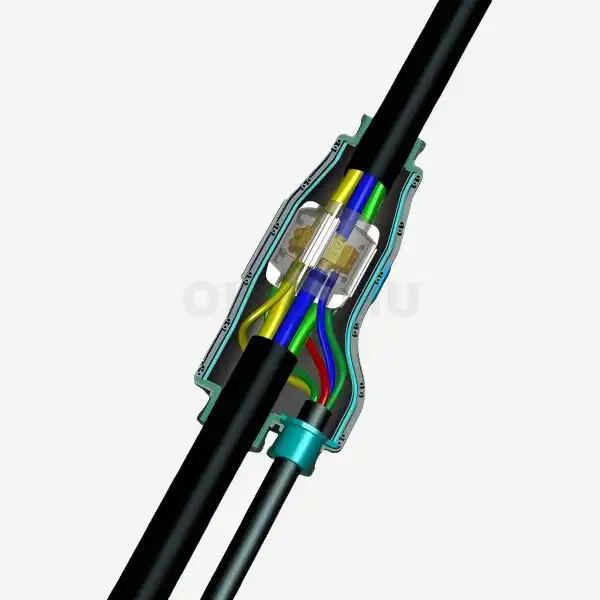

Integrated Connection: Main and branch cables are seamlessly joined on the integrated T-connector body, providing a secure, reliable, and tamper-resistant connection, enhancing system stability and reliability.
Insulated and Sealed Branch Cable: The branch cable is fully insulated and sealed, offering complete protection against environmental factors, ensuring safety, and preventing corrosion or leaks, ensuring long-term performance and durability.
Composition and Classification
It is available in various configurations to cater to different cable types and sizes, catering to the unique needs of your project. The specific composition and classification will depend on the requirements of your project. For detailed information on the various models and their specifications, please contact us at [info@okmbranchcable.com].
Branch Cable System Application Fields
Our product proves invaluable in diverse sectors:
Power Distribution: Branching low-voltage cables for residential, commercial, and industrial applications, powering homes, offices, factories, and more.
Industrial Infrastructure: Connecting cables in factories, warehouses, power plants, and data centers, ensuring reliable power distribution transmission.

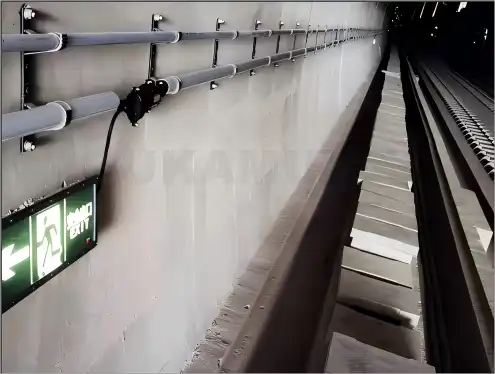

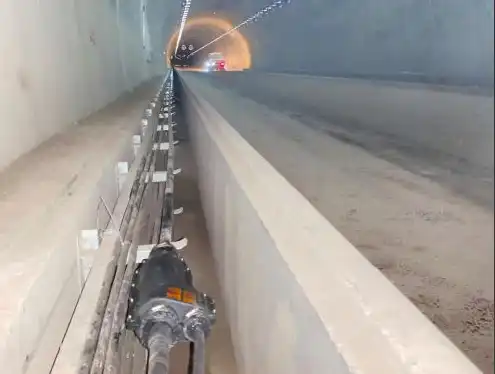

Transportation: Connecting cables in railway systems, airports, and other transportation infrastructure, ensuring reliable power systems for efficient operation.

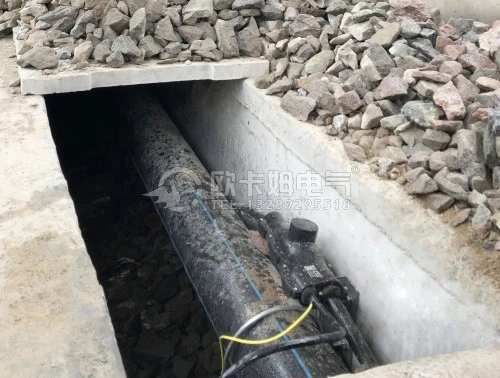

Construction: Branching cables for large-scale construction projects, both above and below ground, facilitating efficient power systems during construction.
Packaging and Transportation
The Branch Cable System is meticulously packaged to ensure safe and secure transport, protecting the system during transit. We offer various packaging options to suit your specific needs and project requirements. For details on packaging and transportation options, please contact us.
Why Choose a Branch Cable?
Enhanced Safety: Eliminates cable cutting, reducing potential hazards and ensuring a safer installation process, prioritizing worker safety and minimizing potential risks.
Increased Efficiency: The integrated design streamlines installation, saving time and labor costs, optimizing project timelines and reducing overall costs.
Improved Reliability: The secure connection and robust materials ensure a long-lasting and reliable performance, delivering uninterrupted service and reducing maintenance requirements.
Reduced Costs: The system minimizes material waste, lowers labor costs, and reduces the overall project cost, making it a cost-effective solution for various projects.
Environmental Considerations: The use of high-quality, flame-retardant materials contributes to a safer and more sustainable environment, promoting responsible and sustainable practices.
