Low Voltage Cable Joint Connector
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 95~240mm, branch cable 6~70mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Low Voltage Cable Joint Connector Introduction
Welcome to the fate of cable systems administration with Xi'an OUKAMU's historic Low Voltage Cable Joint Connector. As trailblazers in cable joining innovation, we are devoted to driving the way in giving creative arrangements that rethink the principles of the business. Our product, highlighting the progressive coordinated T-connector, is a demonstration of our obligation to greatness and development.
The T-connector is something beyond a part; it's a game-changing headway in the way multi-center main and branch cables are associated. Presented in 2015, this connector was planned with an emphasis on conveying unmatched comfort and security, setting new benchmarks in the business. From the second it was imagined, the T-connector has been perceived for its prevalent plan and usefulness, offering a degree of execution that is unrivaled on the lookout.

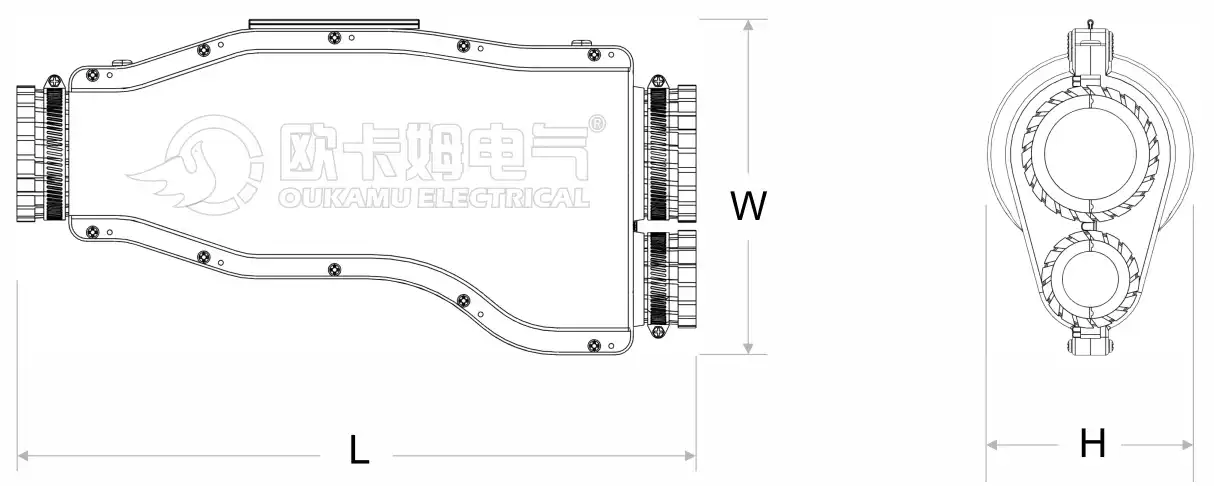

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps
2.Determine installation location
3.Open outer sheath
4.Strip main cable insulation
5.Installation of branch cable body
6.Overwrap open seams
7.Installation of branch cables
8.Snap-on protective housing
9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
- On-Site Installation Flexibility: Easily connect cables at any position during construction without the need for main cable disconnection.
- Integrated Design: Combines functionality with aesthetics, offering a safe, reliable, and visually appealing solution.
- Compact and Versatile: Its small size allows for installation both openly and within bridges, making it adaptable to various environments.
- Efficient Construction: Reusable and straightforward to install, which reduces labor and time spent on site.
- Robust Performance: Designed to be insulation, flame-retardant, fire-resistant, dustproof, waterproof, and resistant to aging and electrochemical corrosion.
- Cost-Efficient: Saves on cable usage, reduces building area requirements, and lowers overall costs.
Technical Features
- Seamless Integration: The main cable remains uninterrupted; connection is made directly on the integrated T-connector body.
- Complete Insulation: The branch cable is fully insulated and sealed to ensure long-lasting performance and safety.
Application
The product is great for use with low-voltage cables that are fire resistant, heat proof, or mineral-protected. It is ideal for applications requiring dependable and safe branch associations, like in modern, business, and private settings. Whether you are dealing with new development or updating existing frameworks, our connector offers a flexible and reliable arrangement.
OEM Service
At Xi'an OUKAMU, we comprehend that each task has one of a kind prerequisites. Our OEM administrations allow us to fit our Low Voltage Cable Joint Connector to meet your particular requirements. From hand crafts to particular bundling, we are focused on giving arrangements that adjust your venture objectives and details.
FAQ
Q1: How does the product ensure safety and reliability?
A1: Our connector is designed with comprehensive insulation and sealing features, flame-retardant and fire-resistant properties, and anti-corrosion technology to ensure safe and reliable performance.
Q2: Can the product be used in all weather conditions?
A2: Yes, the connector is built to withstand various environmental conditions, including dust, moisture, and extreme temperatures, thanks to its waterproof and anti-aging properties.
Q3: Is installation of the Low Voltage Cable Joint Connector complex?
A3: No, the installation process is straightforward and does not require cutting the main cable. The connector is designed for ease of use and quick assembly, reducing construction time.
Q4: How doe sthe product help in reducing overall costs?
A4: By minimizing cable waste, saving space, and reducing labor requirements, our connector contributes to lower overall project costs.
Q5: What type of maintenance is required for the product?
A5: The connector is designed for low maintenance due to its durable and robust construction. Regular inspections are recommended to ensure ongoing performance.
