Cable Branch Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 35~95mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance

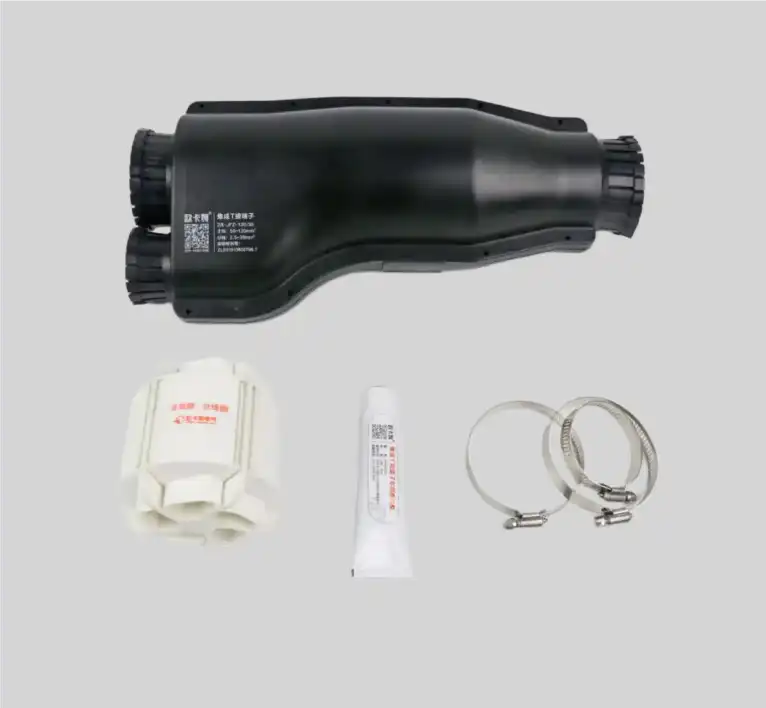

Cable Branch Joint Introduction
Welcome to Xi'an OUKAMU, where innovation meets reliability. Our Cable Branch Joint, an industry-leading product, is designed to streamline cable connections with unmatched efficiency and safety. Discover how our integrated T-connector can transform your projects.
The joint, also known as an integrated T-connector, is a groundbreaking solution developed by Xi'an OUKAMU. Introduced in 2015, this product simplifies the process of connecting multi-core main cables and branch cables. Engineered for convenience, speed, and safety, it ensures robust performance while enhancing the aesthetics of cable installations.

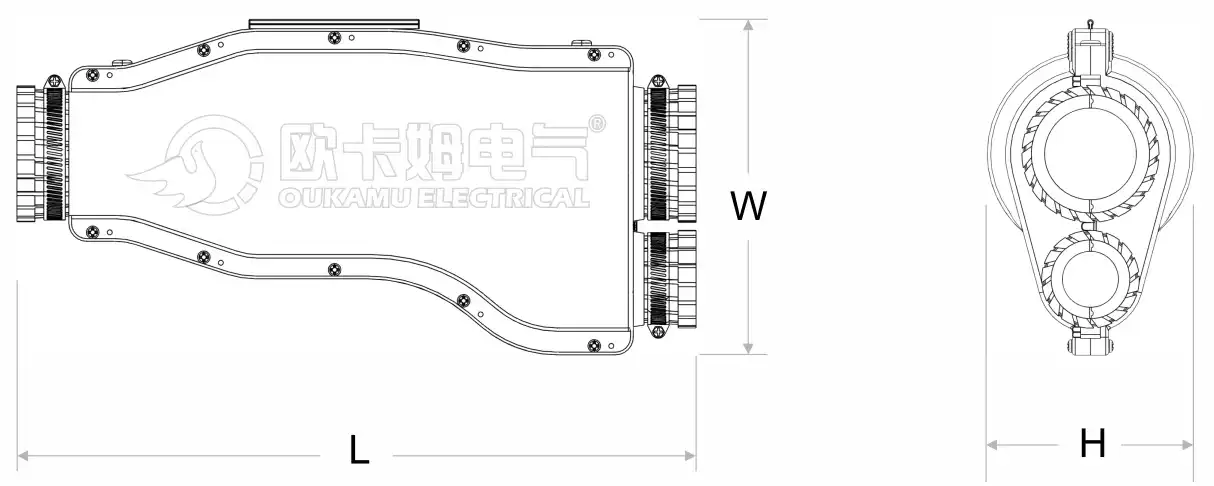

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

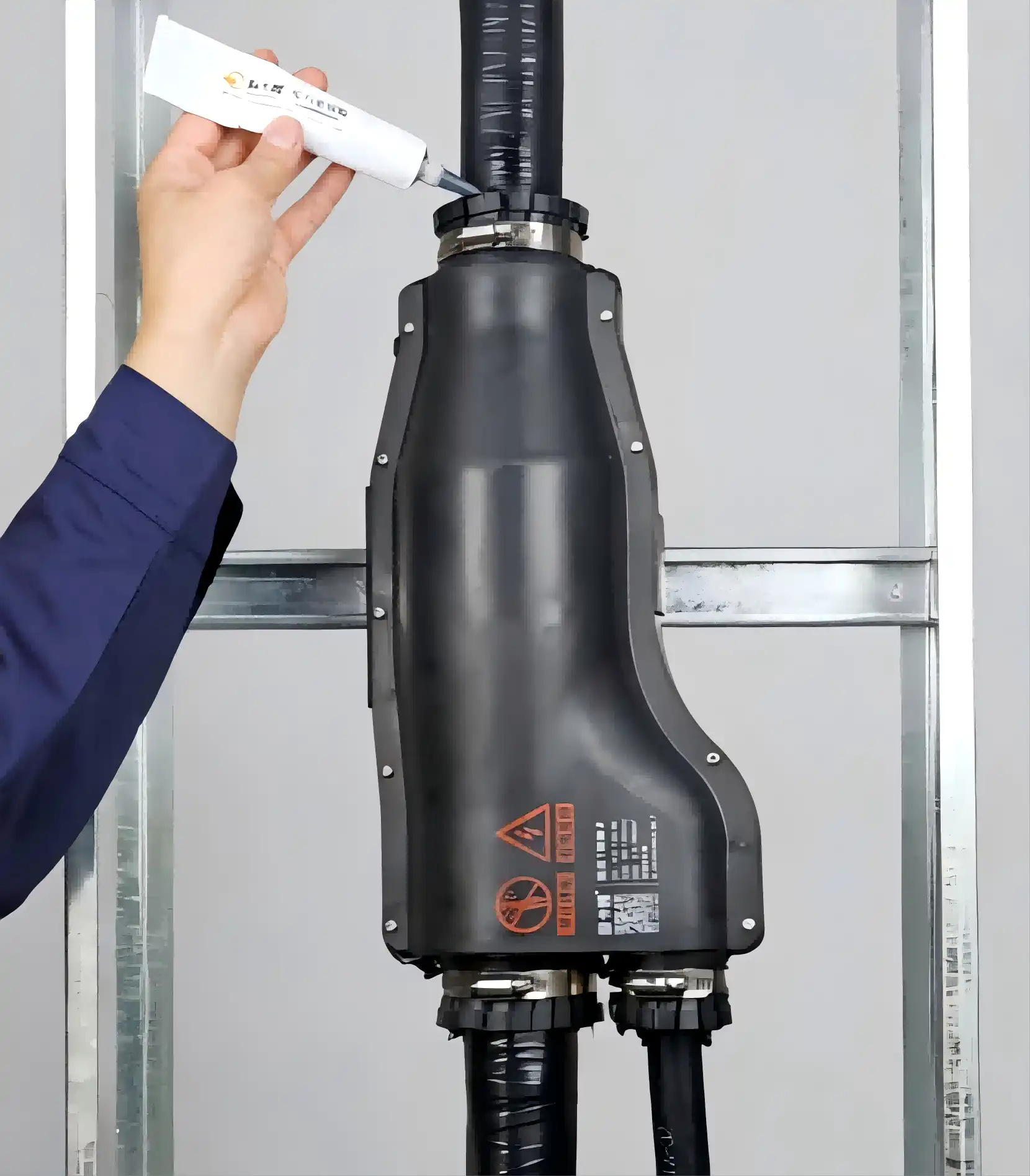

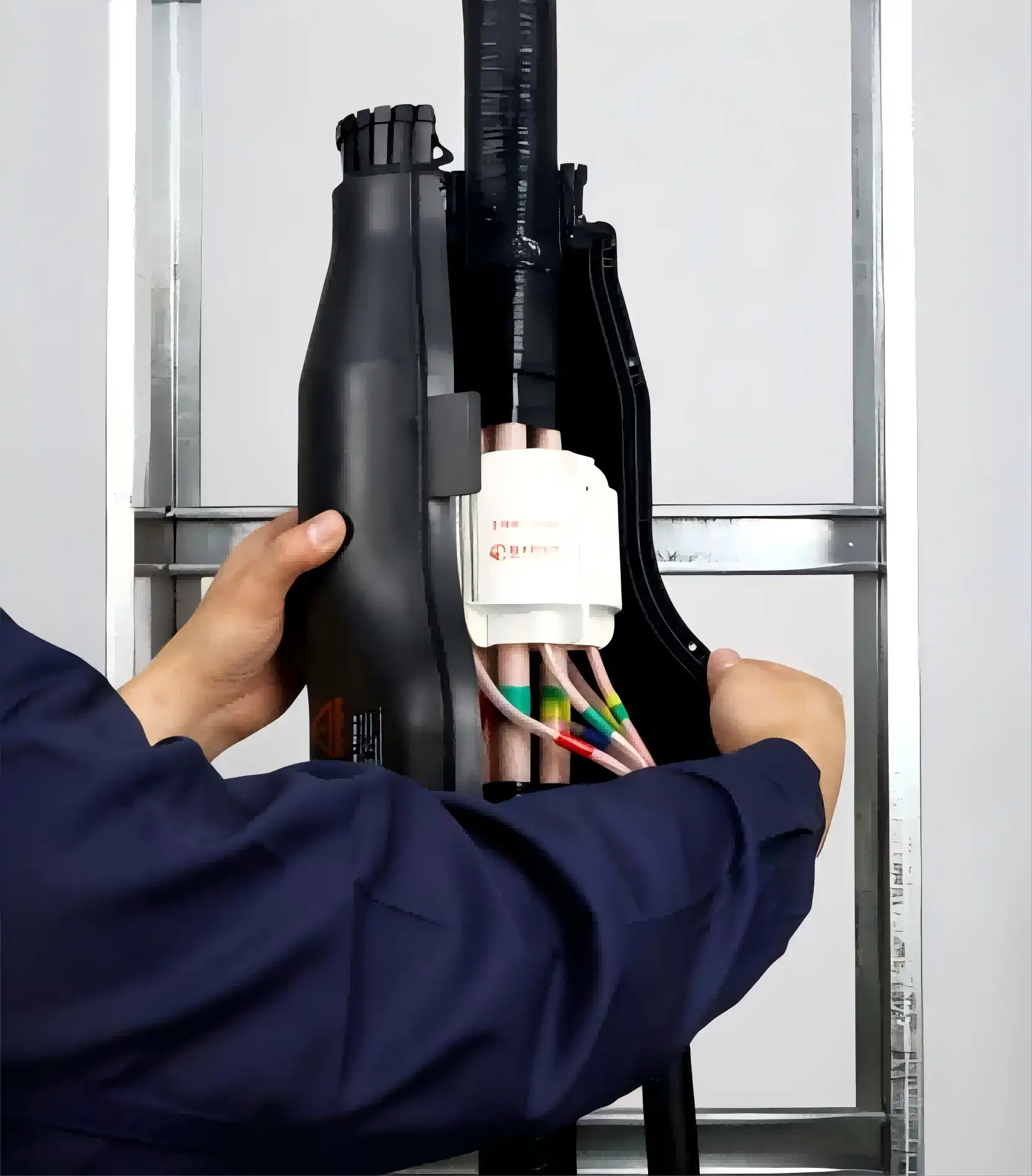

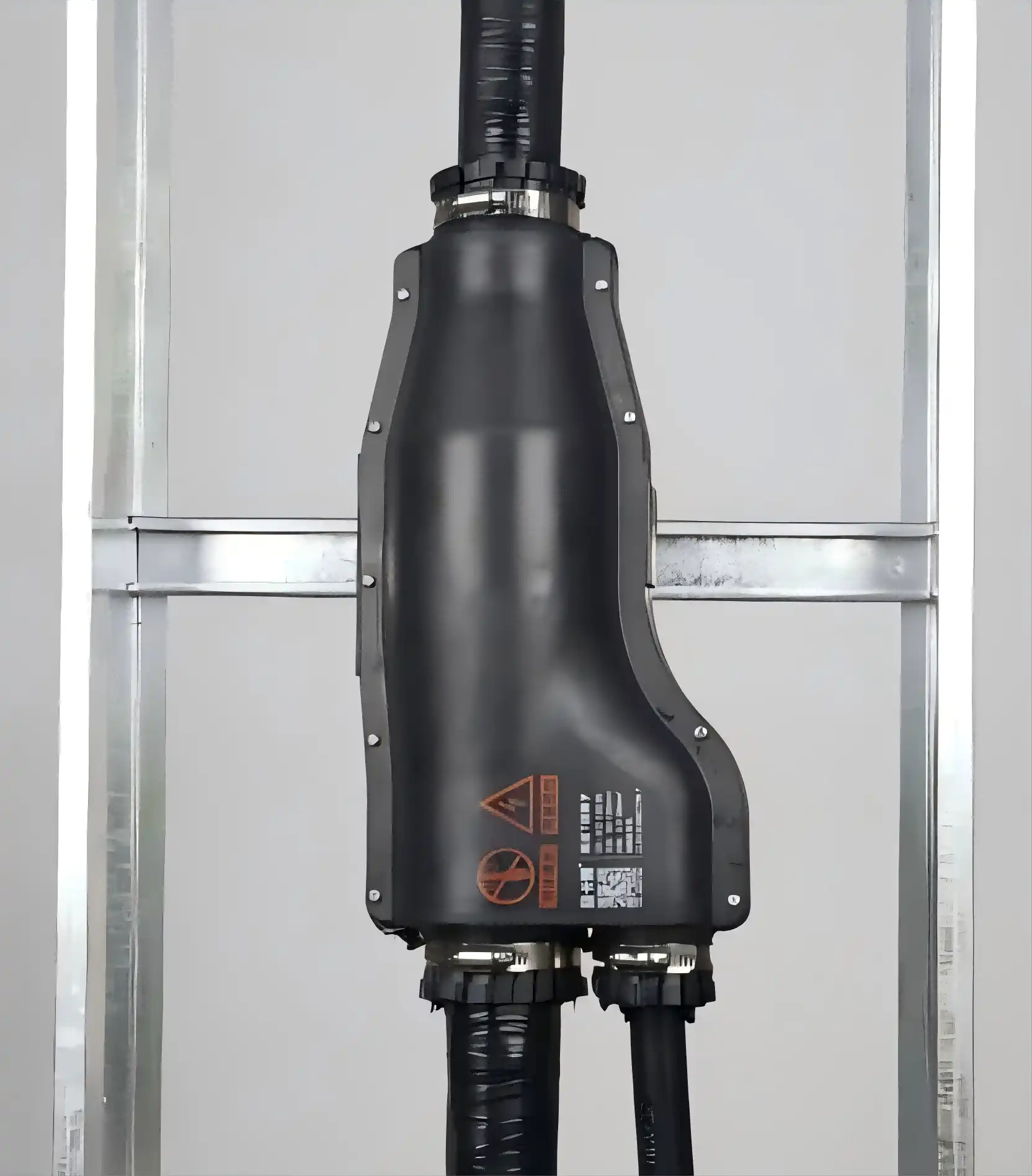

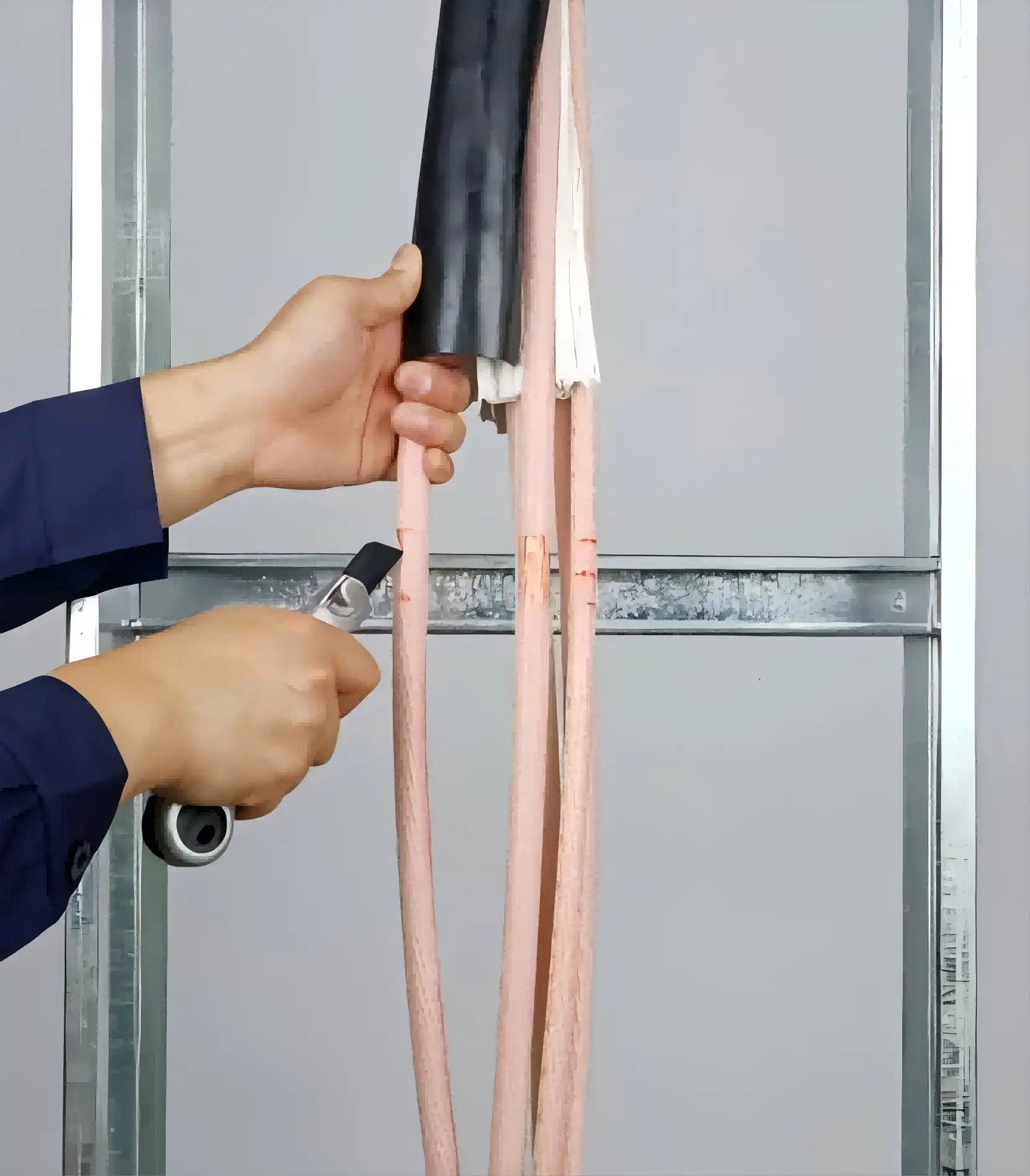

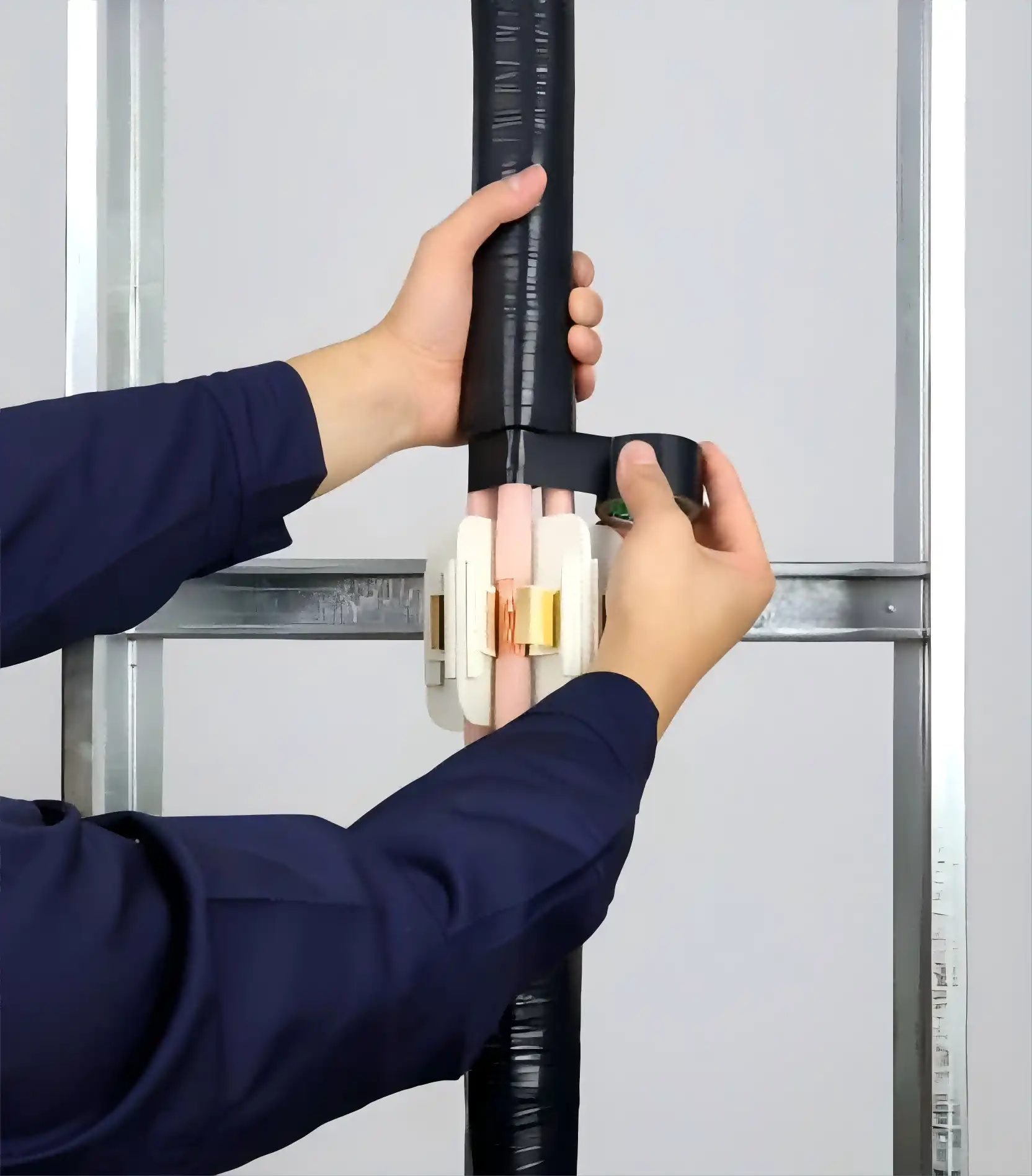

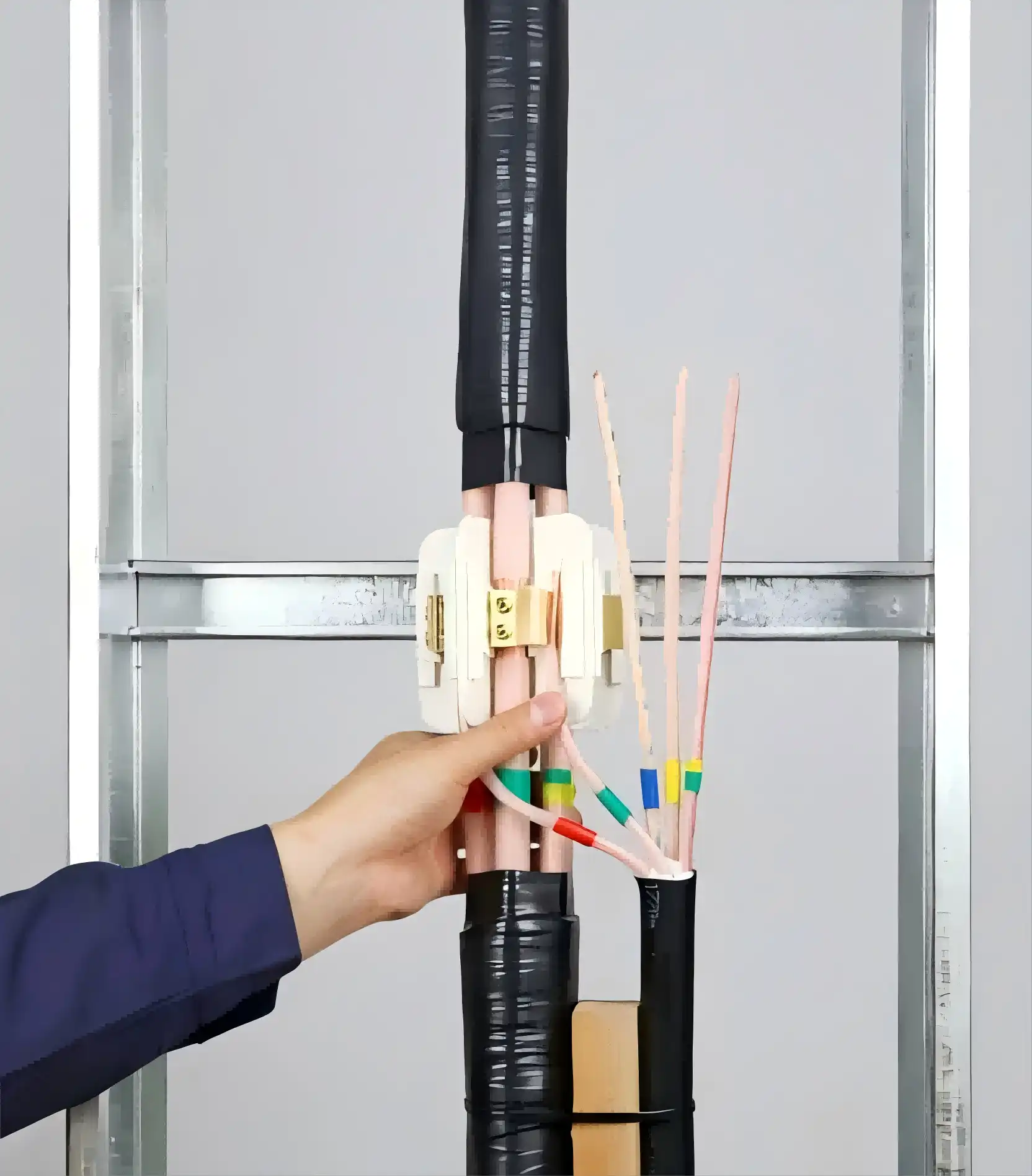

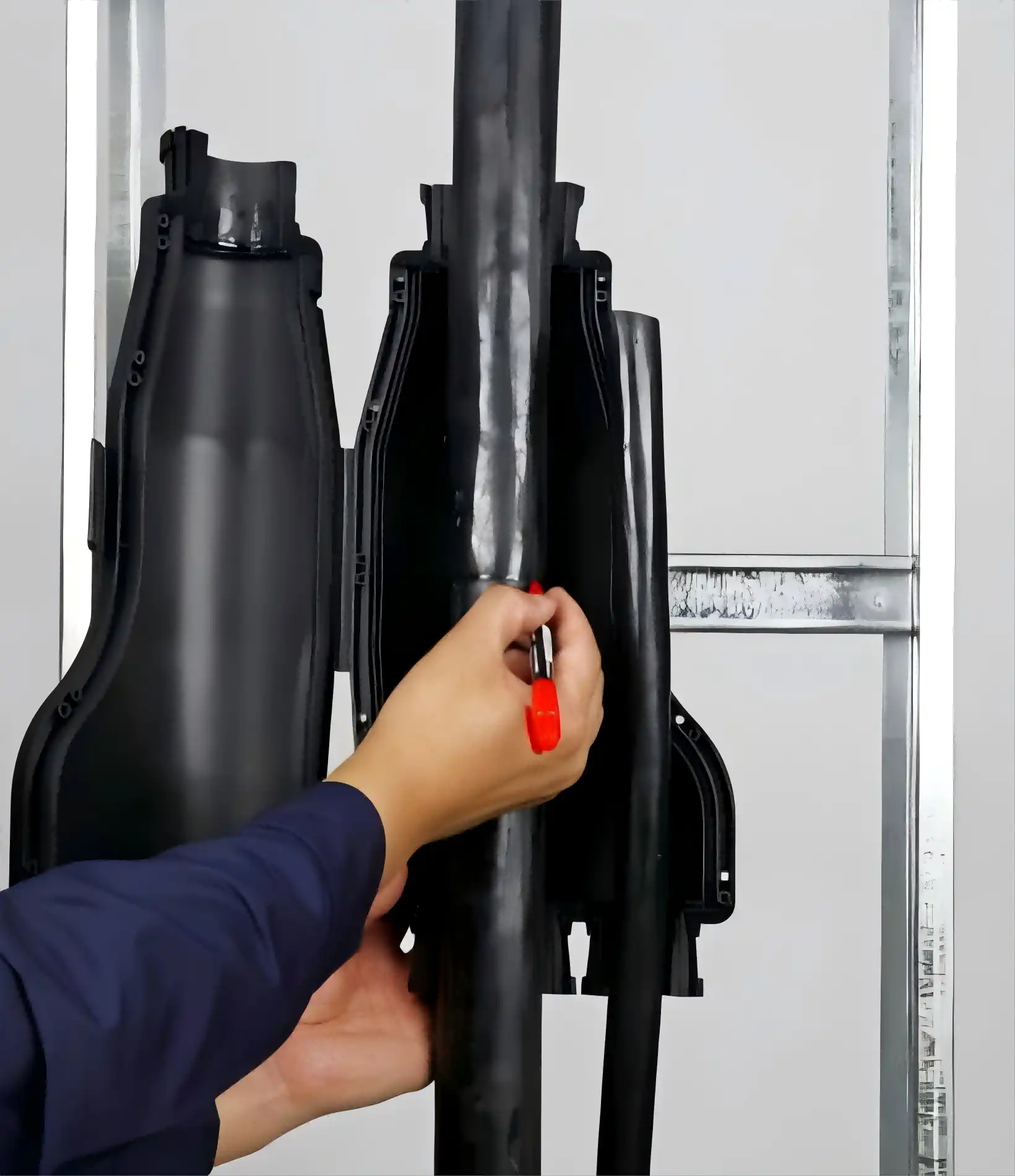

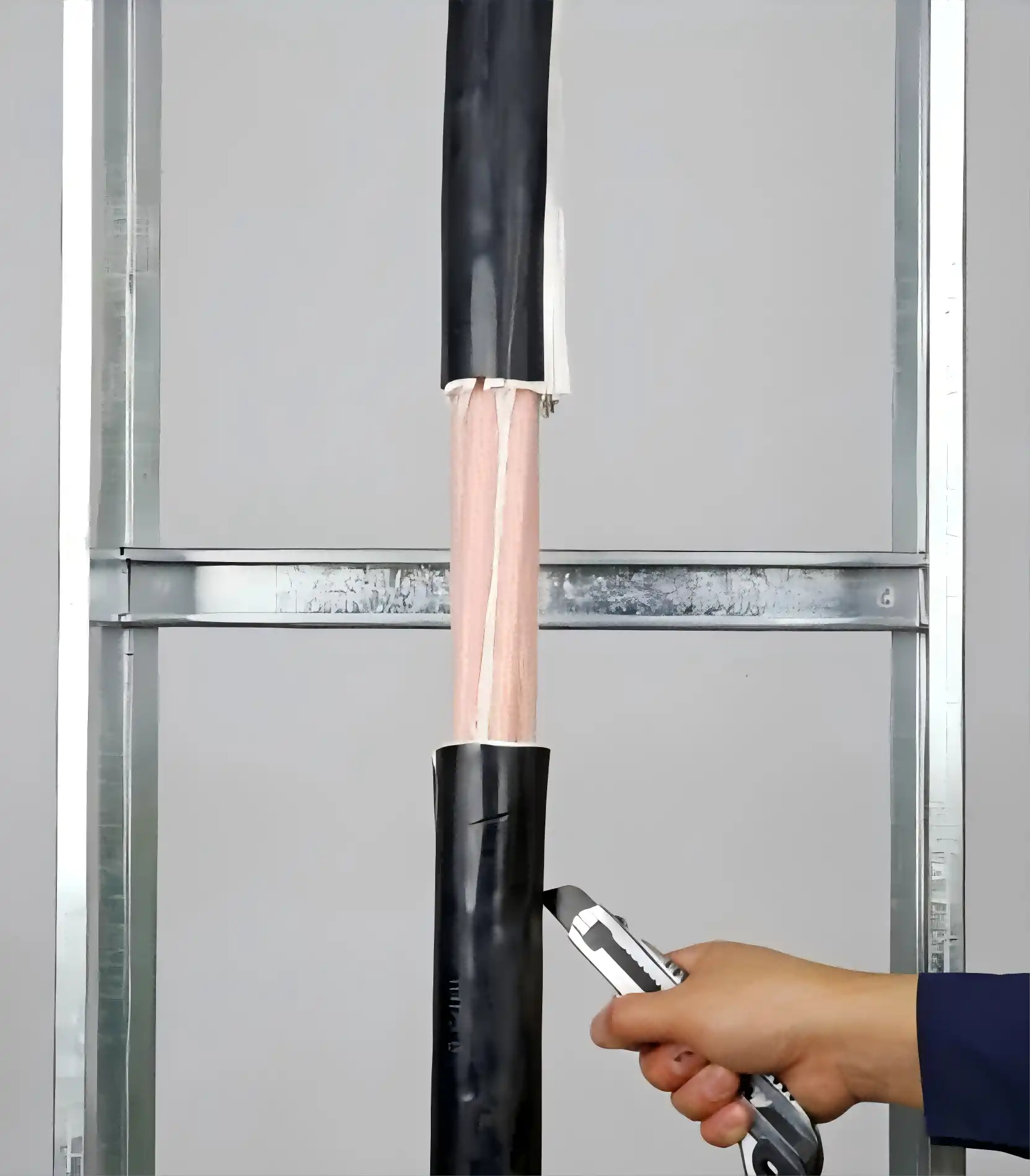

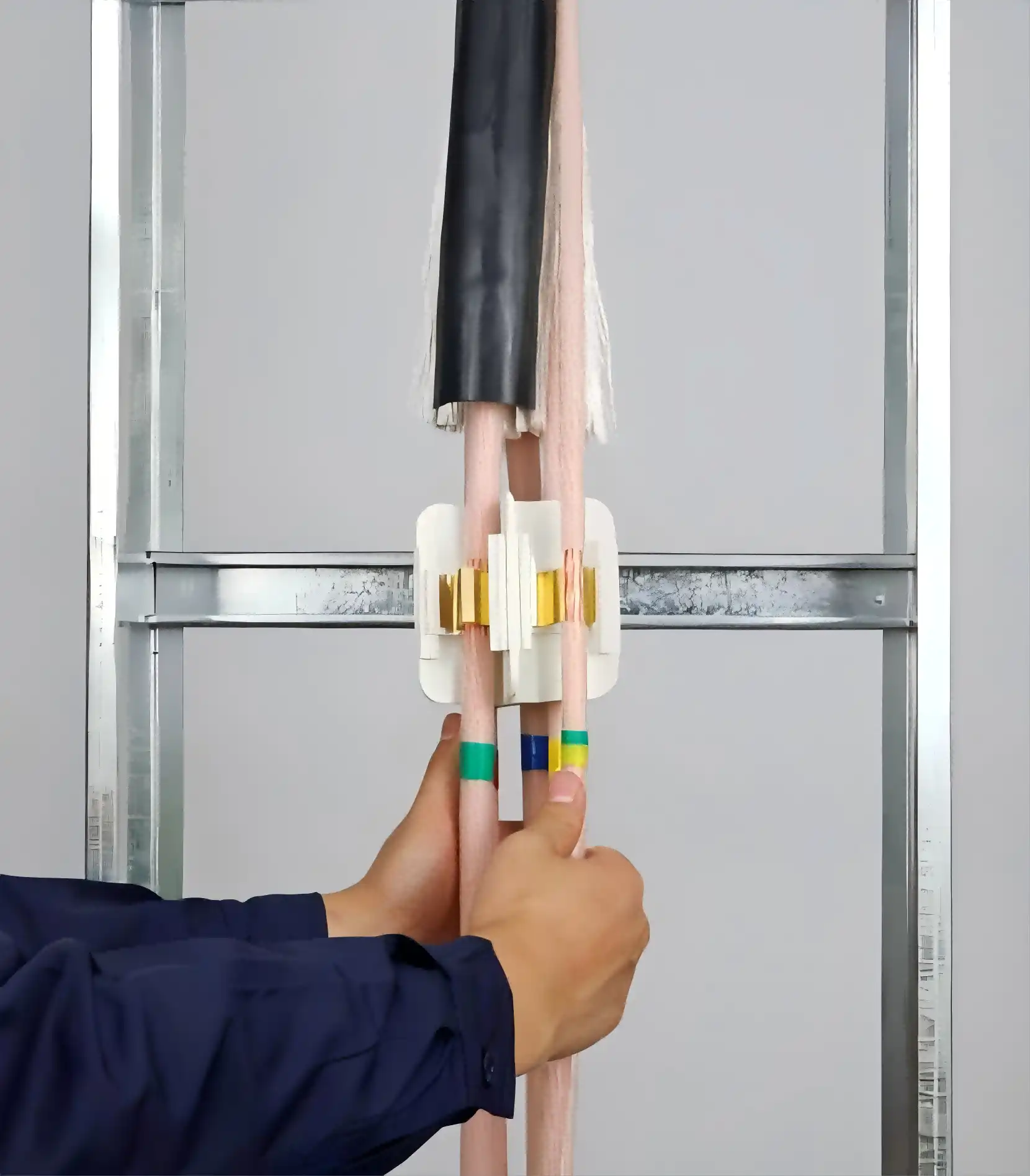

Installation Steps
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Advantages
Our Cable Branch Joint distinguishes itself through a range of notable benefits:
Flexible On-Site Installation: Designed for seamless integration, it allows for the straightforward installation and connection of cables at any point on-site, eliminating the need for pre-cutting the main cable. This flexibility facilitates a more efficient installation process, tailored to dynamic site requirements.
Unified and Sophisticated Design: The joint integrates multiple key attributes—safety, reliability, and a modern, sleek appearance—into a single, compact solution. This sophisticated design ensures not only functional excellence but also enhances the overall aesthetic appeal of the installation.
Space-Efficient Engineering: Its compact dimensions enable both open and bridge installations, optimizing available space and contributing to a more organized and efficient use of the environment.
Ease of Maintenance: Engineered for reusability, it offers straightforward maintenance processes, thereby significantly reducing both operational downtime and associated costs, ensuring long-term operational efficiency.
Robust Durability: Equipped with advanced features such as insulation, flame retardance, fire resistance, and resistance to dust, aging, and electrochemical corrosion. These attributes ensure exceptional longevity and reliability even under harsh conditions.
Cost-Effective Performance: By minimizing cable usage and labor costs, this joint enhances the overall efficiency of building space, delivering a cost-effective solution without compromising on performance or quality.
Technical Features
The Cable Branch Joint is packed with advanced technical features:
- No Main Cable Cutting Required: Connects without disrupting the main cable.
- Integrated Connector Body: Both main and branch cables connect seamlessly on a flame-retardant, fire-resistant body.
- Complete Insulation and Sealing: Ensures comprehensive protection for the branch cable.
Application
Our branch joint is exceptionally suited for a broad range of applications, particularly within the domain of low-voltage, flame-retardant, fire-resistant, and mineral-insulated cables. Its versatile design ensures compatibility across various settings, making it an ideal choice for diverse environments.
In residential settings, it offers a dependable connection solution that enhances the safety and efficiency of home electrical systems. For commercial applications, it ensures robust performance and reliability, supporting complex and high-demand electrical infrastructures. In industrial contexts, where durability and resilience are paramount, the cable joint provides a reliable and secure connection that withstands demanding conditions.
This adaptability across different project types underscores the joint's effectiveness in meeting the rigorous demands of varied environments. By delivering a high level of performance and reliability, our joint not only simplifies the installation process but also ensures long-term operational efficiency and safety across residential, commercial, and industrial applications.
OEM Service
At Xi'an OUKAMU, we offer tailored OEM services to meet your specific needs. Whether you require customized designs or specialized manufacturing, our team is equipped to deliver high-quality solutions that align with your project requirements.
FAQ
Q1: What types of cables can the Cable Branch Joint?
A1: The joint is designed to connect low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q2: Can the joint be used for outdoor installations?
A2: Yes, the product is suitable for both indoor and outdoor installations, thanks to its dustproof and waterproof features.
Q3: How does the cable joint improve installation efficiency?
A3: It allows for quick and easy on-site connections without cutting the main cable, reducing installation time and labor costs.
Q4: Is the cable joint reusable?
A4: Absolutely. The product is designed for reuse, making maintenance and future modifications easier and more cost-effective.
Q5: What are the key benefits of using the branch joint?
A5: The product offers flexibility, compact design, durability, and cost savings, making it an ideal choice for various cable connection needs.
