Cable Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 35~95mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance

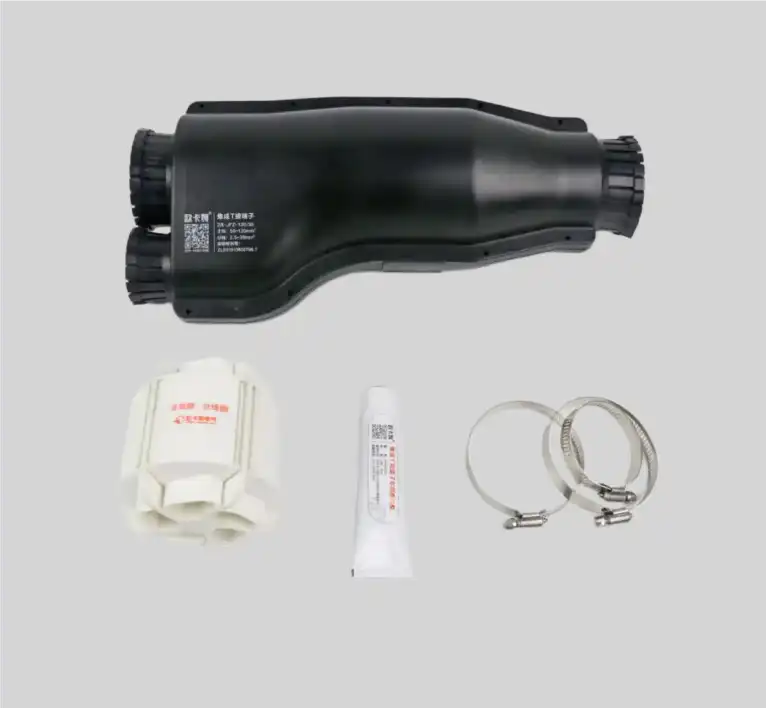

Cable Joint Introduction
At Xi'an OUKAMU, we are pioneers in cable T-connection technology, having invented the world's first integrated cable branch joint. Our Cable Joint product is a groundbreaking solution designed to connect multi-core main cables and branch cables efficiently and reliably. This innovative product has revolutionized cable branch connections, offering unmatched convenience, safety, and durability for a wide range of applications, particularly in environments requiring flame-retardant, fire-resistant, and mineral-insulated cables.
Advantage
Our Cable Joint stands out in the market due to several key advantages:
- Ease of Installation: Designed for on-site construction, our product allows for branch connections at any desired location without needing to cut the main cable, ensuring quick and hassle-free installation.
- Safety and Reliability: With a fully integrated design, our product ensures secure connections that are both fire-resistant and flame-retardant, meeting the highest safety standards.
- Aesthetic and Space-Saving Design: The compact and visually appealing structure of the product makes it suitable for open installations or within cable trays, maximizing space efficiency and maintaining an organized appearance.
- Cost-Effective: By saving on cable usage, reducing the need for extensive labor, and minimizing building area requirements, our product offers a low overall cost while delivering high performance.
- Durability: The product is designed to resist aging, electrochemical corrosion, and environmental factors such as dust and water, ensuring long-term reliability.

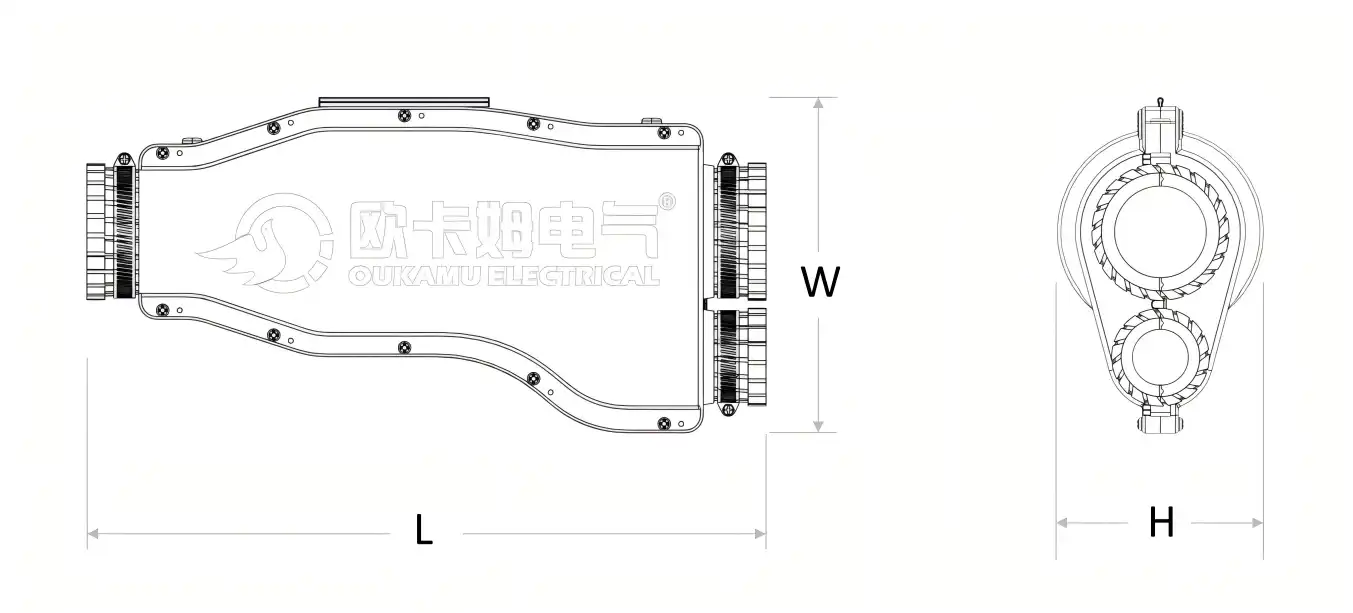

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

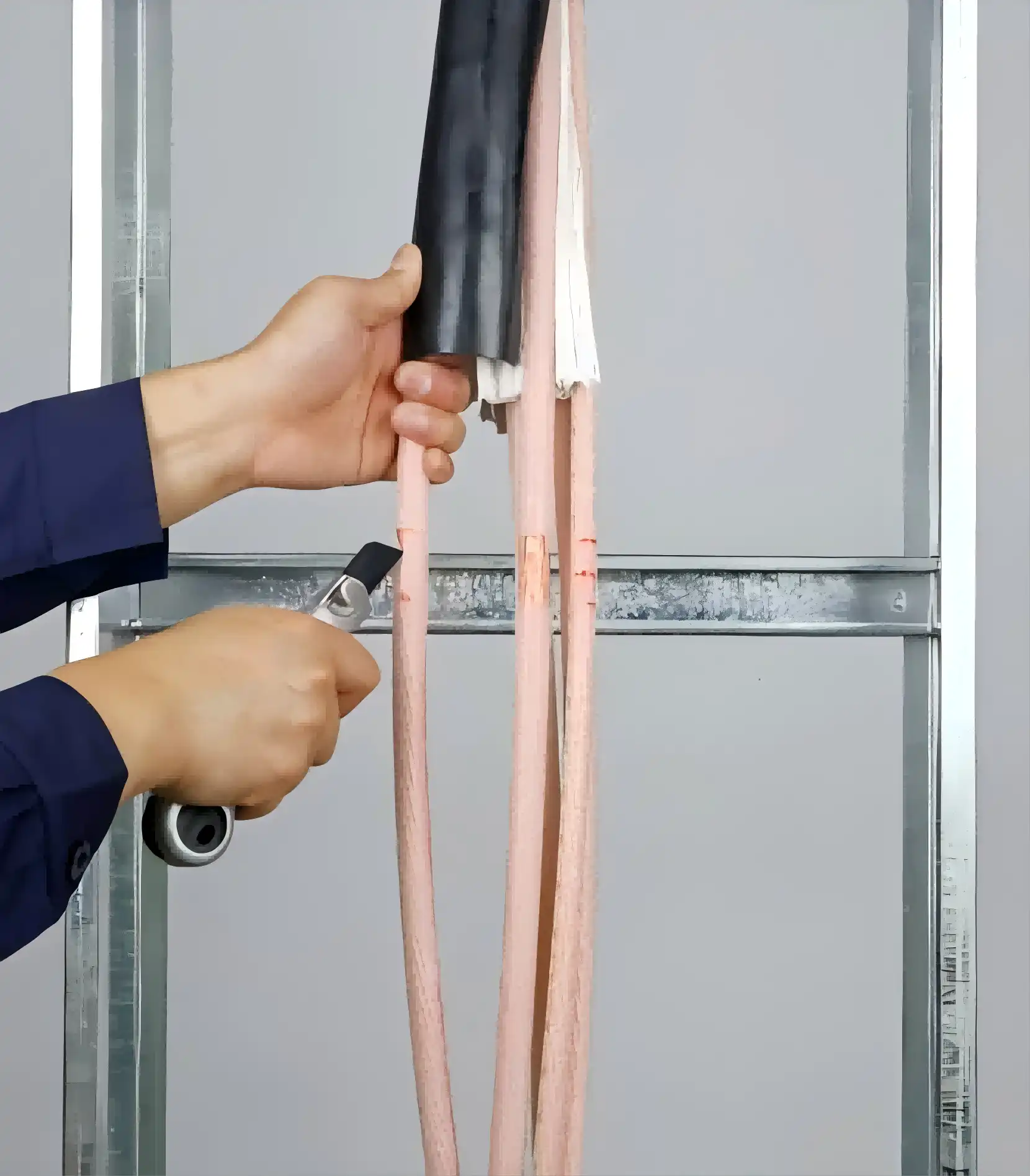

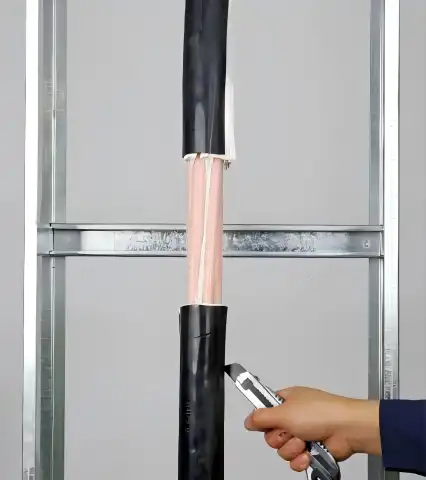

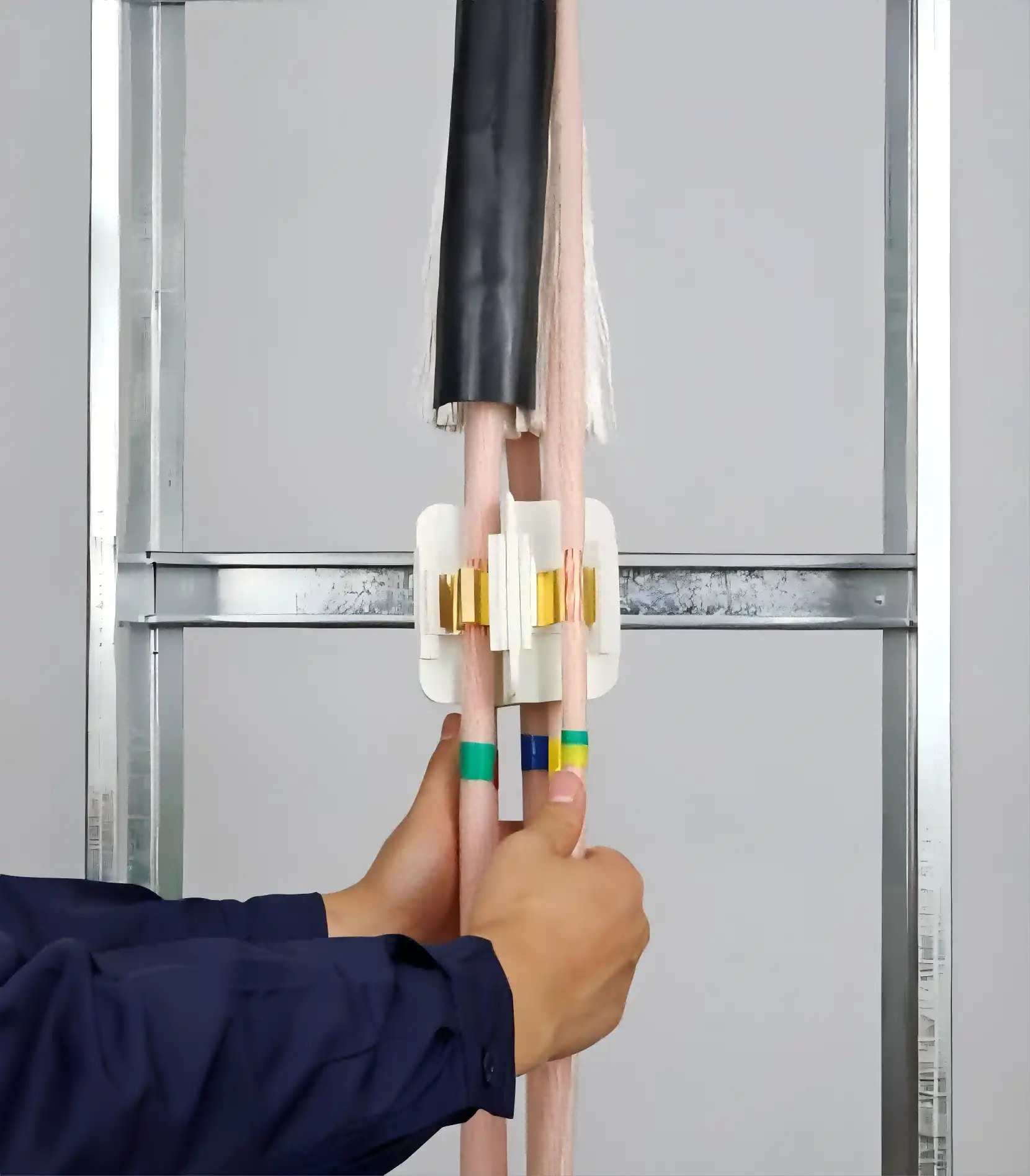

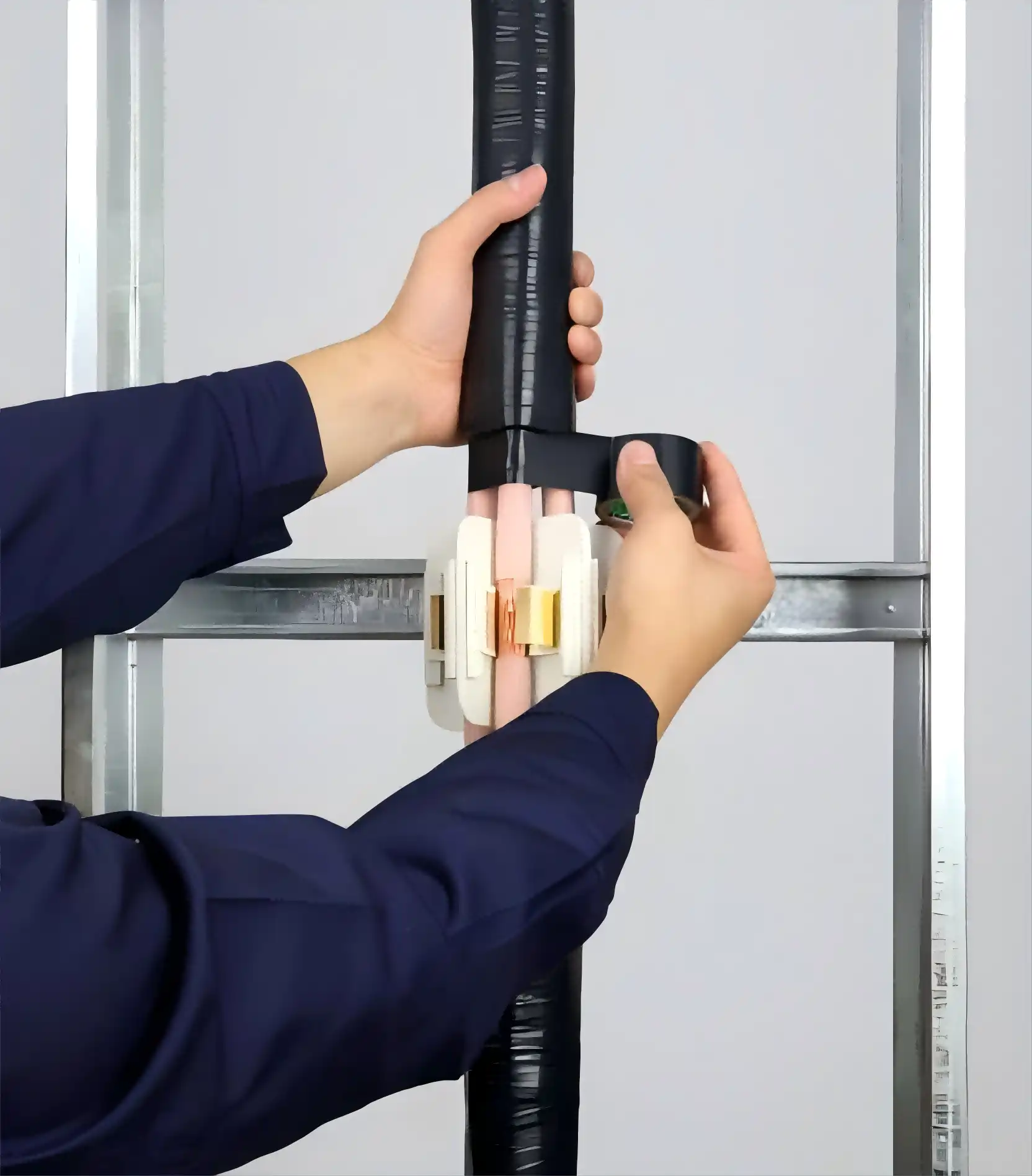

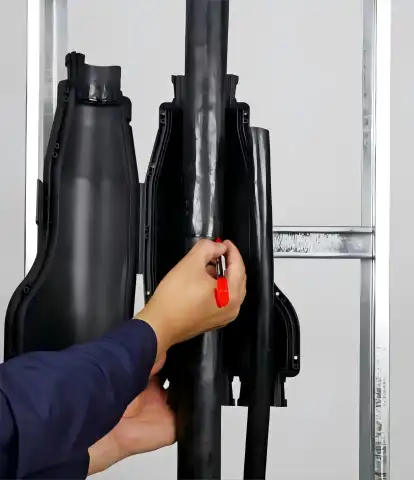

Installation Steps

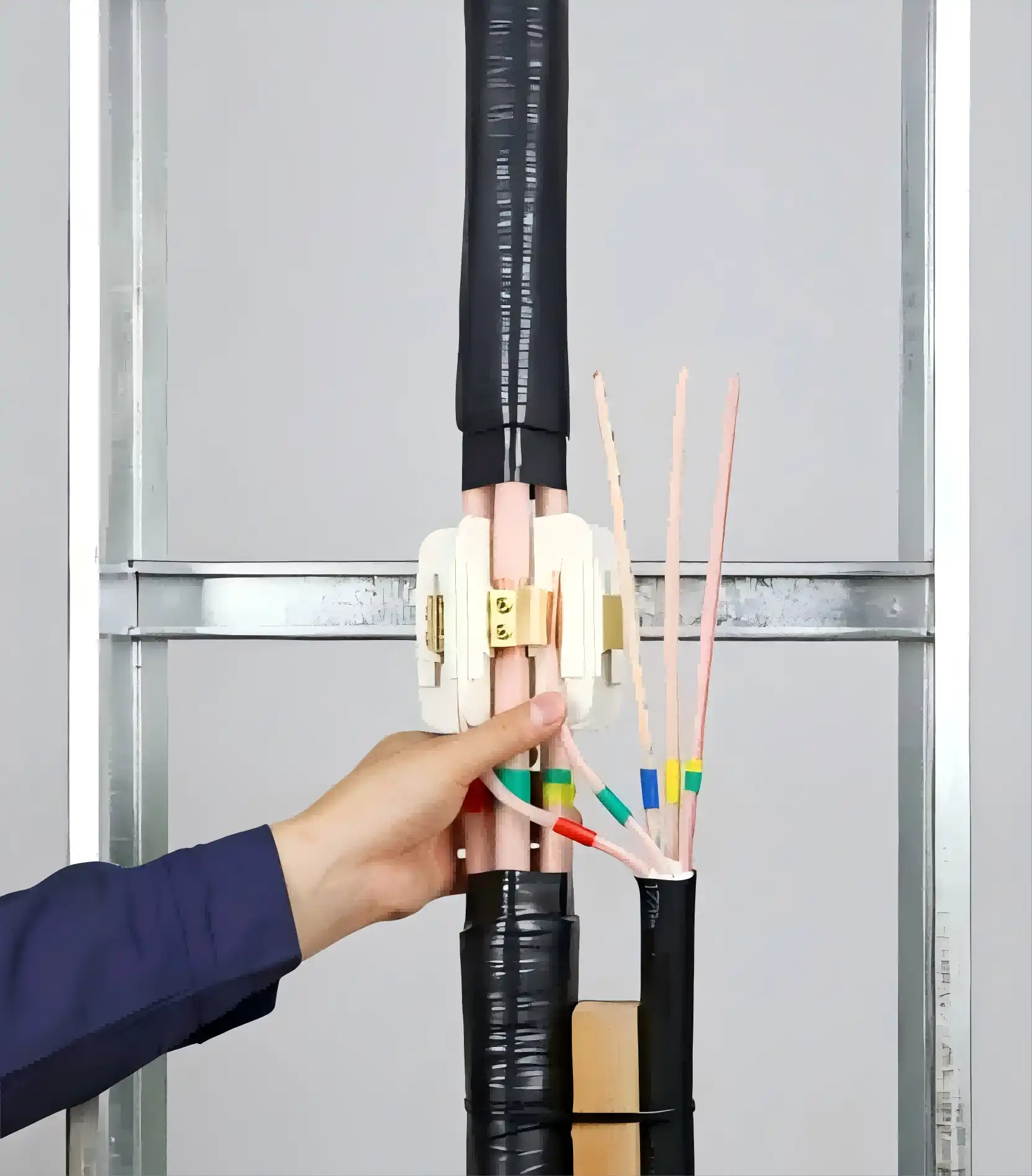

5.Installation of branch cable body

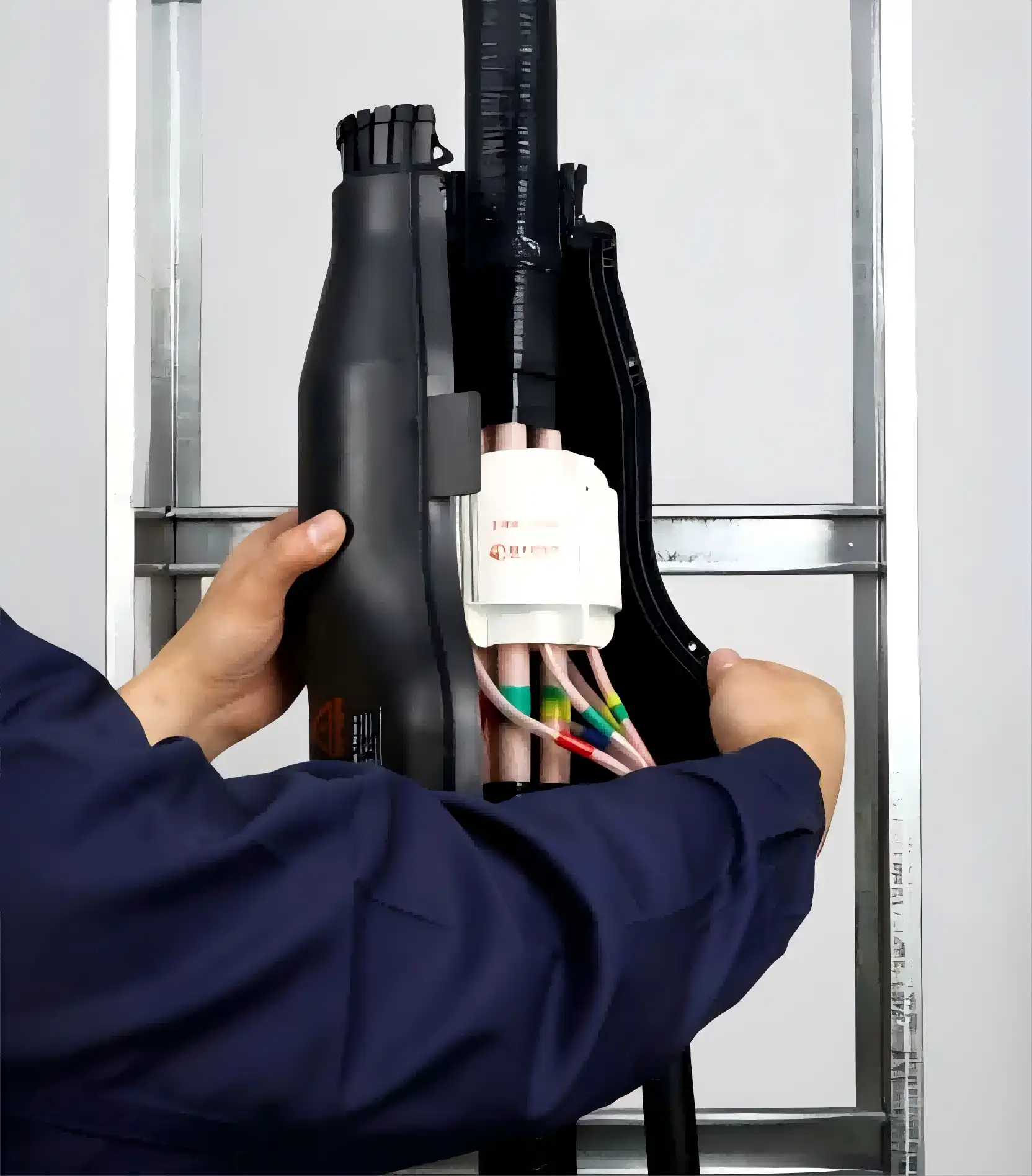

8.Snap-on protective housing

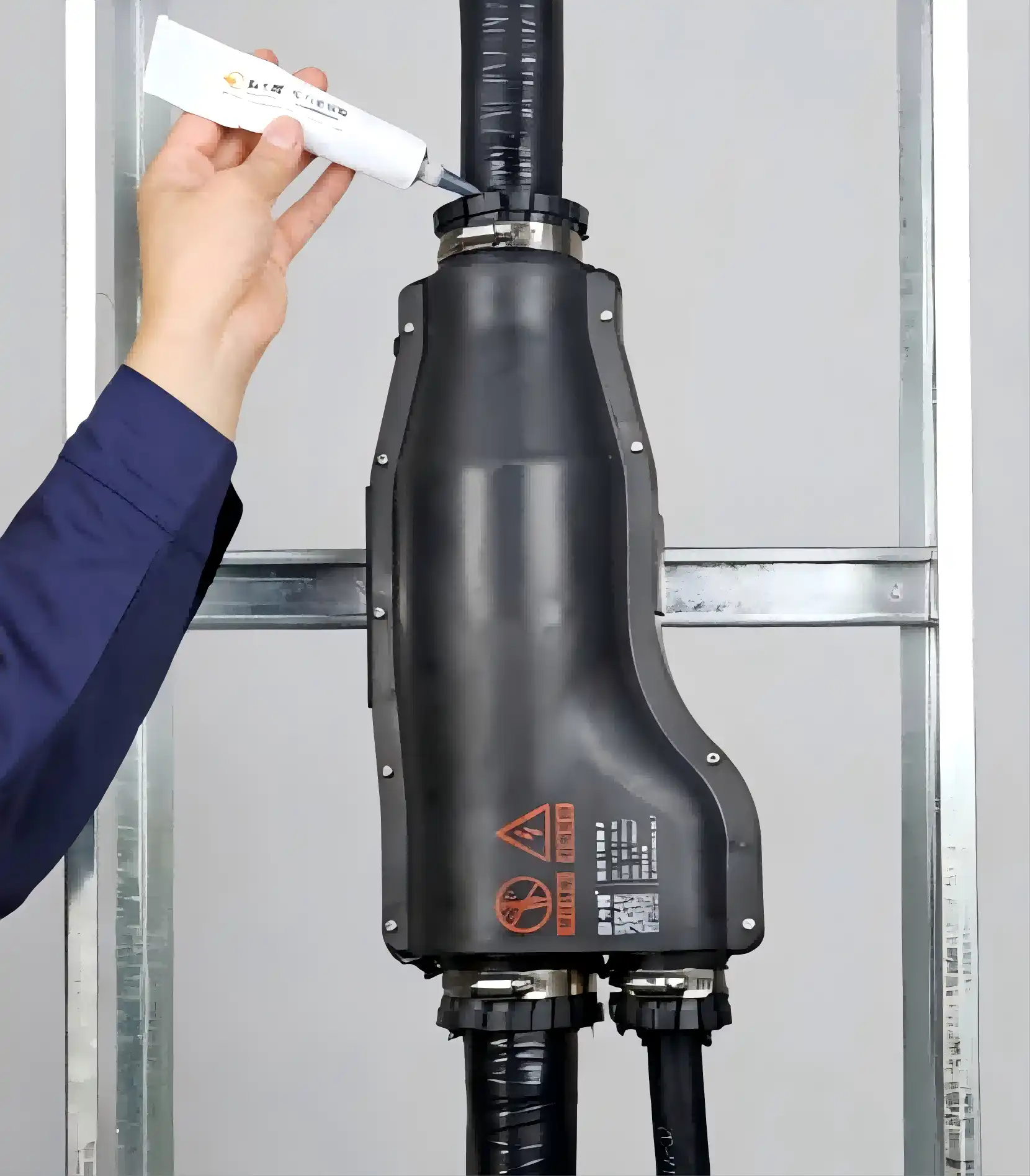

9.Lock and glue the cable outlet
10.Installation completed
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Features
Our Cable Joint is built with innovative features that enhance its performance:
- No Main Cable Cutting: The main cable remains intact, maintaining its structural integrity.
- Integrated Connection: The main and branch cables are connected on the flame-retardant/fire-resistant insulated body of the T-connector, ensuring a seamless and secure connection.
- Complete Insulation and Sealing: The branch cable is fully insulated and sealed, preventing any exposure to external elements.
R&D Center
At Xi'an OUKAMU, our commitment to innovation is driven by our dedicated R&D Center. Here, our team of experts continuously works on developing and refining our cable connection technologies to meet evolving industry standards and customer needs. Our R&D efforts have led to the creation of our patented integrated T-connection technology, setting new benchmarks in the industry.
Application
The Cable Joint is ideal for various applications, including:
- Residential and Commercial Buildings: Suitable for environments where flame retardancy and fire resistance are critical.
- Industrial Facilities: Perfect for installations requiring robust and reliable cable connections in challenging conditions.
- Infrastructure Projects: Used in projects where space efficiency and safety are paramount, such as tunnels and bridges.
Quality Control
Quality is at the core of everything we do at Xi'an OUKAMU. Our product undergoes rigorous testing to ensure it meets the highest standards of safety, durability, and performance. We follow stringent quality control processes at every stage of production, from material selection to final inspection, ensuring that our customers receive only the best products.
FAQ
Q1: What makes the product different from traditional connectors?
A1: Unlike traditional connectors, our product does not require the main cable to be cut, preserving its integrity while providing a secure, integrated connection.
Q2: Can the product be reused?
A2: Yes, our product is designed for easy maintenance and can be reused, offering long-term value.
Q3: Is the product suitable for outdoor installations?
A3: Absolutely. It is dustproof, waterproof, and resistant to aging, making it ideal for both indoor and outdoor applications.
Q4: How does the product contribute to cost savings?
A4: By reducing cable usage, minimizing labor, and saving space, our product offers significant cost savings over traditional solutions.
Q5: What certifications does the product hold?
A5: The product meets all relevant safety and performance standards, including those for flame retardancy and fire resistance.
